arxiv: 2604.20557 · v1 · submitted 2026-04-22 · 💻 cs.RO

Passive Variable Impedance For Shared Control

Maximilian M\"uhlbauer , Nepomuk Werner , Ribin Balachandran , Thomas Hulin , Jo\~ao Silv\'erio , Freek Stulp , Alin Albu-Sch\"affer This is my paper

Pith reviewed 2026-05-09 23:51 UTC · model grok-4.3

classification 💻 cs.RO
keywords shared controlvariable impedance controlpassivitystabilizationarbitrationstiffness matrixroboticswrench combination
0
0 comments X

The pith

Passivity corrections stabilize impedance controllers even when stiffness matrices and arbitration weights vary arbitrarily over time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies impedance control for shared robotics tasks in which multiple target poses are tracked simultaneously with time-varying importance. It reformulates both the variable-stiffness part of each controller and the weighted combination of their output wrenches into one closed-loop system, then locates the points at which passivity is lost. Correction methods are supplied that restore passivity while leaving the stiffness matrices and the arbitration factors completely unconstrained: they may be full matrices containing off-diagonal terms and may change at any rate. A reader would care because these freedoms remove the usual trade-off between adaptability and stability that has limited previous shared-control designs.

Core claim

By treating variable-stiffness impedance control and the scaled addition of multiple controller wrenches as a single closed-loop system, the paper identifies the resulting passivity violations and supplies passivation methods that eliminate them. These methods stabilize the overall system without any restriction on the design or time variation of the stiffness matrices or arbitration factors, both of which may remain fully general matrix-valued quantities. The same approach therefore stabilizes ordinary impedance controllers and opens the way to new, more flexible shared-control behaviors.

What carries the argument

A holistic closed-loop formulation that unites variable-stiffness impedance control with time-varying wrench arbitration, together with explicit passivation techniques that restore passivity without constraining the matrices or their rate of change.

If this is right

  • Standard impedance controllers become stabilizable even when their stiffness matrices change arbitrarily over time.
  • Multiple controllers can be combined through matrix-valued arbitration factors that include off-diagonal elements and switch at any rate.
  • Shared-control designers no longer need to simplify or freeze stiffness and weighting schedules to keep the system passive.
  • The same stabilization procedure applies across different robot platforms and produces usable behaviors in both simulation and hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers could now use stiffness profiles learned directly from human demonstration without hand-tuning them for passivity.
  • The passivation logic may extend to other families of variable-gain controllers beyond classical impedance control.
  • Real-time adaptation of robot compliance during close physical interaction could become both safer and more responsive.

Load-bearing premise

The proposed passivation methods restore passivity without introducing new instabilities or forcing any limits on how the stiffness and arbitration matrices can vary with time.

What would settle it

A concrete stiffness schedule or arbitration sequence that meets the passivation conditions yet produces growing oscillations or instability in the closed-loop robot would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.20557 by Alin Albu-Sch\"affer, Freek Stulp, Jo\~ao Silv\'erio, Maximilian M\"uhlbauer, Nepomuk Werner, Ribin Balachandran, Thomas Hulin.

Figure 1
Figure 1. Figure 1: Multiple impedance-based shared control methods with attractors [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Port-network representation of the shared control system with [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

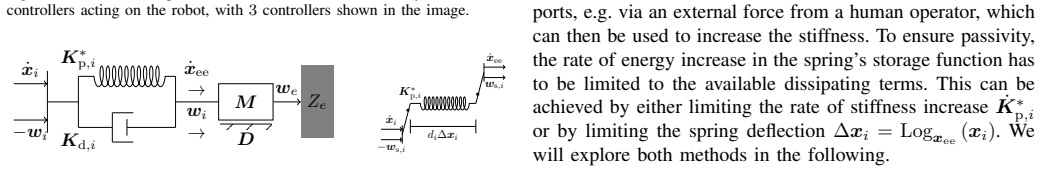

Figure 3
Figure 3. Figure 3: Mechanical equivalent of the modified stiffness gains (left) and lever [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

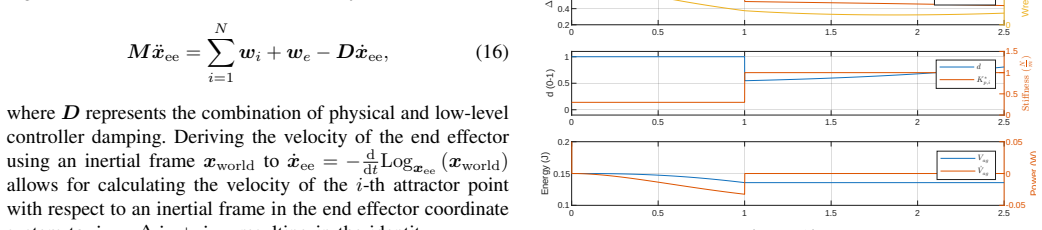

Figure 4
Figure 4. Figure 4: Limiting the deflection ∆x to d∆x in continuous time simulation through (22). At t = 1, we simulate a step in the desired stiffness K∗ p,i. Algorithm 1 Limiting the spring deflection at k + 1. Pd,i,k ← ∆x˙ ⊤ i,kKd,i,k∆x˙ i,k−1 ▷ Damping (19) di,k+1 ← min(di,k+1, 1) ▷ Scaling d, limit to [0, 1] (24) wi,k+1 ← wpass(di,k+1, K∗ p,i,k+1, Kd,i,k+1) ▷ (22) To this end, (13), (16) and (17) can be reformulated for … view at source ↗
Figure 5
Figure 5. Figure 5: Limiting the stiffness change rate K˙ + p,i to diK˙ ∗ p,i to ensure passivity. B. Limiting the Stiffness Change As proposed by [14], [23], we also investigate limiting the rate of stiffness change; in our case however for full stiffness matrix changes K˙ ∗ p,i. This leads to the storage function V = 1 2 x˙ ⊤ eeMx˙ ee + X i 1 2 ∆x ⊤ i K+ p,i∆xi (25) where K+ p,i is the stiffness matrix resulting from the mo… view at source ↗
Figure 8
Figure 8. Figure 8: At t = 0.5 s, an attractor is commanded to the baseline [9]. Due to the tank containing more energy than its lower limit ϵ, the stiffness change is realized instantly, leading to a fast robot motion. At t = 5 s, a human operator starts deflecting the spring. As soon as the tank is depleted, chattering leads to the spring being activated and deactivated at high frequency. 0 5 10 15 "x(m) -0.04 -0.02 0 Wrenc… view at source ↗
Figure 9
Figure 9. Figure 9: Testing the approach of limiting the stiffness change with rotational [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 12
Figure 12. Figure 12: In this scenario, a human operator starts the robot in a configuration [PITH_FULL_IMAGE:figures/full_fig_p007_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Passivating an attractor on the cylindrical manifold [PITH_FULL_IMAGE:figures/full_fig_p007_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Passivation of the arbitration (3) using the stiffness adaptation of N [PITH_FULL_IMAGE:figures/full_fig_p007_14.png] view at source ↗
read the original abstract

Shared Control methods often use impedance control to track target poses in a robotic manipulator. The guidance behavior of such controllers is shaped by the used stiffness gains, which can be varying over time to achieve an adaptive guiding. When multiple target poses are tracked at the same time with varying importance, the corresponding output wrenches have to be arbitrated with weightings changing over time. In this work, we study the stabilization of both variable stiffness in impedance control as well as the arbitration of different controllers through a scaled addition of their output wrenches, reformulating both into a holistic framework. We identify passivity violations in the closed loop system and provide methods to passivate the system. The resulting approach can be used to stabilize standard impedance controllers, allowing for the development of novel and flexible shared control methods. We do not constrain the design of stiffness matrices or arbitration factors; both can be matrix-valued including off-diagonal elements and change arbitrarily over time. The proposed methods are furthermore validated in simulation as well as in real robot experiments on different systems, proving their effectiveness and showcasing different behaviors which can be utilized depending on the requirements of the shared control approach.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper presents a holistic framework reformulating variable-stiffness impedance control and time-varying arbitration of multiple output wrenches into a single closed-loop system. It identifies passivity violations arising from the time variation of matrix-valued stiffness K(t) (including off-diagonal terms) and arbitration weights, then supplies passivation methods (storage-function augmentation or equivalent) to restore passivity. The central claim is that the resulting controllers remain stable while imposing no constraints on the design or time variation of K(t) and the arbitration factors, which may be matrix-valued and change arbitrarily fast. The approach is validated in simulation and on real manipulators.

Significance. If the passivation methods indeed restore passivity without implicit rate bounds or new instabilities for completely unconstrained matrix-valued K(t) and arbitration, the result would enable more flexible shared-control schemes than existing variable-impedance techniques. The experimental demonstrations on multiple platforms provide concrete evidence of practical utility and different behavioral regimes.

major comments (3)
  1. [Abstract, §4] Abstract and §4 (passivation derivation): the claim that K(t) and arbitration factors 'can change arbitrarily over time' without constraints is load-bearing, yet the storage-function or tank-based correction typically introduces dissipation terms proportional to dK/dt or rotation rates of principal axes; the manuscript must explicitly prove or demonstrate that these corrections remain valid for unbounded rates and non-diagonal time variation without new closed-loop poles or energy leaks.
  2. [§5] §5 (real-robot experiments): the reported trajectories use moderate variation speeds; without additional trials at higher rates or with rapidly rotating off-diagonal stiffness, the 'arbitrarily over time' guarantee is not fully supported by the evidence.
  3. [§3.2] §3.2 (arbitration formulation): the scaled addition of wrenches is shown to preserve passivity only after the proposed correction; it is unclear whether the correction couples the arbitration weights to the stiffness dynamics in a way that restricts independent arbitrary variation of both.
minor comments (3)
  1. [§2] Notation for the matrix-valued arbitration factors should be introduced earlier and kept consistent with the stiffness-matrix notation.
  2. [Figures 4-6] Figure captions could more explicitly state the variation rates used in each trial to aid reproducibility.
  3. [§1] A short comparison table against prior energy-tank or damping-injection methods would clarify the novelty of the holistic treatment.

Simulated Author's Rebuttal

3 responses · 0 unresolved

Thank you for the detailed review and valuable feedback on our manuscript. We appreciate the opportunity to clarify the aspects of our passivity-preserving framework for variable impedance control and shared control arbitration. Below, we provide point-by-point responses to the major comments, indicating the revisions we will make to address them.

read point-by-point responses

  1. Referee: [Abstract, §4] Abstract and §4 (passivation derivation): the claim that K(t) and arbitration factors 'can change arbitrarily over time' without constraints is load-bearing, yet the storage-function or tank-based correction typically introduces dissipation terms proportional to dK/dt or rotation rates of principal axes; the manuscript must explicitly prove or demonstrate that these corrections remain valid for unbounded rates and non-diagonal time variation without new closed-loop poles or energy leaks.

    Authors: We thank the referee for highlighting this important point. In our derivation in §4, the storage function is augmented with terms that exactly cancel the contributions from dK/dt, including off-diagonal elements and arbitrary rates. This ensures passivity without imposing rate bounds or introducing additional closed-loop dynamics beyond the original system. We will revise §4 to include a more explicit step-by-step proof demonstrating that the passivation holds for unbounded time variations and non-diagonal matrices, without new poles or energy leaks. The correction is designed such that the dissipation terms are compensated within the storage function itself. revision: yes

  2. Referee: [§5] §5 (real-robot experiments): the reported trajectories use moderate variation speeds; without additional trials at higher rates or with rapidly rotating off-diagonal stiffness, the 'arbitrarily over time' guarantee is not fully supported by the evidence.

    Authors: The experiments in §5 are intended to validate the practical applicability on real hardware across different platforms and behavioral regimes, rather than to exhaustively test the theoretical bounds. The theoretical results in §4 establish the guarantee for arbitrary rates independently of the experimental conditions. However, to strengthen the empirical support, we will add simulation results in a revised §5 or appendix showing performance under higher variation rates and rapidly changing off-diagonal terms. The real-robot experiments already include time-varying stiffness with off-diagonal components, albeit at moderate speeds. revision: partial

  3. Referee: [§3.2] §3.2 (arbitration formulation): the scaled addition of wrenches is shown to preserve passivity only after the proposed correction; it is unclear whether the correction couples the arbitration weights to the stiffness dynamics in a way that restricts independent arbitrary variation of both.

    Authors: The passivation correction for the arbitration of multiple controllers is formulated independently of the individual impedance controllers' stiffness matrices. In §3.2, the scaled addition is treated as a separate port-Hamiltonian interconnection, and the storage function augmentation for the arbitration weights does not depend on or constrain the K(t) of the individual controllers. This allows both the stiffness matrices and arbitration factors to vary arbitrarily and independently. We will revise the text in §3.2 to explicitly state this independence and provide a brief proof sketch showing no coupling that restricts variation. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper reformulates variable-stiffness impedance control and time-varying arbitration into a single framework, identifies passivity violations via standard storage-function analysis, and supplies passivation corrections. No step reduces a claimed prediction or uniqueness result to a parameter fitted inside the paper, nor does any load-bearing premise collapse to a self-citation whose content is itself unverified or defined by the present work. The assertion that matrix-valued K(t) and arbitration weights may vary arbitrarily (including off-diagonal terms) follows from the proposed energy-tank or damping-injection constructions without circular redefinition of the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract, the paper relies on standard assumptions from passivity-based control theory (e.g., robot dynamics being passive or Lagrangian) and does not introduce new free parameters, invented entities, or ad-hoc axioms visible at this level.

axioms (1)
  • domain assumption Robot manipulator dynamics admit a passive port-Hamiltonian or Lagrangian representation
    Implicit in any impedance-control passivity analysis; required for the closed-loop passivity claims.

pith-pipeline@v0.9.0 · 5524 in / 1309 out tokens · 22993 ms · 2026-05-09T23:51:42.928838+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. MOMO: A framework for seamless physical, verbal, and graphical robot skill learning and adaptation

    cs.RO 2026-04 unverdicted novelty 5.0

    MOMO integrates kinesthetic teaching, a tool-based LLM for safe language adaptation, Kernelized Movement Primitives, probabilistic virtual fixtures, and ergodic control to support seamless physical, verbal, and graphi...

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages · cited by 1 Pith paper

  1. [1]

    Impedance control: An approach to manipulation,

    N. Hogan, “Impedance control: An approach to manipulation,” in1984 American Control Conference. IEEE, 07 1984

    work page 1984

  2. [2]

    A learning-based shared control architecture for interactive task execution,

    F. Abi-Farraj, T. Osa, N. P. J. Peters, G. Neumann, and P. R. Gior- dano, “A learning-based shared control architecture for interactive task execution,” in2017 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 05 2017

    work page 2017

  3. [3]

    A unified framework for probabilistic dynamic-, trajectory- and vision-based virtual fixtures,

    M. M ¨uhlbauer, B. Weber, S. Calinon, F. Stulp, A. Albu-Sch ¨affer, and J. Silv ´erio, “A unified framework for probabilistic dynamic-, trajectory- and vision-based virtual fixtures,” 2025. [Online]. Available: https://arxiv.org/abs/2506.10239

    work page arXiv 2025

  4. [4]

    Haptic shared control: smoothly shifting control authority?

    D. A. Abbink, M. Mulder, and E. R. Boer, “Haptic shared control: smoothly shifting control authority?”Cognition, Technology & Work, vol. 14, no. 1, pp. 19–28, 2011

    work page 2011

  5. [5]

    Variable impedance control and learning—a review,

    F. J. Abu-Dakka and M. Saveriano, “Variable impedance control and learning—a review,”Frontiers in Robotics and AI, vol. 7, 2020

    work page 2020

  6. [6]

    Ilosa: Interactive learning of stiffness and attractors,

    G. Franzese, A. Meszaros, L. Peternel, and J. Kober, “Ilosa: Interactive learning of stiffness and attractors,” in2021 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 09 2021, pp. 7778–7785

    work page 2021

  7. [7]

    A probabilistic approach to multi-modal adaptive virtual fixtures,

    M. M ¨uhlbauer, T. Hulin, B. Weber, S. Calinon, F. Stulp, A. Albu- Sch¨affer, and J. Silv ´erio, “A probabilistic approach to multi-modal adaptive virtual fixtures,”IEEE Robotics and Automation Letters, vol. 9, no. 6, pp. 5298–5305, 2024

    work page 2024

  8. [8]

    A learning-based shared control approach for contact tasks,

    Y . Michel, Z. Li, and D. Lee, “A learning-based shared control approach for contact tasks,”IEEE Robotics and Automation Letters, vol. 8, no. 12, pp. 8002–8009, 2023

    work page 2023

  9. [9]

    A tank-based approach to impedance control with variable stiffness,

    F. Ferraguti, C. Secchi, and C. Fantuzzi, “A tank-based approach to impedance control with variable stiffness,” in2013 IEEE International Conference on Robotics and Automation. IEEE, 2013, pp. 4948–4953

    work page 2013

  10. [10]

    Time-domain passivity control of haptic interfaces,

    B. Hannaford and J.-H. Ryu, “Time-domain passivity control of haptic interfaces,”IEEE Transactions on Robotics and Automation, vol. 18, no. 1, pp. 1–10, 2002

    work page 2002

  11. [11]

    Stability considerations for variable impedance control,

    K. Kronander and A. Billard, “Stability considerations for variable impedance control,”IEEE Transactions on Robotics, vol. 32, no. 5, pp. 1298–1305, 2016

    work page 2016

  12. [12]

    Passivity filter for variable impedance control,

    M. Bednarczyk, H. Omran, and B. Bayle, “Passivity filter for variable impedance control,” in2020 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2020, pp. 7159–7164

    work page 2020

  13. [13]

    A finite- gain stable multi-agent robot control framework with adaptive authority allocation,

    R. Balachandran, H. Mishra, M. Panzirsch, and C. Ott, “A finite- gain stable multi-agent robot control framework with adaptive authority allocation,” in2021 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2021, pp. 1579–1585

    work page 2021

  14. [14]

    Passive arbitration in adaptive shared control of robots with variable force and stiffness scaling,

    R. Balachandran, M. De Stefano, H. Mishra, C. Ott, and A. Albu- Sch¨affer, “Passive arbitration in adaptive shared control of robots with variable force and stiffness scaling,”Mechatronics, vol. 90, p. 102930, 2023

    work page 2023

  15. [15]

    H. K. Khalil,Nonlinear Systems. Prentice Hall, 2002, vol. 3

    work page 2002

  16. [16]

    A geometric op- timal control approach for imitation and generalization of manipulation skills,

    B. Ti, A. Razmjoo, Y . Gao, J. Zhao, and S. Calinon, “A geometric op- timal control approach for imitation and generalization of manipulation skills,”Robotics and Autonomous Systems, vol. 164, p. 104413, 2023

    work page 2023

  17. [17]

    Impedance control on arbitrary surfaces for ultrasound scanning using discrete differential geometry,

    M. Dyck, A. Sachtler, J. Klodmann, and A. Albu-Schaffer, “Impedance control on arbitrary surfaces for ultrasound scanning using discrete differential geometry,”IEEE Robotics and Automation Letters, vol. 7, no. 3, pp. 7738–7746, 2022

    work page 2022

  18. [18]

    Cartesian impedance control of redundant robots: recent results with the dlr-light- weight-arms,

    A. Albu-Sch ¨affer, C. Ott, U. Frese, and G. Hirzinger, “Cartesian impedance control of redundant robots: recent results with the dlr-light- weight-arms,” in2003 IEEE International Conference on Robotics and Automation, vol. 3, 2003, pp. 3704–3709 vol.3

    work page 2003

  19. [19]

    On the spatial compliance of robotic manipulators,

    E. D. Fasse, “On the spatial compliance of robotic manipulators,” Journal of Dynamic Systems, Measurement, and Control, vol. 119, no. 4, pp. 839–844, 1997

    work page 1997

  20. [20]

    Spatial compliance modeling using a quaternion-based potential function method,

    S. Zhang and E. D. Fasse, “Spatial compliance modeling using a quaternion-based potential function method,”Multibody System Dynam- ics, vol. 4, no. 1, pp. 75–101, 2000

    work page 2000

  21. [21]

    Co-manipulation with a library of virtual guiding fixtures,

    G. Raiola, S. S. Restrepo, P. Chevalier, P. Rodriguez-Ayerbe, X. Lamy, S. Tliba, and F. Stulp, “Co-manipulation with a library of virtual guiding fixtures,”Autonomous Robots, vol. 42, no. 5, pp. 1037–1051, 11 2017

    work page 2017

  22. [22]

    Enhancing bilateral teleoperation using camera-based online vir- tual fixtures generation,

    M. Selvaggio, G. Notomista, F. Chen, B. Gao, F. Trapani, and D. Cald- well, “Enhancing bilateral teleoperation using camera-based online vir- tual fixtures generation,” in2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 10 2016

    work page 2016

  23. [23]

    A stable and transparent framework for adaptive shared control of robots,

    R. Balachandran, “A stable and transparent framework for adaptive shared control of robots,” Ph.D. dissertation, Technische Universitaet Muenchen, 2022. [Online]. Available: https://elib.dlr.de/188393/

    work page 2022

  24. [24]

    Dynamics,

    R. Featherstone and D. E. Orin, “Dynamics,” inSpringer Handbook of Robotics. Springer Berlin Heidelberg, 2008, pp. 35–65

    work page 2008

  25. [25]

    Passive-set-position-modulation framework for interactive robotic systems,

    D. Lee and K. Huang, “Passive-set-position-modulation framework for interactive robotic systems,” vol. 26, no. 2, pp. 354–369

    work page

  26. [26]

    R. A. Horn,Matrix analysis, 2nd ed., C. R. Johnson, Ed. Cambridge University Press, 2017

    work page 2017

  27. [27]

    Stability analysis of admittance control using asymmetric stiffness matrix,

    T. Tsuji and Y . Kato, “Stability analysis of admittance control using asymmetric stiffness matrix,” 2023

    work page 2023
