pith. sign in

arxiv: 2604.21796 · v1 · submitted 2026-04-23 · ❄️ cond-mat.mtrl-sci · cond-mat.mes-hall

Electronic and Vibrational Properties of On-Surface Synthesized Gulf-Edged Chiral Graphene Nanoribbons

Xuanchen Li , Amogh Kinikar , Vikas Sharma , Andres Ortega Guerrero , George F. S. Whitehead , Mickael Lucien Perrin , Carlo A. Pignedoli , Roman Fasel
show 2 more authors
Ashok Keerthi Gabriela Borin Barin
This is my paper

Pith reviewed 2026-05-09 21:26 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords graphene nanoribbonson-surface synthesischiral edgesscanning tunneling spectroscopyRaman spectroscopybandgapsemiconductornon-contact atomic force microscopy
0
0 comments X

The pith

A new on-surface synthesis produces gulf-edged chiral graphene nanoribbons that are closed-shell semiconductors with a 1.8 eV bandgap.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors develop a precursor motif that grows graphene nanoribbons with gulf edges and chiral character, structures previously inaccessible by standard acene-based designs. Scanning probe microscopy tracks the growth steps and confirms the atomic layout, while scanning tunneling spectroscopy combined with simulations shows the ribbons behave as semiconductors without unpaired spins. Raman measurements identify vibrational modes, one of which may mark chiral nanoribbons, and reveal that the material degrades in air even though its edges are non-spin-polarized. This combination of structural, electronic, and vibrational data supplies concrete design rules for expanding the range of edge topologies in graphene nanoribbons.

Core claim

The paper shows that a rationally designed precursor motif enables on-surface synthesis of gulf-edged chiral graphene nanoribbons whose atomic structure is verified by non-contact atomic force microscopy. Scanning tunneling spectroscopy and theoretical simulations establish that the ribbons are closed-shell semiconductors possessing a 1.8 eV bandgap, while Raman spectroscopy uncovers a distinctive vibrational mode that may serve as a fingerprint for chiral nanoribbons and documents ambient instability despite the large gap and non-spin-polarized edges.

What carries the argument

The gulf-edged chiral graphene nanoribbon produced by the new precursor motif, which carries the electronic and vibrational signatures measured in the study.

If this is right

  • The 1.8 eV bandgap places these nanoribbons in the range useful for room-temperature nanoelectronic components.
  • The identified Raman mode offers a practical spectroscopic marker for confirming chiral edge structures in future samples.
  • The observed ambient instability indicates that stability in graphene nanoribbons is not guaranteed by large gaps or non-spin-polarized edges alone.
  • The synthesis motif supplies a template that can guide the design of additional chiral and gulf-edged nanoribbons with varied widths or chiralities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The motif could be adapted to create heterojunctions between gulf-edged chiral segments and other edge types for engineered band alignments.
  • The vibrational fingerprint may allow rapid, non-contact identification of similar chiral nanoribbons in mixed samples or devices.
  • If the instability mechanism is tied to specific edge segments, targeted passivation strategies could improve shelf life without changing the electronic gap.

Load-bearing premise

The imaged atomic structure and measured properties belong to the exact gulf-edged chiral arrangement the authors intended, rather than to defects or an unintended configuration.

What would settle it

A scanning tunneling spectrum or calculation on the same structure that instead shows a substantially different bandgap or open-shell spin polarization would falsify the closed-shell semiconductor assignment.

Figures

Figures reproduced from arXiv: 2604.21796 by Amogh Kinikar, Andres Ortega Guerrero, Ashok Keerthi, Carlo A. Pignedoli, Gabriela Borin Barin, George F. S. Whitehead, Mickael Lucien Perrin, Roman Fasel, Vikas Sharma, Xuanchen Li.

Figure 1

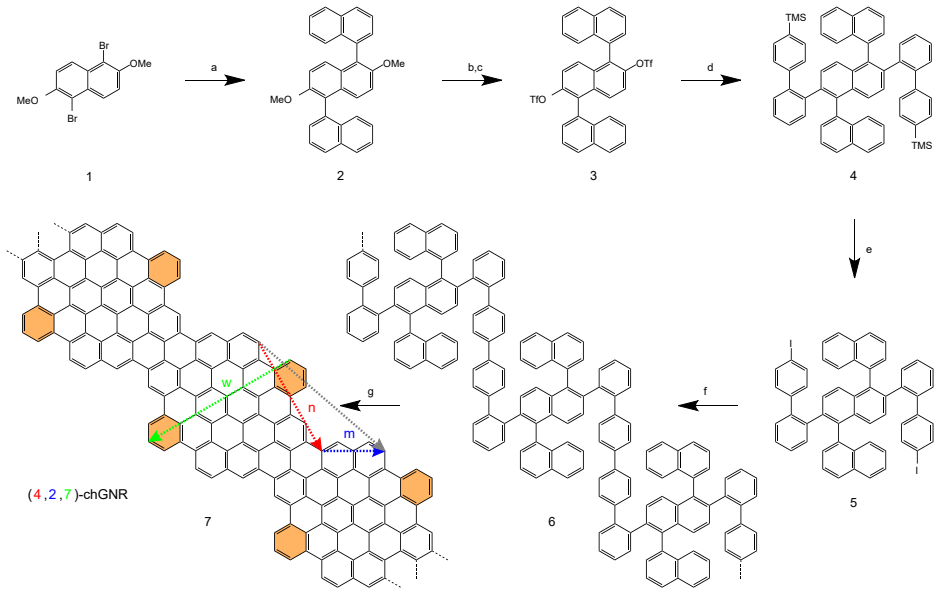

Figure 1. Figure 1: Synthetic route towards the (4,2,7)-chGNR. Reagents and conditions: [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

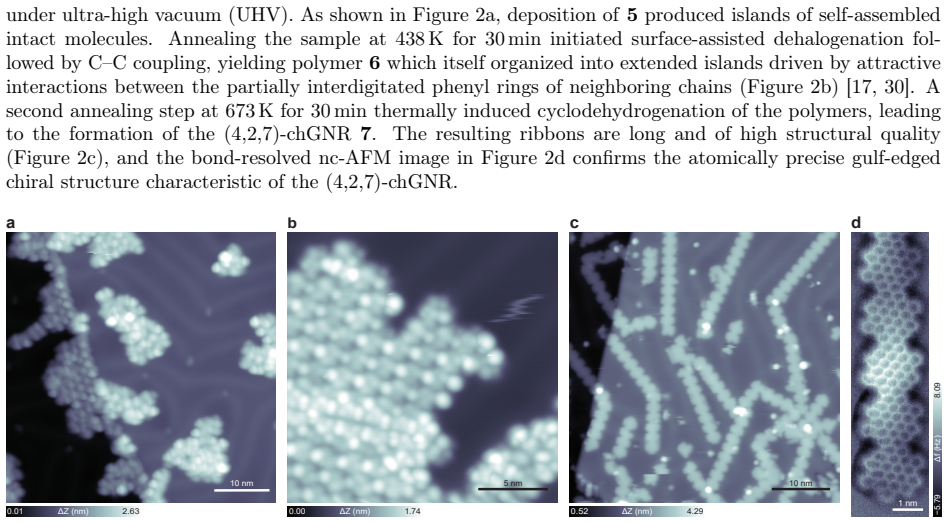

Figure 2. Figure 2: On-surface synthesis of (4,2,7)-chGNR via surface-assisted dehalogenation and polymerization of monomer 5, followed by cyclodehydrogenation of polymer 6. (a–c) STM topography image of monomers 5, polymer 6, and (4,2,7)-chGNR 7 on the Au(111) surface. All STM measurements were performed at 4.5 K. Scanning parameters: (a) −0.4 V, 20 pA; (b) 1 V, 50 pA; (c) −1 V, 20 pA. The STM images were post-processed by s… view at source ↗
Figure 3

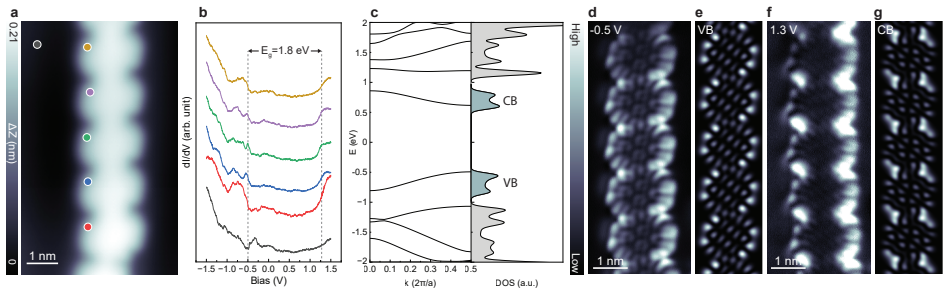

Figure 3. Figure 3: Electronic characterization of the (4,2,7)-chGNR. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

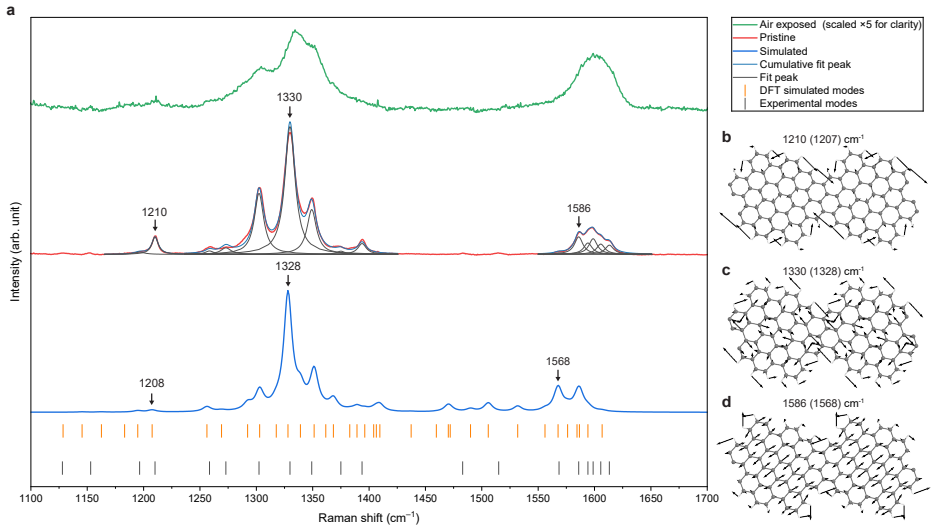

Figure 4. Figure 4: High-frequency region of the Raman spectrum for (4,2,7)-chGNR and the DFT-simulated vibra [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

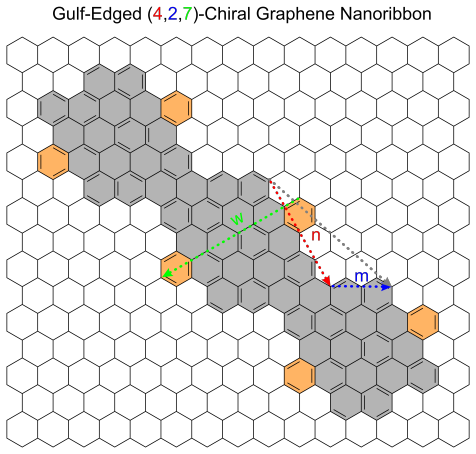

Figure 5. Figure 5: For Table of Contents Only 11 [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

On-surface synthesis enables the fabrication of graphene nanoribbons (GNRs) with atomic precision, allowing their electronic, optical, and magnetic properties to be tuned by engineering edge structure and width. Progress on the synthesis of chiral GNRs has nevertheless remained limited, largely because existing precursor designs rely on laterally fused acene units and cannot access edge topologies beyond armchair and zigzag. Here, we introduce a new on-surface synthesis motif that yields a gulf-edged chiral GNR. The growth steps are monitored by scanning probe microscopy, and the atomic structure is confirmed by non-contact atomic force microscopy. Scanning tunneling spectroscopy combined with theoretical simulations identifies the gulf-edged chiral GNR as a closed-shell semiconductor with a bandgap of 1.8 eV. Raman spectroscopy reveals vibrational properties, including a distinctive mode that may serve as a fingerprint for chiral GNRs. The Raman analysis further uncovers ambient instability despite the large bandgap and non-spin-polarized edges, consistent with prior reports linking GNR stability to zigzag edge features. This work establishes a rationally designed synthesis motif for chiral GNRs and provides a combined structural, electronic, and vibrational characterization, offering guidelines for future synthesis strategies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper reports the on-surface synthesis of gulf-edged chiral graphene nanoribbons using a new precursor motif. Growth is monitored by scanning probe microscopy, atomic structure is confirmed via nc-AFM, electronic properties are characterized by STS combined with DFT simulations identifying a closed-shell semiconductor with 1.8 eV bandgap, and vibrational properties are probed by Raman spectroscopy, which also reveals ambient instability despite the large gap and non-spin-polarized edges.

Significance. If the structural identification is robust, this work meaningfully expands GNR synthesis capabilities by enabling chiral edge topologies not accessible via prior acene-fusion approaches. The multi-modal experimental characterization (STM, nc-AFM, STS, Raman) paired with simulations provides a solid template for future studies, and the proposed Raman fingerprint mode for chiral GNRs is a potentially useful practical contribution. The stability discussion also ties into broader literature on edge-dependent GNR reactivity.

major comments (2)
  1. [Structural characterization (nc-AFM and simulations)] The assignment of the 1.8 eV closed-shell bandgap specifically to the gulf-edged chiral GNR is load-bearing on the nc-AFM structural confirmation. In the structural characterization section, the manuscript compares nc-AFM images to simulations but provides no quantitative agreement metrics (e.g., bond-length RMSD, image overlap scores) and does not explicitly compare against plausible alternatives such as defective fusions or edge reconstructions. This leaves open the possibility that the imaged species is not the intended motif, undermining the bandgap and closed-shell claims.
  2. [Electronic properties (STS measurements)] The reported 1.8 eV bandgap from STS is presented as a key result without error bars, detailed spectral fitting procedures, or raw dI/dV data in the main text. In the electronic properties section, this omission limits independent verification of the semiconductor identification and its precision, especially since the abstract highlights the value without supporting tables or statistics.
minor comments (2)
  1. [Abstract] The abstract would be strengthened by briefly noting the precursor design or key synthesis conditions to contextualize the new motif for readers.
  2. [Raman spectroscopy analysis] In the Raman section, providing specific wavenumber values for the proposed fingerprint mode and direct comparisons to armchair or zigzag GNR spectra would improve clarity and utility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and positive assessment of the significance of our work. We address the two major comments point by point below and will revise the manuscript to strengthen the quantitative aspects of the structural and electronic characterizations.

read point-by-point responses

  1. Referee: [Structural characterization (nc-AFM and simulations)] The assignment of the 1.8 eV closed-shell bandgap specifically to the gulf-edged chiral GNR is load-bearing on the nc-AFM structural confirmation. In the structural characterization section, the manuscript compares nc-AFM images to simulations but provides no quantitative agreement metrics (e.g., bond-length RMSD, image overlap scores) and does not explicitly compare against plausible alternatives such as defective fusions or edge reconstructions. This leaves open the possibility that the imaged species is not the intended motif, undermining the bandgap and closed-shell claims.

    Authors: We thank the referee for this important point on structural validation. The nc-AFM images exhibit clear visual correspondence with the simulated gulf-edged structure, and the precursor design and growth conditions are tailored to yield this specific motif without alternative pathways. Nevertheless, we agree that quantitative metrics and explicit checks against alternatives would further solidify the assignment. In the revised manuscript, we will add bond-length RMSD values computed between the experimental nc-AFM contrast and the DFT-simulated images, along with simulated nc-AFM images for plausible defective fusions and edge-reconstructed structures. These additions will appear in the structural characterization section and supplementary information. revision: yes

  2. Referee: [Electronic properties (STS measurements)] The reported 1.8 eV bandgap from STS is presented as a key result without error bars, detailed spectral fitting procedures, or raw dI/dV data in the main text. In the electronic properties section, this omission limits independent verification of the semiconductor identification and its precision, especially since the abstract highlights the value without supporting tables or statistics.

    Authors: We appreciate the referee's suggestion to improve the transparency of the STS analysis. The bandgap value of 1.8 eV was extracted from multiple dI/dV spectra acquired on different ribbons, but we acknowledge that error bars, fitting details, and raw data would aid verification. In the revision, we will include the standard deviation as error bars on the reported bandgap, provide a brief description of the onset-fitting procedure in the main text, and add representative raw dI/dV curves (with background subtraction) to the electronic properties figure. Full statistics from all measured spectra and additional raw data will be placed in the supplementary information. revision: yes

Circularity Check

0 steps flagged

No circularity in derivation chain; results rest on independent measurements and standard simulations

full rationale

The paper's claims rest on direct experimental observations (on-surface synthesis monitored by SPM, nc-AFM for atomic structure, STS for the 1.8 eV bandgap, Raman for vibrational modes) combined with standard theoretical simulations. No load-bearing equations, fitted parameters, or self-citations reduce any prediction or identification to a tautology by construction. The bandgap assignment and closed-shell conclusion follow from spectroscopy data matched to independent DFT calculations rather than from parameters defined by the target result itself. Structure assignment relies on imaging and comparison to the designed precursor, without self-referential definitions or uniqueness theorems imported from the authors' prior work that would force the outcome.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on established experimental techniques in surface science and standard quantum chemistry simulations for bandgap prediction; no new entities or ad-hoc parameters are introduced in the abstract.

axioms (1)
  • domain assumption Density functional theory or equivalent simulations reliably predict the electronic structure and bandgap of GNRs with given edge configurations
    Invoked to confirm the closed-shell semiconductor character and 1.8 eV value from STS data.

pith-pipeline@v0.9.0 · 5561 in / 1198 out tokens · 25288 ms · 2026-05-09T21:26:42.368726+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

93 extracted references · 93 canonical work pages

  1. [1]

    Nature Nanotechnology , author =

    Proposal for an all-spin logic device with built-in memory , volume =. Nature Nanotechnology , author =. 2010 , note =. doi:10.1038/nnano.2010.31 , abstract =

    work page doi:10.1038/nnano.2010.31 2010

  2. [2]

    Nature , author =

    Atomically precise bottom-up fabrication of graphene nanoribbons , volume =. Nature , author =. 2010 , pages =. doi:10.1038/nature09211 , language =

    work page doi:10.1038/nature09211 2010

  3. [3]

    Advanced Materials , author =

    Graphene. Advanced Materials , author =. 2020 , note =. doi:10.1002/adma.202001893 , abstract =

    work page doi:10.1002/adma.202001893 2020

  4. [4]

    Journal of the American Chemical Society , author =

    Nanographenes and. Journal of the American Chemical Society , author =. 2022 , note =. doi:10.1021/jacs.2c02491 , abstract =

    work page doi:10.1021/jacs.2c02491 2022

  5. [5]

    Nature Materials , author =

    Spintronics and pseudospintronics in graphene and topological insulators , volume =. Nature Materials , author =. 2012 , note =. doi:10.1038/nmat3305 , abstract =

    work page doi:10.1038/nmat3305 2012

  6. [6]

    Nature , author =

    On-surface synthesis of graphene nanoribbons with zigzag edge topology , volume =. Nature , author =. 2016 , note =. doi:10.1038/nature17151 , abstract =

    work page doi:10.1038/nature17151 2016

  7. [7]

    Nature Physics , author =

    Spin qubits in graphene quantum dots , volume =. Nature Physics , author =. 2007 , note =. doi:10.1038/nphys544 , abstract =

    work page doi:10.1038/nphys544 2007

  8. [8]

    Chemical Society Reviews , author =

    Atomically precise graphene nanoribbons: interplay of structural and electronic properties , volume =. Chemical Society Reviews , author =. 2021 , note =. doi:10.1039/D0CS01541E , language =

    work page doi:10.1039/d0cs01541e 2021

  9. [9]

    Nanoscale , author =

    On-surface synthesis and characterization of teranthene and hexanthene: ultrashort graphene nanoribbons with mixed armchair and zigzag edges , volume =. Nanoscale , author =. 2023 , note =. doi:10.1039/D3NR03736C , language =

    work page doi:10.1039/d3nr03736c 2023

  10. [10]

    Chemical Society Reviews , author =

    New advances in nanographene chemistry , volume =. Chemical Society Reviews , author =. 2015 , note =. doi:10.1039/C5CS00183H , language =

    work page doi:10.1039/c5cs00183h 2015

  11. [11]

    Chemistry of Materials , author =

    Preparation,. Chemistry of Materials , author =. 2022 , note =. doi:10.1021/acs.chemmater.1c04215 , abstract =

    work page doi:10.1021/acs.chemmater.1c04215 2022

  12. [12]

    Nano Letters , author =

    Bottom-up. Nano Letters , author =. 2024 , note =. doi:10.1021/acs.nanolett.4c01106 , abstract =

    work page doi:10.1021/acs.nanolett.4c01106 2024

  13. [13]

    Leopold, R

    On-. Advanced Materials , author =. 2016 , note =. doi:10.1002/adma.201505738 , abstract =

    work page doi:10.1002/adma.201505738 2016

  14. [14]

    Reviews in Physics , author =

    Graphene nanoribbons:. Reviews in Physics , author =. 2023 , keywords =. doi:10.1016/j.revip.2023.100082 , abstract =

    work page doi:10.1016/j.revip.2023.100082 2023

  15. [15]

    The Journal of Organic Chemistry , author =

    A. The Journal of Organic Chemistry , author =. 2020 , note =. doi:10.1021/acs.joc.9b02814 , abstract =

    work page doi:10.1021/acs.joc.9b02814 2020

  16. [16]

    Nature Communications , author =

    Deceptive orbital confinement at edges and pores of carbon-based. Nature Communications , author =. 2024 , note =. doi:10.1038/s41467-024-45138-w , abstract =

    work page doi:10.1038/s41467-024-45138-w 2024

  17. [17]

    Journal of the American Chemical Society , author =

    Synthesis and. Journal of the American Chemical Society , author =. 2019 , note =. doi:10.1021/jacs.9b05319 , abstract =

    work page doi:10.1021/jacs.9b05319 2019

  18. [18]

    Journal of the American Chemical Society , author =

    Aza-. Journal of the American Chemical Society , author =. 2022 , note =. doi:10.1021/jacs.1c12618 , abstract =

    work page doi:10.1021/jacs.1c12618 2022

  19. [19]

    Physical Sciences Reviews , author =

    Solution. Physical Sciences Reviews , author =. 2017 , note =. doi:10.1515/psr-2016-0108 , abstract =

    work page doi:10.1515/psr-2016-0108 2017

  20. [20]

    Nature Communications , author =

    Exciton-dominated optical response of ultra-narrow graphene nanoribbons , volume =. Nature Communications , author =. 2014 , note =. doi:10.1038/ncomms5253 , abstract =

    work page doi:10.1038/ncomms5253 2014

  21. [21]

    Nature Communications , author =

    Ultra-narrow metallic armchair graphene nanoribbons , volume =. Nature Communications , author =. 2015 , note =. doi:10.1038/ncomms10177 , abstract =

    work page doi:10.1038/ncomms10177 2015

  22. [22]

    Nature Nanotechnology , author =

    Synthesis and characterization of triangulene , volume =. Nature Nanotechnology , author =. 2017 , note =. doi:10.1038/nnano.2016.305 , abstract =

    work page doi:10.1038/nnano.2016.305 2017

  23. [23]

    Nature Nanotechnology , author =

    Quantized edge modes in atomic-scale point contacts in graphene , volume =. Nature Nanotechnology , author =. 2017 , note =. doi:10.1038/nnano.2017.24 , abstract =

    work page doi:10.1038/nnano.2017.24 2017

  24. [24]

    Nature Communications , author =

    Giant edge state splitting at atomically precise graphene zigzag edges , volume =. Nature Communications , author =. 2016 , note =. doi:10.1038/ncomms11507 , abstract =

    work page doi:10.1038/ncomms11507 2016

  25. [25]

    Nanoscale , author =

    Probing optical excitations in chevron-like armchair graphene nanoribbons , volume =. Nanoscale , author =. 2017 , note =. doi:10.1039/C7NR06175G , language =

    work page doi:10.1039/c7nr06175g 2017

  26. [26]

    Carbon , author =

    Charge carrier transport and separation in pristine and nitrogen-doped graphene nanowiggle heterostructures , volume =. Carbon , author =. 2015 , pages =. doi:10.1016/j.carbon.2015.08.111 , abstract =

    work page doi:10.1016/j.carbon.2015.08.111 2015

  27. [27]

    Physical Review B , author =

    Quantum. Physical Review B , author =. 2013 , note =. doi:10.1103/PhysRevB.87.155441 , abstract =

    work page doi:10.1103/physrevb.87.155441 2013

  28. [28]

    Nature Communications , author =

    Topological phase transition in chiral graphene nanoribbons: from edge bands to end states , volume =. Nature Communications , author =. 2021 , note =. doi:10.1038/s41467-021-25688-z , abstract =

    work page doi:10.1038/s41467-021-25688-z 2021

  29. [29]

    Journal of the American Chemical Society , author =

    Cove-. Journal of the American Chemical Society , author =. 2024 , note =. doi:10.1021/jacs.3c11975 , abstract =

    work page doi:10.1021/jacs.3c11975 2024

  30. [30]

    Chemistry – An Asian Journal , author =

    On-surface. Chemistry – An Asian Journal , author =. 2020 , note =. doi:10.1002/asia.202001008 , abstract =

    work page doi:10.1002/asia.202001008 2020

  31. [31]

    ACS Nano , author =

    Purely. ACS Nano , author =. 2016 , note =. doi:10.1021/acsnano.6b04025 , abstract =

    work page doi:10.1021/acsnano.6b04025 2016

  32. [32]

    Journal of the American Chemical Society , author =

    Bottom-. Journal of the American Chemical Society , author =. 2018 , note =. doi:10.1021/jacs.8b06210 , abstract =

    work page doi:10.1021/jacs.8b06210 2018

  33. [33]

    Nature , author =

    Topological band engineering of graphene nanoribbons , volume =. Nature , author =. 2018 , note =. doi:10.1038/s41586-018-0376-8 , abstract =

    work page doi:10.1038/s41586-018-0376-8 2018

  34. [34]

    Carbon , author =

    Graphene nanoribbons with mixed cove-cape-zigzag edge structure , volume =. Carbon , author =. 2021 , keywords =. doi:10.1016/j.carbon.2020.12.069 , abstract =

    work page doi:10.1016/j.carbon.2020.12.069 2021

  35. [35]

    Advanced Materials , author =

    Massive. Advanced Materials , author =. 2020 , note =. doi:10.1002/adma.201906054 , abstract =

    work page doi:10.1002/adma.201906054 2020

  36. [36]

    Talirz, H

    On-. ACS Nano , author =. 2017 , note =. doi:10.1021/acsnano.6b06405 , abstract =

    work page doi:10.1021/acsnano.6b06405 2017

  37. [37]

    Advanced Materials , author =

    On-. Advanced Materials , author =. 2023 , note =. doi:10.1002/adma.202306311 , abstract =

    work page doi:10.1002/adma.202306311 2023

  38. [38]

    The Journal of Physical Chemistry C , author =

    An. The Journal of Physical Chemistry C , author =. 2017 , note =. doi:10.1021/acs.jpcc.7b07421 , abstract =

    work page doi:10.1021/acs.jpcc.7b07421 2017

  39. [39]

    ACS Applied Nano Materials , author =

    Atomic-. ACS Applied Nano Materials , author =. 2025 , note =. doi:10.1021/acsanm.5c02753 , abstract =

    work page doi:10.1021/acsanm.5c02753 2025

  40. [40]

    ACS Applied Nano Materials , author =

    Surface-. ACS Applied Nano Materials , author =. 2019 , pages =. doi:10.1021/acsanm.9b00151 , abstract =

    work page doi:10.1021/acsanm.9b00151 2019

  41. [41]

    Nanoscale , author =

    High vacuum synthesis and ambient stability of bottom-up graphene nanoribbons , volume =. Nanoscale , author =. 2017 , note =. doi:10.1039/C6NR08975E , abstract =

    work page doi:10.1039/c6nr08975e 2017

  42. [42]

    Y ang, C.-H

    Quasiparticle. Physical Review Letters , author =. 2007 , note =. doi:10.1103/PhysRevLett.99.186801 , abstract =

    work page doi:10.1103/physrevlett.99.186801 2007

  43. [43]

    Nano Letters , author =

    Magnetic. Nano Letters , author =. 2022 , note =. doi:10.1021/acs.nanolett.1c03578 , abstract =

    work page doi:10.1021/acs.nanolett.1c03578 2022

  44. [44]

    Applied Physics Letters , author =

    Bottom-up graphene nanoribbon field-effect transistors , volume =. Applied Physics Letters , author =. 2013 , pages =. doi:10.1063/1.4855116 , abstract =

    work page doi:10.1063/1.4855116 2013

  45. [45]

    ACS Nano , author =

    Edge. ACS Nano , author =. 2023 , note =. doi:10.1021/acsnano.3c00782 , abstract =

    work page doi:10.1021/acsnano.3c00782 2023

  46. [46]

    Luminescence , author =

    Electronic, transport, magnetic, and optical properties of graphene nanoribbons and their optical sensing applications:. Luminescence , author =. 2023 , note =. doi:10.1002/bio.4334 , abstract =

    work page doi:10.1002/bio.4334 2023

  47. [47]

    Superlattices and Microstructures , author =

    Graphene nanoribbon field effect transistors analysis and applications , volume =. Superlattices and Microstructures , author =. 2021 , keywords =. doi:10.1016/j.spmi.2021.106869 , abstract =

    work page doi:10.1016/j.spmi.2021.106869 2021

  48. [48]

    Scientific Reports , author =

    Spin current distribution in antiferromagnetic zigzag graphene nanoribbons under transverse electric fields , volume =. Scientific Reports , author =. 2021 , note =. doi:10.1038/s41598-021-96636-6 , abstract =

    work page doi:10.1038/s41598-021-96636-6 2021

  49. [49]

    Applied Physics Letters , author =

    Field effect on spin-polarized transport in graphene nanoribbons , volume =. Applied Physics Letters , author =. 2008 , pages =. doi:10.1063/1.2908207 , abstract =

    work page doi:10.1063/1.2908207 2008

  50. [50]

    Applied Physics Letters , author =

    Enhanced thermoelectric performance of graphene nanoribbons , volume =. Applied Physics Letters , author =. 2012 , pages =. doi:10.1063/1.3689780 , abstract =

    work page doi:10.1063/1.3689780 2012

  51. [51]

    Nature Electronics , author =

    Contacting individual graphene nanoribbons using carbon nanotube electrodes , volume =. Nature Electronics , author =. 2023 , note =. doi:10.1038/s41928-023-00991-3 , abstract =

    work page doi:10.1038/s41928-023-00991-3 2023

  52. [52]

    Nature Communications , author =

    Short-channel field-effect transistors with 9-atom and 13-atom wide graphene nanoribbons , volume =. Nature Communications , author =. 2017 , note =. doi:10.1038/s41467-017-00734-x , abstract =

    work page doi:10.1038/s41467-017-00734-x 2017

  53. [53]

    ACS Nano , author =

    Controlled. ACS Nano , author =. 2020 , note =. doi:10.1021/acsnano.0c00604 , abstract =

    work page doi:10.1021/acsnano.0c00604 2020

  54. [54]

    Physical Review B , author =

    Vibrational properties of graphene nanoribbons by first-principles calculations , volume =. Physical Review B , author =. 2009 , note =. doi:10.1103/PhysRevB.80.155418 , abstract =

    work page doi:10.1103/physrevb.80.155418 2009

  55. [55]

    Physical Review Letters , author =

    Energy. Physical Review Letters , author =. 2006 , note =. doi:10.1103/PhysRevLett.97.216803 , abstract =

    work page doi:10.1103/physrevlett.97.216803 2006

  56. [56]

    Journal of the American Chemical Society , author =

    On-. Journal of the American Chemical Society , author =. 2015 , note =. doi:10.1021/ja511995r , abstract =

    work page doi:10.1021/ja511995r 2015

  57. [57]

    Carbon , author =

    Electronic properties of on-surface synthesized (4,1,4) chiral graphene nanoribbons , volume =. Carbon , author =. 2025 , keywords =. doi:10.1016/j.carbon.2025.120610 , abstract =

    work page doi:10.1016/j.carbon.2025.120610 2025

  58. [58]

    ACS Nano , author =

    Bottom-. ACS Nano , author =. 2014 , note =. doi:10.1021/nn5028642 , abstract =

    work page doi:10.1021/nn5028642 2014

  59. [59]

    physica status solidi (b) , author =

    Optimized. physica status solidi (b) , author =. 2019 , note =. doi:10.1002/pssb.201900343 , abstract =

    work page doi:10.1002/pssb.201900343 2019

  60. [60]

    Carbon , author =

    Optical transition energies and phonon assignment in graphene nanoribbons obtained by resonance. Carbon , author =. 2025 , keywords =. doi:10.1016/j.carbon.2025.120581 , abstract =

    work page doi:10.1016/j.carbon.2025.120581 2025

  61. [61]

    The Journal of Physical Chemistry C , author =

    Polarized. The Journal of Physical Chemistry C , author =. 2011 , note =. doi:10.1021/jp202870g , abstract =

    work page doi:10.1021/jp202870g 2011

  62. [62]

    Nature , author =

    Engineering of robust topological quantum phases in graphene nanoribbons , volume =. Nature , author =. 2018 , note =. doi:10.1038/s41586-018-0375-9 , abstract =

    work page doi:10.1038/s41586-018-0375-9 2018

  63. [63]

    Communications Materials , author =

    Small bandgap in atomically precise 17-atom-wide armchair-edged graphene nanoribbons , volume =. Communications Materials , author =. 2020 , note =. doi:10.1038/s43246-020-0039-9 , abstract =

    work page doi:10.1038/s43246-020-0039-9 2020

  64. [64]

    Nano Letters , author =

    Revealing the. Nano Letters , author =. 2017 , note =. doi:10.1021/acs.nanolett.6b04727 , abstract =

    work page doi:10.1021/acs.nanolett.6b04727 2017

  65. [65]

    Nature Communications , author =

    Detecting the spin-polarization of edge states in graphene nanoribbons , volume =. Nature Communications , author =. 2023 , note =. doi:10.1038/s41467-023-42436-7 , abstract =

    work page doi:10.1038/s41467-023-42436-7 2023

  66. [66]

    Chinese Journal of Chemistry , author =

    Heteroatom-. Chinese Journal of Chemistry , author =. 2024 , note =. doi:10.1002/cjoc.202300614 , abstract =

    work page doi:10.1002/cjoc.202300614 2024

  67. [67]

    Nature Nanotechnology , author =

    Graphene nanoribbon heterojunctions , volume =. Nature Nanotechnology , author =. 2014 , pages =. doi:10.1038/nnano.2014.184 , language =

    work page doi:10.1038/nnano.2014.184 2014

  68. [68]

    ACS Nano , author =

    On-. ACS Nano , author =. 2023 , note =. doi:10.1021/acsnano.3c06128 , abstract =

    work page doi:10.1021/acsnano.3c06128 2023

  69. [69]

    Nano Letters , author =

    Raman. Nano Letters , author =. 2016 , note =. doi:10.1021/acs.nanolett.5b04183 , abstract =

    work page doi:10.1021/acs.nanolett.5b04183 2016

  70. [70]

    ACS Nano , author =

    Chemical. ACS Nano , author =. 2021 , note =. doi:10.1021/acsnano.1c00695 , abstract =

    work page doi:10.1021/acsnano.1c00695 2021

  71. [71]

    The Journal of Physical Chemistry C , author =

    One. The Journal of Physical Chemistry C , author =. 2019 , note =. doi:10.1021/acs.jpcc.8b12209 , abstract =

    work page doi:10.1021/acs.jpcc.8b12209 2019

  72. [72]

    ACS Nano , author =

    Substrate-. ACS Nano , author =. 2016 , note =. doi:10.1021/acsnano.6b05269 , abstract =

    work page doi:10.1021/acsnano.6b05269 2016

  73. [73]

    Conceptual foundations of materials: a standard model for ground and excited-state properties , isbn =

    work page

  74. [74]

    The Journal of Physical Chemistry A , author =

    Automated. The Journal of Physical Chemistry A , author =. 2021 , note =. doi:10.1021/acs.jpca.0c10731 , abstract =

    work page doi:10.1021/acs.jpca.0c10731 2021

  75. [75]

    ACS Nano , author =

    A. ACS Nano , author =. 2019 , note =. doi:10.1021/acsnano.9b05817 , abstract =

    work page doi:10.1021/acsnano.9b05817 2019

  76. [76]

    ACS Nano , author =

    Optimized. ACS Nano , author =. 2025 , note =. doi:10.1021/acsnano.5c11981 , abstract =

    work page doi:10.1021/acsnano.5c11981 2025

  77. [77]

    Nanoscale Advances , author =

    The role of precursor coverage in the synthesis and substrate transfer of graphene nanoribbons , volume =. Nanoscale Advances , author =. 2025 , note =. doi:10.1039/D5NA00017C , language =

    work page doi:10.1039/d5na00017c 2025

  78. [78]

    ACS Nano , author =

    Probing the. ACS Nano , author =. 2020 , note =. doi:10.1021/acsnano.9b10191 , abstract =

    work page doi:10.1021/acsnano.9b10191 2020

  79. [79]

    Chemistry – A European Journal , author =

    Peri-. Chemistry – A European Journal , author =. 2024 , note =. doi:10.1002/chem.202401462 , abstract =

    work page doi:10.1002/chem.202401462 2024

  80. [80]

    Gross, Leo and Mohn, Fabian and Moll, Nikolaj and Liljeroth, Peter and Meyer, Gerhard , month = aug, year =. The. Science , publisher =. doi:10.1126/science.1176210 , abstract =

    work page doi:10.1126/science.1176210

Showing first 80 references.
