arxiv: 2604.23420 · v1 · submitted 2026-04-25 · ❄️ cond-mat.mes-hall · quant-ph

Boundary-Robust Transmission Asymmetry as a Topological Signature in Open Floquet Lattices

Ren Zhang , Xiao-Yu Ouyang , Xu-Dong Dai , Xi Dai This is my paper

Pith reviewed 2026-05-08 07:24 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall quant-ph
keywords Floquet latticestransmission asymmetrywinding numbertopological signatureopen quantum systemsbranch populationboundary robustnessFloquet-Bloch states
0
0 comments X

The pith

The integrated left-right transmission asymmetry in open Floquet lattices saturates to a plateau set by the bulk winding number even when boundaries reshape the lineshape.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that nonadiabatic boundaries can strongly distort the energy dependence of transmission through an open Floquet lattice, yet the total integrated difference between left-to-right and right-to-left transmission reaches a fixed plateau determined only by the bulk Floquet winding number. This robustness follows from a deep-bulk branch-population principle: in sufficiently long samples, true Floquet bound states are nongeneric, so each propagating Floquet-Bloch branch carries unit weight. A reader would care because the result supplies a boundary-independent transport signature of bulk topology, with concrete proposals for detection via cold-atom spectroscopy or electronic readouts that differ by contact model.

Core claim

In open Floquet lattices the left-right transmission asymmetry, when integrated over energy, saturates to a value fixed by the bulk Floquet winding number. This occurs because true Floquet bound states are nongeneric, so in the long-sample limit each propagating Floquet-Bloch branch is generically populated with unit weight. The robust observable is therefore the cumulative transmission imbalance rather than the boundary-sensitive transmission profile. Detection is proposed through cold-atom transmission spectroscopy and, for electrons, through contact-model-dependent electrical signals such as a near-2ef response under a coherent Floquet-Landauer-Büttiker treatment or a different signal via

What carries the argument

The deep-bulk branch-population principle, under which each propagating Floquet-Bloch branch is generically populated with unit weight in the long-sample limit because true Floquet bound states are nongeneric.

If this is right

  • The integrated transmission asymmetry functions as a boundary-robust topological signature set by the bulk Floquet winding number.
  • Individual transmission lineshapes remain sensitive to nonadiabatic boundaries while the integrated imbalance does not.
  • Cold-atom transmission spectroscopy offers a direct experimental route to observe the asymmetry.
  • In electronic systems a coherent Floquet-Landauer-Büttiker interpretation predicts a near-2ef response in weak SAW devices.
  • A blocking-factor post-processing of the same data produces a qualitatively different readout.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The branch-population principle could be tested by varying lattice length to observe the onset of saturation.
  • Analogous integrated asymmetries might serve as robust observables in other driven open systems with generic absence of bound states.
  • The approach may connect to transport signatures in non-Hermitian or dissipative Floquet lattices where boundary effects are also strong.

Load-bearing premise

True Floquet bound states are nongeneric so that each propagating Floquet-Bloch branch receives unit population weight in the long-sample limit.

What would settle it

A direct measurement on long open Floquet lattice samples showing that the integrated left-right transmission asymmetry either depends on boundary details or fails to match the value predicted by the bulk winding number would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.23420 by Ren Zhang, Xiao-Yu Ouyang, Xi Dai, Xu-Dong Dai.

Figure 1
Figure 1. Figure 1: FIG. 1 view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 view at source ↗

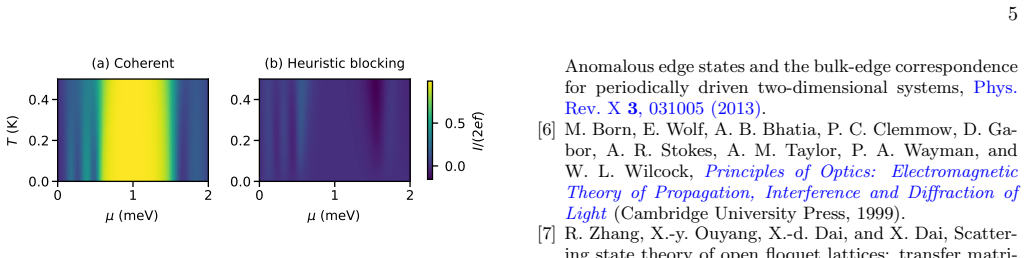

Figure 6
Figure 6. Figure 6: FIG. 6 view at source ↗
read the original abstract

We identify a boundary-robust topological signature of open Floquet lattices: although nonadiabatic boundaries strongly reshape the transmission lineshape, the integrated left--right transmission asymmetry saturates to a plateau set by the bulk Floquet winding number. Its origin is a deep-bulk branch-population principle: in the long-sample limit, each propagating Floquet--Bloch branch is generically populated with unit weight, since true Floquet bound states are nongeneric. The robust observable is therefore the cumulative transmission imbalance rather than the boundary-sensitive transmission profile. We propose direct detection by cold-atom transmission spectroscopy. For electronic transport, the same asymmetry admits contact-model-dependent electrical readouts: a coherent Floquet--Landauer--B\"uttiker interpretation predicts a near-\(2ef\) response in weak SAW devices, whereas a blocking-factor post-processing yields a qualitatively different signal.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript claims that in open Floquet lattices, nonadiabatic boundaries strongly reshape the transmission lineshape, yet the integrated left-right transmission asymmetry saturates to a plateau set by the bulk Floquet winding number. This saturation is derived from a deep-bulk branch-population principle asserting that true Floquet bound states are nongeneric, so each propagating Floquet-Bloch branch receives unit population weight in the long-sample limit. The authors develop the result via a scattering formulation, demonstrate the genericity argument in parameter space, and outline detection protocols for cold-atom spectroscopy as well as contact-model-dependent electrical readouts.

Significance. If the central claim holds, the work supplies a boundary-insensitive observable for extracting the Floquet winding number, which is of clear experimental value for driven topological systems. The scattering derivation, the explicit genericity argument, and the concrete proposals for cold-atom and electronic detection are strengths that enhance the result's utility.

minor comments (3)
  1. [Abstract] The abstract states the saturation result and invokes the branch-population principle but does not mention the scattering formulation or the long-sample limit; a single sentence summarizing the derivation approach would improve accessibility without lengthening the abstract unduly.
  2. [§3 (branch-population principle)] The notation for the population weights and the integrated asymmetry could be introduced with a defining equation early in the text (e.g., near the statement of the principle) to make the subsequent saturation argument easier to track.
  3. [Detection protocols] In the discussion of electrical readouts, the distinction between the coherent Floquet-Landauer-Büttiker response and the blocking-factor post-processing would benefit from a short comparative table or numerical example showing the qualitative difference in the predicted signals.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary of our manuscript and for recommending minor revision. The central claim regarding the saturation of integrated left-right transmission asymmetry to the bulk Floquet winding number is accurately captured, and we appreciate the recognition of its potential experimental utility in cold-atom and electronic settings.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The derivation proceeds from a scattering formulation of open Floquet lattices to a genericity argument in parameter space showing that true Floquet bound states are nongeneric; this independently implies unit population weight for each propagating Floquet-Bloch branch in the long-sample limit. The integrated left-right asymmetry is then shown to saturate to the bulk winding number without the population weights being fitted to that number or imported via self-citation. The central claim remains self-contained against the winding-number definition and external detection protocols.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the deep-bulk branch-population principle and the assumption that true Floquet bound states are nongeneric; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (2)
  • domain assumption true Floquet bound states are nongeneric
    Invoked to justify unit population of propagating branches in the long-sample limit
  • domain assumption each propagating Floquet-Bloch branch is populated with unit weight
    Core of the deep-bulk branch-population principle that converts bulk winding into integrated asymmetry

pith-pipeline@v0.9.0 · 5458 in / 1315 out tokens · 49664 ms · 2026-05-08T07:24:59.612860+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages · 1 internal anchor

  1. [1]

    and exhibit strong sensitivity toL, precluding their use as stable long-sample observables. To extract a stable spectral signature, we coarse-grain the transmis- sion over an energy windowW L(E;E 0) centered atE 0, normalized as Z R dE|W L(E;E 0)|2 = 1,(1) with width ∆E(L) satisfying the asymptotic scaling ∆E(L)→0, L∆E(L)→ ∞asL→ ∞.(2) The smoothed long-sa...

    work page internal anchor Pith review Pith/arXiv arXiv 2026

  2. [2]

    J. H. Shirley, Solution of the schr¨ odinger equation with a hamiltonian periodic in time, Physical Review138, B979–B987 (1965)

    work page 1965

  3. [3]

    Sambe, Steady states and quasienergies of a quantum- mechanical system in an oscillating field, Physical Review A7, 2203–2213 (1973)

    H. Sambe, Steady states and quasienergies of a quantum- mechanical system in an oscillating field, Physical Review A7, 2203–2213 (1973)

    work page 1973

  4. [4]

    D. J. Thouless, Quantization of particle transport, Phys. Rev. B27, 6083 (1983)

    work page 1983

  5. [5]

    Kitagawa, E

    T. Kitagawa, E. Berg, M. Rudner, and E. Demler, Topo- logical characterization of periodically driven quantum systems, Phys. Rev. B82, 235114 (2010)

    work page 2010

  6. [6]

    M. S. Rudner, N. H. Lindner, E. Berg, and M. Levin, Anomalous edge states and the bulk-edge correspondence for periodically driven two-dimensional systems, Phys. Rev. X3, 031005 (2013)

    work page 2013

  7. [7]

    M. Born, E. Wolf, A. B. Bhatia, P. C. Clemmow, D. Ga- bor, A. R. Stokes, A. M. Taylor, P. A. Wayman, and W. L. Wilcock,Principles of Optics: Electromagnetic Theory of Propagation, Interference and Diffraction of Light(Cambridge University Press, 1999)

    work page 1999

  8. [8]

    Zhang, X.-y

    R. Zhang, X.-y. Ouyang, X.-d. Dai, and X. Dai, Scatter- ing state theory of open floquet lattices: transfer matri- ces, open sectors, and topological transport (joint sub- mit)

    work page

  9. [9]

    Yajima and H

    K. Yajima and H. Kitada, Bound states and scattering states for time periodic hamiltonians, Annales de l’I.H.P. Physique th´ eorique39, 145 (1983)

    work page 1983

  10. [10]

    Kaneta, A class of time periodic hamiltonians with no bound states, Proceedings of the Royal Society of Edin- burgh: Section A Mathematics105, 37–42 (1987)

    H. Kaneta, A class of time periodic hamiltonians with no bound states, Proceedings of the Royal Society of Edin- burgh: Section A Mathematics105, 37–42 (1987)

    work page 1987

  11. [11]

    Della Valle and S

    G. Della Valle and S. Longhi, Floquet-hubbard bound states in the continuum, Phys. Rev. B89, 115118 (2014)

    work page 2014

  12. [12]

    Moskalets and M

    M. Moskalets and M. B¨ uttiker, Floquet scattering theory of quantum pumps, Phys. Rev. B66, 205320 (2002)

    work page 2002

  13. [13]

    Landauer, Spatial variation of currents and fields due to localized scatterers in metallic conduction, IBM J

    R. Landauer, Spatial variation of currents and fields due to localized scatterers in metallic conduction, IBM J. Res. Dev.1, 223 (1957)

    work page 1957

  14. [14]

    B¨ uttiker, Y

    M. B¨ uttiker, Y. Imry, R. Landauer, and S. Pinhas, Gen- eralized many-channel conductance formula with appli- cation to small rings, Phys. Rev. B31, 6207 (1985)

    work page 1985

  15. [15]

    Datta,Electronic Transport in Mesoscopic Systems (Cambridge University Press, 1995)

    S. Datta,Electronic Transport in Mesoscopic Systems (Cambridge University Press, 1995)

    work page 1995

  16. [16]

    Wagner, Probing pauli blocking factors in quantum pumps with broken time-reversal symmetry, Phys

    M. Wagner, Probing pauli blocking factors in quantum pumps with broken time-reversal symmetry, Phys. Rev. Lett.85, 174 (2000)

    work page 2000

  17. [17]

    S. W. Kim, Pauli blocking factors in quantum pumps, Phys. Rev. B68, 033309 (2003)

    work page 2003

  18. [18]

    Howland, Scattering theory for hamiltonians periodic in time, Indiana Univ

    J. Howland, Scattering theory for hamiltonians periodic in time, Indiana Univ. Math. J.28, 471 (1979)

    work page 1979

  19. [19]

    Howland, Scattering theory for hamiltonians periodic in time, arXiv:1212.2931 (2012)

    J. Howland, Scattering theory for hamiltonians periodic in time, arXiv:1212.2931 (2012)

    work page arXiv 2012

  20. [20]

    See Supplemental Material for the proof of the deep-bulk branch-population principle, the overdetermined bound- state matching argument for generic openness, and nu- merical checks of the convergencep µ →1

    work page

  21. [21]

    Bloch, J

    I. Bloch, J. Dalibard, and W. Zwerger, Many-body physics with ultracold gases, Rev. Mod. Phys.80, 885 (2008)

    work page 2008

  22. [22]

    Schrader, S

    D. Schrader, S. Kuhr, W. Alt, M. M¨ uller, V. Gomer, and D. Meschede, An optical conveyor belt for single neutral atoms, Applied Physics B73, 819–824 (2001)

    work page 2001

  23. [23]

    C. M. Fabre, P. Cheiney, G. L. Gattobigio, F. Vermersch, S. Faure, R. Mathevet, T. Lahaye, and D. Gu´ ery-Odelin, Realization of a distributed bragg reflector for propagat- ing guided matter waves, Phys. Rev. Lett.107, 230401 (2011)

    work page 2011

  24. [24]

    N. E. Fletcher, J. Ebbecke, T. J. B. M. Janssen, F. J. Ahlers, M. Pepper, H. E. Beere, and D. A. Ritchie, Quan- tized acoustoelectric current transport through a static quantum dot using a surface acoustic wave, Phys. Rev. B68, 245310 (2003)

    work page 2003

  25. [25]

    J. M. Shilton, D. R. Mace, V. I. Talyanskii, M. Y. Sim- mons, M. Pepper, A. C. Churchill, and D. A. Ritchie, Experimental study of the acoustoelectric effects in gaas- algaas heterostructures, Journal of Physics: Condensed Matter7, 7675–7685 (1995). 6

    work page 1995

  26. [26]

    J. M. Shilton, D. R. Mace, V. I. Talyanskii, M. Pepper, M. Y. Simmons, A. C. Churchill, and D. A. Ritchie, Effect of spatial dispersion on acoustoelectric current in a high- mobility two-dimensional electron gas, Phys. Rev. B51, 14770 (1995)

    work page 1995

  27. [27]

    J. M. Shilton, V. I. Talyanskii, M. Pepper, D. A. Ritchie, J. E. F. Frost, C. J. B. Ford, C. G. Smith, and G. A. C. Jones, High-frequency single-electron transport in a quasi-one-dimensional gaas channel induced by sur- face acoustic waves, Journal of Physics: Condensed Mat- ter8, L531–L539 (1996)

    work page 1996

  28. [28]

    J. R. Oppenheimer, Three notes on the quantum theory of aperiodic effects, Phys. Rev.31, 66 (1928)

    work page 1928

  29. [29]

    Seitz and D

    F. Seitz and D. Turnbull,Solid State Physics. Vol.: 10 (tunneling in Solids) Duke, C.B.(Academic Press, 1969)

    work page 1969

  30. [30]

    boundary-robust transmission asymmetry as a topological signature in open flo- quet lattices

    R. Zhang, X.-Y. Ouyang, X.-D. Dai, and X. Dai, Data and code for “boundary-robust transmission asymmetry as a topological signature in open flo- quet lattices”,https://github.com/physiren/Data_ Availability-Floquet_Scattering_States_Theory (2026), gitHub repository. 7 Supplemental Material Deep-bulk branch-population principle This section proves the deep...

    work page 2026
