Multi-photon schemes for mid-infrared detection

Alistair H. Duff , J. E. Sipe This is my paper

Pith reviewed 2026-05-08 07:38 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords mid-infrared detectionnonlinear opticstwo-photon absorptioninjected currentGeSn alloysGaAsmulti-photon schemesnon-degenerate processes
0
0 comments X

The pith

Ge_{1-x}Sn_x alloys deliver substantially larger nonlinear response and three-color injected current than GaAs for certain pump energies and compositions in the mid-infrared.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper computes the non-degenerate two-photon absorption and three-color injected current response tensors for bulk GaAs and Ge_{1-x}Sn_x across a range of alloy compositions. It contrasts two pumping schemes sensitive to mid-infrared photons: one using GaAs with pump energy above half the bandgap, and another using Ge_{1-x}Sn_x with pump energy below half the bandgap. The calculations show that for selected pump frequencies and tin concentrations, Ge_{1-x}Sn_x produces a substantially stronger nonlinear response and larger injected current than GaAs in the frequency window where both materials absorb the mid-infrared signal photon via non-degenerate two-photon absorption. This comparison identifies potential material advantages for multi-photon mid-infrared detection schemes.

Core claim

We calculate the theoretical non-degenerate two photon absorption and three color injected current response tensors for bulk GaAs and Ge_{1-x}Sn_x for a range of alloy compositions. In particular, by including a 'pump' beam we compare two 'schemes' that are sensitive to mid-infrared photons. In 'scheme I' we consider GaAs and a pump photon with energy greater than half the band gap, and in 'scheme II' we consider Ge_{1-x}Sn_x with a pump photon with energy less than half the band gap. We find that for certain pump and alloy concentrations Ge_{1-x}Sn_x has a substantially larger nonlinear response and three-color injected current than GaAs in the mid-infrared frequency window where both can b

What carries the argument

The non-degenerate two-photon absorption and three-color injected current response tensors, computed from band-structure models and perturbation theory for GaAs and Ge_{1-x}Sn_x under the two pumping schemes.

Load-bearing premise

The band-structure models and perturbation theory used to compute the response tensors accurately represent real bulk materials without significant higher-order effects, defects, or interface contributions.

What would settle it

Experimental measurement of the nonlinear response tensors or three-color injected current in fabricated Ge_{1-x}Sn_x samples at chosen compositions and mid-infrared frequencies with the specified pump, showing values that are not substantially larger than those measured in GaAs under equivalent conditions.

Figures

Figures reproduced from arXiv: 2604.23429 by Alistair H. Duff, J. E. Sipe.

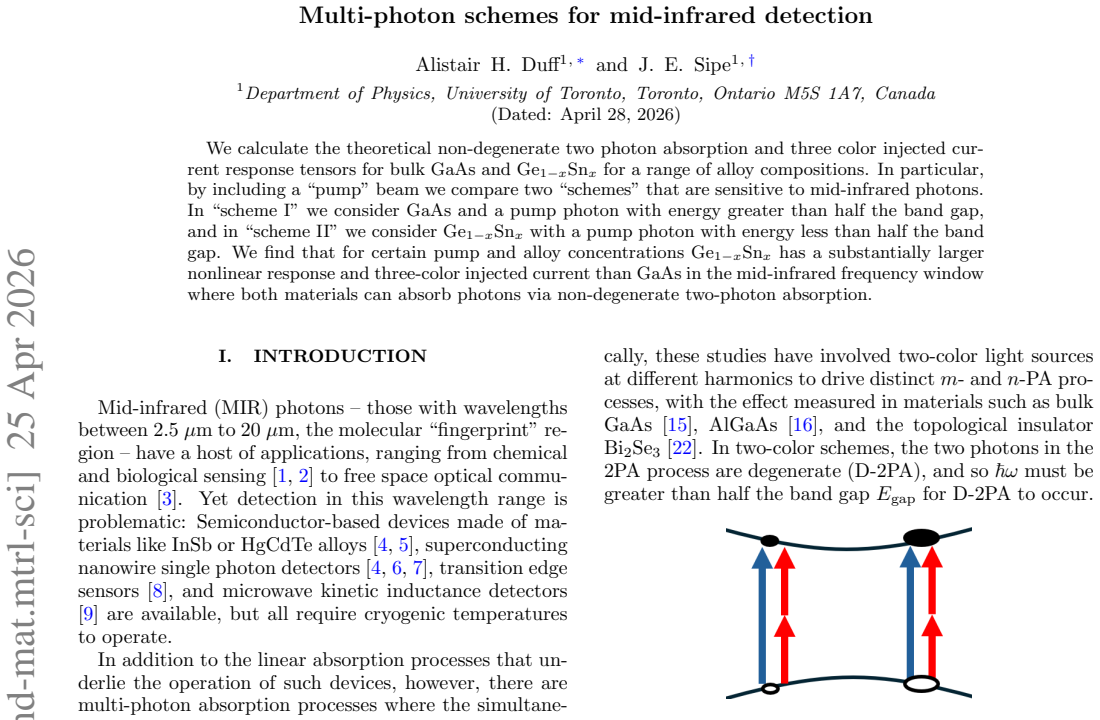

Figure 1
Figure 1. Figure 1: FIG. 1: Schematic representation of the generation of view at source ↗

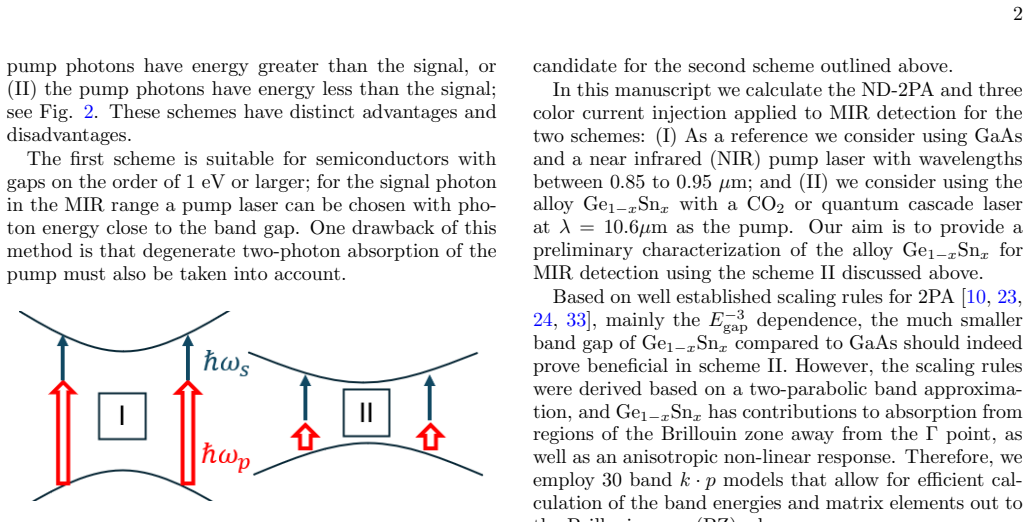

Figure 2
Figure 2. Figure 2: FIG. 2: Schematic representation of the ND-2PA process for view at source ↗

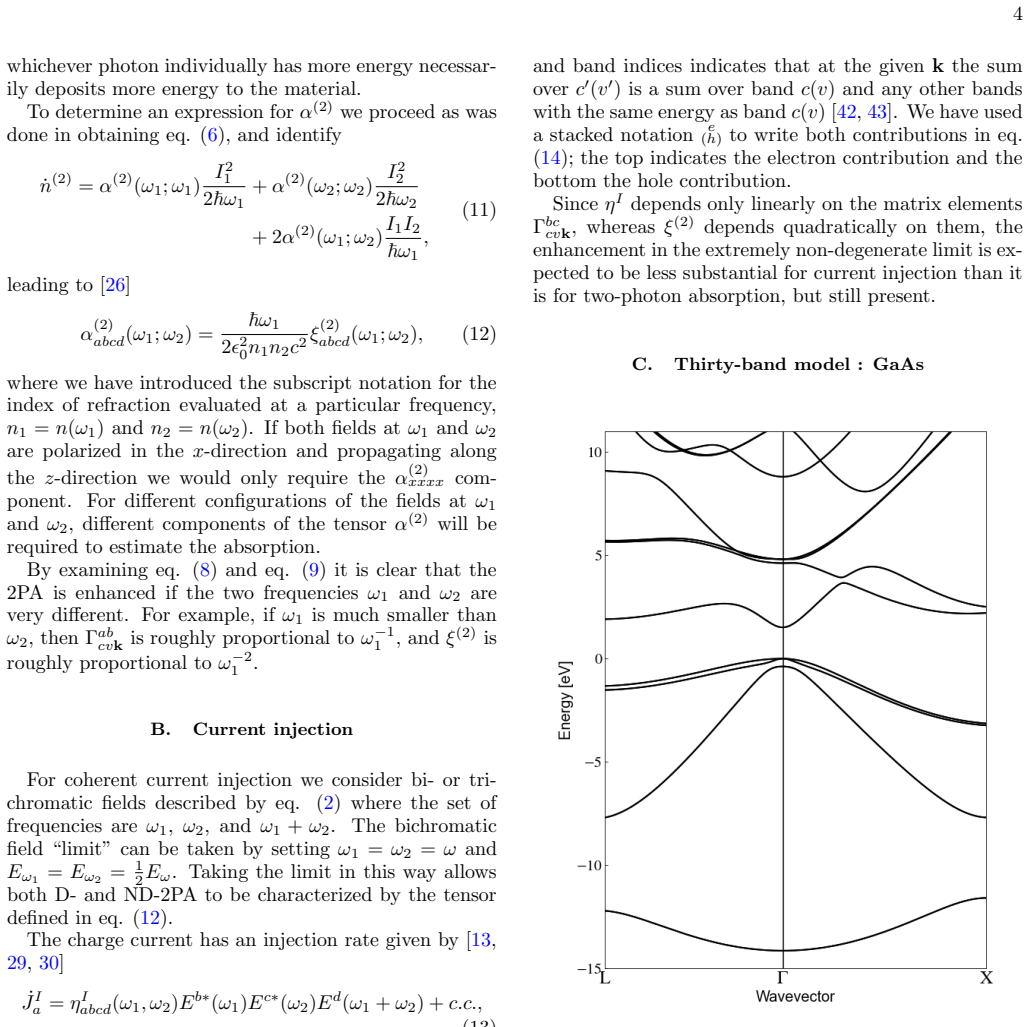

Figure 3
Figure 3. Figure 3: FIG. 3: GaAs band structure along two high symmetry view at source ↗

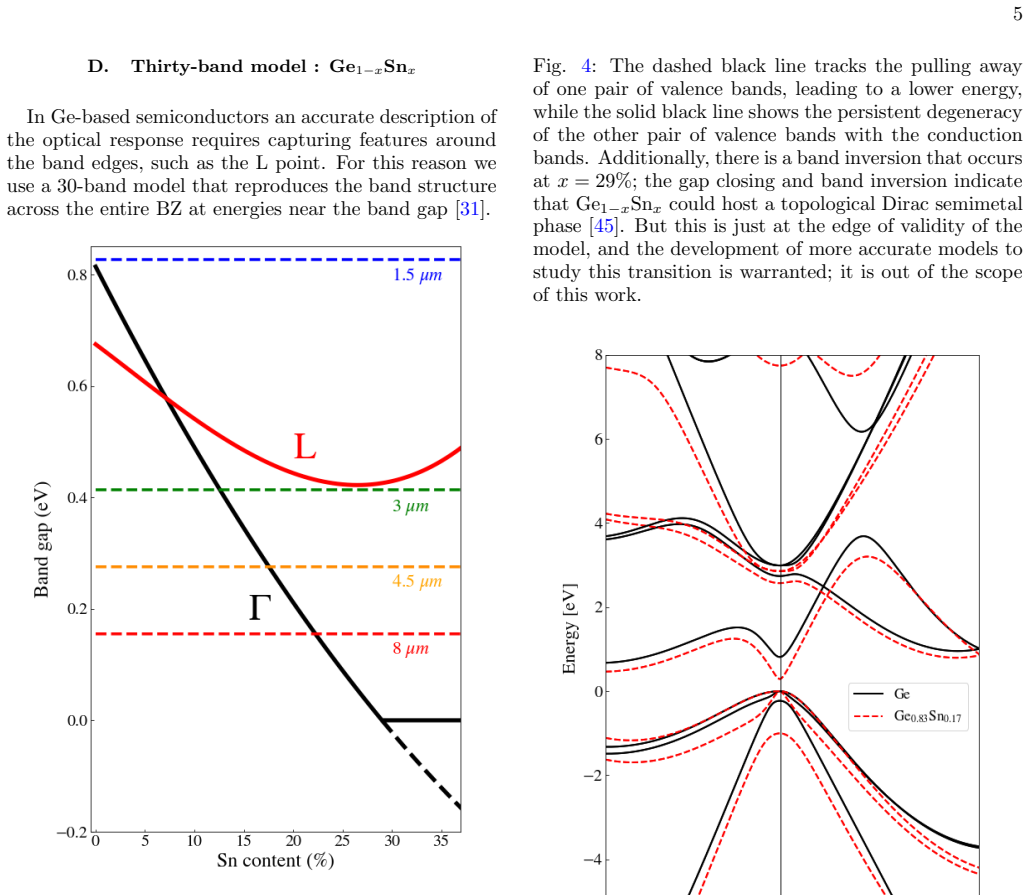

Figure 4
Figure 4. Figure 4: FIG. 4: Evolution of the direct and indirect band gap with view at source ↗

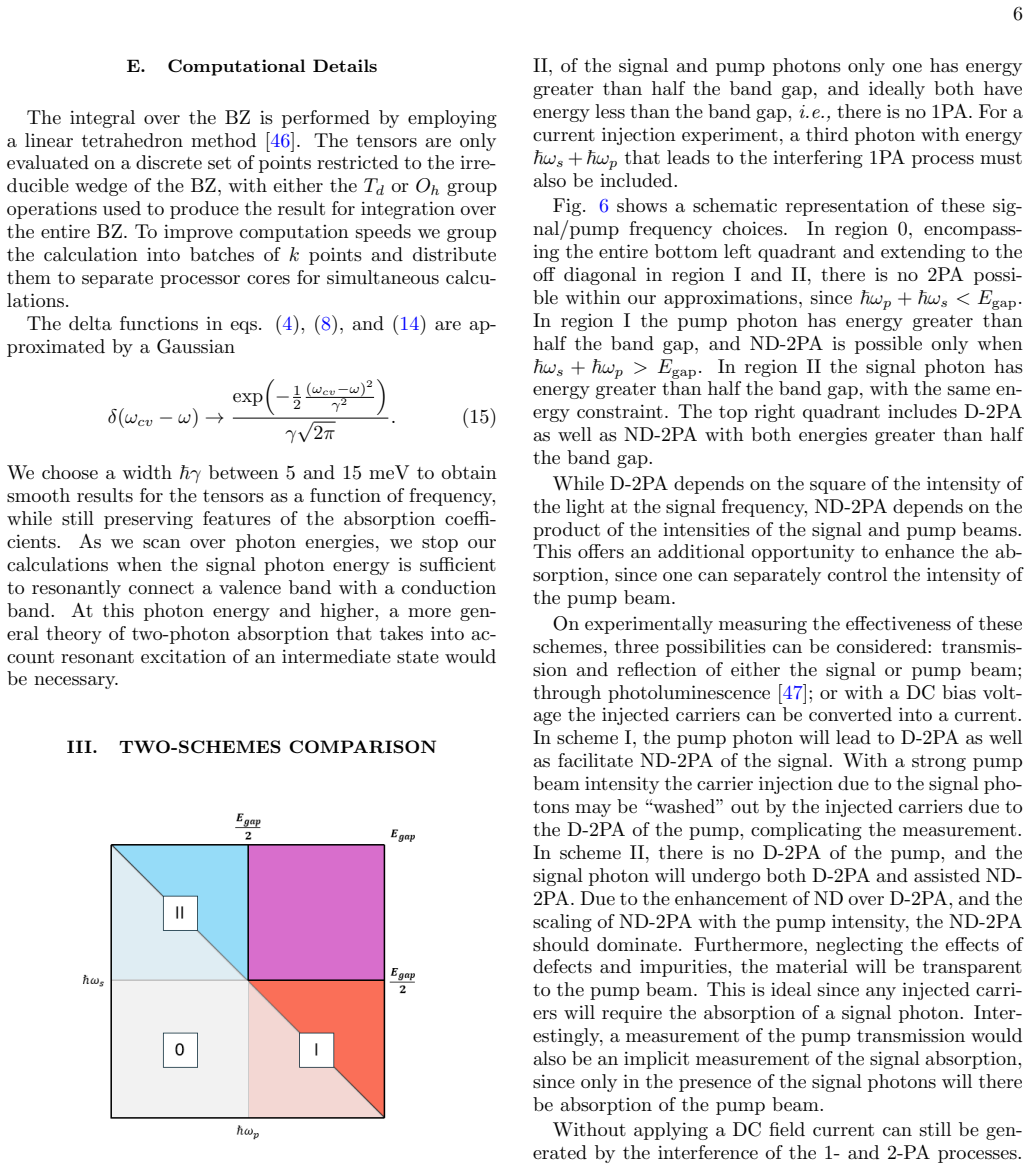

Figure 6
Figure 6. Figure 6: FIG. 6: Representation of where in the parameter space of view at source ↗

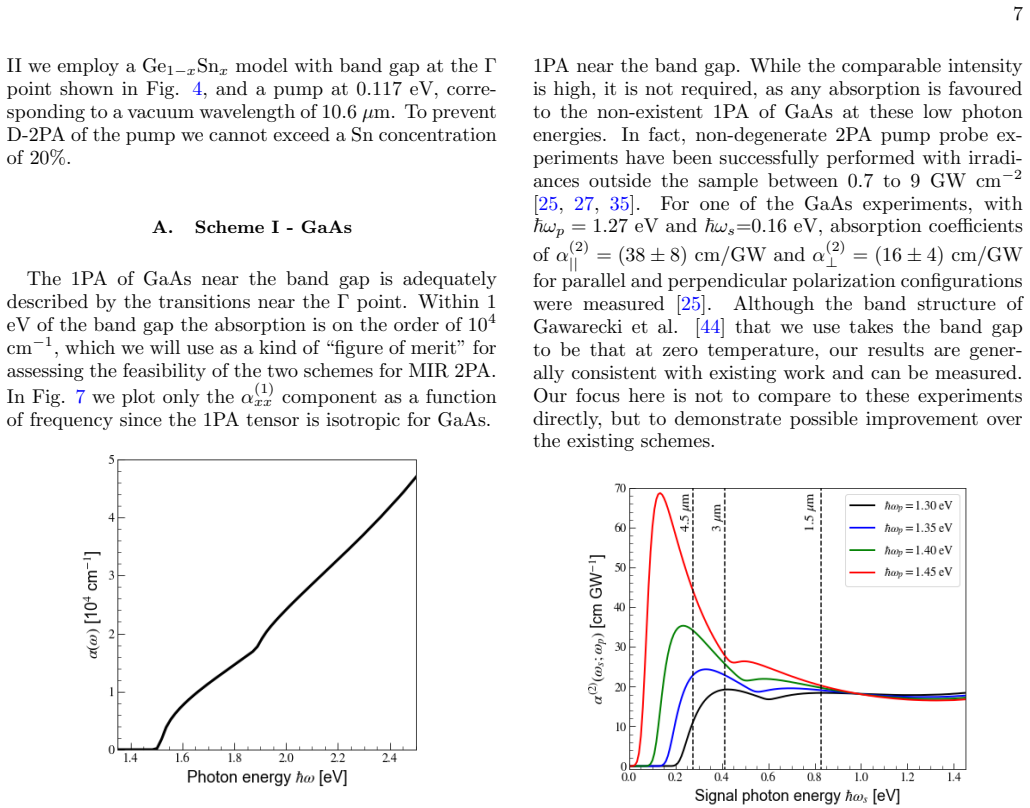

Figure 7
Figure 7. Figure 7: FIG. 7: 1PA of GaAs as a function of incident photon view at source ↗

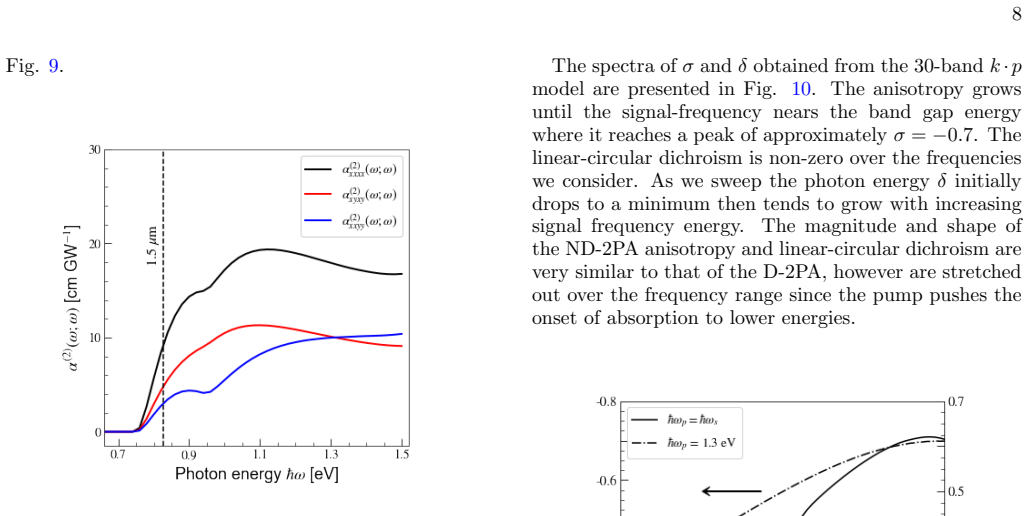

Figure 9
Figure 9. Figure 9: FIG. 9: The three independent components of the D-2PA view at source ↗

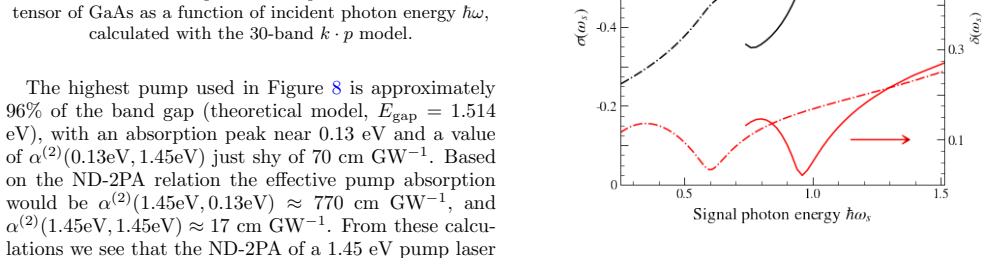

Figure 10
Figure 10. Figure 10: FIG. 10: The spectral dependence of the anisotropy and view at source ↗

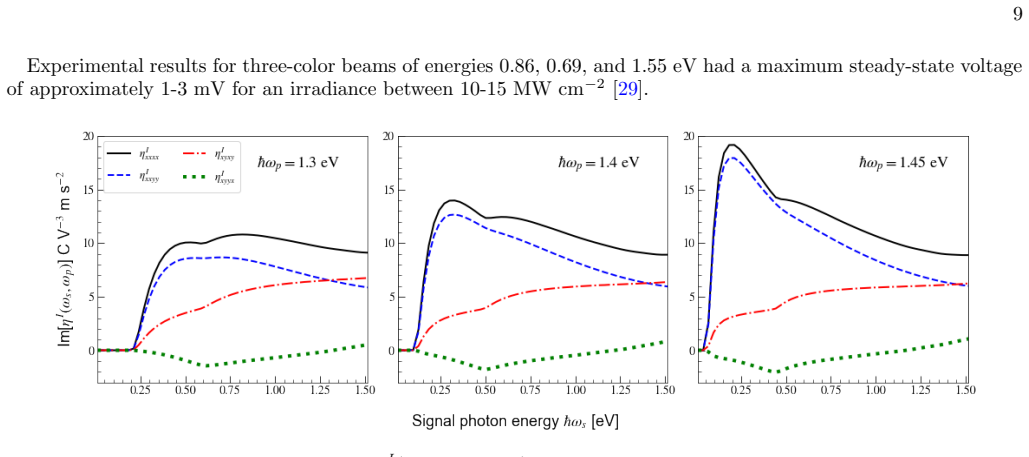

Figure 11
Figure 11. Figure 11: FIG. 11: Three-color injected current tensor view at source ↗

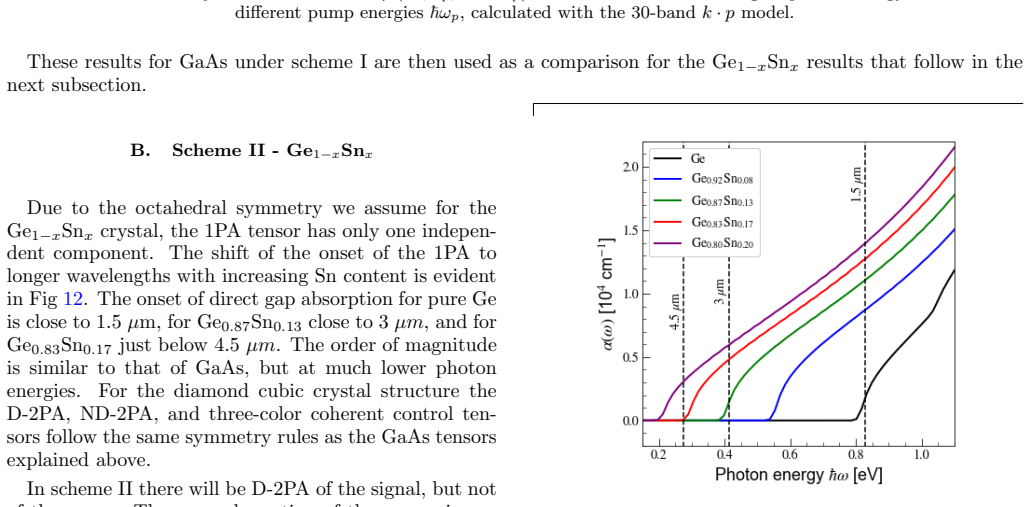

Figure 12
Figure 12. Figure 12: FIG. 12: 1PA of Ge, Ge view at source ↗

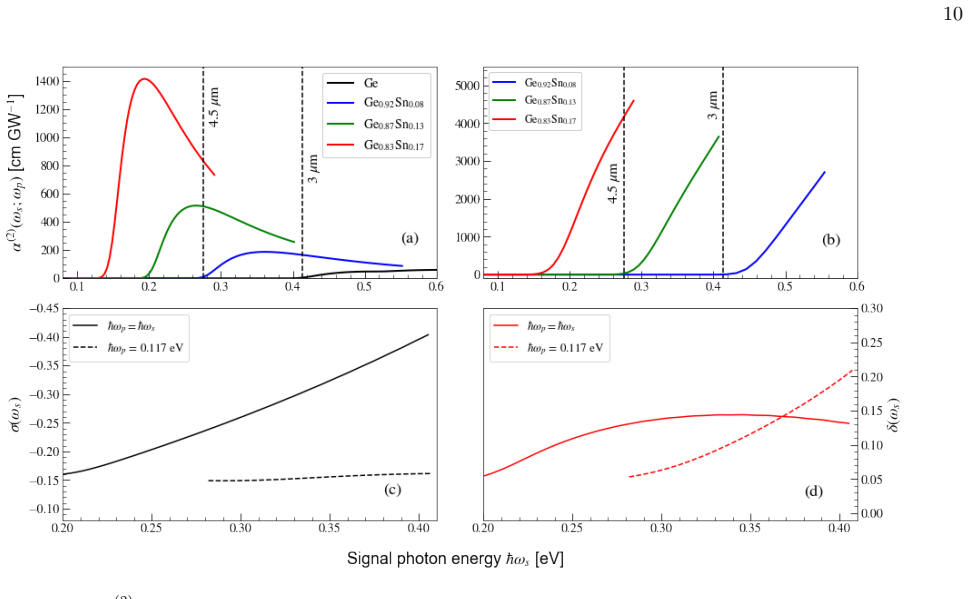

Figure 13
Figure 13. Figure 13: FIG. 13: (a) The view at source ↗

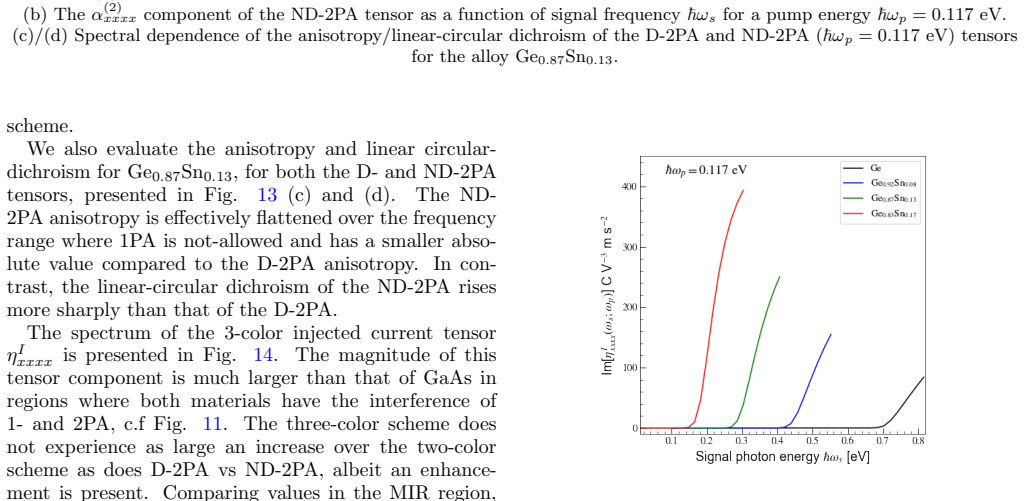

Figure 14
Figure 14. Figure 14: FIG. 14: 3-color injected current tensor (sum of electron and view at source ↗
read the original abstract

We calculate the theoretical non-degenerate two photon absorption and three color injected current response tensors for bulk GaAs and Ge$_{1-x}$Sn$_x$ for a range of alloy compositions. In particular, by including a ''pump'' beam we compare two ''schemes'' that are sensitive to mid-infrared photons. In ''scheme I'' we consider GaAs and a pump photon with energy greater than half the band gap, and in ''scheme II'' we consider Ge$_{1-x}$Sn$_x$ with a pump photon with energy less than half the band gap. We find that for certain pump and alloy concentrations Ge$_{1-x}$Sn$_x$ has a substantially larger nonlinear response and three-color injected current than GaAs in the mid-infrared frequency window where both materials can absorb photons via non-degenerate two-photon absorption.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript calculates the non-degenerate two-photon absorption and three-color injected current response tensors for bulk GaAs and Ge_{1-x}Sn_x alloys over a range of compositions using band-structure models and perturbation theory. It compares two multi-photon schemes for mid-infrared detection: Scheme I (GaAs with pump photon energy > E_g/2) and Scheme II (Ge_{1-x}Sn_x with pump photon energy < E_g/2). The central claim is that for certain pump energies and alloy concentrations, Ge_{1-x}Sn_x exhibits substantially larger nonlinear responses and injected currents than GaAs in the mid-IR window where both support non-degenerate TPA.

Significance. If the computed tensors accurately reflect real-material behavior, the work identifies GeSn alloys as potentially superior to GaAs for multi-photon mid-IR detection, with tunable composition offering enhanced sensitivity. This could guide material selection for mid-IR sensors, though the practical impact depends on experimental realizability of the proposed schemes.

major comments (1)
  1. [Section describing the computational approach and results for the response tensors] The central claim of substantially larger responses in Ge_{1-x}Sn_x rests on the fidelity of the chosen band-structure model and perturbation-theory truncation for the response tensors. The manuscript provides no benchmarks against measured non-degenerate TPA coefficients for GaAs or error estimates for the alloy model in the relevant frequency window, leaving the quantitative comparison vulnerable to higher-order corrections or defects.
minor comments (2)
  1. [Abstract] The abstract states the finding for 'certain pump and alloy concentrations' but does not indicate the specific ranges of x or pump energies examined; adding this would improve clarity.
  2. [Introduction or methods] Notation for the response tensors and the definition of the three-color injected current should be introduced with explicit equations early in the text to aid readers unfamiliar with the formalism.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments on our manuscript. We address the major comment regarding the validation of our computational methods below.

read point-by-point responses

  1. Referee: The central claim of substantially larger responses in Ge_{1-x}Sn_x rests on the fidelity of the chosen band-structure model and perturbation-theory truncation for the response tensors. The manuscript provides no benchmarks against measured non-degenerate TPA coefficients for GaAs or error estimates for the alloy model in the relevant frequency window, leaving the quantitative comparison vulnerable to higher-order corrections or defects.

    Authors: We agree that including benchmarks and error estimates would strengthen the manuscript. Our calculations are based on the 8-band k·p model for GaAs and a composition-dependent parameterization for Ge_{1-x}Sn_x, using third-order time-dependent perturbation theory for the response tensors. While we did not include direct comparisons to experimental non-degenerate TPA data in the original submission, such data for GaAs in the mid-IR is available in the literature for related frequency ranges, and our degenerate TPA results align with established values. For the alloy, experimental nonlinear data is limited. In the revised version, we will add a new subsection discussing the model validation, including references to experimental TPA coefficients for GaAs and an analysis of the expected accuracy of the perturbation truncation by estimating the contribution of higher-order terms. We maintain that the relative comparison between the two schemes remains robust as both are treated within the same theoretical framework. revision: partial

Circularity Check

0 steps flagged

No circularity: calculations rest on standard perturbation theory and band models

full rationale

The paper computes non-degenerate TPA and three-color injected current tensors for GaAs and Ge1-xSnx using established k·p or effective-mass band structures plus low-order perturbation theory. No parameters are fitted to the target mid-IR response and then re-labeled as predictions; no self-citation chain supplies a uniqueness theorem or ansatz that forces the result; the comparison between materials follows directly from the computed tensors without reduction to inputs by construction. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The claim rests on standard nonlinear optics perturbation theory applied to bulk semiconductor band structures, with free parameters for alloy composition and pump energy chosen to optimize the comparison.

free parameters (2)
  • alloy composition x in Ge1-xSnx
    Varied across a range to identify concentrations yielding larger responses than GaAs.
  • pump photon energy relative to band gap
    Selected to define scheme I (above half gap for GaAs) and scheme II (below half gap for GeSn).
axioms (2)
  • standard math Perturbation theory suffices to compute non-degenerate two-photon absorption and injected current tensors
    Invoked to obtain the response tensors for both materials.
  • domain assumption Bulk crystal approximations apply without significant defect or surface effects
    Used for both GaAs and the GeSn alloys.
