GAMMAF: A Common Framework for Graph-Based Anomaly Monitoring Benchmarking in LLM Multi-Agent Systems
Pith reviewed 2026-05-08 02:38 UTC · model grok-4.3
The pith
Gammaf is a benchmarking framework that generates synthetic graphs of LLM agent debates to evaluate anomaly detectors and shows remediation cuts costs.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Gammaf is not a new defense but a comprehensive evaluation architecture with two interdependent pipelines: a Training Data Generation stage that simulates debates to capture interactions as robust attributed graphs, and a Defense System Benchmarking stage that actively evaluates models by dynamically isolating flagged adversarial nodes during live inference rounds. Rigorous evaluation across multiple knowledge tasks and network topologies confirms high utility, topological scalability, and execution efficiency. The results further establish that equipping an LLM-MAS with effective attack remediation recovers system integrity while substantially reducing operational costs by facilitating早共识和切
What carries the argument
The Gammaf framework's two pipelines for generating synthetic attributed graphs from simulated multi-agent debates and for benchmarking defenses by isolating flagged nodes in live rounds.
If this is right
- Researchers gain a standardized, reproducible environment to train graph-based anomaly detectors for LLM multi-agent systems.
- Defense models can be tested dynamically by isolating adversarial nodes during ongoing agent interactions.
- Effective remediation leads to early consensus and lower overall token consumption in LLM multi-agent operations.
- The framework scales across different network topologies and standard knowledge tasks while maintaining execution efficiency.
Where Pith is reading between the lines
- If the synthetic data proves representative, Gammaf could accelerate practical deployment of secure LLM multi-agent applications beyond lab settings.
- The observed cost reductions suggest that integrating graph-based monitoring may yield economic benefits for large-scale LLM systems.
- Extending the framework to additional attack vectors could help address vulnerabilities not fully captured in the current debate simulations.
Load-bearing premise
The synthetic multi-agent interaction datasets generated by simulating debates across varied network topologies accurately represent real-world adversarial behaviors and vulnerabilities such as prompt infection in actual LLM-MAS deployments.
What would settle it
Running the same defense models on Gammaf-generated data versus real deployment logs of LLM multi-agent systems containing documented prompt infections and measuring whether detection accuracy and cost savings match.

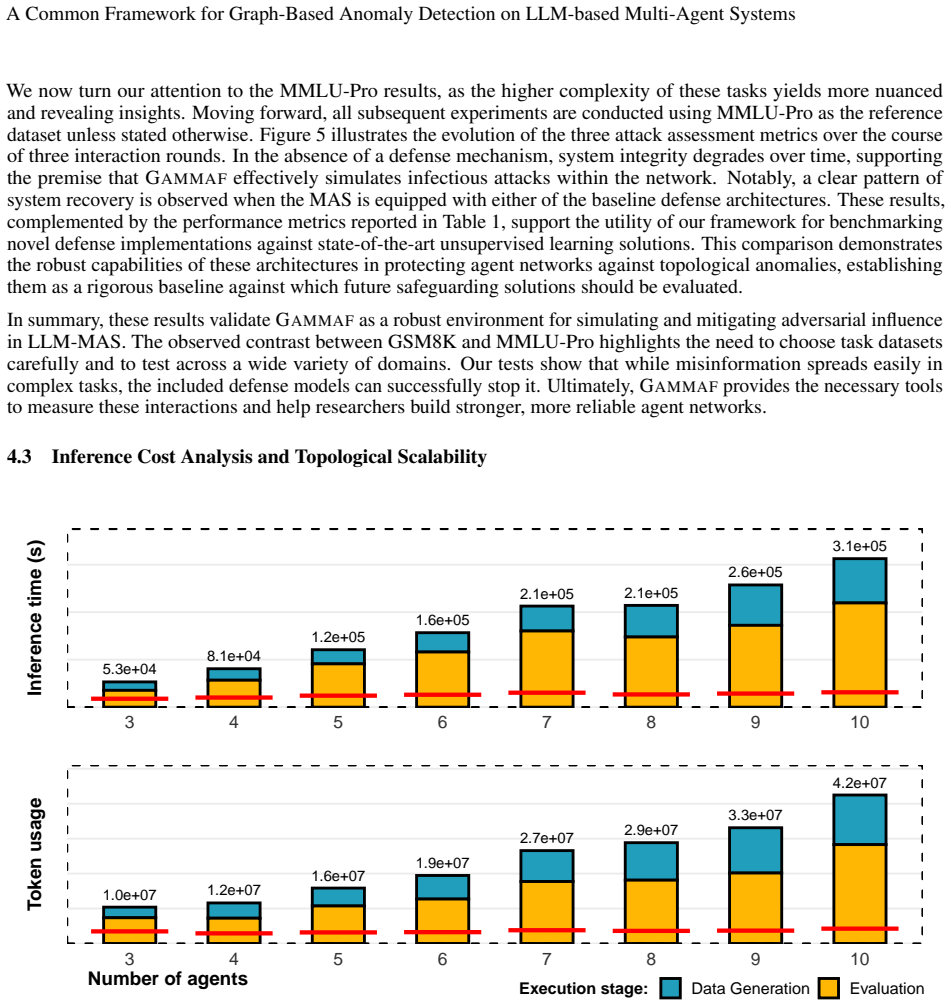

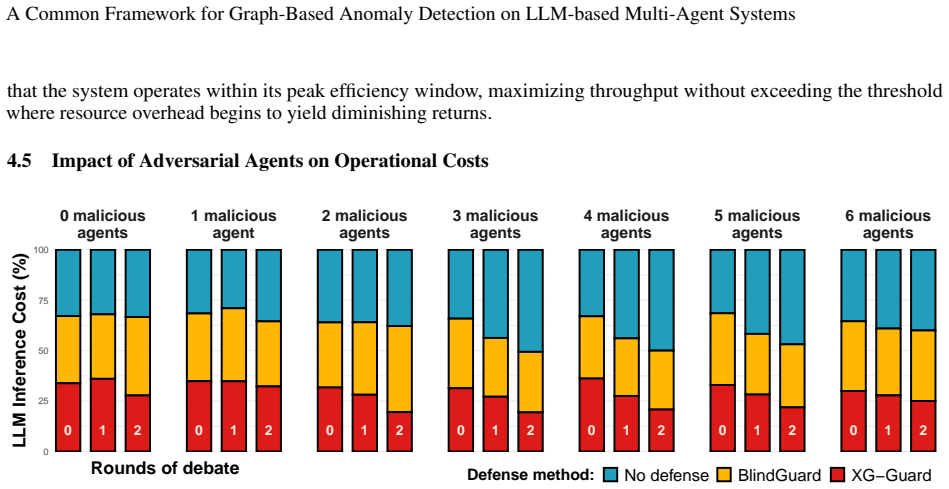

Figures

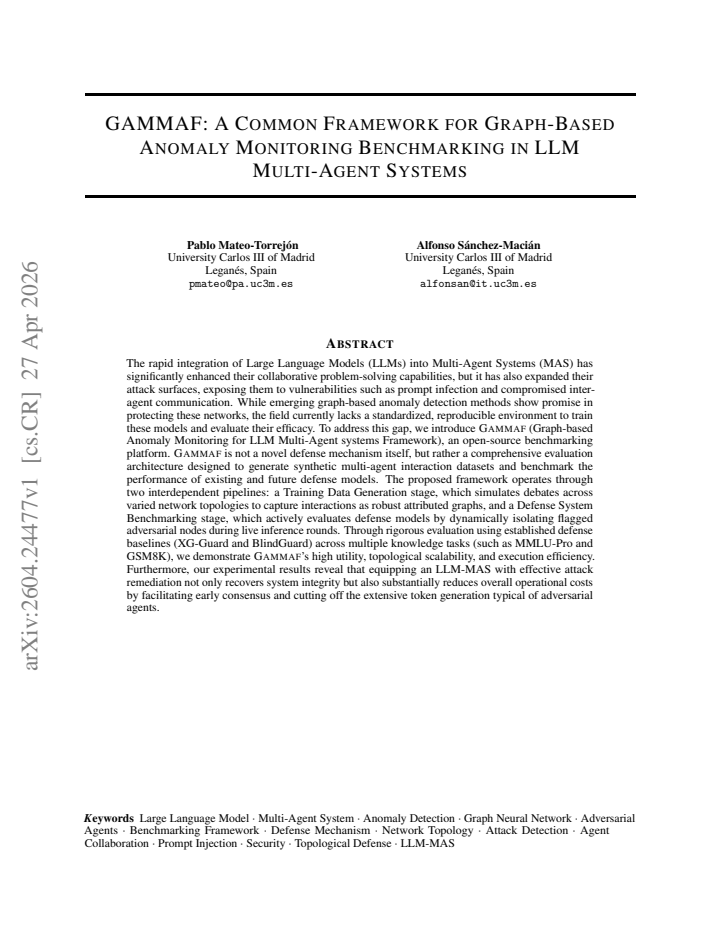

read the original abstract
The rapid integration of Large Language Models (LLMs) into Multi-Agent Systems (MAS) has significantly enhanced their collaborative problem-solving capabilities, but it has also expanded their attack surfaces, exposing them to vulnerabilities such as prompt infection and compromised inter-agent communication. While emerging graph-based anomaly detection methods show promise in protecting these networks, the field currently lacks a standardized, reproducible environment to train these models and evaluate their efficacy. To address this gap, we introduce Gammaf (Graph-based Anomaly Monitoring for LLM Multi-Agent systems Framework), an open-source benchmarking platform. Gammaf is not a novel defense mechanism itself, but rather a comprehensive evaluation architecture designed to generate synthetic multi-agent interaction datasets and benchmark the performance of existing and future defense models. The proposed framework operates through two interdependent pipelines: a Training Data Generation stage, which simulates debates across varied network topologies to capture interactions as robust attributed graphs, and a Defense System Benchmarking stage, which actively evaluates defense models by dynamically isolating flagged adversarial nodes during live inference rounds. Through rigorous evaluation using established defense baselines (XG-Guard and BlindGuard) across multiple knowledge tasks (such as MMLU-Pro and GSM8K), we demonstrate Gammaf's high utility, topological scalability, and execution efficiency. Furthermore, our experimental results reveal that equipping an LLM-MAS with effective attack remediation not only recovers system integrity but also substantially reduces overall operational costs by facilitating early consensus and cutting off the extensive token generation typical of adversarial agents.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces GAMMAF, an open-source benchmarking framework for graph-based anomaly monitoring in LLM multi-agent systems. It consists of two pipelines: a training data generation stage that simulates debates across varied network topologies to produce attributed graphs capturing agent interactions, and a defense benchmarking stage that evaluates existing anomaly detection models (e.g., XG-Guard, BlindGuard) by dynamically isolating flagged adversarial nodes during live inference on tasks such as MMLU-Pro and GSM8K. The work claims the framework demonstrates high utility, topological scalability, and execution efficiency, and that effective attack remediation recovers system integrity while substantially reducing operational costs via early consensus and curtailed token generation by adversarial agents.
Significance. If the synthetic data generation accurately captures real adversarial dynamics, GAMMAF could fill a needed gap by providing a reproducible platform for training and evaluating graph-based defenses in LLM-MAS, an area with growing practical importance. The open-source release and focus on both data synthesis and dynamic benchmarking are strengths that could accelerate progress; the reported cost-reduction observation, if substantiated, would add practical value by linking anomaly remediation to efficiency gains.
major comments (3)
- [Abstract] Abstract and evaluation description: the central claim that remediation 'substantially reduces overall operational costs' by 'facilitating early consensus and cutting off the extensive token generation' is load-bearing for the paper's utility argument, yet no quantitative details are supplied on cost measurement (e.g., token counts, latency, or monetary proxies), percentage savings, or statistical tests comparing remediated vs. unremediated runs.
- [Training Data Generation pipeline] Training Data Generation pipeline: the framework's value for benchmarking rests on the assumption that simulated debates and adversarial behaviors (excessive token output, consensus disruption) faithfully model real-world prompt infection and inter-agent compromise, but the manuscript contains no calibration against actual LLM-MAS attack traces, production logs, or sensitivity analysis on simulation parameters.
- [Defense System Benchmarking stage] Defense System Benchmarking stage and results: positive outcomes are asserted for baselines on MMLU-Pro and GSM8K, but the text provides no concrete metrics (precision/recall/F1 for anomaly detection, post-remediation task accuracy, runtime overhead), variance across topologies or random seeds, or ablation on isolation mechanisms, preventing assessment of the claimed scalability and efficiency.
minor comments (2)
- [Abstract] The expansion of the GAMMAF acronym is given in the title but could be restated explicitly on first use in the abstract for standalone readability.
- [Figures/Tables] Figure and table captions (if present in the full manuscript) should explicitly state the number of simulation runs and topology variants used to support claims of topological scalability.
Simulated Author's Rebuttal
We thank the referee for their thoughtful and constructive review of our manuscript on GAMMAF. The feedback highlights important areas for strengthening the presentation of our claims, particularly around quantitative evidence and validation of the simulation approach. We address each major comment below and commit to revisions that will enhance the rigor and clarity of the work without altering its core contributions.
read point-by-point responses
-
Referee: [Abstract] Abstract and evaluation description: the central claim that remediation 'substantially reduces overall operational costs' by 'facilitating early consensus and cutting off the extensive token generation' is load-bearing for the paper's utility argument, yet no quantitative details are supplied on cost measurement (e.g., token counts, latency, or monetary proxies), percentage savings, or statistical tests comparing remediated vs. unremediated runs.
Authors: We agree that the cost-reduction claim requires stronger quantitative backing to support the utility argument. While the full experimental results section includes comparative efficiency observations from the benchmarking pipeline, we will revise both the abstract and the results to incorporate explicit measurements: average token counts per agent and per run, latency reductions, monetary cost proxies based on standard LLM API pricing, percentage savings, and statistical significance tests (e.g., paired t-tests) across remediated and unremediated conditions. These additions will be presented in tables for direct comparison. revision: yes
-
Referee: [Training Data Generation pipeline] Training Data Generation pipeline: the framework's value for benchmarking rests on the assumption that simulated debates and adversarial behaviors (excessive token output, consensus disruption) faithfully model real-world prompt infection and inter-agent compromise, but the manuscript contains no calibration against actual LLM-MAS attack traces, production logs, or sensitivity analysis on simulation parameters.
Authors: The simulation parameters draw from documented adversarial patterns in the LLM-MAS security literature, such as excessive token generation and consensus disruption. Direct calibration against proprietary production logs or real attack traces is not feasible due to limited public availability of such data. However, we will add a dedicated sensitivity analysis section varying key parameters (e.g., adversarial injection rates, topology density, and debate length) to demonstrate dataset robustness. We will also explicitly discuss the limitations of synthetic data and outline pathways for future validation with real traces. revision: partial
-
Referee: [Defense System Benchmarking stage] Defense System Benchmarking stage and results: positive outcomes are asserted for baselines on MMLU-Pro and GSM8K, but the text provides no concrete metrics (precision/recall/F1 for anomaly detection, post-remediation task accuracy, runtime overhead), variance across topologies or random seeds, or ablation on isolation mechanisms, preventing assessment of the claimed scalability and efficiency.
Authors: We acknowledge that the current results presentation could be more granular to allow full assessment of the claimed scalability and efficiency. The manuscript reports overall positive outcomes for XG-Guard and BlindGuard, but we will expand the evaluation section with concrete metrics: precision, recall, and F1 scores for anomaly detection; post-remediation task accuracy on MMLU-Pro and GSM8K; runtime overhead; variance (standard deviations) across multiple random seeds and network topologies; and an ablation study on the dynamic isolation mechanism. These will be added as tables and figures to substantiate the claims. revision: yes
Circularity Check
No circularity: Gammaf is a self-contained benchmarking framework with independent synthetic pipelines and external baselines.
full rationale
The paper introduces Gammaf as an evaluation architecture with two pipelines (synthetic debate graph generation across topologies, then live benchmarking of existing defenses like XG-Guard and BlindGuard on tasks such as MMLU-Pro and GSM8K). No equations, fitted parameters, or derivations appear that reduce by construction to inputs; the cost-reduction observation is an empirical outcome measured inside the simulations rather than a renamed prediction. Baselines are cited as established external methods without load-bearing self-citation chains or uniqueness theorems imported from the authors' prior work. The framework does not define its own success metrics in terms of its outputs, making the derivation chain self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Anthropic PBC
Anthropic (2024a).Model Context Protocol (MCP) Specification. Anthropic PBC. Accessed: 2026-01-20. Anthropic (2024b). Multi-agent research system.https://www.anthropic.com/research
2026
- [2]
-
[3]
Oprea, A. (2025). Phantom: General backdoor attacks on retrieval augmented language generation
2025
-
[4]
Chen, W., You, Z., Li, R., Guan, Y ., Qian, C., Zhao, C., Yang, C., Xie, R., Liu, Z., and Sun, M. (2024). Internet of agents: Weaving a web of heterogeneous agents for collaborative intelligence
2024
-
[5]
Hesse, C., and Schulman, J. (2021). Training verifiers to solve math word problems
2021
-
[6]
K., and Kumar, S
Ehtesham, A., Singh, A., Gupta, G. K., and Kumar, S. (2025). A survey of agent interoperability protocols: Model context protocol (mcp), agent communication protocol (acp), agent-to-agent protocol (a2a), and agent network protocol (anp)
2025
-
[7]
Gu, X., Zheng, X., Pang, T., Du, C., Liu, Q., Wang, Y ., Jiang, J., and Lin, M. (2024). Agent smith: A single image can jailbreak one million multimodal llm agents exponentially fast
2024
-
[8]
He, P., Dai, Z., Tang, X., Xing, Y ., Liu, H., Zeng, J., Peng, Q., Agrawal, S., Varshney, S., Wang, S., et al. (2025a). Attention knows whom to trust: Attention-based trust management for llm multi-agent systems.arXiv preprint arXiv:2506.02546
work page internal anchor Pith review Pith/arXiv arXiv
-
[9]
He, P., Lin, Y ., Dong, S., Xu, H., Xing, Y ., and Liu, H. (2025c). Red-teaming llm multi-agent systems via communication attacks. InFindings of the Association for Computational Linguistics: ACL 2025, pages 6726–6747. Association for Computational Linguistics
2025
-
[10]
Hendrycks, D., Burns, C., Basart, S., Zou, A., Mazeika, M., Song, D., and Steinhardt, J. (2021). Measuring massive multitask language understanding
2021
-
[11]
Inan, H., Upasani, K., Chi, J., Rungta, R., Iyer, K., Mao, Y ., Tontchev, M., Hu, Q., Fuller, B., Testuggine, D., et al. (2023). Llama guard: Llm-based input-output safeguard for human-ai conversations
2023
- [12]
-
[13]
Kasneci, E., Seßler, K., Küchemann, S., Bannert, M., Dementieva, D., Fischer, F., Gasser, U., Groh, G., Günnemann, S., Hüllermeier, E., et al. (2023). Chatgpt for good? on opportunities and challenges of large language models for education.Learning and individual differences, 103:102274
2023
-
[14]
H., Gonzalez, J
Kwon, W., Li, Z., Zhuang, S., Sheng, Y ., Zheng, L., Yu, C. H., Gonzalez, J. E., Zhang, H., and Stoica, I. (2023). Efficient memory management for large language model serving with pagedattention
2023
-
[15]
and Tiwari, M
Lee, D. and Tiwari, M. (2024). Prompt infection: Llm-to-llm prompt injection within multi-agent systems
2024
-
[16]
Li, G., Hammoud, H. A. A. K., Itani, H., Khizbullin, D., and Ghanem, B. (2023). Camel: Communicative agents for "mind" exploration of large language model society. InAdvances in Neural Information Processing Systems
2023
-
[17]
Mialon, G., Fourrier, C., Wolf, T., LeCun, Y ., and Scialom, T. (2023). Gaia: a benchmark for general ai assistants. In The Twelfth International Conference on Learning Representations
2023
-
[18]
Miao, R., Liu, Y ., Wang, Y ., Shen, X., Tan, Y ., Dai, Y ., Pan, S., and Wang, X. (2025). Blindguard: Safeguarding llm-based multi-agent systems under unknown attacks. Microsoft (2023). Microsoft copilot.https://www.microsoft.com/en-us/microsoft-copilot. OpenAI (2025). gpt-oss-120b & gpt-oss-20b model card
2025
-
[19]
Pan, J., Liu, Y ., Miao, R., Ding, K., Zheng, Y ., Nguyen, Q. V . H., Liew, A. W.-C., and Pan, S. (2025). Explainable and fine-grained safeguarding of llm multi-agent systems via bi-level graph anomaly detection
2025
-
[20]
Qian, C., Cong, X., Yang, C., Chen, W., Su, Y ., Xu, J., Liu, Z., and Sun, M. (2023). Communicative agents for software development. 17 A Common Framework for Graph-Based Anomaly Detection on LLM-based Multi-Agent Systems
2023
-
[21]
Qian, C., Xie, Z., Wang, Y ., Liu, W., Zhu, K., Xia, H., Dang, Y ., Du, Z., Chen, W., Yang, C., Liu, Z., and Sun, M. (2025). Scaling large language model-based multi-agent collaboration. InThe Thirteenth International Conference on Learning Representations
2025
-
[22]
N., Parisien, C., and Cohen, J
Rebedea, T., Dinu, R., Sreedhar, M. N., Parisien, C., and Cohen, J. (2023). Nemo guardrails: A toolkit for controllable and safe llm applications with programmable rails. InProceedings of the 2023 conference on empirical methods in natural language processing: system demonstrations, pages 431–445
2023
-
[23]
and Nadiri, A
Talebirad, Y . and Nadiri, A. (2023). Multi-agent collaboration: Harnessing the power of intelligent llm agents
2023
-
[24]
Talmor, A., Herzig, J., Lourie, N., and Berant, J. (2019). Commonsenseqa: A question answering challenge targeting commonsense knowledge. InProceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long and Short Papers), pages 4143–4158
2019
-
[25]
Wang, S., Zhang, G., Yu, M., Wan, G., Meng, F., Guo, C., Wang, K., and Wang, Y . (2025). G-safeguard: A topology- guided security lens and treatment on llm-based multi-agent systems. InProceedings of the 63rd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers). Association for Computational Linguistics
2025
-
[26]
Wang, K., Zhuang, A., Fan, R., Yue, X., and Chen, W. (2024). Mmlu-pro: A more robust and challenging multi-task language understanding benchmark. InAdvances in Neural Information Processing Systems
2024
-
[27]
H., White, R
Wu, Q., Bansal, G., Zhang, J., Wu, Y ., Li, B., Zhu, E., Jiang, L., Zhang, X., Zhang, S., Liu, J., Awadallah, A. H., White, R. W., Burger, D., and Wang, C. (2023). Autogen: Enabling next-gen llm applications via multi-agent conversation
2023
-
[28]
Xi, Z., Chen, W., Guo, X., He, W., Ding, Y ., Zhang, B., Liao, Y ., Shang, C., Cui, J., Xu, Y ., Wen, X., Zheng, T., Zhou, W., Zhao, H., Gui, T., Zhang, Q., and Huang, X. (2025). The rise and potential of large language model based agents: A survey.Science China Information Sciences, 68(1):121101
2025
-
[29]
D., et al
Xiang, Z., Zheng, L., Li, Y ., Hong, J., Li, Q., Xie, H., Zhang, J., Xiong, Z., Xie, C., Bastian, N. D., et al. (2025). Guardagent: safeguard llm agents via knowledge-enabled reasoning. InICML 2025 workshop on computer use agents
2025
-
[30]
Xie, Y ., Zhu, C., Zhang, X., Zhu, T., Ye, D., Wang, M., and Liu, C. (2025). Who’s the mole? modeling and detecting intention-hiding malicious agents in llm-based multi-agent systems
2025
- [31]
-
[32]
F., Lu, W., Thirunavukarasu, A
Yang, R., Tan, T. F., Lu, W., Thirunavukarasu, A. J., Ting, D. S. W., and Liu, N. (2023). Large language models in health care: Development, applications, and challenges.Health Care Science, 2(4):255–263
2023
-
[33]
R., and Cao, Y
Yao, S., Zhao, J., Yu, D., Du, N., Shafran, I., Narasimhan, K. R., and Cao, Y . (2022). React: Synergizing reasoning and acting in language models. InThe eleventh international conference on learning representations
2022
-
[34]
Yu, M., Meng, F., Zhou, X., Wang, S., Mao, J., Pan, L., Chen, T., Wang, K., Li, X., Zhang, Y ., et al. (2025). A survey on trustworthy llm agents: Threats and countermeasures. InProceedings of the 31st ACM SIGKDD Conference on Knowledge Discovery and Data Mining V . 2, pages 6216–6226
2025
-
[35]
Yu, M., Wang, S., Zhang, G., Mao, J., Yin, C., Liu, Q., Wen, Q., Wang, K., and Wang, Y . (2024). NetSafe: Exploring the Topological Safety of Multi-agent Networks
2024
- [36]
-
[37]
Zhang, B., Tan, Y ., Shen, Y ., Salem, A., Backes, M., Zannettou, S., and Zhang, Y . (2025a). Breaking agents: Compromising autonomous llm agents through malfunction amplification. InProceedings of the 2025 Conference on Empirical Methods in Natural Language Processing, pages 34952–34964
2025
-
[38]
Zhang, R., Wang, H., Wang, J., Li, M., Huang, Y ., Wang, D., and Wang, Q. (2025b). From allies to adversaries: Manipulating llm tool-calling through adversarial injection. InProceedings of the 2025 Conference of the Nations of the Americas Chapter of the Association for Computational Linguistics: Human Language Technologies (Volume 1: Long Papers), pages ...
2025
-
[39]
Zhang, R., Wang, H., Wang, J., Li, M., Huang, Y ., Wang, D., and Wang, Q. (2025c). From allies to adversaries: Manipulating llm tool-calling through adversarial injection. InProceedings of the 2025 Conference of the Nations of the Americas Chapter of the Association for Computational Linguistics: Human Language Technologies (Volume 1: Long Papers), page 2...
2025
-
[40]
Zhao, Y ., Xiang, Z., Yin, S., Pang, X., Wang, Y ., and Chen, S. (2024). Made: Malicious agent detection for robust multi-agent collaborative perception. In2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pages 13817–13823. IEEE
2024
-
[41]
Zhuge, M., Wang, W., Kirsch, L., Faccio, F., Khizbullin, D., and Schmidhuber, J. (2024). Gptswarm: Language agents as optimizable graphs. InForty-first International Conference on Machine Learning. 19 A Common Framework for Graph-Based Anomaly Detection on LLM-based Multi-Agent Systems A Test results for MMLU and CSQA Dataset Method Topology ASR(↓)UnFlagA...
2024
