On the Two R-Factors in the Small-x Shockwave Formalism
Pith reviewed 2026-05-08 02:39 UTC · model grok-4.3
The pith
The two R-factors in small-x phenomenology can be eliminated by replacing the rapidity argument of the dipole amplitude with the logarithm of the minimum of 1 over x and 1 over skewness, while incorporating the real part through refined初始条件
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the small-x shockwave formalism, the R-factors accounting for non-zero skewness ξ and the real part of the amplitude are replaced by two developments: replacing the rapidity argument Y = ln(1/x) with Y = ln min{1/|x|, 1/|ξ|} for both the eikonal dipole amplitude N and the odderon amplitude O, and augmenting the initial conditions for the non-linear evolution to include the real part, with the evolution written in an integral form. This allows direct computation of the effects in elastic cross sections and GPDs without the R-factors.
What carries the argument
The modified rapidity argument Y = ln min{1/|x|, 1/|ξ|} applied to the dipole amplitudes N and O, together with the integral form of the non-linear small-x evolution equation with refined initial conditions that capture the imaginary part of N.
If this is right
- Elastic scattering cross sections at small x can be calculated without the skewness R-factor by using the min prescription in the rapidity.
- Generalized Parton Distributions and Generalized TMDs at small x and non-zero ξ follow from the same modified dipole amplitudes.
- The real part of the amplitude is obtained from the evolution starting with appropriate initial conditions, connected to the signature factor.
- The odd-signature odderon amplitude can similarly have its imaginary part constructed.
- Future phenomenological implementations can avoid both R-factors using these prescriptions.
Where Pith is reading between the lines
- This approach may improve consistency in modeling exclusive processes at facilities like the Electron-Ion Collider by reducing reliance on ad-hoc corrections.
- Validation could come from comparing to data on vector meson production where skewness effects are measurable.
- The prescription suggests that the standard dipole evolution can be extended to handle longitudinal momentum transfer more naturally.
- Similar modifications might apply to other small-x observables involving skewness.
Load-bearing premise
That changing the rapidity argument to the minimum of 1/x and 1/ξ along with modified initial conditions is sufficient to fully account for non-zero skewness and real parts in all relevant small-x kinematics.
What would settle it
Measurement of the ratio of real to imaginary parts of the scattering amplitude in exclusive processes at small x, or comparison of predicted cross sections with and without the R-factors against experimental data on diffractive production.

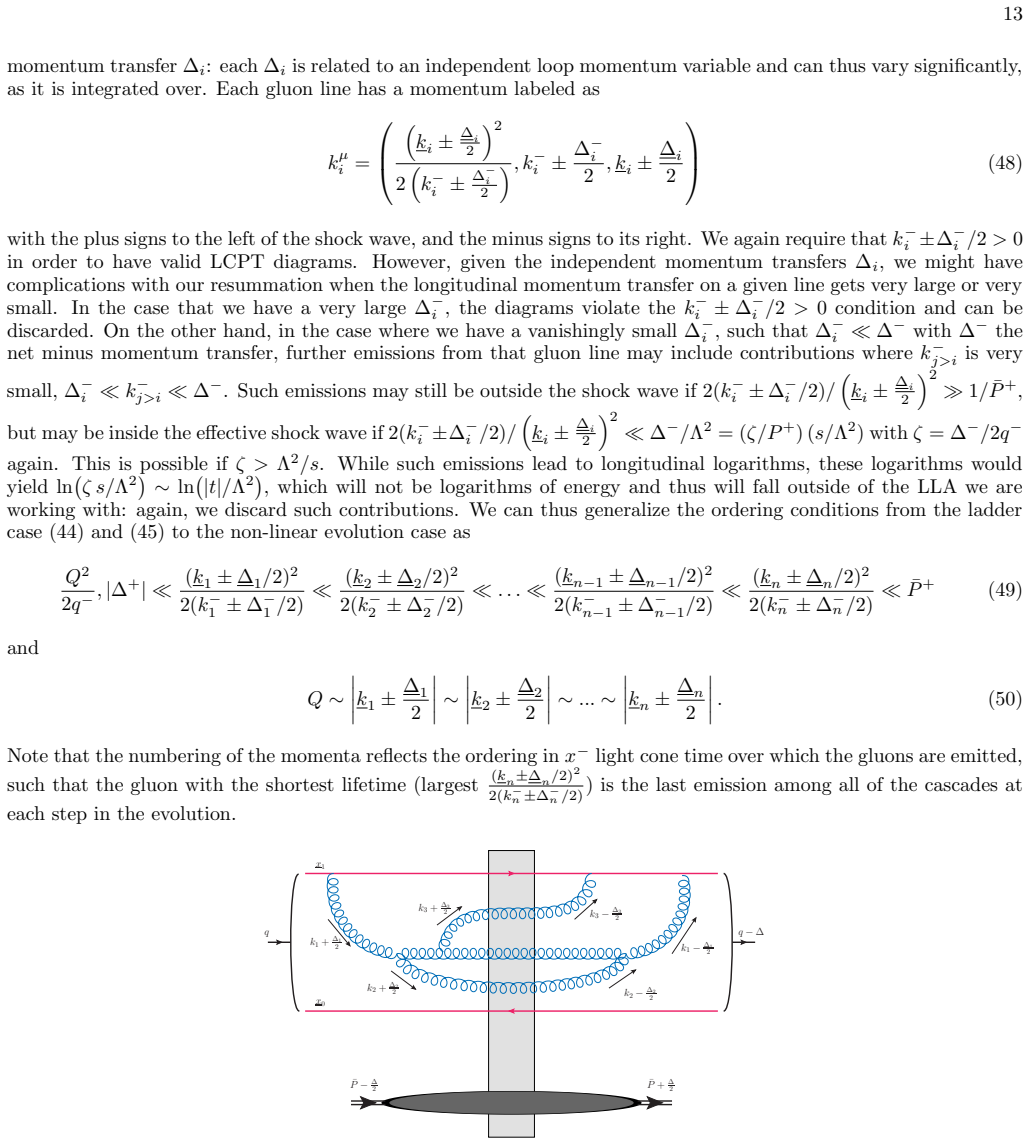

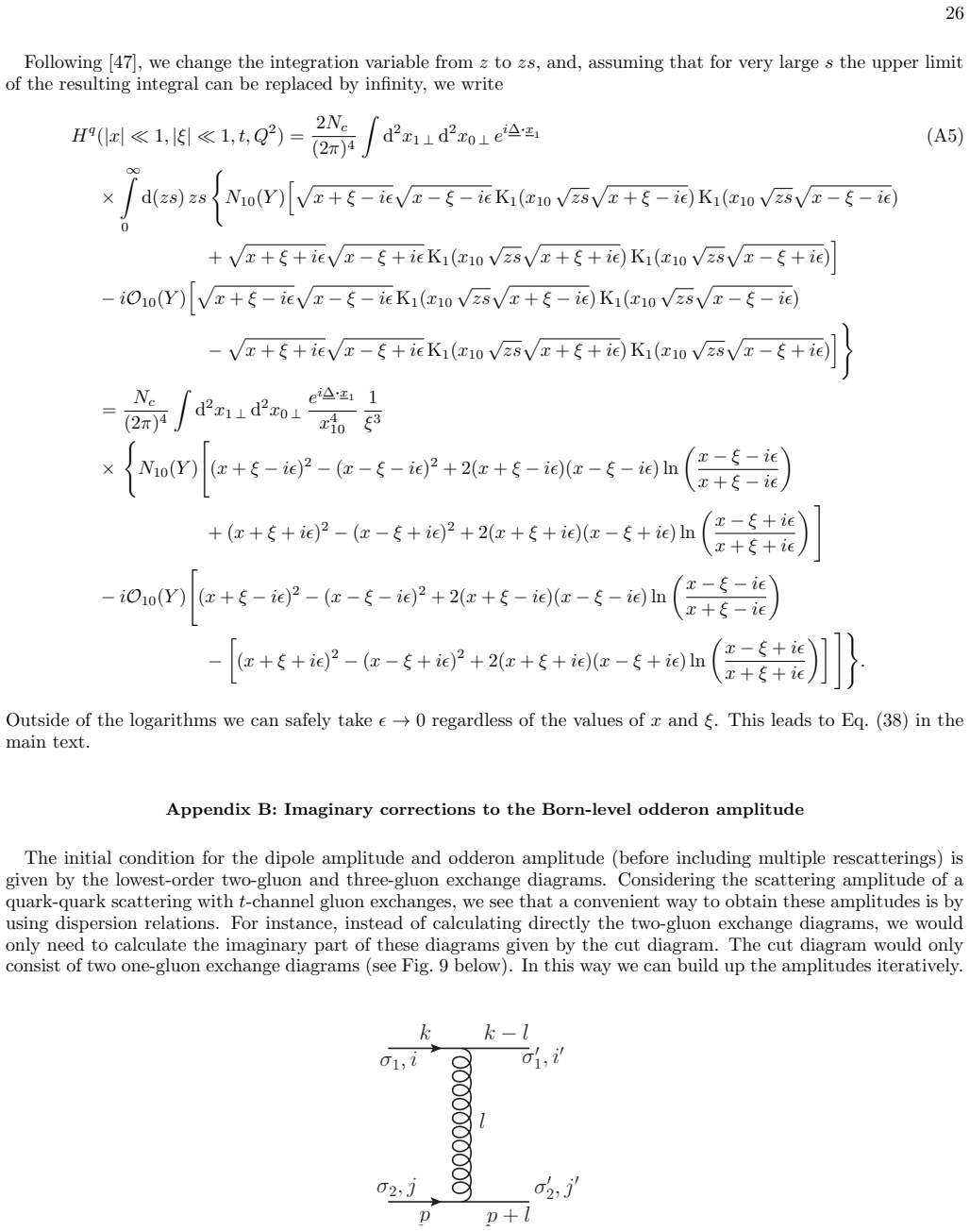

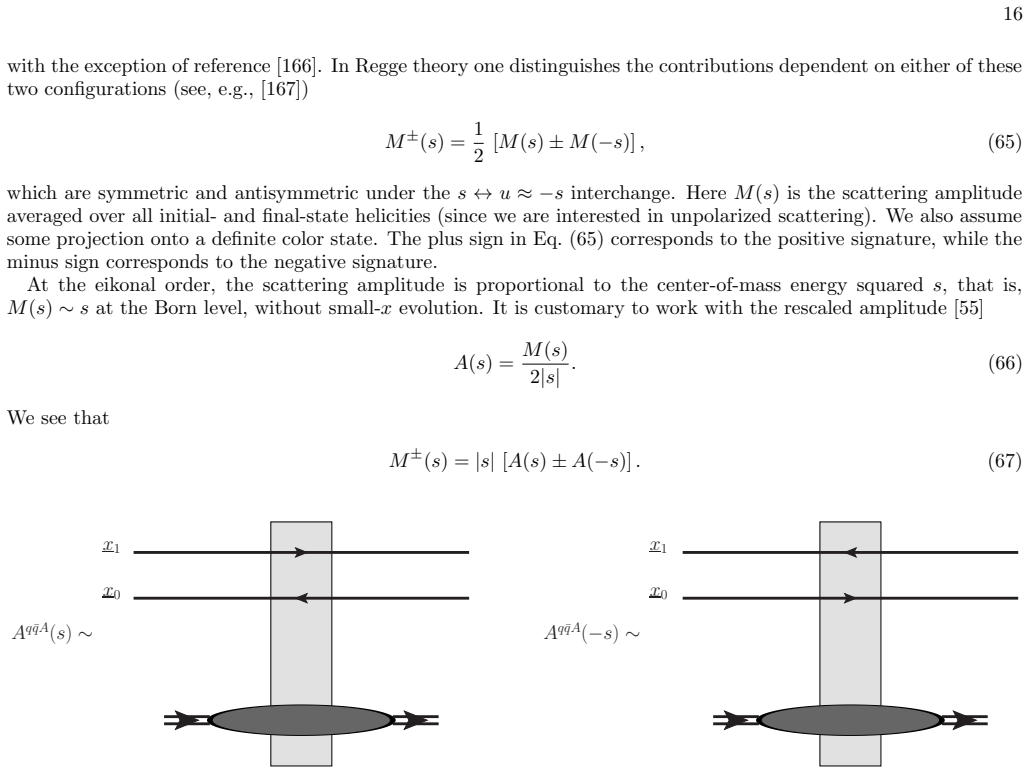

Figures

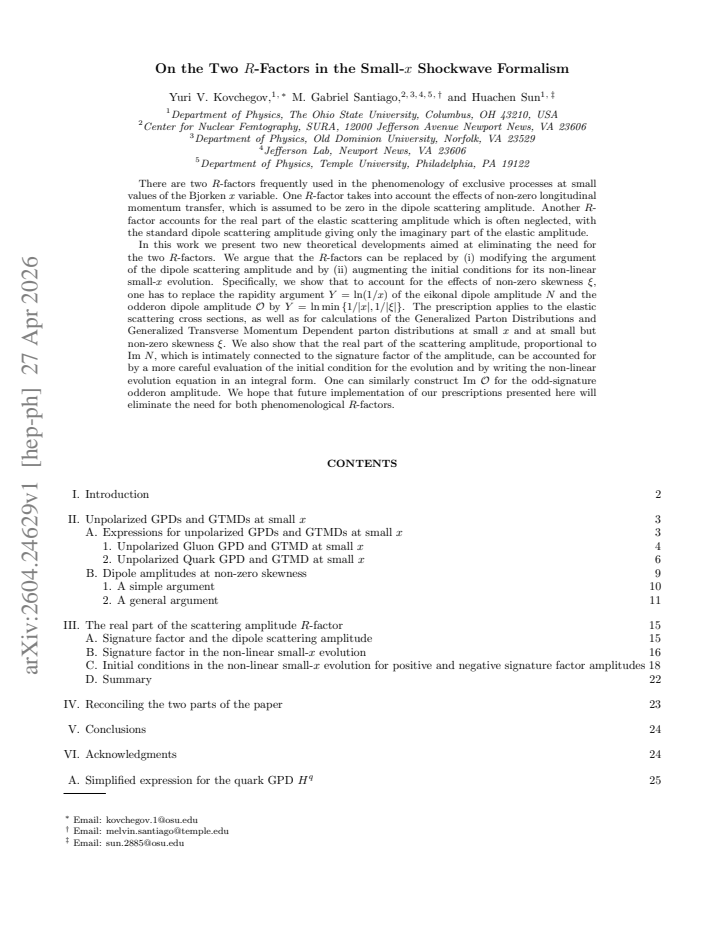

read the original abstract
There are two $R$-factors frequently used in the phenomenology of exclusive processes at small values of the Bjorken $x$ variable. One $R$-factor takes into account the effects of non-zero longitudinal momentum transfer, which is assumed to be zero in the dipole scattering amplitude. Another $R$-factor accounts for the real part of the elastic scattering amplitude which is often neglected, with the standard dipole scattering amplitude giving only the imaginary part of the elastic amplitude. In this work we present two new theoretical developments aimed at eliminating the need for the two $R$-factors. We argue that the $R$-factors can be replaced by (i) modifying the argument of the dipole scattering amplitude and by (ii) augmenting the initial conditions for its non-linear small-$x$ evolution. Specifically, we show that to account for the effects of non-zero skewness $\xi$, one has to replace the rapidity argument $Y = \ln (1/x)$ of the eikonal dipole amplitude $N$ and the odderon dipole amplitude $\cal O$ by $Y = \ln \min \left\{ 1/|x|, 1/|\xi|\right\}$. The prescription applies to the elastic scattering cross sections, as well as for calculations of the Generalized Parton Distributions and Generalized Transverse Momentum Dependent parton distributions at small $x$ and at small but non-zero skewness $\xi$. We also show that the real part of the scattering amplitude, proportional to Im~$N$, which is intimately connected to the signature factor of the amplitude, can be accounted for by a more careful evaluation of the initial condition for the evolution and by writing the non-linear evolution equation in an integral form. One can similarly construct Im~$\cal O$ for the odd-signature odderon amplitude. We hope that future implementation of our prescriptions presented here will eliminate the need for both phenomenological $R$-factors.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes two developments in the small-x shockwave formalism to eliminate the need for two R-factors in the phenomenology of exclusive processes at small Bjorken x. The first replaces the rapidity argument Y = ln(1/x) of the eikonal dipole amplitude N and the odderon amplitude O with Y = ln min{1/|x|, 1/|ξ|} to account for non-zero skewness ξ. The second augments the initial condition for the non-linear evolution and recasts the evolution equation in integral form to recover the real part of the amplitude, with a similar approach for the odderon amplitude.
Significance. If these proposals are substantiated by the derivations in the manuscript, they would provide a theoretically consistent way to incorporate the effects of non-zero longitudinal momentum transfer and the real part of the amplitude directly into the dipole model. This could improve the accuracy of predictions for elastic scattering cross sections, Generalized Parton Distributions, and Generalized Transverse Momentum Dependent distributions at small x without relying on phenomenological corrections.
minor comments (1)
- The abstract uses 'cal O' for the odderon amplitude; the main text should ensure consistent notation and define all symbols upon first introduction.
Simulated Author's Rebuttal
We thank the referee for their positive summary of our work and for recommending minor revision. No specific major comments were provided in the report, so we address the overall assessment below. We are happy to incorporate any minor clarifications the editor may request.
Circularity Check
No significant circularity; derivation self-contained in shockwave formalism
full rationale
The paper derives the replacement Y = ln min{1/|x|, 1/|ξ|} and the integral-form evolution with augmented initial conditions directly from the small-x shockwave approach when non-zero skewness ξ and signature are incorporated. These steps are presented as consequences of the formalism itself rather than reductions to fitted inputs, self-definitions, or unverified self-citation chains. No load-bearing equation is shown to equal its own input by construction, and external benchmarks (phenomenological R-factors) remain independent of the new prescriptions. Self-citations to prior dipole evolution work exist but do not force the central claims.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption The dipole scattering amplitude N and odderon amplitude O obey non-linear small-x evolution equations whose form remains valid when the rapidity argument is replaced by ln min{1/|x|, 1/|ξ|}.
- domain assumption The real part of the elastic amplitude can be recovered from a more careful choice of initial condition plus an integral representation of the evolution equation.
