This review presents graphical functions as a framework for evaluating multi-loop Feynman integrals in perturbative quantum field theory. The authors define them through examples, cover periods and Feynman residues, and treat both regular and singular cases in integer and non-integer dimensions. A sympathetic reader cares because the approach has already produced the highest-loop results known in several theories and now supports automatic algorithms. The paper also links the method to conformal field theory and momentum-space duality while supplying entry points absent from standard textbooks.

Core claim

Graphical functions, defined as massless three-point position-space integrals, reveal rich analytic structures that enable systematic evaluation of multi-loop Feynman integrals, including the highest-loop results currently known, with recent algorithms permitting many of them to be computed automatically.

What carries the argument

The graphical function, a massless three-point position-space integral that encodes the analytic properties of Feynman diagrams and reduces periods and residues to computable objects.

If this is right

  • Graphical functions have produced the highest-loop results known in several quantum field theories.
  • Recent algorithms now allow automatic computation of many graphical functions.
  • The same objects connect directly to conformal field theory calculations.
  • The framework supplies explicit links between position-space and momentum-space representations together with self-duality properties.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same reduction techniques could be tested on integrals appearing in effective field theories beyond the standard model.
  • Automatic algorithms might be extended to produce closed-form expressions for entire classes of diagrams rather than individual cases.
  • Connections to non-integer dimensions suggest possible applications in dimensional regularization schemes for higher-order calculations.

Load-bearing premise

The review accurately reproduces the central ideas of periods, Feynman residues, and regular versus singular cases from the source lectures without introducing errors or oversimplifications.

What would settle it

An explicit multi-loop integral evaluated both via graphical functions and via an independent method such as direct integration or numerical Monte Carlo that yields mismatched numerical values would falsify the claimed reliability of the framework.

Figures

Figures reproduced from arXiv: 2604.25739 by Leonid A. Shumilov, Marco Klann, Mrigankamauli Chakraborty, Oliver Schnetz, Pooja Mukherjee, Sven-Olaf Moch, Tobias Porsche.

Figure 1
Figure 1. Figure 1: The three external vertices z0, z1, z2 span the complex plane (picture by M. Borinsky). 2 Setting the stage To illustrate the main ideas of graphical functions we will first work through a simple convergent integral in D = 4 dimensions. Consider the well-known three-point one-loop integral q p1 p2 = Z d 4 q π 2 1 q 2(p1 − q) 2(p2 − q) 2 . (4) The method of graphical functions is designed for Feynman graphs… view at source ↗
Figure 2
Figure 2. Figure 2: Integration Contours Using the parametrisation z = a + εeiφ, the integral over Sa corresponds to the anti-residue at a 1 2πi Z Sa d¯z z¯ − a¯ = 1 2πi Z 2π 0 dφ −iεe−iφ εe−iφ = −1, (30) while all other terms vanish. Likewise, with z = 1 ε e iφ for S∞, we obtain 1 2πi Z S∞ d¯z z¯ = 1 2πi Z 2π 0 dφ −iε−1 e −iφ ε−1e−iφ = −1. (31) Applying this to the function F(z) we get (see theorem 2.29 in [1]) 1 2πi Z C\{0,… view at source ↗
Figure 3
Figure 3. Figure 3: (De-)construction relating graphical functions and periods together with additional rela view at source ↗
Figure 4

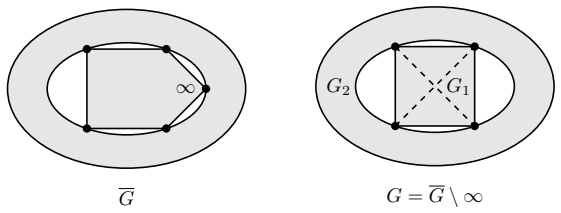

Figure 4. Figure 4: General form of the five-twist. The left graph is completed, the right graph represents a view at source ↗
