Magnetononlinear Hall effect from multigap topology in metal-organic frameworks
Pith reviewed 2026-05-07 14:57 UTC · model grok-4.3
The pith
Non-Abelian multigap band topology with nontrivial Euler class invariants induces observable magnetononlinear Hall transport in two-dimensional kagome metal-organic frameworks.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Non-Abelian multigap band topology characterized by nontrivial Euler class invariants induces observable magnetononlinear Hall transport phenomena. These effects appear in highly tunable two-dimensional kagome N-heterocyclic carbene metal-organic frameworks, and the nonlinear response remains controllable by external voltage, temperature changes, and chemical substitutions that preserve the bulk topology together with its associated edge states. The topology can therefore be deduced experimentally through measurable magnetotransport.
What carries the argument
The Euler class invariant of non-Abelian multigap band topology, which determines the form of the nonlinear Hall current in an applied magnetic field.
If this is right
- External voltage applied to the frameworks alters the magnitude of the nonlinear Hall signal while the underlying topology remains unchanged.
- Temperature variation supplies an independent tuning parameter for the size of the transport response.
- Chemical substitutions that keep the Euler class invariant intact permit further adjustment of the observed effect.
- Magnetotransport data alone can be used to establish the presence of the Euler class topology and its protected edge states.
Where Pith is reading between the lines
- The same multigap mechanism may generate analogous nonlinear responses in other two-dimensional lattices or in multilayer stacks of these frameworks.
- Transport measurements tuned across temperature and voltage could help separate topological contributions from conventional scattering effects in related organic materials.
- The demonstrated controllability points to a practical platform for exploring how Euler class invariants couple to external fields beyond the linear Hall regime.
Load-bearing premise
The nontrivial Euler class is realized in the stated metal-organic frameworks and is the dominant source of the magnetononlinear Hall response rather than other band-structure or scattering contributions.
What would settle it
Measurement of zero magnetononlinear Hall signal in these specific frameworks after independent confirmation that the Euler class is nontrivial, or detection of the signal in otherwise similar lattices whose bands lack the multigap Euler invariant.

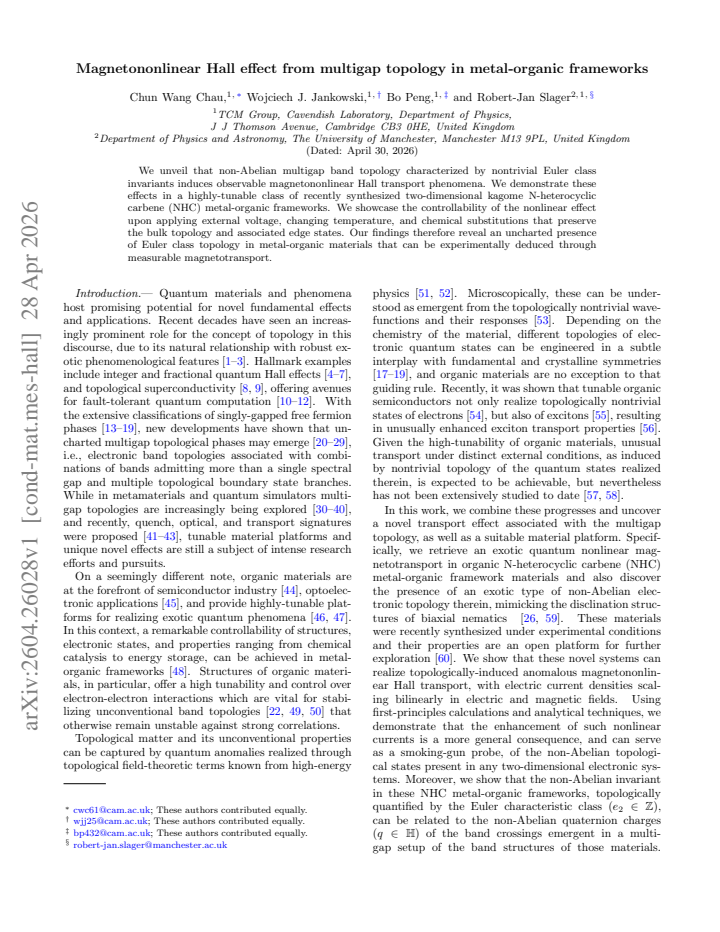

read the original abstract
We unveil that non-Abelian multigap band topology characterized by nontrivial Euler class invariants induces observable magnetononlinear Hall transport phenomena. We demonstrate these effects in a highly-tunable class of recently synthesized two-dimensional kagome N-heterocyclic carbene (NHC) metal-organic frameworks. We showcase the controllability of the nonlinear effect upon applying external voltage, changing temperature, and chemical substitutions that preserve the bulk topology and associated edge states. Our findings therefore reveal an uncharted presence of Euler class topology in metal-organic materials that can be experimentally deduced through measurable magnetotransport.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims that non-Abelian multigap band topology characterized by nontrivial Euler class invariants induces observable magnetononlinear Hall transport in two-dimensional kagome N-heterocyclic carbene metal-organic frameworks. The effect is demonstrated via band-structure and transport calculations and shown to remain controllable under external voltage, temperature variation, and chemical substitutions that preserve the bulk topology and edge states.
Significance. If the central link holds, the work would provide a concrete route to detect Euler-class topology through magnetotransport in a highly tunable organic platform, extending multigap topological physics beyond conventional inorganic crystals and highlighting experimental accessibility via voltage and substitution tuning.
major comments (2)
- [§4] §4 (Band-structure and topology section): the manuscript must supply the explicit tight-binding Hamiltonian for the kagome NHC MOFs together with the Euler-class evaluation (Wilson-loop or Pfaffian method) that establishes the invariant is nonzero; without this step the attribution of the Hall response to multigap topology remains unverified.
- [§5] §5 (Transport formula): the Kubo-derived magnetononlinear Hall conductivity expression must be shown to isolate the Euler-class contribution from ordinary Berry-curvature, orbital-magnetism, and scattering channels; the present derivation does not yet demonstrate dominance of the topological term.
minor comments (2)
- Figure captions should explicitly state the units and temperature range used for the plotted nonlinear conductivity.
- [Abstract] The abstract would benefit from naming the specific NHC-MOF compounds (e.g., by chemical formula) rather than the generic class label.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive comments, which have helped us strengthen the presentation of the topological origin of the magnetononlinear Hall effect. We address each major comment below and have revised the manuscript to incorporate the requested details.
read point-by-point responses
-
Referee: [§4] §4 (Band-structure and topology section): the manuscript must supply the explicit tight-binding Hamiltonian for the kagome NHC MOFs together with the Euler-class evaluation (Wilson-loop or Pfaffian method) that establishes the invariant is nonzero; without this step the attribution of the Hall response to multigap topology remains unverified.
Authors: We agree that an explicit tight-binding Hamiltonian and the corresponding Euler-class calculation are necessary to rigorously link the multigap topology to the transport response. In the revised manuscript we have added the full tight-binding Hamiltonian (including all hopping parameters and on-site energies derived from the kagome NHC MOF structure) as a new subsection in §4. We also include the Wilson-loop spectra computed for the relevant occupied bands, which exhibit the characteristic winding that establishes a nonzero Euler class invariant. These additions directly verify the nontrivial multigap topology and its role in the observed Hall effect. revision: yes
-
Referee: [§5] §5 (Transport formula): the Kubo-derived magnetononlinear Hall conductivity expression must be shown to isolate the Euler-class contribution from ordinary Berry-curvature, orbital-magnetism, and scattering channels; the present derivation does not yet demonstrate dominance of the topological term.
Authors: We thank the referee for highlighting the importance of explicitly isolating the topological contribution. In the revised §5 we have expanded the Kubo-formula derivation to include a term-by-term decomposition of the magnetononlinear Hall conductivity. We analytically demonstrate that the ordinary Berry-curvature dipole vanishes upon integration over the Brillouin zone for the multigap configuration, while orbital-magnetism and scattering (treated in the constant-relaxation-time approximation) enter as separate, non-topological channels. Numerical results are now presented showing that the Euler-class term dominates the response within the experimentally relevant voltage and temperature windows, with the dominance quantified by comparing the full conductivity to the individual nontopological contributions. revision: yes
Circularity Check
No significant circularity; derivation relies on independent band-structure and transport calculations.
full rationale
The abstract and available text claim that nontrivial Euler-class multigap topology induces magnetononlinear Hall transport, demonstrated via controllability under voltage, temperature, and substitutions in kagome NHC MOFs. No equations are supplied that define the Euler class in terms of the Hall conductivity (or vice versa), fit a parameter to a subset of data then rename the output as a prediction, or reduce the central result to a self-citation chain whose verification is internal to the present work. The topology is obtained from the tight-binding Hamiltonian of the stated materials, while the transport response follows from standard Kubo or semiclassical formulas; these steps remain logically independent of the final claim even if prior Slager-group results on Euler class are cited. Because no load-bearing step collapses by construction to its own inputs, the paper is self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Non-Abelian multigap band topology is characterized by nontrivial Euler class invariants
Reference graph
Works this paper leans on
-
[1]
X.-L. Qi and S.-C. Zhang, Topological insulators and su- perconductors, Rev. Mod. Phys.83, 1057 (2011)
work page 2011
-
[2]
M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys.82, 3045 (2010)
work page 2010
-
[3]
N. P. Armitage, E. J. Mele, and A. Vishwanath, Weyl and Dirac semimetals in three-dimensional solids, Rev. Mod. Phys.90, 015001 (2018)
work page 2018
-
[4]
K. v. Klitzing, G. Dorda, and M. Pepper, New method for high-accuracy determination of the fine-structure con- stant based on quantized hall resistance, Phys. Rev. Lett. 45, 494 (1980)
work page 1980
-
[5]
D. C. Tsui, H. L. Stormer, and A. C. Gossard, Two- dimensional magnetotransport in the extreme quantum limit, Phys. Rev. Lett.48, 1559 (1982)
work page 1982
-
[6]
R. B. Laughlin, Anomalous quantum Hall effect: An in- compressible quantum fluid with fractionally charged ex- citations, Phys. Rev. Lett.50, 1395 (1983)
work page 1983
-
[7]
von Klitzing, The quantized Hall effect, Rev
K. von Klitzing, The quantized Hall effect, Rev. Mod. Phys.58, 519 (1986)
work page 1986
-
[8]
A. Y. Kitaev, Unpaired Majorana fermions in quantum wires, Physics-Uspekhi44, 131 (2001)
work page 2001
-
[9]
M. Sato and Y. Ando, Topological superconductors: a re- view, Reports on Progress in Physics80, 076501 (2017)
work page 2017
-
[10]
Kitaev, Fault-tolerant quantum computation by anyons, Annals of Physics303, 2 (2003)
A. Kitaev, Fault-tolerant quantum computation by anyons, Annals of Physics303, 2 (2003)
work page 2003
- [11]
-
[12]
C. Beenakker, Search for Majorana fermions in supercon- ductors, Annual Review of Condensed Matter Physics4, 113 (2013)
work page 2013
-
[13]
A. P. Schnyder, S. Ryu, A. Furusaki, and A. W. W. Lud- wig, Classification of topological insulators and super- conductors in three spatial dimensions, Phys. Rev. B78, 195125 (2008)
work page 2008
-
[14]
Kitaev, Periodic table for topological insulators and superconductors, inAIP Conf
A. Kitaev, Periodic table for topological insulators and superconductors, inAIP Conf. Proc.(AIP, 2009)
work page 2009
- [15]
-
[16]
K. Shiozaki and M. Sato, Topology of crystalline insu- lators and superconductors, Phys. Rev. B90, 165114 (2014)
work page 2014
-
[17]
J. Kruthoff, J. de Boer, J. van Wezel, C. L. Kane, and R.-J. Slager, Topological classification of crystalline insu- lators through band structure combinatorics, Phys. Rev. X7, 041069 (2017)
work page 2017
-
[18]
H. C. Po, A. Vishwanath, and H. Watanabe, Symmetry- based indicators of band topology in the 230 space groups, Nat. Commun.8, 50 (2017)
work page 2017
-
[19]
B. Bradlyn, L. Elcoro, J. Cano, M. G. Vergniory, Z. Wang, C. Felser, M. I. Aroyo, and B. A. Bernevig, Topological quantum chemistry, Nature547, 298 (2017)
work page 2017
- [20]
-
[21]
Y. X. Zhao and Y. Lu,P T-Symmetric real Dirac Fermions and Semimetals, Phys. Rev. Lett.118, 056401 (2017)
work page 2017
-
[22]
J. Ahn, S. Park, and B.-J. Yang, Failure of Nielsen- Ninomiya Theorem and Fragile Topology in Two- Dimensional Systems with Space-Time Inversion Symme- try: Application to Twisted Bilayer Graphene at Magic Angle, Phys. Rev. X9, 021013 (2019). 7
work page 2019
-
[23]
Z. Davoyan, W. J. Jankowski, A. Bouhon, and R.- J. Slager, Three-dimensionalPT-symmetric topological phases with a Pontryagin index, Phys. Rev. B109, 165125 (2024)
work page 2024
-
[24]
W. J. Jankowski and R.-J. Slager, Quantized integrated shift effect in multigap topological phases, Phys. Rev. Lett.133, 186601 (2024)
work page 2024
-
[25]
W. J. Jankowski, A. S. Morris, Z. Davoyan, A. Bouhon, F. N. ¨Unal, and R.-J. Slager, Non-Abelian Hopf-Euler insulators, Phys. Rev. B110, 075135 (2024)
work page 2024
- [26]
-
[27]
J. Ahn, D. Kim, Y. Kim, and B.-J. Yang, Band topology and linking structure of nodal line semimetals withZ 2 monopole charges, Phys. Rev. Lett.121, 106403 (2018)
work page 2018
-
[28]
H. Lim, S. Kim, and B.-J. Yang, Real Hopf insulator, Phys. Rev. B108, 125101 (2023)
work page 2023
-
[29]
P. W. Brouwer and V. Dwivedi, Homotopic classifica- tion of band structures: Stable, fragile, delicate, and sta- ble representation-protected topology, Phys. Rev. B108, 155137 (2023)
work page 2023
-
[30]
Q. Guo, T. Jiang, R.-Y. Zhang, L. Zhang, Z.-Q. Zhang, B. Yang, S. Zhang, and C. T. Chan, Experimental ob- servation of non-Abelian topological charges and edge states, Nature594, 195 (2021)
work page 2021
- [31]
-
[32]
W. Zhao, Y.-B. Yang, Y. Jiang, Z. Mao, W. Guo, L. Qiu, G. Wang, L. Yao, L. He, Z. Zhou, Y. Xu, and L. Duan, Quantum simulation for topological Euler insu- lators, Commun. Phys.5, 223 (2022)
work page 2022
- [33]
- [34]
-
[35]
Y. Yang, B. Yang, G. Ma, J. Li, S. Zhang, and C. T. Chan, Non-Abelian physics in light and sound, Science 383, eadf9621 (2024)
work page 2024
-
[36]
Y. Hu, M. Tong, T. Jiang, J.-H. Jiang, H. Chen, and Y. Yang, Observation of two-dimensional time-reversal broken non-Abelian topological states, Nat. Commun. 15, 10036 (2024)
work page 2024
-
[37]
W. Liu, H. Wang, B. Yang, and S. Zhang, Correspon- dence between Euler charges and nodal-line topology in Euler semimetals, Science Advances11, eads5081 (2025)
work page 2025
-
[38]
Measuring non-Abelian quantum geometry and topology in a multi-gap photonic lattice
M. Guillot, C. Blanchard, M. Morassi, A. Lemaˆ ıtre, L. L. Gratiet, A. Harouri, I. Sagnes, R.-J. Slager, F. N. ¨Unal, J. Bloch, and S. Ravets, Measuring non-Abelian quantum geometry and topology in a multi-gap photonic lattice (2026), arXiv:2511.03894 [cond-mat.mes-hall]
work page internal anchor Pith review Pith/arXiv arXiv 2026
- [39]
-
[40]
T. Jiang, Z.-N. Tian, R. Tao, R.-Y. Zhang, C. Zhang, Q.-D. Chen, Z. Wang, X. Cheng, C. T. Chan, and X.-L. Zhang, Photonic non-Abelian topological insulators with six bands, Nat. Commun.17, 3020 (2026)
work page 2026
-
[41]
F. N. ¨Unal, A. Bouhon, and R.-J. Slager, Topological Eu- ler Class as a Dynamical Observable in Optical Lattices, Phys. Rev. Lett.125, 053601 (2020)
work page 2020
-
[42]
W. J. Jankowski, A. S. Morris, A. Bouhon, F. N. ¨Unal, and R.-J. Slager, Optical manifestations and bounds of topological Euler class, Phys. Rev. B111, L081103 (2025)
work page 2025
-
[43]
A. Jain, W. J. Jankowski, and R.-J. Slager, Anomalous geometric transport signatures of topological Euler class, Phys. Rev. B111, 235149 (2025)
work page 2025
-
[44]
S. R. Forrest and M. E. Thompson, Introduction: Or- ganic Electronics and Optoelectronics, Chemical Reviews 107, 923 (2007)
work page 2007
-
[45]
O. Ostroverkhova, Organic Optoelectronic Materials: Mechanisms and Applications, Chemical Reviews116, 13279 (2016)
work page 2016
-
[46]
W. P. Su, J. R. Schrieffer, and A. J. Heeger, Solitons in polyacetylene, Phys. Rev. Lett.42, 1698 (1979)
work page 1979
-
[47]
W. P. Su, J. R. Schrieffer, and A. J. Heeger, Soliton ex- citations in polyacetylene, Phys. Rev. B22, 2099 (1980)
work page 2099
-
[48]
H. Furukawa, K. E. Cordova, M. O’Keeffe, and O. M. Yaghi, The chemistry and applications of metal-organic frameworks, Science341, 1230444 (2013)
work page 2013
-
[49]
H. C. Po, L. Zou, T. Senthil, and A. Vishwanath, Faithful tight-binding models and fragile topology of magic-angle bilayer graphene, Phys. Rev. B99, 195455 (2019)
work page 2019
- [50]
-
[51]
Witten, Topological quantum field theory, Communi- cations in Mathematical Physics117, 353 (1988)
E. Witten, Topological quantum field theory, Communi- cations in Mathematical Physics117, 353 (1988)
work page 1988
-
[52]
Witten, Chern-Simons gauge theory as a string theory, inThe Floer Memorial Volume, edited by H
E. Witten, Chern-Simons gauge theory as a string theory, inThe Floer Memorial Volume, edited by H. Hofer, C. H. Taubes, A. Weinstein, and E. Zehnder (Birkh¨ auser Basel, Basel, 1995) pp. 637–678
work page 1995
-
[53]
X.-L. Qi, T. L. Hughes, and S.-C. Zhang, Topological field theory of time-reversal invariant insulators, Phys. Rev. B78, 195424 (2008)
work page 2008
- [54]
-
[55]
W. J. Jankowski, J. J. P. Thompson, B. Monserrat, and R.-J. Slager, Excitonic topology and quantum geome- try in organic semiconductors, Nat. Commun.16, 4661 (2025)
work page 2025
-
[56]
J. J. P. Thompson, W. J. Jankowski, R.-J. Slager, and B. Monserrat, Topologically enhanced exciton transport, Nat. Commun.16, 11448 (2025)
work page 2025
-
[57]
M. Pan, D. Li, J. Fan, and H. Huang, Two-dimensional Stiefel-Whitney insulators in liganded Xenes, npj Com- putational Materials8, 1 (2022)
work page 2022
-
[58]
Z. F. Wang, Z. Liu, and F. Liu, Organic topological insu- lators in organometallic lattices, Nat. Commun.4, 1471 (2013)
work page 2013
-
[59]
Q. Wu, A. A. Soluyanov, and T. Bzduˇ sek, Non-Abelian band topology in noninteracting metals, Science365, 1273 (2019). 8
work page 2019
-
[60]
B. Qie, Z. Wang, J. Jiang, Z. Zhang, P. H. Jacobse, J. Lu, X. Li, F. Liu, A. N. Alexandrova, S. G. Louie, M. F. Crommie, and F. R. Fischer, Synthesis and characteriza- tion of low-dimensional N-heterocyclic carbene lattices, Science384, 895 (2024)
work page 2024
-
[61]
D. Vanderbilt,Berry phases in electronic structure the- ory: electric polarization, orbital magnetization and topo- logical insulators(Cambridge University Press, 2018)
work page 2018
-
[62]
Y. Gao, S. A. Yang, and Q. Niu, Field Induced Positional Shift of Bloch Electrons and Its Dynamical Implications, Phys. Rev. Lett.112, 166601 (2014)
work page 2014
-
[63]
H. Wang, Y.-X. Huang, H. Liu, X. Feng, J. Zhu, W. Wu, C. Xiao, and S. A. Yang, Orbital Origin of the Intrinsic Planar Hall Effect, Phys. Rev. Lett.132, 056301 (2024)
work page 2024
-
[64]
L. Wang, J. Zhu, H. Chen, H. Wang, J. Liu, Y.-X. Huang, B. Jiang, J. Zhao, H. Shi, G. Tian, H. Wang, Y. Yao, D. Yu, Z. Wang, C. Xiao, S. A. Yang, and X. Wu, Orbital Magneto-Nonlinear Anomalous Hall Effect in Kagome Magnet Fe3Sn2, Phys. Rev. Lett.132, 106601 (2024)
work page 2024
-
[65]
J. Provost and G. Vallee, Riemannian structure on man- ifolds of quantum states, Communications in Mathemat- ical Physics76, 289 (1980)
work page 1980
- [66]
- [67]
-
[68]
R. Resta, The insulating state of matter: a geometrical theory, The European Physical Journal B79, 121–137 (2011)
work page 2011
- [69]
-
[70]
Liu,Simulation of Nonlinear Electronic Transport Us- ing Wannier Interpolation, Ph.D
X. Liu,Simulation of Nonlinear Electronic Transport Us- ing Wannier Interpolation, Ph.D. thesis, University of Zurich (2023)
work page 2023
- [71]
-
[72]
X. Liu, I. Souza, and S. S. Tsirkin, Intrinsic electrical magnetochiral anisotropy in trigonal tellurium from first principles, Phys. Rev. B112, 125143 (2025)
work page 2025
-
[73]
G. Kresse and J. Furthm¨ uller, Efficient iterative schemes forab initiototal-energy calculations using a plane-wave basis set, Phys. Rev. B54, 11169 (1996)
work page 1996
-
[74]
G. Kresse and J. Furthm¨ uller, Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set, Computational Materials Science 6, 15 (1996)
work page 1996
-
[75]
P. E. Bl¨ ochl, Projector augmented-wave method, Phys. Rev. B50, 17953 (1994)
work page 1994
-
[76]
G. Kresse and D. Joubert, From ultrasoft pseudopoten- tials to the projector augmented-wave method, Phys. Rev. B59, 1758 (1999)
work page 1999
-
[77]
J. P. Perdew, A. Ruzsinszky, G. I. Csonka, O. A. Vy- drov, G. E. Scuseria, L. A. Constantin, X. Zhou, and K. Burke, Restoring the Density-Gradient Expansion for Exchange in Solids and Surfaces, Phys. Rev. Lett.100, 136406 (2008)
work page 2008
-
[78]
G. Makov and M. C. Payne, Periodic boundary condi- tions in ab initio calculations, Phys. Rev. B51, 4014 (1995)
work page 1995
-
[79]
N. Marzari and D. Vanderbilt, Maximally localized gen- eralized Wannier functions for composite energy bands, Phys. Rev. B56, 12847 (1997)
work page 1997
- [80]
