arxiv: 2604.26368 · v1 · submitted 2026-04-29 · 💻 cs.CV

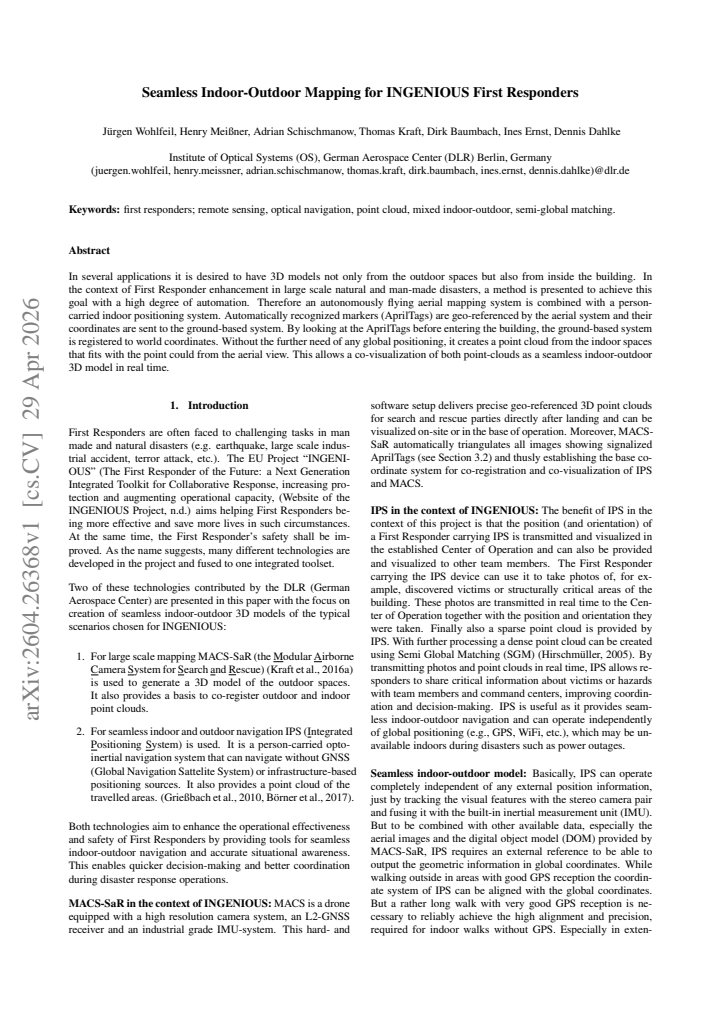

Seamless Indoor-Outdoor Mapping for INGENIOUS First Responders

J\"urgen Wohlfeil , Henry Mei{\ss}ner , Adrian Schischmanow , Thomas Kraft , Dirk Baumbach , Ines Ernst , Dennis Dahlke This is my paper

Pith reviewed 2026-05-07 13:40 UTC · model grok-4.3

classification 💻 cs.CV
keywords AprilTagsindoor-outdoor mappingpoint cloudsfirst respondersaerial-ground integration3D modelingseamless visualizationdisaster response
0
0 comments X

The pith

AprilTags detected by aerial drones register person-carried indoor systems to world coordinates, producing aligned indoor point clouds that combine with outdoor aerial data for real-time seamless 3D models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a method for first responders in disasters that combines an autonomously flying aerial mapping system with a person-carried indoor positioning system. AprilTags are automatically recognized and geo-referenced by the aerial system, then their coordinates are transmitted to the ground-based system. Observing the tags before entering a building registers the indoor system to world coordinates. The indoor system then generates a point cloud that matches the aerial one, enabling co-visualization of a single seamless indoor-outdoor 3D model without any further global positioning.

Core claim

An autonomously flying aerial mapping system detects and geo-references AprilTags and sends their coordinates to a person-carried indoor positioning system. By viewing these tags before entering the building, the ground system registers to world coordinates. It then builds an indoor point cloud that aligns with the aerial point cloud, allowing real-time co-visualization of both as a seamless indoor-outdoor 3D model without ongoing global positioning.

What carries the argument

AprilTags used as shared geo-referenced markers that provide initial registration between an aerial point-cloud system and a ground-based indoor point-cloud system.

Load-bearing premise

The aerial system must accurately detect and geo-reference the AprilTags, while the indoor system must use those tags for reliable initial registration and then maintain accurate positioning indoors without drift or external references.

What would settle it

A comparison of the generated point clouds showing misalignment between indoor and outdoor sections after initial tag-based registration, or increasing drift visible in the indoor model as the operator moves farther from the entry point.

Figures

Figures reproduced from arXiv: 2604.26368 by Adrian Schischmanow, Dennis Dahlke, Dirk Baumbach, Henry Mei{\ss}ner, Ines Ernst, J\"urgen Wohlfeil, Thomas Kraft.

Figure 1
Figure 1. Figure 1: Prototype of the camera system mounted to carrier view at source ↗
Figure 2
Figure 2. Figure 2: CAD-model of the camera system This setup enhances orientation accuracy, particularly when move￾ment direction and heading diverge due to cross-wind. Depend￾ing on the flight trajectory, divergences of up to 10 degrees between movement direction and heading have been observed. Additionally the dual-antenna system allows for very fast at￾titude initialization already on ground without aircraft move￾ment. Wi… view at source ↗
Figure 3
Figure 3. Figure 3: Helmet-version of IPS with two panchromatic cameras view at source ↗
Figure 5
Figure 5. Figure 5: Part of an image from MACS showing 7 AprilTags in front of the examined building view at source ↗
Figure 6
Figure 6. Figure 6: Visualization of the geometry underlying the view at source ↗
Figure 7
Figure 7. Figure 7: Point cloud in world coordinates, generated using the images of MACS. view at source ↗
Figure 8
Figure 8. Figure 8: Point cloud in world coordinates, generated using the view at source ↗
Figure 9
Figure 9. Figure 9: Co-visualization of IPS point cloud (grey) and MACS point cloud (RGB). View from outside-in (top), view from inside-out view at source ↗
read the original abstract

In several applications it is desired to have 3D models not only from the outdoor spaces but also from inside the building. In the context of First Responder enhancement in large scale natural and man-made disasters, a method is presented to achieve this goal with a high degree of automation. Therefore an autonomously flying aerial mapping system is combined with a person-carried indoor positioning system. Automatically recognized markers (AprilTags) are geo-referenced by the aerial system and their coordinates are sent to the ground-based system. By looking at the AprilTags before entering the building, the ground-based system is registered to world coordinates. Without the further need of any global positioning, it creates a point cloud from the indoor spaces that fits with the point could from the aerial view. This allows a co-visualization of both point-clouds as a seamless indoor-outdoor 3D model in real time.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents a hybrid mapping workflow for first-responder applications that combines an autonomous aerial drone for outdoor point-cloud generation with a person-carried indoor positioning system. AprilTags detected and geo-referenced by the aerial platform are transmitted to the ground system; the indoor mapper registers to world coordinates by observing these tags before entry and thereafter produces an indoor point cloud that is claimed to align seamlessly with the aerial cloud in real time, without any further global positioning.

Significance. A working implementation of this registration strategy would be useful for disaster-response scenarios that require unified indoor-outdoor 3D models. The core idea of using aerially observed AprilTags for initial world-frame alignment is straightforward and leverages existing marker technology. However, because the manuscript supplies neither algorithmic details nor any quantitative validation, the practical significance cannot yet be assessed.

major comments (2)
  1. [Abstract] Abstract: the claim that the indoor point cloud 'fits with the point cloud from the aerial view' without further global positioning is load-bearing for the entire contribution, yet the manuscript provides no description of the indoor positioning algorithm, no error model, and no mechanism (loop closure, map matching, or otherwise) to bound drift after the initial AprilTag registration.
  2. [Abstract] Abstract: no accuracy metrics, error statistics, drift measurements, or any experimental validation are reported, so it is impossible to determine whether the asserted seamless co-visualization is achieved under realistic indoor trajectories.
minor comments (1)
  1. [Abstract] Abstract: 'point could' is a typographical error and should read 'point cloud'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript describing the hybrid indoor-outdoor mapping system. We address the major comments point by point below, agreeing that the current version is high-level and requires expansion for clarity and substantiation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the indoor point cloud 'fits with the point cloud from the aerial view' without further global positioning is load-bearing for the entire contribution, yet the manuscript provides no description of the indoor positioning algorithm, no error model, and no mechanism (loop closure, map matching, or otherwise) to bound drift after the initial AprilTag registration.

    Authors: We agree that the manuscript currently offers only a high-level description of the workflow. The seamless alignment is intended to result from the initial world-frame registration via AprilTags observed by both the drone and the indoor mapper, after which the indoor system relies on its local sensors without additional global positioning. However, we acknowledge the lack of algorithmic specifics, error modeling, and explicit drift-bounding mechanisms (e.g., loop closure or map matching) in the present text. In the revised manuscript we will add a dedicated Methods section detailing the indoor positioning algorithm (visual-inertial odometry with AprilTag initialization), the associated error model, and the techniques used to limit drift during indoor trajectories. revision: yes

  2. Referee: [Abstract] Abstract: no accuracy metrics, error statistics, drift measurements, or any experimental validation are reported, so it is impossible to determine whether the asserted seamless co-visualization is achieved under realistic indoor trajectories.

    Authors: We concur that the absence of quantitative validation limits assessment of the claimed performance. The current manuscript focuses on the system concept and integration rather than empirical results. We will revise the paper to include experimental validation, reporting accuracy metrics, error statistics, and drift measurements obtained from real-world indoor trajectories to demonstrate the seamless co-visualization with the aerial point cloud. revision: yes

Circularity Check

0 steps flagged

No circularity: descriptive system architecture with no derivations or fitted predictions

full rationale

The paper describes a combined aerial-ground mapping system using AprilTags for initial registration, followed by independent indoor point-cloud generation. No equations, parameter fits, predictions, or self-citations appear in the provided text. The central claim (seamless co-visualization after AprilTag registration) is presented as an engineering outcome rather than a derived result that reduces to its own inputs by construction. This matches the default expectation for non-circular system-description papers.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach depends on standard assumptions about marker detection and relative tracking accuracy without introducing new free parameters or invented entities.

axioms (2)
  • domain assumption AprilTags can be automatically and reliably recognized with accurate 3D position estimation by the aerial mapping system.
    Required for transferring world coordinates to the indoor system.
  • domain assumption The person-carried indoor system can perform accurate relative positioning and point-cloud generation after initial tag-based registration without external global references.
    Necessary for the indoor point cloud to align with the aerial one.
