Quantum Noise Fraction and the Thermal Frontier in High-Frequency Gravitational Wave Detection
Pith reviewed 2026-05-12 03:07 UTC · model grok-4.3
The pith
Resonant mass detectors for high-frequency gravitational waves are thermally dominated below 230 MHz, limiting quantum enhancements.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that the quantum noise fraction β, which sets the upper limit on sensitivity gains from quantum methods, remains approximately zero for tidal-coupling resonant mass detectors below the thermal frontier defined by ħω = k_B T ln 3, or roughly 230 MHz at dilution temperatures. A bulk acoustic wave resonator at 1 GHz and 10 mK reaches β = 0.98. An array of 10^4 such resonators using 10 dB mechanical squeezing via circuit QED readout attains a strain sensitivity of 2.1 × 10^{-22}/√Hz at 1 GHz, yet this still lies a factor of about 10^{12} above the BBN bound on stochastic backgrounds, showing that the remaining gap is primarily classical.
What carries the argument
The quantum noise fraction β, a diagnostic ratio that bounds the maximum sensitivity gain obtainable from quantum enhancements such as squeezing by separating quantum noise from thermal noise in the detector.
If this is right
- Quantum enhancement techniques such as squeezing and entanglement have limited effectiveness for these detectors below the thermal frontier.
- A bulk acoustic wave resonator at 1 GHz and 10 mK achieves β = 0.98 and operates in the quantum regime.
- An array of 10^4 resonators with 10 dB mechanical squeezing reaches a strain sensitivity of 2.1 × 10^{-22}/√Hz at 1 GHz.
- The gap to the BBN bound on stochastic backgrounds remains predominantly classical, so advances in classical detector parameters are also required.
Where Pith is reading between the lines
- High-frequency gravitational wave detector development should pursue reductions in classical noise sources at the same time as quantum enhancements.
- The thermal frontier concept may apply to other mechanical resonator sensors and guide frequency and temperature choices in quantum metrology.
- Laboratory tests of actual 1 GHz resonators at millikelvin temperatures could confirm whether the predicted β value of 0.98 is observed.
- Larger arrays or higher operating frequencies could narrow the sensitivity gap but would still require parallel classical optimizations to approach cosmological bounds.
Load-bearing premise
The noise models for tidal coupling in resonant masses accurately separate quantum and thermal contributions without significant unmodeled classical noise sources.
What would settle it
A direct laboratory measurement of the noise spectrum in a 1 GHz bulk acoustic wave resonator at 10 mK that shows the quantum noise fraction falling well below 0.98 would falsify the central claim.

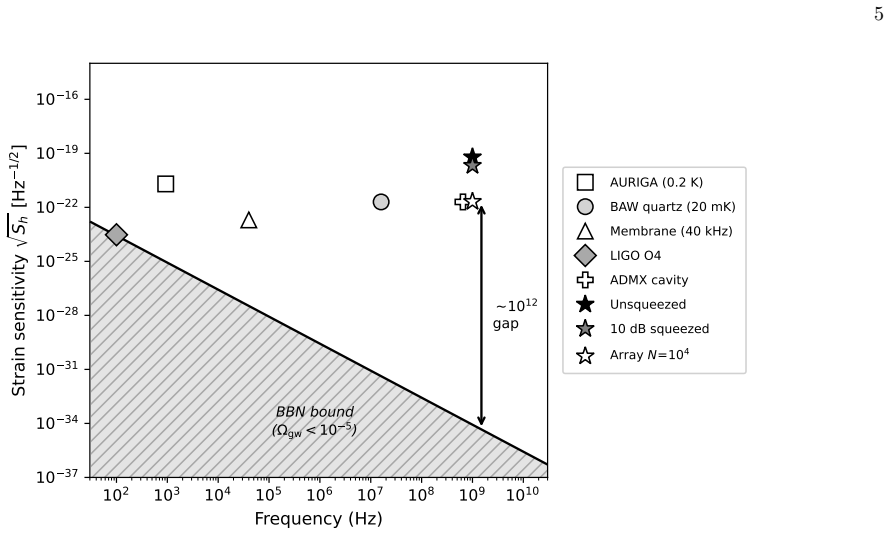

Figures

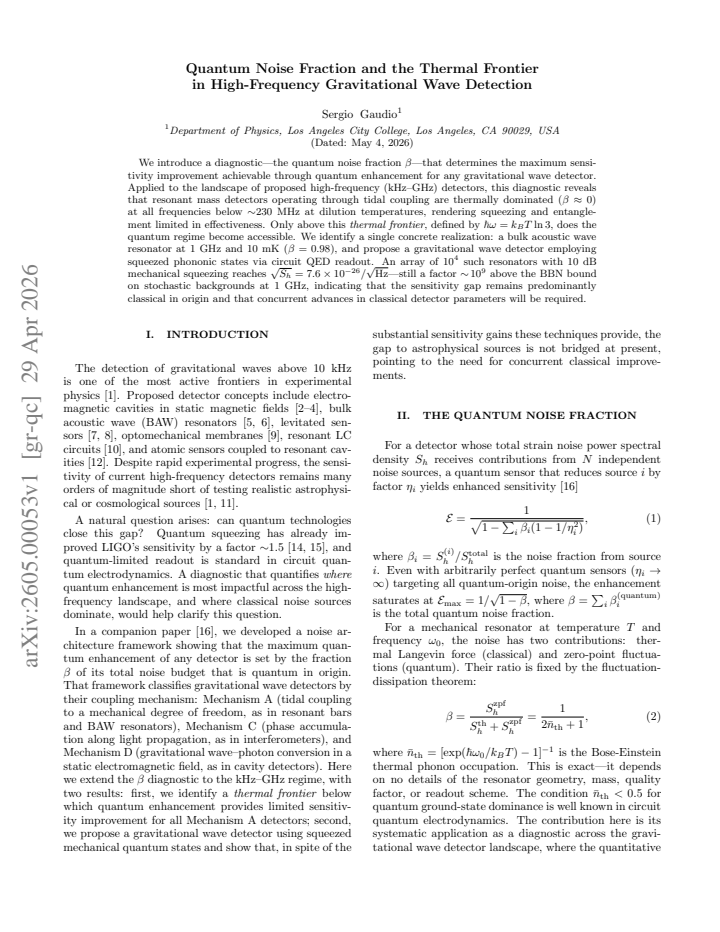

read the original abstract
We introduce a diagnostic -- the quantum noise fraction $\beta$ -- that determines the maximum sensitivity improvement achievable through quantum enhancement for any gravitational wave detector. Applied to the landscape of proposed high-frequency (kHz-GHz) detectors, this diagnostic reveals that resonant mass detectors operating through tidal coupling are thermally dominated ($\beta \approx 0$) at all frequencies below ~230 MHz at dilution temperatures, rendering squeezing and entanglement limited in effectiveness. Only above this thermal frontier, defined by $\hbar \omega = k_B T \ln 3$, does the quantum regime become accessible. We identify a single concrete realization: a bulk acoustic wave resonator at 1 GHz and 10 mK ($\beta = 0.98$), and propose a gravitational wave detector employing squeezed phononic states via circuit QED readout. An array of $10^4$ such resonators with 10 dB mechanical squeezing reaches $\sqrt{S_h} = 2.1 \times 10^{-22}/\sqrt{\rm Hz}$ -- still a factor ~$10^{12}$ above the BBN bound on stochastic backgrounds at 1 GHz, indicating that the sensitivity gap remains predominantly classical in origin and that concurrent advances in classical detector parameters will be required.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces the quantum noise fraction β as a diagnostic for the maximum sensitivity improvement from quantum enhancement in gravitational wave detectors. Applied to high-frequency (kHz-GHz) proposals, it concludes that resonant-mass detectors via tidal coupling are thermally dominated (β ≈ 0) below ~230 MHz at dilution temperatures, with the thermal frontier defined by ħω = k_B T ln 3. It identifies a bulk acoustic wave resonator at 1 GHz and 10 mK achieving β = 0.98, and proposes an array of 10^4 such resonators with 10 dB mechanical squeezing reaching √S_h = 2.1 × 10^{-22}/√Hz, while noting this remains ~10^{12} above the BBN bound and that classical advances are still required.
Significance. If the noise model holds, the β diagnostic offers a clear, quantitative tool for assessing when quantum techniques like squeezing can meaningfully improve high-frequency GW detectors, and the concrete BAW + circuit-QED proposal provides a realistic target for experiments. The work correctly highlights that even with β near unity the sensitivity gap is still dominated by classical parameters.
major comments (2)
- [Noise model and β definition] The central claim that tidal-coupling resonant-mass detectors are thermally dominated (β ≈ 0) below the ~230 MHz frontier rests on the assumption that the effective displacement variance <x²> contains only zero-point and thermal terms. The manuscript must explicitly justify or bound the absence of unmodeled classical contributions (readout back-action, mounting losses, electromagnetic pickup, non-thermal dissipation) to the S_x(ω) seen by the tidal strain; if any such term is comparable to the thermal floor, β drops and the separation between thermal and quantum regimes fails for realistic devices.
- [Definition of the thermal frontier] The thermal frontier is defined by ħω = k_B T ln 3 (corresponding to n_th = 0.5 and β = 0.5). The manuscript should clarify why this specific threshold marks the onset of the 'quantum regime' rather than, e.g., β > 0.9 or another value that would move the frontier to higher frequencies; this choice is load-bearing for the statement that quantum enhancement is ineffective below ~230 MHz.
minor comments (2)
- [Abstract] The abstract states numerical results (β = 0.98, √S_h value) without error bars or the explicit noise-model equations; a brief inline reference to the defining relation for β would aid readability.
- [Detector proposal] The sensitivity estimate for the 10^4-resonator array assumes 10 dB squeezing is maintained; a short discussion of achievable squeezing levels and decoherence rates under circuit-QED readout would strengthen the proposal.
Simulated Author's Rebuttal
We thank the referee for their thorough review and valuable comments, which have helped us clarify key aspects of the manuscript. We address each major point below and have revised the text to incorporate the requested clarifications and additional discussion.
read point-by-point responses
-
Referee: [Noise model and β definition] The central claim that tidal-coupling resonant-mass detectors are thermally dominated (β ≈ 0) below the ~230 MHz frontier rests on the assumption that the effective displacement variance <x²> contains only zero-point and thermal terms. The manuscript must explicitly justify or bound the absence of unmodeled classical contributions (readout back-action, mounting losses, electromagnetic pickup, non-thermal dissipation) to the S_x(ω) seen by the tidal strain; if any such term is comparable to the thermal floor, β drops and the separation between thermal and quantum regimes fails for realistic devices.
Authors: We agree that β is computed under the assumption of an ideal noise model consisting solely of quantum zero-point and thermal contributions. This choice is deliberate: β is introduced as a diagnostic that quantifies the maximum possible sensitivity gain from quantum techniques (squeezing, entanglement) once all classical noise sources have been suppressed to the thermal floor. Any additional classical terms would only reduce β further, strengthening rather than weakening the conclusion that quantum enhancement is ineffective below the thermal frontier. We have added a new paragraph in Section II explicitly stating this interpretation and noting that device-specific classical noises (e.g., mounting losses or electromagnetic pickup) must be controlled below the thermal level for the β diagnostic to apply; we also reference typical experimental bounds from existing BAW and optomechanical literature to illustrate that such control is in principle achievable but remains an experimental challenge. revision: partial
-
Referee: [Definition of the thermal frontier] The thermal frontier is defined by ħω = k_B T ln 3 (corresponding to n_th = 0.5 and β = 0.5). The manuscript should clarify why this specific threshold marks the onset of the 'quantum regime' rather than, e.g., β > 0.9 or another value that would move the frontier to higher frequencies; this choice is load-bearing for the statement that quantum enhancement is ineffective below ~230 MHz.
Authors: The threshold ħω = k_B T ln 3 is chosen because it is the frequency at which the thermal occupation reaches n_th = 0.5, making the thermal displacement noise exactly equal to the quantum zero-point contribution and therefore β = 0.5. This provides a physically transparent and conservative demarcation: below this point the total noise is thermal-dominated (β < 0.5), so quantum techniques can improve sensitivity by at most a factor of √2. We have revised the text to explain this rationale explicitly and to note that alternative choices (e.g., β > 0.9) would simply shift the numerical value of the frontier to higher frequencies without changing the qualitative conclusion that resonant-mass detectors remain thermally limited at kHz–hundreds of MHz. The specific ln 3 form follows directly from solving n_th(ω,T) = 1/2 for ω. revision: yes
Circularity Check
No significant circularity; thermal frontier follows directly from standard quantum harmonic oscillator noise model
full rationale
The paper introduces β as the ratio of zero-point displacement variance to total (zero-point + thermal) variance under the explicit assumption that the resonator's mechanical noise is purely thermal plus quantum zero-point. The thermal frontier ħω = k_B T ln 3 is obtained by solving β = 0.5, which occurs at n_th = 0.5 from the Bose-Einstein distribution; the 230 MHz value at dilution temperatures and the β = 0.98 at 1 GHz / 10 mK are then direct numerical evaluations of the same closed-form expressions. No parameter is fitted to the target claim, no self-citation chain supports a load-bearing uniqueness theorem, and no ansatz is smuggled via prior work. The analysis is self-contained within standard quantum mechanics of a damped harmonic oscillator and does not reduce any derived result to its inputs by construction.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Quantum and thermal noise can be cleanly separated into a fraction β for any detector
- ad hoc to paper The point where quantum regime becomes accessible is given by ħω = k_B T ln 3
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.lean and IndisputableMonolith/Foundation/BlackBodyRadiationDeep.leanJcost_pos_of_ne_one, Jcost_unit0, dAlembert_to_ODE_general_theorem echoes?
echoesECHOES: this paper passage has the same mathematical shape or conceptual pattern as the Recognition theorem, but is not a direct formal dependency.
β = S_zpf^h / (S_th^h + S_zpf^h) = 1/(2 n_th + 1) where n_th = [exp(ℏω_0/k_B T)−1]^{-1}; thermal frontier T_q(f) ≡ ℏω_0/(k_B ln 3)
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
The ratioS th h /Szpf h = 2¯nth con- firms Eq
and the strain-to-displacement relationh= 2x/(ℓ nQ), this gives Sh = 8ℏ Meff ω2 0 ℓ2n Q (2¯nth + 1).(5) The zero-point contribution (¯nth = 0) and thermal con- tribution separate as Szpf h = 8ℏ Meff ω2 0 ℓ2n Q , S th h = 2¯nth Szpf h .(6) In the classical limitk BT≫ℏω 0, one recoversS h → 16k BT /(Meff ω3 0 ℓ2 n Q). The ratioS th h /Szpf h = 2¯nth con- fi...
-
[2]
N. Aggarwalet al., Challenges and opportunities of gravitational-wave searches at MHz to GHz frequencies, Living Rev. Relativ.24, 4 (2021)
work page 2021
- [3]
- [4]
- [5]
-
[6]
M. Goryachev and M. E. Tobar, Gravitational wave de- tection with high frequency phonon trapping acoustic cavities, Phys. Rev. D90, 102005 (2014); erratum Phys. Rev. D108, 129901 (2023)
work page 2014
-
[7]
M. Goryachev, W. M. Campbell, I. S. Heng, S. Galliou, E. N. Ivanov, and M. E. Tobar, Rare events detected with a bulk acoustic wave high frequency gravitational wave antenna, Phys. Rev. Lett.127, 071102 (2021)
work page 2021
-
[8]
A. Arvanitaki and A. A. Geraci, Detecting high- frequency gravitational waves with optically levitated sensors, Phys. Rev. Lett.110, 071105 (2013)
work page 2013
-
[9]
N. Aggarwal, G. P. Winstone, M. Teo, M. Baryakhtar, S. L. Larson, V. Kalogera, and A. A. Geraci, Search- ing for new physics with a levitated-sensor-based gravitational-wave detector, Phys. Rev. Lett.128, 111101 (2022)
work page 2022
- [10]
- [11]
- [12]
- [13]
-
[14]
R. T. D’Agnolo and S. A. R. Ellis, Classical (and quan- tum) heuristics for gravitational wave detection, J. High Energy Phys.2025, 164 (2025)
work page 2025
-
[15]
M. Tseet al., Quantum-enhanced Advanced LIGO de- tectors in the era of gravitational-wave astronomy, Phys. Rev. Lett.123, 231107 (2019)
work page 2019
-
[16]
W. Jiaet al., Squeezing the quantum noise of a gravitational-wave detector below the standard quantum limit, Science385, 1318 (2024)
work page 2024
-
[17]
S. Gaudio, Fundamental limits of quantum sensors for gravitational wave detection, arXiv:2603.06772 [gr-qc], submitted to Class. Quantum Grav. (2026)
-
[18]
Brancaet al., Search for an ultralight scalar dark mat- ter candidate with the AURIGA detector, Phys
A. Brancaet al., Search for an ultralight scalar dark mat- ter candidate with the AURIGA detector, Phys. Rev. Lett.118, 021302 (2017)
work page 2017
-
[19]
Cerdonioet al., The ultracryogenic gravitational- wave detector AURIGA, Class
M. Cerdonioet al., The ultracryogenic gravitational- wave detector AURIGA, Class. Quantum Grav.14, 1491 (1997)
work page 1997
-
[20]
T.-H. Yeh, J. Shelton, K. A. Olive, and B. D. Fields, Probing physics beyond the standard model: Limits from BBN and the CMB independently and combined, J. Cos- mol. Astropart. Phys.10, 046 (2022)
work page 2022
-
[21]
S. Galliou, M. Goryachev, R. Bourquin, P. Abb´ e, J. P. Aubry, and M. E. Tobar, Extremely low loss phonon-trapping cryogenic acoustic cavities for future physical experiments, Sci. Rep.3, 2132 (2013)
work page 2013
-
[22]
Y. Chu, P. Kharel, W. H. Renninger, L. D. Burkhart, L. Frunzio, P. T. Rakich, and R. J. Schoelkopf, Quantum acoustics with superconducting qubits, Science358, 199 (2017)
work page 2017
-
[23]
U. von L¨ upkeet al., Parity measurement in the strong dispersive regime of circuit quantum acoustodynamics, Nat. Phys.18, 794 (2022)
work page 2022
-
[24]
A. Arrangoiz-Arriolaet al., Resolving the energy levels of a nanomechanical oscillator, Nature571, 537 (2019)
work page 2019
-
[25]
E. E. Wollmanet al., Quantum squeezing of motion in a mechanical resonator, Science349, 952 (2015)
work page 2015
- [26]
-
[27]
A. A. Clerk, M. H. Devoret, S. M. Girvin, F. Marquardt, and R. J. Schoelkopf, Introduction to quantum noise, measurement, and amplification, Rev. Mod. Phys.82, 1155 (2010)
work page 2010
