Orbital-Splitter Current in Altermagnets
Pith reviewed 2026-05-09 17:01 UTC · model grok-4.3
The pith
Mirror symmetries in FeSb2 yield a purely intrinsic orbital-splitter current that can exceed the spin-splitter current by a factor of four.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In collinear altermagnets, the real-space rotational symmetry of opposite spin sublattices generates a large nonrelativistic spin-splitter current. We introduce the orbital-splitter current (OSC) as its orbital analogue and derive its Drude and orbital Berry curvature contributions using a density-matrix framework. We show that the d-wave altermagnet FeSb2 realizes a purely intrinsic OSC because mirror symmetries suppress the Drude channel by forcing the orbital magnetic moment to vanish. The OSC response is strongly anisotropic and, for selected field orientations, exceeds the spin-splitter current by nearly a factor of four. We further show that the OSC generates a damping-like torque in a
What carries the argument
The orbital-splitter current, obtained from a density-matrix formalism whose Drude term is suppressed in FeSb2 by mirror symmetries that set the orbital magnetic moment to zero, leaving only the orbital Berry curvature contribution.
If this is right
- The orbital-splitter current varies strongly with the direction of the applied magnetic field.
- For particular orientations the orbital-splitter current reaches nearly four times the strength of the spin-splitter current.

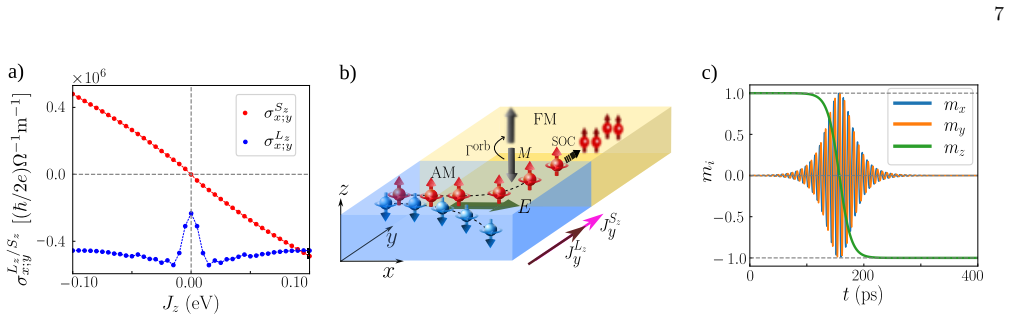

- The orbital-splitter current produces a damping-like torque on an adjacent ferromagnet in a heterostructure.
- When the orbital-splitter current acts together with the spin-splitter current, the time required to reverse the magnetization is significantly reduced.
Where Pith is reading between the lines
- Orbital currents could provide an efficient torque mechanism in altermagnet-based devices that avoids the need for heavy elements to generate spin-orbit coupling.
- The strong anisotropy offers a way to steer the direction of orbital torques by rotating the applied field.
- Other altermagnets with comparable mirror symmetries may exhibit similarly dominant intrinsic orbital responses.
- The torque effect could be tested by fabricating thin-film altermagnet-ferromagnet stacks and measuring reversal times under combined orbital and spin currents.
Load-bearing premise
Mirror symmetries in the d-wave altermagnet FeSb2 force the orbital magnetic moment to vanish, which completely suppresses the Drude contribution and leaves only the intrinsic orbital Berry curvature term.
What would settle it
A direct measurement of nonzero orbital conductivity from the Drude channel in FeSb2, or the absence of the predicted fourfold enhancement of orbital over spin current for selected field angles, would contradict the central claim.
Figures

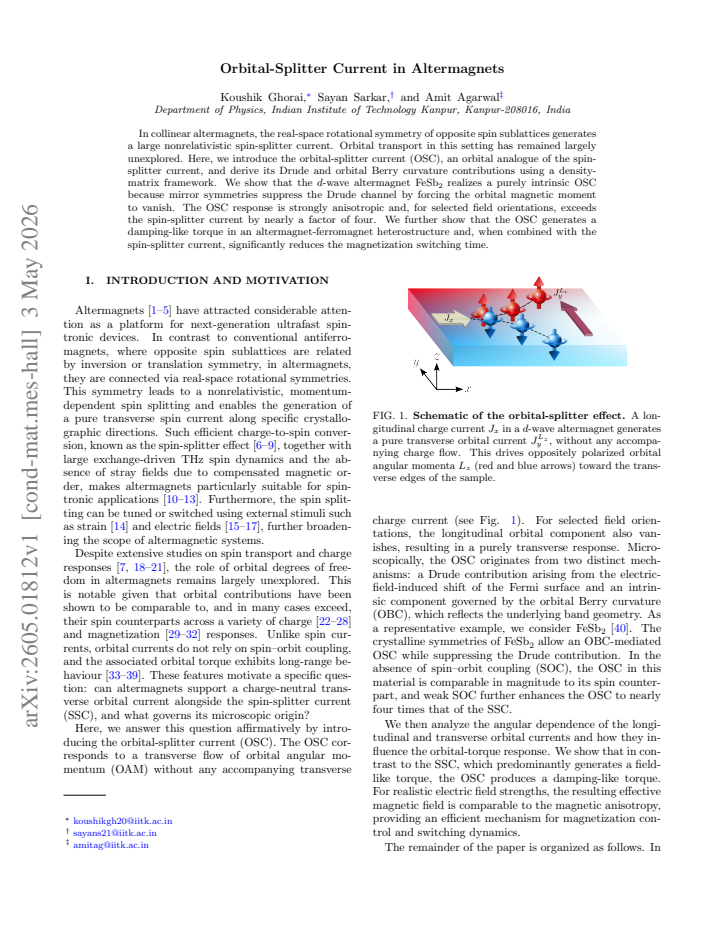

read the original abstract
In collinear altermagnets, the real-space rotational symmetry of opposite spin sublattices generates a large nonrelativistic spin-splitter current. Orbital transport in this setting has remained largely unexplored. Here, we introduce the orbital-splitter current (OSC), an orbital analogue of the spin-splitter current, and derive its Drude and orbital Berry curvature contributions using a density-matrix framework. We show that the $d$-wave altermagnet $\mathrm{FeSb}_2$ realizes a purely intrinsic OSC because mirror symmetries suppress the Drude channel by forcing the orbital magnetic moment to vanish. The OSC response is strongly anisotropic and, for selected field orientations, exceeds the spin-splitter current by nearly a factor of four. We further show that the OSC generates a damping-like torque in an altermagnet-ferromagnet heterostructure and, when combined with the spin-splitter current, significantly reduces the magnetization switching time.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces the orbital-splitter current (OSC) as the orbital analogue of the spin-splitter current in collinear altermagnets. Within a density-matrix transport framework, the Drude and orbital Berry-curvature contributions to the OSC are derived. For the d-wave altermagnet FeSb2, mirror symmetries are shown to force the orbital magnetic moment to vanish, thereby completely suppressing the Drude channel and yielding a purely intrinsic OSC. The OSC response is strongly anisotropic; for selected field orientations it exceeds the spin-splitter current by nearly a factor of four. The OSC is further shown to generate a damping-like torque in an altermagnet-ferromagnet heterostructure, and its combination with the spin-splitter current significantly reduces magnetization switching time.
Significance. If the symmetry argument for complete Drude suppression holds, the work supplies a clean theoretical platform for orbital transport in altermagnets that is free of scattering contributions. The reported anisotropy, the factor-of-four enhancement relative to the spin-splitter current, and the explicit torque and switching-time calculations constitute concrete, falsifiable predictions that can guide future experiments. The density-matrix derivation and the focus on a specific, experimentally relevant material (FeSb2) add technical strength; the absence of free parameters in the central symmetry claim is a notable asset.
minor comments (2)
- [Abstract] The abstract states that the OSC 'exceeds the spin-splitter current by nearly a factor of four' for selected orientations; the main text should state the precise field directions and the numerical ratio obtained from the Berry-curvature integral so that the claim can be directly verified.
- Notation for the orbital magnetic moment operator and its expectation value should be introduced once at the beginning of the symmetry analysis and used consistently thereafter to avoid ambiguity when the vanishing condition is invoked.
Simulated Author's Rebuttal
We thank the referee for the positive and insightful review, including the clear summary of our results on the orbital-splitter current and the recommendation to accept the manuscript. The assessment that the symmetry-based suppression of the Drude channel provides a clean platform for intrinsic orbital transport, together with the concrete predictions for anisotropy and torque, is very encouraging.
Circularity Check
No significant circularity detected
full rationale
The derivation of the orbital-splitter current proceeds from a density-matrix transport framework applied to the symmetries of d-wave altermagnet FeSb2. Mirror symmetries are invoked to set the orbital magnetic moment to zero, thereby eliminating the Drude term and isolating the intrinsic Berry-curvature contribution; this step is presented as a direct symmetry consequence rather than a self-definition or parameter fit. Subsequent anisotropy, factor-of-four comparison to the spin-splitter current, and torque/switching results follow from the resulting expressions without reduction to prior self-citations or ansatz smuggling. The central claim remains independent of its own outputs.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Collinear altermagnets possess real-space rotational symmetry between opposite-spin sublattices that generates nonrelativistic spin-splitter currents.
- domain assumption Mirror symmetries in FeSb2 force the orbital magnetic moment to vanish and thereby suppress the Drude channel.
Reference graph
Works this paper leans on
-
[1]
L. ˇSmejkal, J. Sinova, and T. Jungwirth, Beyond conven- tional ferromagnetism and antiferromagnetism: A phase with nonrelativistic spin and crystal rotation symmetry, Phys. Rev. X12, 031042 (2022)
work page 2022
-
[2]
L. Bai, W. Feng, S. Liu, L. ˇSmejkal, Y. Mokrousov, and Y. Yao, Altermagnetism: Exploring new frontiers in mag- netism and spintronics, Advanced Functional Materials 34, 2409327 (2024)
work page 2024
-
[3]
S. Reimers, L. Odenbreit, L. ˇSmejkal, V. N. Strocov, P. Constantinou, A. B. Hellenes, R. Jaeschke Ubiergo, W. H. Campos, V. K. Bharadwaj, A. Chakraborty, et al., Direct observation of altermagnetic band split- ting in CrSb thin films, Nature Communications15, 2116 (2024)
work page 2024
-
[4]
C. Song, H. Bai, Z. Zhou, L. Han, H. Reichlova, J. H. Dil, J. Liu, X. Chen, and F. Pan, Altermagnets as a new class of functional materials, Nature Reviews Materials 10, 473 (2025)
work page 2025
- [5]
-
[6]
Gonz´ alez-Hern´ andez, L.ˇSmejkal, K
R. Gonz´ alez-Hern´ andez, L.ˇSmejkal, K. V´ yborn´ y, Y. Ya- hagi, J. Sinova, T. c. v. Jungwirth, and J. ˇZelezn´ y, Efficient electrical spin splitter based on nonrelativis- tic collinear antiferromagnetism, Phys. Rev. Lett.126, 127701 (2021)
work page 2021
-
[7]
Z. Feng, X. Zhou, L. ˇSmejkal, L. Wu, Z. Zhu, H. Guo, R. Gonz´ alez-Hern´ andez, X. Wang, H. Yan, P. Qin,et al., An anomalous hall effect in altermagnetic ruthenium dioxide, Nature Electronics5, 735 (2022)
work page 2022
- [8]
-
[9]
S. Sarkar and A. Agarwal, Spin-split magnon bands in- duce pure spin current in insulating altermagnets, Phys. Rev. B112, 195420 (2025)
work page 2025
- [10]
-
[11]
B. Chi, L. Jiang, Y. Zhu, G. Yu, C. Wan, and X. Han, Anisotropic spin filtering by an altermagnetic barrier in magnetic tunnel junctions, Phys. Rev. Appl.23, 014013 (2025)
work page 2025
-
[12]
L. ˇSmejkal, A. B. Hellenes, R. Gonz´ alez-Hern´ andez, J. Sinova, and T. Jungwirth, Giant and tunneling mag- netoresistance in unconventional collinear antiferromag- nets with nonrelativistic spin-momentum coupling, Phys. Rev. X12, 011028 (2022)
work page 2022
- [13]
- [14]
-
[15]
S. Wang, W.-W. Wang, J. Fan, X. Zhou, X.-P. Li, and L. Wang, Two-dimensional dual-switchable ferroelectric altermagnets: Altering electrons and magnons, Nano Letters25, 14618 (2025)
work page 2025
-
[16]
M. Gu, Y. Liu, H. Zhu, K. Yananose, X. Chen, Y. Hu, A. Stroppa, and Q. Liu, Ferroelectric switchable alter- magnetism, Phys. Rev. Lett.134, 106802 (2025)
work page 2025
- [17]
-
[18]
L. ˇSmejkal, R. Gonz´ alez-Hern´ andez, T. Jungwirth, and J. Sinova, Crystal time-reversal symmetry breaking and spontaneous hall effect in collinear antiferromagnets, Sci- ence Advances6, eaaz8809 (2020)
work page 2020
-
[19]
M. Ezawa, Intrinsic nonlinear conductivity induced by quantum geometry in altermagnets and measurement of the in-plane n´ eel vector, Phys. Rev. B110, L241405 13 (2024)
work page 2024
- [21]
- [22]
- [23]
-
[24]
F. Yang, X.-T. Zeng, H. Liu, C. Xiao, X.-L. Sheng, and S. A. Yang, Orbital-dominated intrinsic nonlinear planar hall response and its application in CuTlSe 2, Phys. Rev. B112, 245153 (2025)
work page 2025
-
[25]
Z. Zhang, X.-Z. Li, and W.-Y. He, Orbital magnetization as the origin of the nonlinear hall effect, Phys. Rev. Res. 7, L042064 (2025)
work page 2025
- [26]
- [27]
-
[28]
Intrinsic Magnetoelectric Hall Effect from Layer-Orbital Quantum Geometry
S. Das and A. Agarwal, Intrinsic magnetoelectric hall effect from layer-orbital quantum geometry (2026), arXiv:2604.20249 [cond-mat.mes-hall]
work page internal anchor Pith review Pith/arXiv arXiv 2026
-
[29]
H. Kontani, T. Tanaka, D. S. Hirashima, K. Yamada, and J. Inoue, Giant intrinsic spin and orbital hall effects in Sr 2MO4 (M = Ru, Rh, Mo), Phys. Rev. Lett.100, 096601 (2008)
work page 2008
-
[30]
H. Kontani, T. Tanaka, D. S. Hirashima, K. Yamada, and J. Inoue, Giant orbital hall effect in transition metals: Origin of large spin and anomalous hall effects, Phys. Rev. Lett.102, 016601 (2009)
work page 2009
- [31]
-
[32]
A. Johansson, B. G¨ obel, J. Henk, M. Bibes, and I. Mer- tig, Spin and orbital edelstein effects in a two-dimensional electron gas: Theory and application to SrTiO 3 inter- faces, Phys. Rev. Res.3, 013275 (2021)
work page 2021
-
[33]
D. Lee, D. Go, H.-J. Park, W. Jeong, H.-W. Ko, D. Yun, D. Jo, S. Lee, G. Go, J. H. Oh, K.-J. Kim, B.-G. Park, B.-C. Min, H. C. Koo, H.-W. Lee, O. Lee, and K.-J. Lee, Orbital torque in magnetic bilayers, Nature Communica- tions12(2021)
work page 2021
-
[34]
D. Go, D. Jo, K.-W. Kim, S. Lee, M.-G. Kang, B.-G. Park, S. Bl¨ ugel, H.-W. Lee, and Y. Mokrousov, Long- range orbital torque by momentum-space hotspots, Phys. Rev. Lett.130, 246701 (2023)
work page 2023
-
[35]
H. Hayashi, D. Jo, D. Go, T. Gao, S. Haku, Y. Mokrousov, H.-W. Lee, and K. Ando, Observation of long-range orbital transport and giant orbital torque, Communications Physics6, 32 (2023)
work page 2023
-
[36]
A. Bose, F. Kammerbauer, R. Gupta, D. Go, Y. Mokrousov, G. Jakob, and M. Kl¨ aui, Detection of long-range orbital-hall torques, Phys. Rev. B107, 134423 (2023)
work page 2023
-
[37]
T. Gao, P. R¨ ußmann, Q. Wang, R. Fukunaga, H. Hayashi, D. Go, T. Harumoto, R. Tu, S. Zhang, L. Zhang,et al., Control of dynamic orbital response in ferromagnets via crystal symmetry, Nature Physics20, 1896 (2024)
work page 2024
- [38]
- [39]
-
[40]
I. I. Mazin, K. Koepernik, M. D. Johannes, R. Gonz´ alez- Hern´ andez, and L.ˇSmejkal, Prediction of unconventional magnetism in doped FeSb 2, Proceedings of the National Academy of Sciences118, e2108924118 (2021)
work page 2021
-
[41]
R. B. Atencia, A. Agarwal, and D. Culcer, Orbital an- gular momentum of bloch electrons: equilibrium formu- lation, magneto-electric phenomena, and the orbital hall effect, Advances in Physics: X9, 2371972 (2024)
work page 2024
-
[42]
H. Liu, J. H. Cullen, D. P. Arovas, and D. Culcer, Quan- tum correction to the orbital hall effect, Phys. Rev. Lett. 134, 036304 (2025)
work page 2025
-
[43]
N. H. Aase, E. W. Hodt, K. B. Hallberg, A. Sudbø, and J. Linder, Orbital splitter effect and spatial resolution of current-induced orbital accumulation, Phys. Rev. B112, 014409 (2025)
work page 2025
- [44]
-
[45]
C. Xiao, Y. Ren, and B. Xiong, Adiabatically induced orbital magnetization, Phys. Rev. B103, 115432 (2021)
work page 2021
-
[46]
C. Xiao, H. Liu, J. Zhao, S. A. Yang, and Q. Niu, Ther- moelectric generation of orbital magnetization in metals, Phys. Rev. B103, 045401 (2021)
work page 2021
-
[47]
G. K. Shukla, P. Kumar, and S. Isogami, Berry curva- ture induced intrinsic spin hall effect in the light-element- based CrN system for magnetization switching, Phys. Rev. B112, 035166 (2025)
work page 2025
- [48]
- [49]
- [50]
-
[51]
S. Bhowal and S. Satpathy, Intrinsic orbital moment and prediction of a large orbital hall effect in two- dimensional transition metal dichalcogenides, Phys. Rev. B101, 121112 (2020)
work page 2020
-
[52]
Nye,Physical Properties of Crystals(Clarendon Press, 1957)
J. Nye,Physical Properties of Crystals(Clarendon Press, 1957)
work page 1957
-
[53]
B. Vainshtein,Fundamentals of Crystals: Symmetry, and Methods of Structural Crystallography, Modern crystal- lography (Springer Berlin Heidelberg, 2013)
work page 2013
-
[54]
S. V. Gallego, J. Etxebarria, L. Elcoro, E. S. Tasci, and J. M. Perez-Mato, Automatic calculation of symmetry- adapted tensors in magnetic and non-magnetic materials: a new tool of the Bilbao Crystallographic Server, Acta Crystallographica Section A75, 438 (2019). 14
work page 2019
-
[55]
R. E. Newnham,Properties of Materials, 1st ed. (Oxford University Press, Oxford; New York, 2004)
work page 2004
-
[56]
R. R. Birss, Macroscopic symmetry in space-time, Re- ports on Progress in Physics26, 307 (1963)
work page 1963
-
[57]
Z.-F. Zhang, Z.-G. Zhu, and G. Su, Symmetry dictionary on charge and spin nonlinear responses for all magnetic point groups with nontrivial topological nature, National Science Review10, nwad104 (2023)
work page 2023
-
[58]
J. Brandmuller, An extension of the neumann- minnigerode-curie principle, Computers & Mathematics with Applications12, 97 (1986)
work page 1986
-
[59]
A. Authier, International tables for crystallography: Physical properties of crystals, International Tables for Crystallography (2013)
work page 2013
-
[60]
D. B. Litvin,Magnetic Group Tables: 1-, 2- and 3- dimensional magnetic subperiodic groups and magnetic space groups(International Union of Crystallography, 2013)
work page 2013
-
[61]
C. Petrovic, Y. Lee, T. Vogt, N. D. Lazarov, S. L. Bud’ko, and P. C. Canfield, Kondo insulator description of spin state transition in Fesb2, Phys. Rev. B72, 045103 (2005)
work page 2005
- [62]
-
[63]
M. Roig, A. Kreisel, Y. Yu, B. M. Andersen, and D. F. Agterberg, Minimal models for altermagnetism, Phys. Rev. B110, 144412 (2024)
work page 2024
-
[64]
M. Farokhnezhad, R. Asgari, and D. Culcer, Spin-orbit torques due to extrinsic spin-orbit scattering of topolog- ical insulator surface states: out-of-plane magnetization, Journal of Physics: Materials6, 014002 (2022)
work page 2022
- [65]
-
[66]
Y. Yang, P. Wang, J. Chen, D. Zhang, C. Pan, S. Hu, T. Wang, W. Yue, C. Chen, W. Jiang, L. Zhu, X. Qiu, Y. Yao, Y. Li, W. Wang, and Y. Jiang, Orbital torque switching in perpendicularly magnetized materials, Na- ture Communications15(2024)
work page 2024
- [67]
-
[68]
T. Xu, A. Tang, K. Wang, W. Wei, Y. Liu, and H. Du, Orbital torque switching of perpendicular magnetization in Ti/ferrimagnet bilayers, The Innovation Materials3, 100158 (2025)
work page 2025
- [69]
-
[70]
X. Feng, L. K. Ang, S. A. Yang, C. Xiao, and X. C. Xie, Giant out-of-plane magnetic orbital torque of al- termagnets from spin-group symmetry breaking (2026), arXiv:2602.19076 [cond-mat.mtrl-sci]
work page internal anchor Pith review arXiv 2026
-
[71]
J. Slonczewski, Current-driven excitation of magnetic multilayers, Journal of Magnetism and Magnetic Materi- als159, L1 (1996)
work page 1996
-
[72]
L. Liu, T. Moriyama, D. C. Ralph, and R. A. Buhrman, Spin-torque ferromagnetic resonance induced by the spin hall effect, Phys. Rev. Lett.106, 036601 (2011)
work page 2011
-
[73]
H. Y. Yuan, Z. Yuan, R. A. Duine, and X. R. Wang, Recent progress in antiferromagnetic dynamics, Euro- physics Letters132, 57001 (2021)
work page 2021
-
[74]
Z. Xu, J. Ren, Z. Yuan, Y. Xin, X. Zhang, S. Shi, Y. Yang, and Z. Zhu, Field-free spin–orbit torque switch- ing of an antiferromagnet with perpendicular n´ eel vector, Journal of Applied Physics133, 153904 (2023)
work page 2023
-
[75]
J. Wang, S.-B. Zhao, J.-w. Li, L. Zhuang, and Y. Hou, Highly tunable gilbert damping in the two-dimensional van der waals ferromagnet Fe 3GaTe2: From bilayer to twisted bilayer, Phys. Rev. B112, 094448 (2025)
work page 2025
- [76]
- [77]
-
[78]
P. Wang, J. Gou, Z. Xu, Y. An, D. Zhang, D. Yue, K. Zhai, S. Wu, M. Gao, Z. Zhu, Y. Li, W. Wang, and Y. Jiang, Giant modulation of perpendicular magnetic anisotropy of fe3gate2 at room temperature through elec- tric fields, Communications Physics8, 10.1038/s42005- 025-02345-1 (2025)
-
[79]
P. C. Adak, S. Sinha, A. Agarwal, and M. M. Deshmukh, Tunable moir´ e materials for probing berry physics and topology, Nature Reviews Materials9, 481 (2024)
work page 2024
-
[80]
R. D. Gonzalez Betancourt, J. Zub´ aˇ c, R. Gonzalez- Hernandez, K. Geishendorf, Z. ˇSob´ aˇ n, G. Springholz, K. Olejn´ ık, L.ˇSmejkal, J. Sinova, T. Jungwirth, S. T. B. Goennenwein, A. Thomas, H. Reichlov´ a, J.ˇZelezn´ y, and D. Kriegner, Spontaneous anomalous hall effect arising from an unconventional compensated magnetic phase in a semiconductor, Phy...
work page 2023
- [81]
