From Spherical to Gaussian: A Comparative Analysis of Point Cloud Cropping Strategies in Large-Scale 3D Environments

Maximilian Kellner , Dominik Merkle , Michael Brunklaus , Alexander Reiterer
Authors on Pith no claims yet

Pith reviewed 2026-05-08 19:09 UTC · model grok-4.3

classification 💻 cs.CV
keywords point cloud croppingsemantic segmentation3D deep learninglarge-scale environmentsoutdoor scenesGaussian croppingspherical cropping
0
0 comments X

The pith

Switching from spherical to Gaussian cropping improves 3D semantic segmentation on large outdoor point clouds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large 3D point clouds must be split into smaller subclouds before modern neural networks can process them. Spherical crops are the usual choice, yet they discard geometric context around each piece. The paper tests three alternatives—Gaussian, exponential, and linear cropping—that cover bigger spatial areas while keeping roughly the same number of points inside each subcloud. When the same two network architectures are trained on indoor and outdoor datasets, the non-spherical methods raise accuracy, with the largest gains appearing in outdoor scenes and new state-of-the-art numbers reported. The work therefore shows that the geometry of the crop itself is a controllable lever for better scene understanding.

Core claim

Replacing spherical cropping with Gaussian, exponential, or linear functions produces subclouds whose spatial extent is larger for any fixed point budget, and this change raises semantic segmentation accuracy on large-scale outdoor datasets while leaving indoor results largely unchanged.

What carries the argument

Cropping functions (Gaussian, exponential, linear) that map a target point count to a larger spatial radius than the conventional spherical crop.

If this is right

  • Performance gains appear most clearly in large-scale outdoor scenes.
  • New state-of-the-art segmentation scores are reached on the tested outdoor datasets.
  • Both evaluated network architectures benefit from the change.
  • The released code makes the cropping variants directly reusable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cropping adjustment could be tested on related tasks such as object detection or instance segmentation in point clouds.
  • Combining the larger-radius crops with existing downsampling or voxelization pipelines might reduce memory use further.
  • In LiDAR-based mapping applications, wider context per subcloud could improve consistency across scene boundaries.

Load-bearing premise

Observed accuracy differences are caused by the shape of the crop rather than by unmeasured differences in point density, training schedule, or implementation details.

What would settle it

Re-run the exact same models and datasets with identical hyperparameters and random seeds while forcing every crop to contain the same number of points; if the accuracy gap between spherical and Gaussian crops disappears, the central claim is falsified.

Figures

Figures reproduced from arXiv: 2605.02098 by Alexander Reiterer, Dominik Merkle, Maximilian Kellner, Michael Brunklaus.

Figure 1

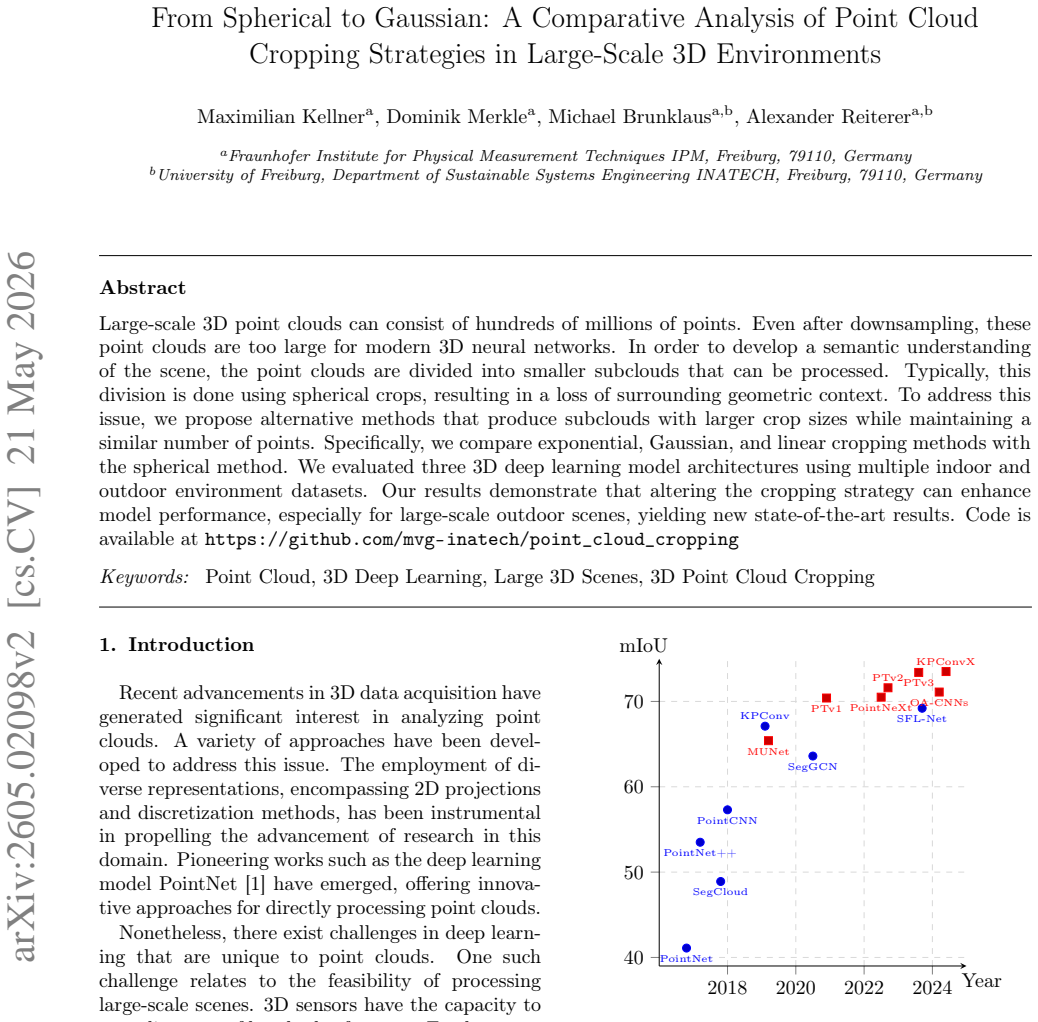

Figure 1. Figure 1: Different architectures tested on S3DIS [2] Area view at source ↗
Figure 2
Figure 2. Figure 2: Probability of a point being selected depending on view at source ↗
Figure 4

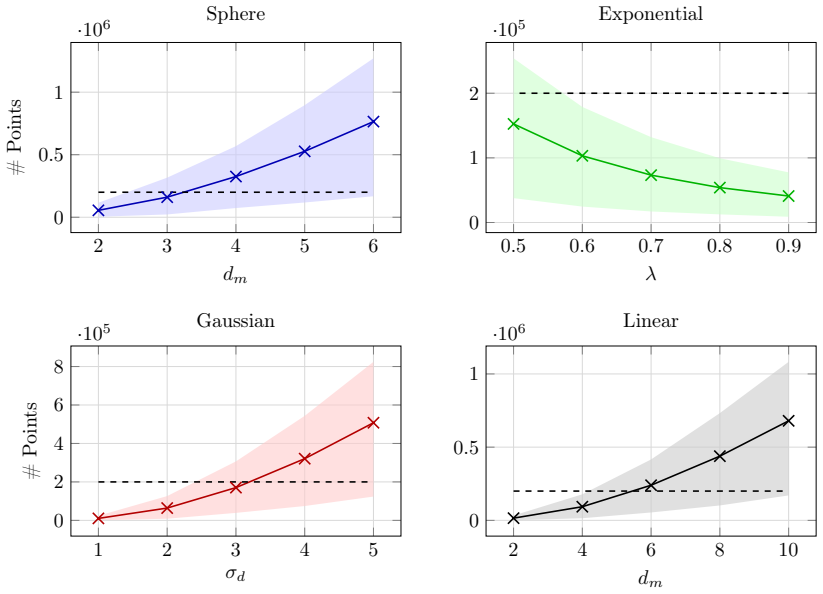

Figure 4. Figure 4: Point cardinality for subclouds using a voxel size of 2 cm on the S3DIS dataset. Shaded regions represent the min-max view at source ↗
Figure 5

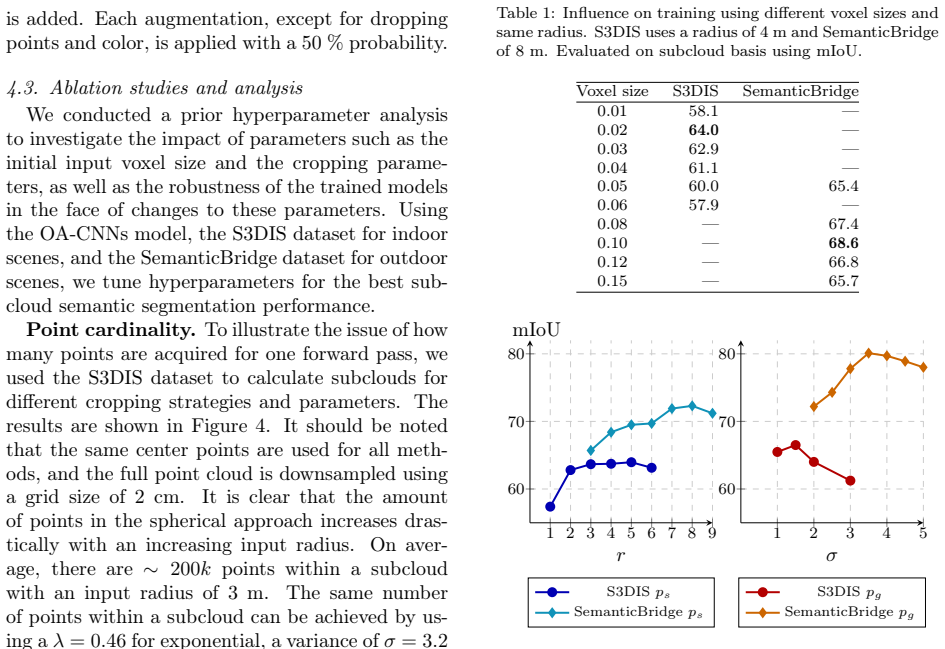

Figure 5. Figure 5: Influence on training using different point cropping view at source ↗
Figure 6
Figure 6. Figure 6: Performance validation using different cropping view at source ↗
Figure 8

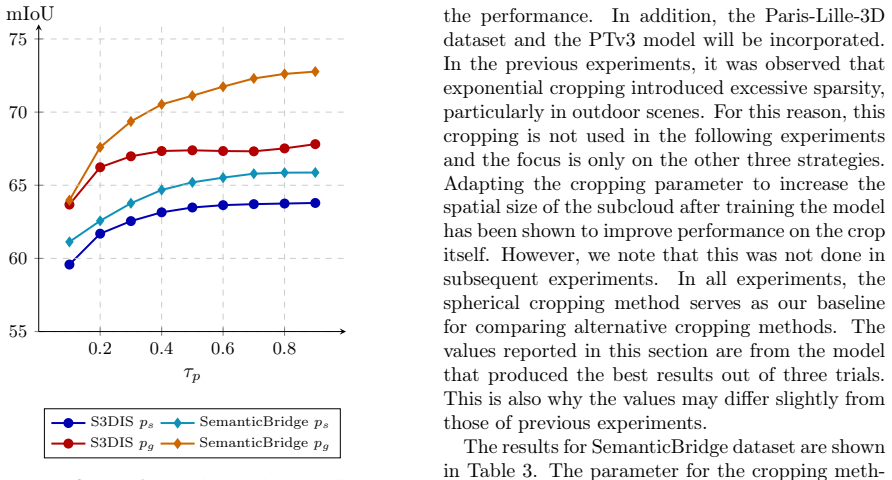

Figure 8. Figure 8: The influence of the probability between all points view at source ↗
read the original abstract

Large-scale 3D point clouds can consist of billions of points. Even after downsampling, these point clouds are too large for modern 3D neural networks. In order to develop a semantic understanding of the scene, the point clouds are divided into smaller subclouds that can be processed. Typically, this division is done using spherical crops, resulting in a loss of surrounding geometric context. To address this issue, we propose alternative methods that produce subclouds with larger crop sizes while maintaining a similar number of points. Specifically, we compare exponential, Gaussian, and linear cropping methods with the spherical method. We evaluated two 3D deep learning model architectures using multiple indoor and outdoor environment datasets. Our results demonstrate that altering the cropping strategy can enhance model performance, especially for large-scale outdoor scenes, yielding new state-of-the-art results. Code is available at https://github.com/mvg-inatech/point_cloud_cropping

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes alternative point cloud cropping strategies (exponential, Gaussian, and linear) to the standard spherical cropping for processing large-scale 3D point clouds in semantic segmentation tasks. These methods aim to provide larger crop sizes while maintaining a similar number of points, thereby preserving more geometric context. The approaches are evaluated using two 3D deep learning model architectures on multiple indoor and outdoor datasets, with claims of enhanced performance, particularly in large-scale outdoor scenes, and achievement of new state-of-the-art results.

Significance. If the results hold and are properly controlled, this could offer a practical improvement for handling large 3D environments without modifying network architectures, potentially benefiting applications in robotics and autonomous systems. The provision of code supports reproducibility and further research.

major comments (2)
  1. Abstract: the claim of performance gains and new state-of-the-art results is asserted without any numerical scores, statistical significance tests, or details on how point counts were equalized across methods, leaving the central claim unsupported by visible evidence.
  2. §4 (Experimental Evaluation): the attribution of gains to crop geometry is insecure without explicit controls confirming identical point sampling, density, and training protocols across strategies. The abstract states alternatives maintain 'a similar number of points' but does not specify the exact sampling procedure inside each crop region; non-uniform outdoor densities could therefore produce systematically different local statistics even at matched cardinality.
minor comments (2)
  1. Abstract: consider including at least one key quantitative result (e.g., mIoU delta on an outdoor dataset) to make the summary of findings more informative.
  2. Methods section: provide explicit equations or pseudocode for the exponential, Gaussian, and linear cropping functions to ensure precise reproducibility beyond the high-level description.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment of our work's potential impact and for the detailed comments. We address each major comment below and indicate the revisions we will make to the manuscript.

read point-by-point responses

  1. Referee: Abstract: the claim of performance gains and new state-of-the-art results is asserted without any numerical scores, statistical significance tests, or details on how point counts were equalized across methods, leaving the central claim unsupported by visible evidence.

    Authors: We agree that the abstract would be strengthened by including quantitative support for the claims. In the revised version we will incorporate specific performance metrics (such as mIoU improvements on the outdoor datasets) drawn from the experimental results already reported in §4, and we will explicitly state that point counts were equalized to the same cardinality across all cropping strategies. We will also add a brief reference to variance across runs to address statistical significance. revision: yes

  2. Referee: §4 (Experimental Evaluation): the attribution of gains to crop geometry is insecure without explicit controls confirming identical point sampling, density, and training protocols across strategies. The abstract states alternatives maintain 'a similar number of points' but does not specify the exact sampling procedure inside each crop region; non-uniform outdoor densities could therefore produce systematically different local statistics even at matched cardinality.

    Authors: We thank the referee for highlighting this point. The manuscript already uses identical training protocols (same architectures, hyperparameters, and optimization settings) for all cropping strategies. To make the controls fully explicit, we will expand §4 with a precise description of the point-sampling procedure applied inside each crop region and will add a short analysis confirming that the resulting local point-density distributions remain comparable across methods. These additions will better isolate the contribution of crop geometry. revision: yes

Circularity Check

0 steps flagged

No circularity: purely empirical comparison with no derivations or self-referential reductions

full rationale

The manuscript is an experimental study that evaluates four cropping geometries (spherical, exponential, Gaussian, linear) on public indoor/outdoor point-cloud datasets using two standard 3D network architectures. No equations, fitted parameters, uniqueness theorems, or derivation chains appear in the abstract or described content. Performance differences are reported as measured outcomes on fixed benchmarks; they do not reduce by construction to quantities defined inside the paper. Any self-citations are incidental and non-load-bearing for the central empirical claim.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an empirical comparative study; the central claim rests entirely on experimental outcomes rather than any mathematical derivation or new theoretical construct.
