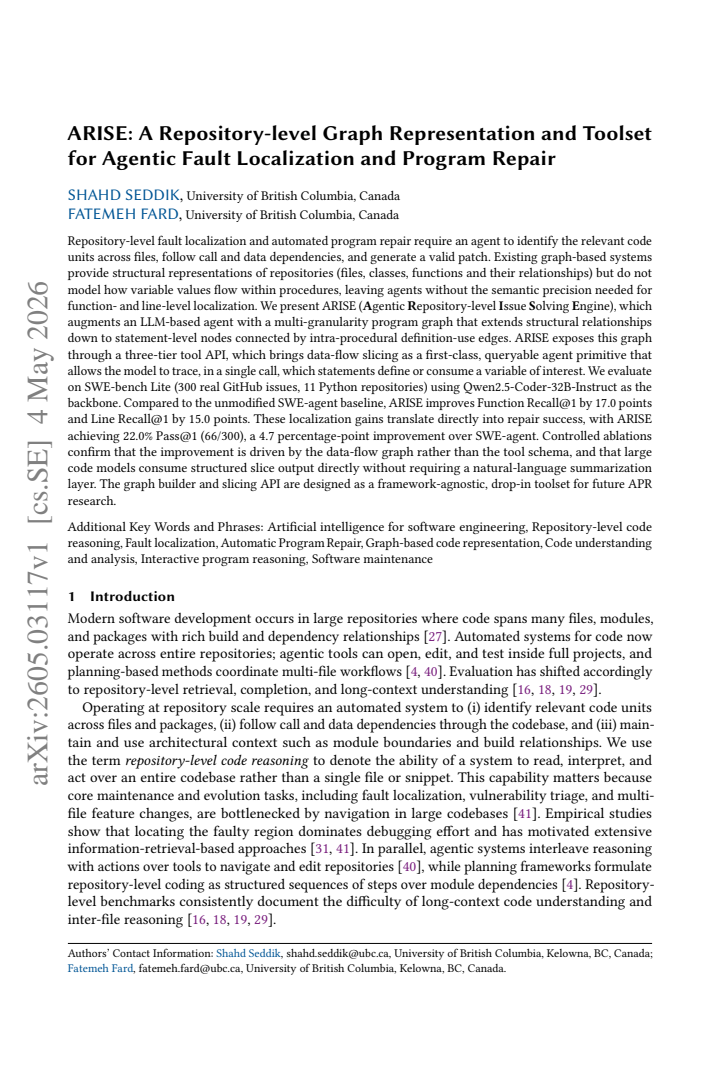

ARISE: A Repository-level Graph Representation and Toolset for Agentic Fault Localization and Program Repair
Pith reviewed 2026-05-08 17:48 UTC · model grok-4.3
The pith
A multi-granularity graph with intra-procedural data-flow edges lets LLM agents localize bugs more precisely and generate more successful fixes.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
ARISE augments an LLM-based agent with a multi-granularity program graph that extends structural relationships to statement-level nodes connected by intra-procedural definition-use edges. The graph is exposed through a three-tier tool API that treats data-flow slicing as a first-class queryable primitive, letting the model trace in a single call which statements define or consume any variable of interest. Evaluated on SWE-bench Lite using Qwen2.5-Coder-32B-Instruct, ARISE improves Function Recall@1 by 17 points and Line Recall@1 by 15 points over the unmodified SWE-agent baseline. These localization gains raise repair success to 22 percent Pass@1 (66 out of 300 issues), a 4.7-point increase.
What carries the argument
Multi-granularity program graph with intra-procedural definition-use edges, exposed as a queryable primitive through a three-tier tool API for data-flow slicing.
If this is right
- Localization gains from the graph translate directly into higher rates of valid patches.
- Large code models can use the structured slice output without an extra natural-language summarization step.
- The graph builder and slicing API function as a drop-in addition for other agent frameworks.
- Controlled ablations show the performance lift comes from the data-flow edges rather than the tool interface alone.
Where Pith is reading between the lines
- The same slicing primitive could be tested on tasks beyond repair, such as vulnerability detection or test generation.
- Porting the graph builder to additional languages would allow direct comparison of data-flow benefits across codebases.
- Combining the intra-procedural slices with inter-procedural call edges might further improve localization on bugs that cross function boundaries.
- If the graph construction misses flows in unusually complex procedures, the observed gains would shrink on those specific cases.
Load-bearing premise
The automatically constructed graph accurately records the true definition-use relationships inside each procedure without adding false links or omitting critical flows.
What would settle it
Disable the data-flow edges and slicing tools while keeping the rest of the agent and tool schema unchanged, then re-run on the same 300 SWE-bench Lite issues; if recall and Pass@1 fall back to baseline levels the contribution of the graph is confirmed, but unchanged scores would falsify it.
Figures
read the original abstract
Repository-level fault localization (FL) and automated program repair (APR) require an agent to identify the relevant code units across files, follow call and data dependencies, and generate a valid patch. Existing graph-based systems provide structural representations of repositories (files, classes, functions and their relationships) but do not model how variable values flow within procedures, leaving agents without the semantic precision needed for function- and line-level localization. We present ARISE (Agentic Repository-level Issue Solving Engine), which augments an LLM-based agent with a multi-granularity program graph that extends structural relationships down to statement-level nodes connected by intra-procedural definition-use edges. ARISE exposes this graph through a three-tier tool API, which brings data-flow slicing as a first-class, queryable agent primitive that allows the model to trace, in a single call, which statements define or consume a variable of interest. We evaluate on SWE-bench Lite (300 real GitHub issues, 11 Python repositories) using Qwen2.5-Coder-32B-Instruct as the backbone. Compared to the unmodified SWE-agent baseline, ARISE improves Function Recall@1 by 17.0 points and Line Recall@1 by 15.0 points. These localization gains translate directly into repair success, with ARISE achieving 22.0% Pass@1 (66/300), a 4.7 percentage-point improvement over SWE-agent. Controlled ablations confirm that the improvement is driven by the data-flow graph rather than the tool schema, and that large code models consume structured slice output directly without requiring a natural-language summarization layer. The graph builder and slicing API are designed as a framework-agnostic, drop-in toolset for future APR research.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents ARISE, a system that augments LLM-based agents for repository-level fault localization and automated program repair with a multi-granularity program graph. This graph extends structural relationships (files, classes, functions) with statement-level nodes connected by intra-procedural definition-use edges. The graph is exposed via a three-tier tool API that makes data-flow slicing a first-class primitive, allowing agents to trace definitions and uses in a single query. Evaluated on SWE-bench Lite (300 issues across 11 Python repositories) with Qwen2.5-Coder-32B-Instruct, ARISE reports a 17-point gain in Function Recall@1 and 15-point gain in Line Recall@1 over the unmodified SWE-agent baseline; these localization improvements yield a 4.7-point increase in Pass@1 repair success (22.0%, 66/300). Controlled ablations attribute the gains to the data-flow component rather than the tool schema, and show that the LLM backbone consumes structured slice outputs directly without a natural-language summarization layer. The graph builder and slicing API are presented as a framework-agnostic drop-in toolset.
Significance. If the reported gains and ablation results hold under scrutiny, the work makes a practical contribution to agentic APR by demonstrating that explicit intra-procedural data-flow modeling can measurably improve both localization precision and end-to-end repair rates on a standard benchmark. The release of the graph-construction and slicing infrastructure as a reusable toolset is a concrete strength that lowers the barrier for follow-on research. The observation that large code models can directly interpret structured slice output is also useful for system design.
major comments (1)
- [Graph construction and slicing sections (around §3–4)] The central claim that the automatically constructed multi-granularity graph 'accurately captures all relevant intra-procedural definition-use relationships without introducing false dependencies or missing critical flows' (weakest assumption) is load-bearing for the attribution of the 17-point Recall@1 and 4.7-point Pass@1 gains to the data-flow component. The manuscript should provide either (a) a manual audit of a random sample of generated slices against ground-truth def-use on a subset of the benchmark or (b) quantitative metrics on false-positive/negative edges, as the current ablation evidence alone does not rule out that the observed improvement stems from incidental properties of the slice representation rather than semantic fidelity.
minor comments (3)
- [Tool API description] A concrete example (with code snippet, graph fragment, and sample slice output) would help readers understand how the three-tier API is invoked and how the LLM consumes the structured result.
- [Abstract and §6] The abstract states the system is 'framework-agnostic,' yet all experiments are restricted to Python repositories; a brief discussion of the engineering effort required to port the graph builder to another language would clarify the scope of this claim.
- [Evaluation figures/tables] Table or figure captions should explicitly state the exact number of issues (300) and the backbone model (Qwen2.5-Coder-32B-Instruct) so that results can be interpreted without cross-referencing the text.
Simulated Author's Rebuttal
We thank the referee for the constructive review and the recommendation of minor revision. We address the single major comment below.
read point-by-point responses
-
Referee: The central claim that the automatically constructed multi-granularity graph 'accurately captures all relevant intra-procedural definition-use relationships without introducing false dependencies or missing critical flows' (weakest assumption) is load-bearing for the attribution of the 17-point Recall@1 and 4.7-point Pass@1 gains to the data-flow component. The manuscript should provide either (a) a manual audit of a random sample of generated slices against ground-truth def-use on a subset of the benchmark or (b) quantitative metrics on false-positive/negative edges, as the current ablation evidence alone does not rule out that the observed improvement stems from incidental properties of the slice representation rather than semantic fidelity.
Authors: We appreciate the referee's identification of this load-bearing assumption. The ablations in §5.3 hold the tool schema and structural graph fixed while removing only the intra-procedural def-use edges, producing consistent drops in both localization and repair metrics; this design makes it unlikely that gains arise solely from incidental formatting of the slice output. Nevertheless, we agree that direct quantification of edge-level fidelity would strengthen attribution. A full ground-truth audit across the 300 issues is not feasible within the revision window, as it would require exhaustive manual annotation of def-use relations. In the revised manuscript we have therefore (i) added a dedicated paragraph in §4.2 describing the static-analysis rules used for edge construction (reaching definitions via AST-based use-def chains) and (ii) inserted a Limitations subsection (§6) that explicitly states the assumption, notes that the analysis follows standard sound techniques for Python, and provides one fully worked example of a generated slice with manual verification. We view this as a partial but substantive response to the comment. revision: partial
Circularity Check
No significant circularity identified
full rationale
The paper describes an empirical system (ARISE) that augments an LLM agent with a multi-granularity repository graph including intra-procedural def-use edges, exposed via a three-tier tool API. Central claims consist of measured gains in Function/Line Recall@1 and Pass@1 on the external SWE-bench Lite benchmark (300 issues), plus ablations attributing gains to the data-flow component rather than tool schema. No equations, first-principles derivations, fitted parameters, or predictions appear in the provided text; the argument rests on direct experimental comparison against a public baseline (SWE-agent) with controlled conditions. This is self-contained empirical evidence with no reduction of outputs to inputs by construction.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The automatically extracted intra-procedural definition-use edges are sufficiently accurate and complete for the downstream agent to improve localization and repair.
invented entities (1)
-
ARISE multi-granularity program graph with statement-level def-use edges
no independent evidence
