arxiv: 2605.06680 · v1 · submitted 2026-04-22 · 💻 cs.LG · cs.CV· physics.flu-dyn

Recognition: 2 theorem links

· Lean Theorem

On the Role of Strain and Vorticity in Numerical Integration Error for Flow Matching

Chenxi Tao , Seung-Kyum Choi

Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:17 UTC · model grok-4.3

classification 💻 cs.LG cs.CVphysics.flu-dyn

keywords strainvorticityflow matchingintegration errorJacobian regularizationoptimal transportnumerical integrationgenerative models

0 comments

The pith

Strain controls exponential error growth in flow matching integration while vorticity adds only linear error.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Flow matching generates samples by numerically integrating a learned velocity field, so the number of function evaluations directly sets inference cost. The paper decomposes the velocity Jacobian into its symmetric strain-rate part and antisymmetric vorticity part, proving that strain governs exponential amplification of integration errors via the logarithmic norm while vorticity affects only the linear local truncation error. It further shows that the velocity field of optimal transport is irrotational and has zero material derivative, which implies that the Euler method integrates the associated Lagrangian particle paths exactly and achieves second-order accuracy. This analysis motivates a weighted Jacobian regularization that penalizes strain and vorticity at different rates. Readers care because the result points to a concrete way to cut the number of integration steps without losing sample quality.

Core claim

We prove that strain and vorticity play different roles: strain controls exponential error amplification through the logarithmic norm, while vorticity contributes only linearly to the local truncation error. We further show that the optimal transport velocity field is irrotational and has zero material derivative, implying second-order Euler accuracy; for exact displacement interpolation, the associated Lagrangian particle dynamics are integrated exactly by Euler.

What carries the argument

Decomposition of the velocity Jacobian into symmetric strain-rate tensor S and antisymmetric vorticity tensor Omega, with error bounds obtained from the logarithmic norm of the full Jacobian.

If this is right

Optimal transport velocity fields yield irrotational dynamics that Euler integrates exactly for displacement interpolation.
Weighted Jacobian regularization with separate strain and vorticity penalties reduces integration error at low NFE.
On 2D synthetic data the approach yields up to 2.7 times lower integration error at NFE equal to 5.
Preliminary CIFAR-10 results show a 14 percent FID improvement at NFE equal to 10 while high-NFE quality is preserved.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Training objectives could be designed to drive learned velocity fields closer to the irrotational optimal-transport solution so that very low step counts become practical.
The same strain-vorticity decomposition may apply to other ODE-based generative samplers whose stability depends on Jacobian structure.
Prioritizing strain reduction over vorticity reduction during training could enable adaptive or even constant-step integrators with fewer total evaluations.

Load-bearing premise

The velocity field remains sufficiently smooth and the learned approximation stays close enough to the optimal transport map for the logarithmic-norm bounds and irrotational property to transfer from theory to the trained model.

What would settle it

A trained flow-matching model whose velocity field has low strain but high vorticity yet still exhibits exponential error growth, or an exact optimal-transport field whose particle paths are not integrated exactly by Euler, would falsify the central claims.

Figures

Figures reproduced from arXiv: 2605.06680 by Chenxi Tao, Seung-Kyum Choi.

**Figure 2.** Figure 2: Hierarchy of velocity field regularity. General FM (outer) has both strain and vorticity, [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

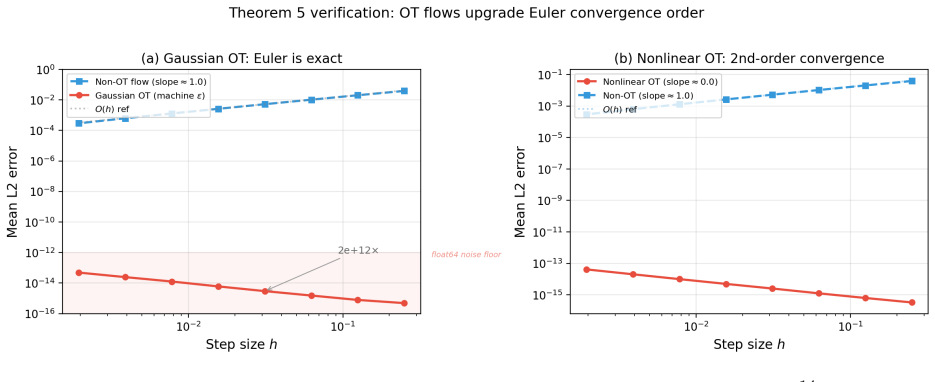

**Figure 3.** Figure 3: Gaussian OT verification. (a) Euler errors reach machine precision ( [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

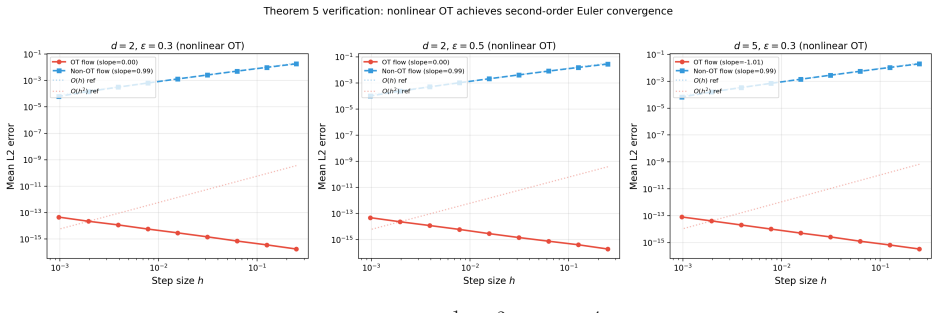

**Figure 4.** Figure 4: Nonlinear OT verification (Ψ(x) = 1 2 ∥x∥ 2 + ε 4 Px 4 i ). Despite the nonlinear OT map, Euler errors reach machine precision in all configurations, while non-OT flows follow O(h) (slope ≈ 1). This confirms that the zero-material-derivative property of displacement interpolation yields exact Lagrangian integration, a result strictly stronger than the second-order bound of Theorem 5 [PITH_FULL_IMAGE:figur… view at source ↗

**Figure 5.** Figure 5: NFE vs. integration error on 2D pinwheel. Left: L2 error vs. NFE [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

**Figure 6.** Figure 6: Training dynamics on 2D pinwheel. Left: FM loss. Middle: [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

**Figure 7.** Figure 7: Qualitative CIFAR-10 comparison across sampling budgets. Rows show the FM baseline, [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗

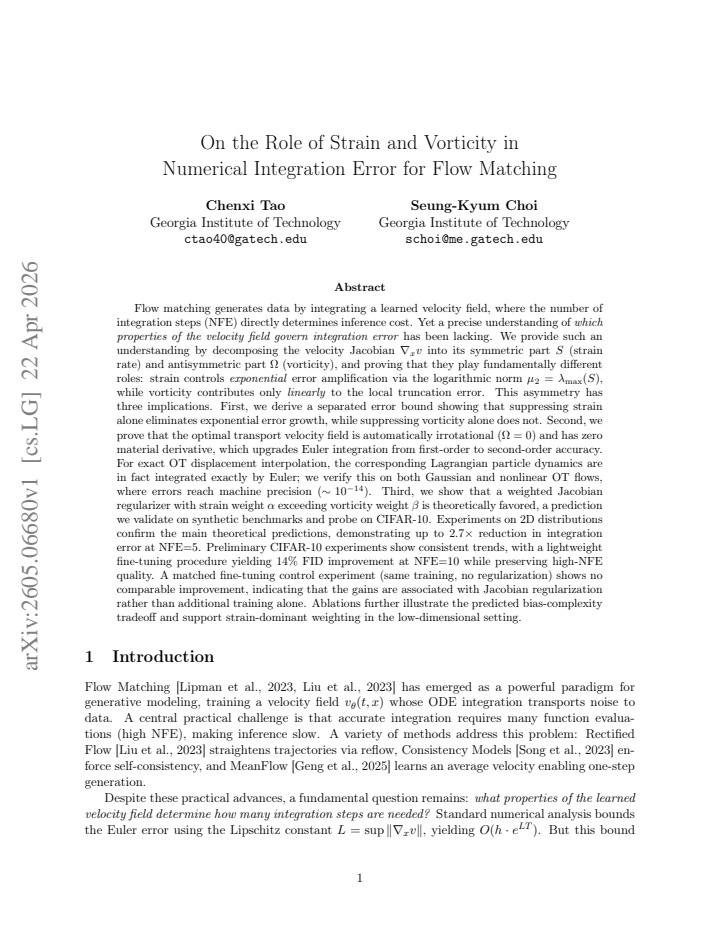

read the original abstract

Flow matching generates data by integrating a learned velocity field, where the number of integration steps (NFE) directly determines inference cost. We analyze which properties of the velocity field govern integration error by decomposing the velocity Jacobian into its symmetric part S (strain rate) and antisymmetric part Omega (vorticity). We prove that strain and vorticity play different roles: strain controls exponential error amplification through the logarithmic norm, while vorticity contributes only linearly to the local truncation error. We further show that the optimal transport velocity field is irrotational and has zero material derivative, implying second-order Euler accuracy; for exact displacement interpolation, the associated Lagrangian particle dynamics are integrated exactly by Euler. Motivated by this analysis, we study weighted Jacobian regularization with strain weight alpha and vorticity weight beta. Experiments on 2D synthetic data confirm the main theoretical predictions, showing up to 2.7x lower integration error at NFE=5. Preliminary CIFAR-10 experiments show consistent trends, with a lightweight fine-tuning procedure improving FID by 14 percent at NFE=10 while preserving high-NFE quality.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Strain controls exponential integration error in flow matching while vorticity does not, with OT fields being exactly integrable by Euler.

read the letter

The key thing here is that strain in the velocity Jacobian drives the exponential growth of integration errors in flow matching, while vorticity only adds a linear term to the truncation error. The paper also proves that the optimal transport velocity field is irrotational and has zero material derivative, which means Euler integration is exact rather than approximate. They do a solid job using standard logarithmic norm analysis and facts about displacement interpolation to derive a weighted regularization that targets strain more than vorticity. The 2D synthetic results line up with the theory, cutting integration error by as much as 2.7 times at low step counts. This gives a clear way to improve efficiency without changing the model architecture much. The main limitation is that the CIFAR-10 experiments are preliminary, with only a reported 14 percent FID gain at NFE=10 after fine-tuning, and no detailed statistics on variability. The transfer from theory to learned models relies on the velocity staying close to the OT map, which may not always be true in practice and isn't tested extensively. This paper would interest people building or optimizing flow matching models for faster sampling. A reader focused on practical improvements in generative modeling would find the regularization approach and the error breakdown helpful. It deserves peer review because the theoretical steps are internally consistent and the synthetic experiments provide direct support, even though additional validation on larger datasets would make the claims stronger. I would send it to referees.

Referee Report

0 major / 3 minor

Summary. The manuscript analyzes the impact of strain and vorticity in the velocity Jacobian on numerical integration errors in flow matching generative models. It provides proofs that strain governs exponential error growth via the logarithmic norm while vorticity affects only linear truncation error, shows that the optimal transport velocity field is irrotational with zero material derivative leading to exact Euler integration, and proposes weighted regularization to reduce errors, validated on synthetic 2D data and preliminary CIFAR-10 experiments.

Significance. If the analysis holds, this provides principled guidance for regularizing flow matching velocity fields to achieve lower integration errors at small NFE, which is relevant for efficient inference in generative models. The 2D experiments directly test the predicted dependence on strain and vorticity weights, and the distinction between the two components offers a clear geometric interpretation grounded in standard ODE analysis and displacement interpolation.

minor comments (3)

[Abstract and Experiments] The abstract and experiments section describe the CIFAR-10 results as preliminary with a 14% FID improvement at NFE=10; expand this to include the exact fine-tuning procedure, baseline comparisons, and any ablation on alpha/beta values to make the practical claim more concrete.
[Experiments] The 2D synthetic experiments report up to 2.7x lower integration error at NFE=5; add error bars, number of runs, or statistical details to allow assessment of variability in the reported gains.
[Theoretical Analysis] Notation for the strain tensor S and vorticity Omega is introduced via Jacobian decomposition; ensure the logarithmic norm definition and its relation to the largest eigenvalue of S is stated explicitly with a reference to the relevant equation for clarity.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, including the clear summary of our contributions on strain and vorticity effects in flow matching, the geometric interpretation, and the recommendation for minor revision. We are pleased that the analysis and experiments were viewed as providing principled guidance for regularization. No specific major comments were raised in the report, so we will incorporate minor clarifications and improvements in the revised version.

Circularity Check

0 steps flagged

No significant circularity; derivation applies standard facts

full rationale

The central claims rest on the standard Jacobian decomposition J = S + Omega (symmetric strain plus antisymmetric vorticity), the known identity that the logarithmic norm equals the largest eigenvalue of S, and the standard optimal-transport fact that the displacement-interpolation velocity is the gradient of a convex potential (hence irrotational with zero material derivative). None of these inputs are defined from the learned model parameters or from the regularization weights alpha and beta; the weights are chosen from the derived bounds rather than fitted to the target error. Experiments on synthetic data test the predicted dependence without tautological closure. No self-citation, self-definitional, or fitted-input-called-prediction steps appear in the load-bearing chain.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The analysis uses standard mathematical facts about Jacobian decomposition and logarithmic norms; the only new free parameters are the regularization weights alpha and beta whose values are chosen to balance strain and vorticity penalties.

free parameters (2)

alpha
Weight on strain component of Jacobian regularization; chosen during training to emphasize strain suppression.
beta
Weight on vorticity component of Jacobian regularization; chosen to allow more vorticity than strain.

axioms (2)

domain assumption Velocity field is sufficiently differentiable for Jacobian and logarithmic norm to be well-defined.
Invoked when applying ODE error bounds to the learned velocity field.
standard math Optimal transport map between noise and data distributions exists and is unique.
Used to claim the OT velocity field is irrotational with zero material derivative.

pith-pipeline@v0.9.0 · 5496 in / 1521 out tokens · 34819 ms · 2026-05-11T01:17:05.576385+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

strain controls exponential error amplification through the logarithmic norm μ₂ = λ_max(S), while vorticity contributes only linearly to the local truncation error
IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

the optimal transport velocity field is irrotational (Ω = 0) and has zero material derivative

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages · 1 internal anchor

[1]

Lipman, R

Y. Lipman, R. T. Q. Chen, H. Ben-Hamu, M. Nickel, and M. Le. Flow matching for generative modeling. In ICLR, 2023

work page 2023
[2]

X. Liu, C. Gong, and Q. Liu. Flow straight and fast: Learning to generate and transfer data with rectified flow. In ICLR, 2023

work page 2023
[3]

Y. Song, P. Dhariwal, M. Chen, and I. Sutskever. Consistency models. In ICML, 2023

work page 2023
[4]

Z. Geng, M. Deng, X. Bai, J. Z. Kolter, and K. He. Mean flows for one-step generative modeling. arXiv:2505.13447, 2025

work page internal anchor Pith review arXiv 2025
[5]

Z. Geng, A. Pokle, W. Luo, J. Lin, and J. Z. Kolter. Consistency models made easy. In ICLR, 2025

work page 2025
[6]

Y. Brenier. Polar factorization and monotone rearrangement of vector-valued functions. Comm. Pure Appl. Math., 44(4):375--417, 1991

work page 1991
[7]

Benamou and Y

J.-D. Benamou and Y. Brenier. A computational fluid mechanics solution to the M onge- K antorovich mass transfer problem. Numer. Math., 84:375--393, 2000

work page 2000
[8]

S\" o derlind

G. S\" o derlind. The logarithmic norm. H istory and modern theory. BIT Numer. Math., 46(3):631--652, 2006

work page 2006
[9]

arXiv preprint arXiv:1908.02729

J. Hoffman, D. A. Roberts, and S. Yaida. Robust learning with J acobian regularization. arXiv:1908.02729, 2019

work page arXiv 1908
[10]

De Marinis, N

A. De Marinis, N. Guglielmi, S. Sicilia, and F. Tudisco. Improving the robustness of neural ODE s with minimal weight perturbation. arXiv:2501.10740, 2025

work page arXiv 2025
[11]

Error bounds for flow matching methods.arXiv preprint arXiv:2305.16860,

J. Benton, G. Deligiannidis, and A. Doucet. Error bounds for flow matching methods. arXiv:2305.16860, 2023

work page arXiv 2023
[12]

C. Villani. Topics in Optimal Transportation. AMS, 2003

work page 2003
[13]

S. Eguchi. Implicit geometric regularization in flow matching via density weighted S tein operators. arXiv:2512.23956, 2025

work page arXiv 2025
