Giant-atom-enabled quantum optics with valley-polarized photons

Marcel A. Pinto , Giovanni Luca Sferrazza , Silvia Casulleras , Alejandro Gonzalez-Tudela , Daniele De Bernardis , Francesco Ciccarello This is my paper

Pith reviewed 2026-05-11 00:59 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hall
keywords giant atomsvalleytronicsquantum opticshoneycomb latticeschiral emissionphotonic edge modesBerry curvaturedomain walls
0
0 comments X

The pith

A giant atom can emit photons selectively into one valley of a honeycomb lattice by tailoring its coupling geometry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This work shows how a simple two-level qubit, when coupled nonlocally at several points to a honeycomb lattice of resonators with detuned sublattice frequencies, can emit light into just one of the lattice's two valleys. The choice of where the coupling points are placed determines which valley is selected, giving the photons a definite valley index along with the lattice's Berry curvature. Positioning the qubit near a domain wall that separates areas with opposite detuning turns the emission into chiral flow along the wall's edge modes. Such chiral single-photon channels arise without needing to break the time-reversal symmetry of the medium, opening possibilities in circuit quantum electrodynamics.

Core claim

Tailoring the geometry of the coupling points allows the giant atom to emit selectively into a single valley. The emitted photons thereby acquire a well-defined valley character and inherit the associated Berry curvature. By placing the qubit near a domain wall between regions of opposite sublattice detuning, whose interface supports valley-polarized edge modes, emission becomes chiral along the domain wall.

What carries the argument

The giant atom, realized as a qubit with multiple nonlocal coupling points to the resonator lattice, whose positions are chosen to break symmetry between the two valleys.

Load-bearing premise

The honeycomb lattice of resonators with controllable sublattice detuning can be fabricated and the giant atom's nonlocal couplings can be implemented with enough precision and low enough loss to achieve the valley selectivity.

What would settle it

If experiments with a fabricated circuit-QED device show that emitted photons do not preferentially follow one valley's propagation characteristics or fail to show chirality along the domain wall, the selective emission claim would be falsified.

Figures

Figures reproduced from arXiv: 2605.06771 by Alejandro Gonzalez-Tudela, Daniele De Bernardis, Francesco Ciccarello, Giovanni Luca Sferrazza, Marcel A. Pinto, Silvia Casulleras.

Figure 1
Figure 1. Figure 1: Sketch of the setup: a two-level giant atom is cou [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

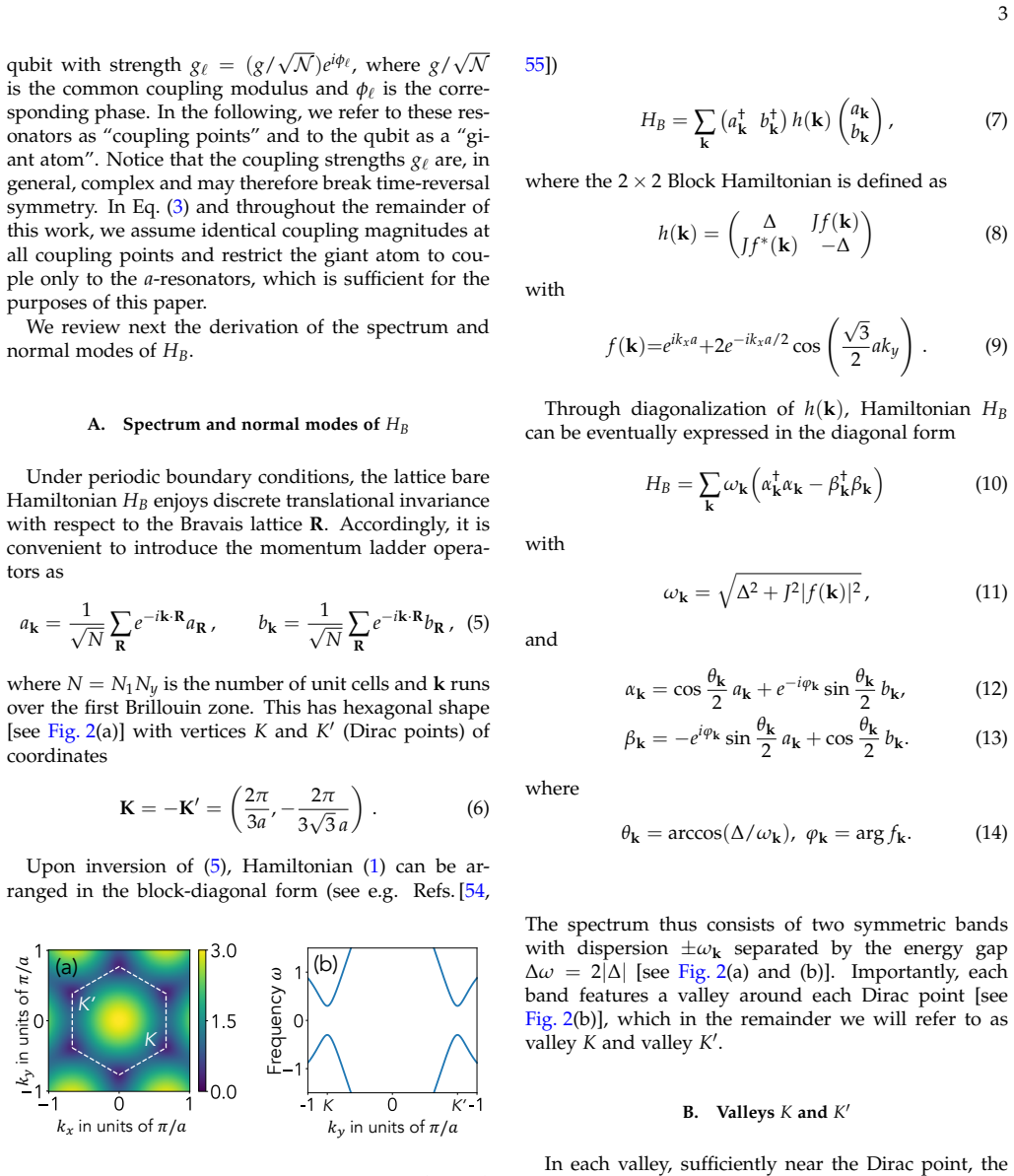

Figure 2. Figure 2: Bare lattice spectrum. (a) Density plot of [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

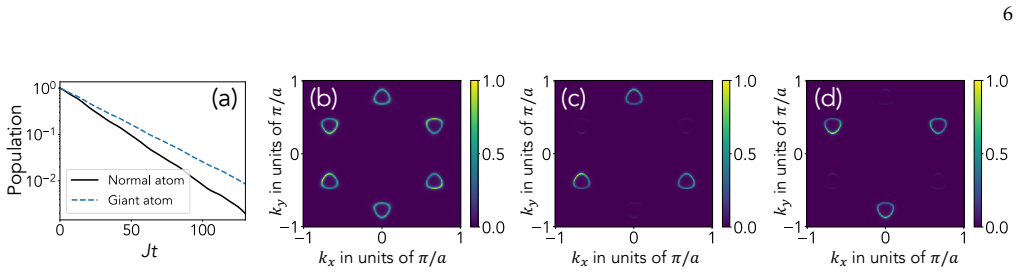

Figure 3. Figure 3: Homogeneous lattice: spontaneous emission of a normal and a giant atom for [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

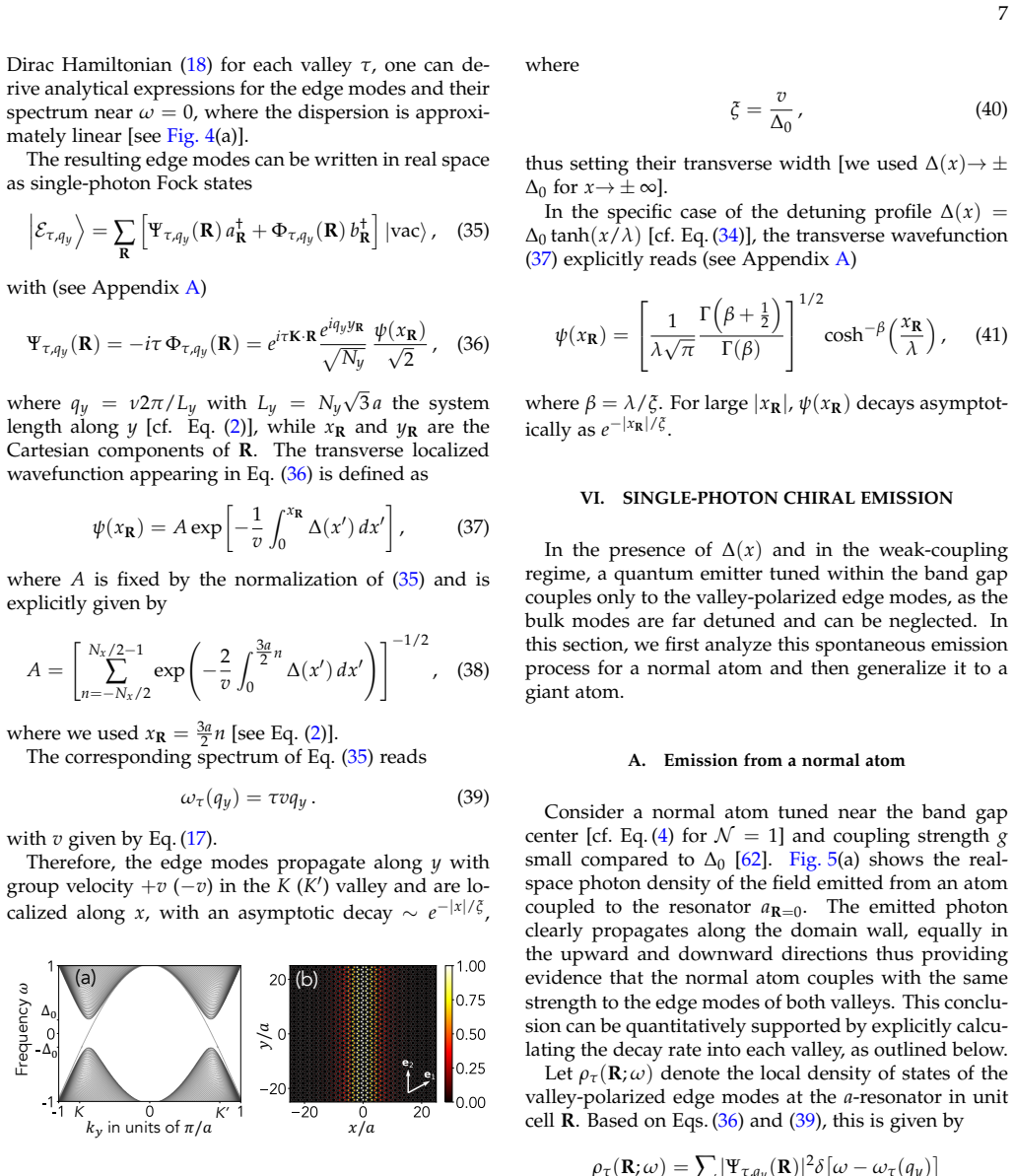

Figure 4. Figure 4: Valley-polarized edge modes under a spatially vary [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

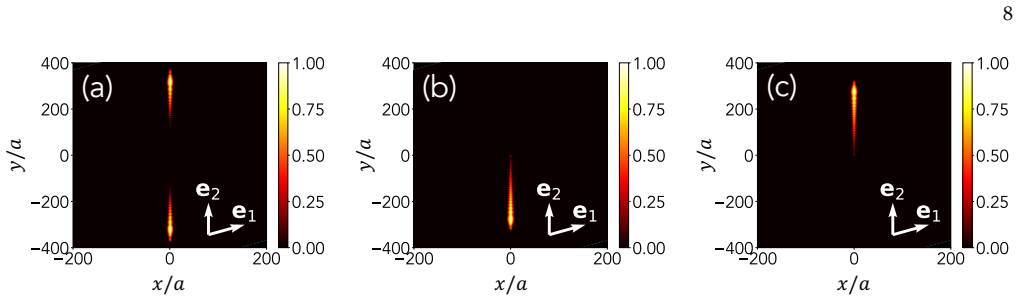

Figure 5. Figure 5: Lattice with a non-uniform sublattice detuning [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

Valleytronics and valley photonics exploit the valley degree of freedom to encode and manipulate information. Here we show that photonic valleys can be selectively addressed in quantum optics using a simple two-level emitter, provided it is coupled nonlocally to the field, thereby realizing a so-called giant atom. Specifically, we consider a qubit coupled at multiple points to an engineered honeycomb lattice of resonators with detuned sublattice frequencies. By tailoring the geometry of the coupling points, the giant atom can be made to emit selectively into a single valley. The emitted photons thereby acquire a well-defined valley character and inherit the associated Berry curvature. By placing the qubit near a domain wall between regions of opposite sublattice detuning, whose interface supports valley-polarized edge modes, emission becomes chiral along the domain wall. This provides a promising route toward implementation of single-photon disorder-robust chiral emission without breaking time-reversal symmetry of the electromagnetic medium in platforms such as circuit QED.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes using a giant atom (two-level qubit with nonlocal couplings) to a honeycomb lattice of resonators with sublattice detuning to achieve valley-selective photon emission. Tailoring the geometry of coupling points exploits interference to suppress emission into one valley (K or K') while allowing the other, so emitted photons acquire definite valley character and associated Berry curvature. Placing the qubit near a domain wall between regions of opposite detuning enables chiral propagation along the supported valley-polarized edge modes, all without breaking time-reversal symmetry of the medium. The approach is suggested for circuit-QED implementations of disorder-robust chiral single-photon sources.

Significance. If the interference-based valley selectivity and chiral edge-mode coupling hold, the result would be significant for quantum optics and valleytronics. It provides a route to chiral emission in time-reversal-symmetric photonic systems, leveraging giant-atom physics and valley degrees of freedom for potential applications in robust quantum information processing. The proposal avoids the usual requirement to break TRS, which is a practical advantage in resonator lattices.

major comments (2)
  1. [Abstract and §II] Abstract and §II (model): the central claim that geometric tailoring of coupling points produces perfect (or near-perfect) valley selectivity via phase cancellation at the K/K' points is load-bearing, yet no explicit derivation of the coupling amplitudes, decay rates into each valley, or the resulting master equation appears in the visible text. The interference argument is stated at a high level but must be shown quantitatively (e.g., via the Fourier transform of the coupling positions evaluated at the Dirac points) to confirm suppression of one valley.
  2. [§III] §III (domain-wall emission): the assertion that emission becomes chiral along the valley-polarized edge modes relies on the qubit coupling preferentially to those modes. The manuscript should provide the explicit overlap integrals or the projected master equation demonstrating unidirectional propagation, including any dependence on the distance to the domain wall and the sublattice detuning strength.
minor comments (2)
  1. [Abstract] The abstract and introduction would benefit from a schematic figure illustrating the giant-atom coupling points on the honeycomb lattice and the domain-wall geometry.
  2. [§II] Notation for the sublattice detuning and the valley index should be defined consistently when first introduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive assessment of the work and for the constructive comments. We have revised the manuscript to incorporate explicit derivations and quantitative details as requested, improving the clarity of the central claims.

read point-by-point responses

  1. Referee: [Abstract and §II] Abstract and §II (model): the central claim that geometric tailoring of coupling points produces perfect (or near-perfect) valley selectivity via phase cancellation at the K/K' points is load-bearing, yet no explicit derivation of the coupling amplitudes, decay rates into each valley, or the resulting master equation appears in the visible text. The interference argument is stated at a high level but must be shown quantitatively (e.g., via the Fourier transform of the coupling positions evaluated at the Dirac points) to confirm suppression of one valley.

    Authors: We agree that an explicit quantitative derivation is essential for rigor. In the revised manuscript we have expanded Section II with the full calculation of the coupling amplitudes obtained from the Fourier transform of the coupling positions evaluated at the K and K' points. This explicitly demonstrates the phase cancellation that suppresses emission into one valley while allowing the other. We also derive the valley-dependent decay rates and present the resulting master equation governing the giant-atom dynamics. revision: yes

  2. Referee: [§III] §III (domain-wall emission): the assertion that emission becomes chiral along the valley-polarized edge modes relies on the qubit coupling preferentially to those modes. The manuscript should provide the explicit overlap integrals or the projected master equation demonstrating unidirectional propagation, including any dependence on the distance to the domain wall and the sublattice detuning strength.

    Authors: We thank the referee for this suggestion. The revised Section III now includes the explicit overlap integrals between the giant atom's coupling points and the valley-polarized edge modes. We derive the projected master equation for the unidirectional propagation and analyze its dependence on the distance from the qubit to the domain wall as well as the sublattice detuning strength, confirming that chiral emission is robust within the relevant parameter regime. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper derives valley-selective emission and chiral domain-wall coupling directly from the tight-binding Hamiltonian of a detuned honeycomb lattice plus the standard nonlocal giant-atom master equation. Selection rules follow from explicit phase factors at the K/K' points due to coupling-point geometry; no parameter is fitted to data and then relabeled as a prediction, no uniqueness theorem is imported from self-citation, and no ansatz is smuggled in. The logic is self-contained and externally falsifiable via the underlying lattice model and quantum-optics formalism.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The proposal rests on standard assumptions of valley photonics and giant-atom physics; no new free parameters or invented entities are introduced in the abstract.

axioms (2)
  • domain assumption A honeycomb lattice with detuned sublattice frequencies supports valley modes carrying Berry curvature.
    Invoked to explain the valley character of emitted photons.
  • domain assumption Nonlocal coupling points of a giant atom can be chosen to address a single valley selectively.
    Core premise of the selective-emission claim.
