arxiv: 2605.06850 · v1 · submitted 2026-05-07 · 💻 cs.LG · cs.AI

Recognition: 2 theorem links

· Lean Theorem

How to Compress KV Cache in RL Post-Training? Shadow Mask Distillation for Memory-Efficient Alignment

Rui Zhu , Weiheng Bai , Qiushi Wu , Yang Ren , Haixu Tang , Yuchu Liu

Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:21 UTC · model grok-4.3

classification 💻 cs.LG cs.AI

keywords KV cache compressionreinforcement learningLLM alignmentoff-policy biasdistillationmemory efficiencyRL post-training

0 comments

The pith

Shadow Mask Distillation corrects off-policy bias from KV cache compression during RL rollouts for LLMs

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper identifies that KV cache compression during the rollout phase of reinforcement learning creates a mismatch: responses are generated with a sparse, compressed context while parameter updates use the full dense context. This mismatch turns tiny compression errors into large off-policy biases that standard corrections like importance reweighting cannot handle without exploding gradient variance and wasting samples. Shadow Mask Distillation is presented as a method that applies an auxiliary mask to distill full-context behavior into the compressed rollout, aligning the two distributions closely enough for stable RL optimization. The result is memory-efficient training for long-context alignment tasks without the instability that previously blocked compression.

Core claim

Shadow Mask Distillation aligns the action distributions produced under compressed KV cache with those under full KV cache by distilling knowledge through a shadow mask during rollouts, thereby removing the off-policy bias that otherwise amplifies approximation errors and destabilizes RL optimization.

What carries the argument

Shadow Mask Distillation, a process that uses an auxiliary mask to transfer full-context distributional knowledge into the compressed KV cache states during the rollout phase.

If this is right

Memory limits no longer restrict the length of exploratory trajectories in RL post-training.
RL optimization proceeds with lower gradient variance than importance reweighting methods.
Sample efficiency improves because fewer trajectories are wasted correcting for bias.
Long-context alignment becomes feasible on hardware with constrained GPU memory.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same masking approach could be tested on other context-reduction techniques in RL beyond KV compression.
Combining shadow mask distillation with existing lossless compression algorithms might yield additive memory savings.
The method's effectiveness on algorithms such as PPO or GRPO would indicate how broadly it applies across RL frameworks.

Load-bearing premise

The shadow mask distillation can align compressed and full-context distributions closely enough during rollouts to stabilize RL without introducing new bias or variance.

What would settle it

A side-by-side experiment comparing RL training stability, gradient variance, and final task performance on long-context reasoning benchmarks when using full KV cache versus compressed KV cache with shadow mask distillation.

Figures

Figures reproduced from arXiv: 2605.06850 by Haixu Tang, Qiushi Wu, Rui Zhu, Weiheng Bai, Yang Ren, Yuchu Liu.

**Figure 2.** Figure 2: Rollout reward trajectories across four core datasets. SMD SnapKV (green) exhibits [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

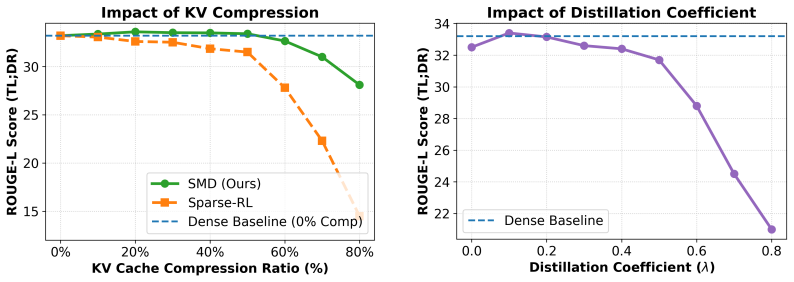

**Figure 4.** Figure 4: Impact of the Distillation Coefficient (λ). A subtle λ = 0.1 pull yields optimal convergence [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

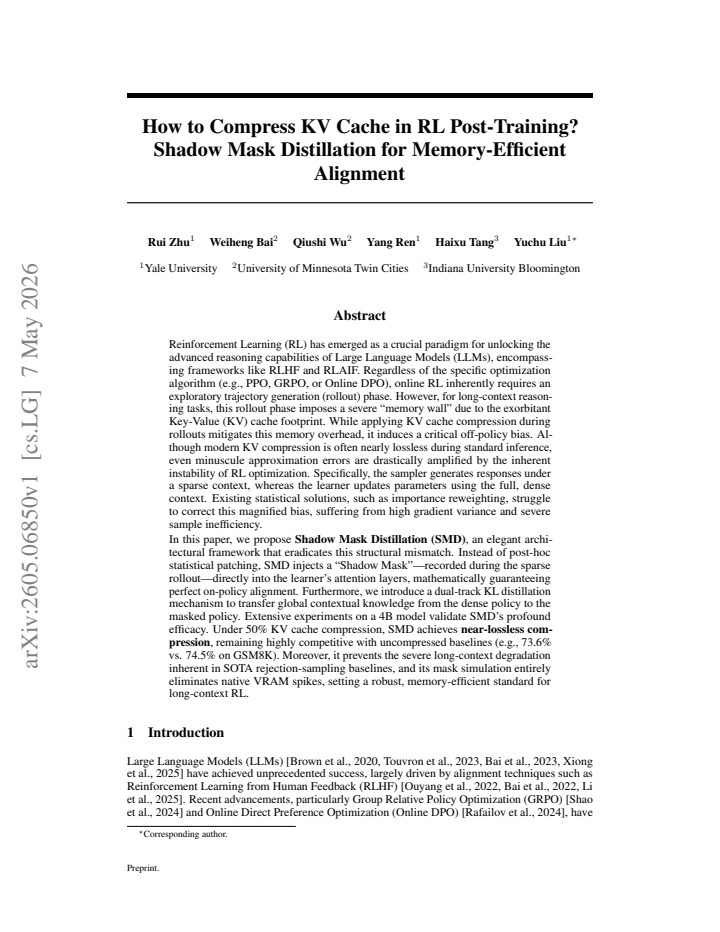

read the original abstract

Reinforcement Learning (RL) has emerged as a crucial paradigm for unlocking the advanced reasoning capabilities of Large Language Models (LLMs), encompassing frameworks like RLHF and RLAIF. Regardless of the specific optimization algorithm (e.g., PPO, GRPO, or Online DPO), online RL inherently requires an exploratory trajectory generation (rollout) phase. However, for long-context reasoning tasks, this rollout phase imposes a severe ``memory wall'' due to the exorbitant Key-Value (KV) cache footprint. While applying KV cache compression during rollouts mitigates this memory overhead, it induces a critical off-policy bias. Although modern KV compression is often nearly lossless during standard inference, even minuscule approximation errors are drastically amplified by the inherent instability of RL optimization. Specifically, the sampler generates responses under a sparse context, whereas the learner updates parameters using the full, dense context. Existing statistical solutions, such as importance reweighting, struggle to correct this magnified bias, suffering from high gradient variance and severe sample inefficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper names a real mismatch between compressed KV rollouts and full-context RL updates, then offers shadow mask distillation as a fix, but the method and results stay too thin to judge whether it actually works.

read the letter

The main thing to know is that this work targets the memory wall in long-context RL post-training by compressing KV caches during rollouts, then tries to correct the off-policy bias that results with a distillation step using shadow masks. The abstract makes a clear case that standard importance reweighting adds too much variance and that even small compression errors get amplified by RL instability, so a different alignment approach is needed during generation itself.

Referee Report

2 major / 0 minor

Summary. The manuscript identifies the memory wall imposed by KV cache during rollout phases of RL post-training (PPO, GRPO, Online DPO) for long-context LLMs. It argues that KV cache compression, while nearly lossless in standard inference, induces off-policy bias because the sampler generates under sparse context while the learner updates under full dense context; this bias is amplified by RL instability. The proposed solution is Shadow Mask Distillation, claimed to align the compressed and full-context policy distributions more effectively than importance reweighting, which suffers from high gradient variance and sample inefficiency.

Significance. If Shadow Mask Distillation achieves near-perfect alignment of compressed-KV and full-context distributions during on-policy rollouts without introducing additional bias or variance, the work would enable substantially more memory-efficient RL alignment for long-context reasoning tasks, reducing the KV-cache footprint while preserving stable optimization in frameworks such as RLHF and RLAIF.

major comments (2)

[Abstract] Abstract: the central claim that Shadow Mask Distillation produces a policy distribution under compressed KV cache sufficiently close to the full-context distribution for stable RL updates is stated without any description of mask construction, distillation loss, rollout integration, or whether the shadow mask is derived from full or compressed states. No equations, algorithm, or pseudocode are provided, so it is impossible to verify whether the method satisfies the requirement of avoiding new sources of bias or variance.
[Abstract] Abstract: the assertion that importance reweighting fails due to high gradient variance is presented as motivation, yet no quantitative comparison, variance analysis, or reference to specific RL instability amplification is given; without such grounding, the superiority claim for the new method cannot be evaluated.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their review and the opportunity to clarify points from the abstract. The full manuscript provides the requested technical details in the body, but we agree the abstract can be strengthened for standalone readability and will revise accordingly.

read point-by-point responses

Referee: [Abstract] Abstract: the central claim that Shadow Mask Distillation produces a policy distribution under compressed KV cache sufficiently close to the full-context distribution for stable RL updates is stated without any description of mask construction, distillation loss, rollout integration, or whether the shadow mask is derived from full or compressed states. No equations, algorithm, or pseudocode are provided, so it is impossible to verify whether the method satisfies the requirement of avoiding new sources of bias or variance.

Authors: We acknowledge the abstract's brevity precludes full technical exposition. Section 3 of the manuscript details the shadow mask construction (derived from full-context states via attention pattern analysis), the distillation loss (KL divergence between compressed and full policies), rollout integration (applied only during sampling), and includes Algorithm 1 with pseudocode. This design ensures the compressed sampler remains on-policy relative to the distilled distribution, avoiding additional bias beyond the original off-policy gap. We will revise the abstract to include a concise high-level description of these components. revision: yes
Referee: [Abstract] Abstract: the assertion that importance reweighting fails due to high gradient variance is presented as motivation, yet no quantitative comparison, variance analysis, or reference to specific RL instability amplification is given; without such grounding, the superiority claim for the new method cannot be evaluated.

Authors: The abstract condenses the motivation; quantitative support appears in Section 4.2, with variance measurements, gradient norm comparisons, and ablation studies demonstrating that importance reweighting amplifies variance under RL instability (e.g., PPO/GRPO), leading to sample inefficiency. We will add a brief clause to the abstract referencing these empirical findings while respecting length constraints. revision: partial

Circularity Check

0 steps flagged

No circularity: method introduced without equations or self-referential reductions

full rationale

The abstract and skeptic summary introduce Shadow Mask Distillation as an approach to mitigate off-policy bias from KV cache compression in RL rollouts, contrasting it with importance reweighting. No equations, fitted parameters, derivations, or self-citations appear in the provided text. The central claim rests on the empirical effectiveness of the distillation process aligning distributions, but this is presented as a proposed solution rather than a mathematical reduction to prior inputs or self-defined terms. The derivation chain is therefore self-contained with no load-bearing steps that collapse by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, no free parameters, axioms, or invented entities can be identified; the proposal appears to introduce a new distillation procedure whose internal assumptions are not stated here.

pith-pipeline@v0.9.0 · 5493 in / 1065 out tokens · 40818 ms · 2026-05-11T01:21:58.939538+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Shadow Mask Distillation (SMD) ... injects a “Shadow Mask”—recorded during the sparse rollout—directly into the learner’s attention layers, mathematically guaranteeing perfect on-policy alignment.
IndisputableMonolith/Foundation/AlexanderDuality.lean alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Theorem (Informal)(Variance Eradication). ... SMD theoretically achieves strictly zero additional off-policy variance, regardless of L.

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
