Forecasting Source Stability in Scientific Experiments using Temporal Learning Models: A Case Study from Tritium Monitoring

Nicholas Tan Jerome , Nadia Aouadi , Christoph Koehler , Suren Chilingaryan , Andreas Kopmann
Authors on Pith no claims yet

Pith reviewed 2026-05-12 00:44 UTC · model grok-4.3

classification ⚛️ physics.ins-det cs.AIcs.LG
keywords time-series forecastingdeep learningKATRINtritium source stabilitybeta-induced X-ray spectroscopyN-BEATSneutrino experiment monitoringlong-horizon prediction
0
0 comments X

The pith

N-BEATS forecasts time to stability after tritium source instabilities in KATRIN.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests multiple time-series forecasting models on beta-induced X-ray spectroscopy data from the KATRIN gaseous tritium source to predict how long recovery takes after infrequent instability events. Traditional detection methods fail on these sparse transients, so the authors train LSTM, N-BEATS, TFT, NHITS, DLinear, NLinear, TSMixer, and Chronos-LLM models to generate long-horizon forecasts of stability time. N-BEATS emerges as the strongest performer in accuracy and repeatability. This matters because KATRIN needs uninterrupted high-precision runs to measure neutrino mass; advance knowledge of recovery duration lets operators schedule measurements and maintenance more efficiently during stabilization windows.

Core claim

Deep learning models applied to real beta-induced X-ray spectroscopy signals can learn to forecast the duration of stabilization periods that follow transient instabilities in the windowless gaseous tritium source, with the N-BEATS architecture delivering the most accurate and repeatable long-horizon predictions among the tested methods.

What carries the argument

N-BEATS neural network for time-series forecasting, trained directly on sparse sequences of instability events extracted from beta-induced X-ray spectroscopy to output predictions hundreds of time steps ahead.

If this is right

  • A reliable stability forecast lets experimenters assign other tasks or maintenance during expected recovery intervals, reducing idle time.
  • The same data-driven approach can be reused on other long-running physics instruments that experience infrequent source fluctuations.
  • Successful long-horizon forecasting on sparse events supplies a practical template for applying deep learning to operational monitoring in large-scale experiments.
  • Model selection results establish that at least one architecture meets the repeatability threshold required for production use in experimental scheduling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could feed into automated control loops that adjust beam or pumping parameters in real time once a stability window is predicted.
  • Comparable sparse-event forecasting might transfer to monitoring tasks in accelerator or fusion facilities that share similar transient diagnostics.
  • Retraining the selected model on streaming data could reveal whether performance holds as the experiment accumulates more instability examples over years of operation.

Load-bearing premise

The sparse instability events recorded in the spectroscopy data contain repeatable signal patterns that forecasting models can extract rather than dataset-specific noise.

What would settle it

New instability events recorded in continued KATRIN operation where the N-BEATS predictions exhibit error rates or run-to-run variability substantially higher than those reported on the original dataset.

Figures

Figures reproduced from arXiv: 2605.08140 by Andreas Kopmann, Christoph Koehler, Nadia Aouadi, Nicholas Tan Jerome, Suren Chilingaryan.

Figure 1
Figure 1. Figure 1: The key challenge is predicting the stable time, [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Savitzky-Golay filtering and two-segment piecewise linear fitting [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

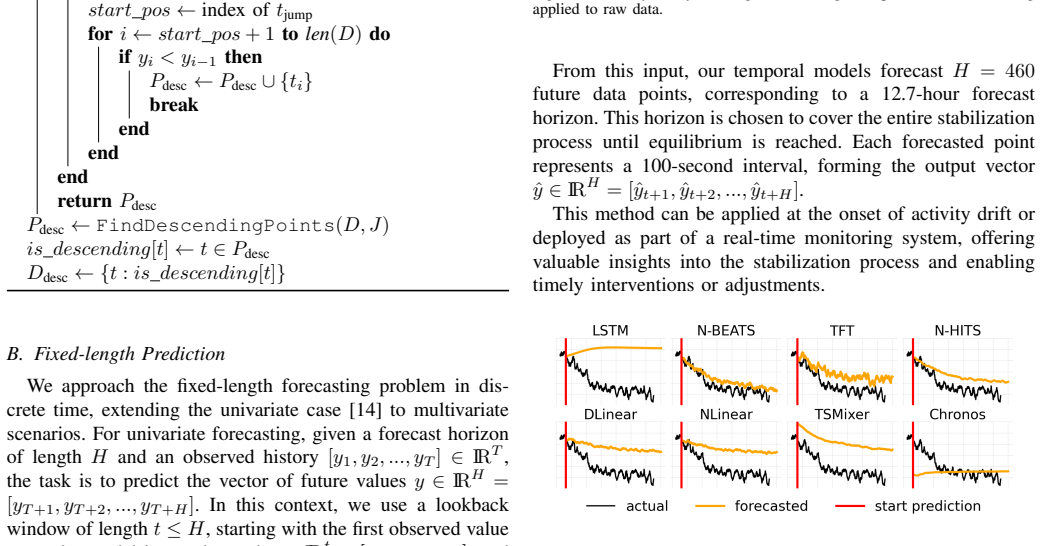

Figure 3. Figure 3: Overview of the predictions for Dataset 26 generated using state-of [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

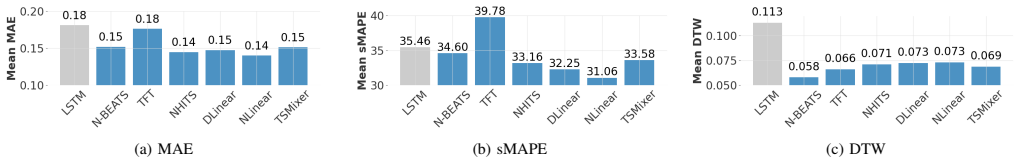

Figure 4. Figure 4: Comparison metrics of the forecasted data against the real data. Models excluded from consideration in earlier evaluations are indicated by the grey [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

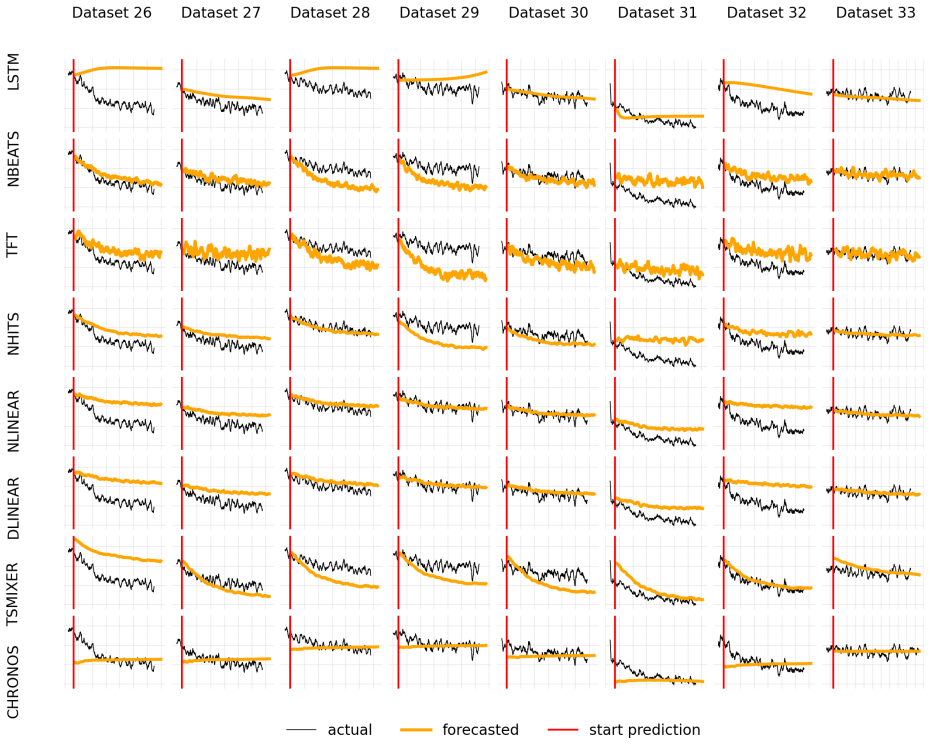

Figure 5. Figure 5: Overview of the forecasted data based on state-of-the-art models. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The bar chart shows the delay in stability predictions by the [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

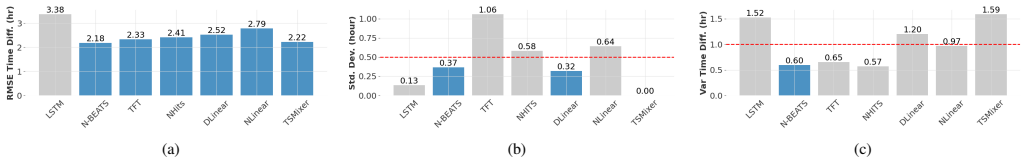

Figure 7. Figure 7: (a) The plot displays the RMSE between the predicted time and the actual stability time, with models excluded from earlier evaluations highlighted [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

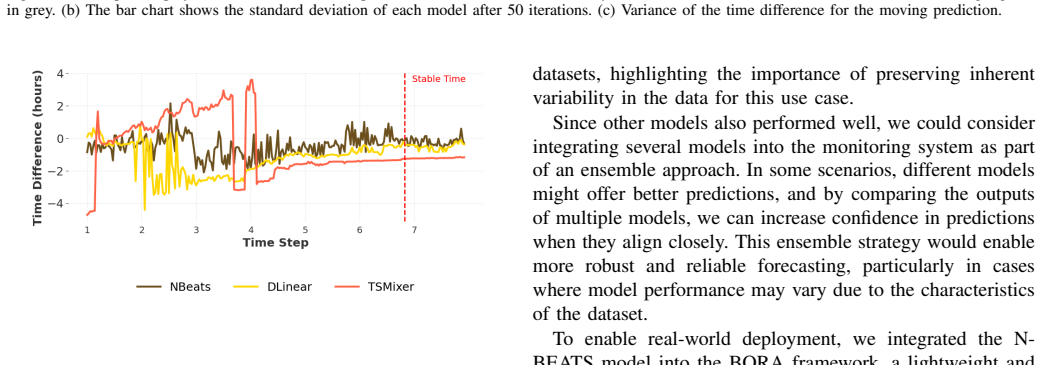

Figure 8. Figure 8: The prediction performance of the final three models (N-BEATS, [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

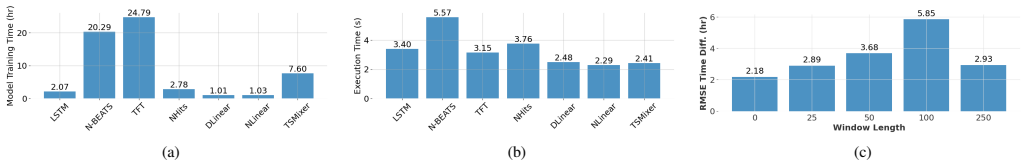

Figure 9. Figure 9: (a) Training time for each model based on 15 trials (hours). (b) Prediction time per model on the validation datasets (seconds). (c) Time difference [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The prediction performance of the N-BEATS model was evaluated [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Time-series profile of the tritium source count rate (counts per [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

The Karlsruhe Tritium Neutrino Experiment (KATRIN) aims to measure the absolute neutrino mass with unprecedented sensitivity, requiring precise monitoring of the windowless gaseous tritium source, where tritium beta decay occurs. To track variations of the source activity, beta-induced X-ray spectroscopy provides real-time diagnostics. However, traditional drift detection methods struggle with the infrequent and transient nature of instability events in gaseous tritium. This study bridges the gap between state-of-the-art time-series forecasting models and real-world experimental applications by leveraging deep learning to predict the time to stability after instabilities. Unlike standard benchmarking approaches that emphasize algorithmic performance on fixed datasets, we apply forecasting models -- including LSTM, N-BEATS, TFT, NHITS, DLinear, NLinear, TSMixer, and Chronos-LLM -- to complex, large-scale experimental data. Our findings highlight two challenges: learning from sparse instability events and forecasting long time horizons (i.e., predicting hundreds of future points), both of which are ongoing challenges in time-series forecasting and remain active areas of research. This prediction task has direct experimental value by enabling better scheduling and maintenance planning. A reliable forecast of stability time allows for more efficient measurement and task management during stabilization periods. Through model selection, we identified N-BEATS as the top performer, excelling in accuracy and repeatability, demonstrating that deep learning can optimize large-scale physics experiments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript applies a suite of time-series forecasting models (LSTM, N-BEATS, TFT, NHITS, DLinear, NLinear, TSMixer, Chronos-LLM) to beta-induced X-ray spectroscopy data from the KATRIN tritium source to predict time-to-stability following transient instability events. It reports that N-BEATS is the top performer in accuracy and repeatability and concludes that deep learning can optimize large-scale physics experiments, while noting the difficulties posed by sparse events and long (hundreds of points) horizons.

Significance. If the performance ranking is shown to be robust, the work supplies a concrete example of modern forecasting models applied to real experimental instrumentation data with rare events, offering potential practical value for scheduling and maintenance in KATRIN-style experiments. It also underscores persistent challenges in long-horizon forecasting on sparse scientific time series.

major comments (3)
  1. [Results / Model Evaluation] The central claim that N-BEATS outperforms the other models in accuracy and repeatability is not accompanied by any description of the train/test split strategy, cross-validation procedure, or handling of temporal leakage in the time-series data (Results section and associated figures/tables). Given the sparse and transient nature of the instability events, this omission prevents assessment of whether the reported superiority reflects genuine generalization or dataset-specific fitting.
  2. [Results / Model Evaluation] No error bars, confidence intervals, or statistical significance tests (e.g., paired t-tests or Wilcoxon tests on metric differences) are reported for the performance metrics that establish N-BEATS as the winner (Results section). With rare instability events, the effective sample size for long-horizon forecasting is necessarily small; without these quantifications the superiority claim cannot be considered load-bearing.
  3. [Data and Methods] The manuscript flags sparse instability events and long horizons as active research challenges yet provides no quantification of the number of distinct instability sequences, the windowing strategy used to create training examples, or any out-of-distribution validation set (Data and Methods sections). This information is required to evaluate whether the effective sample size supports reliable hyperparameter tuning and model selection for the claimed forecasting task.
minor comments (1)
  1. [Abstract] The abstract and introduction would benefit from explicit statement of the performance metrics (MAE, RMSE, etc.) and the total number of instability events in the dataset.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight key areas for improving the reproducibility and statistical rigor of our work on time-series forecasting for KATRIN tritium monitoring data. We address each major comment point-by-point below. Where the manuscript was lacking in detail, we will revise to incorporate the requested information and strengthen the presentation of results.

read point-by-point responses

  1. Referee: [Results / Model Evaluation] The central claim that N-BEATS outperforms the other models in accuracy and repeatability is not accompanied by any description of the train/test split strategy, cross-validation procedure, or handling of temporal leakage in the time-series data (Results section and associated figures/tables). Given the sparse and transient nature of the instability events, this omission prevents assessment of whether the reported superiority reflects genuine generalization or dataset-specific fitting.

    Authors: We agree that explicit details on the train/test split, cross-validation, and temporal leakage handling are essential to substantiate the generalization of N-BEATS's superior performance, especially with sparse instability events. The original manuscript omitted a full description of these procedures. In the revised version, we will add a dedicated paragraph in the Methods section detailing our chronological train/test split strategy (designed to ensure no future data influences training), the specific cross-validation approach used for hyperparameter tuning, and explicit steps taken to prevent temporal leakage. This will enable readers to fully evaluate the robustness of the model ranking. revision: yes

  2. Referee: [Results / Model Evaluation] No error bars, confidence intervals, or statistical significance tests (e.g., paired t-tests or Wilcoxon tests on metric differences) are reported for the performance metrics that establish N-BEATS as the winner (Results section). With rare instability events, the effective sample size for long-horizon forecasting is necessarily small; without these quantifications the superiority claim cannot be considered load-bearing.

    Authors: We acknowledge the absence of error bars, confidence intervals, and statistical tests in the current Results section, which limits the strength of the superiority claim given the small effective sample size from rare events. In the revision, we will re-evaluate the models over multiple random seeds to report mean metrics with standard deviations as error bars. We will also include appropriate statistical significance tests (such as Wilcoxon signed-rank tests) comparing N-BEATS to the other models, along with p-values, and discuss the implications of the limited sample size for long-horizon forecasting in the text. revision: yes

  3. Referee: [Data and Methods] The manuscript flags sparse instability events and long horizons as active research challenges yet provides no quantification of the number of distinct instability sequences, the windowing strategy used to create training examples, or any out-of-distribution validation set (Data and Methods sections). This information is required to evaluate whether the effective sample size supports reliable hyperparameter tuning and model selection for the claimed forecasting task.

    Authors: We thank the referee for this observation and agree that quantifying these aspects is necessary to assess the reliability of our model comparisons and hyperparameter tuning. The revised manuscript will include: explicit quantification of the number of distinct instability sequences in the KATRIN dataset; a detailed description of the windowing strategy employed to generate training examples from the time series; and clarification on the validation sets used, including any out-of-distribution components. These additions will provide the necessary transparency on effective sample size and support the claimed forecasting results. revision: yes

Circularity Check

0 steps flagged

No circularity in empirical model comparison

full rationale

The paper applies standard time-series forecasting models (LSTM, N-BEATS, TFT, etc.) to KATRIN beta-induced X-ray spectroscopy data and selects N-BEATS as best performer via direct comparison on held-out accuracy and repeatability metrics. No equations, predictions, or derivations reduce to fitted inputs by construction; no self-citations are invoked as load-bearing uniqueness theorems; the central claim rests on observable performance differences rather than self-referential definitions or ansatzes. The evaluation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that the provided time-series data faithfully represents source stability and that standard ML training procedures will generalize from sparse events; no new physical entities or ad-hoc constants are introduced.

free parameters (1)
  • model hyperparameters and training choices
    Each architecture (LSTM, N-BEATS, etc.) requires numerous hyperparameters and optimization settings that are tuned on the experimental data.
axioms (1)
  • domain assumption Beta-induced X-ray spectroscopy measurements accurately track variations in tritium source activity and stability.
    Invoked when treating the spectroscopy time series as ground-truth input for forecasting stability.

pith-pipeline@v0.9.0 · 5567 in / 1221 out tokens · 43919 ms · 2026-05-12T00:44:49.401340+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

31 extracted references · 31 canonical work pages

  1. [1]

    How light is a neutrino? the answer is closer than ever,

    D. Castelvecchi, “How light is a neutrino? the answer is closer than ever,” 2022. [Online]. Available: https://www.nature.com/articles/ d41586-022-00430-x

    work page 2022

  2. [2]

    Physicists close in on elusive neutrino’s mass,

    ——, “Physicists close in on elusive neutrino’s mass,” 2019. [Online]. Available: https://www.nature.com/articles/d41586-019-02786-z (a) (b) (c) Fig. 9. (a) Training time for each model based on 15 trials (hours). (b) Prediction time per model on the validation datasets (seconds). (c) Time difference between forecasted and actual stability time for N-BEATS...

    work page 2019

  3. [3]

    Probing the neutrino mass scale with the katrin experiment,

    Parno, Diana S. and Valerius, Kathrin, “Probing the neutrino mass scale with the katrin experiment,”Europhysics News, vol. 53, no. 1, pp. 24–27, 2022. [Online]. Available: https://doi.org/10.1051/epn/2022107

    work page doi:10.1051/epn/2022107 2022

  4. [4]

    The design, construction, and commissioning of the katrin experiment,

    T. K. collaboration, M. Aker, K. Altenm ¨uller, J. Amsbaugh, M. Arenz, M. Babutzka, J. Bast, S. Bauer, H. Bechtler, M. Becket al., “The design, construction, and commissioning of the katrin experiment,”Journal of Instrumentation, vol. 16, no. 08, p. T08015, aug 2021. [Online]. Available: https://dx.doi.org/10.1088/1748-0221/16/08/T08015

    work page doi:10.1088/1748-0221/16/08/t08015 2021

  5. [5]

    Tritium analytics by beta induced x-ray spectrometry,

    M. R ¨ollig, “Tritium analytics by beta induced x-ray spectrometry,” Ph.D. dissertation, Karlsruhe Institute of Technology, 2015, 51.03.01; LK 01

    work page 2015

  6. [6]

    A survey of deep learning and foundation models for time series forecasting,

    J. A. Miller, M. Aldosari, F. Saeed, N. H. Barna, S. Rana, I. B. Arpinar, and N. Liu, “A survey of deep learning and foundation models for time series forecasting,” 2024

    work page 2024

  7. [7]

    Long sequence time-series forecasting with deep learning: A survey,

    Z. Chen, M. Ma, T. Li, H. Wang, and C. Li, “Long sequence time-series forecasting with deep learning: A survey,”Information Fusion, vol. 97, p. 101819, 2023

    work page 2023

  8. [8]

    Forecasting mid-long term electric energy consumption through bagging arima and exponential smoothing methods,

    E. M. de Oliveira and F. L. C. Oliveira, “Forecasting mid-long term electric energy consumption through bagging arima and exponential smoothing methods,”Energy, vol. 144, pp. 776–788, 2018

    work page 2018

  9. [9]

    Random forests,

    L. Breiman, “Random forests,”Machine learning, vol. 45, pp. 5–32, 2001

    work page 2001

  10. [10]

    Gradient boosting machines, a tutorial,

    A. Natekin and A. Knoll, “Gradient boosting machines, a tutorial,” Frontiers in neurorobotics, vol. 7, p. 21, 2013

    work page 2013

  11. [11]

    A learning algorithm for continually running fully recurrent neural networks,

    R. J. Williams and D. Zipser, “A learning algorithm for continually running fully recurrent neural networks,”Neural computation, vol. 1, no. 2, pp. 270–280, 1989

    work page 1989

  12. [12]

    Long short-term memory,

    S. Hochreiter, “Long short-term memory,” 1997

    work page 1997

  13. [13]

    Forecasting economics and financial time series: Arima vs. lstm,

    S. Siami-Namini and A. S. Namin, “Forecasting economics and financial time series: Arima vs. lstm,” 2018

    work page 2018

  14. [14]

    N-beats: Neural basis expansion analysis for interpretable time series forecasting,

    B. N. Oreshkin, D. Carpov, N. Chapados, and Y . Bengio, “N-beats: Neural basis expansion analysis for interpretable time series forecasting,” 2019

    work page 2019

  15. [15]

    NHITS: Neural hierarchical interpolation for time series forecasting,

    C. Challu, K. G. Olivares, B. N. Oreshkin, F. G. Ramirez, M. M. Canseco, and A. Dubrawski, “NHITS: Neural hierarchical interpolation for time series forecasting,” inProceedings of the AAAI conference on artificial intelligence, vol. 37-6. Washington, DC, USA: AAAI Press, 2023, pp. 6989–6997

    work page 2023

  16. [16]

    Temporal fusion transform- ers for interpretable multi-horizon time series forecasting,

    B. Lim, S. ¨O. Arık, N. Loeff, and T. Pfister, “Temporal fusion transform- ers for interpretable multi-horizon time series forecasting,”International Journal of Forecasting, vol. 37, no. 4, pp. 1748–1764, 2021

    work page 2021

  17. [17]

    Are transformers effective for time series forecasting?

    A. Zeng, M. Chen, L. Zhang, and Q. Xu, “Are transformers effective for time series forecasting?” inProceedings of the AAAI conference on artificial intelligence, vol. 37-9. Washington, DC, USA: AAAI Press, 2023, pp. 11 121–11 128

    work page 2023

  18. [18]

    Tsmixer: An all-mlp architecture for time series forecasting,

    S.-A. Chen, C.-L. Li, N. Yoder, S. O. Arik, and T. Pfister, “Tsmixer: An all-mlp architecture for time series forecasting,” 2023

    work page 2023

  19. [19]

    Promptcast: A new prompt-based learning paradigm for time series forecasting,

    H. Xue and F. D. Salim, “Promptcast: A new prompt-based learning paradigm for time series forecasting,”IEEE Transactions on Knowledge and Data Engineering, vol. 36, pp. 6851–6864, 2023

    work page 2023

  20. [20]

    Large language models are zero-shot time series forecasters,

    N. Gruver, M. Finzi, S. Qiu, and A. G. Wilson, “Large language models are zero-shot time series forecasters,”Advances in Neural Information Processing Systems, vol. 36, pp. 19 622–19 635, 2024

    work page 2024

  21. [21]

    One fits all: Power general time series analysis by pretrained lm,

    T. Zhou, P. Niu, L. Sun, R. Jinet al., “One fits all: Power general time series analysis by pretrained lm,”Advances in neural information processing systems, vol. 36, pp. 43 322–43 355, 2023

    work page 2023

  22. [22]

    Time-llm: Time series forecasting by reprogramming large language models,

    M. Jin, S. Wang, L. Ma, Z. Chu, J. Y . Zhang, X. Shi, P.-Y . Chen, Y . Liang, Y .-F. Li, S. Panet al., “Time-llm: Time series forecasting by reprogramming large language models,” 2023

    work page 2023

  23. [23]

    Chronos: Learning the language of time series,

    A. F. Ansari, L. Stella, C. Turkmen, X. Zhang, P. Mercado, H. Shen, O. Shchur, S. S. Rangapuram, S. P. Arango, S. Kapooret al., “Chronos: Learning the language of time series,” 2024

    work page 2024

  24. [24]

    Smoothing and differentiation of data by simplified least squares procedures

    A. Savitzky and M. J. Golay, “Smoothing and differentiation of data by simplified least squares procedures.”Analytical chemistry, vol. 36, no. 8, pp. 1627–1639, 1964

    work page 1964

  25. [25]

    What is a savitzky-golay filter?[lecture notes],

    R. W. Schafer, “What is a savitzky-golay filter?[lecture notes],”IEEE Signal processing magazine, vol. 28, no. 4, pp. 111–117, 2011

    work page 2011

  26. [26]

    pwlf: A python library for fitting 1d continuous piecewise linear functions,

    C. F. Jekel and G. Venter, “pwlf: A python library for fitting 1d continuous piecewise linear functions,” 2019

    work page 2019

  27. [27]

    Optuna: A next- generation hyperparameter optimization framework,

    T. Akiba, S. Sano, T. Yanase, T. Ohta, and M. Koyama, “Optuna: A next- generation hyperparameter optimization framework,” inThe 25th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining. New York, NY , United States: Association for Computing Machinery, 2019, pp. 2623–2631

    work page 2019

  28. [28]

    Darts: user-friendly modern machine learning for time series,

    J. Herzen, F. L ¨assig, S. G. Piazzetta, T. Neuer, L. Tafti, G. Raille, T. Van Pottelbergh, M. Pasieka, A. Skrodzki, N. Huguenin, M. Dumonal, J. Ko´scisz, D. Bader, F. Gusset, M. Benheddi, C. Williamson, M. Kosin- ski, M. Petrik, and G. Grosch, “Darts: user-friendly modern machine learning for time series,”Journal of Machine Learning Research, vol. 23, no...

    work page 2022

  29. [29]

    Gluonts: Probabilistic and neural time series modeling in python,

    A. Alexandrov, K. Benidis, M. Bohlke-Schneider, V . Flunkert, J. Gasthaus, T. Januschowski, D. C. Maddix, S. Rangapuram, D. Salinas, J. Schulz, L. Stella, A. C. T ¨urkmen, and Y . Wang, “Gluonts: Probabilistic and neural time series modeling in python,”Journal of Machine Learning Research, vol. 21, no. 116, pp. 1–6, 2020. [Online]. Available: http://jmlr....

    work page 2020

  30. [30]

    Bora: A personalized data display for large-scale experiments,

    N. Tan Jerome, T. Dritschler, S. Chilingaryan, and A. Kopmann, “Bora: A personalized data display for large-scale experiments,” 2024

    work page 2024

  31. [31]

    Direct neutrino- mass measurement based on 259 days of katrin data,

    M. Aker, D. Batzler, A. Beglarian, J. Behrens, J. Beisenk ¨otter, M. Bias- soni, B. Bieringer, Y . Biondi, F. Block, S. Bobienet al., “Direct neutrino- mass measurement based on 259 days of katrin data,” 2024

    work page 2024
