BOCOSUR: An all sky network for fireball detection in Uruguay

Authors on Pith no claims yet

Pith reviewed 2026-05-12 03:21 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.IM
keywords fireball detectionmeteorite recoveryall-sky camera networkastrometryphotometryUruguaycitizen science
0
0 comments X

The pith

Uruguay's BOCOSUR deploys twenty stations to detect bright fireballs and measure their paths to five arcminutes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the completed rollout of the BOCOSUR network, twenty autonomous all-sky camera stations spaced about 120 km apart across 180,000 square kilometers in Uruguay. It compares the astrometric and photometric results from an earlier camera model to a higher-resolution upgrade and validates a method for estimating the brightness of very bright fireballs by checking against Jupiter and the full Moon. Mean residuals reach about five arcminutes and magnitude differences average 0.18 for Jupiter and 1.2 for the Moon. A peak-magnitude minus-nine fireball observed from four stations is presented as an example. The work adds Southern Hemisphere coverage to global fireball networks whose aim is meteorite recovery and orbit determination while also engaging secondary students in the effort.

Core claim

We have built and operated a low-cost, fully autonomous network of twenty all-sky stations in Uruguay. After migrating to a more sensitive camera system, the network yields mean astrometric residuals of approximately five arcminutes. Photometric checks against Jupiter and the full Moon produce average discrepancies of 0.18 and 1.2 magnitudes. A very bright fireball reaching peak magnitude near minus nine was recorded at four stations and successfully reduced.

What carries the argument

The network of autonomous all-sky camera stations, upgraded to higher-resolution sensors, together with the photometric calibration method that uses Jupiter and the Moon to handle saturated bright events.

If this is right

  • Precise multi-station positions allow rapid searches for meteorites on the ground.
  • Triangulated paths yield pre-atmospheric orbits that can be compared with known asteroid families.
  • Additional Southern Hemisphere data increases the chance of linking falls to parent bodies.
  • Student involvement at each station supplies both labor and public outreach.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar low-cost networks could be replicated in other under-covered regions to close global gaps.
  • Long-term statistics from the network may reveal regional patterns in fireball frequency or radiant distribution.
  • The design's affordability suggests it can be maintained and expanded without large institutional budgets.

Load-bearing premise

The network's sensitivity, station spacing, and continuous uptime will be enough to detect and triangulate a useful number of bright asteroidal fireballs that can produce recoverable meteorites.

What would settle it

Several years of operation with no multi-station detections of fireballs bright enough to yield meteorites or usable orbits would show that coverage or sensitivity falls short of the stated goals.

Figures

Figures reproduced from arXiv: 2605.08917 by A. Guaimare, G. Tancredi, L. Barrios, L. Velasco, M. Caldas, M. Hern\'andez, V. Abraham.

Figure 1
Figure 1. Figure 1: Location of the 20 stations of the BOCOSUR network, in Uruguay (source of the map is Google [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Quantum efficiency curve of the CMOS IMX178 sensor (red curve, digitized from Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

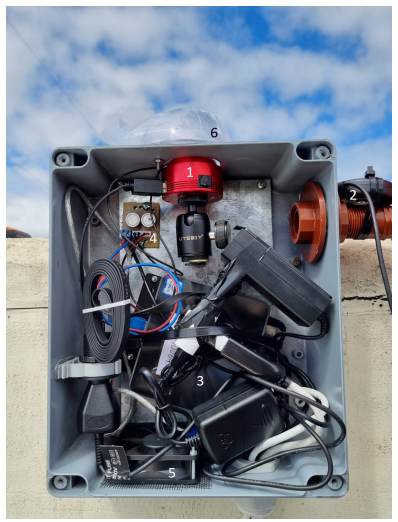

Figure 3. Figure 3: Locally developed all sky system, consisting of: (1) an ASI 178MM camera connected to a [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Residuals of the astrometric reduction (as given by Eq. [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Datapoints used for astrometric calibration of Watec camera, indicated as black dots on false [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Data points used for astrometric calibration of ASI camera, indicated as black dots on false [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7

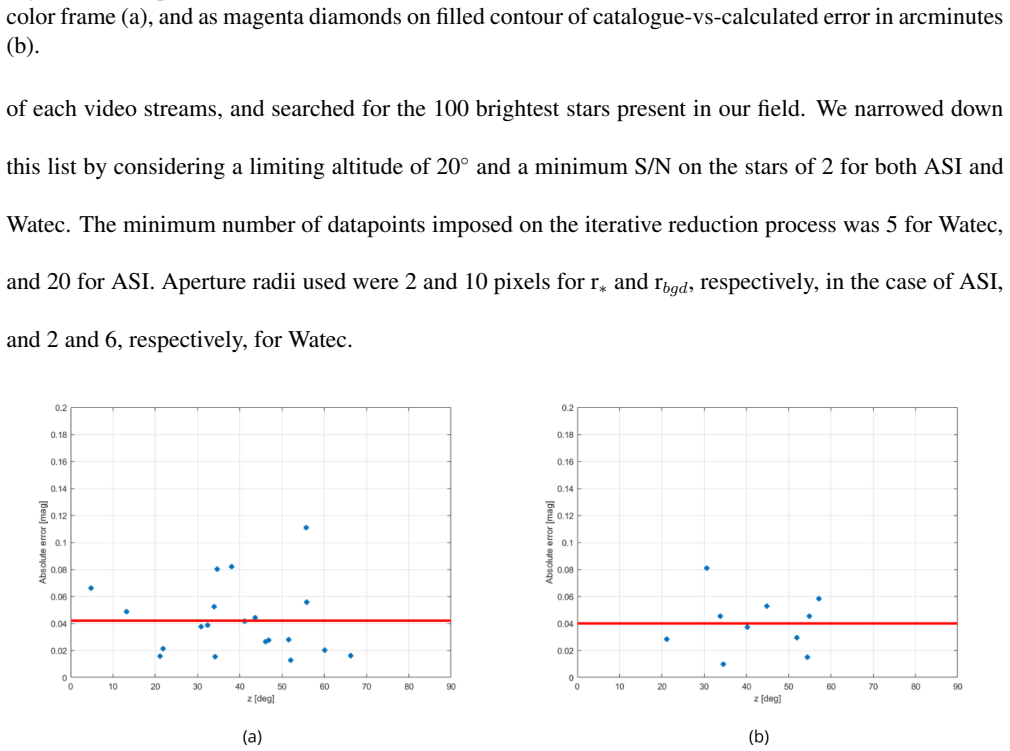

Figure 7. Figure 7: Residuals of the photometric reduction for Watec (a) and ASI (b) cameras. The red line [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8

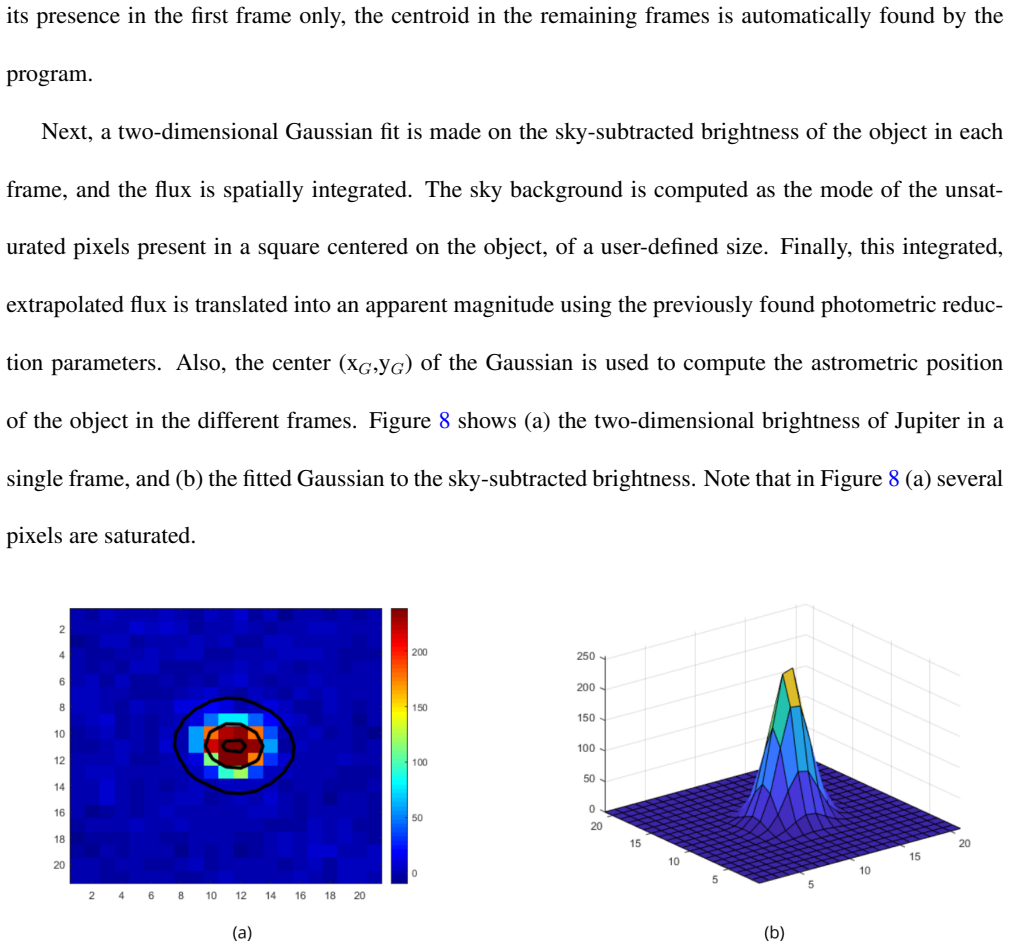

Figure 8. Figure 8: (a) Jupiter’s sky-subtracted brightness and the fitted Gaussian’s 3D plot (b). Black contour [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: (a) Full Moon’s sky-subtracted brightness and the corresponding fitted Gaussian’s contour plot [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Fireball event of 29th October, 2022, UT 04:31:44, as observed from station 8. Apparent [PITH_FULL_IMAGE:figures/full_fig_p024_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Time series of the 29/10/2022 fireball (solid black lines, see text for further details); a) Height [PITH_FULL_IMAGE:figures/full_fig_p027_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: 3D reconstruction of the fireball’s trajectory obtained through the MOP of, [PITH_FULL_IMAGE:figures/full_fig_p028_12.png] view at source ↗
read the original abstract

Over the past couple of decades, several networks for the automatic detection of fireballs have been deployed. Their primary scientific goal is to facilitate the rapid recovery of meteorites, determine their pre-atmospheric orbits, and look for possible dynamic links with parent bodies. The Bocosur network is a contribution to the global deployment of automated fireball networks and to the increase of the number of recoverable meteorite falls. It is located in Uruguay, South America (Lat: -30$^{\circ}$ to -35$^{\circ}$). Its main scientific goal is the detection of fireballs of asteroidal origin, massive enough to produce meteorites, and also to inspire secondary-level students and teachers through their involvement in this citizen-science oriented project. The deployment of this network started in 2019, and was completed in March, 2023, when we installed 20 stations separated $\sim 120$ km, covering an area of $\sim 180,000$ km$^2$. During this period of time, one major technological upgrade was made when we migrated from a well-known camera to a higher-resolution, more sensitive system. We were able to build a completely autonomous system at an affordable cost that can be replicated in all the stations. A comparison between the astrometric and photometric performance of these two detection systems is reported. Also, a photometric methodology for estimating the brightness of very bright fireballs is presented and validated against the known magnitudes of Jupiter and the full Moon. We obtain mean residuals of the astrometric reduction of $\sim$5', and the discrepancy between the obtained brightness of Jupiter and the Moon average to 0.18 and 1.2 magnitudes, respectively. Results on the processing of a very bright (M$_{peak}\sim$-9.0 mag) fireball detected in four stations are also presented.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript describes the BOCOSUR all-sky network for fireball detection in Uruguay, consisting of 20 stations deployed from 2019 to 2023 over ~180,000 km² with ~120 km spacing. It details the construction of low-cost autonomous stations, a camera system upgrade, astrometric performance (mean residuals ~5 arcmin), photometric validation against Jupiter (0.18 mag average discrepancy) and the Moon (1.2 mag average discrepancy), and processing of a bright multi-station fireball event with M_peak ~ -9.0 mag. The network targets asteroidal fireballs for meteorite recovery and orbit determination while incorporating citizen-science education.

Significance. This work adds concrete Southern Hemisphere coverage to global fireball networks, with transparent empirical metrics from deployed hardware and real observations. The reported astrometric residuals, photometric checks, and four-station event example provide a direct basis for evaluating the system's readiness for scientific use in orbit determination and recovery, alongside its educational value.

major comments (1)
  1. [Abstract] Abstract: The photometric validation reports a 1.2 magnitude average discrepancy for the full Moon versus 0.18 magnitudes for Jupiter. Given that the method is applied to very bright fireballs (M_peak ~ -9.0 mag in the four-station example), this section should discuss limitations such as saturation handling and how brightness was specifically estimated for the reported event.
minor comments (2)
  1. [Abstract] A map or diagram of station locations and coverage would strengthen the description of the network's spatial distribution and triangulation potential.
  2. Specify the exact models of the initial and upgraded cameras in the main text to support replication by other groups.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, including its significance for Southern Hemisphere coverage, and for the recommendation of minor revision. We address the single major comment below.

read point-by-point responses
  1. Referee: [Abstract] Abstract: The photometric validation reports a 1.2 magnitude average discrepancy for the full Moon versus 0.18 magnitudes for Jupiter. Given that the method is applied to very bright fireballs (M_peak ~ -9.0 mag in the four-station example), this section should discuss limitations such as saturation handling and how brightness was specifically estimated for the reported event.

    Authors: We agree that the abstract would benefit from explicit mention of these limitations to better contextualize the photometric results for bright fireballs. In the revised manuscript we will update the abstract to note that the larger Moon discrepancy arises from its extended source nature (unlike point-like Jupiter or fireballs) and to briefly describe the estimation procedure for the M_peak ~ -9.0 mag event, which applies the validated calibration while accounting for saturation by restricting measurements to unsaturated image regions and cross-checking across stations. A corresponding short clarification will be added to the methods section. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely empirical validation of deployed hardware

full rationale

The paper is a descriptive account of network deployment, camera upgrades, and direct performance metrics obtained from real observations. Astrometric residuals (~5 arcmin) and photometric discrepancies (0.18 mag for Jupiter, 1.2 mag for Moon) are presented as measured outcomes from actual all-sky data, with an example fireball processed across four stations. No equations, models, fitted parameters, or self-citations are used to derive predictions that reduce to the inputs by construction; all claims rest on hardware descriptions and empirical results without any load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an engineering and observational report of a deployed camera network. No mathematical derivations, physical models, or new theoretical entities are introduced.
