arxiv: 2605.10210 · v1 · submitted 2026-05-11 · 💻 cs.RO · cs.CV

Recognition: no theorem link

Nano-U: Efficient Terrain Segmentation for Tiny Robot Navigation

Federico Pizzolato , Francesco Pasti , Nicola Bellotto

Authors on Pith no claims yet

Pith reviewed 2026-05-12 04:36 UTC · model grok-4.3

classification 💻 cs.RO cs.CV

keywords terrain segmentationbinary segmentationmicrocontrollertinyMLrobot navigationquantization-aware distillationoutdoor environments

0 comments

The pith

A network with only a few thousand parameters enables real-time terrain segmentation on microcontrollers after special training.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Terrain segmentation helps robots understand outdoor ground types but current models need too much memory and processing power for small hardware. The authors create Nano-U, a tiny binary segmentation network, and train it with Quantization-Aware Distillation to offset its limited size. The resulting quantized model reaches strong accuracy on a botanic garden dataset and handles more difficult agricultural scenes effectively. It then runs on an ESP32-S3 microcontroller with very low memory use and quick response times, showing a practical path for adding perception to low-cost outdoor robots.

Core claim

We design Nano-U, a highly compact binary segmentation network with a few thousand parameters. To compensate for the network's minimal capacity, we train it via Quantization-Aware Distillation combining knowledge distillation and quantization-aware training. This allows the final quantized model to achieve excellent results on the Botanic Garden dataset and to perform very well on TinyAgri, a custom agricultural field dataset with more challenging scenes. The quantized model executes on an ESP32-S3 with a minimal memory footprint and low latency, demonstrating a viable and energy-efficient solution for perception on low-cost robotic platforms.

What carries the argument

Nano-U, a binary segmentation network with a few thousand parameters whose limited size is offset by Quantization-Aware Distillation that combines knowledge distillation and quantization-aware training to support efficient microcontroller execution.

If this is right

Binary terrain segmentation becomes feasible on microcontrollers that cannot run larger state-of-the-art models.
The quantized model runs with minimal memory footprint and low latency on an ESP32-S3.
This provides a viable and energy-efficient perception solution for low-cost robotic platforms in unstructured environments.
Scalable deployment of autonomous mobile robots becomes possible for tasks requiring basic ground type awareness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same training approach could unlock other basic vision tasks on microcontrollers to increase autonomy of tiny robots.
Success in agricultural scenes points to possible use in resource-limited devices for applications like field monitoring.
Compiler-based execution without interpreters may reduce power consumption enough for longer battery life in small outdoor platforms.

Load-bearing premise

Quantization-Aware Distillation sufficiently compensates for the network's minimal capacity to deliver robust performance across challenging real-world unstructured outdoor scenes.

What would settle it

Significantly reduced accuracy on additional real-world outdoor datasets with varied terrain, lighting, or vegetation compared to the tested scenes would show that the training does not adequately compensate for the small network capacity.

Figures

Figures reproduced from arXiv: 2605.10210 by Federico Pizzolato, Francesco Pasti, Nicola Bellotto.

**Figure 2.** Figure 2: We train Nano-U via Quantization-Aware Distillation (QAD) where [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

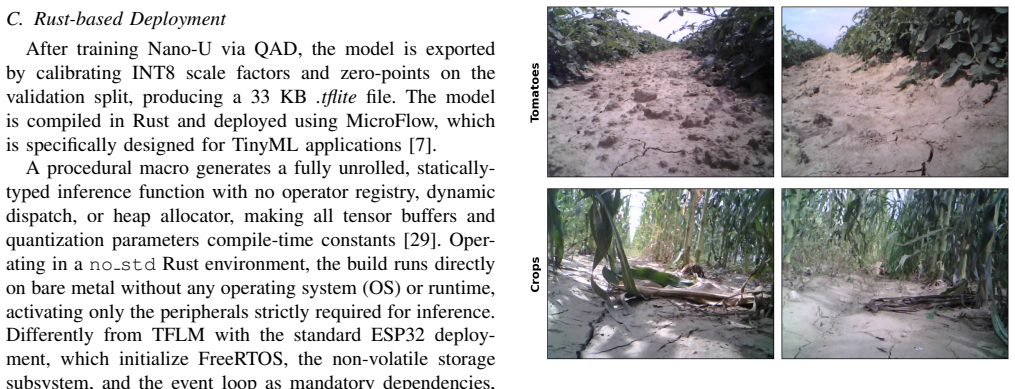

**Figure 3.** Figure 3: Representative frames from the TinyAgri dataset: the Tomatoes [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Qualitative comparison of segmentation masks. While Nano-U’s extreme parameter constraints prevent it from capturing the fine-grained edge [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

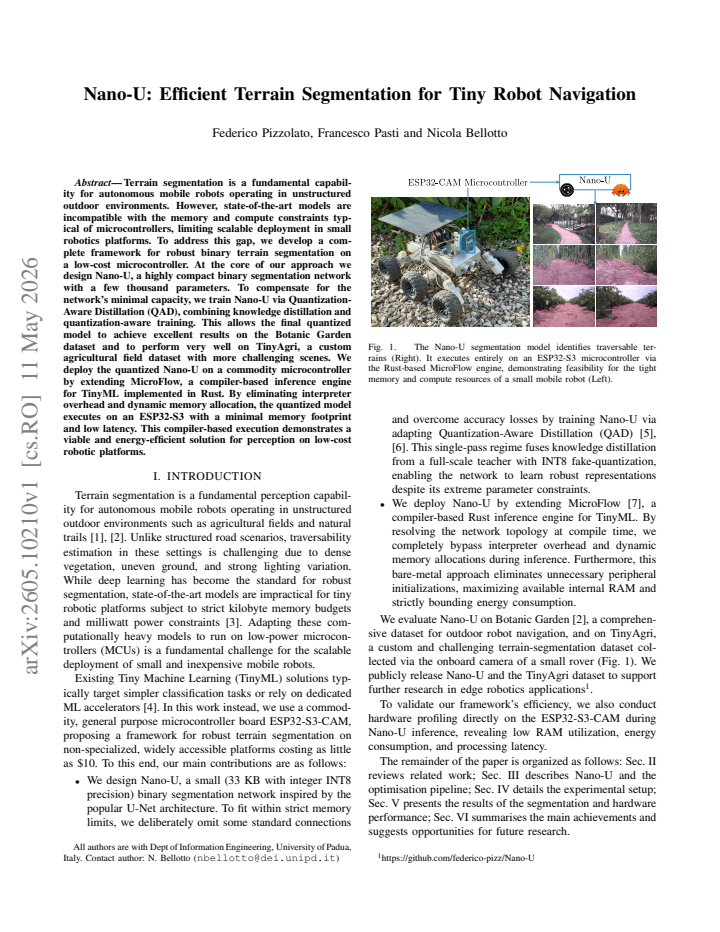

read the original abstract

Terrain segmentation is a fundamental capability for autonomous mobile robots operating in unstructured outdoor environments. However, state-of-the-art models are incompatible with the memory and compute constraints typical of microcontrollers, limiting scalable deployment in small robotics platforms. To address this gap, we develop a complete framework for robust binary terrain segmentation on a low-cost microcontroller. At the core of our approach we design Nano-U, a highly compact binary segmentation network with a few thousand parameters. To compensate for the network's minimal capacity, we train Nano-U via Quantization-Aware Distillation (QAD), combining knowledge distillation and quantization-aware training. This allows the final quantized model to achieve excellent results on the Botanic Garden dataset and to perform very well on TinyAgri, a custom agricultural field dataset with more challenging scenes. We deploy the quantized Nano-U on a commodity microcontroller by extending MicroFlow, a compiler-based inference engine for TinyML implemented in Rust. By eliminating interpreter overhead and dynamic memory allocation, the quantized model executes on an ESP32-S3 with a minimal memory footprint and low latency. This compiler-based execution demonstrates a viable and energy-efficient solution for perception on low-cost robotic platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Nano-U gives a workable end-to-end path for binary terrain segmentation on microcontrollers, but the performance claims rest on thin evidence.

read the letter

The paper's core contribution is a compact network called Nano-U with only a few thousand parameters, trained through Quantization-Aware Distillation that combines knowledge distillation and quantization-aware training, then deployed on an ESP32-S3 using a custom Rust extension to the MicroFlow compiler. This removes interpreter overhead and dynamic allocation for low memory and latency inference. They also introduce a custom agricultural dataset called TinyAgri to test more challenging outdoor scenes alongside the Botanic Garden set. The full pipeline from training to hardware execution is the practical piece that stands out for tiny-robot work. It fills a clear gap where standard segmentation models exceed microcontroller limits, and the engineering choices around the compiler extension look like a solid way to get real deployment numbers rather than just simulation results. The approach is straightforward and targets a genuine constraint in field robotics. The main weakness is the evaluation. The abstract states the quantized model gets excellent results on Botanic Garden and performs very well on TinyAgri, yet supplies no accuracy figures, latency breakdowns, ablation studies, or comparisons to baselines. Without those details it is hard to judge whether the minimal capacity plus QAD actually delivers robust segmentation under variable lighting, textures, and unstructured terrain, or whether the gains are narrow. The stress-test point about QAD compensating for limited representational power lands because no other mitigations are described. If the full paper contains the missing metrics and controls, that would change the picture; on the supplied text the claims feel under-supported. This work is aimed at researchers in tinyML and small-scale outdoor robotics who need perception that fits on cheap hardware. A reader building actual deployments would get concrete implementation ideas from the compiler side. It is coherent enough on its own terms to deserve a serious referee who can verify the numbers and ask for the ablations. I would send it to peer review rather than desk reject, with the expectation that revisions focus on quantitative evidence.

Referee Report

2 major / 2 minor

Summary. The paper introduces Nano-U, a compact binary terrain segmentation network with only a few thousand parameters, trained via Quantization-Aware Distillation (QAD) to enable deployment on microcontrollers. It claims the resulting quantized model achieves excellent results on the Botanic Garden dataset and performs very well on the custom TinyAgri agricultural dataset, with efficient execution on an ESP32-S3 via an extended MicroFlow Rust compiler demonstrating minimal memory footprint and low latency.

Significance. If the performance claims are substantiated, the work provides a practical end-to-end framework for perception on tiny robots in unstructured outdoor settings, addressing a real deployment gap between heavy SOTA segmentation models and microcontroller constraints. The compiler-based inference approach (eliminating interpreter overhead) is a concrete engineering strength that could support reproducible TinyML robotics applications.

major comments (2)

[Abstract] Abstract: the claims that the quantized Nano-U 'achieve[s] excellent results on the Botanic Garden dataset' and 'perform[s] very well on TinyAgri' are unsupported by any quantitative metrics (e.g., IoU, accuracy, F1), error bars, ablation results on QAD versus baseline training, or baseline comparisons. Given the network's few-thousand-parameter capacity, these descriptors are load-bearing for the central thesis that QAD compensates for limited representational power on variable outdoor scenes; without them the claims cannot be evaluated.
[Results/Evaluation] Evaluation/Results section: no details are provided on evaluation criteria, test-set statistics for TinyAgri (e.g., scene variability, lighting conditions), post-quantization accuracy drop, or how 'excellent'/'very well' map to concrete scores. This absence directly affects assessment of whether the minimal-capacity architecture delivers robust performance as asserted.

minor comments (2)

[Abstract] The abstract would be strengthened by including at least one key quantitative result (e.g., mIoU) to ground the performance descriptors.
[Deployment] Clarify the exact bit-width and quantization scheme used in the final ESP32-S3 deployment, and whether any dynamic memory allocation remains after the MicroFlow extension.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback, which highlights opportunities to better substantiate our performance claims. We address each major comment below and have made revisions to strengthen the quantitative support and evaluation details in the manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: the claims that the quantized Nano-U 'achieve[s] excellent results on the Botanic Garden dataset' and 'perform[s] very well on TinyAgri' are unsupported by any quantitative metrics (e.g., IoU, accuracy, F1), error bars, ablation results on QAD versus baseline training, or baseline comparisons. Given the network's few-thousand-parameter capacity, these descriptors are load-bearing for the central thesis that QAD compensates for limited representational power on variable outdoor scenes; without them the claims cannot be evaluated.

Authors: We agree that the abstract would be strengthened by including concrete metrics to support the qualitative descriptors. The full results section reports IoU, accuracy, and F1 scores for the quantized Nano-U on both datasets, along with baseline comparisons and QAD ablations. To address the concern directly, we have revised the abstract to incorporate key quantitative results (e.g., IoU values and relative gains from QAD) while retaining the high-level description. Error bars from repeated training runs are now referenced in the abstract and detailed in the updated figures. revision: yes
Referee: [Results/Evaluation] Evaluation/Results section: no details are provided on evaluation criteria, test-set statistics for TinyAgri (e.g., scene variability, lighting conditions), post-quantization accuracy drop, or how 'excellent'/'very well' map to concrete scores. This absence directly affects assessment of whether the minimal-capacity architecture delivers robust performance as asserted.

Authors: We acknowledge the need for greater transparency in the evaluation section. We have expanded this section to explicitly define the evaluation criteria (pixel-wise IoU, accuracy, and F1-score), provide test-set statistics for TinyAgri (including number of images, scene types, and lighting variations), quantify the post-quantization accuracy drop, and map the descriptors to specific scores (e.g., IoU thresholds). Ablation results comparing QAD to standard training and baseline models are now included with supporting tables. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical architecture design, training, and deployment on external datasets

full rationale

The paper describes an engineering pipeline: propose Nano-U (few-thousand-parameter U-Net variant), apply standard QAD (knowledge distillation + quantization-aware training) to compensate for capacity limits, evaluate on independent public (Botanic Garden) and custom (TinyAgri) datasets, then deploy via extended MicroFlow compiler on ESP32-S3. No equations, uniqueness theorems, or first-principles derivations are presented that could reduce to self-definition or fitted-input renaming. Performance claims are experimental outcomes on held-out data, not predictions forced by construction from the model definition itself. Self-citations (if any) support standard TinyML techniques and are not load-bearing for the central empirical results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The contribution is empirical and relies on standard assumptions of deep learning (e.g., that distillation transfers useful features and quantization preserves accuracy when trained jointly). No explicit free parameters, axioms, or invented physical entities are stated in the abstract.

pith-pipeline@v0.9.0 · 5501 in / 1058 out tokens · 20942 ms · 2026-05-12T04:36:14.247023+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

33 extracted references · 33 canonical work pages · 1 internal anchor

[1]

Ga-nav: Efficient terrain segmenta- tion for robot navigation in unstructured outdoor environments,

T. Guan, D. Kothandaraman, R. Chandra, A. J. Sathyamoorthy, K. Weerakoon, and D. Manocha, “Ga-nav: Efficient terrain segmenta- tion for robot navigation in unstructured outdoor environments,”IEEE Robotics and Automation Letters, vol. 7, no. 3, pp. 8138–8145, 2022

work page 2022
[2]

Botanicgarden: A high-quality dataset for robot navigation in unstructured natural environments,

Y . Liu, Y . Fu, M. Qin, Y . Xu, B. Xu, F. Chen, B. Goossens, P. Z. Sun, H. Yu, C. Liu, L. Chen, W. Tao, and H. Zhao, “Botanicgarden: A high-quality dataset for robot navigation in unstructured natural environments,”IEEE Robotics and Automation Letters, vol. 9, no. 3, pp. 2798–2805, 2024

work page 2024
[3]

Tiny robot learning: Challenges and directions for machine learning in resource-constrained robots,

S. M. Neuman, B. Plancher, B. P. Duisterhof, S. Krishnan, C. Banbury, M. Mazumder, S. Prakash, J. Jabbour, A. Faust, G. C. de Croonet al., “Tiny robot learning: Challenges and directions for machine learning in resource-constrained robots,” in2022 IEEE 4th international con- ference on artificial intelligence circuits and systems (AICAS). IEEE, 2022, pp. 296–299

work page 2022
[4]

A comprehensive survey on tinyml,

Y . Abadade, A. Temouden, H. Bamoumen, N. Benamar, Y . Chtouki, and A. S. Hafid, “A comprehensive survey on tinyml,”IEEE access, vol. 11, pp. 96 892–96 922, 2023

work page 2023
[5]

Quantization-aware distillation for nvfp4 infer- ence accuracy recovery,

M. Xin, S. Priyadarshi, J. Xin, B. Kartal, A. Vavre, A. K. Thekkumpate, Z. Chen, A. S. Mahabaleshwarkar, I. Shahaf, A. Bercovichet al., “Quantization-aware distillation for nvfp4 infer- ence accuracy recovery,”arXiv preprint arXiv:2601.20088, 2026

work page arXiv 2026
[6]

Model compression via distillation and quantization,

A. Polino, R. Pascanu, and D. Alistarh, “Model compression via distillation and quantization,” inInternational Conference on Learning Representations, 2018

work page 2018
[7]

Microflow: An efficient rust-based inference engine for tinyml,

M. Carnelos, F. Pasti, and N. Bellotto, “Microflow: An efficient rust-based inference engine for tinyml,”Internet of Things, vol. 30, p. 101498, 2025. [Online]. Available: https://www.sciencedirect.com/ science/article/pii/S2542660525000113

work page 2025
[8]

Self- supervised monocular road detection in desert terrain,

H. Dahlkamp, A. Kaehler, D. Stavens, S. Thrun, and G. Bradski, “Self- supervised monocular road detection in desert terrain,” inProceedings of Robotics: Science and Systems (RSS), 2006

work page 2006
[9]

Fully convolutional networks for semantic segmentation,

J. Long, E. Shelhamer, and T. Darrell, “Fully convolutional networks for semantic segmentation,” inProceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2015, pp. 3431– 3440

work page 2015
[10]

Segnet: A deep convolutional encoder-decoder architecture for image segmentation,

V . Badrinarayanan, A. Kendall, and R. Cipolla, “Segnet: A deep convolutional encoder-decoder architecture for image segmentation,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 39, no. 12, pp. 2481–2495, 2017

work page 2017
[11]

U-net: Convolutional networks for biomedical image segmentation,

O. Ronneberger, P. Fischer, and T. Brox, “U-net: Convolutional networks for biomedical image segmentation,” inMedical Image Computing and Computer-Assisted Intervention – MICCAI 2015, ser. Lecture Notes in Computer Science, vol. 9351. Springer International Publishing, 2015, pp. 234–241

work page 2015
[12]

Encoder-decoder with atrous separable convolution for semantic image segmentation,

L.-C. Chen, Y . Zhu, G. Papandreou, F. Schroff, and H. Adam, “Encoder-decoder with atrous separable convolution for semantic image segmentation,” inProceedings of the European Conference on Computer Vision (ECCV), 2018, pp. 801–818

work page 2018
[13]

Rethinking Atrous Convolution for Semantic Image Segmentation

L.-C. Chen, G. Papandreou, F. Schroff, and H. Adam, “Rethinking atrous convolution for semantic image segmentation,”arXiv preprint arXiv:1706.05587, 2017. [Online]. Available: https://arxiv.org/abs/ 1706.05587

work page internal anchor Pith review Pith/arXiv arXiv 2017
[14]

Real-time semantic segmen- tation of crop and weed for precision agriculture robots leveraging background knowledge in cnns,

A. Milioto, P. Lottes, and C. Stachniss, “Real-time semantic segmen- tation of crop and weed for precision agriculture robots leveraging background knowledge in cnns,” inProceedings of the IEEE Inter- national Conference on Robotics and Automation (ICRA), 2018, pp. 2229–2235

work page 2018
[15]

Joint stem detection and crop-weed classification for plant-specific treatment in precision farming,

P. Lottes, J. Behley, N. Chebrolu, A. Milioto, and C. Stachniss, “Joint stem detection and crop-weed classification for plant-specific treatment in precision farming,” in2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2018, pp. 8233–8238

work page 2018
[16]

Systematic review on neural architecture search,

S. Salmani Pour Avval, N. D. Eskue, R. M. Groves, and V . Yaghoubi, “Systematic review on neural architecture search,”Artificial Intelli- gence Review, vol. 58, no. 3, p. 73, 2025

work page 2025
[17]

Mobilenets: Efficient convolutional neural networks for mobile vision applications,

A. G. Howard, M. Zhu, B. Chen, D. Kalenichenko, W. Wang, T. Weyand, M. Andreetto, and H. Adam, “Mobilenets: Efficient convolutional neural networks for mobile vision applications,” 2017

work page 2017
[18]

Mo- bilenetv2: Inverted residuals and linear bottlenecks,

M. Sandler, A. Howard, M. Zhu, A. Zhmoginov, and L.-C. Chen, “Mo- bilenetv2: Inverted residuals and linear bottlenecks,” inProceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018, pp. 4510–4520

work page 2018
[19]

Distilling the knowledge in a neural network,

G. Hinton, O. Vinyals, and J. Dean, “Distilling the knowledge in a neural network,” 2015, nIPS 2014 Deep Learning and Representation Learning Workshop

work page 2015
[20]

Quantization and training of neural networks for efficient integer-arithmetic-only inference,

B. Jacob, S. Kligys, B. Chen, M. Zhu, M. Tang, A. Howard, H. Adam, and D. Kalenichenko, “Quantization and training of neural networks for efficient integer-arithmetic-only inference,” inProceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018, pp. 2704–2713

work page 2018
[21]

Quantizing deep convolutional networks for efficient inference: A whitepaper

R. Krishnamoorthi, “Quantizing deep convolutional networks for ef- ficient inference: A whitepaper,”arXiv preprint arXiv:1806.08342, 2018

work page Pith review arXiv 2018
[22]

Qkd: Quantization- aware knowledge distillation,

J. Kim, Y . Bhalgat, J. Lee, C. Patel, and N. Kwak, “Qkd: Quantization- aware knowledge distillation,”arXiv preprint arXiv:1911.12491, 2019

work page arXiv 1911
[23]

Collaborative multi-teacher knowl- edge distillation for learning low bit-width deep neural networks,

C. Pham, T. Hoang, and T.-T. Do, “Collaborative multi-teacher knowl- edge distillation for learning low bit-width deep neural networks,” in Proceedings of the IEEE/CVF winter conference on applications of computer vision, 2023, pp. 6435–6443

work page 2023
[24]

Warden and D

P. Warden and D. Situnayake,TinyML: Machine Learning with TensorFlow Lite on Arduino and Ultra-Low-Power Microcontrollers. O’Reilly Media, 2019

work page 2019
[25]

A 1.3TOPS/W @ 32GOPS fully integrated 10-core SoC for IoT end-nodes with 1.7µW cognitive wake-up from MRAM-based state-retentive sleep mode,

D. Rossi, F. Conti, M. Eggimann, S. Mach, A. Di Mauro, M. Guer- mandi, G. Tagliavini, A. Pullini, I. Loi, J. Chen, E. Flamand, and L. Benini, “A 1.3TOPS/W @ 32GOPS fully integrated 10-core SoC for IoT end-nodes with 1.7µW cognitive wake-up from MRAM-based state-retentive sleep mode,” in2021 IEEE International Solid-State Circuits Conference (ISSCC), 2021,...

work page 2021
[26]

Google’s coral edge tpu: The newest contender in the edge ai market,

S. Cass, “Google’s coral edge tpu: The newest contender in the edge ai market,”IEEE Spectrum, vol. 56, no. 5, pp. 16–17, 2019

work page 2019
[27]

Tensorflow lite micro: Embedded machine learning for tinyml sys- tems,

R. David, J. Duke, A. Jain, V . Janapa Reddi, N. Jeffries, J. Li, N. Kreeger, I. Nappier, M. Natraj, T. Wang, P. Warden, and R. Rhodes, “Tensorflow lite micro: Embedded machine learning for tinyml sys- tems,” inProceedings of Machine Learning and Systems (MLSys), vol. 3, 2021

work page 2021
[28]

Structured knowledge distillation for semantic segmentation,

Y . Liu, K. Chen, C. Liu, Z. Qin, Z. Luo, and J. Wang, “Structured knowledge distillation for semantic segmentation,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recogni- tion (CVPR), 2019, pp. 2604–2613

work page 2019
[29]

Klabnik and C

S. Klabnik and C. Nichols,The Rust Programming Language. No Starch Press, 2023, accessed: 2025-09-13. [Online]. Available: https://doc.rust-lang.org/book/

work page 2023
[30]

Esp32-s3 series datasheet v2.2,

Espressif Systems, “Esp32-s3 series datasheet v2.2,” 2026. [Online]. Available: https://documentation.espressif.com/esp32-s3 datasheet en. pdf

work page 2026
[31]

Galaxyrvr smart robot car kit for rvr+,

SunFounder, “Galaxyrvr smart robot car kit for rvr+,” https://docs. sunfounder.com/projects/galaxy-rvr/en/latest/, 2024, accessed: 2025- 09-11

work page 2024
[32]

Sam 2: Segment anything in images and videos,

N. Ravi, V . Gabeur, Y .-T. Hu, R. Hu, C. Ryali, T. Ma, H. Khedr, R. R ¨adle, C. Rolland, L. Gustafson, E. Mintun, J. Pan, K. V . Alwala, N. Carion, C.-Y . Wu, R. Girshick, P. Doll ´ar, and C. Feichtenhofer, “Sam 2: Segment anything in images and videos,” 2024

work page 2024
[33]

Review the state-of-the- art technologies of semantic segmentation based on deep learning,

Y . Mo, Y . Wu, X. Yang, F. Liu, and Y . Liao, “Review the state-of-the- art technologies of semantic segmentation based on deep learning,” Neurocomputing, vol. 493, pp. 626–646, 2022

work page 2022
