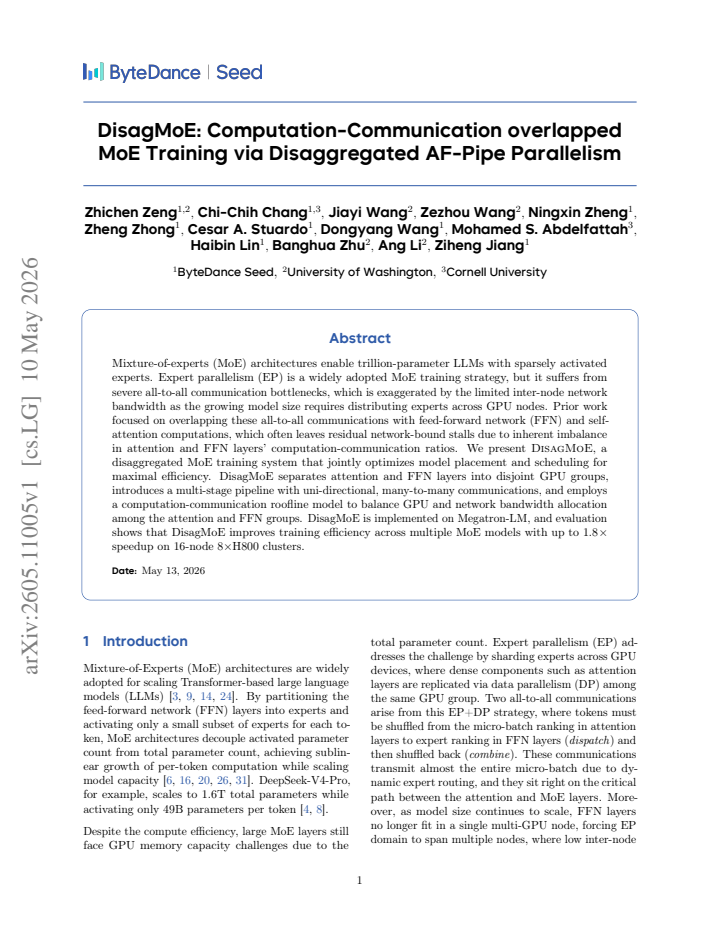

DisagMoE: Computation-Communication overlapped MoE Training via Disaggregated AF-Pipe Parallelism

Authors on Pith no claims yet

Pith reviewed 2026-05-13 01:05 UTC · model grok-4.3

classification 💻 cs.LG cs.AIcs.DC
keywords Mixture of Expertsexpert parallelismdistributed trainingcomputation-communication overlappipeline parallelismMoE trainingall-to-all communication
0
0 comments X

The pith

DisagMoE disaggregates attention and FFN layers to overlap computation with all-to-all communication in MoE training.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Mixture-of-experts models distribute experts across GPUs but suffer from expensive all-to-all communications that stall training when network bandwidth is limited. The paper proposes separating the attention layers and the feed-forward network layers into two separate groups of GPUs. It then connects these groups with a multi-stage uni-directional pipeline that performs many-to-many communications in one direction only. A roofline model guides how much GPU and network capacity to assign to each group so that computation hides the communication time as much as possible. This yields measurable speedups over earlier overlap strategies that left residual stalls.

Core claim

DisagMoE separates attention and FFN layers into disjoint GPU groups, introduces a multi-stage pipeline with uni-directional many-to-many communications, and uses a computation-communication roofline model to balance resources, thereby achieving up to 1.8x speedup in training efficiency on 16-node 8xH800 clusters.

What carries the argument

The disaggregated AF-Pipe parallelism that assigns attention and FFN to separate GPU groups and schedules uni-directional pipeline communications between them while using a roofline to tune bandwidth allocation.

Load-bearing premise

That the overhead of splitting layers across groups and managing the multi-stage pipeline stays smaller than the communication time saved by the improved overlap.

What would settle it

Running the same MoE models on the same 16-node cluster with standard expert parallelism and measuring whether DisagMoE still shows lower iteration time or if the speedup disappears.

read the original abstract

Mixture-of-experts (MoE) architectures enable trillion-parameter LLMs with sparsely activated experts. Expert parallelism (EP) is a widely adopted MoE training strategy, but it suffers from severe all-to-all communication bottlenecks, which is exaggerated by the limited inter-node network bandwidth as the growing model size requires distributing experts across GPU nodes. Prior work focused on overlapping these all-to-all communications with feed-forward network (FFN) and self-attention computations, which often leaves residual network-bound stalls due to inherent imbalance in attention and FFN layers' computation-communication ratios. We present DisagMoE, a disaggregated MoE training system that jointly optimizes model placement and scheduling for maximal efficiency. DisagMoE separates attention and FFN layers into disjoint GPU groups, introduces a multi-stage pipeline with uni-directional, many-to-many communications, and employs a computation-communication roofline model to balance GPU and network bandwidth allocation among the attention and FFN groups. DisagMoE is implemented on Megatron-LM, and evaluation shows that DisagMoE improves training efficiency across multiple MoE models with up to 1.8x speedup on 16-node 8xH800 clusters.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper presents DisagMoE, a system for efficient MoE training that disaggregates attention and FFN layers into separate GPU groups, introduces a multi-stage uni-directional many-to-many pipeline to overlap computation and communication, and applies a roofline model to allocate GPU and network bandwidth. It reports up to 1.8x speedup over prior overlap methods when evaluated on multiple MoE models using 16-node 8xH800 clusters, implemented on top of Megatron-LM.

Significance. If the reported speedups and overlap claims hold under broader validation, the disaggregation strategy could meaningfully advance scalable training of large MoE models by reducing residual communication stalls that persist in existing attention-FFN overlap techniques. The approach directly targets inter-node all-to-all bottlenecks that grow with model size and limited network bandwidth.

major comments (3)
  1. [Abstract and Evaluation] Abstract and Evaluation section: the central claim of up to 1.8x speedup is stated without any description of the exact baselines (e.g., which prior overlap methods or configurations), measurement methodology, error bars, or number of runs, preventing assessment of whether the gains are statistically robust or reproducible.
  2. [Method and Roofline Model] Method and Roofline Model sections: the roofline model is invoked to balance bandwidth allocation between attention and FFN groups, yet no equations, fitted parameters, or empirical validation against measured hardware counters are supplied, leaving open whether it accurately predicts the claimed perfect overlap or merely restates the observed wall-clock times.
  3. [Evaluation and Scalability] Evaluation and Scalability discussion: experiments are confined to 16 nodes; the weakest assumption—that disaggregation plus the uni-directional pipeline introduces no offsetting synchronization, load-imbalance, or pipeline-bubble overheads—is therefore untested at larger scales where attention-to-FFN ratios may fluctuate more severely across layers.
minor comments (2)
  1. [Implementation] Implementation details: while integration with Megatron-LM is mentioned, the manuscript would benefit from pseudocode or a diagram clarifying the exact scheduling of the multi-stage uni-directional many-to-many communications.
  2. [Figures] Figures: performance plots should include per-layer or per-step breakdowns of compute versus communication time to substantiate the claimed elimination of residual stalls.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for their constructive feedback on our paper. We address each of the major comments below and will incorporate revisions to strengthen the manuscript's clarity and completeness.

read point-by-point responses
  1. Referee: [Abstract and Evaluation] Abstract and Evaluation section: the central claim of up to 1.8x speedup is stated without any description of the exact baselines (e.g., which prior overlap methods or configurations), measurement methodology, error bars, or number of runs, preventing assessment of whether the gains are statistically robust or reproducible.

    Authors: We agree with this observation. The manuscript's abstract and evaluation section do not provide sufficient details on the baselines used for the 1.8x speedup claim. We will revise both the abstract and the evaluation section to explicitly describe the baselines (including the standard Megatron-LM implementation with computation-communication overlap for all-to-all), the measurement methodology (average throughput over training iterations), include error bars from repeated runs, and specify the number of runs performed. This will allow readers to better assess the robustness of the reported gains. revision: yes

  2. Referee: [Method and Roofline Model] Method and Roofline Model sections: the roofline model is invoked to balance bandwidth allocation between attention and FFN groups, yet no equations, fitted parameters, or empirical validation against measured hardware counters are supplied, leaving open whether it accurately predicts the claimed perfect overlap or merely restates the observed wall-clock times.

    Authors: The referee correctly points out the lack of detail in the roofline model. We will update the method section to include the specific equations used for the roofline analysis, the fitted parameters based on our hardware profiling, and empirical validation by comparing the model's predictions to actual hardware performance counters. This revision will demonstrate that the model is predictive and not merely descriptive of the results. revision: yes

  3. Referee: [Evaluation and Scalability] Evaluation and Scalability discussion: experiments are confined to 16 nodes; the weakest assumption—that disaggregation plus the uni-directional pipeline introduces no offsetting synchronization, load-imbalance, or pipeline-bubble overheads—is therefore untested at larger scales where attention-to-FFN ratios may fluctuate more severely across layers.

    Authors: We partially agree. While our experiments are limited to 16 nodes, the disaggregated design and uni-directional pipeline are intended to mitigate synchronization and bubble issues through bandwidth balancing. We will revise the evaluation section to include a more thorough discussion of these assumptions, supported by analytical models of pipeline overheads, and explicitly state the limitation regarding larger scales. However, we maintain that the core benefits are demonstrated at the evaluated scale, and the approach is designed to be scalable. revision: partial

standing simulated objections not resolved
  • Empirical evaluation at cluster scales significantly larger than 16 nodes, which is beyond our current resource availability.

Circularity Check

0 steps flagged

No circularity: claims rest on measured wall-clock speedups from implemented system, not derivations or fitted predictions.

full rationale

The paper describes a disaggregated MoE training architecture (separate attention/FFN GPU groups, uni-directional many-to-many pipeline, roofline-based bandwidth allocation) and reports empirical speedups up to 1.8x on 16-node clusters. No equations, fitted parameters, or first-principles derivations are present that could reduce to self-definition or self-citation chains. The roofline model functions as an engineering heuristic for runtime allocation rather than a predictive result whose validity loops back to the paper's own inputs. All load-bearing claims are externally falsifiable via hardware measurements independent of any internal fit or prior self-citation.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The approach rests on the domain assumption that all-to-all communication remains the dominant bottleneck even after prior overlap techniques, plus the engineering choice of how to allocate GPUs between attention and FFN groups via the roofline model.

free parameters (1)
  • attention-to-FFN GPU allocation ratio
    Chosen via the computation-communication roofline model to balance the two groups; exact values not stated in abstract.
axioms (1)
  • domain assumption All-to-all communication is the primary limiter in expert parallelism and prior overlap methods leave residual stalls due to layer imbalance.
    Directly stated in the abstract as the motivation for disaggregation.
