arxiv: 2605.11119 · v1 · submitted 2026-05-11 · 💻 cs.RO

Recognition: 2 theorem links

· Lean Theorem

ASIP-Planner: Adaptive Planning for UAV Surface Inspection in Partially Known Indoor Environments

Hanyu Jin , Zhefan Xu , Haoyu Shen , Xinming Han , Kanlong Ye , Kenji Shimada
Authors on Pith no claims yet

Pith reviewed 2026-05-13 02:36 UTC · model grok-4.3

classification 💻 cs.RO
keywords UAVsurface inspectioncoverage planningadaptive planningpartially known environmentindoor inspectionviewpoint adaptationsurface clustering
0
0 comments X

The pith

A global planner clusters planar surfaces into aligned groups and a local module adjusts view angles to maintain coverage when indoor maps are incomplete.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a planning method for UAVs to inspect indoor infrastructure when prior maps miss some obstacles. It groups flat surfaces into consistent clusters for an efficient global path and then tweaks the camera angle locally to see around surprises without restarting the plan. Readers would care if this makes inspections faster and more thorough than methods that assume perfect maps, reducing missed spots and wasted flight time in real buildings with temporary items. The simulations test randomized setups to show better coverage and shorter paths, while flights confirm the data is useful.

Core claim

The framework integrates a segment-based global coverage planner with an inspection-oriented local view-angle adaptation module. The global planner organizes planar inspection targets into surface-aligned clusters to generate compact viewpoint sequences with improved orientation consistency. The local planner generates collision-free trajectories and adjusts the viewing direction online to mitigate occlusion-induced coverage loss while preserving the planned trajectory structure. This leads to near-complete coverage and reduced trajectory lengths compared to baselines in simulations, with real-world validation producing usable inspection data.

What carries the argument

Segment-based global planner clustering planar targets into surface-aligned groups together with online local view-angle adaptation for occlusion handling.

If this is right

  • Generates compact viewpoint sequences with improved orientation consistency.
  • Adjusts viewing direction online to reduce coverage loss from occlusions.
  • Achieves near-complete coverage in randomized scene simulations.
  • Reduces trajectory length relative to representative baselines.
  • Produces usable inspection data in real-world flight tests.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar clustering of aligned features could help other robotic coverage problems like floor cleaning or facade scanning.
  • The local adaptation approach might combine with real-time mapping to update the global plan incrementally in changing environments.
  • Success in structured indoors suggests testing on semi-structured spaces such as warehouses with mixed planar and curved surfaces.

Load-bearing premise

Indoor environments are dominated by planar surfaces that group into reliable aligned clusters, and minor view angle changes can recover occluded areas without violating safety constraints or requiring complete replanning.

What would settle it

A simulation or experiment where unexpected non-planar obstacles cause the coverage to fall significantly below baseline methods or force trajectory changes that invalidate the plan.

Figures

Figures reproduced from arXiv: 2605.11119 by Hanyu Jin, Haoyu Shen, Kanlong Ye, Kenji Shimada, Xinming Han, Zhefan Xu.

Figure 1
Figure 1. Figure 1: UAV-based surface inspection in a tunnel infrastructure. Left: [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

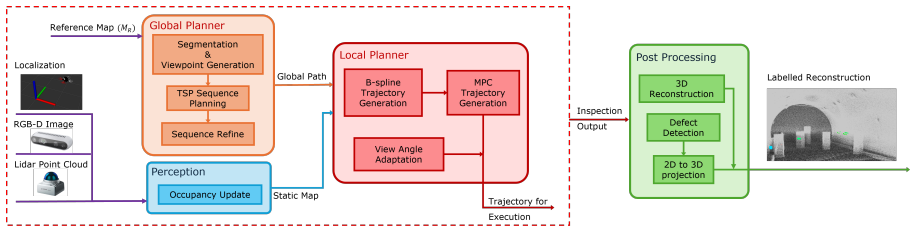

Figure 2
Figure 2. Figure 2: System overview of the proposed UAV surface inspection framework. Given a reference map and onboard perception inputs, the global planner [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of the proposed view-angle adaptation strategy. (a) [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

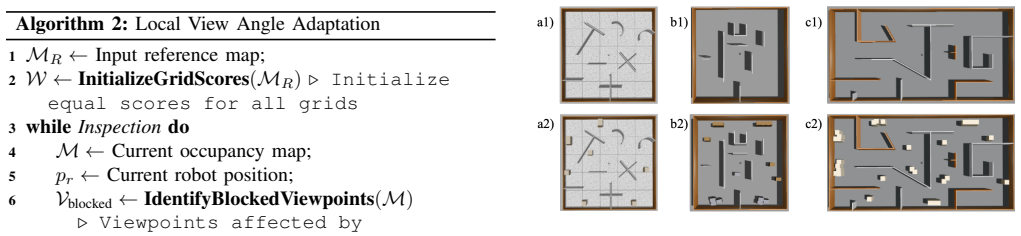

Figure 4
Figure 4. Figure 4: Simulated inspection environments used for qualitative evaluation. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Qualitative results of the entire framework in three representative [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

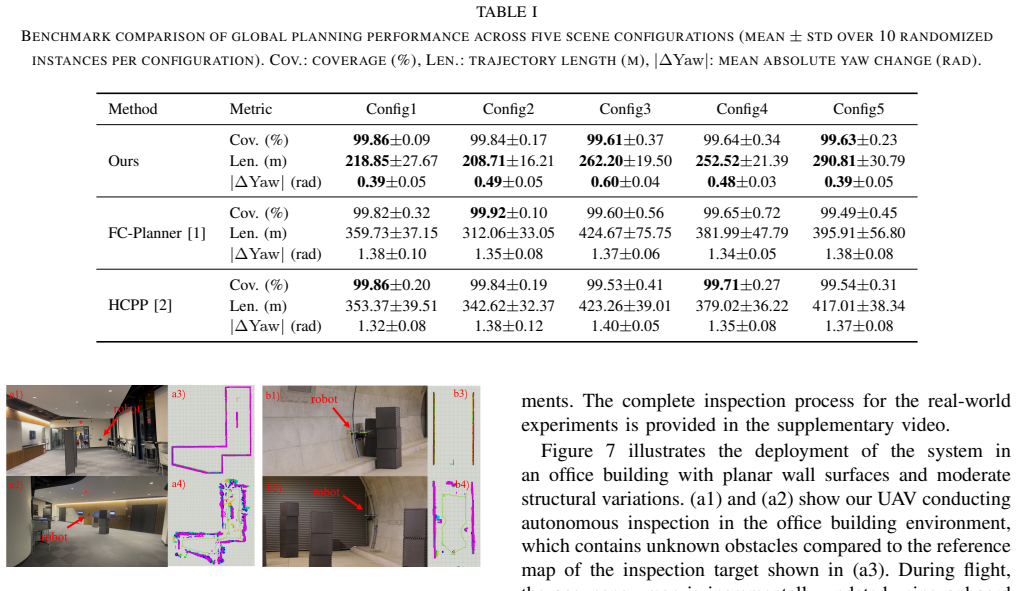

Figure 7
Figure 7. Figure 7: Physical flight test in an indoor environment. (a1 - a4) are showing [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Post-processing results using inspection data collected during [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
read the original abstract

Indoor infrastructure inspection, such as tunnels and industrial facilities, requires systematic surface coverage to ensure that all inspection targets are properly observed. Unmanned Aerial Vehicles (UAVs) offer an alternative to manual inspection by conducting map-guided surface inspection using prior structural models. However, in practice, indoor inspection often relies on floorplan-derived reference maps that may not reflect unforeseen obstacles, such as temporary structures or equipment, leading to occluded viewpoints and degraded inspection quality. Existing coverage planning methods typically assume a fully known inspection environment and perform deterministic global viewpoint optimization based on accurate prior maps, making them vulnerable to environmental discrepancies during execution. This work presents an adaptive UAV inspection framework for partially known structured indoor environments. The proposed method integrates a segment-based global coverage planner with an inspection-oriented local view-angle adaptation module. The global planner organizes planar inspection targets into surface-aligned clusters to generate compact viewpoint sequences with improved orientation consistency. The local planner generates collision-free trajectories and adjusts the viewing direction online to mitigate occlusion-induced coverage loss while preserving the planned trajectory structure. The simulation results across randomized scene configurations demonstrate that the proposed global planner achieves near-complete coverage while reducing trajectory length compared to representative baselines. Real-world flight experiments further validate that the framework produces usable inspection data for downstream analysis. These results indicate that the proposed framework improves inspection efficiency and adaptability in partially known structured indoor environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents ASIP-Planner, an adaptive framework for UAV surface inspection in partially known indoor environments. It integrates a segment-based global coverage planner that clusters planar surfaces from a prior map into surface-aligned groups to produce compact viewpoint sequences, with an inspection-oriented local view-angle adaptation module that generates collision-free trajectories and adjusts viewing directions online to mitigate occlusions from unforeseen obstacles. Simulations across randomized scene configurations are reported to achieve near-complete coverage while reducing trajectory length relative to representative baselines, and real-world flight experiments are said to produce usable inspection data for downstream analysis.

Significance. If the central claims hold under the stated assumptions, the work addresses a practical gap in UAV inspection by enabling adaptation to map discrepancies without full replanning. The compositional structure (global clustering for efficiency plus local angular adaptation for reactivity) is a clear strength and could inform similar hybrid planners in structured environments. Real-world validation is a positive indicator of deployability, though the absence of detailed quantitative metrics and robustness tests limits immediate assessment of the magnitude of gains over existing methods.

major comments (2)
  1. [§3] §3 (Method): The headline simulation result of near-complete coverage with shorter trajectories in partially known environments rests on the assumption that local view-angle adjustments alone suffice to compensate for occlusions without trajectory replanning or coverage loss. No ablation disabling the local module, no statistics on how often the prior map yields unreliable clusters in the presence of non-planar occluders, and no failure-case analysis are provided, leaving the load-bearing robustness claim unsupported by the reported experiments.
  2. [Simulation results] Simulation results paragraph: The claim that the global planner 'achieves near-complete coverage while reducing trajectory length' is presented without quantitative values (e.g., mean coverage percentage, trajectory length reduction factor, number of randomized trials, or variance), baseline implementation details, or error analysis. This prevents evaluation of whether the improvements are statistically meaningful or generalize beyond the tested scenes.
minor comments (2)
  1. [Abstract] The abstract would be strengthened by including one or two key quantitative results (coverage rate, length reduction) to make the performance claims concrete.
  2. [§3.1] Notation for surface clusters and viewpoint sequences could be introduced earlier with a small diagram to improve readability of the global planner description.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback, which identifies key areas to strengthen the experimental support and presentation of our results. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [§3] §3 (Method): The headline simulation result of near-complete coverage with shorter trajectories in partially known environments rests on the assumption that local view-angle adjustments alone suffice to compensate for occlusions without trajectory replanning or coverage loss. No ablation disabling the local module, no statistics on how often the prior map yields unreliable clusters in the presence of non-planar occluders, and no failure-case analysis are provided, leaving the load-bearing robustness claim unsupported by the reported experiments.

    Authors: We appreciate the referee's emphasis on validating the core assumption. The local view-angle adaptation module is designed to dynamically adjust sensor orientation to recover occluded surfaces while preserving the global trajectory structure, which is feasible in structured indoor settings where discrepancies are typically localized. However, we agree that the manuscript would be strengthened by explicit supporting analysis. In the revision, we will add an ablation study comparing coverage and trajectory metrics with the local module disabled, report quantitative statistics on cluster reliability (e.g., percentage of unreliable clusters due to non-planar occluders across trials), and include a failure-case analysis section discussing scenarios where adaptation is insufficient along with observed outcomes. These additions will directly address the robustness claim. revision: yes

  2. Referee: [Simulation results] Simulation results paragraph: The claim that the global planner 'achieves near-complete coverage while reducing trajectory length' is presented without quantitative values (e.g., mean coverage percentage, trajectory length reduction factor, number of randomized trials, or variance), baseline implementation details, or error analysis. This prevents evaluation of whether the improvements are statistically meaningful or generalize beyond the tested scenes.

    Authors: We concur that the condensed simulation results paragraph lacks the requested quantitative details. Although the full manuscript describes results from randomized scene configurations, the summary omits explicit metrics for brevity. In the revised version, we will expand the paragraph and results section to report mean coverage (e.g., 98.7% ± 1.4%), average trajectory length reduction (approximately 17% shorter than baselines), number of trials (50 randomized configurations), variance measures, baseline reimplementation details for comparability, and an error analysis of variability. This will allow readers to assess statistical significance and generalizability. revision: yes

Circularity Check

0 steps flagged

No circularity: algorithmic framework with empirical validation only

full rationale

The paper presents a compositional planning method (global segment-based clustering plus local view-angle adaptation) whose performance claims rest on simulation results over randomized scenes and real-world flights. No equations, fitted parameters, or derivations are described that reduce outputs to inputs by construction. No self-citations are invoked as load-bearing uniqueness theorems, and the method is not presented as a mathematical derivation but as an engineering integration of existing planning primitives. The central claims therefore remain independent of the inputs they are evaluated against.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the approach implicitly relies on standard assumptions in robotics coverage planning such as the existence of planar surfaces and feasible local adjustments.

pith-pipeline@v0.9.0 · 5555 in / 1044 out tokens · 53734 ms · 2026-05-13T02:36:16.904058+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages · 1 internal anchor

  1. [1]

    Fc-planner: A skeleton-guided planning framework for fast aerial coverage of complex 3d scenes,

    C. Feng, H. Li, M. Zhang, X. Chen, B. Zhou, and S. Shen, “Fc-planner: A skeleton-guided planning framework for fast aerial coverage of complex 3d scenes,” in2024 IEEE International Conference on Robotics and Automation (ICRA), 2024, pp. 8686–8692

    work page 2024

  2. [2]

    Hierarchical coverage path planning in complex 3d environments,

    C. Cao, J. Zhang, M. Travers, and H. Choset, “Hierarchical coverage path planning in complex 3d environments,” in2020 IEEE Interna- tional Conference on Robotics and Automation (ICRA), 2020, pp. 3206–3212

    work page 2020

  3. [3]

    A path planning algorithm for uav 3d surface inspection based on normal vector filtering and integrated viewpoint evaluation,

    Y . Wang, S. Wan, R. Qiu, and X. Li, “A path planning algorithm for uav 3d surface inspection based on normal vector filtering and integrated viewpoint evaluation,”Journal of Field Robotics, vol. 42, pp. 2561–2579, 02 2025

    work page 2025

  4. [4]

    F-rei — fukushima institute for research, education and innovation,

    Fukushima Institute for Research, Education and Innovation, “F-rei — fukushima institute for research, education and innovation,” https: //rtf.f-rei.go.jp/, 2026, accessed: 2026-02-28

    work page 2026

  5. [5]

    Falcon: Fast autonomous aerial exploration using coverage path guidance,

    Y . Zhang, X. Chen, C. Feng, B. Zhou, and S. Shen, “Falcon: Fast autonomous aerial exploration using coverage path guidance,”IEEE Transactions on Robotics, vol. 41, pp. 1365–1385, 2025

    work page 2025

  6. [6]

    Pred-nbv: Prediction- guided next-best-view planning for 3d object reconstruction,

    H. Dhami, V . D. Sharma, and P. Tokekar, “Pred-nbv: Prediction- guided next-best-view planning for 3d object reconstruction,” in2023 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2023, pp. 7149–7154

    work page 2023

  7. [7]

    Gradient-based local next-best-view planning for improved perception of targeted plant nodes,

    A. K. Burusa, E. J. van Henten, and G. Kootstra, “Gradient-based local next-best-view planning for improved perception of targeted plant nodes,” in2024 IEEE International Conference on Robotics and Automation (ICRA), 2024, pp. 15 854–15 860

    work page 2024

  8. [8]

    Neural visibility field for uncertainty-driven active mapping,

    S. Xue, J. Dill, P. Mathur, F. Dellaert, P. Tsiotra, and D. Xu, “Neural visibility field for uncertainty-driven active mapping,” in2024 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2024, pp. 18 122–18 132

    work page 2024

  9. [9]

    Moar planner: Multi-objective and adaptive risk-aware path planning for infrastructure inspection with a uav,

    L. Petit and A. L. Desbiens, “Moar planner: Multi-objective and adaptive risk-aware path planning for infrastructure inspection with a uav,” in2024 IEEE International Conference on Robotics and Automation (ICRA), 2024, pp. 8422–8428

    work page 2024

  10. [10]

    Optimized structural inspection path planning for automated unmanned aerial systems,

    Y . Zhao, B. Lu, and M. Alipour, “Optimized structural inspection path planning for automated unmanned aerial systems,”Automation in Construction, vol. 168, p. 105764, 2024. [Online]. Available: https: //www.sciencedirect.com/science/article/pii/S0926580524005004

    work page 2024

  11. [11]

    Upplied: Uav path planning for inspection through demon- stration,

    S. S. Kannan, V . L. N. Venkatesh, R. K. Senthilkumaran, and B.- C. Min, “Upplied: Uav path planning for inspection through demon- stration,” in2023 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2023, pp. 1126–1133

    work page 2023

  12. [12]

    Improved coverage path planning for indoor robots based on bim and robotic configurations,

    Z. Chen, H. Wang, K. Chen, C. Song, X. Zhang, B. Wang, and J. C. Cheng, “Improved coverage path planning for indoor robots based on bim and robotic configurations,”Automation in Construction, vol. 158, p. 105160, 2024. [Online]. Available: https: //www.sciencedirect.com/science/article/pii/S092658052300420X

    work page 2024

  13. [13]

    Mac- planner: A novel task allocation and path planning framework for multi-robot online coverage processes,

    Z. Wang, X. Lyu, J. Zhang, P. Wang, Y . Zhong, and L. Shi, “Mac- planner: A novel task allocation and path planning framework for multi-robot online coverage processes,”IEEE Robotics and Automa- tion Letters, vol. 10, no. 5, pp. 4404–4411, 2025

    work page 2025

  14. [14]

    A vision-based autonomous uav inspection framework for unknown tunnel construction sites with dynamic obstacles,

    Z. Xu, B. Chen, X. Zhan, Y . Xiu, C. Suzuki, and K. Shimada, “A vision-based autonomous uav inspection framework for unknown tunnel construction sites with dynamic obstacles,”IEEE Robotics and Automation Letters, vol. 8, no. 8, pp. 4983–4990, 2023

    work page 2023

  15. [15]

    A uav-based explore-then-exploit system for autonomous indoor facility inspection and scene reconstruction,

    C. Gao, X. Wang, R. Wang, Z. Zhao, Y . Zhai, X. Chen, and B. M. Chen, “A uav-based explore-then-exploit system for autonomous indoor facility inspection and scene reconstruction,”Automation in Construction, vol. 148, p. 104753, 2023. [Online]. Available: https: //www.sciencedirect.com/science/article/pii/S0926580523000134

    work page 2023

  16. [16]

    Gatsbi: An online gtsp-based algorithm for targeted surface bridge inspection,

    H. Dhami, K. Yu, T. Williams, V . Vajipey, and P. Tokekar, “Gatsbi: An online gtsp-based algorithm for targeted surface bridge inspection,” pp. 1199–1206, 2023

    work page 2023

  17. [17]

    Predrecon: A prediction-boosted planning framework for fast and high-quality au- tonomous aerial reconstruction,

    C. Feng, H. Li, F. Gao, B. Zhou, and S. Shen, “Predrecon: A prediction-boosted planning framework for fast and high-quality au- tonomous aerial reconstruction,” in2023 IEEE International Confer- ence on Robotics and Automation (ICRA), 2023, pp. 1207–1213

    work page 2023

  18. [18]

    Perception- aware full body trajectory planning for autonomous systems using motion primitives,

    M. Kuhne, R. Giubilato, M. J. Schuster, and M. A. Roa, “Perception- aware full body trajectory planning for autonomous systems using motion primitives,” in2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2024, pp. 7765–7772

    work page 2024

  19. [19]

    Trajectory optimiza- tion with global yaw parameterization for field-of-view constrained autonomous flight,

    Y . Wu, Y . Tao, I. Spasojevic, and V . Kumar, “Trajectory optimiza- tion with global yaw parameterization for field-of-view constrained autonomous flight,” in2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2024, pp. 10 590–10 596

    work page 2024

  20. [20]

    Apace: Agile and perception-aware trajectory generation for quadrotor flights,

    X. Chen, Y . Zhang, B. Zhou, and S. Shen, “Apace: Agile and perception-aware trajectory generation for quadrotor flights,” pp. 17 858–17 864, 2024

    work page 2024

  21. [21]

    Trg- planner: Traversal risk graph-based path planning in unstructured environments for safe and efficient navigation,

    D. Lee, I. M. A. Nahrendra, M. Oh, B. Yu, and H. Myung, “Trg- planner: Traversal risk graph-based path planning in unstructured environments for safe and efficient navigation,”IEEE Robotics and Automation Letters, vol. 10, no. 2, pp. 1736–1743, 2025

    work page 2025

  22. [22]

    Fast-lio2: Fast direct lidar- inertial odometry,

    W. Xu, Y . Cai, D. He, J. Lin, and F. Zhang, “Fast-lio2: Fast direct lidar- inertial odometry,”IEEE Transactions on Robotics, vol. 38, no. 4, pp. 2053–2073, 2022

    work page 2053

  23. [23]

    An effective implementation of the lin–kernighan trav- eling salesman heuristic,

    K. Helsgaun, “An effective implementation of the lin–kernighan trav- eling salesman heuristic,”European journal of operational research, vol. 126, no. 1, pp. 106–130, 2000

    work page 2000

  24. [24]

    Vision-aided uav navigation and dynamic obstacle avoidance using gradient-based b- spline trajectory optimization,

    Z. Xu, Y . Xiu, X. Zhan, B. Chen, and K. Shimada, “Vision-aided uav navigation and dynamic obstacle avoidance using gradient-based b- spline trajectory optimization,” in2023 IEEE International Conference on Robotics and Automation (ICRA), 2023, pp. 1214–1220

    work page 2023

  25. [25]

    Intent prediction- driven model predictive control for uav planning and navigation in dynamic environments,

    Z. Xu, H. Jin, X. Han, H. Shen, and K. Shimada, “Intent prediction- driven model predictive control for uav planning and navigation in dynamic environments,”IEEE Robotics and Automation Letters, vol. 10, no. 5, pp. 4946–4953, 2025

    work page 2025

  26. [26]

    Segment Anything

    A. Kirillov, E. Mintun, N. Ravi, H. Mao, C. Rolland, L. Gustafson, T. Xiao, S. Whitehead, A. C. Berg, W.-Y . Lo, P. Doll ´ar, and R. Girshick, “Segment anything,” 2023. [Online]. Available: https://arxiv.org/abs/2304.02643

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  27. [27]

    Ultralytics yolo,

    G. Jocher, A. Chaurasia, and J. Qiu, “Ultralytics yolo,” 2023. [Online]. Available: https://github.com/ultralytics/ultralytics

    work page 2023
