Ordering governs magnetic tunability in FePt-based Janus particles independent of curvature

Natalia Gonzalez-Vazquez , Eyl\"ul Suadiye , Eberhard Goering , Ruben O. Miranda-Rosales , Hilda David , Frank Thiele , Julia Unangst , Andrew K. Schulz
show 1 more author
Gunther Richter
Authors on Pith no claims yet

Pith reviewed 2026-05-13 04:11 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hall
keywords FePt Janus particlesmagnetic orderingL10 phasecurvature effectsmicromagnetic simulationscoercivitymagnetization reversalmicrometer scale
0
0 comments X

The pith

Material ordering controls magnetism in micrometer-scale FePt Janus particles more than curvature does.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that FePt-coated Janus particles from 3 to 10 micrometers in diameter exhibit nearly identical magnetic hysteresis regardless of size, with coercivity fixed at about 1.13 tesla. This holds because the exchange length in the material is far smaller than the particle radius, so the curved cap behaves like a flat film locally. Experiments confirm continuous coatings with partial L10 ordering and equiatomic composition, while new micromagnetic simulations demonstrate that changes in chemical ordering alter the reversal process far more than geometry ever does at these scales. A reader would care because Janus particles are used for remote magnetic actuation in medicine and microfluidics; knowing the dominant control knob lets designers tune response through material processing instead of shape.

Core claim

In FePt Janus particles at micrometer sizes, magnetization reversal shows no dependence on diameter because the system sits in a locally planar magnetic limit where curvature effects vanish; instead, the degree of L10 chemical ordering directly sets the shape of the hysteresis loop and the value of coercivity, as confirmed by direct comparison of measured loops to simulations of idealized caps.

What carries the argument

The locally planar magnetic limit, defined by exchange length much smaller than particle radius, which makes the FePt cap respond like a flat film so that ordering rather than curvature dictates reversal.

If this is right

  • Coercivity stays constant across particle diameters from 3 to 20 micrometers.
  • Variations in chemical ordering produce large shifts in hysteresis shape and coercivity value.
  • Curvature-dependent magnetic effects have a practical upper size limit around the micrometer scale.
  • Design rules for magnetic micro-actuators should focus on achieving consistent material ordering rather than precise curvature.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Below a few hundred nanometers the same particles would likely show curvature effects reappearing as the radius approaches the exchange length.
  • The same ordering-versus-curvature distinction may apply to other hard-magnetic coatings on curved templates used in micro-robotics.
  • Fabrication processes that improve ordering uniformity would give tighter control over magnetic response than attempts to engineer particle shape.
  • Quantitative mapping of ordering fraction to coercivity could be tested directly by annealing identical particles at different temperatures.

Load-bearing premise

The observed partial L10 ordering is uniform enough across particles of different sizes and the simulations reproduce real reversal without needing extra parameter tweaks to fit the data.

What would settle it

Measuring a clear change in coercivity when particle diameter is varied at fixed ordering level, or finding no change in hysteresis when ordering level is varied at fixed diameter.

Figures

Figures reproduced from arXiv: 2605.12283 by Andrew K. Schulz, Eberhard Goering, Eyl\"ul Suadiye, Frank Thiele, Gunther Richter, Hilda David, Julia Unangst, Natalia Gonzalez-Vazquez, Ruben O. Miranda-Rosales.

Figure 1
Figure 1. Figure 1: Integrated experimental–computational workflow for FePt Janus caps across curvature. (a) Schematic of FePt-coated SiO2 Janus particles with diameters of 3–10 µm, illustrating the coexistence of magnetically hard L10 and soft A1 phases and the overall workflow from fabrication to simulation. (b) Representative SEM images showing continuous FePt caps across all particle diameters. (c) X-ray diffraction (XRD)… view at source ↗
Figure 2
Figure 2. Figure 2: Failure modes and process window for FePt Janus cap fabrication. (a) Representative SEM images of successfully fabricated FePt-coated SiO2 particle monolayers across diameters (3–10 µm), demonstrating uniform coverage and reproducible cap formation. Insets highlight local ordering and surface morphology at higher magnification. (b) Failure map summarizing dominant morphological instabilities observed durin… view at source ↗
Figure 3

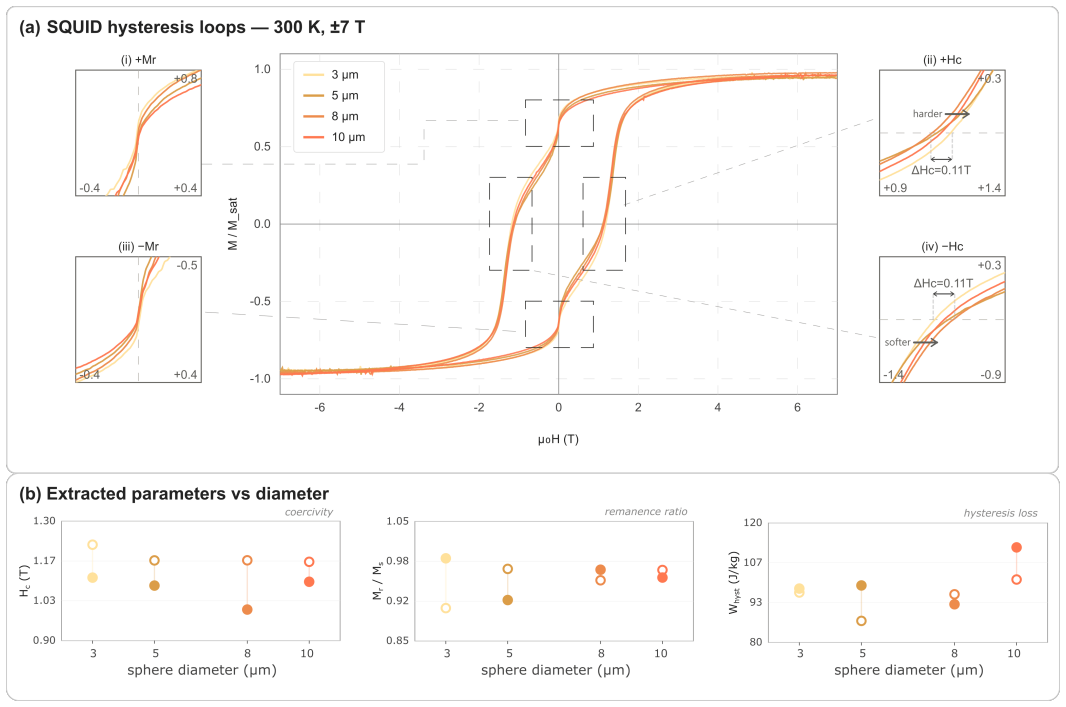

Figure 3. Figure 3: SQUID magnetometry demonstrating diameter-independent magnetization reversal in FePt Janus caps. (a) [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

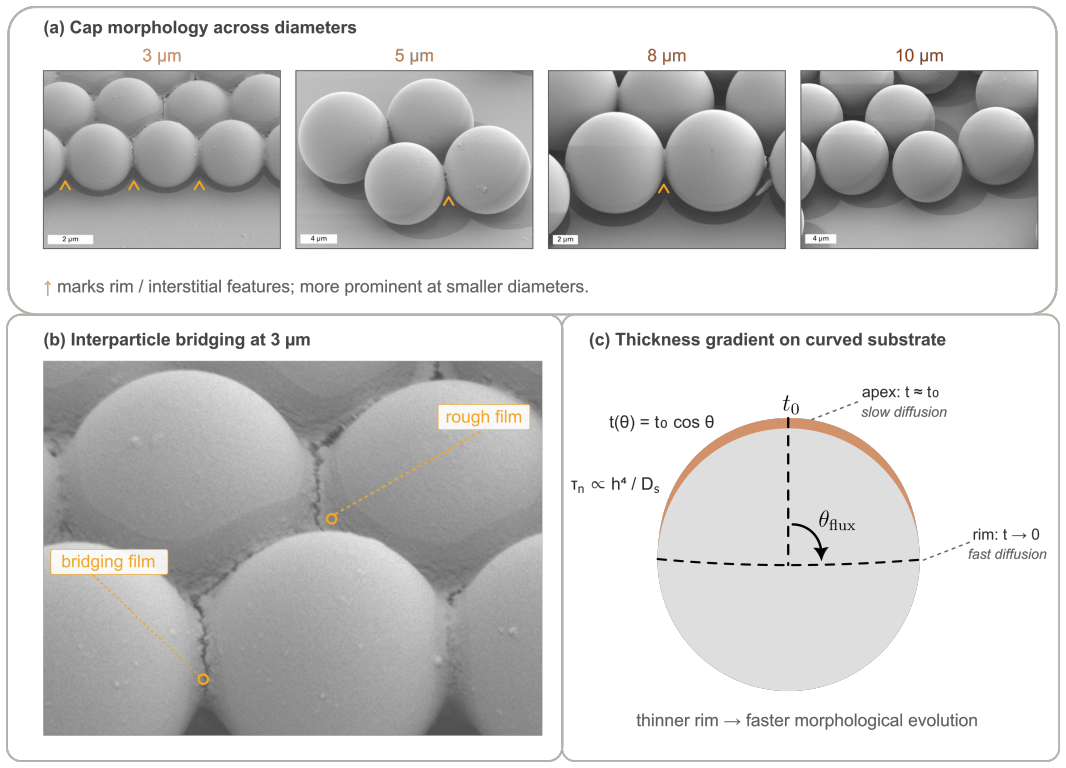

Figure 4. Figure 4: Geometric effects on cap morphology and film evolution across spherical substrates. (a) SEM images of FePt [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

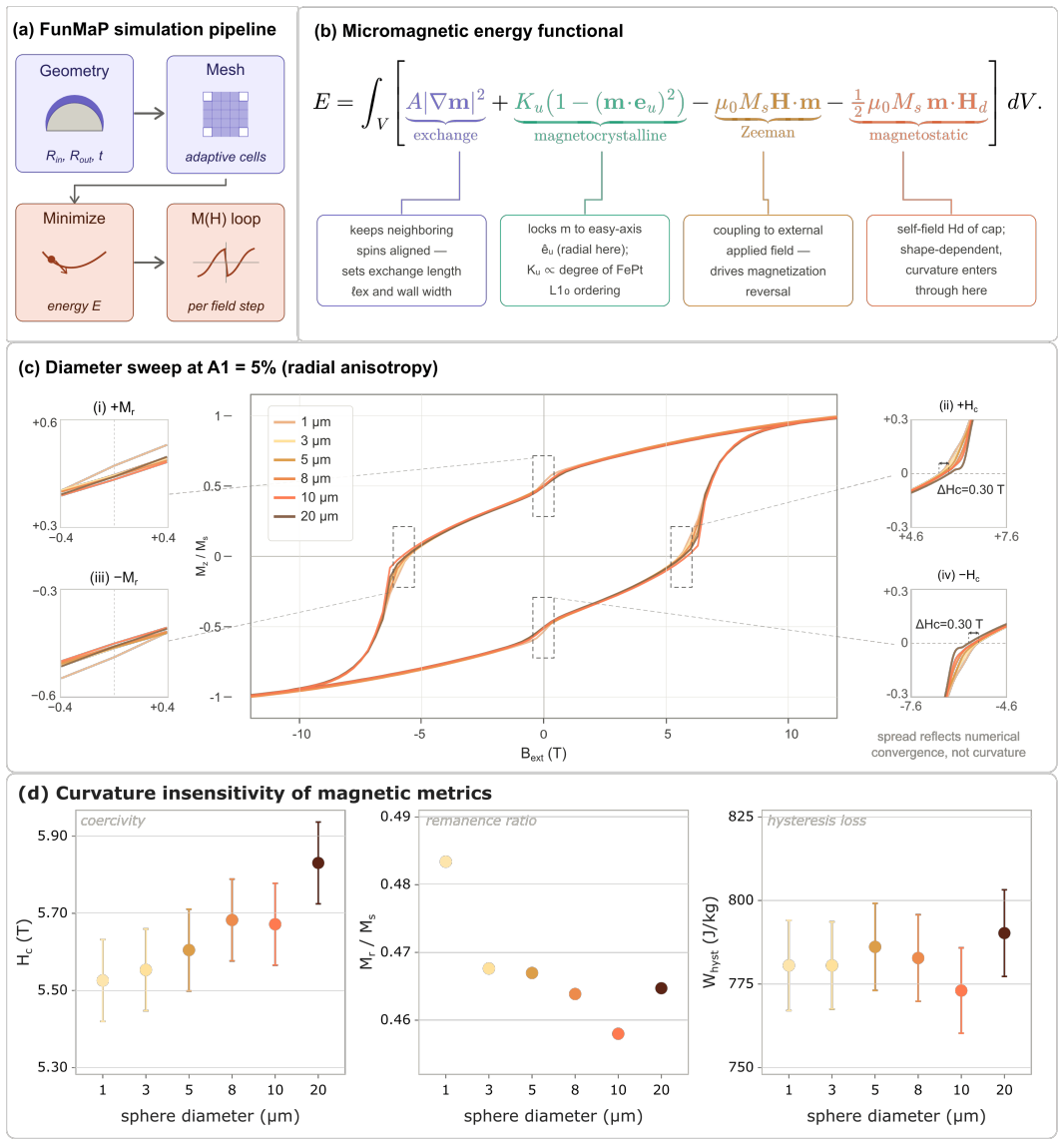

Figure 5. Figure 5: Micromagnetic analysis of magnetization reversal in curved FePt caps. (a) Simulation workflow, including [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Dependence of magnetization reversal on anisotropy configuration and phase composition. (a) Comparison [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
read the original abstract

Magnetic Janus particles enable remote actuation in biomedical, microfluidic, and materials applications. While curvature-driven magnetic effects are well known at the nanoscale, their influence on magnetization reversal in micrometer-sized particles is still unclear. In this work, we combine experiments and micromagnetic simulations to study curvature-dependent magnetism in FePt-coated Janus particles with diameters ranging from 3-10 microm, and extend the analysis to 1-20 microm through simulations. Structural and crystallographic characterization confirms continuous FePt coatings with near-equiatomic composition and partial L1_0 ordering. Magnetometry measurements show nearly unchanged hysteresis behavior across particle sizes, with coercivity remaining approximately constant m_0Hc = 1.13 +/- 0.05 T, pooled n = 8). Statistical analysis reveals no significant dependence of coercivity or remanence on particle diameter (p = 0.61 for Hc and p = 0.85 for Mr/Ms). To explain these results, we introduce FunMaP, an open-source micromagnetic simulation framework that enables direct comparison between experiments and idealized FePt caps. Simulations confirm that curvature has little effect on magnetization reversal at micrometer scales, consistent with a locally planar magnetic limit where the exchange length is much smaller than the particle radius. In contrast, differences in chemical ordering strongly affect hysteresis shape and coercivity. These findings demonstrate that magnetic behavior in micrometer-scale FePt Janus particles is governed mainly by material ordering rather than curvature. This work establishes a quantitative boundary for curvature-dependent magnetism and provides design guidelines for programmable magnetic micro-systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript claims that in FePt-based Janus particles with diameters from 3 to 10 μm, the magnetic hysteresis behavior, including coercivity of approximately 1.13 T, is independent of particle size as evidenced by magnetometry data with no significant diameter dependence (p = 0.61 for coercivity, p = 0.85 for remanence ratio, pooled n=8). Through micromagnetic simulations using the introduced FunMaP framework, the authors argue that at these scales, the system behaves as locally planar due to the exchange length being much smaller than the radius, making curvature effects negligible, while variations in partial L1_0 chemical ordering strongly influence the reversal process. This establishes that material ordering governs the magnetic tunability independent of curvature.

Significance. The findings, if upheld, are significant for the design of magnetic Janus particles in applications such as biomedicine and microfluidics by delineating the scale at which curvature-driven magnetic effects become irrelevant. The statistical rigor in the experimental analysis and the direct comparison with simulations provide a solid foundation. Additionally, the open-source nature of the FunMaP simulation framework represents a valuable contribution to the field, enabling reproducible studies of magnetic micro-systems.

major comments (1)
  1. [Characterization] The structural and crystallographic characterization section confirms near-equiatomic composition and partial L1_0 ordering but does not include size-binned metrics, such as (001)/(002) intensity ratios from X-ray diffraction, for particles across the 3-10 μm diameter range. Given that the simulations demonstrate that chemical ordering strongly modulates hysteresis shape and coercivity, the lack of verification that ordering remains uniform across sizes leaves open the possibility that compensating variations in ordering could conceal weak curvature dependencies, which is central to the claim of curvature independence.
minor comments (2)
  1. [Abstract] The abstract does not detail how the degree of chemical ordering was varied in the simulations or provide the specific FunMaP parameters used, which would clarify the robustness of the contrast between ordering and curvature effects.
  2. [Simulations] Explicit values for the free parameter (exchange length) and other micromagnetic parameters in FunMaP should be provided in the methods to facilitate direct reproduction of the results.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment, the recommendation for minor revision, and the constructive comment on the characterization section. We address the point below.

read point-by-point responses

  1. Referee: The structural and crystallographic characterization section confirms near-equiatomic composition and partial L1_0 ordering but does not include size-binned metrics, such as (001)/(002) intensity ratios from X-ray diffraction, for particles across the 3-10 μm diameter range. Given that the simulations demonstrate that chemical ordering strongly modulates hysteresis shape and coercivity, the lack of verification that ordering remains uniform across sizes leaves open the possibility that compensating variations in ordering could conceal weak curvature dependencies, which is central to the claim of curvature independence.

    Authors: We agree that explicit size-binned crystallographic metrics would further strengthen the manuscript by directly ruling out compensating variations in ordering. All particles in the 3–10 μm range were produced from a single synthesis batch and subjected to identical annealing conditions to achieve the reported partial L1_0 ordering; size variation was controlled solely through deposition parameters, not thermal history. Ensemble XRD therefore reflects the uniform ordering present across the diameter range. To address the referee’s concern, we will revise the characterization section to include an explicit statement on the uniform processing conditions and add any available size-resolved EDX composition data to the supplementary information. Individual-particle XRD is not practical for these micrometer-scale samples, but the controlled synthesis and the observed lack of size dependence in the magnetometry data (which is highly sensitive to ordering) together support the conclusion that ordering is uniform. This revision directly closes the logical gap identified by the referee. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper grounds its central claim in independent experimental magnetometry (constant m0Hc = 1.13 T across 3-10 μm diameters, with p=0.61 for no diameter dependence) and structural characterization (near-equiatomic FePt with partial L10 ordering). Micromagnetic simulations via the newly introduced FunMaP framework then vary curvature and ordering as separate inputs to show that the locally planar limit (exchange length << radius) explains the lack of curvature effect while ordering modulates reversal. No load-bearing step reduces to a self-citation, fitted parameter renamed as prediction, or self-definitional loop; the scaling argument follows from standard micromagnetic equations without ansatz smuggling or uniqueness theorems imported from the authors' prior work. The derivation therefore remains non-circular.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard micromagnetic theory and the experimental observation of partial L1_0 ordering; no new entities postulated.

free parameters (1)
  • exchange length
    Invoked to justify locally planar limit when much smaller than radius; treated as known material property rather than fitted here.
axioms (1)
  • domain assumption Micromagnetic continuum approximation holds when exchange length << particle radius
    Used to explain why curvature has little effect at micrometer scales.

pith-pipeline@v0.9.0 · 5625 in / 1072 out tokens · 66757 ms · 2026-05-13T04:11:30.338905+00:00 · methodology
