Img2CADSeq: Image-to-CAD Generation via Sequence-Based Diffusion

Shiyu Tan , Zixuan Zhao , Hao Gao , Zhiheng Chen , Xiaolong Yin , Enya Shen
Authors on Pith no claims yet

Pith reviewed 2026-05-14 19:53 UTC · model grok-4.3

classification 💻 cs.CV
keywords image-to-CADCAD sequence generationdiffusion modelsBRep reconstructionVQ-Diffusionpoint cloud conditioninghierarchical codebook
0
0 comments X

The pith

Img2CADSeq generates valid CAD models from single images by compressing operation sequences into a hierarchical codebook and diffusing them from a point-cloud bridge.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a pipeline that converts single-view images into complete CAD models in the standard STEP format used by commercial software. It tackles the difficulty of preserving topological rules and operation order by first turning long CAD sequences into a compact three-level codebook that prioritizes profiles and key features. A coarse-to-fine point cloud serves as an intermediate representation that aligns image features with 3D sequences through contrastive learning, allowing a VQ-Diffusion model to produce realistic sequences. New datasets CAD-220K and PrintCAD provide the scale needed for training across industrial cases. Experiments show the resulting models outperform prior methods and load directly into existing CAD tools.

Core claim

Encoding CAD sequences into a three-level hierarchical codebook guided by importance prioritization compresses long sequences into a stable discrete latent space that preserves topological constraints and operation validity, enabling a contrastive point-cloud bridge from 2D images to condition a VQ-Diffusion model that outputs usable CAD sequences.

What carries the argument

Three-level hierarchical codebook for CAD sequences that compresses long operation lists while keeping topological validity and prioritizing profiles over secondary details.

If this is right

  • Generated models appear as standard STEP files that load and edit without conversion in tools such as SolidWorks or Fusion 360.
  • The method supports direct industrial use because the new CAD-220K and PrintCAD datasets improve adaptation to real manufacturing data.
  • Sequence generation respects operation order and validity, reducing the need for post-processing cleanup.
  • Single-image input becomes sufficient for high-quality reconstruction where earlier methods required multiple views or manual intervention.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hierarchical encoding might apply to other ordered design domains such as circuit netlists or mechanical assembly plans.
  • Extending the point-cloud bridge to multi-view images could further reduce ambiguity in complex topologies.
  • Integration with existing CAD version-control systems could allow automatic reconstruction of legacy parts from archived photographs.

Load-bearing premise

Encoding CAD sequences into a three-level hierarchical codebook guided by importance prioritization can compress long sequences into a stable discrete latent space while preserving the topological constraints and operation validity required for usable CAD models.

What would settle it

Generate STEP files from test images and attempt to open and edit them in commercial CAD software; failure to load without errors or violation of geometric constraints would falsify the claim.

Figures

Figures reproduced from arXiv: 2605.13293 by Enya Shen, Hao Gao, Shiyu Tan, Xiaolong Yin, Zhiheng Chen, Zixuan Zhao.

Figure 1

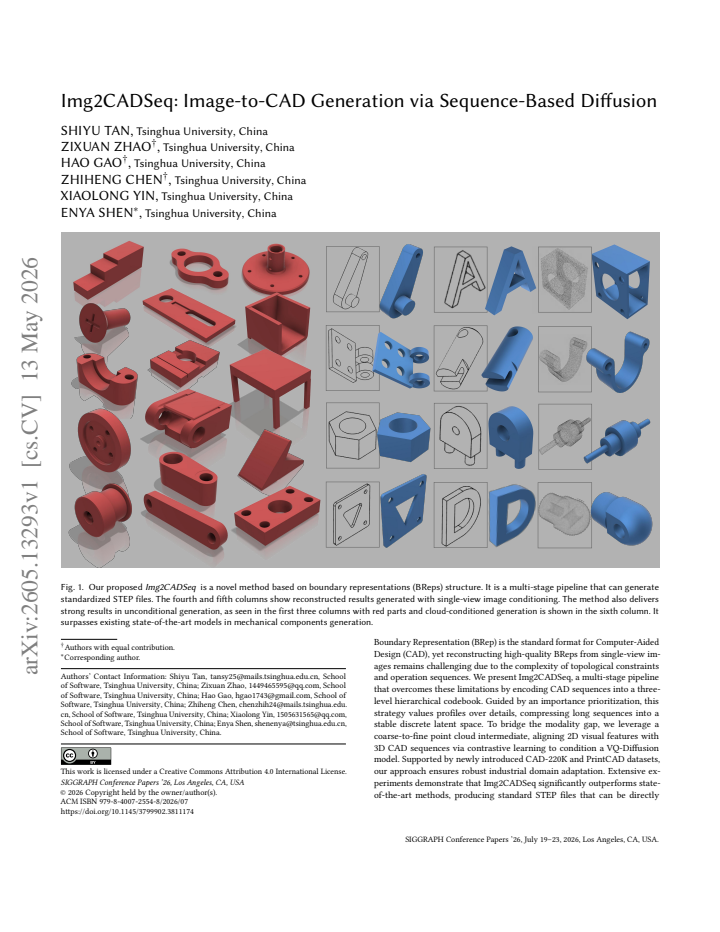

Figure 1. Figure 1: Our proposed Img2CADSeq is a novel method based on boundary representations (BReps) structure. It is a multi-stage pipeline that can generate standardized STEP files. The fourth and fifth columns show reconstructed results generated with single-view image conditioning. The method also delivers strong results in unconditional generation, as seen in the first three columns with red parts and cloud-conditione… view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the Img2CADSeq Framework. In the first stage, hierarchical sequence encoding represents CAD operations via a three-level codebook into a discrete space. Then we lift the input image into a 3D point cloud using a tailored network trained jointly on both synthetic and real-world data types, which is then refined by UA-DGCNN to sharpen edges and smooth surfaces. Finally, we employ contrastive lear… view at source ↗
Figure 3
Figure 3. Figure 3: Workflow of Hierarchical Entity Construction. At the base level, the Curve-Cluster parameterizes geometric primitives, which form closed loops in the Sketch-Patch. These loops are then lifted into 3D space via a normal vector and origin to perform extrusion and Boolean operations, resulting in an Extrude-Block. Multiple blocks are finally assembled to yield the target solid. This process mirrors the constr… view at source ↗
Figure 4

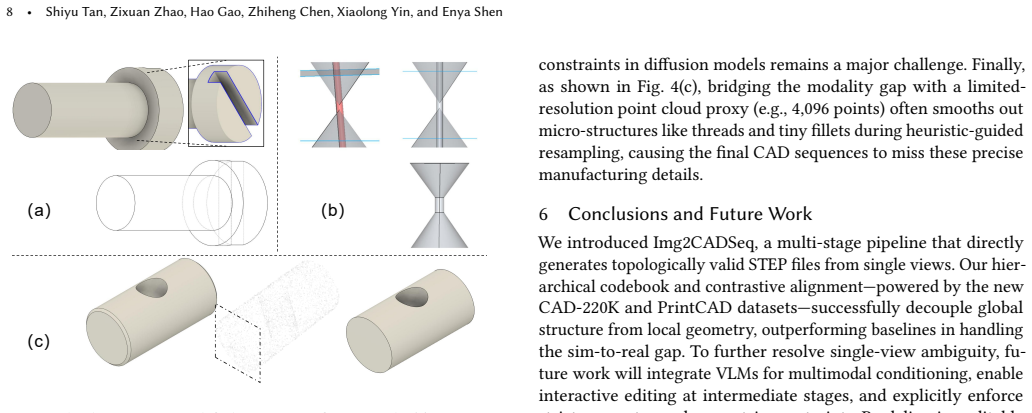

Figure 4. Figure 4: The limitations and failure cases of our work. (a) Extreme single-view ambiguity causes plausible back-end structures but non￾manufacturable in occluded areas. (b)Sequence error accumulation disrupts global geometric constraints like strict symmetry and coaxiality. (c) Lim￾ited resolution of the intermediate point cloud causes fine features to be smoothed out or omitted. method’s leading performance in Tab… view at source ↗
Figure 5
Figure 5. Figure 5: Here are some samples from our newly introduced dataset, PrintCAD, which comprises over 2,000 3D printed objects captured under uncontrolled [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: We evaluate our method on synthetic and challenging real-world images. [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: We evaluate our method against state-of-the-art approaches on inputs with ill-scanned point clouds with misalignment parts, or the clean ones. While [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: We compare our Img2CADSeq with other widely adopted baselines in unconditional generation. Our method produces structurally plausible models [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Current CAD datasets, such as DeepCAD, predominantly [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 9
Figure 9. Figure 9: Random test set samples. While simple geometries are easily handled by most methods, increasing complexity challenges all approaches. Despite limitations in extreme cases, our method better preserves global shape and visual consistency, demonstrating robustness without selection bias. Input Model 4 Full Model GT Input Model 4 Full Model GT [PITH_FULL_IMAGE:figures/full_fig_p014_9.png] view at source ↗
Figure 10

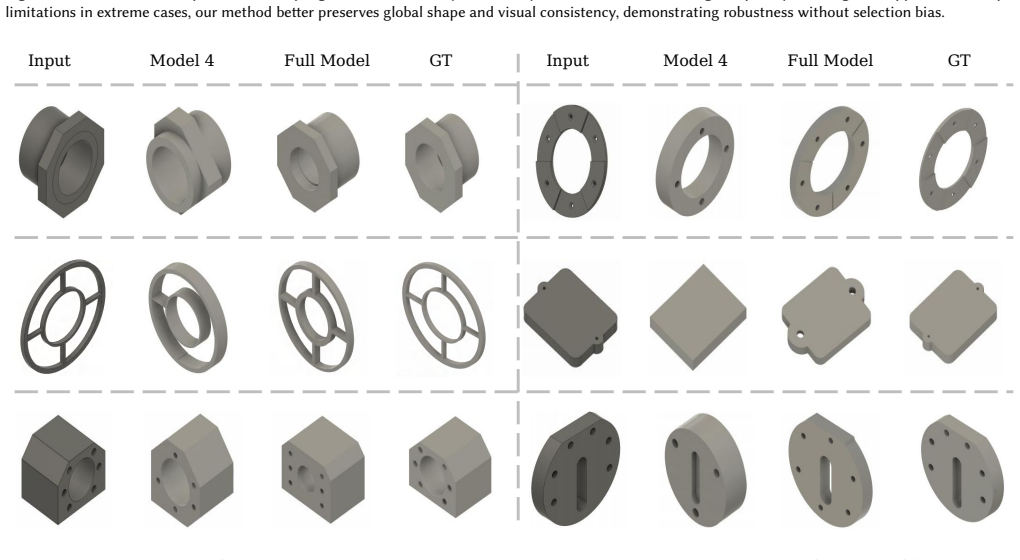

Figure 10. Figure 10: Visual ablation study on fine-tuning with the two datasets. Model 4 exhibits severe geometric distortions and missing features. Our full model captures these complex structural details better, demonstrating the necessity of the extra data for generating industrial-grade CAD models. SIGGRAPH Conference Papers ’26, July 19–23, 2026, Los Angeles, CA, USA [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Reconstruction results from the given images are shown from left to right: input image, BReps, and their CAD vertices and edges. [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Reconstruction results from the given images are shown from left to right: input image, BReps, and their CAD vertices and edges. [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
read the original abstract

Boundary Representation (BRep) is the standard format for Computer-Aided Design (CAD), yet reconstructing high-quality BReps from single-view images remains challenging due to the complexity of topological constraints and operation sequences. We present Img2CADSeq, a multi-stage pipeline that overcomes these limitations by encoding CAD sequences into a three-level hierarchical codebook. Guided by an importance prioritization, this strategy values profiles over details, compressing long sequences into a stable discrete latent space. To bridge the modality gap, we leverage a coarse-to-fine point cloud intermediate, aligning 2D visual features with 3D CAD sequences via contrastive learning to condition a VQ-Diffusion model. Supported by newly introduced CAD-220K and PrintCAD datasets, our approach ensures robust industrial domain adaptation. Extensive experiments demonstrate that Img2CADSeq significantly outperforms state-of-the-art methods, producing standard STEP files that can be directly used in commercial CAD software.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes Img2CADSeq, a multi-stage pipeline for single-view image to CAD sequence generation. It encodes long CAD operation sequences into a three-level hierarchical codebook using importance prioritization (profiles over details), bridges the 2D-3D modality gap via a coarse-to-fine point-cloud intermediate and contrastive learning, and conditions a VQ-Diffusion model to produce sequences that decode to valid BReps exported as STEP files. New datasets CAD-220K and PrintCAD are introduced to support training and industrial domain adaptation, with claims of significant outperformance over prior SOTA methods.

Significance. If the topological validity and direct STEP usability claims hold with quantitative backing, the work would advance image-based CAD reconstruction by addressing sequence length and constraint enforcement through hierarchical discretization, while the new large-scale datasets could serve as community benchmarks for future image-to-CAD research.

major comments (2)
  1. [Experiments] Experiments section: the central claim that decoded sequences are always topologically valid and directly importable as STEP files is not supported by any reported validity metric (e.g., percentage of sequences that parse without self-intersection, invalid extrusion order, or BRep errors); this metric is load-bearing for the 'directly usable in commercial CAD software' assertion.
  2. [Method] §3.2 (hierarchical codebook): the importance-prioritization scheme for the three-level codebook is described at a high level but lacks an explicit proof or empirical demonstration that it preserves operation validity and topological constraints after VQ-Diffusion sampling; a failure rate analysis on decoded sequences is required.
minor comments (2)
  1. [Abstract] Abstract: 'extensive experiments' and 'significantly outperforms' are stated without any numerical results or table references; a one-sentence summary of key metrics would improve readability.
  2. [Method] Notation: the three-level codebook is referred to interchangeably as 'hierarchical' and 'importance-prioritized' without a clear equation defining the prioritization weights or codebook sizes.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comments below regarding the need for quantitative validity metrics and further analysis of the hierarchical codebook. We agree that these additions will strengthen the paper and will incorporate them in the revision.

read point-by-point responses

  1. Referee: [Experiments] Experiments section: the central claim that decoded sequences are always topologically valid and directly importable as STEP files is not supported by any reported validity metric (e.g., percentage of sequences that parse without self-intersection, invalid extrusion order, or BRep errors); this metric is load-bearing for the 'directly usable in commercial CAD software' assertion.

    Authors: We acknowledge that the current manuscript does not report a specific quantitative validity metric such as the percentage of decoded sequences that parse successfully without self-intersections, invalid extrusion orders, or BRep errors. While the qualitative results and examples show that generated sequences decode to STEP files importable in commercial CAD software, we agree this metric is important to support the claim. In the revised version, we will add a dedicated validity analysis in the Experiments section, reporting failure rates across the CAD-220K and PrintCAD test sets with details on the validation procedure used. revision: yes

  2. Referee: [Method] §3.2 (hierarchical codebook): the importance-prioritization scheme for the three-level codebook is described at a high level but lacks an explicit proof or empirical demonstration that it preserves operation validity and topological constraints after VQ-Diffusion sampling; a failure rate analysis on decoded sequences is required.

    Authors: The three-level hierarchical codebook with importance prioritization is designed to encode profile operations first to establish core topology before incorporating details, thereby aiming to maintain validity during compression and subsequent sampling. While the manuscript provides a high-level description motivated by CAD semantics, we agree that an empirical demonstration is needed. We will add in the revision a failure rate analysis on decoded sequences, comparing validity rates pre- and post-VQ-Diffusion sampling to show preservation of topological constraints. revision: yes

Circularity Check

0 steps flagged

No circularity detected in derivation chain

full rationale

The paper describes a multi-stage pipeline that encodes CAD sequences via a new three-level hierarchical codebook, uses contrastive learning on a coarse-to-fine point cloud bridge, and conditions a standard VQ-Diffusion model. It introduces fresh datasets (CAD-220K, PrintCAD) and reports experimental outperformance on STEP file usability. No step reduces by construction to its own inputs, no fitted parameter is relabeled as a prediction, and no load-bearing claim rests on self-citation chains or imported uniqueness theorems. The central results are externally falsifiable via the reported metrics and commercial CAD import tests.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides insufficient detail to identify specific free parameters, axioms, or invented entities; the hierarchical codebook levels and new datasets are introduced but their exact parameterization and assumptions are not described.

pith-pipeline@v0.9.0 · 5473 in / 1183 out tokens · 65441 ms · 2026-05-14T19:53:12.241062+00:00 · methodology
