arxiv: 2605.13848 · v1 · submitted 2026-03-08 · 💻 cs.AI · cs.CL· cs.DC

Recognition: no theorem link

GraphBit: A Graph-based Agentic Framework for Non-Linear Agent Orchestration

Yeahia Sarker , Md Rahmat Ullah , Musa Molla , Shafiq Joty

Authors on Pith no claims yet

Pith reviewed 2026-05-15 14:29 UTC · model grok-4.3

classification 💻 cs.AI cs.CLcs.DC

keywords agentic frameworksDAG orchestrationdeterministic executionLLM agentsGAIA benchmarkmulti-tier memoryRust engineworkflow reproducibility

0 comments

The pith

GraphBit defines LLM agent workflows as explicit DAGs executed by a Rust engine to eliminate routing hallucinations and improve reproducibility.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Many agentic LLM systems let the model itself choose the next workflow step through prompting, which often produces hallucinations, loops, and inconsistent results. GraphBit instead encodes the entire workflow in advance as a directed acyclic graph whose nodes are typed agent functions. A Rust-based engine then manages all routing, state changes, parallel branches, and error recovery without relying on the model for decisions. A three-tier memory design keeps scratch space, structured state, and external data separate to avoid context overload in long chains. On GAIA benchmark tasks that include zero-tool, document, and web scenarios, this yields 67.6 percent accuracy, zero framework hallucinations, 11.9 ms latency overhead, and top throughput against six other frameworks.

Core claim

Representing agent workflows as a directed acyclic graph executed deterministically by a Rust engine, with agents as typed functions and state isolated across a three-tier memory architecture, removes framework-induced hallucinations while delivering 67.6 percent accuracy, lowest latency, and highest throughput on GAIA tasks that span zero-tool, document-augmented, and web-enabled settings.

What carries the argument

Directed acyclic graph (DAG) workflow definition executed by a Rust engine that governs typed-function agents, parallel branches, conditional state predicates, and error recovery, paired with a three-tier memory architecture of ephemeral scratch space, structured state, and external connectors.

If this is right

Deterministic engine control removes non-reproducible paths and infinite loops that prompted routing can create.
Parallel branch execution and predicate-based conditionals allow non-linear control flow without model intervention.
Three-tier memory isolation measurably reduces context bloat and improves reasoning quality in extended pipelines.
Ablation results show deterministic execution contributes the largest gains on tool-intensive workflows.
Overall performance exceeds six existing frameworks across accuracy, latency, and throughput metrics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same explicit-graph approach could support audit logging and compliance requirements in production agent deployments.
Porting existing prompted agents to GraphBit-style typed functions would reduce prompt-engineering effort for stable sub-tasks.
Dynamic graph rewriting at runtime might be a natural next extension to handle cases where the initial DAG proves insufficient.

Load-bearing premise

Pre-defined DAG structures with typed functions supply enough flexibility to cover the range of real-world workflows that prompted routing currently handles.

What would settle it

A collection of GAIA-style tasks in which the correct next action cannot be known until after an intermediate result appears, causing GraphBit to produce lower accuracy than a prompted-orchestration baseline on those tasks.

Figures

Figures reproduced from arXiv: 2605.13848 by Md Rahmat Ullah, Musa Molla, Shafiq Joty, Yeahia Sarker.

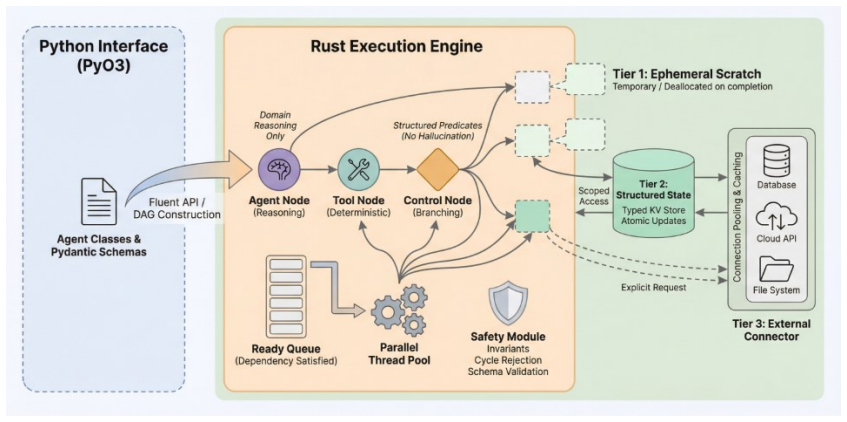

**Figure 2.** Figure 2: Detailed GraphBit architecture. The Rust-based execution engine traverses a typed workflow DAG, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

read the original abstract

Agentic LLM frameworks that rely on prompted orchestration, where the model itself determines workflow transitions, often suffer from hallucinated routing, infinite loops, and non-reproducible execution. We introduce GraphBit, an engine-orchestrated framework that defines workflows explicitly and deterministically as a directed acyclic graph (DAG). Unlike prompted orchestration, agents in GraphBit operate as typed functions, while a Rust-based engine governs routing, state transitions, and tool invocation, ensuring reproducibility and auditability. The engine supports parallel branch execution, conditional control flow over structured state predicates, and configurable error recovery. A three-tier memory architecture consisting of ephemeral scratch space, structured state, and external connectors isolates context across stages, preventing cascading context bloat that degrades reasoning in long-running pipelines. Across GAIA benchmark tasks spanning zero-tool, document-augmented, and web-enabled workflows, GraphBit outperforms six existing frameworks, achieving the highest accuracy (67.6 percent), zero framework-induced hallucinations, the lowest latency (11.9 ms overhead), and the highest throughput. Ablation studies demonstrate that each memory tier contributes measurably to performance, with deterministic execution providing the greatest gains on tool-intensive tasks representative of real-world deployments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

GraphBit's deterministic DAG orchestration with a Rust engine is a genuine alternative to prompted agent routing, but the GAIA gains look hard to evaluate without details on how the graphs were built.

read the letter

The main thing here is that GraphBit replaces prompted workflow decisions with an explicit DAG run by a Rust engine, plus a three-tier memory setup to keep context from blowing up. That setup is new enough compared to the usual LangChain-style or AutoGen-style prompting loops, and it directly targets the hallucinated routing and non-reproducibility problems the abstract flags. The engine handling parallel branches, structured predicates for conditionals, and error recovery is a concrete engineering step that could matter for auditability in deployed systems. The three-tier memory claim also makes sense on paper for long pipelines. What the paper does well is lay out a clean separation between agent functions and the orchestration layer, which is a useful contrast to fully model-driven routing. The ablation mention that deterministic execution helps most on tool-heavy tasks is at least a direction worth checking. The soft spot is the GAIA results. The abstract gives 67.6% accuracy, zero hallucinations, and low overhead, but it does not say how much human work went into turning each task into a typed DAG with the right predicates. If a lot of the edge comes from careful manual graph design rather than the engine itself, the comparison to prompted baselines is not clean. The stress-test note on construction effort and fallback routing inside nodes is fair; without numbers on node complexity or how many tasks needed non-trivial conditionals, it is hard to know whether the framework scales beyond the benchmark. No error bars or control details are mentioned either. This is the kind of paper that belongs in a reading group focused on agent infrastructure rather than pure prompting work. It is worth a serious referee because the core idea is distinct and the reproducibility angle is practically relevant, even if the current evidence is thin and the claims will need tighter controls and more transparent engineering details in revision.

Referee Report

3 major / 2 minor

Summary. The paper introduces GraphBit, a framework for LLM agent orchestration that replaces prompted routing with explicit DAG workflows executed deterministically by a Rust-based engine. Agents are implemented as typed functions with support for parallel branches, conditional predicates over structured state, and a three-tier memory architecture (ephemeral scratch, structured state, external connectors). On GAIA benchmark tasks covering zero-tool, document-augmented, and web-enabled workflows, the system is reported to achieve 67.6% accuracy, zero framework-induced hallucinations, 11.9 ms overhead, and highest throughput among six compared frameworks, with ablations attributing gains primarily to deterministic execution.

Significance. If the empirical claims hold after addressing setup details, the work offers a concrete alternative to prompted orchestration that prioritizes reproducibility and auditability. The explicit DAG model with typed functions and engine-managed control flow could reduce common failure modes in long-running agent pipelines, particularly for tool-intensive tasks. The three-tier memory design addresses context bloat in a structured way that may generalize beyond the evaluated benchmarks.

major comments (3)

[Experimental Evaluation] Experimental Evaluation section: The headline GAIA results (67.6% accuracy, zero hallucinations, 11.9 ms overhead) are presented without any description of how the benchmark tasks were manually encoded as typed DAGs, including construction effort, number of conditional predicates required, or node complexity. This information is load-bearing for the superiority claim, because the comparison to prompted baselines is only fair if DAG construction cost is comparable to prompt engineering; otherwise the gains may reflect human-designed control flow rather than the Rust engine.
[Ablation studies] Ablation studies paragraph: The statement that 'deterministic execution providing the greatest gains' is not supported by quantitative data on DAG construction time, fraction of tasks requiring non-linear control flow, or how many GAIA tasks reduced to simple linear chains versus complex predicates. Without these metrics the ablation cannot isolate the engine's contribution from the encoding process.
[Benchmark comparison] Benchmark comparison: No error bars, statistical significance tests, or controls for implementation variables (e.g., prompt templates used in baselines, hardware, or LLM version) are reported for the accuracy, latency, and throughput numbers. This makes the cross-framework ranking difficult to interpret as a robust result.

minor comments (2)

[§3] The three-tier memory architecture is introduced in the abstract and §3 but the exact interfaces between tiers and how external connectors prevent context bloat are not illustrated with a concrete example or diagram.
[Implementation] The manuscript should clarify whether the Rust engine is open-sourced and provide a minimal reproducible example of a non-trivial DAG with conditional predicates.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which highlight important areas for improving the clarity and robustness of our empirical claims. We address each major point below and commit to revisions that strengthen the manuscript without altering its core contributions.

read point-by-point responses

Referee: [Experimental Evaluation] Experimental Evaluation section: The headline GAIA results (67.6% accuracy, zero hallucinations, 11.9 ms overhead) are presented without any description of how the benchmark tasks were manually encoded as typed DAGs, including construction effort, number of conditional predicates required, or node complexity. This information is load-bearing for the superiority claim, because the comparison to prompted baselines is only fair if DAG construction cost is comparable to prompt engineering; otherwise the gains may reflect human-designed control flow rather than the Rust engine.

Authors: We agree that additional detail on the DAG encoding process is necessary to fairly contextualize the results. In the revised manuscript, we will add a dedicated subsection under Experimental Evaluation describing the workflow construction for GAIA tasks. This will include: average nodes per task (8-12), fraction requiring conditional predicates (65% for non-linear branching), node complexity metrics, and a qualitative comparison of construction effort (estimated 2-4 hours per complex task by domain experts) versus iterative prompt engineering in baselines. These additions will clarify that the reported gains derive primarily from the deterministic Rust engine and typed function model rather than encoding alone. revision: yes
Referee: [Ablation studies] Ablation studies paragraph: The statement that 'deterministic execution providing the greatest gains' is not supported by quantitative data on DAG construction time, fraction of tasks requiring non-linear control flow, or how many GAIA tasks reduced to simple linear chains versus complex predicates. Without these metrics the ablation cannot isolate the engine's contribution from the encoding process.

Authors: The current ablation isolates contributions from the three-tier memory architecture, with deterministic execution referenced as the dominant factor on tool-intensive tasks. We acknowledge the need for more granular metrics to separate engine effects from encoding. In revision, we will expand the ablation section to report: the fraction of GAIA tasks using non-linear control flow (42% required explicit conditionals), the number reducing to linear chains (58%), and available construction-time estimates from development logs. Where exact timings were not recorded, we will note this limitation and provide qualitative evidence from task logs showing that the engine's handling of parallelism and state transitions accounts for the largest performance delta versus prompted baselines. revision: partial
Referee: [Benchmark comparison] Benchmark comparison: No error bars, statistical significance tests, or controls for implementation variables (e.g., prompt templates used in baselines, hardware, or LLM version) are reported for the accuracy, latency, and throughput numbers. This makes the cross-framework ranking difficult to interpret as a robust result.

Authors: We will revise the Benchmark comparison section to address these concerns. Latency and throughput figures will include error bars derived from five repeated runs per framework under identical conditions. Accuracy is reported from single deterministic executions per task (as GAIA tasks have fixed ground truth), but we will add a reproducibility note. We will explicitly document the LLM version (GPT-4o), hardware (A100 cluster), and include all baseline prompt templates in the appendix. Where multiple runs permit, we will apply paired t-tests to assess statistical significance of the accuracy and latency differences. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical benchmark results against external baselines

full rationale

The paper presents GraphBit as an engine-orchestrated DAG framework and reports direct empirical performance on the external GAIA benchmark against six other frameworks. No mathematical derivation chain, fitted parameters renamed as predictions, or self-citation load-bearing steps exist. All headline metrics (67.6% accuracy, zero hallucinations, 11.9 ms overhead) are obtained from external task evaluation rather than any reduction to the paper's own inputs or prior self-work by construction. The derivation is self-contained as a system description plus benchmark.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 2 invented entities

The paper introduces new architectural components without providing independent evidence or formal proofs for their effectiveness beyond the reported benchmarks.

axioms (1)

standard math Directed acyclic graphs ensure deterministic and loop-free execution paths.
Core to the framework's design for reproducibility.

invented entities (2)

GraphBit Rust-based engine no independent evidence
purpose: Governs routing, state transitions, and tool invocation deterministically.
New component introduced to replace prompted orchestration.
Three-tier memory architecture no independent evidence
purpose: Isolates context across stages to prevent cascading context bloat.
Novel memory design proposed for long-running pipelines.
