Few Channels Draw The Whole Picture: Revealing Massive Activations in Diffusion Transformers
Pith reviewed 2026-05-15 05:55 UTC · model grok-4.3
The pith
A small set of massive activation channels in Diffusion Transformers controls image semantics in function, space, and transfer.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Massive activations form a sparse prompt-conditioned carrier subspace that organizes and controls semantic information in modern DiT models. They are functionally critical because a controlled disruption that zeroes them causes sharp collapse in generation quality, while an equally sized set of low-statistic channels has marginal effect. They are spatially organized because restricting image-stream tokens to massive channels and clustering them produces coherent partitions that closely align with the main subject and salient regions. They are transferable because transporting the activations from one prompt trajectory into another shifts the final image toward the source prompt while keeping
What carries the argument
massive activations: the small subset of hidden-state channels whose responses are consistently much larger than the rest, acting as a sparse prompt-conditioned carrier subspace
If this is right
- Zeroing the massive channels causes sharp collapse in generation quality while zeroing an equal number of low-magnitude channels does not.

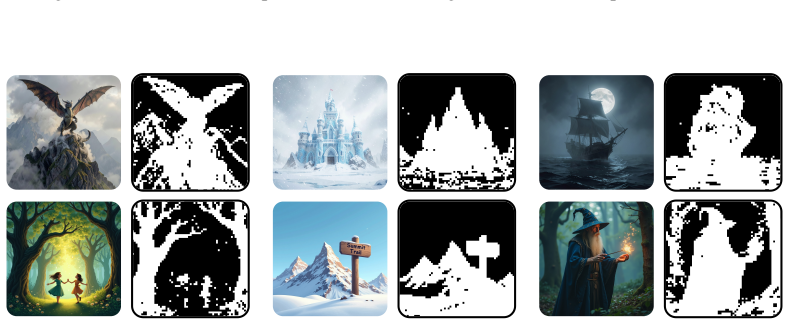

- Clustering tokens restricted to massive channels produces spatial partitions that align with the main subject and salient regions.

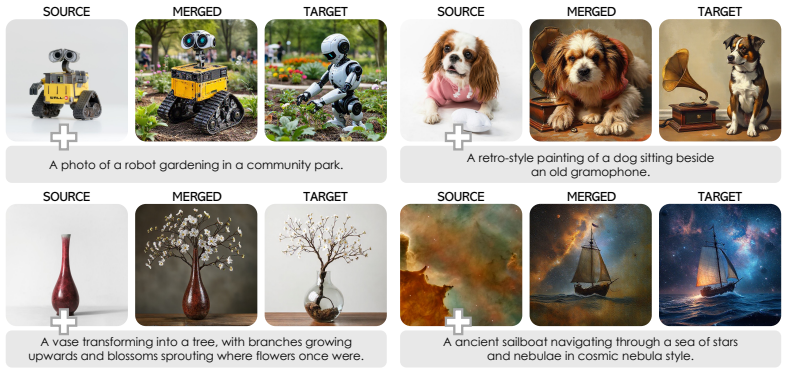

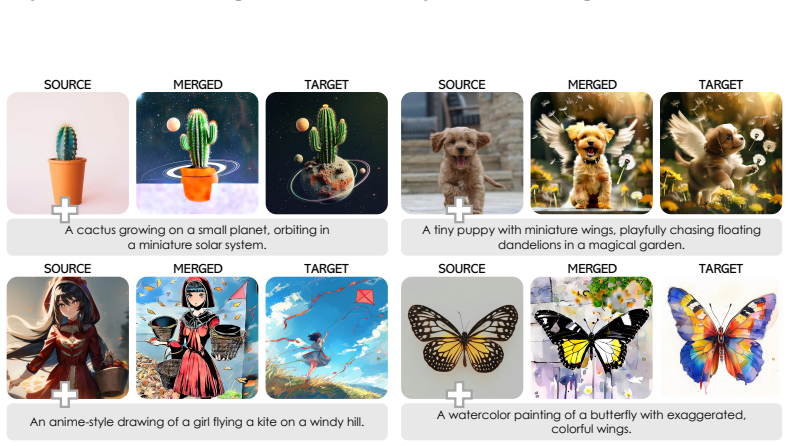

- Transporting massive activations between prompt trajectories shifts the output toward the source semantics while preserving target content.
- The transport property supports text-conditioned and image-conditioned semantic editing and subject-driven generation without any additional training.
Where Pith is reading between the lines
- Focusing computation or pruning on these channels could improve efficiency in large DiT models.
- The same magnitude-based identification might reveal similar sparse subspaces in other transformer generators.
- Semantic transport via activations could enable more controllable editing interfaces for artists without model fine-tuning.
- If the pattern holds across scales, it might indicate a general architectural feature of diffusion transformers rather than a model-specific quirk.
Load-bearing premise
Identification of massive channels through magnitude statistics stays stable across prompts and models, and the zeroing probe isolates their causal role without confounding network dynamics.
What would settle it
An experiment in which zeroing the massive channels identified on one set of prompts leaves generation quality intact on a different prompt or model, or in which their token clustering fails to align with image subjects.
Figures

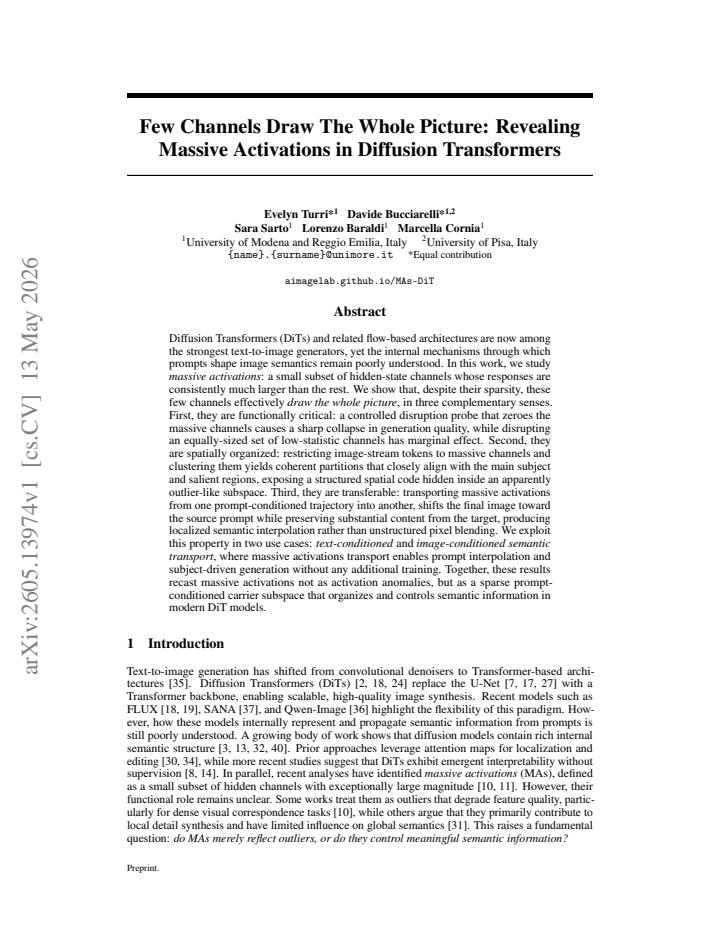

read the original abstract
Diffusion Transformers (DiTs) and related flow-based architectures are now among the strongest text-to-image generators, yet the internal mechanisms through which prompts shape image semantics remain poorly understood. In this work, we study massive activations: a small subset of hidden-state channels whose responses are consistently much larger than the rest. We show that, despite their sparsity, these few channels effectively draw the whole picture, in three complementary senses. First, they are functionally critical: a controlled disruption probe that zeroes the massive channels causes a sharp collapse in generation quality, while disrupting an equally-sized set of low-statistic channels has marginal effect. Second, they are spatially organized: restricting image-stream tokens to massive channels and clustering them yields coherent partitions that closely align with the main subject and salient regions, exposing a structured spatial code hidden inside an apparently outlier-like subspace. Third, they are transferable: transporting massive activations from one prompt-conditioned trajectory into another, shifts the final image toward the source prompt while preserving substantial content from the target, producing localized semantic interpolation rather than unstructured pixel blending. We exploit this property in two use cases: text-conditioned and image-conditioned semantic transport, where massive activations transport enables prompt interpolation and subject-driven generation without any additional training. Together, these results recast massive activations not as activation anomalies, but as a sparse prompt-conditioned carrier subspace that organizes and controls semantic information in modern DiT models.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper studies massive activations—a sparse subset of hidden-state channels with consistently larger magnitudes—in Diffusion Transformers (DiTs). It claims these channels are functionally critical (zeroing them sharply degrades generation quality while zeroing low-magnitude channels does not), spatially organized (clustering massive-channel tokens yields coherent subject-aligned partitions), and transferable (transporting them between prompt trajectories produces localized semantic interpolation). The authors demonstrate two downstream uses: text-conditioned prompt interpolation and image-conditioned subject-driven generation, both without additional training.
Significance. If the empirical claims hold after addressing controls, the work identifies a sparse, prompt-conditioned carrier subspace that organizes semantic information in modern DiTs. This reframes massive activations from anomalies to a structured mechanism, with immediate applications for training-free semantic editing. The combination of disruption probes, spatial clustering, and cross-prompt transport provides complementary evidence; the absence of parameter fitting or invented axioms is a strength.
major comments (3)
- [disruption probe section] § on controlled disruption probe (zeroing experiment): zeroing the top-k massive channels necessarily perturbs per-token mean and variance fed to subsequent RMSNorm/LayerNorm layers. Without a matched control that restores original activation statistics (e.g., re-normalization or bias correction after zeroing), the observed quality collapse could arise from global distributional shift rather than loss of semantic content carried by those channels alone. A quantitative comparison of activation statistics before/after zeroing is required.
- [spatial clustering section] Spatial organization section: the claim that clustering massive-channel tokens produces partitions that 'closely align with the main subject' needs quantitative validation. Report IoU, Dice, or precision-recall against ground-truth subject masks across a held-out prompt set; qualitative examples alone are insufficient to support the 'structured spatial code' conclusion.
- [transfer experiment section] Transferability experiments: when transporting massive activations from source to target trajectory, clarify whether the remaining (non-massive) channels retain their original statistics or are also rescaled. If the transport implicitly alters layer-norm inputs, the observed semantic shift may not be attributable solely to the massive channels.
minor comments (2)
- [figures] Figure captions should explicitly state the number of prompts, models, and random seeds used for each panel so readers can assess reproducibility.
- [methods] Notation for 'massive channels' should be defined once (e.g., channels whose magnitude exceeds k standard deviations of the layer) and used consistently; current usage mixes 'top-k' and 'outlier' terminology.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed feedback. We address each major comment point by point below, providing clarifications and committing to revisions that strengthen the empirical support without altering the core claims.
read point-by-point responses
-
Referee: [disruption probe section] § on controlled disruption probe (zeroing experiment): zeroing the top-k massive channels necessarily perturbs per-token mean and variance fed to subsequent RMSNorm/LayerNorm layers. Without a matched control that restores original activation statistics (e.g., re-normalization or bias correction after zeroing), the observed quality collapse could arise from global distributional shift rather than loss of semantic content carried by those channels alone. A quantitative comparison of activation statistics before/after zeroing is required.
Authors: We agree that zeroing channels perturbs per-token statistics for subsequent normalization layers. Our existing control—zeroing an equal number of low-magnitude channels—undergoes a comparable distributional shift yet produces only marginal quality degradation, which supports that the collapse is driven by loss of semantic content rather than the shift alone. To address the request directly, we will add quantitative tables comparing mean and variance (pre- and post-zeroing) for both massive and low-magnitude cases across layers and timesteps in the revised manuscript. revision: yes
-
Referee: [spatial clustering section] Spatial organization section: the claim that clustering massive-channel tokens produces partitions that 'closely align with the main subject' needs quantitative validation. Report IoU, Dice, or precision-recall against ground-truth subject masks across a held-out prompt set; qualitative examples alone are insufficient to support the 'structured spatial code' conclusion.
Authors: We concur that quantitative metrics are needed to substantiate the spatial alignment claim. We will generate ground-truth subject masks for a held-out prompt set, compute IoU and Dice scores for the clusters obtained from massive-channel tokens, and report mean scores with standard deviations in the revised spatial organization section. revision: yes
-
Referee: [transfer experiment section] Transferability experiments: when transporting massive activations from source to target trajectory, clarify whether the remaining (non-massive) channels retain their original statistics or are also rescaled. If the transport implicitly alters layer-norm inputs, the observed semantic shift may not be attributable solely to the massive channels.
Authors: In the transfer procedure we replace only the values of the massive channels with those from the source trajectory; the non-massive channels are left exactly as computed in the target trajectory with no rescaling or adjustment. Consequently, any change to layer-norm inputs arises exclusively from the massive-channel substitution. We will add an explicit description of this protocol, including pseudocode, to the transfer experiment section of the revised manuscript. revision: yes
Circularity Check
No significant circularity; purely empirical observations
full rationale
The paper contains no derivations, equations, fitted parameters, or self-citation chains that reduce claims to their own inputs. Massive channels are identified via direct magnitude statistics on observed activations; functional criticality is shown by zeroing interventions whose outcomes are measured independently; spatial organization and transferability are demonstrated through clustering and cross-prompt activation swapping. None of these steps define a quantity in terms of itself or rename a fitted result as a prediction. The analysis is self-contained against external benchmarks and exhibits none of the enumerated circularity patterns.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Building normalizing flows with stochastic interpolants
Michael S Albergo and Eric Vanden-Eijnden. Building normalizing flows with stochastic interpolants. InICLR, 2023
work page 2023
-
[2]
All are Worth Words: A ViT Backbone for Diffusion Models
Fan Bao, Shen Nie, Kaiwen Xue, Yue Cao, Chongxuan Li, Hang Su, and Jun Zhu. All are Worth Words: A ViT Backbone for Diffusion Models. InCVPR, 2023
work page 2023
-
[3]
Tiny Inference-Time Scaling with Latent Verifiers
Davide Bucciarelli, Evelyn Turri, Lorenzo Baraldi, Marcella Cornia, Lorenzo Baraldi, and Rita Cucchiara. Tiny Inference-Time Scaling with Latent Verifiers. InCVPR Findings, 2026
work page 2026
-
[4]
SANA-Sprint: One-Step Diffusion with Continuous-Time Consistency Distillation
Junsong Chen, Shuchen Xue, Yuyang Zhao, Jincheng Yu, Sayak Paul, Junyu Chen, Han Cai, Song Han, and Enze Xie. SANA-Sprint: One-Step Diffusion with Continuous-Time Consistency Distillation. InICCV, 2025
work page 2025
-
[5]
Vision Transformers Need Registers
Timothée Darcet, Maxime Oquab, Julien Mairal, and Piotr Bojanowski. Vision Transformers Need Registers. InICLR, 2024
work page 2024
-
[6]
Scaling Vision Transformers to 22 Billion Parameters
Mostafa Dehghani, Josip Djolonga, Basil Mustafa, Piotr Padlewski, Jonathan Heek, Justin Gilmer, Andreas Peter Steiner, Mathilde Caron, Robert Geirhos, Ibrahim Alabdulmohsin, et al. Scaling Vision Transformers to 22 Billion Parameters. InICML, 2023
work page 2023
-
[7]
Diffusion Models Beat GANs on Image Synthesis
Prafulla Dhariwal and Alexander Nichol. Diffusion Models Beat GANs on Image Synthesis. In NeurIPS, 2021
work page 2021
-
[8]
Attention (as Discrete-Time Markov) Chains
Yotam Erel, Olaf Dünkel, Rishabh Dabral, Vladislav Golyanik, Christian Theobalt, and Amit Haim Bermano. Attention (as Discrete-Time Markov) Chains. InNeurIPS, 2025
work page 2025
-
[9]
Scaling rectified flow transformers for high-resolution image synthesis
Patrick Esser, Sumith Kulal, Andreas Blattmann, Rahim Entezari, Jonas Müller, Harry Saini, Yam Levi, Dominik Lorenz, Axel Sauer, Frederic Boesel, Dustin Podell, Tim Dockhorn, Zion English, and Robin Rombach. Scaling rectified flow transformers for high-resolution image synthesis. InICML, 2024
work page 2024
-
[10]
Unleashing Diffusion Transformers for Visual Correspondence by Modulating Massive Activations
Chaofan Gan, Yuanpeng Tu, Xi Chen, Tieyuan Chen, Yuxi Li, Mehrtash Harandi, and Weiyao Lin. Unleashing Diffusion Transformers for Visual Correspondence by Modulating Massive Activations. InNeurIPS, 2025
work page 2025
-
[11]
Massive Activations are the Key to Local Detail Synthesis in Diffusion Transformers
Chaofan Gan, Zicheng Zhao, Yuanpeng Tu, Xi Chen, Ziran Qin, Tieyuan Chen, Mehrtash Harandi, and Weiyao Lin. Massive Activations are the Key to Local Detail Synthesis in Diffusion Transformers. InICLR, 2026
work page 2026
-
[12]
Tokenverse: Versatile multi-concept personalization in token modulation space.ACM TOG, 2025
Daniel Garibi, Shahar Yadin, Roni Paiss, Omer Tov, Shiran Zada, Ariel Ephrat, Tomer Michaeli, Inbar Mosseri, and Tali Dekel. Tokenverse: Versatile multi-concept personalization in token modulation space.ACM TOG, 2025
work page 2025
-
[13]
Unsupervised Semantic Correspondence Using Stable Diffusion
Eric Hedlin, Gopal Sharma, Shweta Mahajan, Hossam Isack, Abhishek Kar, Andrea Tagliasac- chi, and Kwang Moo Yi. Unsupervised Semantic Correspondence Using Stable Diffusion. In NeurIPS, 2023
work page 2023
-
[14]
ConceptAttention: Diffusion Transformers Learn Highly Interpretable Features
Alec Helbling, Tuna Han Salih Meral, Benjamin Hoover, Pinar Yanardag, and Duen Horng Chau. ConceptAttention: Diffusion Transformers Learn Highly Interpretable Features. In ICML, 2025
work page 2025
-
[15]
CLIPScore: A Reference-free Evaluation Metric for Image Captioning
Jack Hessel, Ari Holtzman, Maxwell Forbes, Ronan Le Bras, and Yejin Choi. CLIPScore: A Reference-free Evaluation Metric for Image Captioning. InEMNLP, 2021. 10
work page 2021
-
[16]
GANs Trained by a Two Time-Scale Update Rule Converge to a Local Nash Equilibrium
Martin Heusel, Hubert Ramsauer, Thomas Unterthiner, Bernhard Nessler, and Sepp Hochreiter. GANs Trained by a Two Time-Scale Update Rule Converge to a Local Nash Equilibrium. In NeurIPS, 2017
work page 2017
-
[17]
Denoising Diffusion Probabilistic Models
Jonathan Ho, Ajay Jain, and Pieter Abbeel. Denoising Diffusion Probabilistic Models. In NeurIPS, 2020
work page 2020
-
[18]
FLUX.https://github.com/black-forest-labs/flux, 2024
Black Forest Labs. FLUX.https://github.com/black-forest-labs/flux, 2024
work page 2024
-
[19]
FLUX.2: Frontier Visual Intelligence
Black Forest Labs. FLUX.2: Frontier Visual Intelligence. https://bfl.ai/blog/flux-2, 2025
work page 2025
-
[20]
Black Forest Labs, Stephen Batifol, Andreas Blattmann, Frederic Boesel, Saksham Consul, Cyril Diagne, Tim Dockhorn, Jack English, Zion English, Patrick Esser, et al. FLUX. 1 Kontext: Flow Matching for In-Context Image Generation and Editing in Latent Space.arXiv preprint arXiv:2506.15742, 2025
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[21]
Baiqi Li, Zhiqiu Lin, Deepak Pathak, Jiayao Li, Yixin Fei, Kewen Wu, Tiffany Ling, Xide Xia, Pengchuan Zhang, Graham Neubig, et al. GenAI-Bench: Evaluating and improving compositional text-to-visual generation.arXiv preprint arXiv:2406.13743, 2024
-
[22]
Flow Matching for Generative Modeling
Yaron Lipman, Ricky TQ Chen, Heli Ben-Hamu, Maximilian Nickel, and Matt Le. Flow Matching for Generative Modeling. InICLR, 2023
work page 2023
-
[23]
Flow Straight and Fast: Learning to Generate and Transfer Data with Rectified Flow
Xingchao Liu, Chengyue Gong, and Qiang Liu. Flow Straight and Fast: Learning to Generate and Transfer Data with Rectified Flow. InICLR, 2023
work page 2023
-
[24]
Scalable diffusion models with transformers
William Peebles and Saining Xie. Scalable diffusion models with transformers. InICCV, 2023
work page 2023
-
[25]
DreamBench++: A Human-Aligned Benchmark for Personalized Image Generation
Yuang Peng, Yuxin Cui, Haomiao Tang, Zekun Qi, Runpei Dong, Jing Bai, Chunrui Han, Zheng Ge, Xiangyu Zhang, and Shu-Tao Xia. DreamBench++: A Human-Aligned Benchmark for Personalized Image Generation. InICLR, 2025
work page 2025
-
[26]
A Hidden Semantic Bottleneck in Conditional Embeddings of Diffusion Transformers
Trung X Pham, Kang Zhang, Ji Woo Hong, and Chang D Yoo. A Hidden Semantic Bottleneck in Conditional Embeddings of Diffusion Transformers. InICLR, 2026
work page 2026
-
[27]
High-Resolution Image Synthesis with Latent Diffusion Models
Robin Rombach, Andreas Blattmann, Dominik Lorenz, Patrick Esser, and Björn Ommer. High-Resolution Image Synthesis with Latent Diffusion Models. InCVPR, 2022
work page 2022
-
[28]
Olga Russakovsky, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang, Andrej Karpathy, Aditya Khosla, Michael Bernstein, Alexander C. Berg, and Li Fei-Fei. ImageNet Large Scale Visual Recognition Challenge.IJCV, 2015
work page 2015
-
[29]
LAION- 5B: An open large-scale dataset for training next generation image-text models
Christoph Schuhmann, Romain Beaumont, Richard Vencu, Cade Gordon, Ross Wightman, Mehdi Cherti, Theo Coombes, Aarush Katta, Clayton Mullis, Mitchell Wortsman, et al. LAION- 5B: An open large-scale dataset for training next generation image-text models. InNeurIPS, 2022
work page 2022
-
[30]
Exploring Multi- modal Diffusion Transformers for Enhanced Prompt-based Image Editing
Joonghyuk Shin, Alchan Hwang, Yujin Kim, Daneul Kim, and Jaesik Park. Exploring Multi- modal Diffusion Transformers for Enhanced Prompt-based Image Editing. InICCV, 2025
work page 2025
-
[31]
Massive Activations in Large Language Models
Mingjie Sun, Xinlei Chen, J Zico Kolter, and Zhuang Liu. Massive Activations in Large Language Models. InCOLM, 2024
work page 2024
-
[32]
What the DAAM: Interpreting Stable Diffusion Using Cross Attention
Raphael Tang, Linqing Liu, Akshat Pandey, Zhiying Jiang, Gefei Yang, Karun Kumar, Pontus Stenetorp, Jimmy Lin, and Ferhan Ture. What the DAAM: Interpreting Stable Diffusion Using Cross Attention. InACL, 2023
work page 2023
-
[33]
Gemma Team. Gemma 3 Technical Report.arXiv preprint arXiv:2503.19786, 2025
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[34]
Diffuse, Attend, and Segment: Unsupervised Zero-Shot Segmentation using Stable Diffusion
Junjiao Tian, Lavisha Aggarwal, Andrea Colaco, Zsolt Kira, and Mar Gonzalez-Franco. Diffuse, Attend, and Segment: Unsupervised Zero-Shot Segmentation using Stable Diffusion. InCVPR, 2024. 11
work page 2024
-
[35]
Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. Attention is all you need. InNeurIPS, 2017
work page 2017
-
[36]
Chenfei Wu, Jiahao Li, Jingren Zhou, Junyang Lin, Kaiyuan Gao, Kun Yan, Sheng-ming Yin, Shuai Bai, Xiao Xu, Yilei Chen, et al. Qwen-Image Technical Report.arXiv preprint arXiv:2508.02324, 2025
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[37]
Enze Xie, Junsong Chen, Yuyang Zhao, Jincheng Yu, Ligeng Zhu, Yujun Lin, Zhekai Zhang, Muyang Li, Junyu Chen, Han Cai, et al. SANA 1.5: Efficient Scaling of Training-Time and Inference-Time Compute in Linear Diffusion Transformer. InICML, 2025
work page 2025
-
[38]
ImageReward: Learning and Evaluating Human Preferences for Text-to-Image Generation
Jiazheng Xu, Xiao Liu, Yuchen Wu, Yuxuan Tong, Qinkai Li, Ming Ding, Jie Tang, and Yuxiao Dong. ImageReward: Learning and Evaluating Human Preferences for Text-to-Image Generation. InNeurIPS, 2023
work page 2023
-
[39]
An Yang, Baosong Yang, Beichen Zhang, Binyuan Hui, Bo Zheng, Bowen Yu, Chengyuan Li, Dayiheng Liu, Fei Huang, Haoran Wei, Huan Lin, et al. Qwen2.5 technical report.arXiv preprint arXiv:2412.15115, 2024
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[40]
A Tale of Two Features: Stable Diffusion Complements DINO for Zero-Shot Semantic Correspondence
Junyi Zhang, Charles Herrmann, Junhwa Hur, Luisa Polania Cabrera, Varun Jampani, Deqing Sun, and Ming-Hsuan Yang. A Tale of Two Features: Stable Diffusion Complements DINO for Zero-Shot Semantic Correspondence. InNeurIPS, 2023
work page 2023
-
[41]
Peng Zheng, Dehong Gao, Deng-Ping Fan, Li Liu, Jorma Laaksonen, Wanli Ouyang, and Nicu Sebe. Bilateral Reference for High-Resolution Dichotomous Image Segmentation.CAAI Artificial Intelligence Research, 2024. 12 A Additional Implementation Details Model Setup.For the disruption experiment (Sec. 3.1), we generate 5 images per ImageNet class, following [26]...
work page 2024
