· Lean TheoremGeoViSTA: Geospatial Vision-Tabular Transformer for Multimodal Environment Representation
Pith reviewed 2026-05-15 02:19 UTC · model grok-4.3
The pith
GeoViSTA creates transferable geospatial embeddings by jointly modeling imagery and tabular socioeconomic data with cross-attention.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
GeoViSTA is a vision-tabular architecture that learns unified geospatial embeddings from co-registered gridded imagery and tabular data. It utilizes bilateral cross-attention to exchange spatial and semantic information across modalities, guided by a geography-aware attention mechanism that aligns continuous image patches with irregular census-tract tokens. The model is trained with a self-supervised joint masked-autoencoding objective, forcing it to recover missing image patches and tabular rows using local spatial context and cross-modal cues.
What carries the argument
Bilateral cross-attention guided by geography-aware attention to align image patches with tabular tokens in a joint masked autoencoding setup.
If this is right
- Outperforms baselines in linear probing for disease-specific mortality prediction across regions.
- Improves prediction of fire hazard frequency in held-out areas.
- Produces highly transferable representations for holistic geospatial inference.
- Captures the complete total environment by including both natural and built features with socioeconomic covariates.
Where Pith is reading between the lines
- Applying similar fusion techniques could enhance models in related fields like climate impact assessment.
- Testing on additional downstream tasks such as population density estimation would further validate the approach.
- The method suggests that modality alignment via geography-aware attention is key for multimodal geospatial data.
Load-bearing premise
That the bilateral cross-attention and geography-aware attention effectively align the modalities so the self-supervised training yields embeddings that generalize without loss of information.
What would settle it
If the joint model does not show improved performance over single-modality baselines on the held-out mortality and fire hazard prediction tasks, the benefit of the unified embeddings would be called into question.

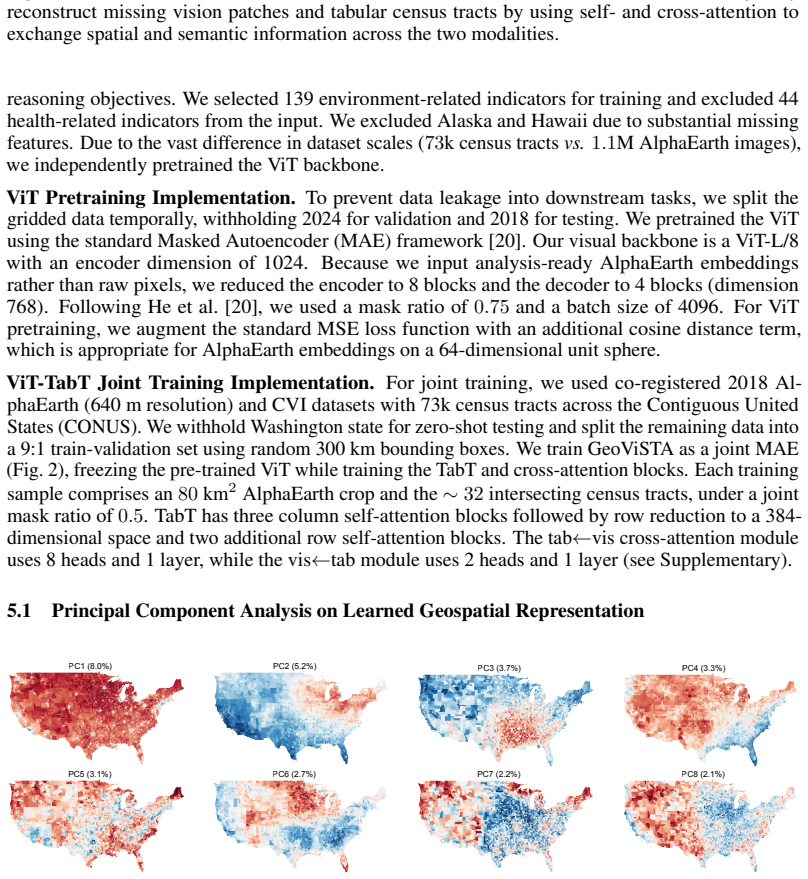

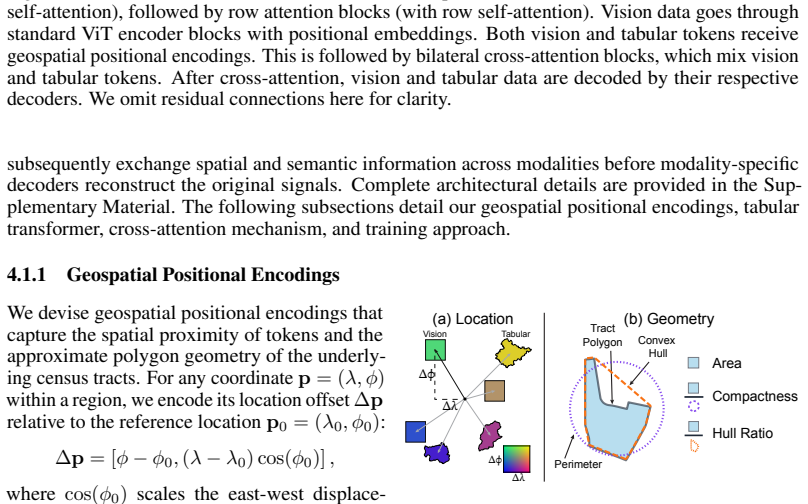

Figures
read the original abstract
Large-scale pretraining on Earth observation imagery has yielded powerful representations of the natural and built environment. However, most existing geospatial foundation models do not directly model the structured socioeconomic covariates typically stored in tabular form. This modality gap limits their ability to capture the complete total environment, which is critical for reasoning about complex environmental, social, and health-related outcomes. In this work, we propose GeoViSTA (Geospatial Vision-Tabular Transformer), a vision-tabular architecture that learns unified geospatial embeddings from co-registered gridded imagery and tabular data. GeoViSTA utilizes bilateral cross-attention to exchange spatial and semantic information across modalities, guided by a geography-aware attention mechanism that aligns continuous image patches with irregular census-tract tokens. We train GeoViSTA with a self-supervised joint masked-autoencoding objective, forcing it to recover missing image patches and tabular rows using local spatial context and cross-modal cues. Empirically, GeoViSTA's unified embeddings improve linear probing performance on high-impact downstream tasks, outperforming baselines in predicting disease-specific mortality and fire hazard frequency across held-out regions. These results demonstrate that jointly modeling the physical environment alongside structured socioeconomic context yields highly transferable representations for holistic geospatial inference.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes GeoViSTA, a vision-tabular transformer architecture that learns unified geospatial embeddings from co-registered Earth observation imagery and tabular socioeconomic data. It introduces bilateral cross-attention combined with a geography-aware attention mechanism to align image patches with irregular census-tract tokens, trained via a self-supervised joint masked-autoencoding objective that reconstructs missing patches and rows using cross-modal cues. The central claim is that these embeddings yield improved linear-probing performance on downstream tasks such as disease-specific mortality prediction and fire-hazard frequency forecasting across held-out regions, demonstrating the value of jointly modeling physical and structured socioeconomic context.
Significance. If the empirical results are substantiated with rigorous baselines, ablations, and statistical controls, the work would advance multimodal geospatial foundation models by closing the modality gap between visual and tabular data, enabling more holistic representations for environmental, health, and social inference tasks.
major comments (2)
- [Abstract] Abstract: the claim of outperforming baselines on downstream tasks is unsupported by any quantitative metrics, error bars, or baseline descriptions, which is load-bearing for the central empirical claim of improved transferable representations.
- [§4 and §3.2] §4 (Experiments) and §3.2 (Architecture): without reported ablation results on the bilateral cross-attention or geography-aware alignment, it remains unclear whether the self-supervised objective actually mitigates modality misalignment or information loss between irregular tabular tokens and image patches.
minor comments (2)
- [Abstract] Abstract: consider including at least one concrete performance delta or task-specific metric to make the empirical contribution immediately verifiable.
- [§3.2] Notation: define the geography-aware attention mask explicitly (e.g., via an equation) to clarify how continuous spatial coordinates are mapped to irregular tabular token positions.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback. We agree that the abstract requires quantitative support and that additional ablations would strengthen the claims regarding the architecture components. We will revise the manuscript accordingly.
read point-by-point responses
-
Referee: [Abstract] Abstract: the claim of outperforming baselines on downstream tasks is unsupported by any quantitative metrics, error bars, or baseline descriptions, which is load-bearing for the central empirical claim of improved transferable representations.
Authors: We agree that the abstract should include specific quantitative metrics to support the claims. The full manuscript reports these results in Section 4, including comparisons against unimodal vision and tabular baselines with error bars from multiple runs. In the revision, we will update the abstract to include key performance figures (e.g., relative improvements on mortality and fire-hazard tasks) and brief baseline descriptions. revision: yes
-
Referee: [§4 and §3.2] §4 (Experiments) and §3.2 (Architecture): without reported ablation results on the bilateral cross-attention or geography-aware alignment, it remains unclear whether the self-supervised objective actually mitigates modality misalignment or information loss between irregular tabular tokens and image patches.
Authors: We acknowledge that explicit ablations isolating bilateral cross-attention and geography-aware alignment are not currently reported. While the manuscript compares against unimodal baselines and demonstrates the benefit of the joint objective, dedicated ablations would better isolate these components. We will add these ablation studies to Section 4 in the revision, reporting performance drops when each mechanism is removed. revision: yes
Circularity Check
No circularity: empirical architecture with self-supervised training
full rationale
The paper introduces GeoViSTA as a vision-tabular transformer trained end-to-end with a joint masked-autoencoding objective on co-registered imagery and tabular socioeconomic data. All central claims (unified embeddings, improved linear probing on mortality and fire hazard tasks) rest on empirical evaluation across held-out regions rather than any closed-form derivation, parameter fitting renamed as prediction, or load-bearing self-citation. No equations reduce the output to the input by construction, and the architecture choices (bilateral cross-attention, geography-aware alignment) are presented as design decisions validated by downstream performance, not as theorems derived from prior author work.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Co-registered gridded imagery and tabular census-tract data can be aligned at the patch and token level.
- domain assumption A joint masked-autoencoding objective on both modalities will produce transferable embeddings for downstream geospatial tasks.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
GeoViSTA utilizes bilateral cross-attention to exchange spatial and semantic information across modalities, guided by a geography-aware attention mechanism that aligns continuous image patches with irregular census-tract tokens... self-supervised joint masked-autoencoding objective
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We bias attention by physical spatial distance in kilometers... ϕ(d) = tanh((d0 − d)/τ)
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Skilful precipitation nowcasting using deep generative models of radar,
S. Ravuri, K. Lenc, M. Willson, D. Kangin, R. Lam, P. Mirowski, M. Fitzsimons, M. Athanassiadou, S. Kashem, S. Madge, R. Prudden, A. Mandhane, A. Clark, A. Brock, K. Simonyan, R. Hadsell, N. Robin- son, E. Clancy, A. Arribas, and S. Mohamed, “Skilful precipitation nowcasting using deep generative models of radar,”Nature, vol. 597, no. 7878, pp. 672–677, Sep. 2021
work page 2021
-
[2]
Downscaling Extreme Precipitation With Wasserstein Regularized Diffusion,
Y . Liu, J. Doss-Gollin, Q. Dai, A. Veeraraghavan, and G. Balakrishnan, “Downscaling Extreme Precipitation With Wasserstein Regularized Diffusion,”IEEE Transactions on Geoscience and Remote Sensing, vol. 63, pp. 1–11, 2025
work page 2025
-
[3]
Designsafe: New cyberinfrastructure for natural hazards engineering,
E. M. Rathje, C. Dawson, J. E. Padgett, J.-P. Pinelli, D. Stanzione, A. Adair, P. Arduino, S. J. Brandenberg, T. Cockerill, C. Deyet al., “Designsafe: New cyberinfrastructure for natural hazards engineering,”Natural hazards review, vol. 18, no. 3, p. 06017001, 2017
work page 2017
-
[4]
Debris segmentation using post-hurricane aerial imagery,
K. Amini, Y . Liu, J. E. Padgett, G. Balakrishnan, and A. Veeraraghavan, “Debris segmentation using post-hurricane aerial imagery,”Computer-Aided Civil and Infrastructure Engineering, vol. 40, no. 25, pp. 4116–4131
-
[5]
Air pollution and cardiovascular disease: Jacc state-of- the-art review,
S. Rajagopalan, S. G. Al-Kindi, and R. D. Brook, “Air pollution and cardiovascular disease: Jacc state-of- the-art review,”Journal of the American College of Cardiology, vol. 72, no. 17, pp. 2054–2070, 2018
work page 2054
-
[6]
Environmental determinants of cardiovascular disease: lessons learned from air pollution,
S. G. Al-Kindi, R. D. Brook, S. Biswal, and S. Rajagopalan, “Environmental determinants of cardiovascular disease: lessons learned from air pollution,”Nature Reviews Cardiology, vol. 17, no. 10, pp. 656–672, 2020
work page 2020
-
[7]
General Geospatial Inference with a Population Dynamics Foundation Model,
M. Agarwal, M. Sun, C. Kamath, A. Muslim, P. Sarker, J. Paul, H. Yee, M. Sieniek, K. Jablonski, Y . Mayer, D. Fork, S. de Guia, J. McPike, A. Boulanger, T. Shekel, D. Schottlander, Y . Xiao, M. C. Manukonda, Y . Liu, N. Bulut, S. Abu-el-haija, B. Perozzi, M. Bharel, V . Nguyen, L. Barrington, N. Efron, Y . Matias, G. Corrado, K. Eswaran, S. Prabhakara, S....
work page 2025
-
[8]
Google Earth Engine: Planetary-scale geospatial analysis for everyone,
N. Gorelick, M. Hancher, M. Dixon, S. Ilyushchenko, D. Thau, and R. Moore, “Google Earth Engine: Planetary-scale geospatial analysis for everyone,”Remote Sensing of Environment, vol. 202, pp. 18–27, Dec. 2017
work page 2017
-
[9]
RainNet: A Large-Scale Imagery Dataset and Benchmark for Spatial Precipitation Downscaling,
X. Chen, K. Feng, N. Liu, B. Ni, Y . Lu, Z. Tong, and Z. Liu, “RainNet: A Large-Scale Imagery Dataset and Benchmark for Spatial Precipitation Downscaling,”Advances in Neural Information Processing Systems, vol. 35, pp. 9797–9812, Dec. 2022
work page 2022
-
[10]
M. Veillette, S. Samsi, and C. Mattioli, “SEVIR : A Storm Event Imagery Dataset for Deep Learning Applications in Radar and Satellite Meteorology,” inAdvances in Neural Information Processing Systems, vol. 33. Curran Associates, Inc., 2020, pp. 22 009–22 019
work page 2020
-
[11]
Computer vision uncovers predictors of physical urban change,
N. Naik, S. D. Kominers, R. Raskar, E. L. Glaeser, and C. A. Hidalgo, “Computer vision uncovers predictors of physical urban change,”Proceedings of the National Academy of Sciences, vol. 114, no. 29, pp. 7571–7576, Jul. 2017
work page 2017
-
[12]
A land use and land cover classification system for use with remote sensor data,
J. R. Anderson, E. E. Hardy, J. T. Roach, and R. E. Witmer, “A land use and land cover classification system for use with remote sensor data,” USGS Numbered Series 964, 1976
work page 1976
-
[13]
C. F. Brown, M. R. Kazmierski, V . J. Pasquarella, W. J. Rucklidge, M. Samsikova, C. Zhang, E. Shelhamer, E. Lahera, O. Wiles, S. Ilyushchenko, N. Gorelick, L. L. Zhang, S. Alj, E. Schechter, S. Askay, O. Guinan, R. Moore, A. Boukouvalas, and P. Kohli, “AlphaEarth Foundations: An embedding field model for accurate and efficient global mapping from sparse ...
work page 2025
-
[14]
SatCLIP: Global, General-Purpose Location Embeddings with Satellite Imagery,
K. Klemmer, E. Rolf, C. Robinson, L. Mackey, and M. Rußwurm, “SatCLIP: Global, General-Purpose Location Embeddings with Satellite Imagery,” Apr. 2024. 10
work page 2024
-
[15]
Prithvi-EO-2.0: A Versatile Multi-Temporal Foundation Model for Earth Observation Applications,
D. Szwarcman, S. Roy, P. Fraccaro, Þ. E. Gíslason, B. Blumenstiel, R. Ghosal, P. H. de Oliveira, J. L. d. S. Almeida, R. Sedona, Y . Kang, S. Chakraborty, S. Wang, C. Gomes, A. Kumar, M. Truong, D. Godwin, H. Lee, C.-Y . Hsu, A. A. Asanjan, B. Mujeci, D. Shidham, T. Keenan, P. Arevalo, W. Li, H. Alemohammad, P. Olofsson, C. Hain, R. Kennedy, B. Zadrozny, ...
work page 2025
-
[16]
OlmoEarth: Stable Latent Image Modeling for Multimodal Earth Observation,
H. Herzog, F. Bastani, Y . Zhang, G. Tseng, J. Redmon, H. Sablon, R. Park, J. Morrison, A. Buraczynski, K. Farley, J. Hansen, A. Howe, P. A. Johnson, M. Otterlee, T. Schmitt, H. Pitelka, S. Daspit, R. Ratner, C. Wilhelm, S. Wood, M. Jacobi, H. Kerner, E. Shelhamer, A. Farhadi, R. Krishna, and P. Beukema, “OlmoEarth: Stable Latent Image Modeling for Multim...
work page 2025
-
[17]
TerraMind: Large-Scale Generative Multimodality for Earth Observation,
J. Jakubik, F. Yang, B. Blumenstiel, E. Scheurer, R. Sedona, S. Maurogiovanni, J. Bosmans, N. Dionelis, V . Marsocci, N. Kopp, R. Ramachandran, P. Fraccaro, T. Brunschwiler, G. Cavallaro, J. Bernabe-Moreno, and N. Longépé, “TerraMind: Large-Scale Generative Multimodality for Earth Observation,” Apr. 2025
work page 2025
-
[18]
X. Guo, J. Lao, B. Dang, Y . Zhang, L. Yu, L. Ru, L. Zhong, Z. Huang, K. Wu, D. Hu, H. He, J. Wang, J. Chen, M. Yang, Y . Zhang, and Y . Li, “SkySense: A Multi-Modal Remote Sensing Foundation Model Towards Universal Interpretation for Earth Observation Imagery,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2024, pp....
work page 2024
-
[19]
SatMAE: Pre-training Transformers for Temporal and Multi-Spectral Satellite Imagery,
Y . Cong, S. Khanna, C. Meng, P. Liu, E. Rozi, Y . He, M. Burke, D. B. Lobell, and S. Ermon, “SatMAE: Pre-training Transformers for Temporal and Multi-Spectral Satellite Imagery,” inAdvances in Neural Information Processing Systems, Oct. 2022
work page 2022
-
[20]
Masked Autoencoders Are Scalable Vision Learners,
K. He, X. Chen, S. Xie, Y . Li, P. Dollár, and R. Girshick, “Masked Autoencoders Are Scalable Vision Learners,” Dec. 2021
work page 2021
-
[21]
About the u.s. climate vulnerability index,
Environmental Defense Fund and Texas A&M University, “About the u.s. climate vulnerability index,” https://climatevulnerabilityindex.org/about/, 2023, accessed: 2026-04-20
work page 2023
-
[22]
S. Ebrahimi, S. O. Arik, Y . Dong, and T. Pfister, “LANISTR: Multimodal learning from structured and unstructured data,”arXiv:2305.16556, 2023
-
[23]
TIP: Tabular-image pre-training for multimodal classification with incomplete data,
S. Du, S. Zheng, Y . Wang, W. Bai, D. P. O’Regan, and C. Qin, “TIP: Tabular-image pre-training for multimodal classification with incomplete data,” inComputer Vision – ECCV 2024, 2024, pp. 478–496
work page 2024
-
[24]
TabTransformer: Tabular Data Modeling Using Contextual Embeddings
X. Huang, A. Khetan, M. Cvitkovic, and Z. Karnin, “TabTransformer: Tabular data modeling using contextual embeddings,”arXiv:2012.06678, 2020
work page internal anchor Pith review arXiv 2012
-
[25]
Revisiting deep learning models for tabular data,
Y . Gorishniy, I. Rubachev, V . Khrulkov, and A. Babenko, “Revisiting deep learning models for tabular data,” inAdvances in Neural Information Processing Systems, vol. 34, 2021, pp. 18 932–18 943. [Online]. Available: https://proceedings.neurips.cc/paper/2021/hash/9d86d83f925f2149e9edb0ac3b49229c-Abstract. html
work page 2021
-
[26]
Best of both worlds: Multimodal contrastive learning with tabular and imaging data,
P. Hager, M. J. Menten, and D. Rueckert, “Best of both worlds: Multimodal contrastive learning with tabular and imaging data,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2023, pp. 23 924–23 935
work page 2023
-
[27]
An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale,
A. Dosovitskiy, L. Beyer, A. Kolesnikov, D. Weissenborn, X. Zhai, T. Unterthiner, M. Dehghani, M. Min- derer, G. Heigold, S. Gelly, J. Uszkoreit, and N. Houlsby, “An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale,” Jun. 2021
work page 2021
-
[28]
Train short, test long: Attention with linear biases enables input length extrapolation,
O. Press, N. A. Smith, and M. Lewis, “Train short, test long: Attention with linear biases enables input length extrapolation,” inInternational Conference on Learning Representations, 2022. [Online]. Available: https://openreview.net/forum?id=R8sQPpGCv0
work page 2022
-
[29]
A Simple Framework for Contrastive Learning of Visual Representations,
T. Chen, S. Kornblith, M. Norouzi, and G. Hinton, “A Simple Framework for Contrastive Learning of Visual Representations,” Jul. 2020
work page 2020
-
[30]
Emerging Properties in Self-Supervised Vision Transformers,
M. Caron, H. Touvron, I. Misra, H. Jégou, J. Mairal, P. Bojanowski, and A. Joulin, “Emerging Properties in Self-Supervised Vision Transformers,” May 2021
work page 2021
-
[31]
Scikit-learn: Machine learning in python,
F. Pedregosa, G. Varoquaux, A. Gramfort, V . Michel, B. Thirion, O. Grisel, M. Blondel, P. Prettenhofer, R. Weiss, V . Dubourget al., “Scikit-learn: Machine learning in python,”Journal of Machine Learning Research, vol. 12, pp. 2825–2830, 2011. 11
work page 2011
-
[32]
National Vital Statistics System, Mortality 1999–2020 on CDC WONDER Online Database,
Centers for Disease Control and Prevention, National Center for Health Statistics, “National Vital Statistics System, Mortality 1999–2020 on CDC WONDER Online Database,” http://wonder.cdc.gov/mcd-icd10. html, 2021, data are from the Multiple Cause of Death Files, 1999–2020, as compiled from data provided by the 57 vital statistics jurisdictions through th...
work page 1999
-
[33]
E. Chuvieco, M. L. Pettinari, J. Lizundia-Loiola, T. Storm, and M. Padilla Parellada, “ESA Fire Climate Change Initiative (Fire_cci): MODIS Fire_cci Burned Area Pixel product, version 5.1,” https://catalogue. ceda.ac.uk/uuid/58f00d8814064b79a0c49662ad3af537/, 2018, published: 2018-11-01. 12 Supplementary Material GeoViSTA: Geospatial Vision-Tabular Transf...
work page 2018
