A symmetry-constrained two-orbital continuum model captures Weyl-node evolution and Fermi-arc spin texture in trigonal PtBi2.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

A minimal two-orbital continuum model constrained by C3v and time-reversal symmetries reproduces PtBi2 Weyl-node evolution under SOC, node annihilations, and Fermi-arc spin texture.

T0 review reviewed 2026-07-14 challenge →

load-bearing objection Clean, usable two-orbital continuum model for PtBi2 Weyl nodes and arcs; topology is solid, quantitative fidelity to DFT is not yet shown. the 3 major comments →

arxiv 2607.10937 v1 pith:MDFUQ2C5 submitted 2026-07-12 cond-mat.supr-con

A minimal model for the Weyl nodes and Fermi arcs of PtBi$_2$

Tobias Crist\'ofoli , Manuel Alonso Lemos , Jorge I. Facio , Pablo S. Cornaglia This is my paper
classification cond-mat.supr-con PACS 71.55.Ak
keywords Weyl semimetalFermi arcsPtBi2spin-orbit couplingminimal continuum modelsurface superconductivityspin-momentum locking
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Trigonal PtBi2 is a Weyl semimetal whose surface Fermi arcs have been linked to superconductivity, yet most theory of that surface superconductivity has used models untethered from the material's microscopic bands. This paper builds a minimal continuum Hamiltonian, guided by density-functional results and forced to respect the crystal's mirror, time-reversal and threefold symmetries, that keeps only the Bi in-plane p orbitals as the active degrees of freedom. The model produces the twelve Weyl nodes of the material, tracks how spin-orbit coupling splits and annihilates them, and yields surface Fermi arcs whose spin-momentum locking can be matched to first-principles calculations. Because the construction is sector-diagonal and symmetry-complete, it supplies a transparent platform on which pairing and surface superconductivity can be studied without inventing an entirely new effective theory.

Core claim

A two-orbital continuum Hamiltonian, written in the Bi {px, py} subspace and constrained by mirror Mx and time-reversal, plus its C3v multi-sector extension, reproduces the topology of the Weyl phase of trigonal PtBi2, the SOC-driven splitting and pairwise annihilation of the nodes, and the spin texture of the surface Fermi arcs, while matching the orbital character seen in DFT.

What carries the argument

The sector-0 continuum Hamiltonian H0(k)=f(k)·τ (with lowest-order polynomials f_i fixed by Mx and T) together with the on-site SOC term g(n̂·σ)⊗τy that block-diagonalizes the problem into two spin sectors whose nodes annihilate at a critical g; the full twelve-node C3v model is then obtained by rotating three such sectors.

Load-bearing premise

The claim that only the Bi in-plane p orbitals carry the topological variation across the Weyl nodes, while every other orbital remains a nearly constant spectator.

What would settle it

A DFT Berry-curvature or orbital-projected band calculation showing that Bi 6pz or Pt 5d weight varies strongly across a node, or that the two-orbital continuum model fails to reproduce the measured arc spin texture once those orbitals are restored.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • Surface superconductivity on the Fermi arcs can be studied with a microscopic, symmetry-complete Bogoliubov–de Gennes Hamiltonian that is sector-diagonal under zero-momentum pairing.
  • The same continuum construction supplies spin-momentum-locked arc states whose texture is tunable by the ratio of on-site to linear-in-k SOC terms, allowing direct comparison with ARPES and spin-resolved photoemission.
  • Node-annihilation thresholds and residual node positions become analytic functions of a few SOC parameters, giving a transparent map of the Weyl-phase diagram versus spin-orbit strength.
  • Intervalley hybridization can be added perturbatively without gapping the nodes, so the model remains a controlled starting point for multi-arc physics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Because pairing at zero momentum stays inside a single Γ–M sector, the classification of surface order parameters already developed for C3v can be imported almost unchanged onto this Hamiltonian.
  • The analytic annihilation condition gc ≈ |a2| offers a simple experimental knob: any external perturbation that renormalizes the effective SOC strength should move the remaining nodes along the predicted trajectories.
  • If the spectator-orbital assumption holds, the same two-orbital truncation may serve as a template for other Bi- or Sb-based Weyl materials whose low-energy states are dominated by in-plane p character.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The manuscript constructs a symmetry-constrained continuum model for the low-energy Weyl physics of trigonal PtBi2. Guided by DFT, the authors retain an effective Bi {px, py} orbital subspace, group arc-connected Weyl nodes into sectors related by Mx and T, and write the lowest-order polynomials (Eqs. 2–5) that place Weyl nodes at a common point w. On-site SOC (Eqs. 6–8) is shown analytically to split the spinless nodes and drive pairwise annihilations at a critical gc (Eq. 11), with linear-in-k terms (V3, V4) controlling spin texture without changing the leading topology. A C3v multi-sector assembly (Eqs. 17–19) restores the full point group. Slab calculations produce Fermi arcs whose spin-momentum locking can be tuned to resemble ab initio results. The model is offered as a microscopic starting point for surface superconductivity studies.

Significance. If the truncation and sector construction hold, the paper supplies a transparent, analytically tractable Hamiltonian that links DFT-derived orbital content and node trajectories to the Fermi-arc spin texture relevant for the reported surface superconductivity. Strengths include systematic use of qsymm for allowed terms, closed-form SOC splitting and annihilation conditions (Eqs. 9–12), an explicit table of longitudinal vs transverse effects of linear SOC (Table 2), and a clean C3v multi-sector assembly. These features make the model more directly tied to the material than purely phenomenological arc models and provide a natural sector-diagonal setting for future BdG analyses of arc pairing.

major comments (3)
  1. [Introduction / Fig. 1 and SM] The central claim that the model “reproduces the orbital content and the band topology of PtBi2” rests on the assertion (text after Fig. 1 and SM) that Bi 6pz and Pt 5d orbitals are “largely spectators” whose weight “var[ies] little across the node.” Fig. 1a shows only a color-scale orbital weight along one cut; there is no orbital-projected Berry curvature, monopole-strength decomposition, or quantitative fidelity metric (e.g., overlap of the two-orbital projected Hamiltonian with the DFT bands near the nodes). Because the two-orbital continuum blocks (Eqs. 1–8) plus C3 replication are justified by this truncation, the claim of correct topological charges and arc spin texture under realistic SOC is not fully substantiated. A quantitative check (or a carefully qualified statement of the approximation’s domain of validity) is needed.
  2. [Spin-orbit coupling / Table 1 / Fig. 2] Node positions (wx, wy, wz) and velocities (a1, a2, a3) are least-squares fitted to zero-SOC DFT, while g1–g4, µ, and β are chosen by hand so that annihilation occurs and the arc spin texture “resembles” ab initio results (Table 1, Fig. 3). The manuscript does not report a quantitative comparison of the full-SOC node locations, velocities, or surface spin polarization against the same DFT setup used for the zero-SOC fit (Refs. [13,14]). Without that comparison, the statement that the model “captures the evolution of the Weyl nodes with spin–orbit coupling” remains qualitative. A side-by-side table or figure of model vs DFT node coordinates and chiralities at physical SOC would make the claim falsifiable.
  3. [C3 symmetrization / Conclusions] Inter-sector hybridisation is asserted to “displace the nodes at the perturbative level rather than gapping them” because sectors are “mutually off-resonant at the node momenta.” No estimate of the hybridisation scale relative to the intra-sector gaps or node separations is given, nor is a prototype T(k) written explicitly. Since the twelve-node C3v spectrum and the sector-diagonal pairing argument in the Conclusions both rely on this assumption, a brief estimate (or a numerical check with a symmetry-allowed T) is required to confirm that the nodes remain intact.
minor comments (5)
  1. [Abstract / Conclusions] The abstract and final paragraph claim the model “reproduces the orbital content,” while the body more carefully says it “qualitatively reproduces the evolution.” Align the abstract language with the body.
  2. [Fig. 3] Fig. 3 color bar and axis labels use mixed notation (ky/y, kx/x, Sz/DOS); consistent dimensionless labels (ky/wy, etc.) and a clearer definition of the normalized spin would help.
  3. [Fermi arcs / Fig. 3] The regularization of the continuum model along kz for the slab (mentioned but deferred to SM) should at least state the lattice constant and the number of layers used for Fig. 3 so that the surface DOS is reproducible from the main text.
  4. [The model / Eq. (5)] Eq. (5) introduces µ and β to shape the arc and gap an accidental nodal line; the allowed range of β is only in the SM. A one-sentence statement of the condition that keeps the four nodes isolated would help readers of the main text.
  5. [Fig. 1 caption / Table 1] Typographical: “Bi{6p x,6p y}” and similar spacing inconsistencies appear in several places; “w= (0.324,0.041,−0.152) 2π/a” in the Fig. 1 caption should match the fitted wx, wy, wz of Table 1 or the discrepancy should be explained.

Circularity Check

2 steps flagged

Zero-SOC node positions and velocities are least-squares fitted to DFT, and SOC/arc parameters are hand-tuned to match annihilation and spin texture; the symmetry-derived topology itself is independent of those fits.

specific steps
  1. fitted input called prediction [Paragraph introducing Table 1; Table 1 (spinless model parameters)]
    "The spinless node positions and the ai parameters were obtained by performing a least-squares-fit of the DFT bands near one of the Weyl nodes for zero SOC (see Ref. [14] for the DFT calculation details)."

    wx, wy, wz and a1, a2, a3 are fitted directly to the zero-SOC DFT dispersion at a node. The subsequent statement that the model yields Weyl nodes at those positions (and the local band structure of Fig. 2d at λ=0) is therefore true by construction of the fit, not an independent check. Chirality and the functional form remain symmetry-derived; only the numerical locations/velocities are forced by the fit.

  2. fitted input called prediction [SOC parameter choice and Fermi-arc spin-texture paragraph (before/around Fig. 3)]
    "The SOC parameters were chosen here to produce a spin texture on the Fermi arc that resembles the one obtained in ab initio calculations [8]. Different k-space spin orientations can be obtained depending on the full set of parameters, as shown in the SM."

    g1–g4 (and µ, β for arc shape) are free parameters adjusted until the surface spin texture and the SOC-driven annihilation match the desired DFT/ARPES phenomenology. Claiming the model is “able to describe the spin-momentum locking of the surface Fermi arcs” after that tuning is a calibrated reproduction, not a parameter-free prediction of the texture.

full rationale

This is a standard symmetry-constrained continuum model calibrated to DFT, not a closed self-definitional loop. The load-bearing theoretical content—the Mx/T-allowed polynomials (Eqs. 2–5), the on-site SOC block structure (Eqs. 6–11), the annihilation threshold gc ≈ |a2|, the linear-k spin-canting analysis (Table 2), and the C3 multi-sector assembly—is derived from representation theory and does not reduce to the fitted numbers. What is fitted is then said to “reproduce” the same DFT features: wi and ai are least-squares fits to zero-SOC DFT bands, so the zero-SOC node locations and local velocities match by construction; g1–g4 and µ, β are chosen so that g exceeds gc and the arc spin texture resembles ab initio. That is ordinary model calibration, not a prediction forced by definition. Self-citations to the authors’ own DFT papers [13,14] supply the target phenomenology (node count, annihilation under SOC) but are externally falsifiable DFT results, not uniqueness theorems. Score 3 reflects two mild fitted-input-as-reproduction steps without collapse of the central symmetry argument.

Axiom & Free-Parameter Ledger

4 free parameters · 4 axioms · 2 invented entities

The central claim rests on (i) a set of free parameters fitted or chosen to match DFT, (ii) standard crystalline and time-reversal symmetries, and (iii) two modeling inventions—the two-orbital truncation and the sector grouping—that are justified by DFT orbital weights but not independently measured.

free parameters (4)
  • wx, wy, wz (spinless Weyl-node coordinates) = 0.4242, −0.041, 0.123 Å−1
    Least-squares fitted to DFT bands at zero SOC; set the locations of all twelve nodes via symmetry.
  • a1, a2, a3 (velocity coefficients) = −0.15, −0.1, 0.4 eV
    Fitted to DFT band slopes near a node; control chirality and cone anisotropy.
  • µ, β (arc-shape parameters) = 0.05, −0.01 eV
    Hand-chosen to disperse the Fermi arc and gap accidental nodal lines while preserving node positions.
  • g1, g2, g3, g4 (SOC strengths) = 0.1, −0.125, 0.05, −0.05 eV
    Chosen so that g exceeds the annihilation threshold and the resulting arc spin texture resembles ab-initio results.
axioms (4)
  • domain assumption Crystal point group is C3v and time-reversal symmetry is present; mirror Mx and T constrain the allowed polynomials.
    Standard for trigonal PtBi2; used throughout to generate f_i(k) and SOC terms.
  • domain assumption Continuum (k·p) expansion about the nodes is sufficient; lattice-scale details can be discarded.
    Explicit modeling choice stated after the orbital discussion; enables the polynomial Hamiltonian.
  • ad hoc to paper Lowest-order symmetry-allowed polynomials that vanish at a common point w already capture the essential topology.
    Higher-order terms are omitted “for simplicity”; validity is checked only qualitatively against DFT.
  • ad hoc to paper Inter-sector hybridization is a small perturbation that does not gap the nodes.
    Stated after Eq. 19; needed to keep the twelve nodes exact in the multi-sector Hamiltonian.
invented entities (2)
  • Two-orbital effective subspace spanned by Bi 6px, 6py no independent evidence
    purpose: Reduce the multi-orbital DFT Hilbert space to the degrees of freedom that vary across the Weyl nodes.
    Justified by orbital-weight plots (Fig. 1) but not independently measured; other orbitals are declared spectators.
  • Sector (valley) degree of freedom grouping arc-connected Weyl-node pairs no independent evidence
    purpose: Allow a block-diagonal continuum model while still describing experimentally observed Fermi arcs.
    Modeling device introduced after Fig. 1; grouping is not unique and is chosen so that MxT-related nodes share a sector.

reviewed 2026-07-14 · how reviews work

0 comments
Cite this review

Pith. "Pith review of A minimal model for the Weyl nodes and Fermi arcs of PtBi$_2$." pith.science (2026). https://pith.science/paper/MDFUQ2C5

@misc{pith2026260710937,
  author       = {Pith},
  title        = {Pith review of: A minimal model for the Weyl nodes and Fermi arcs of PtBi$_2$},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MDFUQ2C5}},
  note         = {Machine review of arXiv:2607.10937}
}
Share X Bluesky LinkedIn Reddit HN
abstract

Weyl semimetals host topologically protected Fermi arcs on their surfaces, originating from the Chern number of the bulk Weyl nodes. In trigonal PtBi$_2$, superconducting signatures have been associated with the Fermi arcs. Theoretical descriptions of this surface superconductivity have so far relied on effective models that are not directly tied to the microscopic electronic structure of the material. In this work we develop a minimal description of the low-energy bands guided by density functional theory calculations and fully constrained by the relevant crystalline and time-reversal symmetries. The model captures the evolution of the Weyl nodes with spin-orbit coupling, including node annihilations, and is able to describe the spin-momentum locking of the surface Fermi arcs. It reproduces the orbital content and the band topology of PtBi$_2$ and provides a starting point for further studies.

Figures

Figures reproduced from arXiv: 2607.10937 by Jorge I. Facio, Manuel Alonso Lemos, Pablo S. Cornaglia, Tobias Crist\'ofoli.

Figure 1

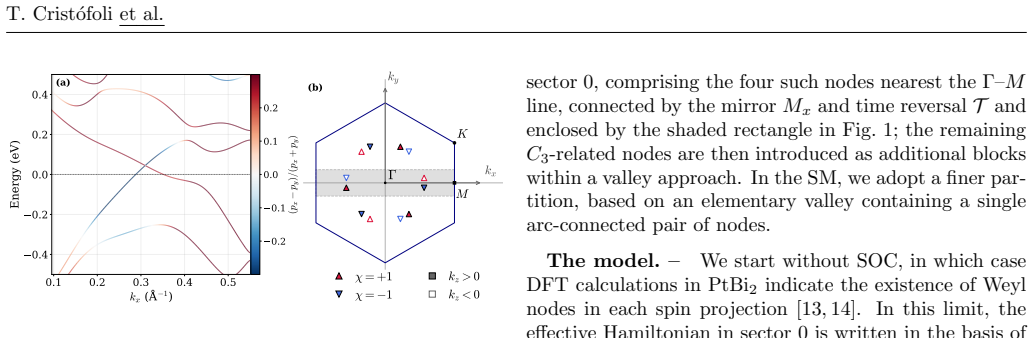

Figure 1. Figure 1: (a) Calculated electronic band structure in the vicinity [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a)–(c) Weyl-node trajectories in momentum space as [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The top row shows the surface density of states [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
