Latency-Constrained Encoded Quantum Teleportation with Punctured Codes

T0 review · 3 major / 6 minor · reviewed 2026-08-01 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Under a latency constraint, the best quantum teleportation code is the one matching the time it takes to gather entangled pairs, and puncturing a single base code supplies that flexibility.

desk verdict A coherent simulation study with a useful qualitative tradeoff, but the common-latency comparison rests on an unvalidated approximation. read the letter →

arxiv 2607.19770 v1 pith:G53RBQYP submitted 2026-07-22 quant-ph cs.ITcs.NImath.IT

Mahmoud Saad Abouamer , Jakob Kaltoft S{o}ndergaard , Petar Popovski This is my paper · ORCID
classification quant-phcs.ITcs.NImath.IT MSC 81P6881P70 PACS 03.67.-a03.67.Hk
keywords quantumteleportationentanglementgenerationerrorcorrectioncodepuncturinglatencyconstraintmemorydecoherencelogicalprobabilityadaptivecoding
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Quantum teleportation needs shared entangled pairs, but in a real network those pairs arrive one by one and decay while waiting in memory. The paper argues that the logical error probability of encoded teleportation therefore depends not just on the code's error-correction power but on how long it takes to acquire the required number of pairs. It develops a unified model that couples stochastic entanglement generation, memory decoherence, and CSS-code decoding, and uses it to compare uncoded teleportation with a family of punctured codes derived from a single length-17 base code. The central result is a decision rule: for each latency budget, link quality, and noise asymmetry, there is an optimal code length, and no fixed code wins everywhere. A sympathetic reader should care because this identifies a resource-aware adaptation principle for quantum networks, where code choice is a network-layer decision, not just a coding-theoretic one.

What carries the argument

The central object is the latency-constrained decision rule n*(L,p_d,η)=argmin_n PL(n;L,p_d,η), which selects the puncturing tier (effective code length) that minimizes logical error probability for a given latency budget, link quality, and noise asymmetry. It is evaluated through a pipeline: the waiting-time approximation E[L(w,n)]≈(1/Pe − 1)(w + n)/(2p) + n/p in Eq. (9) is inverted to find the generation probability p satisfying the latency constraint; p sets the initial fidelity F0(p) via Eq. (7); memory decoherence Eq. (8) produces heterogeneous per-qubit fidelities; and CSS decoding with Poisson-binomial error distributions yields PL via Eq. (6). The puncturing tiers — [[17,1,5,5]], [[1

What would settle it

Compute the exact expected waiting time for a moderate packet size (e.g., n=8) by solving the stated linear system of dimension (w−1 choose n−1), and re-run the latency-constrained comparison; if the crossover latencies where the optimal code changes shift, Eq. (9) is not trustworthy enough to support the decision rule.

Watch

Extended reading notes

Core claim

The paper's central claim is that under a common average latency constraint, the reliability of encoded teleportation is governed by an entanglement-acquisition tradeoff: longer codes provide stronger error correction but require larger entanglement packets, which means higher generation probabilities (and hence lower initial fidelity) and longer storage times (and hence more decoherence). The authors show numerically, using [[17,1,5,5]], [[13,1,5,3]], [[8,1,3,3]] puncturing tiers and uncoded teleportation, that the logical error probability PL(n; L,p_d,η) exhibits crossover behavior, so the optimal code length n*(L,p_d,η)=argmin_n PL depends on the latency budget and link conditions. In sym

Load-bearing premise

The paper's quantitative comparison relies on an approximate formula for how long it takes to collect a packet of entangled pairs; if that approximation is wrong for longer codes, the claimed optimal code choices could change.

Editorial extensions

If this is right

  • If true, a quantum network should not fix a single code; it should precompute a policy map and switch puncturing tiers per request based on latency budget and link quality.
  • Longer codes are not universally better: under tight latency budgets or high-quality links, shorter codes or uncoded transmission can beat long codes, so resource-aware adaptation is essential.
  • The same base code can serve many operating regimes via puncturing, which reduces implementation overhead compared to switching among unrelated code families.
  • Under asymmetric noise (phase errors dominating), a specially punctured code like [[13,1,5,3]] offers the best reliability over wide latency and link ranges, suggesting asymmetry should guide code design.
  • The framework provides a way to set entanglement generation probability from a latency requirement, linking application-level quality-of-service to physical-layer entanglement parameters.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The latency-fidelity coupling implies that in early quantum access networks, a single network-wide base code with per-user puncturing could be a simpler deployment model than per-link code selection; this is an architectural inference beyond the paper's numerical scope.
  • The waiting-time approximation's conservative bias means the reported decision regions may shift if exact waiting times are used; a natural extension is to quantify the gap for moderate n where the linear system is still solvable.
  • The framework could be extended to dynamic online code selection based on instantaneous packet availability, as the authors themselves mention in future work; the decision regions suggest hysteresis effects when latency budgets fluctuate.
  • Because puncturing reduces code distance, the framework implies a direct tradeoff between resource availability and error-correction strength that could also inform entanglement purification decisions.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. This paper studies latency-constrained encoded quantum teleportation. The authors model stochastic entanglement generation as Bernoulli trials with success probability p, relate p to initial fidelity through Eq. (7), and apply exponential memory decoherence within a storage window of size w. For a target average latency L, they invert the approximate waiting-time expression Eq. (9) to obtain the generation probability p for each code length n. They then simulate packet assembly, obtain heterogeneous fidelities, map them to Pauli error probabilities, and compute logical error probability PL for CSS codes using the Poisson-binomial expressions Eqs. (4)–(6). The puncturing tiers considered are n=17, 13, 8, and uncoded n=1. The central claim is that longer codes do not uniformly help because acquiring more pairs increases waiting time and decoherence, so the optimal code length depends on latency and link parameters via Eq. (11). Numerical results in Figs. 6–9 show decision regions for symmetric and asymmetric noise.

Significance. If the quantitative results are reliable, the paper offers a useful engineering framework for adaptive code selection in quantum networks and highlights a genuine latency–reliability tradeoff. The model is clearly stated, and the simulation methodology is transparent, with all parameters identified. The paper builds on established components—Poisson-binomial decoding, the generation-fidelity relation from [8], and punctured codes from [7]—rather than introducing ad hoc entities. The main issue is that the waiting-time approximation in Eq. (9) is load-bearing and is not validated in the manuscript. Because this approximation is the only mechanism for mapping the latency constraint L to the generation probability p, and hence to all fidelities and error probabilities, the quantitative decision regions and the argmin in Eq. (11) are unproven until the approximation error is characterized. The central qualitative insight—that resource-acquisition latency should influence code selection—is plausible and likely correct, but the specific crossover points and the claimed 'substantial gains' rely on numerical accuracy.

major comments (3)
  1. [III-A, Eq. (9)] Eq. (9) is the only way the latency constraint enters the model. It is used to solve for p such that E[L(w,n)]=L for each n, and the resulting p determines F0(p) via Eq. (7). The text asserts that 'Comparison with exact evaluations shows that (9) conservatively overestimates the expected waiting time,' but no such comparison is shown. For n=13 and n=17 the exact linear system is intractable, so the claim cannot be checked in the operating regime relevant to the paper's main comparison. If the approximation error varies with n, then at a fixed nominal L the different tiers are actually operated at different true average waiting times, violating the 'common latency constraint.' This could alter the relative ordering of the PL curves and shift the decision regions in Figs. 6–9 and the optimal tier n*(L,pd,η) in Eq. (11). Please add a derivation of Eq. (9), a validation against exact enumera
  2. [IV, numerical procedure] After solving Eq. (9) for p, the simulation samples the actual generation process. The paper does not report whether the simulated average waiting time per tier equals the nominal L. This is a directly checkable consequence of the model and is essential to verify the 'common average latency constraint' that the comparison is premised on. Please report the empirical mean (and, if possible, the distribution) of the waiting time for each tier in the regimes of Figs. 6–9, and discuss any deviation from L. If the approximation systematically biases the true average latency, the comparison is not fair.
  3. [III-A, conservative bias] The authors claim the overestimate in Eq. (9) is conservative and leads to a 'conservative bias.' This is only conservative with respect to meeting the latency requirement; it is not automatically conservative for code selection. An overestimate of waiting time increases p, which decreases the initial fidelity F0(p). Because longer codes require more pairs and hence larger p, a frequency-dependent error in Eq. (9) could penalize longer codes more and bias the decision rule toward shorter codes. The paper should quantify the sensitivity of the decision regions in Figs. 6–9 to the approximation error, for example by repeating the analysis with a perturbed Eq. (9) or using an exact/Monte Carlo wait-time constraint for the small-n cases.
minor comments (6)
  1. [II-B, Eq. (7)] The relation F0(p) is taken from [8] but no derivation is given; a sentence explaining its origin would help the reader understand the parameter M and the detection probability pd.
  2. [III-A] The symbol L is used both for the latency constraint and, in E[L(w,n)], for the waiting time. This is confusing; consider using a different symbol (e.g., W) for the waiting-time random variable.
  3. [Figs. 6–9] The legends read ' =1', ' =8', etc.; the missing variable (presumably n) should be included. Adding gridlines or error bars would improve readability.
  4. [IV] Monte Carlo results are presented without confidence intervals. Given that some PL differences between tiers are small, error bars or a statistical significance statement would be helpful.
  5. [IV] The text states that T=10000 time slots 'corresponds to a coherence time on the order of one second,' but no time-slot duration is specified. Please state the assumed slot duration or phrase this as an example.
  6. [Fig. 4] The caption says 'Minimum fidelity' but the text describes it as the oldest stored pair. Clarify in the caption that the minimum is over the qubits in the packet at the time of completion.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the latency–reliability tradeoff is a simulated consequence of explicit external models, not a fitted conclusion.

full rationale

The derivation is self-contained. The logical error probability PL is computed by Monte Carlo simulation of the stochastic generation/storage process (Sec. IV) using external ingredients: the generation–fidelity coupling F0(p) taken from [8], the CSS decoding model from [11], and punctured code tiers from [7]; none of these are fitted to the target PL curves. For each code length n, the generation probability p is obtained by numerically solving E[L(w,n)] = L (Eq. 9), and PL is then simulated; the decision rule n*(L,p_d,eta) = argmin PL in Eq. (11) is a comparison over these simulated curves, not a parameter fitted to reproduce them. The latency–reliability tradeoff is a logical consequence of the decreasing F0(p) in Eq. (7) and the decoherence model in Eq. (8), both stated as assumptions, so the paper does not define its conclusion into existence. The self-citations ([7], [9]) supply code constructions and puncturing machinery, but the central latency analysis does not reduce to those citations: the code parameters are explicit and their reliability is evaluated, not assumed. The unquantified approximation in Eq. (9) is a numerical correctness risk (it could bias the common-latency comparison), but it is not circular in the sense of a prediction being equivalent to its inputs. No circular step can be exhibited by quotation and reduction.

Assumptions & free parameters 6 free parameters · 8 assumptions · 0 invented entities

The ledger records the model inputs and background assumptions. No parameters are fitted to experimental outcome data; T, w, M, p_d, and η are chosen model settings, while p is solved from the latency constraint via Eq. (9). The main physical coupling—decreasing initial fidelity F0(p) with increasing generation probability—is imported from [8], so the qualitative tradeoff is partly a consequence of that assumption.

free parameters (6)
  • T (memory coherence time) = 10000 time slots
    Chosen to represent ~1 s memory lifetime; governs decoherence rate in Eq. (8) and shapes all fidelity values.
  • w (storage window) = 20 time slots
    Finite storage window; sets the waiting-time/availability tradeoff and appears in Eq. (9)-(10).
  • M (batch size) = 300
    Batch attempts per slot in the generation-fidelity relation Eq. (7); changes how p maps to initial fidelity.
  • p_d (detection probability) = 0.40 / 0.75 (varied)
    Link-quality parameter in F0(p); drives Figs. 8-9 decision regions.
  • η (noise asymmetry) = 1 / 10 (varied)
    Ratio p_Z/p_X; selects between symmetric and phase-dominated error regimes.
  • puncturing tier set = {1, 8, 13, 17}
    Only these four effective lengths are compared; the optimal-policy conclusions are restricted to this set from [7].
assumptions (8)
  • domain assumption Shared entangled resources are Bell-diagonal, so teleportation acts as a Pauli channel with p_I,i = F_i
    Used in Eq. (1)-(2) and in mapping simulated fidelities to qubit error probabilities; standard for depolarizing/Bell-diagonal resources but an idealization.
  • domain assumption CSS decoding corrects exactly those error patterns with X-weight ≤ t_X and Z-weight ≤ t_Z
    Eq. (4)-(6) compute PL from Poisson-binomial probabilities up to the code's correction radii; ignores that some weight>t patterns are also correctable, so PL is a conservative upper bound for degenerate codes.
  • domain assumption Generation fidelity decreases with generation probability via F0(p) from [8]
    Eq. (7) is the principal physical coupling; if F0(p) were flat, the paper's core latency-reliability tradeoff would largely disappear.
  • domain assumption Memory decoherence follows exponential fidelity decay Eq. (8)
    Standard memory model; the specific form and coherence time T are assumed.
  • ad hoc to paper Expected packet-assembly time is given by approximation Eq. (9)
    Load-bearing approximation used to solve for p; not derived in the text and exact comparison not shown.
  • domain assumption Latency constraint L is enforced on average (E[waiting time]=L), not as a tail probability
    Defines 'latency-constrained' throughout and determines p; an application-specific QoS interpretation.
  • ad hoc to paper The four punctured codes derive from one length-17 CSS base code as in [7]
    Code family is imported from prior work; the actual generators are not given, so the numerical PL values depend on an external construction.
  • domain assumption Generation attempts are independent Bernoulli trials and errors across qubits are independent
    Justifies Poisson-binomial formulas and the Monte Carlo process; ignores correlated failures in realistic entanglement generation/distribution.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Latency-Constrained Encoded Quantum Teleportation with Punctured Codes." pith.science (2026). https://pith.science/paper/G53RBQYP

@misc{pith2026260719770,
  author       = {Pith},
  title        = {Pith review of: Latency-Constrained Encoded Quantum Teleportation with Punctured Codes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/G53RBQYP}},
  note         = {Machine review of arXiv:2607.19770}
}
read the original abstract

Quantum teleportation is a key protocol for transmitting quantum information using entanglement and classical communication. Its reliability is constrained by both the availability and fidelity of shared entangled pairs, which are affected by stochastic generation and memory decoherence. In this work, we focus on encoded teleportation, in which quantum information is encoded using a quantum error-correcting code and transmitted as a codeword. We evaluate reliability in terms of logical error probability, considering latency-constrained settings where entanglement is accumulated over time and degrades while in memory. We develop a unified framework that captures the interaction between entanglement availability, decoherence, and coding decisions. Our results show that the benefits of longer codes depend on the availability and fidelity of entangled pairs, as acquiring additional resources introduces delays that can reduce their quality. To address this latency-reliability tradeoff, we leverage code puncturing to enable flexible encoded teleportation, allowing the effective code length to adapt across different latency regimes while preserving a common stabilizer structure. Numerical results show that encoded teleportation can provide substantial reliability gains over uncoded transmission under a common entanglement-acquisition latency constraint, and that selecting appropriate punctured codes improves performance across varying latency budgets. Overall, our results highlight the importance of resource-aware adaptation for reliable quantum networking.

Figures

Figures reproduced from arXiv: 2607.19770 by the authors.

Figure 1
Figure 1. Latency–reliability tradeoff in encoded quantum teleportation. The dominant latency arises from entanglement [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

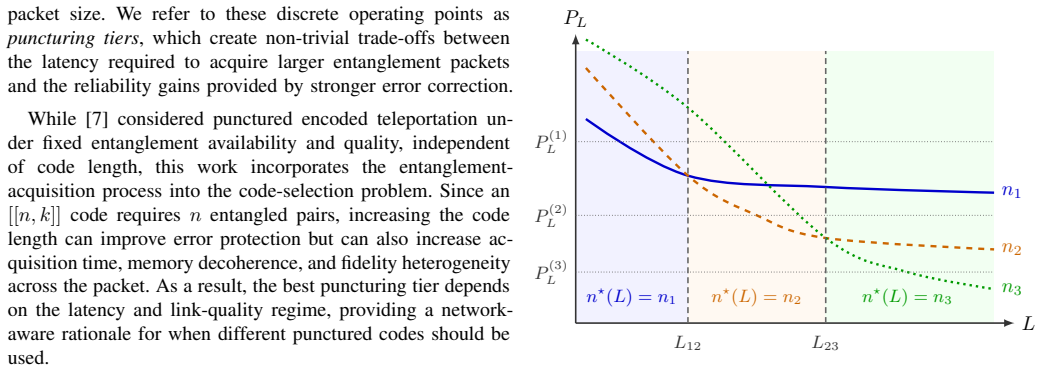

Figure 2. Decision regions induced by crossover behavior of [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Example of the generation process with entangle [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: Minimum fidelity of the entangled pairs as a function [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: System framework for adaptive latency-constrained encoded teleportation. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Logical error probability PL as a function of allowed latency L for different puncturing tiers n under symmetric errors. 5  5  5  5   !' % (% $ !%$  !  ##!#"#! %( &$'"  %     [PITH_…
Figure 7
Figure 7. Figure 7: Logical error probability PL as a function of latency constraint L for different puncturing tiers n under asymmetric errors (η = 10). n = 17 code respectively achieve the lowest logical error probability. In this regime, the fidelity of a single entangled pair is too l…
Figure 9
Figure 9. Figure 9: Logical error probability PL as a function of detection probability pd for different puncturing tiers n under asymmetric errors (η = 10). quality or shorter link distances, the n = 17 code becomes fa￾vorable and achieves the lowest logical error probability. These deci…

Discussion (0). Continue with ORCID to comment.
