The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper studies three polymer films on silicon that are hit with an argon ion beam and then held in humid air. It finds that two of them, pHEMA and p4VP, develop wrinkles only when both treatments happen: the ion beam alone leaves them flat, and humidity alone leaves them flat. The paper's central claim is that the ion beam converts the top few nanometers into a stiff graphitic skin, after which water vapor diffuses through that skin and swells the hydrophilic polymer beneath; the swelling is squeezed between the rigid silicon wafer and the stiff skin, so the film relieves the stress by buckling into wrinkles. The third polymer, pV4D4, stays flat because it absorbs little water. If this mechanism is right, ambient humidity is a hidden control knob in ion-beam patterning of polymer films.

What carries the argument

The load-bearing configuration is a three-layer stack: a stiff graphitized carbon skin formed by ion bombardment and estimated to be thinner than 10 nm, a water-absorbing polymer interlayer, and a rigid silicon substrate. The argument runs on the mismatch in swelling: water vapor penetrates the graphitic skin and hydrates the hydrophilic polymer, whose volumetric expansion is blocked by the skin and the substrate, building compressive in-plane stress that the surface relieves by buckling into wrinkles. The time-dependent growth of wrinkle wavelength and amplitude is read as evidence that swelling, not the ion beam itself, supplies the stress.

What would settle it

Measure the thickness or water mass of ion-bombarded p4VP films in a 60% RH atmosphere; if they wrinkle without gaining bulk water or swelling, the constrained-swelling mechanism cannot be the driver for p4VP. Conversely, if an ion-bombarded hydrophilic polymer that demonstrably swells in humid air never wrinkles even under a graphitic skin, the stiff-skin constraint story would need revision.

Watch

Extended reading notes

Core claim

After 2 keV Ar+ bombardment, X-ray photoelectron spectroscopy shows that the surfaces of all three polymers are converted within the first minutes of sputtering into a graphitized carbon layer, roughly the top 10 nm, in which oxygen and nitrogen are largely stripped from the original polymer chemistry. For pHEMA and p4VP, exposure to about 60% relative humidity following bombardment then produces isotropic surface wrinkles whose wavelength and amplitude grow over days, while identical samples kept in dry argon stay flat. FTIR of pHEMA shows water-related hydroxyl and hydrogen-bonding signatures in the film bulk after humid exposure, and XPS shows water-induced oxidized carbon and nitrogen species at the surface, indicating water enters both the skin and the underlying polymer. The paper proposes that wrinkling is driven by water-absorption-induced swelling of the underlying polymer film, mechanically constrained by the stiff graphitic skin above and the rigid silicon substrate below. In pV4D4 the same ion treatment graphitizes the surface, but the polymer's low water uptake produces no appreciable swelling and therefore no wrinkles.

Load-bearing premise

For p4VP, the load-bearing premise is that it absorbs water throughout its bulk and swells after ion bombardment; the paper assumes this from surface XPS and published reports rather than measuring bulk swelling directly.

Editorial extensions

If this is right

  • For any polymer film studied under ion bombardment, relative humidity after the run becomes a first-order variable: nominally identical ion doses can produce flat or wrinkled surfaces depending on whether humid air follows.
  • Wrinkle size and pattern can be tuned by humidity-exposure time, since wavelength and amplitude grow over days in pHEMA and p4VP.
  • Polymer hydrophilicity predicts which materials will wrinkle under this two-step treatment, with hydrophobic polymers acting as flat controls.
  • The two-step route, ion beam to make a stiff skin and then water vapor to swell the bulk, extends water-vapor-driven wrinkling beyond plasma-treated PDMS to other polymer chemistries.
  • Future reports of ion-beam-induced wrinkling must state the post-irradiation humidity history, or their morphology claims will be ambiguous.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the constrained-swelling picture is right, wrinkles should be patternable by masking the ion beam or by locally altering skin permeability, since the skin's water entry points would control where swelling can occur.
  • A direct measurement of film thickness or water mass during humid exposure would connect the proposed swelling strain to the observed wrinkle growth; such a measurement would also give a quantitative stress estimate for the buckling condition.
  • The comparison with pV4D4 suggests a practical test on the same polymer: tune water uptake chemically by copolymerizing pHEMA with a hydrophobic monomer and see whether wrinkle amplitude scales with absorbed water fraction.
  • The graphitic skin is implicitly water-permeable; measuring water transport through an ion-beam-graphitized carbon layer would be a direct consequence of the mechanism.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. This manuscript reports an experimental study of ion beam sputtering (IBS) and humidity effects on three iCVD-grown polymer thin films: pHEMA, p4VP, and pV4D4. The central observation is that pHEMA and p4VP films on Si wrinkle only when IBS treatment is followed by exposure to water vapor at approximately 60% RH; films stored in a dry atmosphere after IBS remain flat, unbombarded films exposed to humidity remain flat, and pV4D4 remains flat under all tested conditions. AFM-based roughness and PSD analysis document the time evolution of wrinkle wavelength and amplitude. Ex situ and in situ XPS show that IBS converts the near-surface region into graphitic carbon within roughly two minutes of sputtering. ATR-FTIR measurements of the pHEMA film show water uptake in the bulk after humidity exposure. The authors propose that wrinkling results from water-absorption-induced swelling of the polymer film constrained by the stiff graphitic surface layer and the Si substrate, and attribute the absence of wrinkling in pV4D4 to its low water uptake. The manuscript claims the same bulk-water-absorption evidence for p4VP, but the FTIR measurements shown are for pHEMA only.

Significance. The paper's experimental core is solid and clearly presented: the two-by-two control structure (IBS vs. no IBS, humid vs. dry post-treatment), the in situ XPS experiments that rule out ambient oxidation as the source of the graphitization, and the quantitative AFM/PSD analysis with documented uncertainty propagation are all strengths. If the proposed mechanism holds, the results generalize wrinkling by constrained swelling beyond PDMS to hydrophilic polymer films, with a practical warning that ambient humidity must be controlled when interpreting IBS-induced polymer morphology. The main gap is evidentiary: bulk water uptake is demonstrated only for pHEMA, while the title-level claim covers both pHEMA and p4VP. Because the p4VP half of the mechanism rests on literature analogy and surface XPS rather than on a bulk measurement, the manuscript overreaches in its abstract and conclusion. This is fixable with additional data or with a carefully qualified claim.

major comments (3)
  1. [Abstract; Section 3.3; Section 5 (Conclusion)] The abstract and conclusion state that 'XPS and FTIR indicate water absorption in both the surface and the bulk of the films' for the wrinkling polymers pHEMA and p4VP, but the only bulk-sensitive FTIR data are presented for pHEMA. Section 3.3 is titled 'FTIR Study of Bulk Film Chemistry for pHEMA' and Figure 7 shows pHEMA spectra only; no FTIR spectra or band assignments are shown for p4VP (or pV4D4). The bulk swelling of p4VP is therefore inferred, not demonstrated, and the abstract overstates the evidence. Please either add bulk-sensitive measurements (e.g., ATR-FTIR or spectroscopic ellipsometry at controlled RH) for p4VP or explicitly restrict the bulk-absorption claim to pHEMA and rephrase the p4VP mechanism as conditional.
  2. [Section 4 (Discussion); Table 1; reference [59]] The p4VP half of the proposed mechanism relies on the claim that unmodified p4VP absorbs water and swells under the conditions of the experiment. The support offered is reference [59], a study of p(4-VP)-based materials for aqueous contaminant removal, which concerns materials in liquid water rather than a ~250-300 nm p4VP film at 60% RH, and the XPS data, which probe less than 10 nm. Neither establishes bulk swelling. In addition, Table 1 reports a large and unexplained change in the p4VP surface composition after humidity (N: 3% to 37%, C: 91% to 27%); this indicates a substantial surface chemical transformation that is not interpreted and does not, by itself, provide evidence for bulk water uptake. If p4VP does not swell in the bulk, the constrained-swelling mechanism cannot explain the observed p4VP wrinkling, so this point is load-bearing for half of the central claim.
  3. [Section 4; Figure 10] The proposed mechanism requires the IBS-modified surface layer to be mechanically stiff, but no mechanical measurement of the graphitized layer is presented; its thickness (<10 nm) and modulus are inferred from XPS chemistry and from the ion penetration depth. The wrinkling observations themselves imply a modulus mismatch, but the specific assignment of the skin as the stiff 'graphitic' phase is an assumption. A modulus estimate (e.g., nanoindentation or a buckling-based wrinkling analysis using the measured wavelength and film thickness) would materially strengthen the mechanism; without it, the discussion remains a plausible conjecture rather than a tested mechanical model.
minor comments (4)
  1. [Figure 2] The rendered labels in Figure 2 contain placeholder sequences such as '/uni00000053/uni0000002b/uni00000028/...' in place of readable chemical formulas; please regenerate the figure with proper text rendering.
  2. [Appendix A (captions of Figs. A.12 and A.13)] The phrase 'along the the white dash line' should read 'along the white dashed line' in the captions of Figures A.12 and A.13.
  3. [Equation (B.1)] Equation (B.1) and the following definition of the coefficients α′ and β′ appear garbled in the typeset text ('α=a S− as−α 1+4(...)'); the functional form is not readable and should be corrected.
  4. [Reference [10]] Reference [10] lacks the year of publication; the DOI resolves to a 2004 article and should be completed.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the wrinkling mechanism is assembled from external literature and independent controls; no fitted parameter is renamed as a prediction and no self-citation is load-bearing.

full rationale

The paper reports an empirical correlation (wrinkling occurs only after ion bombardment plus humidity, and pV4D4 does not wrinkle under the same conditions) and proposes a mechanism: water uptake swells the underlying polymer film, and that swelling is constrained by the stiff graphitized surface layer and the Si substrate. Each ingredient of the mechanism is supported by external references: graphitization of ion-bombarded polymers [21-23,47-51], swelling of hydrophilic polymers [58,59], low water absorption of siloxane polymers [60], and previous stiff-skin/polymer-interlayer wrinkling systems [16,61-63]. The only direct bulk water-uptake measurement (ATR-FTIR, Section 3.3, explicitly titled 'FTIR Study of Bulk Film Chemistry for pHEMA') is for pHEMA; for p4VP the bulk-swelling premise is inferred from the literature and from surface XPS changes. That is an evidence gap, not circularity: the paper does not fit a parameter to the wrinkling data and then 'predict' the wrinkling from that same fit, nor does it rely on a self-citation chain to exclude alternatives. The experimental controls (dry atmosphere, no IBS, and pV4D4 under identical conditions) provide independent, non-circular support for the claim that both ion bombardment and subsequent humidity are necessary for wrinkling in this system.

Assumptions & free parameters 0 free parameters · 5 assumptions · 0 invented entities

The central claim rests on five domain assumptions from prior literature or standard mechanics. The most fragile is the p4VP bulk swelling assumption, since it lacks direct measurement in this paper.

assumptions (5)
  • domain assumption The IBS-generated surface layer is a stiff, coherent graphitic skin with thickness below 10 nm.
    Inferred from XPS detection of graphitic carbon within the sampling depth and from prior literature on ion-damaged polymers (refs [47-51]); mechanical stiffness is not measured in this paper.
  • domain assumption Water absorption by pHEMA and p4VP causes volumetric swelling of the underlying film.
    Based on external references for pHEMA and p4VP water sorption (refs [58,59]); swelling strain is not directly measured here.
  • domain assumption Water vapor can diffuse through the graphitized surface layer into the bulk polymer.
    Directly evidenced by FTIR for pHEMA (Section 3.3), but for p4VP it is inferred, since no FTIR or other bulk measurement is presented for p4VP.
  • domain assumption The silicon substrate is rigid and constrains out-of-plane expansion, converting swelling into in-plane compression.
    Standard mechanical assumption for a stiff wafer supporting a soft film; the paper does not measure substrate deformation.
  • domain assumption pV4D4 has low water absorption and negligible swelling.
    Taken from literature (ref [60]); no direct water uptake measurement is provided for pV4D4.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Wrinkling in Selected Polymer Thin Films Induced by Combined Ion Beam and Humidity Exposure." pith.science (2026). https://pith.science/paper/WPS7YT75

@misc{pith2026260809041,
  author       = {Pith},
  title        = {Pith review of: Wrinkling in Selected Polymer Thin Films Induced by Combined Ion Beam and Humidity Exposure},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/WPS7YT75}},
  note         = {Machine review of arXiv:2608.09041}
}
read the original abstract

This study investigates ion beam sputtering (IBS)-induced surface wrinkling phenomena in three polymers with varying hydrophilicity: poly-hydroxy-ethyl-methacrylate (pHEMA), poly-4-vinyl pyridine (p4VP), and poly-2,4,6,8-tetramethyl-2,4,6,8-tetravinylcyclotetrasiloxane (pV4D4). It is observed that pHEMA and p4VP films wrinkle only when exposed to ion bombardment and subsequent water vapor exposure. No wrinkling is observed in pV4D4 under these same conditions. X-ray photoelectron spectroscopy (XPS) and Fourier transform infrared spectroscopy (FTIR) are performed before IBS, after IBS, and after exposure to humidity. XPS shows that IBS drives chemical changes within the surface layer, creating a graphitized film at the surface. For the polymer films that exhibit wrinkling (pHEMA and p4VP), XPS and FTIR indicate water absorption in both the surface and the bulk of the films, resulting in swelling. We conjecture that the formation of wrinkles arises from this swelling being mechanically constrained by the rigid underlying silicon substrate and the stiff graphitized surface layer. In contrast, the absence of wrinkle formation in pV4D4 under the same experimental conditions can be attributed to its comparatively low water absorption and the correspondingly limited swelling response.

Figures

Figures reproduced from arXiv: 2608.09041 by the authors.

Figure 1
Figure 1. Polymeric units of the films used in this study. The peak assignments [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Schematic of the wrinkling in the pHEMA and p4VP films in the humid atomsphere after IBS. In contrast, in the dry atmosphere after IBS or in the humid [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. AFM images of polymer surfaces before ion bombardment (a,e,i); immediately after ion bombardment (b,f,j); after exposure to a humid atmosphere [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4
Figure 4. Figure 4: AFM analysis of surface roughness and wrinkle wavelength as a function of time exposed to a humid atmosphere after IBS of pHEMA (a), p4VP (b) and [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5

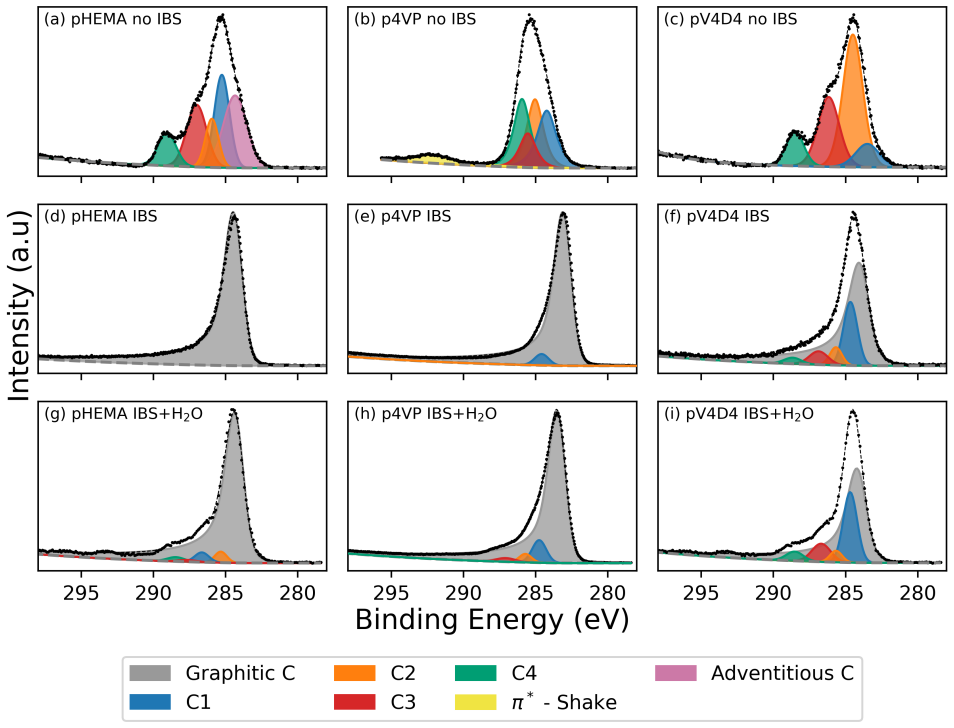

Figure 5. Figure 5: C 1s XPS of pHEMA (a,d,g), p4VP (b,e,h), and pV4D4 (c,f,i) polymer samples before sputtering, after sputtering, and after water exposure. Row 1 shows [PITH_FULL_IMAGE:figures/full_fig_p006_5.png]
Figure 6
Figure 6. Figure 6: (a) N 1s XPS of p4VP polymer sample before sputtering, after sputter [PITH_FULL_IMAGE:figures/full_fig_p007_6.png]
Figure 9
Figure 9. Figure 9: The changes in Fig. 8 occur over the course of 16 sput [PITH_FULL_IMAGE:figures/full_fig_p007_9.png]
Figure 7
Figure 7. Figure 7: FTIR of IBS sputtered pHEMA film before and after exposure to a [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 9
Figure 9. Figure 9: Stoichiometry of (a) pHEMA, (b) p4VP, and (c) pV4D4 as a function [PITH_FULL_IMAGE:figures/full_fig_p008_9.png]
Figure 10

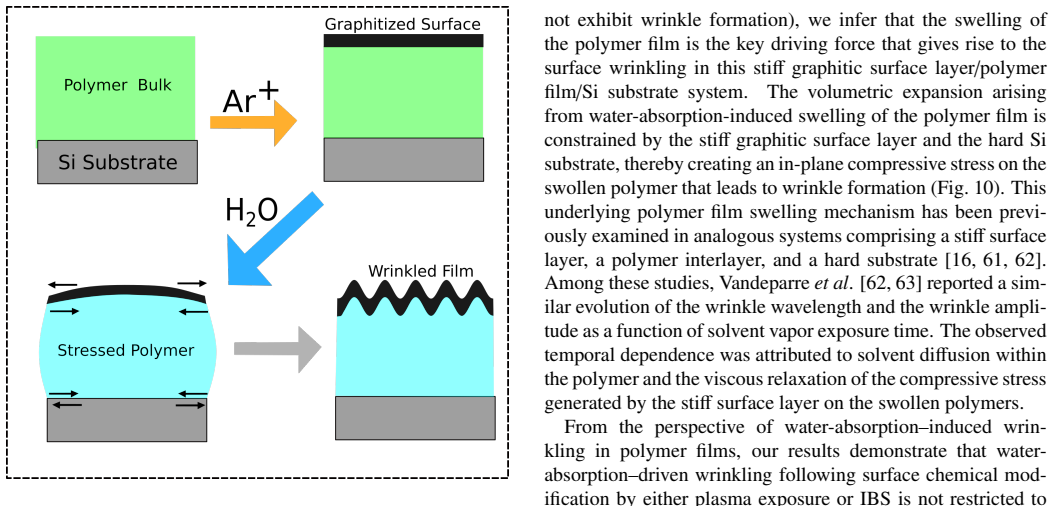

Figure 10. Figure 10: Wrinkle formation as a result of IBS treatment followed by exposure [PITH_FULL_IMAGE:figures/full_fig_p009_10.png]
