Visualizing and Understanding the Effectiveness of BERT
T0 review · 3 major / 4 minor · reviewed 2026-08-14 · deepseek-v4-flash
Pith's one-line read This paper argues that pre-training's benefit is geometric: it places BERT at a good initial point that leads to wider optima and easier optimization during fine-tuning compared with training from scratch.
desk verdict Useful geometric story for BERT fine-tuning, but the trajectory projection does not actually project onto the plotted surfaces; the layer-rollback analysis is the strongest evidence. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central machinery is loss-landscape visualization adapted from neural-network visualization work: 1D loss curves along the interpolation between initialization and final parameters; 2D loss surfaces spanned by the fine-tuning direction on the target dataset and the fine-tuning direction on another dataset (with the claim that these are divergent and orthogonal); and projected optimization trajectories computed by decomposing each epoch's parameter movement into components along these two axes. A separate layer-rollback procedure restricts the perturbation to layer groups (0-7, 8-15, 16-23) to inspect per-layer transferability. These tools turn the high-dimensional optimization of a 345M-parameter model into pictures that support claims about optimum width, smoothness of descent, robustness to overfitting, and layer-wise invariance.
What would settle it
Measure the actual cosine similarity between the target-dataset optimization direction and the other-dataset direction; if it is not near zero, the second axis is not orthogonal and the 2D surfaces are distorted slices, not a faithful plane. Alternatively, compute the exact orthogonal projection of each epoch's parameter change onto the delta_1-delta_2 plane and compare it with the method of Equation (5); large discrepancies would invalidate the plotted trajectories.
Extended reading notes
Core claim
The central discovery is a set of geometric facts about the loss landscape of BERT fine-tuning. On four GLUE-style datasets (MNLI, RTE, SST-2, MRPC), the two-dimensional training loss surfaces around fine-tuned BERT show noticeably wider, flatter optima than the same architecture trained from random initialization. The optimization trajectories from the pre-trained start point are smoother and more direct, converging faster and reaching lower final training loss, while from-scratch trajectories are rougher and can cross obstacles. The generalization error surface is consistent with the training loss surface for fine-tuned models, so the wide optima correspond to regions of small development-set error. Finally, rollback experiments show that restoring the lower 0th-7th layers of fine-tuned BERT to their pre-trained values barely hurts accuracy, while rolling back the upper 16th-23rd layers collapses performance; the loss surfaces restricted to lower layers are wide, and those restricted to higher layers are sharp. The paper reads these observations as evidence that pre-training provides a good initial point, that fine-tuning is robust to overfitting even with 345M parameters, and that lower layers learn transferable representations.
Load-bearing premise
The load-bearing premise is that the 2D loss surfaces and the projected trajectories faithfully represent the real optimization dynamics, in particular that the two chosen axes are genuinely orthogonal and that the trajectory points are true projections onto that plane.
Editorial extensions
If this is right
- If pre-training's benefit is geometric, then the same architecture trained from scratch with a better initialization scheme or a smoother loss surface should close part of the gap to BERT fine-tuning.
- Fine-tuning algorithms that explicitly seek flat and wide optima, such as weight averaging or entropy-based regularization, should show larger gains when starting from a pre-trained point than from random initialization.
- Because lower layers are nearly invariant during fine-tuning, freezing or only lightly updating them should preserve most downstream accuracy while saving compute.
- The consistency between training loss and generalization error surfaces on small datasets predicts that fine-tuned BERT will be robust to extended training, which the paper confirms by fine-tuning for 5 plus 20 epochs on MRPC.
Reading between the lines
- A testable extension is to plot the same loss surfaces for other pre-trained encoders such as GPT or ELMo; the geometric account predicts wider optima than from-scratch training, with the width gap growing with model size.
- The layer-rollback evidence suggests a simple diagnostic for transferability: the width of the layer-restricted loss surface around the fine-tuned point predicts how much that layer group can be reused across tasks without retraining.
- If the flat-minima account is correct, pre-training should also make downstream fine-tuning more robust to hyperparameter choice and label noise, since wide optima tolerate perturbations; this can be checked by measuring accuracy variance across seeds and learning rates.
- The paper's orthogonality assertion for its two visualization axes is left unquantified, so a fair reader should verify the cosine similarity before relying on the 2D surfaces.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper visualizes the loss landscapes and fine-tuning optimization trajectories of BERT-large on four GLUE-style tasks (MNLI, RTE, SST-2, MRPC), comparing pre-training-then-fine-tuning with training from scratch. It reports three main findings: pre-training supplies an initialization that leads to wider optima and easier optimization; fine-tuning BERT is robust to overfitting; and lower BERT layers are more invariant and transferable across tasks. The evidence consists of 1D loss curves, 2D loss and generalization-error surfaces, projected optimization trajectories, learning curves, and layer-rollback experiments.
Significance. If the claims were fully supported, the paper would provide a useful geometric account of why pre-training-then-fine-tuning outperforms training from scratch in NLP, connecting flat/wide optima to generalization for an over-parameterized model, and offering a simple rollback diagnostic for layer transferability. The layer-wise rollback experiments and the train/generalization surface comparisons are concrete and falsifiable, and the paper is careful to note that all conclusions are derived from BERT fine-tuning. However, the trajectory-projection methodology in Section 3.3 is flawed as written: the plotted trajectories are not coordinates in the displayed δ1/δ2 plane, so the visual evidence for smoother optimization and overfitting robustness currently lacks support. This is a fixable methodological issue rather than a fatal one, because the learning curves, 1D slices, and rollback table are independent evidence.
major comments (3)
- [Section 3.3, Eq. (5)] Equation (5) computes dβ_i as the square root of the squared Euclidean distance from δ_i to the span of δ1 after normalization; this quantity is nonnegative, carries no sign, and does not reference δ2. Consequently (dα_i,dβ_i) is not a coordinate in the plane spanned by δ1 and δ2, and the trajectories overlaid on Figures 3 and 4 are not paths on the displayed loss or error surfaces. This undermines the visual evidence in Section 5.2 for smoother optimization and in Section 5.3 for overfitting robustness. Please replace Equation (5) with a signed projection onto δ2 (for example, dβ_i = (δ_i · δ2)/||δ1||^2 after the normalization described in Section 3.2), re-plot the trajectories, and verify that they lie on the displayed surfaces; alternatively, state explicitly that only distances from the δ1 axis are shown and adjust the interpretation accordingly.
- [Section 3.2] The assertion that δ1 and δ2 are 'divergent and orthogonal' is not supported by any reported cosine similarity, angle, or other numerical evidence. If the angle between the two axes deviates substantially from 90 degrees, the 2D surfaces in Figures 1, 3, 4, and 6 use oblique coordinates, and visual comparisons of 'wider' optima between fine-tuning and training from scratch are distorted. Please report the cosine or angle for every dataset-axis pair used, and either restrict the visualization to nearly orthogonal pairs or orthogonalize the axes (for example, by Gram-Schmidt) before plotting.

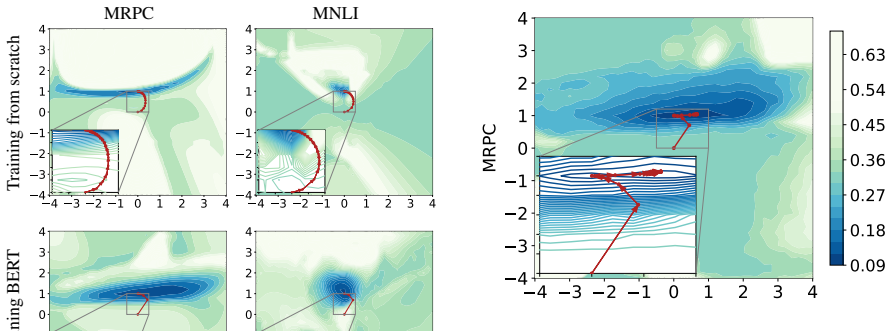

- [Section 5.3 and Figure 4] The overfitting-robustness conclusion is drawn from a single fine-tuning run on MRPC, and the text does not report quantitative accuracy or error values for the 5+20 epoch run or a comparison with a scratch-trained model under the same extended schedule. Because this is one of the paper's three headline findings, please add the development-set numbers across epochs and, ideally, multiple random seeds or additional small datasets; otherwise, narrow the claim to a qualitative illustration rather than a general robustness result.
minor comments (4)
- [Section 3.3, Eq. (3)] The symbol × is used for what must be a dot product, since the formula produces a scalar cosine; the cross product is not defined in the parameter-space dimension of BERT. Please replace × with · in Equations (3) and (4).
- [Section 3.1] There is a duplicated article in 'θ0 represents the the pre-trained parameters'; please correct the typo.

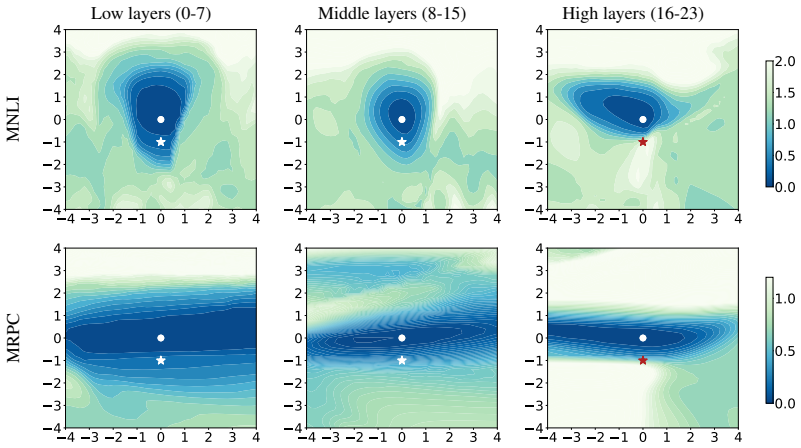

- [Section 7, Table 1] The statement that rollbacking middle layers 'does not dramatically decrease' performance is hard to reconcile with the MRPC row, where rolling back layers 8–15 lowers accuracy by 10.05 points; please qualify this claim with the per-dataset magnitudes.
- [Experimental Setup] No random seeds, number of repetitions, or code are provided, so the reader cannot assess run-to-run variance in the loss-surface and trajectory figures; please add reproducibility details.
Circularity Check
No self-definitional or fitted-input circularity; the loss-surface visualization is an empirical measurement, not a derivation that assumes its conclusions.
full rationale
The paper's central claims are empirical observations drawn from loss-landscape visualizations, learning curves, and rollback experiments, not from a derivation whose conclusion is equivalent to an input by construction. The 1D/2D loss curves are computed by interpolating between the initialized and fine-tuned parameters, and the comparison between fine-tuning BERT and training from scratch is a direct measurement of the geometry; no fitted parameter is later renamed as a prediction. The flatness-generalization link is imported from prior work (Hochreiter and Schmidhuber, Keskar et al., Li et al.) as an external assumption, which is not circular. The paper invokes no uniqueness theorem, and the only overlapping-author citation (Dong et al. 2019 in the introduction) is incidental background, not load-bearing. The trajectory-projection method in Section 3.3 is questionable as a mathematical procedure—Equation (5) yields only a nonnegative perpendicular magnitude and does not locate a signed coordinate in the δ1/δ2 plane—but this is a validity concern, not circularity, because the conclusion is not made equivalent to the input by construction. Therefore no circular step is identified, and the paper should not receive a circularity penalty beyond zero.
Assumptions & free parameters
assumptions (5)
- domain assumption Flatness and width of a local optimum correlate with generalization performance.
- domain assumption Linear interpolation between initial and fine-tuned parameters is a meaningful probe of the loss landscape.
- ad hoc to paper The second axis δ2 (fine-tuning direction on another dataset) forms a near-orthogonal 2D subspace with δ1.
- domain assumption Development set accuracy is a sufficient proxy for generalization error.
- ad hoc to paper Global norm normalization of direction vectors preserves geometric comparisons across models.
Cite this review
Pith. "Pith review of Visualizing and Understanding the Effectiveness of BERT." pith.science (2026). https://pith.science/paper/542YWXAC
@misc{pith2026190805620,
author = {Pith},
title = {Pith review of: Visualizing and Understanding the Effectiveness of BERT},
year = {2026},
howpublished = {\url{https://pith.science/paper/542YWXAC}},
note = {Machine review of arXiv:1908.05620}
}
read the original abstract
Language model pre-training, such as BERT, has achieved remarkable results in many NLP tasks. However, it is unclear why the pre-training-then-fine-tuning paradigm can improve performance and generalization capability across different tasks. In this paper, we propose to visualize loss landscapes and optimization trajectories of fine-tuning BERT on specific datasets. First, we find that pre-training reaches a good initial point across downstream tasks, which leads to wider optima and easier optimization compared with training from scratch. We also demonstrate that the fine-tuning procedure is robust to overfitting, even though BERT is highly over-parameterized for downstream tasks. Second, the visualization results indicate that fine-tuning BERT tends to generalize better because of the flat and wide optima, and the consistency between the training loss surface and the generalization error surface. Third, the lower layers of BERT are more invariant during fine-tuning, which suggests that the layers that are close to input learn more transferable representations of language.
