Cluster Mass Inference from Galaxy Kinematics
T0 review · 1 major / 1 minor · reviewed 2026-06-27 · grok-4.3
Pith's one-line read A neural network trained on simulations infers cluster masses from galaxy positions and velocities with half the usual scatter.
desk verdict Deep Sets + NPE on Uchuu mocks cuts mass scatter to ~0.1 dex beyond M-sigma, but gains rest entirely on one simulation's fidelity to real clusters. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument

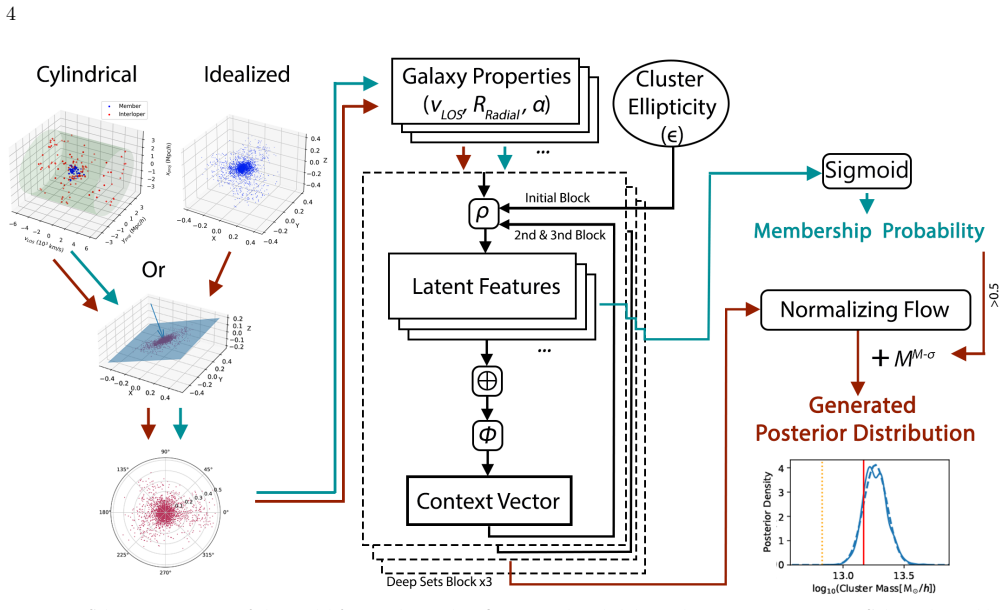

Permutation-invariant Deep Sets architecture with normalizing-flow posterior estimation that isolates kinematic information beyond velocity dispersion.
What would settle it
Applying the trained model to real observed clusters and checking whether the inferred masses match independent weak-lensing measurements to within the predicted 0.1 dex scatter.
Extended reading notes
Core claim
The central claim is that a permutation-invariant Deep Sets architecture combined with neural posterior estimation via normalizing flows recovers cluster masses by learning explicit residual corrections to the classical M-σ relation, reducing scatter to approximately 0.1 dex in idealized interloper-free cases and maintaining performance in realistic cylindrical observations at masses above 10^14.5 solar masses per h.
Load-bearing premise
The simulation used for training accurately captures how real galaxy positions and velocities relate to true cluster mass.
Editorial extensions
If this is right
- Mass estimates improve enough to tighten cosmological constraints from upcoming cluster surveys.
- Full posterior outputs supply reliable uncertainty quantification for each cluster.
- Performance remains stable against interloper contamination in high-mass systems.
- The kinematic information content is saturated, establishing a baseline for later refinements.
Reading between the lines
- The same set-based architecture could be retrained on other cluster observables such as richness or X-ray temperature to extract complementary information.
- Cross-validation against independent mock catalogs would test whether the learned corrections transfer beyond the training simulation.
- Deployment on wide-field surveys would allow direct tests of whether the reduced scatter improves dark-energy constraints from cluster abundance.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents a simulation-based inference pipeline combining a permutation-invariant Deep Sets architecture with neural posterior estimation via normalizing flows to infer galaxy cluster masses from projected phase-space data of member and interloper galaxies. The model is trained on the Uchuu-UniverseMachine simulation to predict residual corrections to the classical M–σ relation, with reported scatter reductions to ~0.1 dex (twofold improvement) in idealized interloper-free cases and comparable high-mass performance (>10^14.5 M_⊙/h) in realistic cylindrical setups.
Significance. If the simulation-based corrections generalize, the approach offers a flexible framework for more accurate mass estimates with reliable uncertainty quantification, leveraging full phase-space information beyond velocity dispersion alone. The explicit residual modeling and permutation-invariant architecture are methodological strengths that could serve as a baseline for future survey analyses.
major comments (1)
- [Abstract] Abstract and evaluation sections: all quantitative claims (including the ~0.1 dex scatter and twofold improvement) are obtained exclusively by training and testing on Uchuu-UniverseMachine mocks; the central claim of applicability to real clusters therefore rests on the untested assumption that the joint distribution p(phase-space, M_true) in this simulation—including galaxy formation physics, orbital distributions, projection effects, and interloper statistics—matches observations sufficiently closely for the learned corrections to remain valid. No cross-simulation validation or comparison to observed cluster samples is reported.
minor comments (1)
- Additional details on training procedure, validation splits, hyperparameter choices, and overfitting diagnostics would strengthen the soundness of the reported performance metrics.
Simulated Author's Rebuttal
We thank the referee for their careful reading and constructive comments on our manuscript. We address the major comment below, acknowledging the scope of our simulation-based study.
read point-by-point responses
-
Referee: [Abstract] Abstract and evaluation sections: all quantitative claims (including the ~0.1 dex scatter and twofold improvement) are obtained exclusively by training and testing on Uchuu-UniverseMachine mocks; the central claim of applicability to real clusters therefore rests on the untested assumption that the joint distribution p(phase-space, M_true) in this simulation—including galaxy formation physics, orbital distributions, projection effects, and interloper statistics—matches observations sufficiently closely for the learned corrections to remain valid. No cross-simulation validation or comparison to observed cluster samples is reported.
Authors: We agree that all reported quantitative results, including the scatter reduction to ~0.1 dex and the twofold improvement, are obtained exclusively from training and testing on Uchuu-UniverseMachine mocks. The manuscript does not include cross-simulation validation or direct comparisons to observed cluster samples. The work is presented as a simulation-based inference framework evaluated in controlled mock settings (both interloper-free and cylindrical), with the abstract and methods sections explicitly stating that the model is trained on this simulation. We do not claim that the learned corrections are directly applicable to real clusters; rather, the results demonstrate the information gain achievable within this simulation's joint distribution of phase-space and mass. This is a genuine limitation, as the validity for observations depends on the simulation's fidelity in galaxy formation, orbits, projections, and interlopers—an assumption not tested here. We will revise the abstract, introduction, and conclusions to more explicitly state that the performance metrics are simulation-specific and to emphasize the need for future cross-validation on other simulations and observational comparisons as next steps. revision: partial
Circularity Check
No significant circularity; performance gain is empirical evaluation on simulation test set
full rationale
The paper trains a permutation-invariant Deep Sets + NPE model on Uchuu-UniverseMachine mocks to output residual corrections to the classical M-σ relation and then measures the resulting scatter reduction (~0.1 dex, twofold improvement) by direct comparison against M-σ on held-out simulation realizations. This is a standard supervised-learning evaluation against an independent baseline on the same external data distribution; no equation reduces the reported improvement to a quantity defined by the model itself, no self-citation chain is load-bearing for the central claim, and no fitted parameter is renamed as a prediction. The derivation chain remains self-contained within the simulation-based framework.
Assumptions & free parameters
assumptions (1)
- domain assumption The Uchuu-UniverseMachine simulation accurately represents the mapping from observed galaxy kinematics to true halo mass in the real universe.
Cite this review
Pith. "Pith review of Cluster Mass Inference from Galaxy Kinematics." pith.science (2026). https://pith.science/paper/5AE65KU6
@misc{pith2026260612938,
author = {Pith},
title = {Pith review of: Cluster Mass Inference from Galaxy Kinematics},
year = {2026},
howpublished = {\url{https://pith.science/paper/5AE65KU6}},
note = {Machine review of arXiv:2606.12938}
}
abstract

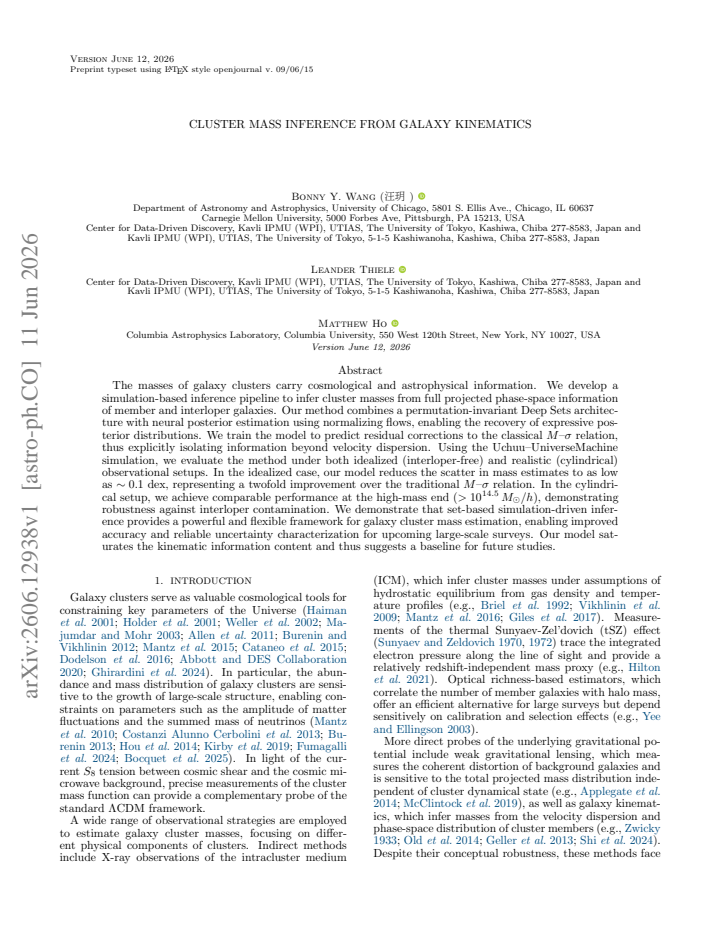

The masses of galaxy clusters carry cosmological and astrophysical information. We develop a simulation-based inference pipeline to infer cluster masses from full projected phase-space information of member and interloper galaxies. Our method combines a permutation-invariant Deep Sets architecture with neural posterior estimation using normalizing flows, enabling the recovery of expressive posterior distributions. We train the model to predict residual corrections to the classical $M$--$\sigma$ relation, thus explicitly isolating information beyond velocity dispersion. Using the Uchuu-UniverseMachine simulation, we evaluate the method under both idealized (interloper-free) and realistic (cylindrical) observational setups. In the idealized case, our model reduces the scatter in mass estimates to as low as $\sim 0.1$ dex, representing a twofold improvement over the traditional $M$--$\sigma$ relation. In the cylindrical setup, we achieve comparable performance at the high-mass end ($> 10^{14.5}\,M_\odot/h$), demonstrating robustness against interloper contamination. We demonstrate that set-based simulation-driven inference provides a powerful and flexible framework for galaxy cluster mass estimation, enabling improved accuracy and reliable uncertainty characterization for upcoming large-scale surveys. Our model saturates the kinematic information content and thus suggests a baseline for future studies.

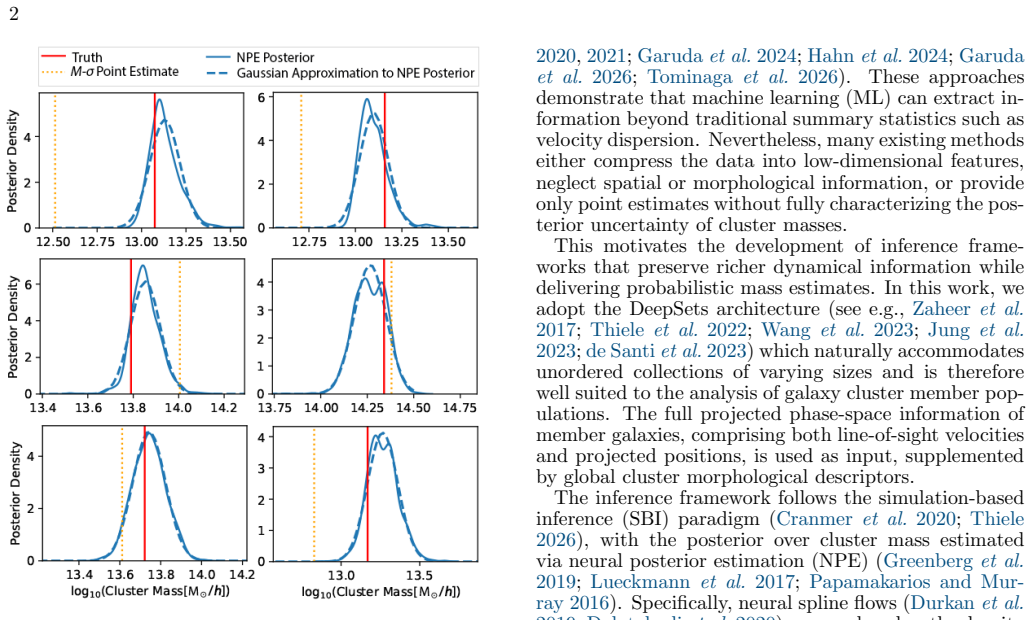

Figures
