Enabling temperature controlled in-situ vapor dosing for lab source X-ray reflectivity measurements

Anthony P. Straub; Devin L. Shaffer; Erin E. Dunphy; J. Will Medlin; Mara A. Fischer; Michael F. Toney; Sasha R. Neefe

A laboratory X-ray reflectivity cell with vapor manifold and heater enables controlled in-situ dosing and temperature ramps that resolve angstrom-scale polymer restructuring.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-14 12:30 UTC pith:5POWQYQF

load-bearing objection Solid lab-scale XRR cell that actually works for vapor dosing and heating; useful methods paper, not a conceptual leap.

arxiv 2607.10339 v1 pith:5POWQYQF submitted 2026-07-11 cond-mat.mtrl-sci

Enabling temperature controlled in-situ vapor dosing for lab source X-ray reflectivity measurements

Erin E. Dunphy , Mara A. Fischer , Sasha R. Neefe , Devin L. Shaffer , Anthony P. Straub , Michael F. Toney , J. Will Medlin This is my paper

classification cond-mat.mtrl-sci

keywords X-ray reflectivityin situ vapor dosingtransmission cellpolymer thin filmspolyamide membranespolystyrene brusheslaboratory diffractometertemperature-controlled adsorption

verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Most in-situ X-ray reflectivity cells that control vapor pressure and temperature are built for synchrotron beamlines, so everyday lab diffractometers cannot easily follow how thin films swell or reorganize under realistic chemical and thermal conditions. This paper presents a compact transmission cell and external manifold that attaches to a standard in-house diffractometer, holds vacuum or controlled vapor pressures up to near saturation, and heats the sample from room temperature to 200 °C. Two demonstrations show the payoff: water vapor swells a polyamide membrane by roughly 1.6 nm, and heating a polystyrene pseudo-brush thins it by several angstroms as the chains pass through their glass transition. The design therefore moves temperature-controlled vapor-dosing reflectivity from scarce synchrotron time into routine laboratory use, with quick probe-molecule exchange and removable hardware.

Core claim

The authors establish that a stainless-steel transmission cell fitted with a copper sample block, cartridge heater, pressure transducer and PEEK windows, together with a simple external vapor manifold, can deliver stable partial pressures from rough vacuum to 90–95 % of saturation (0–250 mbar demonstrated) while heating a sample between 25 and 200 °C on a laboratory diffractometer, resolving angstrom-scale thickness and density changes in polymer films.

What carries the argument

The vacuum manifold plus transmission cell: needle valves throttle liquid vapor into a sealed cell whose copper stage is heated by an embedded cartridge, allowing chemical potential and temperature to be set independently while X-ray reflectivity is collected.

Load-bearing premise

The thermocouple inside the cartridge heater reports the true temperature of the thin sample surface because the thermal gradient across a 1 mm substrate is negligible.

What would settle it

Mount a calibrated surface thermometer or thin-film thermocouple on a dummy sample inside the cell and compare its reading with the cartridge thermocouple while ramping from 25 to 200 °C under vacuum; a discrepancy larger than a few degrees would invalidate the claimed temperature control.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

Adsorption isotherms of vapors into thin polymer or membrane films can now be measured on laboratory diffractometers without waiting for synchrotron beamtime.
Temperature-dependent restructuring of surface-bound polymers can be followed in situ under controlled vapor environments on the same instrument.
Probe molecules can be exchanged quickly by swapping the liquid reservoir, enabling higher-throughput comparative studies.
The same hardware can be adapted for grazing-incidence diffraction or higher-pressure gas experiments on lab sources.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Adding heat tracing to the manifold and reservoir would remove cold spots and allow saturation pressure to be set by temperature rather than by throttling alone.
Replacing the manual throttle valve with a stepper-motor valve would enable automated pressure ramps and more reproducible near-saturation points.
The same cell geometry could be used for operando battery or catalytic thin-film studies once gas-handling lines replace the liquid reservoir.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Desk Editor's Note

Solid lab-scale XRR cell that actually works for vapor dosing and heating; useful methods paper, not a conceptual leap.

read the letter

This is a clean methods paper that delivers a removable transmission cell plus external manifold for temperature-controlled vapor dosing on a shared lab diffractometer. That is the whole contribution, and it is real: they show 90–95 % of liquid saturation pressures (0–250 mbar demonstrated), vacuum-tight operation, and 25–200 °C heating while resolving Å-scale thickness changes on PA membranes and PS pseudo-brushes.

What is new is the engineering package optimized for multi-user lab instruments—easy removal, simple solvent exchange, cartridge heater in a copper vise stage, PEEK windows that hold vacuum better than thin Kapton. The two case studies are direct evidence, not decoration. Water swelling of PA gives a clear ~1.6 nm thickness increase from Kiessig fringe shifts; PS brushes thin from ~40.7 Å to ~35.7 Å on heating past the glass transition, with toluene later raising contrast without changing thickness. Pressure-stability traces for heptane, methanol, and 2,3-DMB, plus time-resolved cell pressure during the PA run, back the claims without circular fitting.

Soft spots are minor and mostly acknowledged. Manual throttle valve produces transients and stops short of 98–99 % saturation; thickness is estimated from fringe spacing rather than full Parratt fits (though they note the latter is possible); sample temperature is inferred from the cartridge thermocouple under the assumption that the gradient through a 1 mm wafer is small. None of these erase the existence proof. CAD files and raw curves are not shipped, which is a practical inconvenience rather than a scientific hole. Citations to Fenter, Magnussen, Thum, Gibaud et al. correctly locate the work as a lab-accessible adaptation of known synchrotron cell types.

This is for people who run polymer, membrane, or thin-film XRR on house sources and want in-situ vapor/temperature without waiting for beamtime. It does not open a new scientific domain, but it lowers a real barrier. I would send it to peer review; the hardware works as advertised and the data are honest. Worth citing if you build or use similar cells.

Referee Report

0 major / 6 minor

Summary. The manuscript presents a custom transmission X-ray reflectivity (XRR) cell and external vacuum manifold designed for laboratory diffractometers. The hardware enables controlled vapor dosing (rough vacuum to near-saturation) and temperature-dependent measurements (25–200 °C). Capabilities are demonstrated with two case studies: water-vapor-induced swelling of polyamide (PA) membranes on silicon (~1.6 nm thickness increase extracted from Kiessig fringes between 0 and 30 mbar) and thermal restructuring of polystyrene (PS) pseudo-brushes on alumina (thickness decrease from ~40.7 Å at 25 °C to ~35.7 Å at 100 °C, with further changes at 200 °C under vacuum and toluene vapor). Pressure-stability data for heptane, methanol, and 2,3-dimethylbutane show the manifold reaches 90–95 % of saturated vapor pressures, with measurements spanning 0–250 mbar. The design emphasizes removability, probe-molecule exchange, and vacuum sealing with PEEK windows.

Significance. The work addresses a genuine accessibility gap: most published in-situ/operando XRR cells are synchrotron-only. A removable, temperature-capable vapor-dosing cell that works on a commercial lab diffractometer (Rigaku Smartlab) lowers the barrier for membrane, polymer, and thin-film groups that lack regular beamtime. The two case studies supply direct experimental evidence that the hardware resolves Å-scale structural changes under controlled chemical potential and temperature, which is the central claim. Limitations (manual throttle valve, incomplete saturation, simple Kiessig estimates rather than full Parratt fits) are real but do not erase the existence proof. The contribution is primarily engineering and methods; it is useful and publishable for an instrumentation-oriented materials journal.

minor comments (6)

Figure numbering is inconsistent: the pressure-ramping profiles are labeled “Figure 5” in the caption while the subsequent PA reflectivity panel is labeled “Figure 4”. Renumber for sequential order.
Section II states that the thermocouple is embedded in the cartridge heater and that the gradient through a 1 mm sample is assumed small. A brief calibration note (e.g., comparison with a surface thermocouple or literature thermal-conductivity estimate) would strengthen reader confidence, even if not load-bearing.
The text notes that PEEK windows reduce transmission by ~65 % and that Kapton would improve this (Figure S4). A short quantitative comparison of usable Qz range or count rates with Kapton versus PEEK would help future users choose windows.
Thicknesses are extracted solely from the first Kiessig minimum (d ≈ 2π/ΔQz or π/Qmin). Mentioning that full Parratt modeling was performed offline (or supplying one example fit) would reassure readers that the simple estimates are not the only analysis performed.
In the temperature-dependent PS section the glass-transition discussion cites bulk Tg ≈ 100 °C and thin-film depression to ~75 °C; a sentence clarifying that the observed thinning is consistent with literature values for adsorbed PS layers would tighten the interpretation.
Minor typographical issues: “1 8ൗ ”” formatting for fractional inches, “{\AA}ngstrom” in the abstract, and occasional missing spaces around units. Standardize throughout.

Circularity Check

0 steps flagged

No circularity: experimental methods paper whose claims rest on measured pressures, temperatures, and reflectivity curves rather than self-referential definitions or fitted-as-prediction steps.

full rationale

This is an instrumentation and methods demonstration. The central claims (manifold reaches 90–95 % of liquid saturation pressures over 0–250 mbar; cell supports 25–200 °C heating while resolving Å-scale thickness changes on a lab diffractometer) are established by direct pressure-transducer logs, cartridge-heater set-points, and observed Kiessig-fringe shifts in two case studies (PA water swelling ~1.6 nm; PS pseudo-brush thinning ~40.7 Å → ~35.7 Å). Thickness estimates use the standard geometric relation d = 2π/ΔQz (or d ~ π/Qmin for the first fringe); the paper explicitly notes that more rigorous Parratt fitting is available but is not required for the capability proof. No parameter is fitted to one subset of data and then re-presented as an independent prediction; no uniqueness theorem or ansatz is imported via self-citation; no quantity is defined in terms of the result it is later said to predict. Self-citations are limited to sample-preparation recipes and ordinary background literature and are not load-bearing for the hardware-performance claims. The derivation chain is therefore self-contained against external experimental benchmarks and exhibits no circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 3 axioms · 1 invented entities

As a methods/hardware paper the central claims rest on standard XRR physics, commercial component specifications, and the authors’ design choices rather than free parameters fitted to data or newly postulated physical entities. The few modeling assumptions (negligible thermal gradient, acceptable PEEK attenuation) are domain-level and stated.

axioms (3)

domain assumption X-ray reflectivity fringe spacing relates to film thickness by d ≈ 2π/ΔQz (or π/Qmin for the first minimum), and electron-density profiles can be extracted via the Parratt formalism.
Used throughout Section III to convert observed Kiessig fringes into thickness and contrast changes; standard textbook result (Als-Nielsen, Parratt 1954).
domain assumption Temperature gradient across a 1 mm sample mounted on the copper block is negligible, so the embedded thermocouple reports the sample temperature.
Explicitly stated in Section II as the basis for claiming controlled sample temperature up to 200 °C.
ad hoc to paper PEEK windows of 0.7 mm thickness provide sufficient vacuum seal and acceptable transmission (≈35 %) up to Qz ≈ 0.6 Å⁻¹ for the intended measurements.
Design choice justified by comparison to Kapton and by the data quality shown; not a universal physical law.

invented entities (1)

Custom stainless-steel transmission XRR cell with copper vise stage, cartridge heater, dual 1/8" ports, and PEEK windows independent evidence
purpose: Enable vacuum-tight, temperature-controlled vapor dosing on a laboratory diffractometer
The physical apparatus is the paper’s primary contribution; it is a fabricated object, not a postulated particle or force, and is independently verifiable by building it.

pith-pipeline@v1.1.0-grok45 · 15106 in / 2593 out tokens · 27549 ms · 2026-07-14T12:30:02.960094+00:00 · methodology

0 comments

read the original abstract

X-ray Reflectivity (XRR) is a valuable technique for probing buried interfaces in complex systems relevant to thin-film, membrane, and battery applications, among others. However, many operando and in situ reflectivity cells are designed for use at synchrotron facilities, limiting the broader accessibility of these measurements. We present an XRR transmission cell that enables in situ vapor dosing and temperature-dependent experiments on in-house diffractometers. We demonstrate its capabilities with two case studies: the adsorption of water into polyamide (PA) membranes on silicon and temperature-dependent restructuring of polystyrene (PS) pseudo brushes on alumina. Vapor dosing allows for controlled release of vapor into the cell, allowing operation across a wide range of conditions from rough vacuum to saturation. We demonstrate that the manifold can reach 90-95% of saturated pressures, with the measurements presented here spanning 0-250 mbar, which is desirable for adsorption isotherms. Heating studies performed between 25 and 200C demonstrate the ability to resolve {\AA}ngstrom scale structural changes in a surface bound polymer. These results establish a novel streamlined approach to temperature controlled vapor dosing on a laboratory diffractometer, offering straightforward probe-molecule exchange, vacuum-sealed operations, and variable temperature capabilities.

Figures

Figures reproduced from arXiv: 2607.10339 by Anthony P. Straub, Devin L. Shaffer, Erin E. Dunphy, J. Will Medlin, Mara A. Fischer, Michael F. Toney, Sasha R. Neefe.

**Figure 1.** Figure 1: In situ reflectivity cell design. A) Fully assembled design. B) Fully assembled design with transparent cell body. C) Exploded assembly. 1 – Pressure transducer, 2 – 1/8” to 1/4” NPT adapter, 3 – stainless steel cell body, 4 – 1/8” tubing connections, 5 – stainless steel frame, 6 – heating cartridge, 7 – base plate, 8 – window frame Viton gaskets, 9 – copper block, 10 - PEEK windows, 11 – copper block Vito… view at source ↗

**Figure 2.** Figure 2: Manifold system for vapor dosing. A) Schematic of manifold system displaying the system inside of the diffractometer (gray shaded box) and outside of the diffractometer. (1) Pressure gauge, (3) cell body, (6) heater, (16) critical junction for cell removal, (17) computer, (18) temperature controller, (19) oil trap, (20) vacuum pump, (21) glass beaker. The X-ray source and area detector are shown explicitly… view at source ↗

**Figure 5.** Figure 5: A) Pressure ramping profiles for 2,3 – DMB (orange), methanol (red), and heptane (black) as a function of time. Relative pressure of B) heptane, C) methanol, and D) 2,3-DMB as a function of time. Scatter points are taken by averaging the recorded pressure every minute with standard deviations represented by error bars [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗

**Figure 4.** Figure 4: A) In situ reflectivity of PA membranes in contact with water vapor at various vapor pressures. Colors correspond to the respective pressure ranging from 0 to 30 mbar. B) Extracted thickness in nm vs. pressure of PA membranes. A smoothing spline was fit the data to guide the eye and highlight overall trends and is shown with a red line. C) XRR of PA membranes under rough vacuum conditions (0 mbar – black) … view at source ↗

**Figure 5.** Figure 5: Reflectivity obtained for PA films at 0 mbar prior to vapor exposure (solid lines), after exposure to maximum vapor pressure (dashed lines) and after the sample was heated to 40ºC (orange dots) [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗

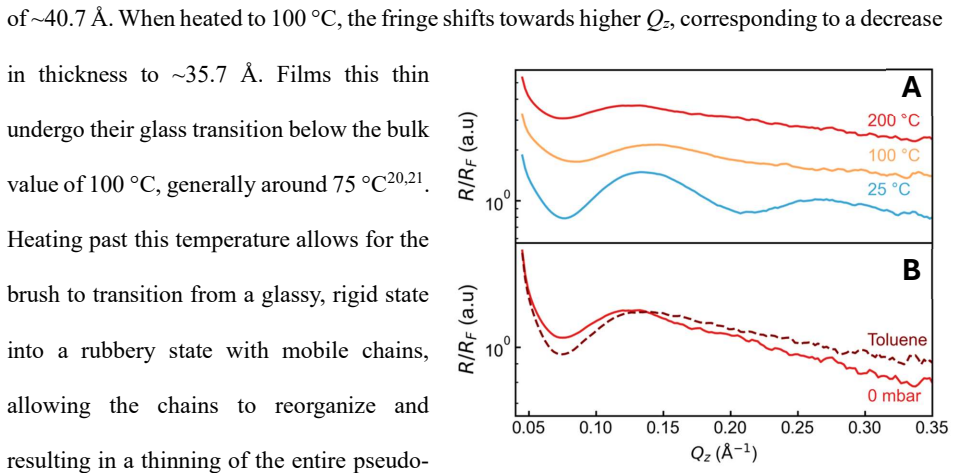

**Figure 6.** Figure 6: Fresnel-normalized reflectivity collected for PS pseudo-brushes. A) In vacuum at 25 °C (blue), 100 °C (yellow), and 200 °C (red). B) At 200 °C in vacuum (solid line) and toluene vapor dosing (dashed line). A B [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
