RL policies trained on rigid-link cable approximations transfer zero-shot to multi-stage real-world cable routing when the robot tracks simulated joint targets in a loop.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-11 16:21 UTC pith:6A335IEH

load-bearing objection Solid systems paper: first real-robot multi-stage cable-routing RL via rigid-capsule sim + SILO, with clean ablations; the headline vs h-IL over-attributes gains to method rather than known harness poses. the 2 major comments →

arxiv 2607.04616 v1 pith:6A335IEH submitted 2026-07-06 cs.RO cs.AI

SILO: Simulation-in-the-Loop Sim-to-Real Transfer for Multi-Stage Cable Routing

Stone Tao , Jie Xu , Hesam Rabeti , Yashraj Narang , Yijie Guo , Iretiayo Akinola This is my paper
classification cs.RO cs.AI
keywords sim-to-realcable routingreinforcement learninglinear deformable manipulationSimulation-In-the-LoopGPU-parallelized simulationstate estimation
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Routing a cable through a sequence of harnesses is hard because small local deformations change suddenly under contact and gravity, so classical planners and imitation-learning systems either over-engineer or demand thousands of demonstrations. This paper shows that a coarse rigid-body model—an articulated chain of capsules with PD-driven joints plus a single plasticity term—can be simulated thousands of times in parallel on a GPU, letting reinforcement learning discover reactive routing policies for a single harness. At deployment a Simulation-In-the-Loop (SILO) controller keeps a digital twin synchronized with the real robot: the policy’s action is applied only inside the twin, and the real arm simply tracks the resulting joint angles. Combined with a polyline state estimator that matches the simulated cable discretization, the same policy routes four different real cables through up to three harnesses with higher success and roughly half the cycle time of the previous hierarchical imitation baseline, without any demonstrations or system identification.

Core claim

A GPU-parallelized rigid-body approximation of a linear deformable, localized RL that only learns the critical routing step, and a Simulation-In-the-Loop deployment loop that re-uses the same simulator dynamics at runtime together constitute the first successful zero-shot sim-to-real transfer of RL policies for multi-stage cable routing, yielding higher success rates and approximately 2× lower cycle times than prior learning methods while generalizing across cable materials.

What carries the argument

SILO (Simulation-In-the-Loop): at every control step the real joint angles are copied into a digital twin, the policy acts only inside that twin, and the resulting simulated joint targets become the real robot’s set-points; this re-uses training dynamics, bypasses controller system-ID, and enforces collision-free targets by construction.

Load-bearing premise

A chain of rigid capsules whose joints are driven by fixed PD gains and one plasticity coefficient is already close enough to real cable behavior that synchronizing joint angles alone closes the sim-to-real gap.

What would settle it

Train the identical policy and SILO pipeline, then measure real-world success on a cable whose bending stiffness or diameter lies far outside the range of the four tested materials (or on harness clearances smaller than the cable diameter); a sharp drop below the reported 14–18/24 rates would falsify the approximation claim.

Watch this falsifier — get emailed when new claim-graph text bears on it.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 0 minor

Summary. The paper presents SILO, a sim-to-real RL system for multi-stage cable routing. Linear deformables are approximated as articulated rigid-capsule chains with PD elasticity and a plasticity coefficient β, trained with PPO on GPU-parallelized intermediate states generated by motion primitives. At deployment, SILO (Algorithm 1) applies policy actions only in a digital twin and tracks the resulting simulated joint targets on the real robot, combined with polyline state estimation from stereo depth and SAM2. Real-robot experiments report higher success rates and roughly 2× lower cycle times than a hierarchical imitation-learning baseline across 1–3 harnesses, with generalization to four cable types and ablations on randomization, deployment method, controller gains, and observation dimensionality.

Significance. If the results hold under fairer controls, this is a concrete advance for industrial deformable assembly: the first demonstrated zero-shot sim-to-real RL transfer for multi-stage cable routing, with real hardware success rates (Tables 1–2), controlled ablations (Tables 3–5, 11), cycle-time breakdown, and emergent reactive behaviors (angling/swinging). The rigid-capsule approximation plus SILO controller-agnostic deployment is a practical engineering contribution that avoids system identification and simplifies reward design. Strengths include reproducible real-robot numbers, explicit failure-mode taxonomy, and open videos. The work is significant for robotics venues even if the headline baseline comparison is imperfect, because the SILO stack and localization strategy are independently useful.

major comments (2)
  1. Table 1 and §5.1: The central claim of higher success (18/24 vs 12/24 for H3) and ~2× lower cycle time vs hierarchical IL is load-bearing for the abstract and introduction, yet the comparison confounds SILO/RL with privileged knowledge. SILO assumes known harness geometries/poses a priori (Problem Description, Limitations) and uses MoveToHarness to place the TCP at a known p_i before localized RL; h-IL does not receive that prior and spends time on reshaping/replanning. The authors note the comparison is imperfect, but still headline numerical superiority and “first successful.” A matched-assumption baseline (same known fixtures + same recovery budget) or an ablation that removes the known-pose prior is needed before attributing the gain primarily to SILO + rigid-capsule RL.
  2. §4.1 and Appendix E: The cable model (fixed PD stiffness/damping + single plasticity β, Table 8) is an ad-hoc free-parameter stack frozen once for all cables. Table 2 shows generalization across four real cables, which is encouraging, but there is no sensitivity study or identification procedure showing how β and joint gains map to material properties, nor whether the same parameters would transfer to substantially different lengths, diameters, or contact regimes. Without that, the claim that the approximation is “sufficient for zero-shot transfer” remains under-supported for broader linear-deformable tasks.

Circularity Check

0 steps flagged

No circularity: empirical robotics system whose success rates and cycle times are measured on held-out real hardware, not derived by construction from fitted inputs or self-citations.

full rationale

The paper presents an engineering system (GPU rigid-capsule cable approximation + localized PPO + SILO joint-target tracking + polyline state estimation) whose central claims are zero-shot real-robot success rates (Table 1: 24/24, 22/24, 18/24) and cycle times (~87 s) versus an external hierarchical-IL baseline. Hyper-parameters (joint stiffness/damping, plasticity β, PD gains, reward coefficients) are chosen once and frozen; they do not appear inside any equation that is later re-labeled a “prediction.” SILO (Algorithm 1) simply re-uses the same simulator controller that generated the training data; it does not embed the success metric. Self-citations (ManiSkill3 infrastructure) supply only the parallel rigid-body backend and are not load-bearing uniqueness or uniqueness theorems. No step reduces a claimed first-principles result or prediction to its own inputs by definition. The non-apples-to-apples baseline comparison noted by the skeptic is a fairness/correctness issue, not circularity.

Axiom & Free-Parameter Ledger

5 free parameters · 4 axioms · 2 invented entities

The central empirical claim rests on a small set of modeling choices (rigid-capsule cable + fixed PD/plasticity, known harness poses, quasi-static SILO sync) and a handful of free coefficients that are never derived from first principles. No new physical entities are postulated beyond the engineering construct “SILO.”

free parameters (5)
  • cable joint drive stiffness = 1e-2
    Set to 1e-2 (Table 8); controls elastic restoring force and is not measured from real cables.
  • cable joint drive damping = 1e-3
    Set to 1e-3; free damping coefficient of the PD joint drives.
  • plasticity coefficient β = 0.7
    Set to 0.7; governs how quickly rest angles track current angles; chosen by hand for “sufficient state coverage.”
  • cable Y-axis randomization range = [-0.2, 0.2] m
    Training distribution width [-0.2, 0.2] m that directly controls entry-angle coverage; ablated but still a free design choice.
  • simulation PD gains (low/medium/high) = medium (default)
    Three discrete controller settings used for SILO flexibility experiments; medium is default; none are identified from real hardware under SILO.
axioms (4)
  • domain assumption Harness geometries and poses are known a priori (from CAD or a separate perception pipeline).
    Stated in §3 and Limitations; without it the digital twin and MoveToHarness primitive cannot be constructed.
  • ad hoc to paper Linear deformables can be approximated for the routing task by an articulated sequence of rigid capsules with 3 orthogonal revolute joints plus PD elasticity and simple plasticity.
    Core modeling choice of §4.1; no derivation from continuum mechanics is offered.
  • domain assumption Manipulation is quasi-static so that joint-angle synchronization between real robot and twin at 10 Hz is sufficient.
    Explicit assumption of SILO (Appendix C.1) and listed as a limitation for dynamic tasks.
  • ad hoc to paper Four equal-length cable points nearest the TCP plus TCP pose and joint angles form a sufficient observation for reactive routing.
    Observation design of §4.3; ablated but still an unproven sufficiency claim.
invented entities (2)
  • SILO (Simulation-In-the-Loop) deployment loop no independent evidence
    purpose: Bypass controller system identification by executing policy actions only inside a synchronized digital twin and commanding the real robot to track the resulting joint targets.
    Novel engineering construct introduced in Algorithm 1 and §4.3; no independent theoretical existence outside this paper.
  • Plasticity-augmented rigid-capsule cable model no independent evidence
    purpose: Provide a GPU-parallel, high-throughput surrogate for elastic/plastic linear deformables that still yields transferable policies.
    Constructed in §4.1 from existing PhysX APIs; parameters are free and not independently validated against continuum models.

pith-pipeline@v1.1.0-grok45 · 27662 in / 3356 out tokens · 30783 ms · 2026-07-11T16:21:28.955491+00:00 · methodology

0 comments
read the original abstract

Linear-deformable manipulation remains challenging due to the complex deformations of objects such as cables and ropes. Prior data-driven approaches, particularly imitation learning, have shown some promise in narrowly defined settings but typically require thousands of demonstrations for specific tasks and cable types, limiting scalability and generalization. We introduce a sim-to-real reinforcement learning (RL) framework for multi-stage cable routing that leverages GPU-parallelized simulation to approximate linear deformable behaviors. Training across thousands of parallel simulations enables the learned policies to generalize across diverse cable geometries and deformation patterns. To bridge the sim-to-real gap, we propose a novel deployment strategy that combines a Simulation In the LOop (SILO) execution framework, localized RL policies, and robust cable state estimation. On real-world cable routing tasks, our approach achieves higher success rates and 2x reduction in cycle times compared to prior state-of-the-art learning methods. To our knowledge, this is the first successful sim-to-real transfer of RL policies for multi-stage cable routing. Videos and additional visualizations are available at https://silo-cable-routing.github.io/

Figures

Figures reproduced from arXiv: 2607.04616 by Hesam Rabeti, Iretiayo Akinola, Jie Xu, Stone Tao, Yashraj Narang, Yijie Guo.

Figure 1
Figure 1. Figure 1: Key components of our system. A) GPU-parallelized articulated rigid-body simulation approxi￾mates cable dynamics during routing. B) Motion primitives grasp and transport the simulated cable to ran￾domized intermediate states near the harness to efficiently train localized RL policies. C) At deployment, the robot executes identical motion primitives before transitioning to simulation-in-the-loop execution. … view at source ↗
Figure 3
Figure 3. Figure 3: Three images showing A) the real world, B) rendering of the digital twin, C) an overlay of the task [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: Four example intermediate states of our cable simulation generated by mo￾tion primitives for initializing episodes dur￾ing RL training. The simulated Franka robot gripper is grasping the end of a cable and is placed just behind a harness at pose pi. Our key design choice is to model linear-deformables us￾ing only rigid-body APIs, trading off fidelity for high￾throughput simulation to enable fast RL trainin… view at source ↗
Figure 4
Figure 4. Figure 4: Observation features in simulation. The red dots denote the 4 observed cable points closest to the TCP. The RGB axes show the observed TCP pose. In simulation, cable points are obtained directly from the link states, where each link has equal length. In the real world, in order to estimate sim-to-real com￾patible cable points, we fit an equal-length polyline to a segmented cable pointcloud. To predict the … view at source ↗
Figure 5
Figure 5. Figure 5: Sampling distribution of harness poses for cable routing. 1 to 3 harnesses are independently sampled within one of three 12.5cm×15cm regions, with in-plane rotations uniformly sampled up to 45◦ . The green boxes are spaced out by 5 cm. We evaluate on a cable routing benchmark consisting of routing a single cable through one to three harnesses. We follow the experimental protocol of Luo et al. [6], which us… view at source ↗
Figure 6
Figure 6. Figure 6: Reset states used to densely eval￾uate trained policies. The cable is shown already routed through the target harness (top) to show what a solved state looks like. To better understand what enables our method to bridge the sim-to-real dynamics gap, we conduct ablation studies on our simulation environment. To keep tests controlled and fast, we analyze the performance of our policy in rout￾ing through a sin… view at source ↗
Figure 7
Figure 7. Figure 7: Visual overview of the state estimation system used to build sim digital twins during deployment. In [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The sequence of movements for the GraspCable primitive in the real world [PITH_FULL_IMAGE:figures/full_fig_p017_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The sequence of movements for the GraspCable primitive in simulation. 17 [PITH_FULL_IMAGE:figures/full_fig_p017_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The sequence of movements for the MoveToHarness primitive in the real world [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗

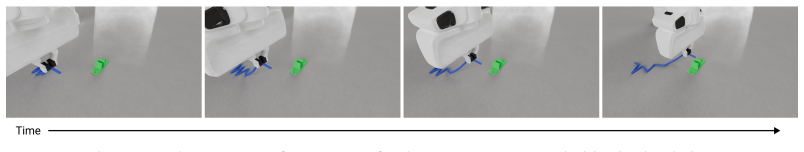

Figure 11
Figure 11. Figure 11: The sequence of movements for the MoveToHarness primitive in simulation. B.1 GraspCable Visualization of the GraspCable primitive deployed in the real world is shown in [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Selected frames of two overlaid videos showing how using SILO with a digital twin that models the [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Comparison of code complexity between SILO and a typical sim-to-real deployment setup. This [PITH_FULL_IMAGE:figures/full_fig_p020_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Motion profile of each of the 7 arm joints after calibrating the simulation controller to align with the [PITH_FULL_IMAGE:figures/full_fig_p023_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Training success rate over environment samples. Curve is the average of 5 trials, and shaded area is [PITH_FULL_IMAGE:figures/full_fig_p025_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Image of the real world setup for experiments. [PITH_FULL_IMAGE:figures/full_fig_p025_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Cantilever test comparing the 4 main cables tested in this paper. [PITH_FULL_IMAGE:figures/full_fig_p026_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Selected frames of the angling behavior demonstrated by the RL policy when routing through a [PITH_FULL_IMAGE:figures/full_fig_p026_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Selected frames of the swinging behavior demonstrated by the RL policy when routing through [PITH_FULL_IMAGE:figures/full_fig_p026_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Two common failure types during execution where the RL policy fails to route completely. Left [PITH_FULL_IMAGE:figures/full_fig_p028_20.png] view at source ↗
