A Robust Prototype-Based Network with Interpretable RBF Classifier Foundations

T0 review · 3 major / 4 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read A rebuilt prototype classifier gains certified robustness and a sound explanation of its own decisions.

desk verdict A genuinely interesting interpretable-prototype paper whose central robustness theorem is stated with a sign error—fixable, but as printed the certificate is undefined. read the letter →

arxiv 2412.15499 v3 pith:6NCWMGGW submitted 2024-12-20 cs.LG cs.AIcs.CV

Sascha Saralajew , Ashish Rana , Thomas Villmann , Ammar Shaker This is my paper · ORCID
classification cs.LGcs.AIcs.CV
keywords Classification-by-Componentsprototype-basednetworksRBFinterpretablemachinelearningcertifiedrobustnessnegativereasoningtangentdistancemarginloss
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that most deep prototype-based networks are deep radial-basis-function (RBF) classifiers whose final layers inherit RBF networks' interpretability problems: unbounded, incomparable weights let less-similar prototypes dominate a prediction. To fix this, it rebuilds the Classification-by-Components (CBC) model as a probabilistic RBF classifier with trainable class-wise component priors, sound negative reasoning, and normalized weights. It proves a certified lower bound on the adversarial perturbation that can be applied to a correctly classified sample, for Euclidean, squared-norm, and tangent distances, and turns the bound into a training loss. Empirically the shallow version outperforms other shallow prototype models on MNIST with non-trivial certified robustness, while the deep version reaches state-of-the-art accuracy on CUB, CARS, and PETS. If correct, the shallow CBC is simultaneously inherently interpretable, accurate, and provably robust, and Gaussian RBF classifiers get their first robustness-optimizing loss.

What carries the argument

The carrying object is the probability-tree model of CBC, simplified to a per-class linear combination of detection and non-detection probabilities: each class $c$ has a component prior vector $b_c$ and a requiredness vector $r_c$, the input has a detection vector $d(x)$ with entries $\exp(-d_E(x,w_k)/\sigma_k)$, and the class score is $p_c(x) = (r_c \circ d(x) + (1-r_c)\circ(1-d(x)))^T b_c$. Rewriting this as $\sum_k \alpha_k P(D|x,k) + \beta$ exhibits it as an RBF network with weights constrained to probability vectors, which is what lets the robustness proof apply to RBF classifiers. The proof machinery itself is a triangle-inequality lower and upper bounding of the detection kernel under perturbation, yielding a monotonically decreasing function of perturbation norm whose root is the certified radius; the same root expression, with sign tracking correct classification, becomes the proposed robustness loss.

What would settle it

For a shallow CBC, take a correctly classified test sample, compute the exact minimal adversarial perturbation by direct constrained optimization (or a tight attack), and compare it with the Theorem 1 bound; finding any sample whose true minimal perturbation is smaller than the bound would disprove it. For the deep claim, run a standard input-space attack on the deep CBC: if any input that is certified in latent space is flipped by a perturbation smaller than the certified latent radius, the transfer claim is not a complete input-space guarantee.

Watch

Extended reading notes

Core claim

On the paper's own terms, the central discovery is that a small modification to CBC repairs both its interpretability and its training behavior while making provable robustness possible. Removing the binary "importance" variable and replacing it with class-wise component priors $P(k|c)$ eliminates a scaling invariance that let confident predictions arise from near-zero reasoning evidence; the resulting output probability $p_c(x) = (r_c \circ d(x) + (1-r_c)\circ(1-d(x)))^T b_c$ is a probability-constrained RBF classifier that uses absence of features as evidence. Theorem 1 gives a certified lower bound $\|\varepsilon^*\| \ge \kappa \min_{c'\ne y} \ln(( -B_{c'} + \sqrt{B_{c'}^2 - 4A_{c'}C_{c'}})/(2A_{c'}))$ for any correctly classified sample, with identical structure for Gaussian kernels (Theorem 2) and tangent-distance components (Theorem 3), and the same expression is proposed as a margin-style robustness loss. The authors claim this yields the first loss that optimizes robustness of Gaussian RBF classifiers and, combined with the RBF relation, explains why prototype-based networks detect out-of-distribution data.

Load-bearing premise

For the deep network, the robustness guarantee is stated inside the learned feature space, and the paper gives no proven bound connecting a change in the input image to a change in that feature space.

Editorial extensions

If this is right

  • A shallow CBC is inherently interpretable: each class score is a weighted sum of positive evidence (component present and required) and negative evidence (component absent and not required), with all weights normalized as probabilities, so the most similar components always dominate the class decision.
  • Because the head is a probability-constrained RBF network, the proven robustness bounds transfer to shallow Gaussian RBF classifiers, giving the first robustness-optimizing loss for such networks.
  • Robustified shallow CBC training produces non-trivial certified robustness on MNIST at $\|\varepsilon\|=1$ (15.2% certified, 62.8% empirical), outperforming GLVQ in accuracy and empirical robustness while remaining interpretable.
  • On CUB, CARS, and PETS, the deep CBC with a ConvNeXt-tiny backbone reaches 87.8%, 93.0%, and 93.9%, above the compared deep prototype networks, and ablations attribute much of the gain to negative reasoning.
  • The original CBC's bad local minima are explained by a scaling redundancy in its importance variable; removing that variable makes training converge to diverse, class-specific components rather than repeated ones.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper's robustness certificate is proven only for the shallow model; extending it to deep PBNs would require a Lipschitz or distortion bound on the feature extractor that maps input-space perturbations to latent-space perturbations, which the paper does not provide.
  • The equivalence between CBC and GLVQ when reasoning is crisp suggests that the new robustness loss may be a probabilistic generalization of the hypothesis-margin loss; exploring that limit could yield tighter certificates for LVQ-style classifiers.
  • The unexplained observation that plain margin training also confers non-trivial empirical robustness hints at a geometric property of the probability-gap loss; if identified, it could lead to certificates that do not require the robustified loss.
  • Since components in the deep model live in a black-box latent space, the paper's own discussion implies that interpretability claims for deep PBNs should be treated as partial and user-dependent, motivating quantitative evaluation of explanations.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper proposes an extension of the Classification-by-Components (CBC) prototype-based network, replacing the importance variable with trainable class-wise component priors so that negative reasoning is handled probabilistically and the model becomes a constrained RBF classifier. It argues that deep prototype-based networks are deep RBF classifiers, critiques the interpretability of existing prototype heads, and derives certified robustness lower bounds for shallow CBC models under exponential detection functions (Theorems 1 and 3) and squared-norm Gaussian RBF kernels (Theorem 2). The same bound is proposed as a robustness loss. Experiments report state-of-the-art accuracy for deep CBC on CUB, CARS, and PETS, and show that shallow CBC with tangent distance is highly accurate while robustness-trained variants improve certified robustness on MNIST.

Significance. If the technical issues below are corrected, the paper makes a valuable contribution: it provides a certified robustness bound that doubles as a training loss for an interpretable shallow classifier, and it connects prototype-based networks to RBF classifiers, giving the first robustness-optimizing loss for Gaussian RBF networks. The paper is also useful for its comparative table of deep PBN architectures, its empirical evidence that negative reasoning improves accuracy, and its extensive MNIST robustness evaluation. The source code is provided, and the robustness evaluation uses standard tools such as AutoAttack. The use of the derived bound as both loss and certificate is not circular, because the bound is an analytic consequence of the model equations rather than a fitted quantity.

major comments (3)
  1. [Appendix B, Lemma 4, Eqs. (23)-(24); Theorem 1, Eq. (8)] The printed certified-bound formula is undefined for the cases it is intended to cover. In Lemma 4, the proof derives the positive root as (B + sqrt(B^2 - 4AC))/(2|A|) (see Eq. (19) and the following lines), but Eqs. (23)-(24) and Theorem 1's Eq. (8) print (−B + sqrt(B^2 - 4AC))/(2A). Since A = ((r_y−1)∘b_y − r_c'∘b_c')^T d(x) ≤ 0 by construction and the proof itself shows the numerator is non-negative for correctly classified samples, the logarithm's argument is non-positive and δ is not a real number. Consequently the robustness certificate, the claim that δ is negative for incorrectly classified samples, and the robustness loss based on δ are not evaluable as printed. The intended theorem is recoverable by replacing 2A with 2|A| (or equivalently −2A) in Eq. (8), Eq. (23), Eq. (24), and the loss definition; the authors must make this correction and ensure all subsequent uses of δ are based on the corrected expression.
  2. [Section 3, paragraph before Theorem 1] The sentence 'with a feature extractor, the same stability analysis applies in the latent space' is not supported by any Lipschitz or distortion bound that relates perturbations in the input space to perturbations in the latent space. Therefore, Theorem 1 as stated does not establish input-space certified robustness for deep PBNs; it only certifies robustness in the model's own latent space. This is a scope limitation that should be stated explicitly in the abstract and in the robustness section, or else a concrete bound connecting input perturbations to latent perturbations must be supplied.
  3. [Section 4, Table 3 and Appendix D.3] The certified-robustness numbers are computed from the same formula that is misprinted in Eq. (8) and Eq. (23). The paper should state explicitly which expression was actually implemented in the code, and if the corrected 2|A| denominator was used, all certified-robustness tables and the robust-loss training results should be recomputed and reported with the corrected formula. As printed, the numerical certified values cannot be reproduced from the displayed equations.
minor comments (4)
  1. [Appendix B.3] The restated theorem in the proof of Theorem 2 is labeled 'Theorem 5' instead of 'Theorem 2'; this renumbering should be fixed.
  2. [Theorem 2 and Eq. (9)] The relationship between δ in the statement of Theorem 2, the intermediate quantity ∥ε0∥ in Eq. (32), and the simplified expression in Eq. (9) is unclear; in particular, the factor σmin/6 in Eq. (9) is introduced without derivation. Please define each quantity consistently so that the squared-norm bound can be evaluated from the printed formulas.
  3. [Section 4, Table 3] Several certified-robustness entries are reported as 0.0 ± 0.0; please report these values at higher precision or explicitly state that they are exactly zero, since values such as 0.04 and 0.00 would both round to 0.0 at one decimal place.
  4. [Throughout] The new model and the original CBC are both referred to as 'CBC', which is confusing in several passages (e.g., 'In CBC, both problems mentioned above are caused...'). Consider using distinct names, such as 'CBC+', throughout the paper and in tables.

Circularity Check

0 steps flagged · score 2.0 of 10

No significant circularity: the robustness certificate and loss are derived from the model equations, not fitted, and self-citations are background material rather than load-bearing.

full rationale

The derivation chain is self-contained. The model output (Eq. 4) is a probabilistic agreement over components, and Appendix B derives the robustness lower bound from that equation using only the triangle inequality, the monotonicity of the resulting lower-bounding function, and its quadratic root. The certified radius in Theorem 1 is a closed-form function of the model parameters and the input; it is not obtained by fitting any parameter to data and then renaming that fit as a prediction. The robustness loss is the logarithm of that same certified bound, so training with it directly optimizes the certificate; this is standard certified-robustness practice and does not constitute a fitted-input-called-prediction pattern. The claimed relation to RBF networks is an analytic observation, namely that a linear prediction head over RBF similarities is an RBF network, and the extensions for squared norms and tangent distances are proved in Appendix B.4 rather than imported from prior work. Self-citations to the original CBC and to tangent-distance LVQ provide background, a margin-loss setting, and a point of comparison; none of Thm. 1-3 is justified by an unverified self-citation. The paper also acknowledges genuine scope limitations, notably that deep models are only partially interpretable and that the robustness analysis for deep models lives in the latent space without an input-space distortion bound; this is a limitation, not a circular step. A sign anomaly in the printed Eq. (8)/(23) is a correctness concern, not circularity: with A <= 0 the printed logarithm is undefined, whereas the proof's own quadratic-root derivation uses the positive denominator 2|A|, so the theorem is not being assumed by construction.

Assumptions & free parameters 8 free parameters · 5 assumptions · 0 invented entities

The model has many learned parameters (centers, temperatures, priors, reasoning vectors) that enter the robustness bound, but the bound is a theorem about those parameters, not a fit. The main domain assumptions are the probabilistic decomposition of reasoning and the latent-space transfer for deep models.

free parameters (8)
  • Detection temperature sigma_k = trainable, initialized via Eq. (34)
    Component-dependent temperatures in the RBF detection function; central to the robustness bound (kappa = sigma_min).
  • Reasoning probability vector v_c = softmax-normalized over 2K entries
    Encodes positive and negative reasoning probabilities for each class; learned via margin loss.
  • Component prior b_c = class-wise, sums to 1
    Learned class-specific component prior replacing the uniform prior of original CBC.
  • Component centers w_k = learned in input or latent space
    Prototype positions defining the detection probability.
  • Requiredness vector r_c = derived from v_c or learned
    Reasoning possibility probabilities; used in Eq. (4) and Theorem 1.
  • Tangent subspace basis W = orthonormal r-dimensional basis, r=12 in experiments
    Learned affine subspace for tangent distance components.
  • Robustness loss scaling lambda = 0.09 or 1
    Balances the two terms in Eq. (33) for the squared-norm robust loss.
  • Margin gamma = 0.025 (deep), 0.3 or 1.58 (shallow)
    Margin value in the margin loss and robust loss clipping.
assumptions (5)
  • domain assumption Detection probability P(D|x,k) is a similarity measure taking values in [0,1] with d(x,x)=1 and is of the form exp(-d(x,w_k)/sigma_k) where d is induced by a norm.
    Assumed in Eq. (5) and required for Theorems 1-3.
  • domain assumption The reasoning and detection events are conditionally independent given class and component: P(R,D|x,c,k)=P(R|c,k)P(D|x,k).
    Used to derive Eq. (3) and the simplified linear form of pc(x).
  • standard math Triangle inequality for the chosen norm.
    Used throughout the lower and upper bounds in Lemma 4 and Theorems 1-3.
  • domain assumption For deep models, robustness in latent space is equivalent to input-space robustness under the feature extractor.
    The paper states stability analysis applies in latent space but does not bound the feature extractor's effect on input perturbations.
  • standard math The probability gap py(x) - pc'(x) is positive for correctly classified samples.
    Definition of correct classification; used to derive the positive root.

how reviews work

0 comments
Cite this review

Pith. "Pith review of A Robust Prototype-Based Network with Interpretable RBF Classifier Foundations." pith.science (2026). https://pith.science/paper/6NCWMGGW

@misc{pith2026241215499,
  author       = {Pith},
  title        = {Pith review of: A Robust Prototype-Based Network with Interpretable RBF Classifier Foundations},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6NCWMGGW}},
  note         = {Machine review of arXiv:2412.15499}
}
read the original abstract

Prototype-based classification learning methods are known to be inherently interpretable. However, this paradigm suffers from major limitations compared to deep models, such as lower performance. This led to the development of the so-called deep Prototype-Based Networks (PBNs), also known as prototypical parts models. In this work, we analyze these models with respect to different properties, including interpretability. In particular, we focus on the Classification-by-Components (CBC) approach, which uses a probabilistic model to ensure interpretability and can be used as a shallow or deep architecture. We show that this model has several shortcomings, like creating contradicting explanations. Based on these findings, we propose an extension of CBC that solves these issues. Moreover, we prove that this extension has robustness guarantees and derive a loss that optimizes robustness. Additionally, our analysis shows that most (deep) PBNs are related to (deep) RBF classifiers, which implies that our robustness guarantees generalize to shallow RBF classifiers. The empirical evaluation demonstrates that our deep PBN yields state-of-the-art classification accuracy on different benchmarks while resolving the interpretability shortcomings of other approaches. Further, our shallow PBN variant outperforms other shallow PBNs while being inherently interpretable and exhibiting provable robustness guarantees.

Figures

Figures reproduced from arXiv: 2412.15499 by the authors.

Figure 1
Figure 1. General architecture of deep PBNs. proposed architectures are often subtle, such as imposing sparsity, the usage of negative reasoning, and whether they can be used as a shallow model. Moreover, all architectures are supposed to generate interpretable models. But is this genuinely accurate? In this paper, we investigate PBNs and make the following contributions: 1. We show that deep PBNs are related to deep RBF clas… view at source ↗
Figure 2
Figure 2. Probability tree diagram of the original CBC with [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Fish crow gets incorrectly classified as common [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figures from the paper (14 more)
Figure 4
Figure 4. Figure 4: The comparative analysis of PIPNet and CBC for [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: Margin value hyperparameter search for different backbone architectures. [PITH_FULL_IMAGE:figures/full_fig_p020_5.png]
Figure 6
Figure 6. Figure 6: Issues of PIPNet with component sparsity while differentiating classes. [PITH_FULL_IMAGE:figures/full_fig_p020_6.png]
Figure 7
Figure 7. Figure 7: Unbalanced weight distribution of PIPNet. The image shows the box plots of the weights of different classes, including [PITH_FULL_IMAGE:figures/full_fig_p021_7.png]
Figure 8
Figure 8. Figure 8: CBCs learning contextually relevant components for positive and negative reasoning. [PITH_FULL_IMAGE:figures/full_fig_p021_8.png]
Figure 9
Figure 9. Figure 9: Probabilistic prediction mechanism of CBCs with positive and negative component contributions. [PITH_FULL_IMAGE:figures/full_fig_p021_9.png]
Figure 10
Figure 10. Figure 10: But, as evidenced by our interpretability analysis and higher performance by ConvNeXt-tiny backbone, these similar [PITH_FULL_IMAGE:figures/full_fig_p022_10.png]
Figure 11
Figure 11. Figure 11: Probabilistic prediction mechanism analysis of the CBC approach for the classes fish crow and common raven given a [PITH_FULL_IMAGE:figures/full_fig_p023_11.png]
Figure 12
Figure 12. Figure 12: Learned reasoning of the original CBC. The reasoning matrix shows for each component the learned probabilities. [PITH_FULL_IMAGE:figures/full_fig_p027_12.png]
Figure 13

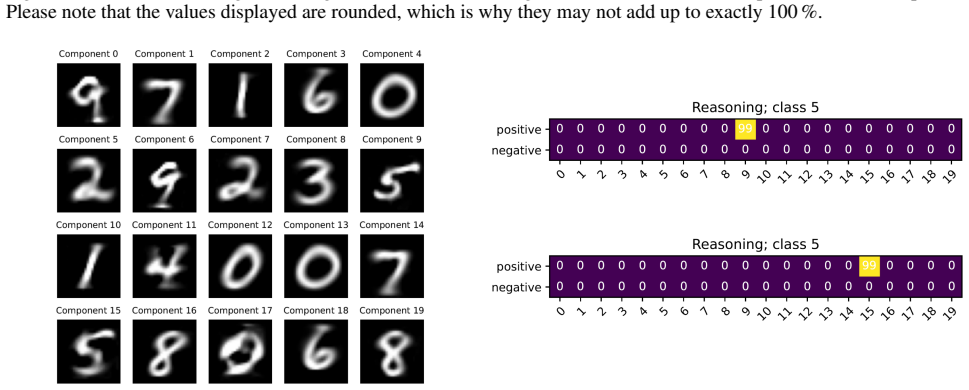

Figure 13. Figure 13: Learned reasoning of our CBC. The reasoning matrix shows for each component the learned probabilities. [PITH_FULL_IMAGE:figures/full_fig_p027_13.png]
Figure 14
Figure 14. Figure 14: Components learned by an RBF (left) and by an RBF-norm (right). [PITH_FULL_IMAGE:figures/full_fig_p028_14.png]
Figure 13
Figure 13. Figure 13: It should also be noted that our model learned a sparse representation by only optimizing the margin loss [PITH_FULL_IMAGE:figures/full_fig_p028_13.png]
Figure 15

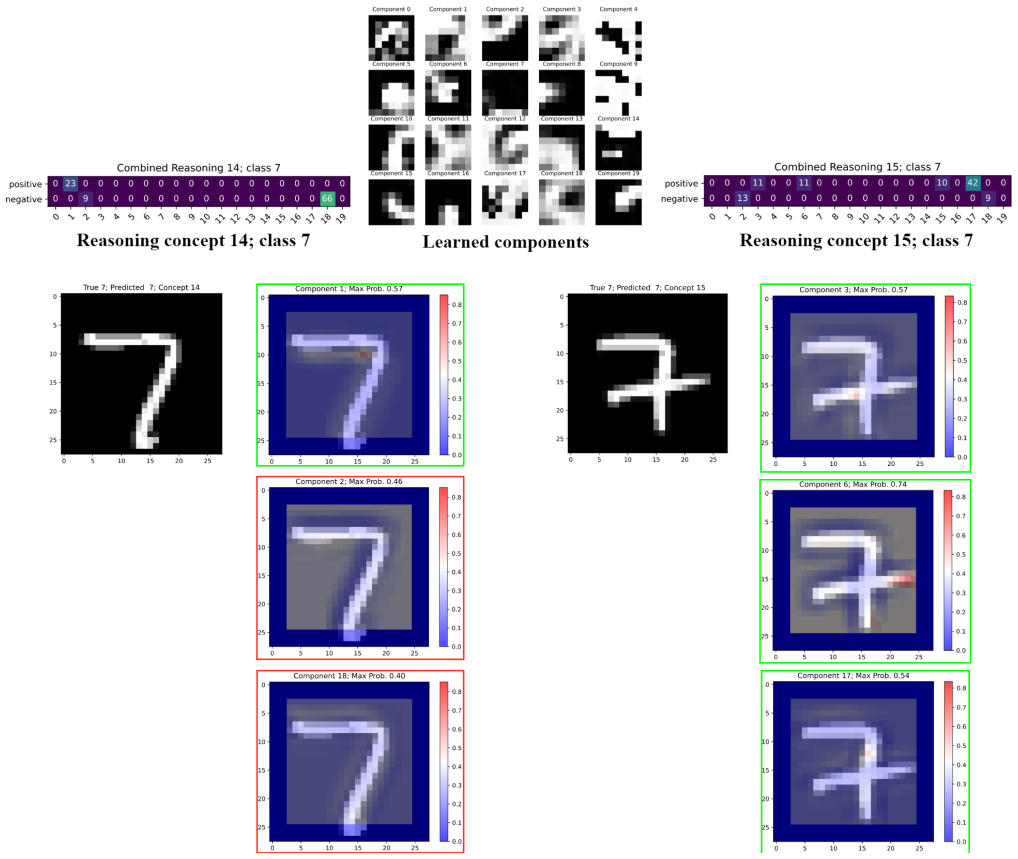

Figure 15. Figure 15: Visualizing the reasoning process of the two learned concepts for the digit [PITH_FULL_IMAGE:figures/full_fig_p029_15.png]
Figure 16
Figure 16. Figure 16: Robustness curves for non-squared CBC (left) and Robust CBC (right) trained with different margins and evaluated [PITH_FULL_IMAGE:figures/full_fig_p031_16.png]
