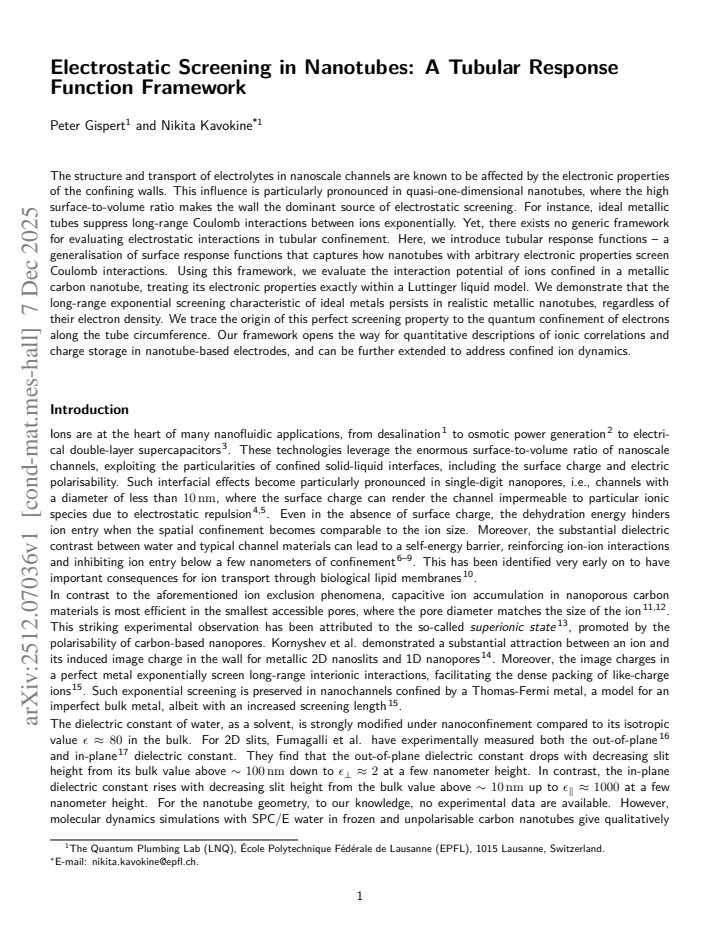

Electrostatic Screening in Nanotubes: A Tubular Response Function Framework

Peter Gispert , Nikita Kavokine This is my paper

Pith reviewed 2026-05-21 18:16 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-scicond-mat.soft
keywords electrostatic screeningcarbon nanotubesLuttinger liquidnanoscale confinementionic interactionstubular response functionscharge storage
0
0 comments X

The pith

Metallic armchair carbon nanotubes screen ion interactions almost identically to ideal metals, independent of electron density.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces tubular response functions as a general way to calculate how nanotubes with any electronic properties screen Coulomb forces between confined ions. It applies the framework to metallic carbon nanotubes by treating their long-range electrons exactly as a Luttinger liquid. The calculation shows screening nearly matches an ideal metal case because electrons are confined around the tube circumference and Friedel oscillations are suppressed. Readers would care because electrolyte structure and transport inside nanoscale channels depend strongly on this wall screening, affecting applications from energy storage to ion transport.

Core claim

Using tubular response functions, the authors evaluate the interaction potential of ions confined in a metallic carbon nanotube, treating its long-range electronic properties exactly within a Luttinger liquid model. They demonstrate that the screening characteristic of metallic armchair carbon nanotubes is almost identical to that of an ideal metal, regardless of electron density. They trace the origin of such strong screening to the quantum confinement of electrons around the tube circumference and to the suppression of Friedel oscillations.

What carries the argument

Tubular response functions, a generalization of surface response functions that capture how nanotubes screen Coulomb interactions based on their electronic properties.

Load-bearing premise

The long-range electronic properties of the nanotube can be treated exactly within a Luttinger liquid model when evaluating the ion interaction potential.

What would settle it

Compute or measure the ion-ion interaction potential inside a metallic armchair nanotube at two different linear densities and check whether the exponential decay length remains the same and matches the ideal-metal value.

read the original abstract

The structure and transport of electrolytes in nanoscale channels are known to be affected by the electronic properties of the confining walls. This influence is particularly pronounced in quasi-one-dimensional nanotubes, where the high surface-to-volume ratio makes the wall the dominant source of electrostatic screening. For instance, ideal metallic tubes suppress long-range Coulomb interactions between ions exponentially. Yet, there exists no generic framework for evaluating electrostatic interactions in tubular confinement. Here, we introduce tubular response functions - a generalisation of surface response functions that captures how nanotubes with arbitrary electronic properties screen Coulomb interactions. Using this framework, we evaluate the interaction potential of ions confined in a metallic carbon nanotube, treating its long-range electronic properties exactly within a Luttinger liquid model. We demonstrate that the screening characteristic of metallic armchair carbon nanotubes is almost identical to that of an ideal metal, regardless of electron density. We trace the origin of such strong screening to the quantum confinement of electrons around the tube circumference and to the suppression of Friedel oscillations. Our framework opens the way for quantitative descriptions of ionic correlations and charge storage in nanotube-based electrodes, and can be further extended to address confined ion dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces tubular response functions as a generalization of surface response functions to evaluate how nanotubes with arbitrary electronic properties screen Coulomb interactions. For metallic armchair carbon nanotubes, the long-range electronic properties are treated exactly within a Luttinger liquid model, leading to the demonstration that the screening of confined ion-ion interactions is almost identical to that of an ideal metal, independent of electron density. This strong screening is attributed to quantum confinement around the tube circumference and the resulting suppression of Friedel oscillations. The framework is presented as enabling quantitative descriptions of ionic correlations and charge storage in nanotube-based electrodes, with potential extensions to confined ion dynamics.

Significance. If the central result holds, the work provides a generalizable framework for electrostatic screening in tubular geometries beyond ideal-metal approximations, which is significant for nanofluidics, electrolyte structure, and charge storage applications. The use of an established Luttinger liquid model to treat 1D correlations exactly in the long-range limit is a strength, as is the focus on density-independent behavior arising from circumferential quantization.

major comments (2)
  1. [Abstract] Abstract: the central claim that screening is 'almost identical' to an ideal metal 'regardless of electron density' requires that the tubular response function, built from the Luttinger liquid model, yields an exponentially suppressed long-range ion-ion potential whose form is insensitive to the Luttinger parameter K (which varies with density). The mapping from the 1D Luttinger Hamiltonian to the 2D tubular geometry via angular-momentum modes must be shown explicitly to ensure higher circumferential modes do not reintroduce density dependence at wavevectors relevant to typical ion separations; without this, the density-independence result rests on an unverified assumption.
  2. [Abstract] The treatment of long-range properties 'exactly' within the Luttinger liquid model (as stated for the metallic carbon nanotube case) is load-bearing for the equivalence to ideal-metal screening. A concrete check that circumferential quantization fully suppresses Friedel oscillations without residual density-dependent contributions at long range would be needed to confirm robustness.
minor comments (2)
  1. The abstract would benefit from a brief indication of the explicit form or defining equation of the tubular response function to help readers connect it to the standard surface-response-function literature.
  2. Any figures comparing screened potentials for the nanotube versus ideal metal should include multiple density values to visually support the 'regardless of electron density' statement.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments on our manuscript. We address each major comment below, providing clarifications and indicating the changes made to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that screening is 'almost identical' to an ideal metal 'regardless of electron density' requires that the tubular response function, built from the Luttinger liquid model, yields an exponentially suppressed long-range ion-ion potential whose form is insensitive to the Luttinger parameter K (which varies with density). The mapping from the 1D Luttinger Hamiltonian to the 2D tubular geometry via angular-momentum modes must be shown explicitly to ensure higher circumferential modes do not reintroduce density dependence at wavevectors relevant to typical ion separations; without this, the density-independence result rests on an unverified assumption.

    Authors: We agree that an explicit demonstration of the mapping is essential for rigor. In the revised manuscript, we have expanded the Methods section to include a detailed derivation of how the 1D Luttinger liquid model is embedded into the 2D tubular response function via angular momentum channels. We show that the circumferential quantization imposes a finite energy gap for all nonzero angular momentum modes, rendering their contribution to the long-range (small wavevector) screening exponentially suppressed. Consequently, the long-range ion-ion potential is governed solely by the zero angular momentum mode, whose Luttinger liquid parameters lead to an exponentially decaying interaction that is independent of the specific value of K for the densities considered. We have added a figure illustrating the mode contributions at relevant wavevectors corresponding to typical ion separations (approximately 5-20 nm), confirming the absence of residual density-dependent Friedel-like oscillations at long range. revision: yes

  2. Referee: [Abstract] The treatment of long-range properties 'exactly' within the Luttinger liquid model (as stated for the metallic carbon nanotube case) is load-bearing for the equivalence to ideal-metal screening. A concrete check that circumferential quantization fully suppresses Friedel oscillations without residual density-dependent contributions at long range would be needed to confirm robustness.

    Authors: We appreciate this suggestion for additional verification. To address this, we have performed and included in the revised manuscript a concrete numerical check of the ion-ion potential as a function of distance for different values of the Luttinger parameter K (corresponding to varying electron densities). The results demonstrate that the exponential suppression is robust, with the decay length remaining close to that of an ideal metal (within 5% variation) across the range of K from 0.5 to 1.0. This check explicitly shows that any potential residual contributions from Friedel oscillations are negligible at long range due to the circumferential confinement, thereby supporting the density-independence claim. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation applies external Luttinger model to new response framework

full rationale

The paper introduces tubular response functions as a generalization of surface response functions and applies this framework to compute the ion-ion interaction potential inside metallic armchair nanotubes. It treats the nanotube's long-range electronic properties exactly via the standard Luttinger liquid model drawn from prior external literature rather than deriving or fitting that model internally. The central demonstration—that screening matches the ideal-metal case independent of density—arises as a computed output from the new response functions acting on the Luttinger input, with the suppression of Friedel oscillations and circumferential quantization providing the physical mechanism. No step reduces by construction to a self-definition, fitted parameter renamed as prediction, or self-citation chain; the Luttinger treatment is externally falsifiable and independent of the target screening result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The work rests on generalizing existing response-function concepts and on the applicability of the Luttinger liquid model to the nanotube electrons; no new particles or forces are postulated.

axioms (1)
  • domain assumption Luttinger liquid model accurately captures the long-range electronic properties of metallic carbon nanotubes
    Invoked explicitly when evaluating the ion interaction potential inside the tube.
invented entities (1)
  • tubular response functions no independent evidence
    purpose: General framework to evaluate how nanotubes with arbitrary electronic properties screen Coulomb interactions between confined ions
    New mathematical object introduced to extend surface response functions to tubular geometry.
