C-ZUPT: Stationarity-Aided Aerial Hovering

Daniel Engelsman , Itzik Klein This is my paper

Pith reviewed 2026-05-21 23:48 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords aerial navigationzero-velocity updateinertial estimationdrone hoveringquasi-static detectionstate estimationdrift reductioncontrolled ZUPT
0
0 comments X

The pith

C-ZUPT detects quasi-static hover states via filter uncertainty to apply zero-velocity updates that curb inertial drift in aerial vehicles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Aerial platforms lose positioning accuracy quickly when relying only on inertial sensors because biases and noise cause rapid drift. Traditional zero-velocity updates work well on the ground but require surface contact, leaving aerial systems without this anchor. The paper defines an uncertainty threshold drawn from the filter to spot intervals when the vehicle is nearly stationary in flight. These detections supply precise velocity corrections that anchor the estimate without landing. If the approach holds, it lowers both navigation error and the control inputs needed to stay aloft, supporting longer flights in environments where satellites or cameras are unavailable.

Core claim

The paper claims that an uncertainty threshold computed inside the estimation filter can identify quasi-static equilibria during aerial hovering and supply accurate velocity updates to the filter. These opportunistic corrections reduce inertial drift and control effort, prevent filter divergence, and improve navigation stability, enabling more energy-efficient and sustained flight for aerial vehicles without any surface contact.

What carries the argument

The uncertainty threshold derived from the estimation filter that flags quasi-static intervals for zero-velocity updates.

If this is right

  • Inertial drift in the navigation filter is significantly reduced during extended hover.
  • Control effort for maintaining position decreases because corrections arrive from high-quality updates.
  • Filter divergence is mitigated, keeping the state estimate stable over longer durations.
  • Hovering becomes more energy-efficient, directly extending total sustained flight time.
  • The method works independently of surface contact, opening use in free-flight aerial navigation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same uncertainty-driven detection could be adapted to underwater or surface vehicles that experience intermittent low-motion periods.
  • Integration with existing inertial navigation stacks would require only software changes, making the technique immediately testable on current drone hardware.
  • Threshold tuning under varying wind or payload conditions would reveal how robust the quasi-static detection remains outside calm lab tests.
  • Combining C-ZUPT with occasional external position fixes could create hybrid filters that maintain accuracy longer than either method alone.

Load-bearing premise

An uncertainty value computed from the filter itself can accurately mark real near-stationary periods in flight without false corrections or surface contact.

What would settle it

Compare position-error growth in a controlled hover flight with C-ZUPT enabled versus disabled; error should grow slower when the updates are applied only during detected quasi-static intervals.

Figures

Figures reproduced from arXiv: 2507.09344 by Daniel Engelsman, Itzik Klein.

Figure 1
Figure 1. Figure 1: State transition diagram showing hovering centrality [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

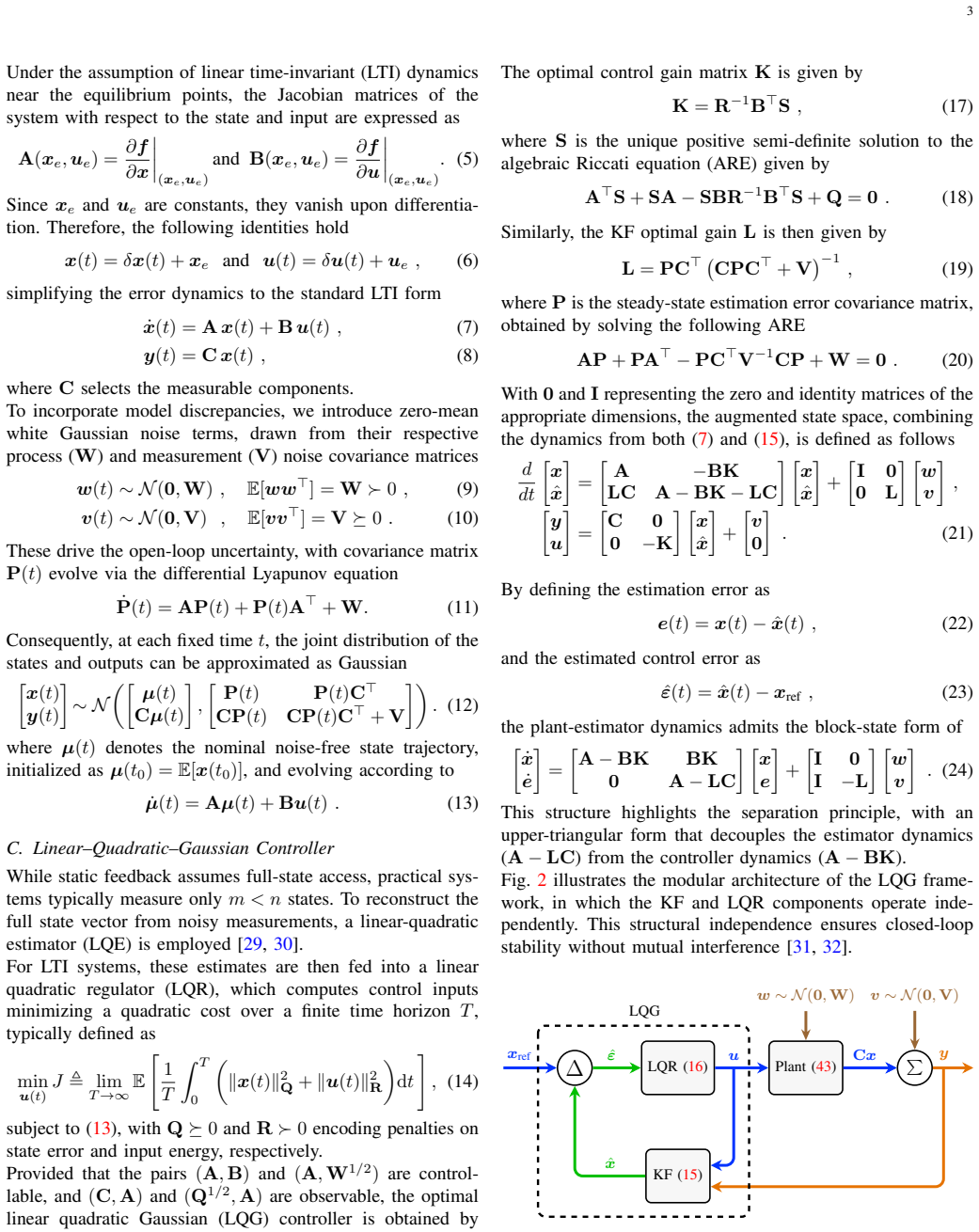

Figure 2. Figure 2: Block diagram of a standard LQG closed-loop system. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

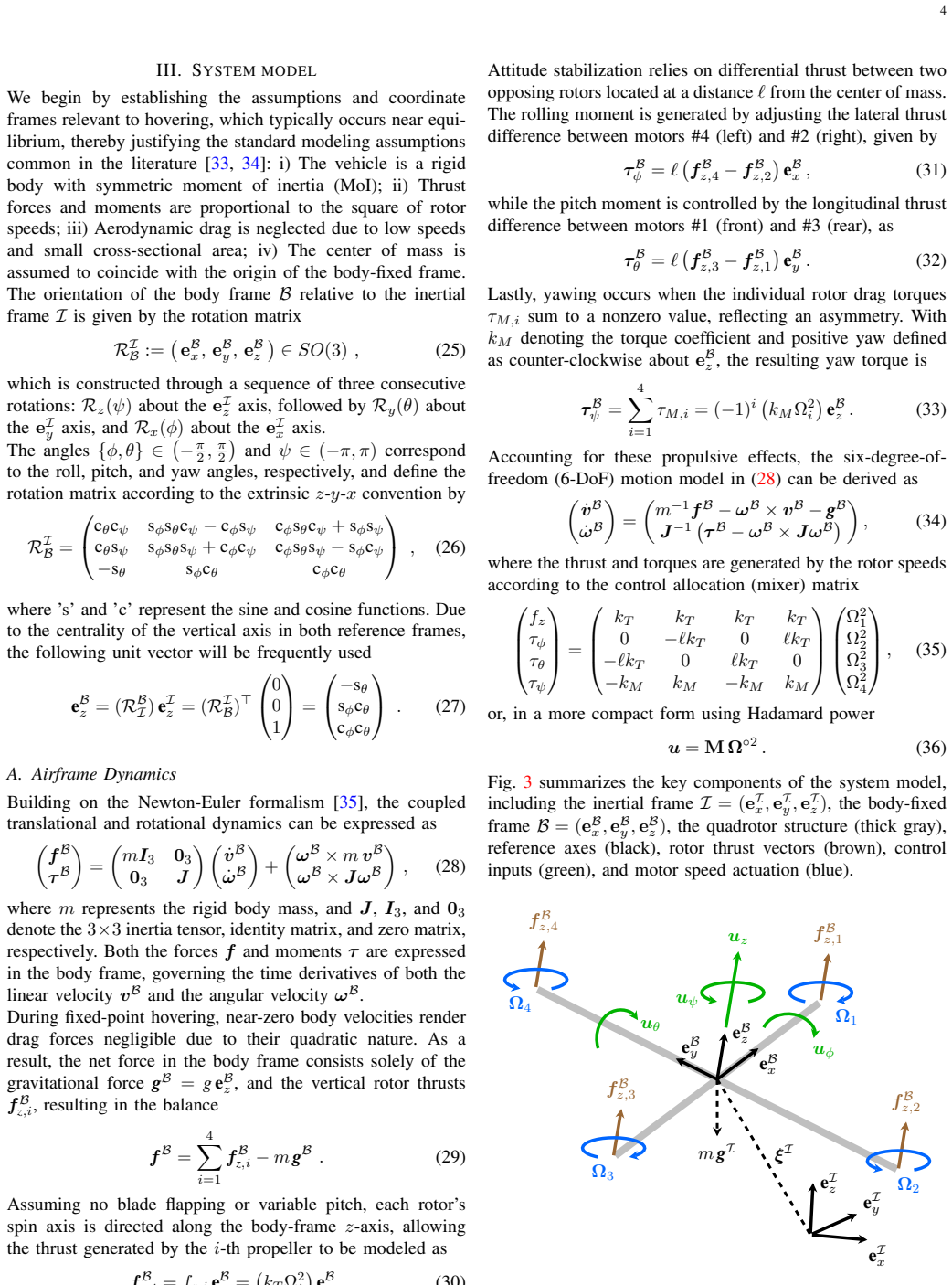

Figure 3. Figure 3: Free-body diagram of the quadrotor system model. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

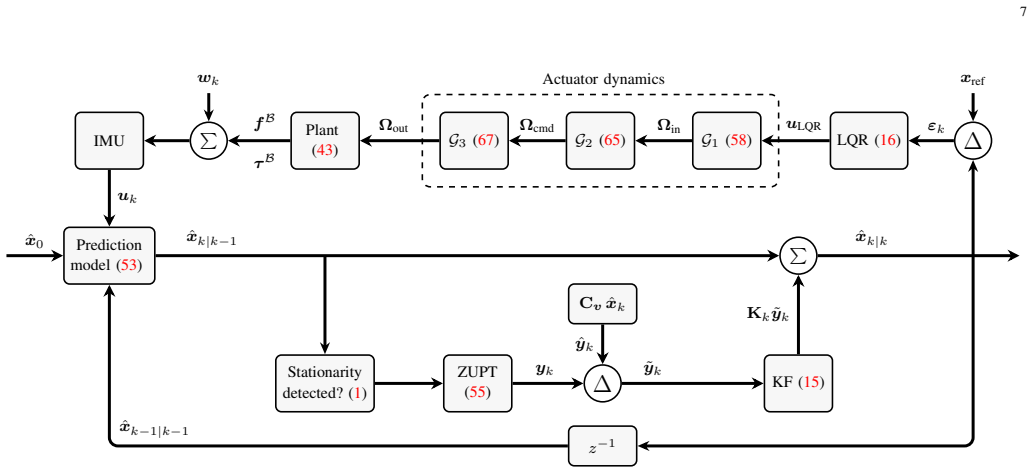

Figure 4. Figure 4: Signal flow schematic: near-stationarity detection (Alg. [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Full-state trajectories with continuous updates ( [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Zoomed-in view of LQG-generated motor commands. [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 9

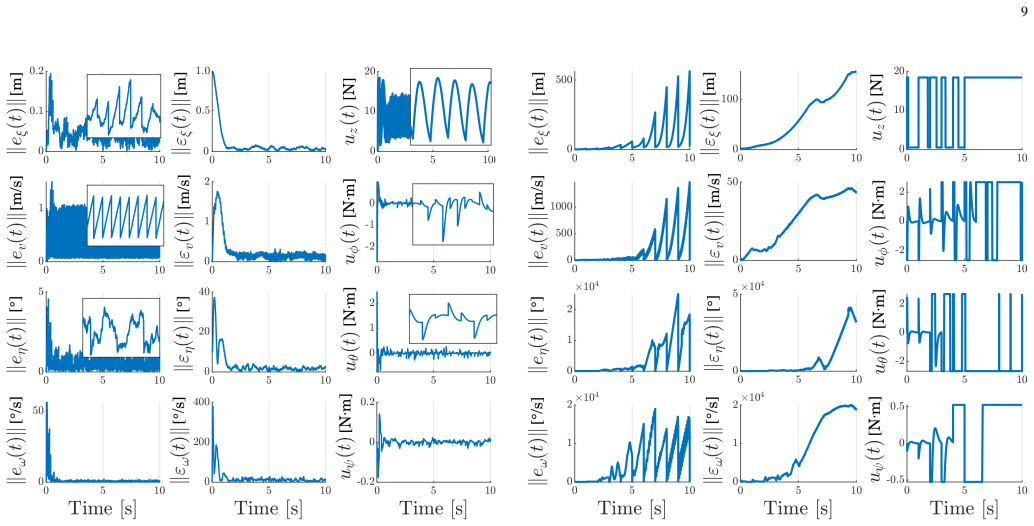

Figure 9. Figure 9: Error norm evolution for sparse updates Γ = 0.001. As visible in the zoomed-in insets, the reduced update rate in￾duces a random-walk effect in the estimation error, producing a sawtooth-like pattern whose local minima correspond to the periodic corrections. Despite this, the controller successfully keeps the system stable, albeit with increased noise [PITH_FULL_IMAGE:figures/full_fig_p009_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Normalized total uncertainty for Γ = {1, 0.05, 0.001} [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 14
Figure 14. Figure 14: Head-to-head comparison: unaided vs C-ZUPT-aided. [PITH_FULL_IMAGE:figures/full_fig_p010_14.png] view at source ↗
Figure 12

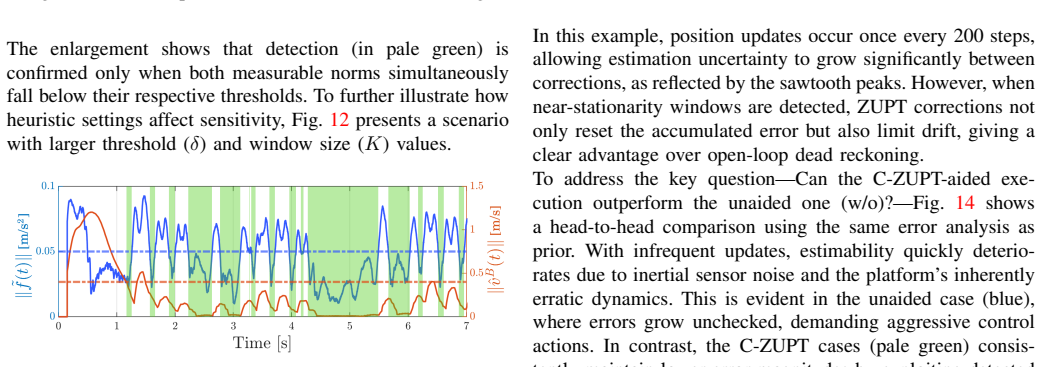

Figure 12. Figure 12: Detection performance under permissive thresholding. [PITH_FULL_IMAGE:figures/full_fig_p010_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Normalized total uncertainty with C-ZUPT ( [PITH_FULL_IMAGE:figures/full_fig_p010_13.png] view at source ↗
Figure 16
Figure 16. Figure 16: Battery states: 1500-second (full-discharge) cycle. [PITH_FULL_IMAGE:figures/full_fig_p011_16.png] view at source ↗
Figure 15
Figure 15. Figure 15: Battery states: 10-second interval comparison. [PITH_FULL_IMAGE:figures/full_fig_p011_15.png] view at source ↗
read the original abstract

Autonomous systems across diverse domains have underscored the need for drift-resilient state estimation. Although satellite-based positioning and cameras are widely used, they often suffer from limited availability in many environments. As a result, positioning must rely solely on inertial sensors, leading to rapid accuracy degradation over time due to sensor biases and noise. To counteract this, alternative update sources-referred to as information aiding-serve as anchors of certainty. Among these, the zero-velocity update (ZUPT) is particularly effective in providing accurate corrections during stationary intervals, though it is restricted to surface-bound platforms. This work introduces a controlled ZUPT (C-ZUPT) approach for aerial navigation and control, independent of surface contact. By defining an uncertainty threshold, C-ZUPT identifies quasi-static equilibria to deliver precise velocity updates to the estimation filter. Extensive validation confirms that these opportunistic, high-quality updates significantly reduce inertial drift and control effort. As a result, C-ZUPT mitigates filter divergence and enhances navigation stability, enabling more energy-efficient hovering and substantially extending sustained flight-key advantages for resource-constrained aerial systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces C-ZUPT, a stationarity-aided method for aerial hovering that defines an uncertainty threshold to detect quasi-static equilibria and apply precise velocity updates to the inertial estimation filter. This is intended to reduce drift and control effort without surface contact, with the abstract claiming extensive validation that mitigates filter divergence and enables longer sustained flights for resource-constrained UAVs.

Significance. If the central claims hold and the threshold reliably identifies true stationarity, the approach could meaningfully extend inertial-only navigation performance in GPS-denied settings, offering energy savings and stability gains for aerial platforms where conventional ZUPT is inapplicable.

major comments (2)
  1. [Abstract] Abstract: The statement that 'extensive validation confirms that these opportunistic, high-quality updates significantly reduce inertial drift and control effort' is unsupported by any reported quantitative results, error bars, baseline comparisons, or threshold derivation procedure. This absence leaves the primary performance claims unsubstantiated and load-bearing for the paper's contribution.
  2. [Core method (as described)] Core method (as described): The uncertainty threshold is derived from the filter's own covariance estimates to flag quasi-static intervals for velocity corrections. Because the threshold and the velocity estimates share the same inertial measurements, low reported uncertainty can arise either from genuine near-zero velocity or from the filter converging on an incorrect state; applying updates in the latter case risks reinforcing bias. This circularity concern is especially relevant for free-flying platforms subject to wind and vibration not guaranteed to be captured in the uncertainty model, and requires explicit analysis or safeguards to support the claim of safe corrections.
minor comments (1)
  1. [Abstract] Abstract: The acronym 'C-ZUPT' is introduced without an explicit expansion on first use, although the surrounding text clarifies the meaning.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript. We provide point-by-point responses to the major comments below and indicate the revisions we will make to address them.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The statement that 'extensive validation confirms that these opportunistic, high-quality updates significantly reduce inertial drift and control effort' is unsupported by any reported quantitative results, error bars, baseline comparisons, or threshold derivation procedure. This absence leaves the primary performance claims unsubstantiated and load-bearing for the paper's contribution.

    Authors: We agree that the abstract would be strengthened by including more specific quantitative details. In the revised manuscript, we will update the abstract to briefly mention key results from our validation, including quantitative reductions in drift and control effort with associated statistics. We will also ensure the threshold derivation is clearly outlined in the main text and referenced in the abstract. revision: yes

  2. Referee: [Core method (as described)] Core method (as described): The uncertainty threshold is derived from the filter's own covariance estimates to flag quasi-static intervals for velocity corrections. Because the threshold and the velocity estimates share the same inertial measurements, low reported uncertainty can arise either from genuine near-zero velocity or from the filter converging on an incorrect state; applying updates in the latter case risks reinforcing bias. This circularity concern is especially relevant for free-flying platforms subject to wind and vibration not guaranteed to be captured in the uncertainty model, and requires explicit analysis or safeguards to support the claim of safe corrections.

    Authors: This concern about potential circularity is well-taken. Our method relies on the filter's covariance to detect low uncertainty, which could theoretically be misleading if the state estimate is biased. To mitigate this, we have designed the threshold to be conservative, and in the revised paper we will include a dedicated analysis of this issue. Specifically, we will present results from simulations incorporating wind and vibration disturbances to show that the detection remains reliable and does not reinforce errors. We will also describe the empirical validation of the threshold using ground-truth data. revision: yes

Circularity Check

0 steps flagged

No significant circularity in C-ZUPT derivation chain

full rationale

The paper presents C-ZUPT as a method that defines an uncertainty threshold (a design choice) to opportunistically detect quasi-static intervals and apply velocity updates to a standard inertial filter. No equations or steps are shown that reduce the claimed drift reduction or hovering improvements to fitted parameters, self-referential definitions, or self-citation chains by construction. The central claim rests on the heuristic threshold plus experimental validation rather than deriving the outcome from its own inputs. This is self-contained against external benchmarks and receives the default non-finding.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The approach rests on standard inertial sensor error models and the assumption that filter uncertainty correlates with actual stationarity; the uncertainty threshold itself functions as a free parameter whose value is not derived from first principles.

free parameters (1)
  • uncertainty threshold
    Chosen to flag quasi-static equilibria; its specific value is not derived and must be tuned for the platform and sensor characteristics.
axioms (2)
  • domain assumption Inertial sensor biases and noise cause unbounded drift in the absence of external measurements.
    Invoked in the opening paragraphs to motivate the need for aiding sources.
  • domain assumption Quasi-static flight intervals produce sufficiently low velocity that a zero-velocity update remains accurate.
    Central premise enabling the C-ZUPT correction without surface contact.
