FullFlow: Upgrading Text-to-Image Flow Matching Models for Bidirectional Vision--Language Generation

Eric Tillmann Bill , Enis Simsar , Alessio Tonioni , Thomas Hofmann This is my paper

Pith reviewed 2026-05-21 07:37 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords bidirectional vision-languageflow matchingLoRA adapterstext-to-imageparameter-efficient trainingrectified flowmultimodal generation
0
0 comments X

The pith

FullFlow upgrades a pretrained text-to-image flow model to bidirectional vision-language generation by training only LoRA adapters and lightweight text heads.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Modern text-to-image flow models already encode strong visual priors but can only generate images from text. FullFlow adds a discrete text insertion process and separate timesteps for images and text so that one backbone supports text-to-image, image-to-text, joint sampling, and partial-text prediction. The method trains roughly five percent of the parameters via LoRA, keeps the original continuous flow for images, and reports large gains in quality and efficiency over prior bidirectional approaches that require more retraining.

Core claim

FullFlow keeps images in their native continuous flow and adds a discrete insertion process for text. Separate image and text timesteps turn inference into trajectory selection in a two-dimensional generative space, enabling text-to-image, image-to-text, joint sampling, and partial-text prediction with a single backbone.

What carries the argument

LoRA adapters plus lightweight text heads on a pretrained rectified-flow backbone, using separate timesteps for the image and text modalities.

If this is right

  • Text-to-image FID drops from 62.7 to 31.6 while image-to-text CIDEr rises from 2.0 to 99.4 under identical trainable-parameter count and LoRA rank.
  • Peak VRAM falls from roughly 84 GB to 38 GB and throughput increases by a factor of eight on two RTX A5000 GPUs.
  • Training finishes in under 24 hours while updating only about five percent of backbone parameters.
  • The same recipe transfers directly to FLUX.1-dev and enables downstream VQA via partial-text generation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Strong unimodal priors may reduce the need for full joint pretraining when building bidirectional models.
  • Similar lightweight adapter strategies could extend other single-direction generative models to new modalities.
  • The two-dimensional timestep space may support additional interactive tasks such as guided editing or progressive completion.

Load-bearing premise

The rich visual priors already present in a pretrained text-to-image backbone remain usable for bidirectional tasks when only LoRA adapters and lightweight text heads are added.

What would settle it

A controlled experiment that fully retrains the text pathway on the same data volume and measures whether text-to-image FID rises above 31.6 or peak memory exceeds 38 GB.

Figures

Figures reproduced from arXiv: 2605.20316 by Alessio Tonioni, Enis Simsar, Eric Tillmann Bill, Thomas Hofmann.

Figure 1
Figure 1. Figure 1: Overview of the multimodal generation capabilities after finetuning Stable Diffusion 3. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

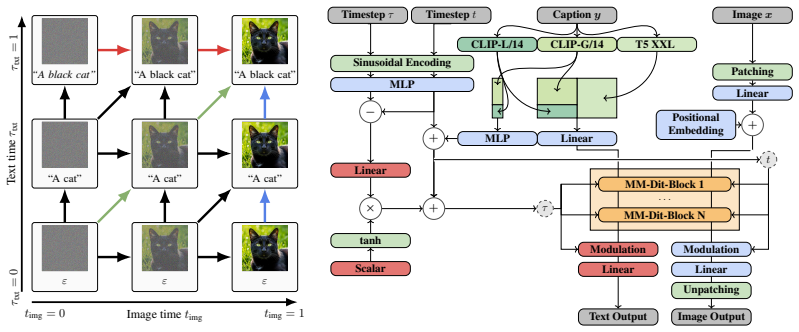

Figure 2. Figure 2: Dual-timestep space with im￾age time t (x-axis) and text time τ (y-axis). All arrows, including the black ones, corre￾spond to valid trajectories in the joint gen￾erative space. Colored trajectories high￾light the canonical modes: text→image, image→text, and joint generation. Caption y CLIP-L/14 CLIP-G/14 T5 XXL Image x MLP Linear Sinusoidal Encoding MLP Timestep τ Timestep t − + + Linear × tanh Scalar τ P… view at source ↗
Figure 4
Figure 4. Figure 4: Evolution of the adaptive text-loss weight λtxt. Thin: raw ratio estimate; thick: EMA used in training. A1: Trainable parameters and text-conditioning path￾ways. SD3 uses three frozen text encoders with distinct tokenizers, whereas our discrete text process is defined in a single T5 token space. We therefore diffuse T5 tokens, decode the partially corrupted sequence, and re-tokenize it for the remaining en… view at source ↗
Figure 5
Figure 5. Figure 5: CIDEr for alternating-clean (πac), mixed￾corruption (πind), and five independent runs that switch from πind to πac at 75k, 100k, 125k, 150k, and 175k steps. Mean over a 5k held-out split; error bars show 95% CIs. A4: Which corruption schedule best supports both correspondence and deployment? We com￾pare two corruption schedules: alternating-clean (πac), which keeps one modality clean and matches the endpoi… view at source ↗
Figure 6

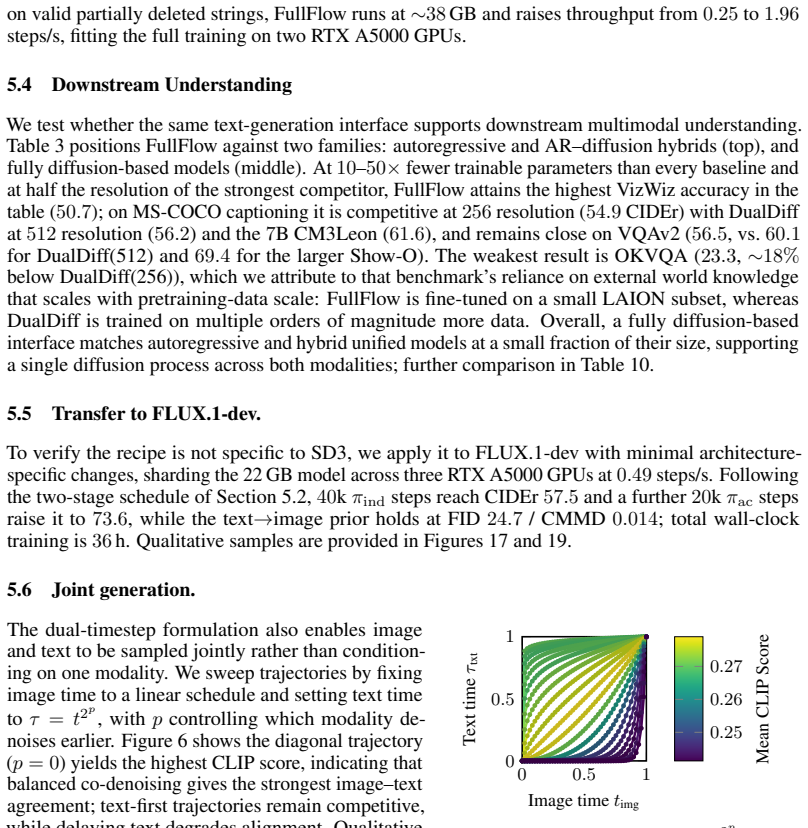

Figure 6. Figure 6: Joint generation over τ = t 2 p trajecto￾ries. Color shows mean CLIP over 1k samples. The dual-timestep formulation also enables image and text to be sampled jointly rather than condition￾ing on one modality. We sweep trajectories by fixing image time to a linear schedule and setting text time to τ = t 2 p , with p controlling which modality de￾noises earlier [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Continuous rectified flow (left) and discrete Edit Flows (right) instantiate the same path-based principle: learn local transport from a base distribution to data. In continuous space the supervised target is a velocity; in discrete space it is an insertion jump. The red arrow/token marks the quantity the model is trained to predict. B Training Details B.1 Dataset Preparation and Pre-Encoding We train on a… view at source ↗
Figure 8
Figure 8. Figure 8: Distribution of caption lengths in the training set, measured in T5 tokens after the LAION-COCO￾Aesthetic filtering described in Section B. For readability the histogram drops the lowest and highest 1% of caption lengths and uses 60 bins; this distribution motivates our 77-token sequence cap. contain 18 or more tokens; captions with fewer than 4 tokens are discarded. We sample 300 captions from each length… view at source ↗
Figure 9
Figure 9. Figure 9: Log-ratio between the expected MSE gradient norm (image branch, Theorem E.1) and the lower/upper bounds on the cross-entropy gradient norm (text branch, Theorem E.2), as a function of the agreement levels σimg and σtxt for latent dimension N = 4096. Negative regions, which dominate early training when text predictions are poor and the image prior is already accurate, indicate that the text-branch gradient … view at source ↗
Figure 10
Figure 10. Figure 10: MM-DiT block adapted from Stable Diffusion 3 for joint image–text generation. We add text-time conditioning τ alongside the original image-time conditioning t, with both timesteps embedded separately and injected through the existing AdaLN-style modulation interface. Yellow blocks denote LoRA-augmented linear layers; green blocks denote frozen auxiliary operations. F Architecture Stable Diffusion 3. Our S… view at source ↗
Figure 11
Figure 11. Figure 11: Multimodal DiT architecture adapted from FLUX.1 [dev]. Noisy text tokens and image patches are processed jointly together with their modality-specific timesteps (τ, t) to predict cross-modal flows. Blue: frozen pretrained components; yellow: LoRA-augmented linear layers; red: newly added trainable modules (text head and timestep processors); green: auxiliary operations. provide compatible inputs to each c… view at source ↗
Figure 12
Figure 12. Figure 12: Effect of image-to-text classifier-free guidance scale γ on caption quality and length. Mild guidance (γ ≈ 1.2) improves CIDEr and brings caption length closer to the reference; stronger guidance over-amplifies high-probability insertions in the reverse CTMC, producing overly verbose captions and degrading quality. We evaluate the effect of image-to-text CFG on caption generation in [PITH_FULL_IMAGE:figu… view at source ↗
Figure 13
Figure 13. Figure 13: Qualitative effect of the image-supervision target on text-to-image generation across training checkpoints (50k–200k steps). RF: standard rectified flow; Teacher-CT: clean-text teacher matching; Teacher￾SN: same-noise teacher matching. RF accumulates distortion, Teacher-CT introduces transient artifacts and is unstable, while Teacher-SN preserves the visual prior throughout training and is therefore our d… view at source ↗
Figure 14
Figure 14. Figure 14: Extended corruption-schedule ablation from Section 5.2, showing four additional captioning metrics beyond CIDEr. yellow: pure alternating-clean (πac); blue: pure mixed-corruption (πind); red: five independent runs that switch from πind to πac at 75k, 100k, 125k, 150k, and 175k steps. Solid lines: train; dashed lines: held-out validation. Shaded bands: 95% CI over 5k samples. Across all four metrics, the m… view at source ↗
Figure 15
Figure 15. Figure 15: Image-to-text captions from the SD3 FullFlow model on unseen LAION-Aesthetic images (part 1/2). Each tile shows the input image and the greedy caption sampled by the model. 29 [PITH_FULL_IMAGE:figures/full_fig_p029_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Image-to-text captions from the SD3 FullFlow model on unseen LAION-Aesthetic images (part 2/2). Continuation of [PITH_FULL_IMAGE:figures/full_fig_p030_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Image-to-text captions from the FLUX.1 [dev] FullFlow model on unseen LAION-Aesthetic images, demonstrating that the same recipe transfers to a different rectified-flow backbone. 31 [PITH_FULL_IMAGE:figures/full_fig_p031_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Text-to-image samples from the SD3 base model (top row) and our FullFlow SD3 finetune (bottom row) under identical prompts, seeds, and schedulers. Differences between rows isolate the effect of the multimodal uplift on the visual prior. A black cat on grass A brown dog in the snow A horse running in a field A beautiful landscape with mountains A futuristic city skyline at sunset noise clean [PITH_FULL_IM… view at source ↗
Figure 19
Figure 19. Figure 19: Text-to-image samples from the FLUX.1 [dev] base model (top row) and our FullFlow FLUX.1 finetune (bottom row) under identical prompts, seeds, and schedulers, mirroring the SD3 comparison in [PITH_FULL_IMAGE:figures/full_fig_p032_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: VQAv2 predictions from the SD3 FullFlow VQA finetune on unseen validation images. Each tile shows the input image, the question, and the model’s predicted answer. 33 [PITH_FULL_IMAGE:figures/full_fig_p033_20.png] view at source ↗
Figure 21

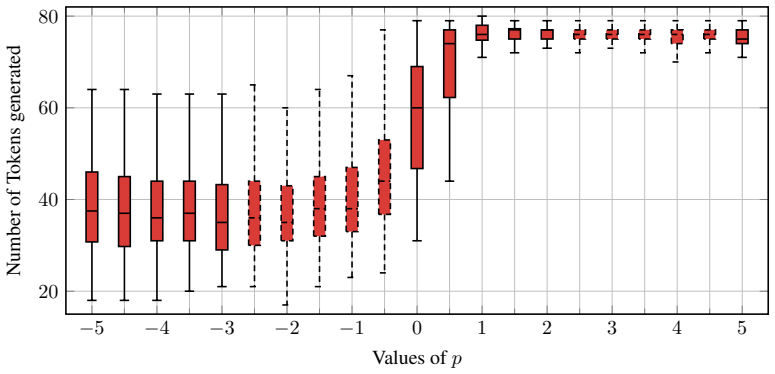

Figure 21. Figure 21: Caption-length distribution under joint image–text sampling as a function of the trajectory parameter p in τ = t 2 p . Boxes show the interquartile range (Q1–Q3) with the median; whiskers extend to the min/max sample. Larger p (image-first) yields longer captions, consistent with the qualitative examples below. The image shows a wooden cutting board with a bowl of coffee, surrounded by various food ingred… view at source ↗
Figure 22
Figure 22. Figure 22: Joint image–text samples from FullFlow (seed 1/5) for p ∈ {−5, −2.5, 0, 2.5, 5}, shown left to right. Negative p denoises text first, p = 0 denoises both modalities together, and positive p denoises the image first. 34 [PITH_FULL_IMAGE:figures/full_fig_p034_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: Joint image–text samples from FullFlow (seed 2/5) for the same trajectory sweep as [PITH_FULL_IMAGE:figures/full_fig_p035_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: Joint image–text samples from FullFlow (seed 3/5) for the same trajectory sweep as [PITH_FULL_IMAGE:figures/full_fig_p035_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: Joint image–text samples from FullFlow (seed 4/5) for the same trajectory sweep as [PITH_FULL_IMAGE:figures/full_fig_p036_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: Joint image–text samples from FullFlow (seed 5/5) for the same trajectory sweep as [PITH_FULL_IMAGE:figures/full_fig_p036_26.png] view at source ↗
read the original abstract

Modern text-to-image diffusion models encode rich visual priors, but expose them only through one-way text-conditioned generation. Existing unified vision--language models derived from them recover bidirectional capability through large-scale joint pretraining or substantial retraining of the text pathway, discarding the strong image prior the text-to-image backbone already encodes. We introduce \emph{FullFlow}, a parameter-efficient recipe that upgrades a pretrained rectified-flow text-to-image model into a bidirectional vision--language generator by training only LoRA adapters and lightweight text heads. FullFlow keeps images in their native continuous flow and adds a discrete insertion process for text. Separate image and text timesteps turn inference into trajectory selection in a two-dimensional generative space, enabling text$\rightarrow$image, image$\rightarrow$text, joint sampling, and partial-text prediction with a single backbone. On Stable Diffusion 3 (SD3) under an identical trainable-parameter count and matched LoRA rank, FullFlow improves text$\rightarrow$image FID from $62.7$ to $31.6$ and image$\rightarrow$text CIDEr from $2.0$ to $99.4$ over a LoRA equivalent following the previous SOTA formulation (Dual Diffusion) at matched wall-clock training time, while reducing peak VRAM from ${\sim}84$\,GB to ${\sim}38$\,GB and raising throughput by ${\sim}8\times$ on two RTX A5000 GPUs in under 24 hours, training only ${\sim}5\%$ of the backbone parameters. The same recipe transfers to FLUX.1-dev and supports downstream VQA through partial-text generation. These results show that strong bidirectional vision--language capability can be unlocked from pretrained text-to-image flow models without full multimodal pretraining.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces FullFlow, a parameter-efficient method to convert a pretrained rectified-flow text-to-image model (e.g., Stable Diffusion 3) into a bidirectional vision-language generator. It adds LoRA adapters and lightweight text heads while keeping images in continuous flow and introducing a discrete insertion process for text. Separate image and text timesteps enable text-to-image, image-to-text, joint sampling, and partial-text prediction with a single backbone. On SD3 with matched trainable parameters and LoRA rank, it reports improving text-to-image FID from 62.7 to 31.6 and image-to-text CIDEr from 2.0 to 99.4 versus a LoRA-adapted Dual Diffusion baseline at matched training time, alongside VRAM reduction from ~84 GB to ~38 GB and ~8x throughput gains, while training only ~5% of backbone parameters. The recipe is also shown to transfer to FLUX.1-dev and support downstream VQA.

Significance. If the reported gains are shown to stem from the architectural choices (separate timesteps and discrete text insertion) rather than baseline mismatches, the work would be significant for demonstrating that rich visual priors in existing flow-based T2I models can be extended to bidirectional capability without large-scale joint pretraining or full text-pathway retraining. The efficiency improvements in VRAM and throughput would further support practical adoption of unified vision-language models.

major comments (1)
  1. [Abstract and results] Abstract and results section: The central empirical claim rests on outperforming a matched LoRA-rank adaptation of Dual Diffusion, yet the baseline text-to-image FID of 62.7 on SD3 is markedly worse than typical literature values for this backbone (often below 30 even for lightly tuned models). This discrepancy indicates the baseline may not have received equivalent hyperparameter search, optimization effort, or correct adaptation to rectified flow and LoRA constraints, which risks attributing gains to FullFlow's separate timesteps and text insertion rather than differences in training efficacy.
minor comments (2)
  1. [Method] The manuscript should clarify the precise definition and implementation of the discrete text insertion process and how it interacts with the continuous image flow during joint sampling.
  2. [Experiments] Additional ablations on the contribution of separate timesteps versus the text heads alone would strengthen the attribution of the bidirectional performance gains.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the concern regarding baseline performance below and clarify the experimental controls used to ensure fair comparison.

read point-by-point responses

  1. Referee: [Abstract and results] Abstract and results section: The central empirical claim rests on outperforming a matched LoRA-rank adaptation of Dual Diffusion, yet the baseline text-to-image FID of 62.7 on SD3 is markedly worse than typical literature values for this backbone (often below 30 even for lightly tuned models). This discrepancy indicates the baseline may not have received equivalent hyperparameter search, optimization effort, or correct adaptation to rectified flow and LoRA constraints, which risks attributing gains to FullFlow's separate timesteps and text insertion rather than differences in training efficacy.

    Authors: We appreciate this observation and the opportunity to clarify our controls. The 62.7 FID value is obtained from our re-implementation of the Dual Diffusion formulation (adapted to LoRA on the SD3 rectified-flow backbone) trained for the same wall-clock time and with the same total trainable parameter count and LoRA rank as FullFlow. Our goal was a head-to-head comparison under identical resource constraints rather than an absolute state-of-the-art T2I benchmark. While we acknowledge that more extensive hyperparameter sweeps or longer training can yield lower FID numbers in the broader literature, such additional tuning would violate the matched-training-time protocol we adopted to isolate the effect of separate timesteps and discrete text insertion. We will expand the experimental section with further details on the baseline adaptation procedure, including the precise LoRA placement and optimization settings used for both methods, to make the equivalence explicit. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical recipe with independent baseline comparisons

full rationale

The paper advances an empirical method (LoRA adapters plus discrete text insertion on a pretrained rectified-flow backbone) and validates it via direct performance measurements against a matched-parameter LoRA baseline derived from prior Dual Diffusion work. No equations, predictions, or uniqueness claims are presented that reduce by construction to quantities defined inside the method itself. All reported gains (FID, CIDEr, VRAM, throughput) are external measurements on held-out benchmarks, not re-expressions of fitted parameters or self-citations. The derivation chain is therefore self-contained and non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented entities are identifiable from the provided text.

pith-pipeline@v0.9.0 · 5864 in / 1192 out tokens · 34607 ms · 2026-05-21T07:37:37.514352+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

  • IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    We introduce FullFlow, a parameter-efficient recipe that upgrades a pretrained rectified-flow text-to-image model into a bidirectional vision–language generator by training only LoRA adapters and lightweight text heads. FullFlow keeps images in their native continuous flow and adds a discrete insertion process for text. Separate image and text timesteps turn inference into trajectory selection in a two-dimensional generative space

  • IndisputableMonolith/Foundation/RealityFromDistinction.lean reality_from_one_distinction unclear
    ?
    unclear

    Relation between the paper passage and the cited Recognition theorem.

    On Stable Diffusion 3 (SD3) under an identical trainable-parameter count and matched LoRA rank, FullFlow improves text→image FID from 62.7 to 31.6 and image→text CIDEr from 2.0 to 99.4

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
