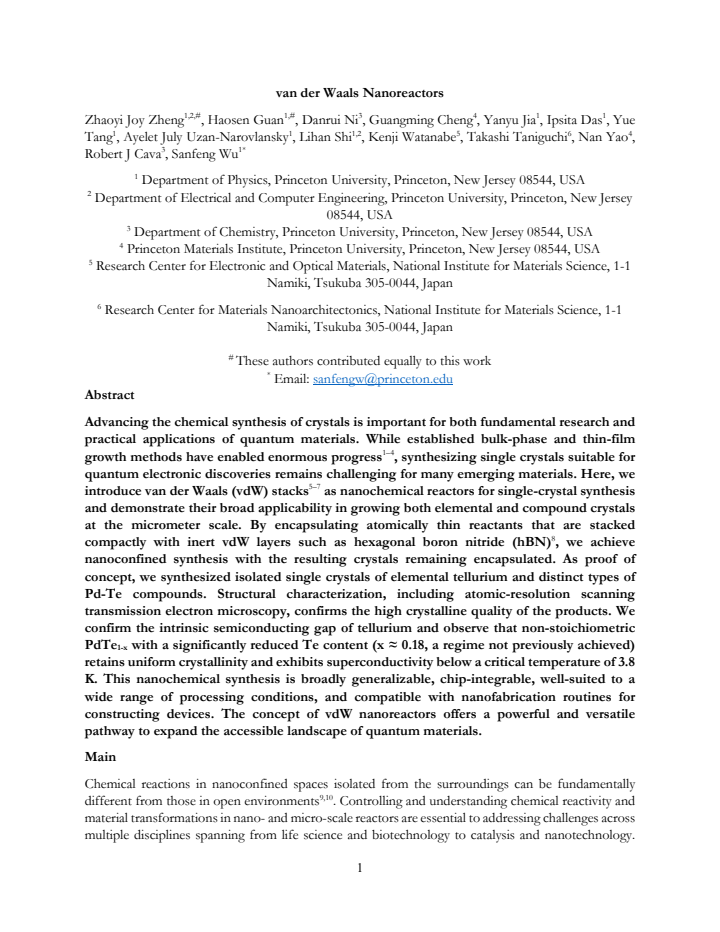

van der Waals Nanoreactors

Zhaoyi Joy Zheng , Haosen Guan , Danrui Ni , Guangming Cheng , Yanyu Jia , Ipsita Das , Yue Tang , Ayelet July Uzan-Narovlansky

show 6 more authors

Lihan Shi Kenji Watanabe Takashi Taniguchi Nan Yao Robert J Cava Sanfeng Wu

This is my paper

Pith reviewed 2026-05-21 17:54 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.mes-hallcond-mat.supr-con

keywords van der Waals nanoreactorsnanoconfined synthesissingle crystal growthtelluriumPdTe compoundssuperconductivityhBN encapsulationquantum materials

0 comments

The pith

Van der Waals stacks serve as nanoreactors to grow isolated single crystals of tellurium and superconducting PdTe compounds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes that compact stacks of atomically thin reactant layers between inert van der Waals materials such as hBN create confined spaces for chemical reactions that produce high-quality single crystals. The approach yields elemental tellurium crystals that display their expected semiconducting gap and non-stoichiometric PdTe1-x crystals with reduced tellurium content that retain uniform crystallinity and become superconducting below 3.8 K. A sympathetic reader would care because conventional bulk and thin-film methods often fail to deliver clean single crystals suitable for quantum electronic studies, while this technique keeps products encapsulated and ready for device integration.

Core claim

By encapsulating atomically thin reactants stacked compactly with inert vdW layers such as hexagonal boron nitride, we achieve nanoconfined synthesis of isolated single crystals of elemental tellurium and non-stoichiometric PdTe1-x (x ~ 0.18) that retains uniform crystallinity and exhibits superconductivity below 3.8 K. Structural characterization, including atomic-resolution scanning transmission electron microscopy, confirms the high crystalline quality of the products, and the method works for both elemental and compound crystals at the micrometer scale.

What carries the argument

van der Waals nanoreactors formed by atomically thin reactant layers encapsulated between inert layers such as hBN that confine the synthesis to a protected nanoscale space

If this is right

The synthesized crystals remain isolated and encapsulated after growth, preserving their quality for further study or use.
The non-stoichiometric PdTe1-x reaches a tellurium-deficient regime not previously achieved while keeping uniform crystallinity and superconductivity below 3.8 K.
The process is compatible with nanofabrication routines and supports direct integration into chip-based devices without separate transfer steps.
The method applies equally to elemental crystals such as tellurium and to compound materials such as Pd-Te systems.
It operates under a wide range of processing conditions while producing micrometer-scale single crystals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same stacking approach could be tested with other thin reactant combinations to access additional quantum materials that resist conventional growth.
On-chip synthesis might remove the need for mechanical transfer of delicate crystals when building quantum electronic devices.
Varying the thickness or choice of inert layers offers a route to tune crystal size and composition in future experiments.

Load-bearing premise

The inert encapsulation layers must fully block unwanted side reactions or contamination from outside while still allowing the intended reactions between the thin reactants to run to completion inside the stack.

What would settle it

Atomic-resolution images showing lattice defects, impurities, or polycrystalline regions in the tellurium or PdTe products, or the absence of superconductivity below 3.8 K in the non-stoichiometric PdTe1-x, would indicate that the nanoreactor isolation failed to deliver the claimed crystal quality.

Figures

Figures reproduced from arXiv: 2512.11991 by Ayelet July Uzan-Narovlansky, Danrui Ni, Guangming Cheng, Haosen Guan, Ipsita Das, Kenji Watanabe, Lihan Shi, Nan Yao, Robert J Cava, Sanfeng Wu, Takashi Taniguchi, Yanyu Jia, Yue Tang, Zhaoyi Joy Zheng.

**Figure 1.** Figure 1: van der Waals Nanoreactors. a., A schematic flowchart for creating vdW nanoreactors, introducing nanoconfined reactions, and fabricating nanodevices for investigating electronics properties of as-grown crystals. b., A cross-sectional illustration of a representative possible nanoreactor before and after the chemical reaction. The encapsulation layer is a chemically inert vdW material, such as hBN. The subs… view at source ↗

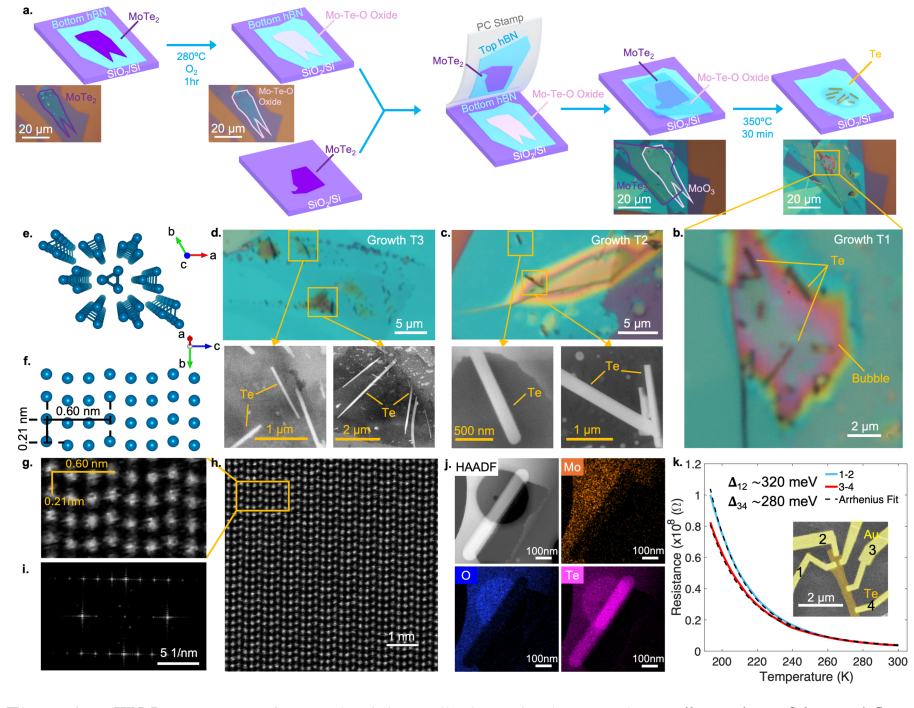

**Figure 2.** Figure 2: vdW Nanoreactors for synthesizing tellurium single crystals. a., I [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗

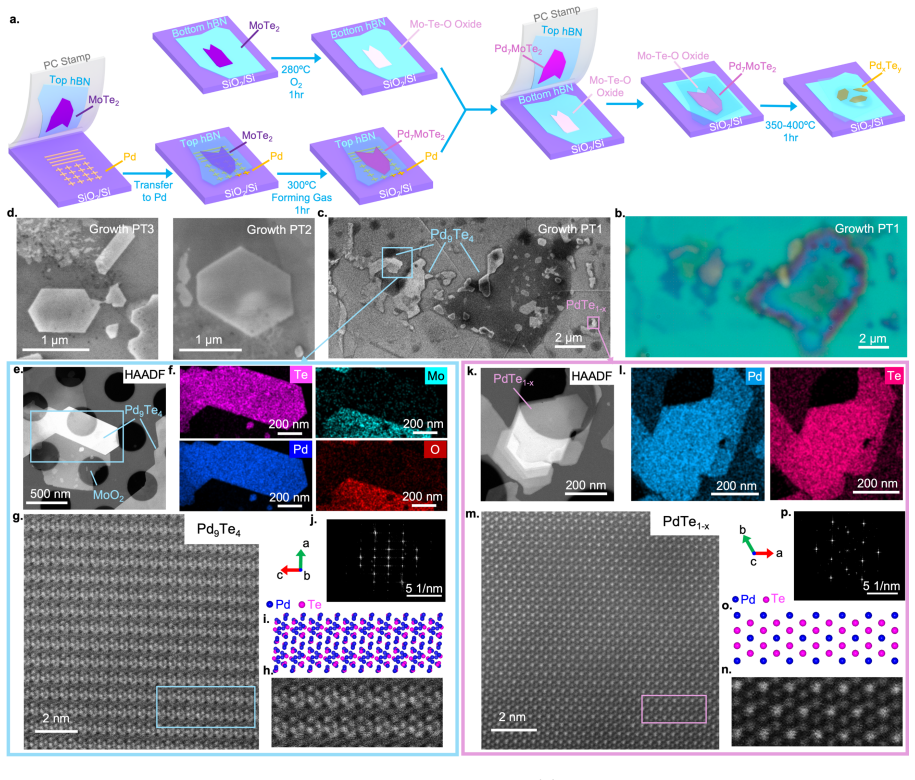

**Figure 3.** Figure 3: van der Waals Nanoreactors for synthesizing Pd [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗

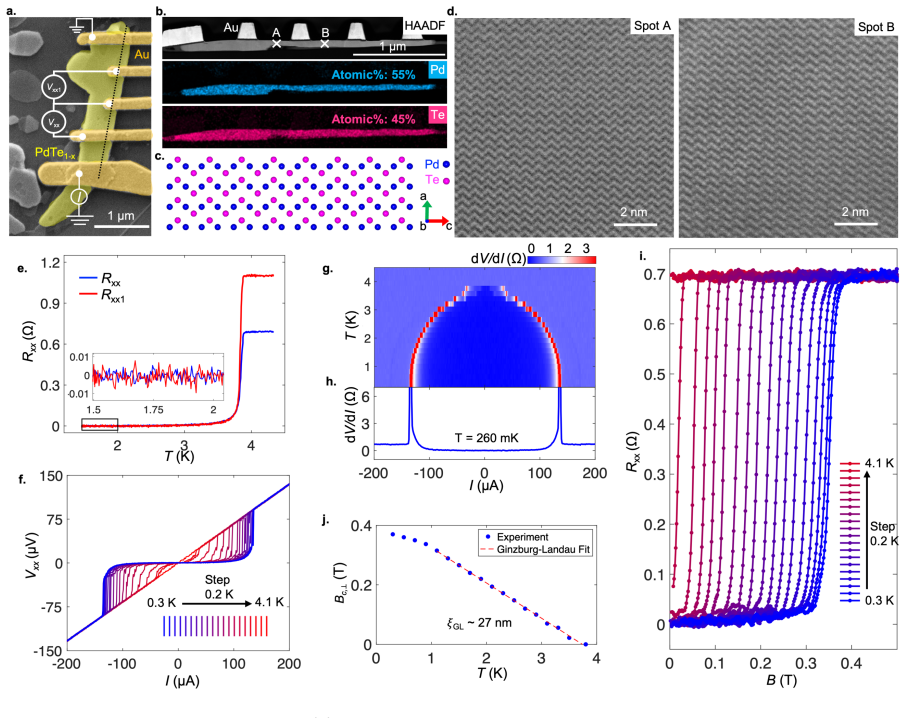

**Figure 4.** Figure 4: Superconductivity in PdTe1-x (x ≈ 0.18). a., A false-colored SEM image of a device fabricated from as-grown PdTe1-x with gold (Au) electrodes deposited for electrical measurements. b., Cross-section EDX analysis of the device, followed by a FIB cut along the dashed line in the same device after the transport measurement. Top: An HAADF image of the cross section, showing both the Au electrodes and PdTe1-x c… view at source ↗
