arxiv: 2605.21611 · v1 · pith:BNVQK7IDnew · submitted 2026-05-20 · 💻 cs.CV · cs.LG

UniVL: Unified Vision-Language Embedding for Spatially Grounded Contextual Image Generation

Jiayun Wang , Yu Wang , Weijie Gan , Zhenting Wang , Wei Wei This is my paper

Pith reviewed 2026-05-22 09:21 UTC · model grok-4.3

classification 💻 cs.CV cs.LG
keywords spatially grounded image generationvision-language embeddingOCR pretrainingdiffusion conditioningunified conditioningcontextual image generationmask-annotated imagestext-rendered masks
0
0 comments X

The pith

Rendering text onto spatial masks lets one OCR-based encoder replace separate text and image prompts for better controlled image generation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a single unified visual input, created by rendering textual instructions directly onto a spatial mask, can bind semantics to locations more effectively than separate vision and language encoders. An OCR-pretrained backbone extracts a fused embedding that conditions a diffusion model after a two-stage alignment process. This produces higher-fidelity images on a benchmark of 477K mask-annotated examples while removing the text encoder at inference time. The method cuts computational load and supports precise instructions about what should appear where. Readers would care because it simplifies architecture and lowers the cost of spatially controllable synthesis.

Core claim

UniVL reframes conditioning for image generation by rendering textual instructions onto spatial masks to form a single visual input. An OCR-pretrained encoder produces the fVIL embedding that fuses semantic intent with spatial locations in one token sequence. A two-stage pipeline first aligns this embedding with the VAE space and then uses it to condition a pretrained diffusion backbone, eliminating any standalone text encoder such as T5.

What carries the argument

The UniVL encoder, adapted from an optical-character-recognition-pretrained backbone, that reads the unified text-rendered mask condition and outputs a fused fVIL embedding for diffusion conditioning.

If this is right

  • Image quality rises, with FID dropping from 14 to 11 and PSNR rising from 16 to 20 on the UniVL-ImgGen benchmark.
  • Inference cost falls because the text encoder is removed, cutting TFLOPs by up to 52 percent and runtime by up to 44 percent.
  • The model follows user instructions specifying both content and location within the generated image.
  • Ablation studies confirm that the OCR backbone adaptation and two-stage alignment each contribute to the observed gains.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same rendering trick could be applied to other control signals such as depth maps or edge sketches to create richer single-stream conditioning.
  • Interactive design tools might adopt this pattern to lower latency when users edit spatial instructions in real time.
  • Further adaptation of the backbone on diverse scripts and layouts could extend reliable performance to multilingual or stylized text inputs.
  • The approach suggests that vision backbones pretrained on reading tasks may serve as drop-in replacements for language encoders in many multimodal generation settings.

Load-bearing premise

The OCR-pretrained backbone can reliably extract and bind semantic intent from text rendered onto the spatial mask without significant loss of information or spatial precision.

What would settle it

Evaluating generated images on a new test set of masks with unusual fonts, dense text, or partial occlusions and checking whether semantic accuracy and spatial match remain superior to text-prompted baselines would directly test the central claim.

Figures

Figures reproduced from arXiv: 2605.21611 by Jiayun Wang, Weijie Gan, Wei Wei, Yu Wang, Zhenting Wang.

Figure 1
Figure 1. Figure 1: Conditioning paradigm for contextual image generation: existing ( [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

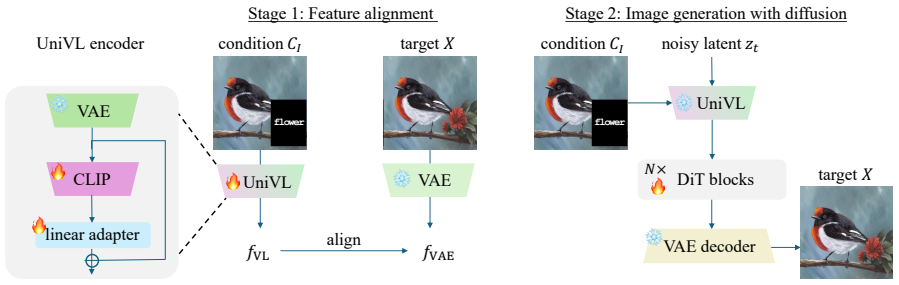

Figure 2. Figure 2: UNIVL training pipeline. The UNIVL encoder (left, pretrained on OCR tasks) consists of a frozen VAE encoder, a trainable CLIP backbone and a trainable linear adapter; the VAE features bypass CLIP via a skip connection and are mask-aware-fused with the CLIP features (Eq. 1). Stage 1 (Feature alignment): the UNIVL encoder takes the contextual condition CI and is trained so its output fVL reconstructs the VAE… view at source ↗
Figure 3
Figure 3. Figure 3: Qualitative comparison to OminiControl baseline [ [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (4a) Efficiency gains of UNIVL over the baseline [26] with text encoder across image resolutions: TFLOPs and runtime savings grow at lower resolutions, from 8% at 1024×1024 to 52% TFLOPs / 44% runtime at 256×256. (4b)–(4c) Multi-region performance: UNIVL (red) maintains a substantial lead over OminiControl w/o text (blue) at every mask count, both in image quality (FID, lower is better) and in region-level… view at source ↗
Figure 5
Figure 5. Figure 5: Zero-shot test on irregular mask shape. Row 1: UNIVL generates an image whose foreground content fills the irregular mask shape, matching the text label rendered inside the non-rectangular region. Row 4: UNIVL respects the round-shape cookie mask and outperforms the OminiControl baseline, which defaults to a bounding-rectangle fill and ignores the irregular boundary. Although UNIVL is trained only on recta… view at source ↗
Figure 6
Figure 6. Figure 6: Overlapping masks. Row 1: UNIVL works when two masks do not overlap too much—each labeled region is generated as instructed. Row 2 (failure case): when the “food” and “plate” boxes totally overlay, UNIVL cannot disambiguate which label belongs to which region and produces a single fused object. Row 3: compared to existing methods, UNIVL follows the “pickup truck” instruction at the desired location, while … view at source ↗
Figure 7
Figure 7. Figure 7: Zero-shot UNIVL on COCO val2017. UNIVL generalizes well to a held-out natural-image distribution despite never having seen COCO during training, producing region-faithful generations across diverse object categories. E.4 Multi-Step and Single-Step Multibox Edits UNIVL handles two complementary multi-region workflows in a single architecture: (i) sequential multi-step edits, where the user applies one mask … view at source ↗
Figure 8
Figure 8. Figure 8: Multi-region edit modes. The source image is shown at the bottom-left. [PITH_FULL_IMAGE:figures/full_fig_p025_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Failure cases of UNIVL. (a) Rare vocabulary: for uncommon class phrases such as “stone fountain,” the rendered text is read correctly but the diffusion model has limited training signal for that category, producing generic stone-textured fills rather than the intended object. We expect this to improve with broader training-data coverage. (b) Very small mask region: when the mask area is tiny, the rendered … view at source ↗
Figure 10

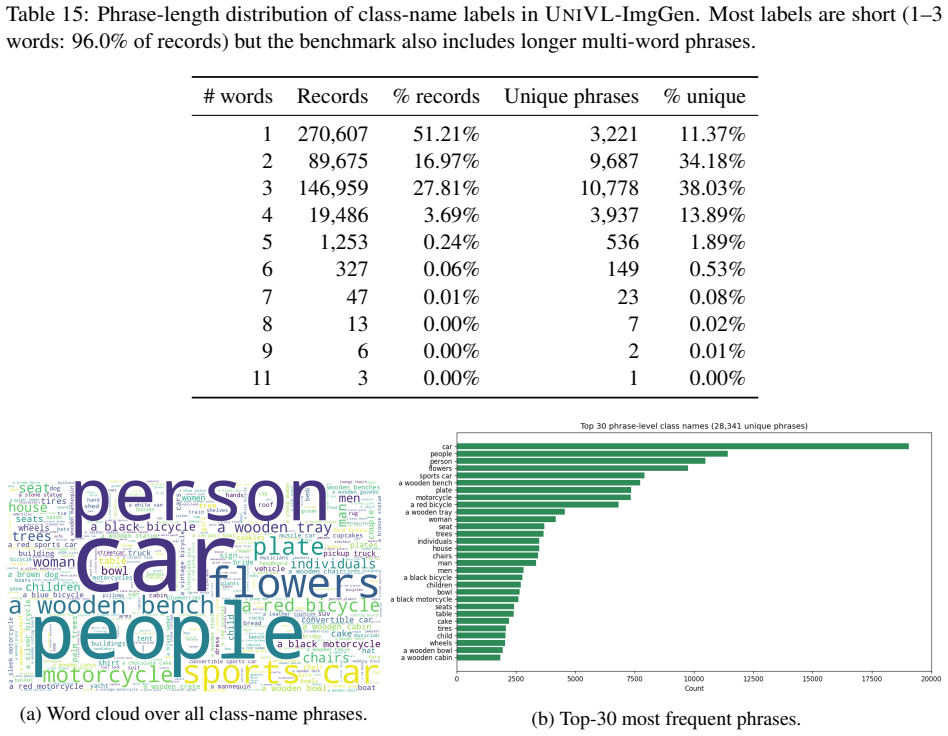

Figure 10. Figure 10: Class-name vocabulary in UNIVL-ImgGen. (10a) Word cloud where font size is proportional to frequency: the most prominent labels are everyday objects and people (person, car, people, flowers, bench, trees), with a long tail of attribute-modified phrases (a wooden tray, a black bicycle, a red sports car). (10b) Frequency chart of the top-30 most frequent phrases. The vocabulary is dominated by natural-image… view at source ↗
read the original abstract

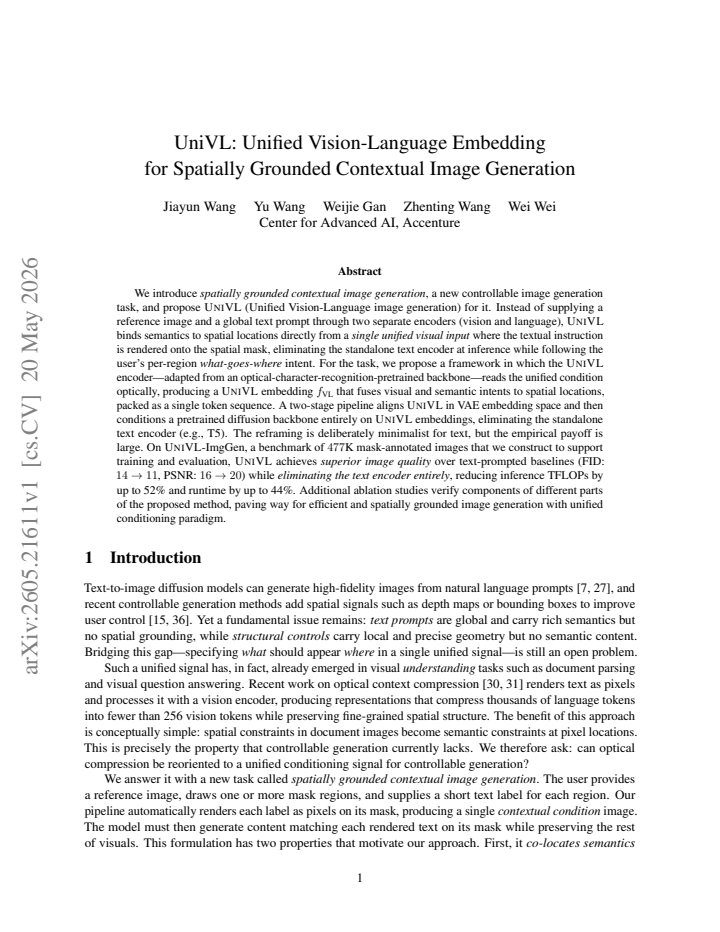

We introduce spatially grounded contextual image generation, a controllable image generation task that reframes the conditioning paradigm. Instead of supplying a reference image and a global text prompt through two separate encoders, one for vision and one for language, UniVL is trained to bind semantics to spatial locations directly from a single unified visual input, where the textual instruction is rendered onto the spatial mask. This removes the need for a standalone text encoder at inference time. The resulting model supports contextual image generation by following user-specified instructions about what should appear where, while substantially reducing computation. To address this task, we propose a framework in which the UniVL encoder, adapted from an optical-character-recognition-pretrained backbone, reads the unified condition optically and produces a UniVL embedding, fVIL, that fuses visual and semantic intent with spatial locations in a single token sequence. A two-stage pipeline first aligns UniVL with the VAE embedding space and then conditions a pretrained diffusion backbone entirely on UniVL embeddings, eliminating the standalone text encoder, such as T5. Although this reframing uses a deliberately minimal text interface, it yields strong empirical gains. On UniVL-ImgGen, a benchmark of 477K mask-annotated images that we construct for training and evaluation, UniVL improves image quality over text-prompted baselines, reducing FID from 14 to 11 and increasing PSNR from 16 to 20. It also eliminates the text encoder entirely, reducing inference TFLOPs by up to 52% and runtime by up to 44%. Additional ablation studies validate the contributions of the proposed components, paving the way for efficient, spatially grounded image generation with a unified conditioning paradigm.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces spatially grounded contextual image generation, a task that renders textual instructions directly onto spatial masks to create a single unified visual input. It proposes UniVL, an encoder adapted from an OCR-pretrained backbone that produces a fused fVIL embedding capturing both semantics and spatial locations. A two-stage pipeline first aligns this embedding with VAE space and then conditions a pretrained diffusion model on it, eliminating the standalone text encoder (e.g., T5). On the authors' newly constructed UniVL-ImgGen benchmark of 477K mask-annotated images, the method reports improved image quality (FID reduced from 14 to 11, PSNR increased from 16 to 20) and efficiency gains (up to 52% fewer inference TFLOPs and 44% faster runtime) over text-prompted baselines.

Significance. If the central claims hold after verification, this work could meaningfully advance efficient diffusion-based generation by unifying vision-language conditioning into a single visual stream, removing the text encoder at inference and delivering substantial compute savings. The efficiency numbers are a notable strength if reproducible across backbones. However, the significance is limited by reliance on a self-constructed benchmark and the untested assumption that an OCR-pretrained model can reliably extract and spatially bind instructional semantics without information loss.

major comments (3)
  1. [Abstract and §4] Abstract and §4 (Benchmark): The performance claims rest on the newly constructed UniVL-ImgGen benchmark of 477K images, yet the manuscript provides no details on data sourcing, mask generation, annotation protocol, or controls for distribution shift relative to standard datasets. This is load-bearing because the reported FID/PSNR gains and efficiency improvements could be artifacts of benchmark construction rather than evidence for the unified paradigm.
  2. [§3.1] §3.1 (UniVL encoder): The core assumption that an OCR-pretrained backbone can extract instructional semantics (e.g., “place a red cat here”) from text rendered on spatial masks and bind them to precise locations without loss of semantic content or spatial precision is unverified. Standard OCR pretraining optimizes for character detection, not semantic interpretation or sub-pixel alignment; without an ablation replacing the OCR backbone with a general vision encoder, it is unclear whether the two-stage alignment and diffusion conditioning actually succeed due to the unified fVIL representation.
  3. [§5] §5 (Experiments): The abstract states that “additional ablation studies validate the contributions,” yet no quantitative ablation tables, error bars, or statistical tests on the FID/PSNR improvements or TFLOP reductions are described. The two-stage pipeline’s alignment loss and conditioning mechanism are load-bearing for the efficiency claims; missing these details prevents assessment of whether the 52% TFLOP reduction is robust or specific to the chosen diffusion backbone.
minor comments (2)
  1. [Abstract] The acronym fVIL is introduced in the abstract without an explicit expansion or dimensionality specification; define it clearly on first use.
  2. [Figures] Figure captions and method diagrams should explicitly label the rendered text-on-mask input and the two-stage alignment blocks for clarity.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive comments on our work. We address each of the major comments in detail below, providing clarifications and indicating where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (Benchmark): The performance claims rest on the newly constructed UniVL-ImgGen benchmark of 477K images, yet the manuscript provides no details on data sourcing, mask generation, annotation protocol, or controls for distribution shift relative to standard datasets. This is load-bearing because the reported FID/PSNR gains and efficiency improvements could be artifacts of benchmark construction rather than evidence for the unified paradigm.

    Authors: We agree that the manuscript would benefit from more comprehensive details on the UniVL-ImgGen benchmark construction. Although §4 introduces the benchmark, we acknowledge that additional information on data sourcing, the process for generating spatial masks, the annotation protocol, and measures to mitigate distribution shift is necessary for full reproducibility and to address concerns about potential artifacts. In the revised manuscript, we will expand §4 with a dedicated subsection providing these details, including the sources of the images, how masks were created and annotated, and comparisons to standard datasets like COCO or LAION to control for shifts. revision: yes

  2. Referee: [§3.1] §3.1 (UniVL encoder): The core assumption that an OCR-pretrained backbone can extract instructional semantics (e.g., “place a red cat here”) from text rendered on spatial masks and bind them to precise locations without loss of semantic content or spatial precision is unverified. Standard OCR pretraining optimizes for character detection, not semantic interpretation or sub-pixel alignment; without an ablation replacing the OCR backbone with a general vision encoder, it is unclear whether the two-stage alignment and diffusion conditioning actually succeed due to the unified fVIL representation.

    Authors: We selected an OCR-pretrained backbone precisely because it is optimized for reading and localizing text within images, which directly supports our approach of rendering textual instructions onto spatial masks. This allows the model to process the unified visual input optically. However, we recognize the value of verifying this choice through ablation. We will add an ablation study in the revised §5, comparing the OCR backbone to a general-purpose vision encoder (e.g., a standard ViT) to demonstrate the specific benefits of OCR pretraining for semantic extraction and spatial binding in this task. This will help confirm that the fVIL embedding's effectiveness stems from the unified representation. revision: yes

  3. Referee: [§5] §5 (Experiments): The abstract states that “additional ablation studies validate the contributions,” yet no quantitative ablation tables, error bars, or statistical tests on the FID/PSNR improvements or TFLOP reductions are described. The two-stage pipeline’s alignment loss and conditioning mechanism are load-bearing for the efficiency claims; missing these details prevents assessment of whether the 52% TFLOP reduction is robust or specific to the chosen diffusion backbone.

    Authors: We apologize for the omission of detailed quantitative results for the ablations in the current version. The manuscript mentions additional ablation studies, but we agree that including full tables with error bars, statistical significance tests, and breakdowns of the alignment loss and conditioning mechanism is essential. In the revised manuscript, we will include comprehensive ablation tables in §5, reporting quantitative results with standard deviations across multiple runs, and provide more details on how the two-stage pipeline contributes to the observed efficiency gains. This will allow better assessment of the robustness of the 52% TFLOP reduction. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical results on external benchmark, independent of model equations

full rationale

The paper reframes conditioning by rendering text onto spatial masks and feeding the composite to an OCR-adapted encoder to produce fVIL embeddings, then aligns and conditions a diffusion model. All reported gains (FID 14→11, PSNR 16→20, TFLOP reductions) are presented as measured outcomes on the 477K-image UniVL-ImgGen benchmark the authors construct, not as quantities algebraically forced by the model definition or by self-citation chains. No equations equate a fitted parameter to a claimed prediction, no uniqueness theorem is imported from prior self-work, and the OCR backbone is treated as an external pretrained component rather than defined circularly. The derivation therefore remains self-contained against external benchmarks and does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on the ability of an OCR-pretrained model to read rendered text on masks and on the success of a two-stage alignment process whose details are not provided in the abstract.

axioms (2)
  • domain assumption An OCR-pretrained backbone can accurately read and semantically interpret text rendered onto spatial masks in the context of image generation conditioning.
    The framework adapts an optical-character-recognition-pretrained backbone to read the unified condition optically.
  • domain assumption Aligning the UniVL embedding to the VAE latent space followed by diffusion conditioning preserves sufficient spatial and semantic information.
    A two-stage pipeline first aligns UniVL with the VAE embedding space and then conditions a pretrained diffusion backbone entirely on UniVL embeddings.
invented entities (1)
  • UniVL embedding (fVIL) no independent evidence
    purpose: Single token sequence that fuses visual and semantic intent with spatial locations.
    The UniVL encoder produces fVIL that fuses visual and semantic intent with spatial locations in a single token sequence.
