arxiv: 2605.22013 · v1 · pith:BZTBBQ7Jnew · submitted 2026-05-21 · 💻 cs.CV · cs.GR· cs.LG

PointLLM-R: Enhancing 3D Point Cloud Reasoning via Chain-of-Thought

Chaoqi Chen , Qile Xu , Wenjun Zhou , Hui Huang This is my paper

Pith reviewed 2026-05-22 07:22 UTC · model grok-4.3

classification 💻 cs.CV cs.GRcs.LG
keywords 3D point cloudschain-of-thought reasoningmultimodal language modelspoint cloud understandinginstruction tuningdata synthesisgenerative 3D tasks
0
0 comments X

The pith

A two-stage synthesis pipeline produces a 55K-sample chain-of-thought dataset that, after fine-tuning, yields PointLLM-R with stronger explicit reasoning over point clouds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the absence of explicit reasoning in models that interpret 3D point clouds by building a data-centric framework for large-scale chain-of-thought supervision. A two-stage process first refines raw point-text instruction pairs using vision-language model quality checks and reference-guided edits, then generates detailed reasoning paths via Human-in-the-Loop Prompt Optimization. The resulting PoCoTI collection contains 55,000 examples with step-by-step traces. Fine-tuning the base PointLLM model on this collection produces PointLLM-R, which records higher accuracy on generative classification and captioning while extending reliably to real scanned clouds and multi-turn exchanges.

Core claim

The authors construct PoCoTI, a CoT-enhanced point-text instruction dataset of 55K samples, by first applying vision-language-model-based quality evaluation and reference-guided refinement to existing instruction data and then synthesizing explicit reasoning paths through Human-in-the-Loop Prompt Optimization. Fine-tuning PointLLM on PoCoTI produces PointLLM-R, which attains state-of-the-art performance on generative 3D classification and captioning and generalizes robustly to real-world scanned point clouds and multi-turn dialogue scenarios.

What carries the argument

The PoCoTI dataset of 55K CoT-augmented point-text samples generated by a pipeline of VLM quality evaluation followed by Human-in-the-Loop Prompt Optimization (HiLPO).

If this is right

  • PointLLM-R reaches state-of-the-art results on generative 3D classification and captioning tasks.
  • PointLLM-R maintains performance on real-world scanned point clouds outside the training distribution.
  • PointLLM-R supports coherent multi-turn dialogue about 3D objects.
  • Explicit chain-of-thought traces improve handling of irregular point-cloud geometry compared with prior instruction-tuned models.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same synthesis pipeline could be adapted to produce reasoning data for other 3D representations such as meshes or voxels.
  • PointLLM-R style models may support more interpretable 3D scene understanding in robotics or augmented-reality interfaces.
  • Further increases in the scale of CoT-augmented 3D instruction data would likely produce additional gains on complex spatial tasks.

Load-bearing premise

The reasoning paths synthesized by HiLPO and VLM evaluation reflect genuine 3D spatial understanding rather than superficial patterns the model simply memorizes.

What would settle it

If PointLLM-R shows no accuracy gain over the original PointLLM on held-out generative 3D tasks or on point clouds captured by different sensors, the added value of the synthesized reasoning paths would be refuted.

Figures

Figures reproduced from arXiv: 2605.22013 by Chaoqi Chen, Hui Huang, Qile Xu, Wenjun Zhou.

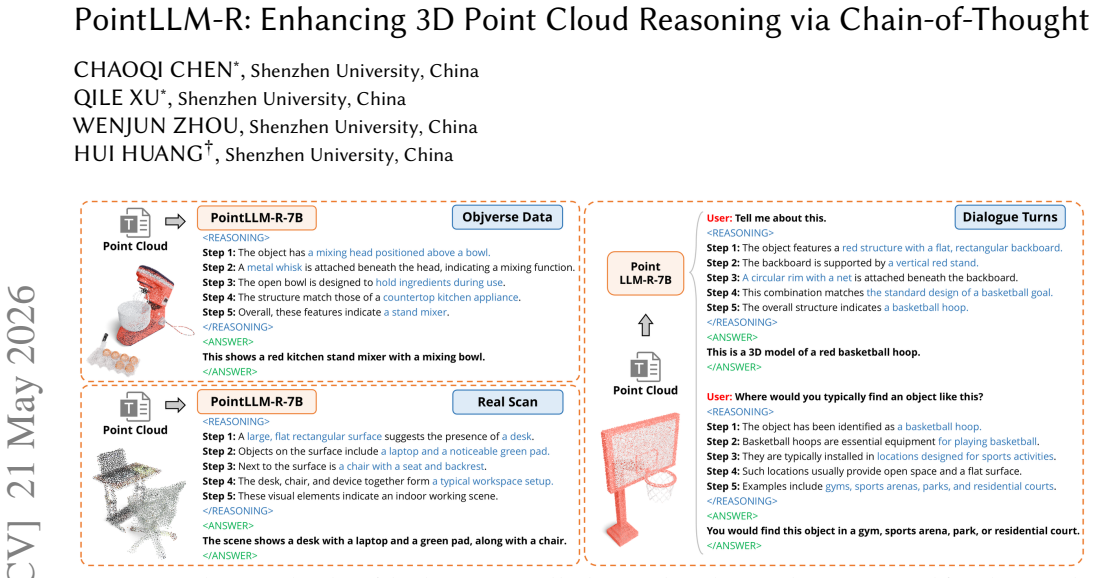

Figure 1
Figure 1. Figure 1: PointLLM-R leverages explicit Chain-of-Thought reasoning to enable robust 3D understanding across diverse scenarios. Top left: On dataset samples [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

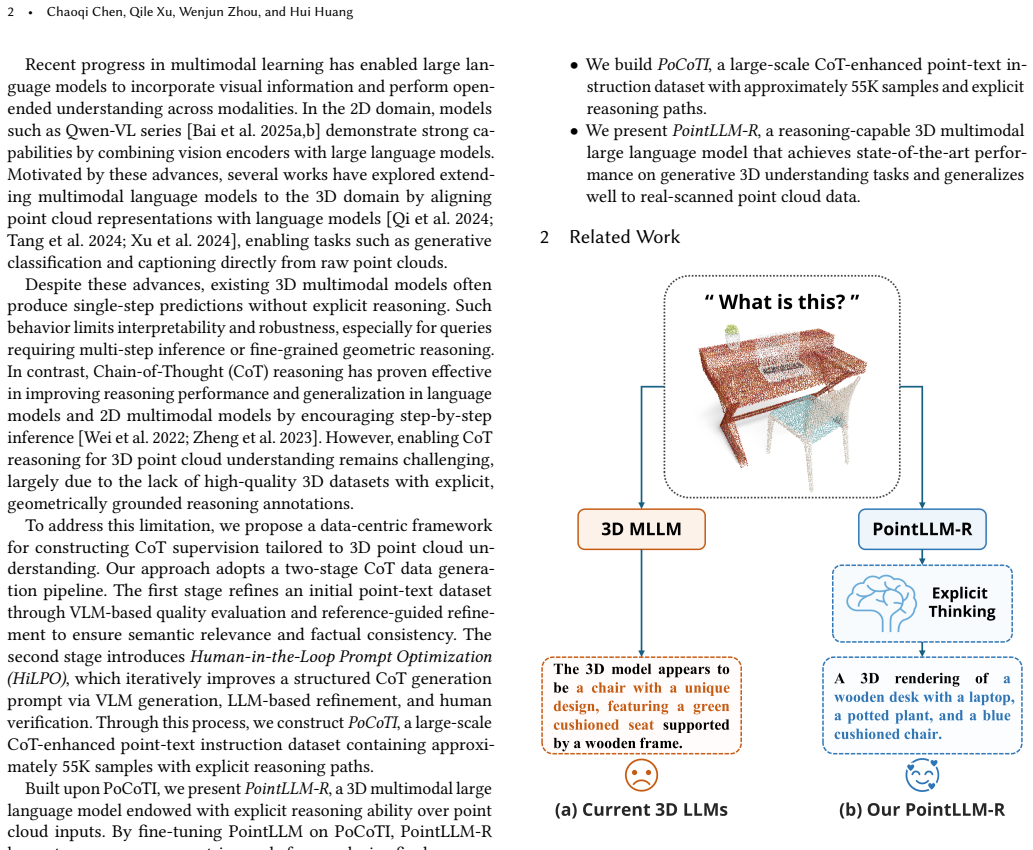

Figure 2
Figure 2. Figure 2: Comparison of 3D point cloud understanding behaviors. Existing [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

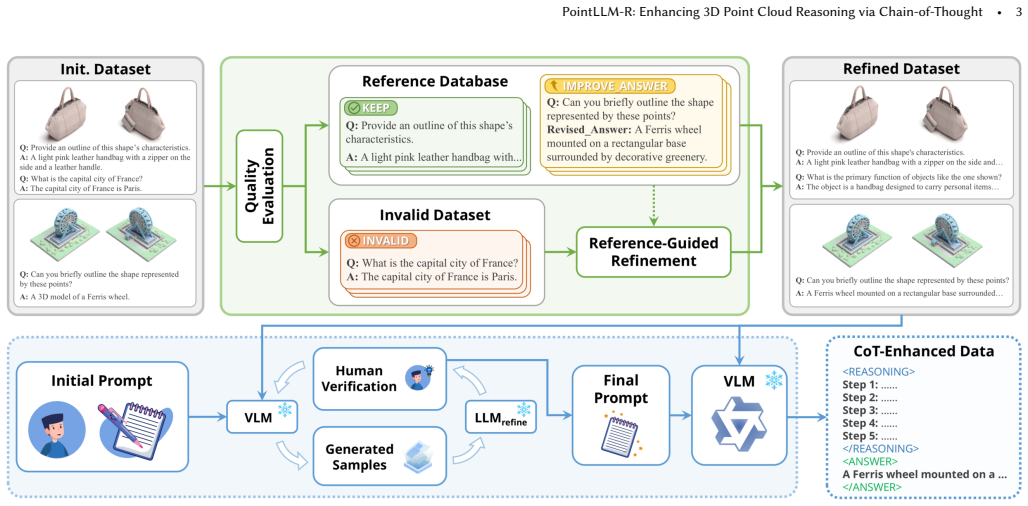

Figure 3
Figure 3. Figure 3: Overview of our two-stage CoT data generation pipeline. The first stage refines an initial point-text dataset via VLM-based quality evaluation and [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

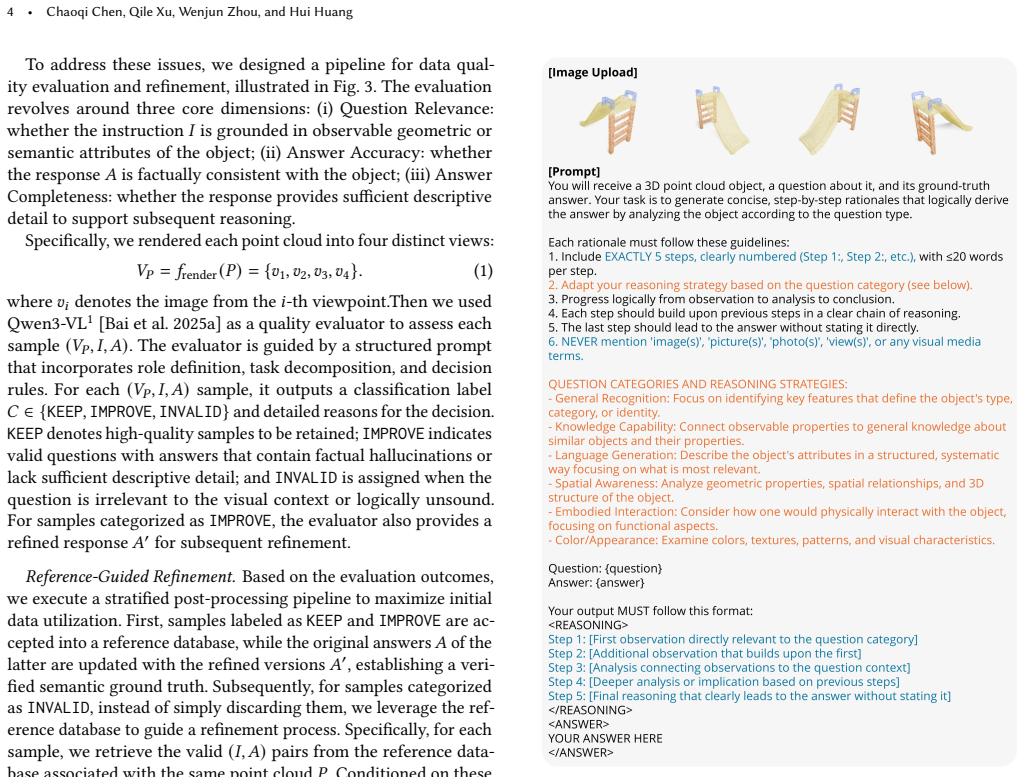

Figure 4
Figure 4. Figure 4: The prompt 𝑃 ∗ utilized for CoT-Enhanced data generation. Refine￾ments introduced after the first HiLPO iteration are highlighted in blue, while those from the second iteration are highlighted in orange. failure cases expose systematic weaknesses in the guiding prompt, motivating a Human-in-the-Loop Prompt Optimization (HiLPO) framework that iteratively refines the prompt by combining LLM￾driven feedback w… view at source ↗

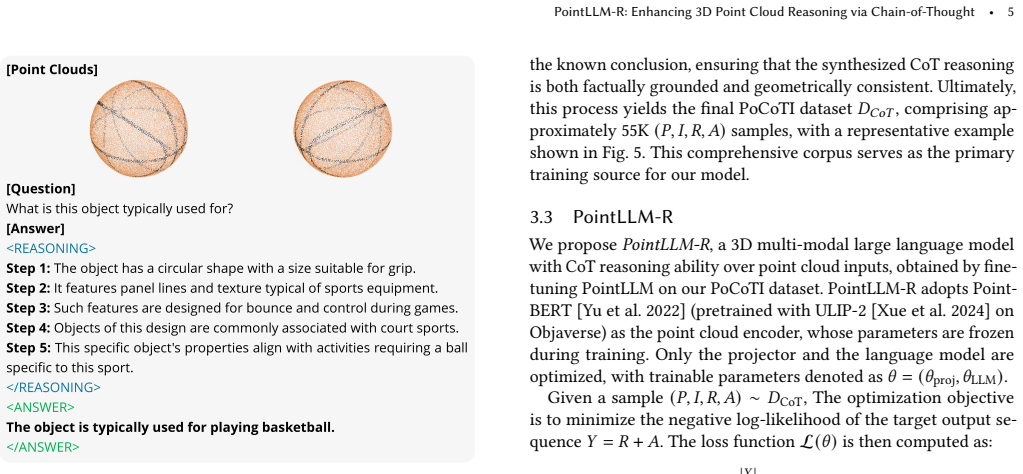

Figure 5
Figure 5. Figure 5: An illustrative example of our PoCoTI dataset, consisting of an input [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

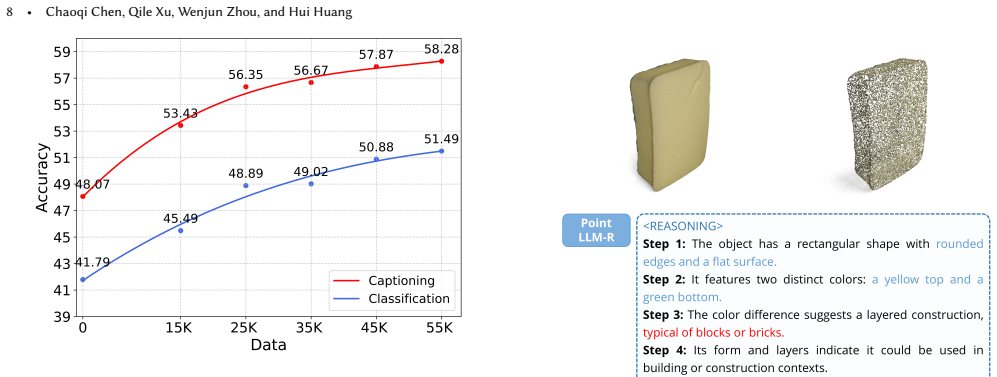

Figure 6
Figure 6. Figure 6: Accuracy of PointLLM-R with varying sizes of the PoCoTI dataset [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8

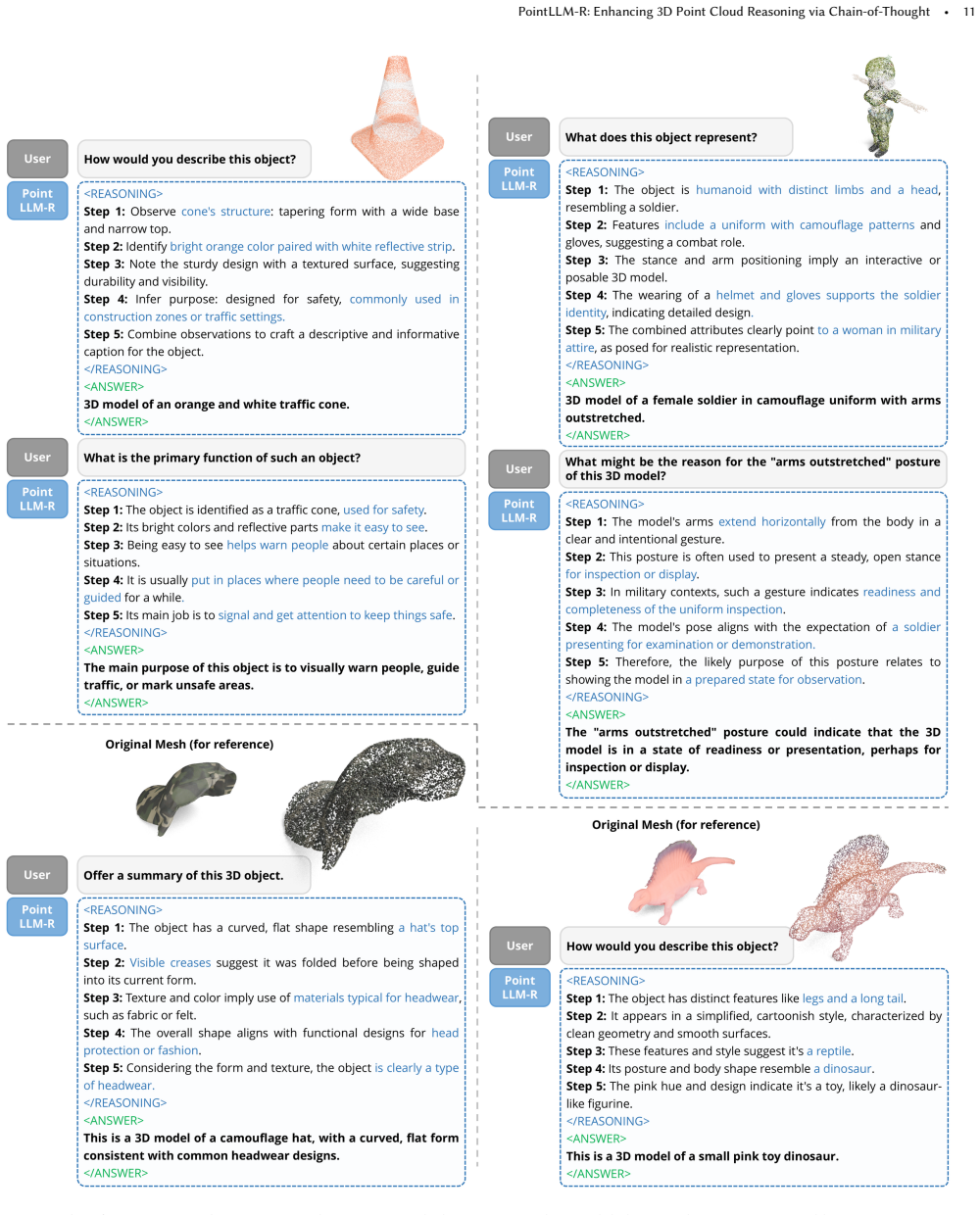

Figure 8. Figure 8: Examples of interactions with PointLLM-R. The top two panels demonstrate multi-round dialogues, where PointLLM-R addresses consecutive user [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗

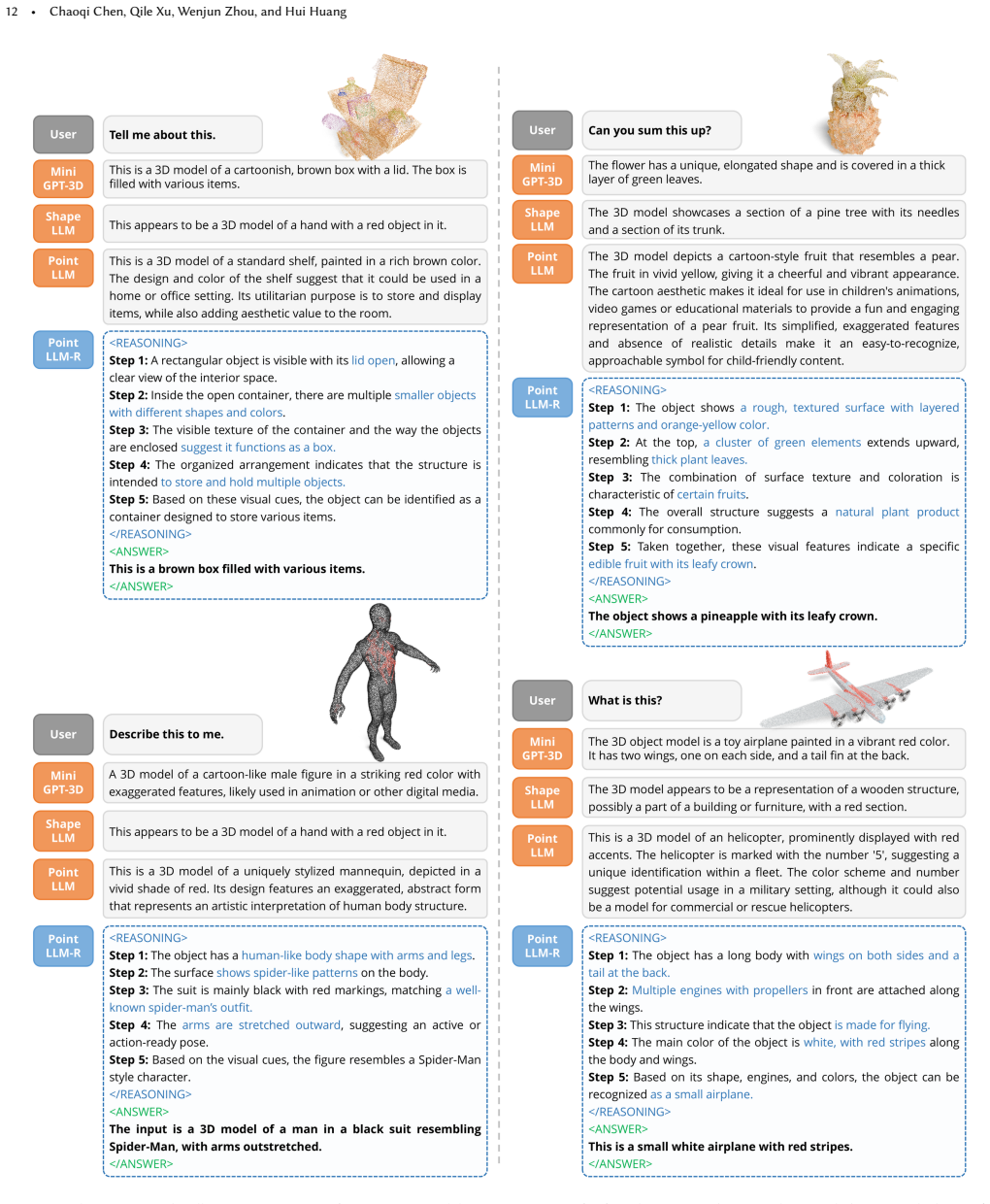

Figure 9
Figure 9. Figure 9: Qualitative examples illustrating responses from various models to user prompts for four distinct 3D object. Each example begins with the user’s [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
read the original abstract

Understanding 3D point clouds through language remains a fundamental challenge in computer graphics and visual computing, due to the irregular structure of point cloud data and the lack of explicit reasoning in existing 3D multimodal models. While Chain-of-Thought (CoT) reasoning has shown strong effectiveness in LLMs and image-based MLLMs, its extension to 3D understanding remains largely underexplored. In this paper, we propose a data-centric framework for constructing large-scale CoT supervision tailored to 3D point cloud understanding. Our framework consists of a two-stage pipeline that first refines point-text instruction data via vision-language-model-based quality evaluation and reference-guided refinement, and then synthesizes high-quality reasoning paths through Human-in-the-Loop Prompt Optimization (HiLPO). Using this approach, we build PoCoTI, a CoT-enhanced point-text instruction-following dataset containing 55K samples with explicit reasoning paths. Fine-tuning PointLLM on PoCoTI yields PointLLM-R, a reasoning-capable 3D multimodal language model. Extensive experiments on generative 3D classification and captioning demonstrate that PointLLM-R achieves state-of-the-art performance and generalizes robustly to real-world scanned point clouds and multi-turn dialogue scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper presents a data-centric framework for building PoCoTI, a 55K-sample point-text instruction dataset augmented with explicit Chain-of-Thought reasoning paths. The pipeline first applies VLM-based quality evaluation and reference-guided refinement to existing point-text data, then uses Human-in-the-Loop Prompt Optimization (HiLPO) to synthesize reasoning paths. Fine-tuning the PointLLM model on PoCoTI produces PointLLM-R, which the authors claim achieves state-of-the-art results on generative 3D classification and captioning while generalizing to real-world scanned point clouds and multi-turn dialogue.

Significance. If the synthesized CoT paths demonstrably encode verifiable 3D spatial reasoning (relative distances, occlusion handling, surface geometry) rather than VLM linguistic artifacts, the work would provide a scalable method for injecting explicit reasoning into 3D multimodal models, addressing a clear gap in current 3D MLLMs. The released dataset and fine-tuning recipe could become a useful resource for the community.

major comments (3)
  1. [§4, Table 1] §4 (Experiments) and Table 1: The abstract and experimental claims assert SOTA performance and robust generalization, yet the provided text supplies no numerical scores, baseline comparisons, or ablation results that isolate the contribution of the CoT paths versus scale or instruction tuning alone. Without these metrics the central empirical claim cannot be evaluated.
  2. [§3.2] §3.2 (HiLPO and VLM quality evaluation): The description of how reasoning paths are synthesized and filtered lacks any quantitative validation (e.g., human ratings of reasoning depth, inter-annotator agreement on spatial correctness, or error analysis separating geometric vs. semantic failures). This leaves open the possibility that performance gains stem from superficial patterns rather than genuine 3D reasoning.
  3. [§5.3] §5.3 (Generalization experiments): The claim of robust generalization to real-world scanned point clouds is stated without an accompanying breakdown of failure modes (e.g., occlusion or distance errors) or comparison against a non-CoT fine-tuned baseline on the same real-world test set.
minor comments (3)
  1. The term 'generative 3D classification' is introduced without a precise definition or example output format; clarify whether the model generates free-form class descriptions or structured labels accompanied by reasoning.
  2. Figure captions for qualitative examples should explicitly annotate which segments of the generated text correspond to the synthesized CoT steps versus the final answer.
  3. A few citations to prior 3D point-cloud MLLM works (e.g., PointLLM, Point-Bind, or related CoT extensions in vision-language models) appear to be missing from the related-work section.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their detailed and constructive feedback on our manuscript. We address each of the major comments below and outline the revisions we plan to make to strengthen the paper.

read point-by-point responses

  1. Referee: [§4, Table 1] §4 (Experiments) and Table 1: The abstract and experimental claims assert SOTA performance and robust generalization, yet the provided text supplies no numerical scores, baseline comparisons, or ablation results that isolate the contribution of the CoT paths versus scale or instruction tuning alone. Without these metrics the central empirical claim cannot be evaluated.

    Authors: We appreciate the referee's concern regarding the clarity of our experimental results. The full manuscript does include Table 1 in Section 4, which presents numerical performance metrics for PointLLM-R on generative 3D classification and captioning tasks, along with comparisons to baselines such as PointLLM and other state-of-the-art 3D models. However, to more explicitly isolate the impact of the Chain-of-Thought paths, we will add an ablation study in the revised version. This ablation will compare models fine-tuned with and without CoT supervision on the same dataset scale, demonstrating the specific contribution of the reasoning paths to the observed performance gains. revision: partial

  2. Referee: [§3.2] §3.2 (HiLPO and VLM quality evaluation): The description of how reasoning paths are synthesized and filtered lacks any quantitative validation (e.g., human ratings of reasoning depth, inter-annotator agreement on spatial correctness, or error analysis separating geometric vs. semantic failures). This leaves open the possibility that performance gains stem from superficial patterns rather than genuine 3D reasoning.

    Authors: Thank you for highlighting this important aspect. While the manuscript describes the HiLPO process and VLM-based quality evaluation in detail, we agree that additional quantitative validation would be beneficial. In the revised manuscript, we will include results from a human evaluation study involving multiple annotators rating the reasoning paths for depth and spatial correctness. We will report inter-annotator agreement scores and provide an error analysis that distinguishes between geometric reasoning failures and semantic ones. This will help substantiate that the synthesized paths capture genuine 3D spatial reasoning. revision: yes

  3. Referee: [§5.3] §5.3 (Generalization experiments): The claim of robust generalization to real-world scanned point clouds is stated without an accompanying breakdown of failure modes (e.g., occlusion or distance errors) or comparison against a non-CoT fine-tuned baseline on the same real-world test set.

    Authors: We acknowledge that the generalization experiments in Section 5.3 could be more thoroughly documented. To address this, we will revise the section to include a direct comparison between PointLLM-R and a non-CoT fine-tuned baseline on the real-world scanned point cloud dataset. Additionally, we will provide a detailed breakdown of failure modes, categorizing errors related to occlusion handling, distance estimation, and surface geometry, supported by qualitative examples from the test set. revision: yes

Circularity Check

0 steps flagged

No significant circularity in empirical dataset construction and fine-tuning

full rationale

The paper presents a purely empirical data-centric framework: it refines point-text instruction data via VLM-based quality evaluation and reference-guided refinement, then synthesizes reasoning paths using Human-in-the-Loop Prompt Optimization (HiLPO) to create the PoCoTI dataset of 55K samples. PointLLM is fine-tuned on this dataset to produce PointLLM-R, with performance measured on external generative 3D classification, captioning, real-world scanned clouds, and multi-turn dialogue tasks. No mathematical derivations, predictions, or first-principles results exist that could reduce to inputs by construction. There are no self-definitional steps, fitted parameters renamed as predictions, or load-bearing self-citations that render claims tautological. The work is self-contained against external benchmarks and human-in-the-loop processes.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that explicit reasoning paths improve 3D understanding and that the proposed data synthesis pipeline produces reliable supervision without introducing systematic biases.

axioms (1)
  • domain assumption Chain-of-Thought reasoning improves performance in multimodal models
    Invoked when extending CoT from LLMs and image MLLMs to 3D point clouds.
