Analytic two-loop QCD amplitude narrows double-charmonium gap

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

The authors present the first analytical two-loop NRQCD amplitude for e+e- to J/psi+eta_c as an expansion in m_c^2/s, with cross-section predictions consistent (within uncertainties) with B-factory data.

T0 review reviewed 2026-08-05 challenge →

load-bearing objection First analytic NNLO amplitude for e+e- -> J/psi+eta_c, with strong internal checks, but the constant-term basis and the 'agreement with data' claim need scrutiny. the 4 major comments →

arxiv 2508.20777 v1 pith:C5ATLAPC submitted 2025-08-28 hep-ph hep-th

Analytical two-loop amplitudes of $e^{+} e^{-} \longrightarrow \boldsymbol{J} / \boldsymbol{\psi}+\boldsymbol{\eta}_c$ at $B$ factories

Xiang Chen , Xin Guan , Chuan-Qi He , Yan-Qing Ma , Jian Wang , Da-Jiang Zhang This is my paper
classification hep-ph hep-th
keywords two-loop amplitudesNRQCDdouble charmonium productionJ/ψ + η_casymptotic expansionleading logarithmsB factoriesanalytic reconstruction
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper reports a fully analytic next-to-next-to-leading-order QCD amplitude for e+e− → J/ψ + η_c inside non-relativistic QCD (NRQCD), written as an expansion in r = m_c^2/s (charm mass squared over collision-energy squared). It reconstructs the coefficients from high-precision numerical values using a small set of classical polylogarithm constants, and it isolates the source of the dominant logarithms by splitting the loop integrals into soft, collinear, anti-collinear, and hard regions. The resulting cross section at B-factory energies is consistent with the Belle and BaBar measurements, addressing a discrepancy that has stood since the first measurements in 2002. Because the result is analytic, it also exposes the ln^3 r terms that dominate at NNLO and yields a ready-made prediction for Υ + η_b production.

Core claim

The central claim is that the complete two-loop amplitude for γ* → J/ψ + η_c, after subtracting the 1/ϵ poles fixed by NRQCD anomalous dimensions, has the form h(2)(r) = r^2[L_(2,4) ln^4 r + L_(2,3) ln^3 r + L_(2,2) ln^2 r + L_(2,1) ln r + L_(2,0)] + r^{5/2} L_(5/2,0) + O(r^3), all coefficients analytic. The method: solve differential equations in r numerically to hundreds of digits, then reconstruct coefficients by integer-relation detection over {Li_m(-2), Li_m(-1), Li_m(2), m ≤ 4}. Region analysis traces the leading ln^2 r and ln^3 r terms to soft-quark loops with radiative jet functions; pure soft-gluon double logs cancel because the mesons are color neutral. At √s = 10.58 GeV the NNLO c

What carries the argument

The central object is the dimensionless coefficient h(2)(r) of the two-loop amplitude, expanded in r = m_c^2/s with powers of ln r. The carrying mechanism is a pipeline: reduce 167 integral families to master integrals by integration-by-parts identities; evaluate the master integrals as functions of r through numerical differential equations with boundary conditions fixed by auxiliary mass flow; reconstruct the leading r-coefficients analytically with integer-relation detection over a polylogarithm-constant basis; then solve the differential equations again analytically to obtain the remaining coefficients. For the logarithm structure, the key physics mechanism is a region analysis in which

Load-bearing premise

The analytic form is only as complete as the reconstruction basis: the calculation assumes every finite coefficient can be written using one small family of special constants (polylogarithms at three fixed arguments) through weight four; if a coefficient needed a different constant, the analytic result would miss it.

What would settle it

Take a subleading r-coefficient that was not used in the initial reconstruction, evaluate it numerically to roughly a thousand digits, and test via integer-relation detection whether it lies in the claimed span of Li_m(-2), Li_m(-1), and Li_m(2) for m ≤ 4; if no exact integer relation appears, the analytic basis is incomplete.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

  • The NNLO cross section for e+e− → J/ψ + η_c at 10.52–10.58 GeV is predicted in the 11–14 fb range, within the measured Belle and BaBar bands; Belle II at 10.52 GeV can test this directly.
  • The ln^3 r term dominates the NNLO amplitude at B-factory energies, so resummation of leading and next-to-leading logarithms to all orders becomes a concrete next step rather than an abstract one.
  • The analytic amplitude carries explicit heavy-quark mass dependence, giving an immediate prediction for Υ + η_b production (about 0.115 fb at 22.5 GeV) for future colliders.
  • At high energies the partial O(α_s^4) term exceeds the LO term, signaling that fixed-order perturbation theory there is unreliable and motivating resummation or alternative treatments.
  • The r-expansion converges with radius 1/16, and truncating at O(r^35) provides enough precision for phenomenology across the energy range considered.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the polylog basis used here is complete, the same numerical-differential-equation-plus-integer-relation pipeline should convert other exclusive quarkonium NNLO calculations from numerical to analytic, provided their master integrals satisfy similar first-order systems.
  • The cancellation of soft-gluon double logarithms and survival of soft-quark double logarithms is likely a general rule for color-singlet final states, so future resummation formalisms should concentrate on soft-fermion loops.
  • The appearance of r^{5/2} at two loops means the amplitude has a branch cut in the variable r that Taylor expansions miss; analogous half-integer powers should appear near threshold in other exclusive double-quarkonium processes.
  • A Belle II measurement at √s = 10.52 GeV with total uncertainty below about 1 fb would distinguish the µR = √s/2 and µR = √s scale choices and meaningfully constrain the NRQCD long-distance matrix element.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper presents the first fully analytical two-loop (NNLO) QCD amplitudes for e+e− → γ* → J/ψ + ηc within NRQCD, expressed as an asymptotic expansion in r = m_c^2/s. The computation uses automated diagram generation, IBP reduction, differential equations with AMFlow boundary conditions, and PSLQ reconstruction to obtain analytic coefficients. The authors give explicit leading logarithmic terms and a non-integer power term r^{5/2}, analyze the origin of leading logarithms with the method of regions, and provide cross-section predictions for J/ψ+ηc and Υ+ηb at B-factory and future-collider energies, claiming agreement with B-factory measurements.

Significance. If correct, this is a substantial step: an analytic NNLO result for a double-charmonium production process, with explicit large-logarithmic structure and a non-integer power correction, plus a nontrivial extension to bottomonium. The computation is internally well checked in several ways: exact cancellation of 1/ε poles, agreement with known NLO logarithms, 600-digit precision in the PSLQ input, convergence tests in r, and a region-based cross-check of leading logarithms for many diagrams. The main unresolved risk is the completeness of the PSLQ reconstruction basis for the constant coefficients, and the absence of a direct comparison with existing numerical NNLO calculations.

major comments (4)
  1. [§II and §IV, Eqs. (14)–(19)] The 'fully analytical' claim rests on PSLQ reconstruction of finite terms using only the basis {Li_m(-2), Li_m(-1), Li_m(2) | m ≤ 4}. No proof is given that this basis is closed for the integral family, and the constant coefficients L^(2)_{(2,0)} and L^(2)_{(5/2,0)} are not displayed, so the reconstruction cannot be checked by the reader. The checks listed (pole cancellation, NLO logarithms, Fig. 10 convergence, Sec. V region analysis) do not constrain these constants: pole cancellation fixes only divergences; NLO checks fix log terms; Fig. 10 tests truncation in r, not the constants; and Sec. V is explicitly incomplete. Please either prove basis completeness or provide an independent numerical/analytic validation of these constants, e.g., by comparison with the numerical NNLO results of Refs. [20,21].
  2. [§I/§IV/§VI] Refs. [20,21] computed the same NNLO cross sections numerically, but the paper never reports a direct numerical comparison. This is the most natural and decisive cross-check of the analytic coefficients. Without it, the claim that the asymptotic expansion reproduces the exact two-loop result is not fully established. Please include a table or plot comparing the present cross sections at the same inputs (e.g., √s = 10.58 GeV, μ_R = √s, m_c = 1.5 GeV) with those of Refs. [20,21].
  3. [§V] The region analysis is presented as a check of the leading logarithms, but the final paragraph states that 'a few diagrams that cannot be computed using the δ-regulators' are left to future work. This makes the statement 'We investigated 80 Feynman diagrams, finding agreement with the direct computation' ambiguous: were the uncomputed diagrams among the 80, and do they contribute at the leading-log level? Please clarify coverage and either complete the analysis or explicitly restrict the claim of having explained all leading logarithms.
  4. [Abstract and §VI.A, Table II] The abstract states that the predictions 'agree with the experimental results.' At √s = 10.58 GeV the central NNLO cross section is 11.85 fb, compared with Belle 25.6 ± 2.8 ± 3.4 fb and BaBar 17.6 ± 2.8 +1.5 −2.1 fb. Only the upper edge of the scale/mass uncertainty reaches the BaBar result. Please quantify the agreement with a combined uncertainty estimate, or soften the wording to 'consistent within large uncertainties.'
minor comments (5)
  1. [Ref. [46]] Reference [46] is malformed: 'H. Ferguson and D. H. Bailey, cancer science (1992)' is not a valid citation. Please provide the correct PSLQ reference.
  2. [Fig. 3] The axis/legend labels 'ln0(r)', 'ln1(r)', etc. should be typeset as ln^0(r), ln^1(r), etc., to avoid confusion with 'ln evaluated at r=0'.
  3. [Figs. 7 and 8 captions] The phrase 'colliding energy' should be 'center-of-mass energy' in both captions.
  4. [§VI.A] The sentence 'The cross section at √s = 10.58 GeV changes from 13.87 fb to 11.85 fb when varying μ_R from √s/2 to √s' omits the 2√s endpoint used in Table II; please state the full scale-variation range for completeness.
  5. [§VI.B] Minor grammatical issue: 'the relative error of J/ψ + ηc are generally larger' should be 'the relative uncertainty of J/ψ + ηc is generally larger'.

Circularity Check

0 steps flagged

No significant circularity: the two-loop amplitude is obtained from an independent differential-equation/AMFlow computation, not from the experimental cross section or from a self-citation chain.

full rationale

The derivation chain is self-contained and not circular. The two-loop amplitude h(2)(r) is built from Feynman diagrams, IBP reduction to master integrals, and numerical differential equations with boundary conditions at r=1/100 computed by the independent AMFlow/auxiliary-mass-flow method (Sec. II: "The boundary conditions at r = 1/100 are obtained using the auxiliary mass flow method ... implemented in AMFlow"). No parameter is fitted to the Belle/BaBar cross sections; the phenomenological predictions in Tab. II follow from standard inputs (mc, alpha_s, and NRQCD matrix elements from Refs. [14,67,68]) and the computed amplitude. The internal checks are genuine and independent: UV poles cancel against known anomalous dimensions (Eqs. (11)-(13)), NLO logarithmic coefficients are "found to be consistent with Refs. [15,22,23]", and the leading-logarithm region analysis in Sec. V is explicitly presented as a check, with "agreement with the direct computation" for 80 Feynman diagrams. The PSLQ reconstruction basis ({Li_m(-2), Li_m(-1), Li_m(2)}, m<=4) is an assumption about the space of transcendental constants; if incomplete it would make the analytic coefficients wrong, but it does not define the result in terms of the target cross section or of a self-citation. Self-citations (Blade, AMFlow, CalcLoop, the delta-regulator method of Refs. [54,55]) are computational tools or cross-check methods, not unverified authorities used to force the central claim. The explicit limitation "there exist a few diagrams that cannot be computed using the delta-regulators" (Sec. V) is an admitted gap in the region-analysis explanation of leading logarithms, but it does not affect the direct two-loop calculation and does not introduce circularity. Overall, the paper's predictions are compared with experiments, not constructed from them, so no circular step is present.

Axiom & Free-Parameter Ledger

0 free parameters · 5 axioms · 0 invented entities

The central computation introduces no fitted parameters or new entities. Standard NRQCD and SCET-based inputs and computational techniques are used; the quark masses and NRQCD matrix elements are taken from prior literature.

axioms (5)
  • domain assumption NRQCD factorization for double quarkonium production
    Used throughout Section II to express the amplitude as Eq. (5) with hard coefficients h(i)(r) and NRQCD matrix elements; relies on Ref. [13].
  • domain assumption Leptonic/hadronic factorization of the e+e- cross section
    Invoked in Section II citing Ref. [24]; allows writing sigma from the hadronic tensor.
  • standard math Asymptotic expansion structure I(r) = sum c_{k,n}(epsilon) ln^k(r) r^n for Feynman integrals
    Assumed in Section II, Eq. (8), following Refs. [40-45]; used for the differential-equation solution.
  • domain assumption Anomalous dimensions gamma_J/psi and gamma_eta_c as given in Eq. (12)
    Used for the pole-subtraction check and factorization matching in Section III; taken from Refs. [49-52].
  • domain assumption NRQCD matrix elements |R(0)|^2 taken from Refs. [14,67,68]
    Input to cross sections; Table I lists values for charm and bottom quarkonia.

reviewed 2026-08-05 · how reviews work

0 comments
Cite this review

Pith. "Pith review of Analytical two-loop amplitudes of $e^{+} e^{-} \longrightarrow \boldsymbol{J} / \boldsymbol{\psi}+\boldsymbol{\eta}_c$ at $B$ factories." pith.science (2026). https://pith.science/paper/C5ATLAPC

@misc{pith2026250820777,
  author       = {Pith},
  title        = {Pith review of: Analytical two-loop amplitudes of $e^+ e^- \longrightarrow \boldsymbolJ / \boldsymbol\psi+\boldsymbol\eta_c$ at $B$ factories},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/C5ATLAPC}},
  note         = {Machine review of arXiv:2508.20777}
}
Share X Bluesky LinkedIn Reddit HN
abstract

In double charmonium production, a long-standing challenge is that the theoretical predictions are not consistent with the measurements at B factories. Within the NRQCD framework, the next-to-leading order (NLO) calculation has proved its power to cut down the discrepancy between theory and experiments. To further clarify this puzzle, we have performed the next-to-next-to-leading order (NNLO) calculation. The amplitude is obtained as an analytical asymptotic expansion in the ratio of the squared charm-quark mass over the squared center-of-mass energy, $m_c^2/s$. We investigate the origin of the leading logarithms by performing a region analysis, revealing the intricate factorization structure in this process. We provide numerical predictions on the total cross sections of $J/\psi+\eta_c$ production, which agree with the experimental results. Extension of our computation to $\Upsilon+\eta_b$ production is also discussed.

Figures

Figures reproduced from arXiv: 2508.20777 by Chuan-Qi He, Da-Jiang Zhang, Jian Wang, Xiang Chen, Xin Guan, Yan-Qing Ma.

Figure 1
Figure 1. Figure 1: FIG. 1: Selected tree-level and one-loop diagrams for [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

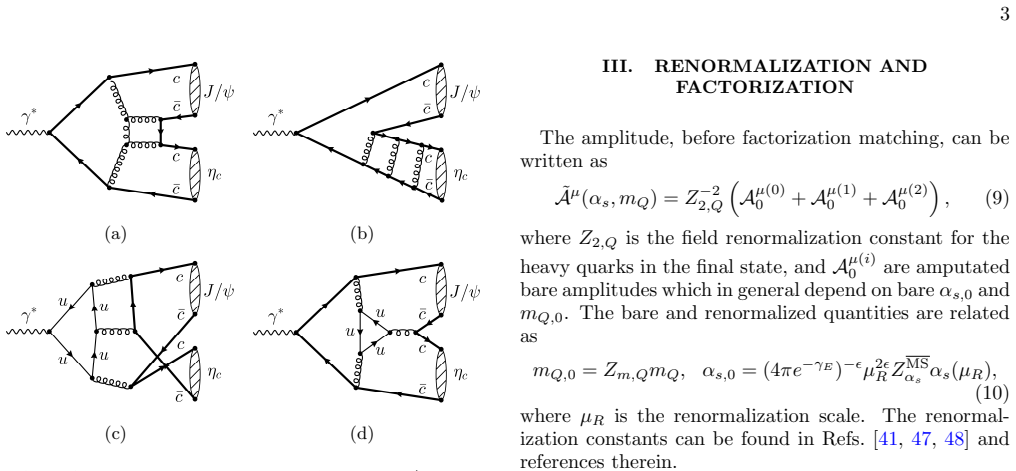

Figure 2. Figure 2: FIG. 2: Selected two-loop diagrams for [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: The contribution of each logarithmic term [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: One-loop diagrams containing double [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: Sample reduced diagrams contributing to [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Reduced diagrams contributing to double [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7: The LO, NLO, NNLO total cross sections for [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Same as Fig [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: The LO, NLO, NNLO total cross sections for [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10: Convergence behavior of the two-loop [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11: The relative contribution of each term to the [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
