SDSS-V LVM: Revealing the Physical and Chemical Structure of the Helix Nebula

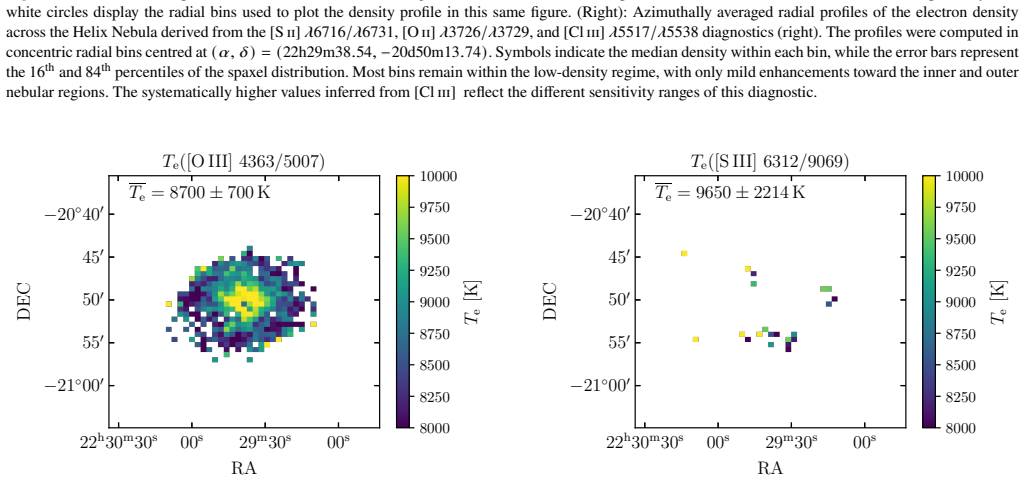

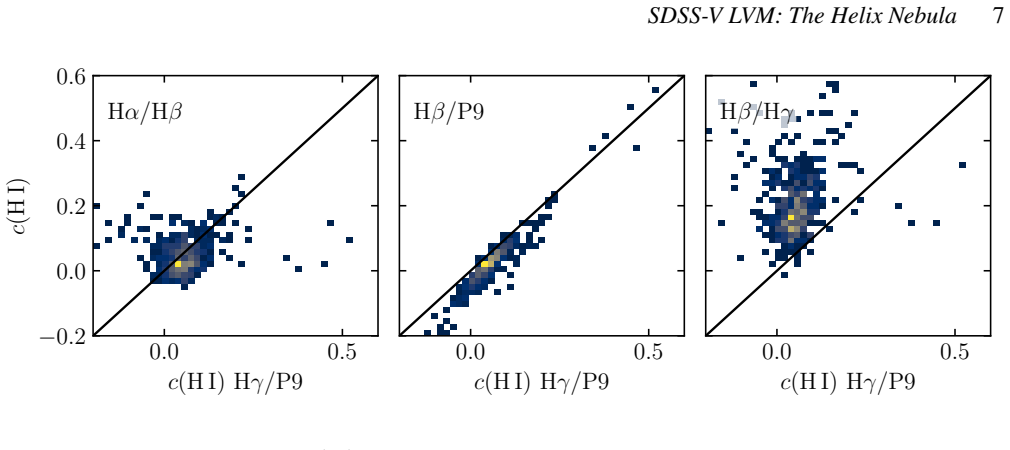

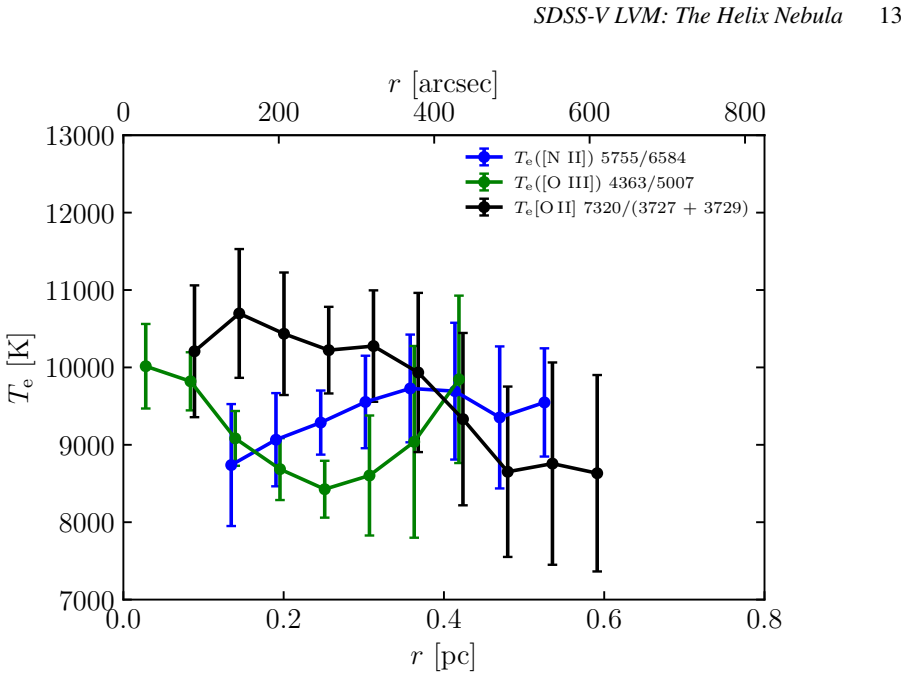

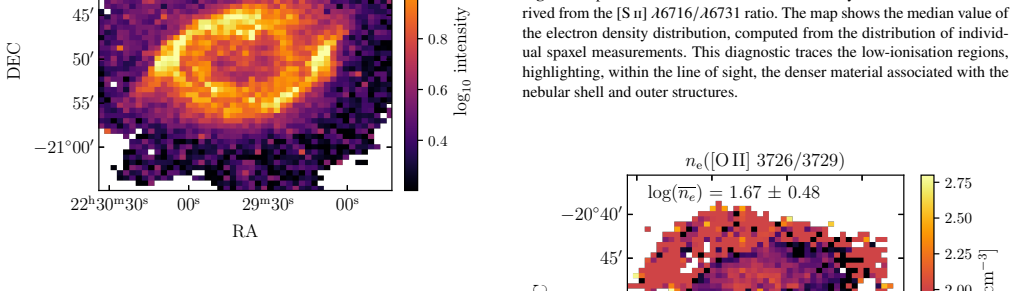

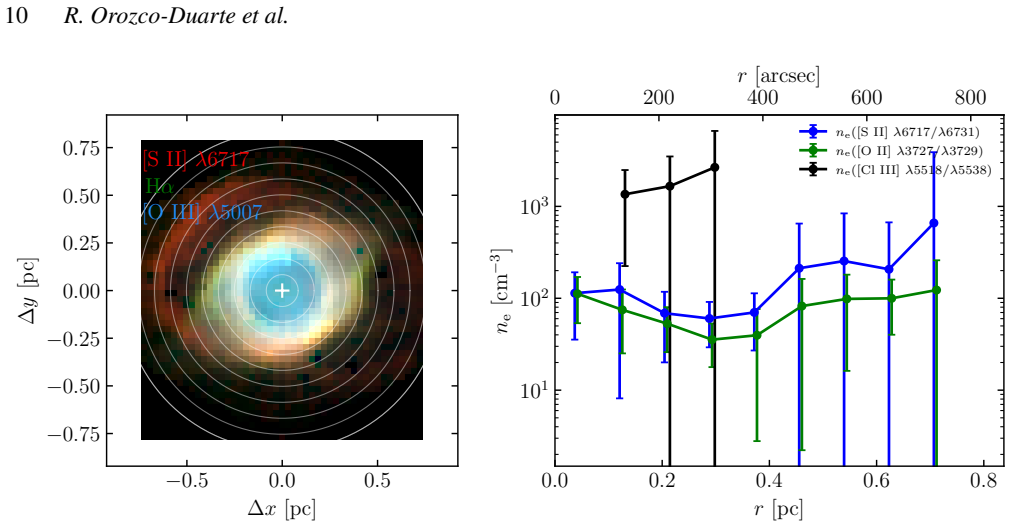

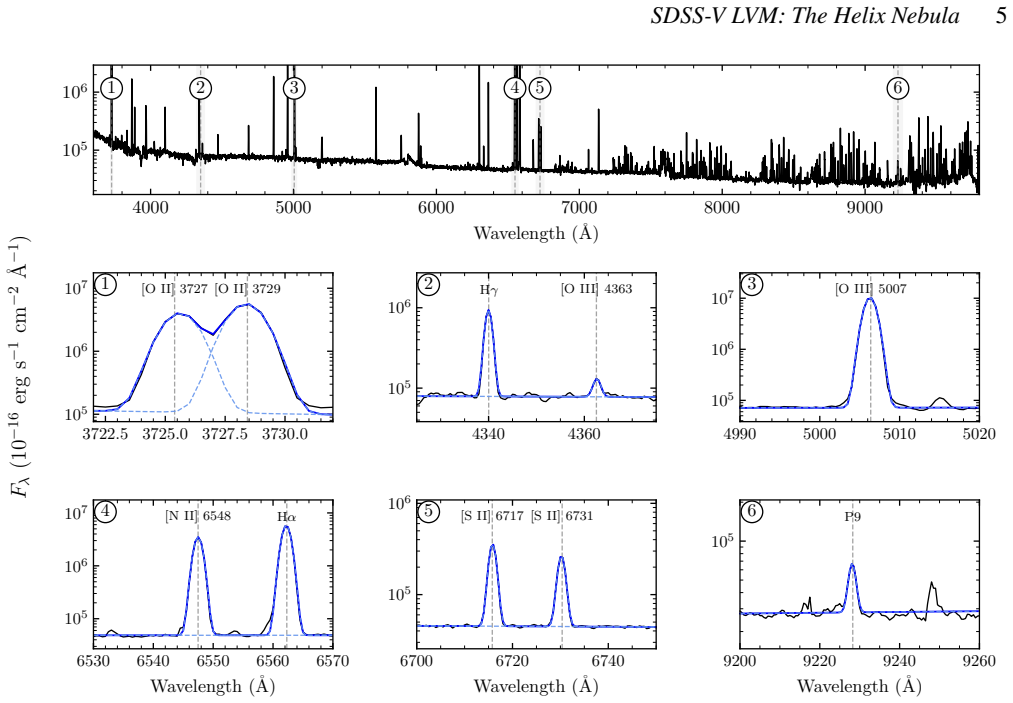

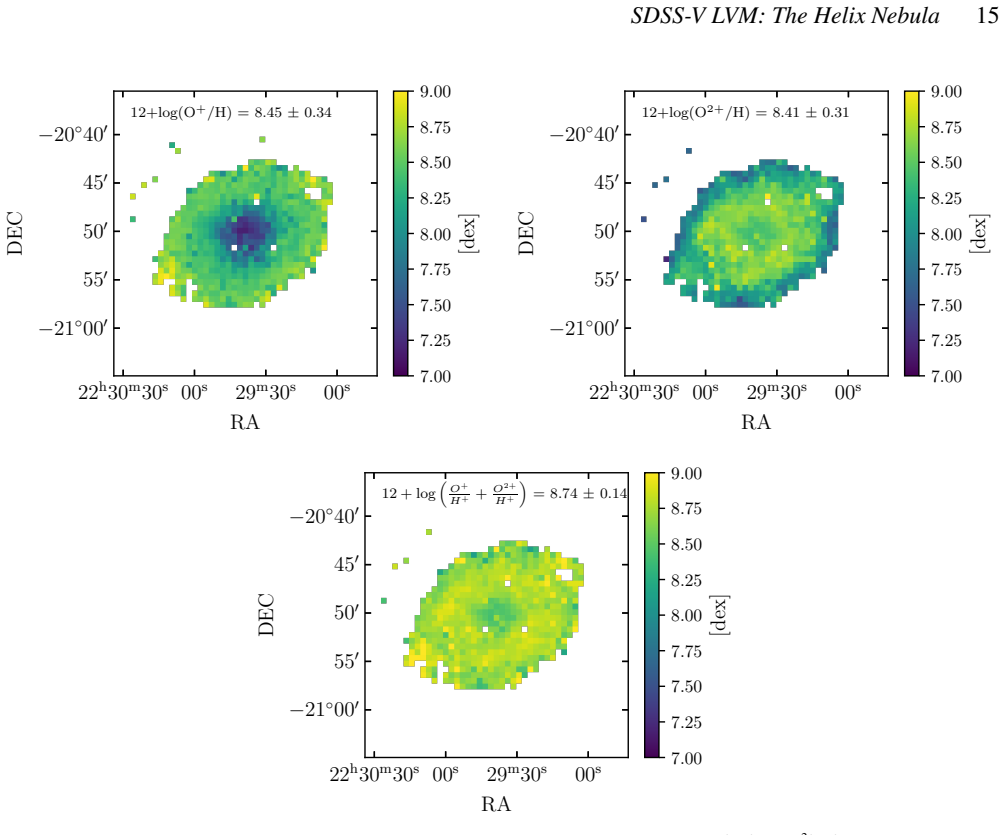

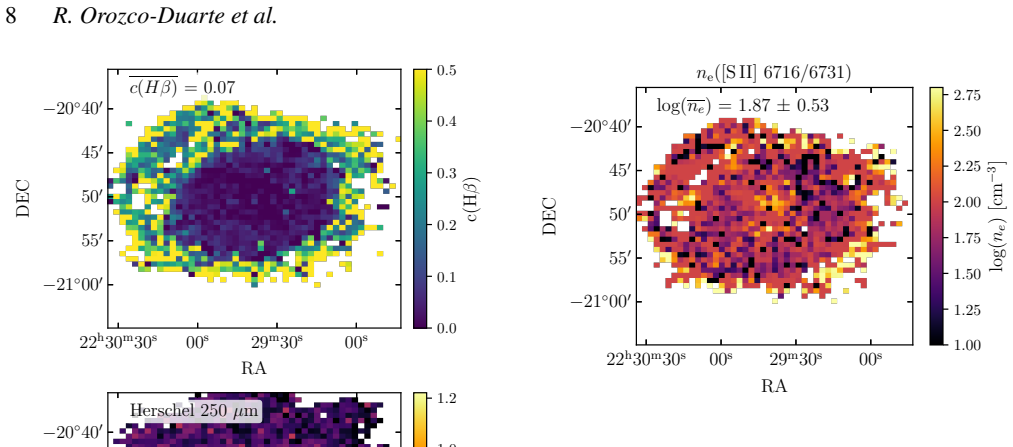

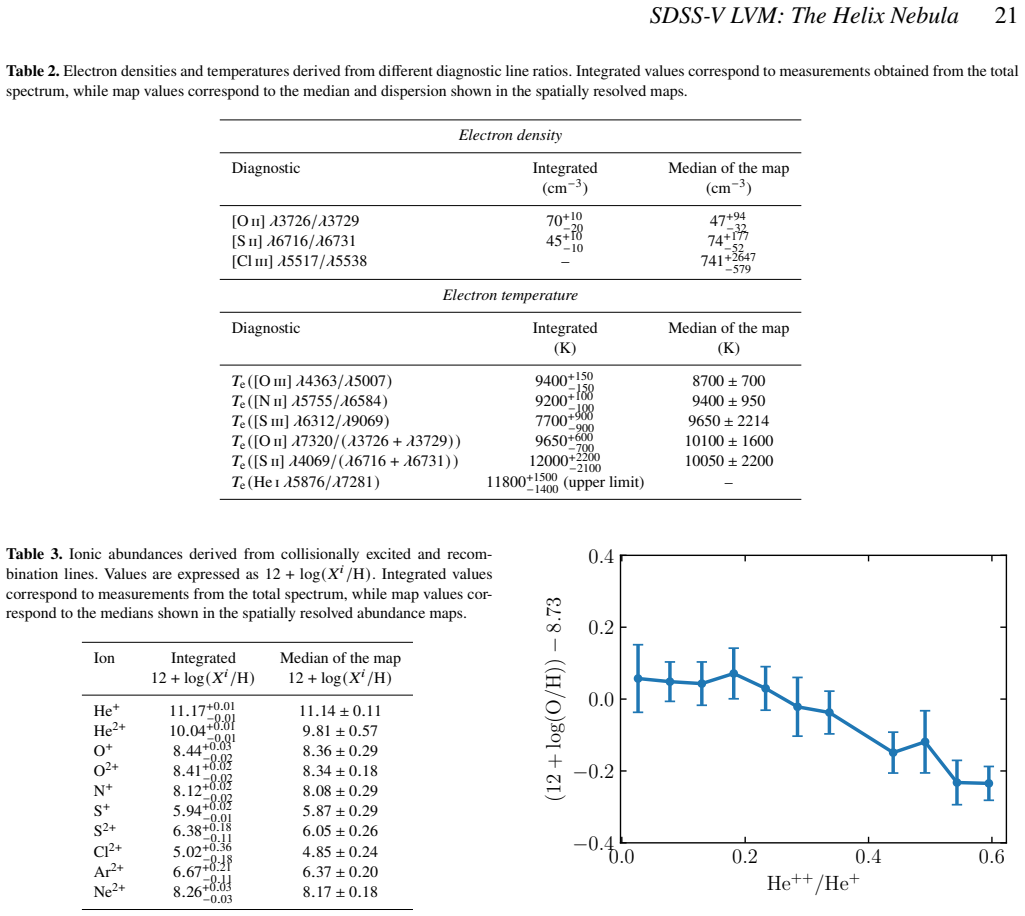

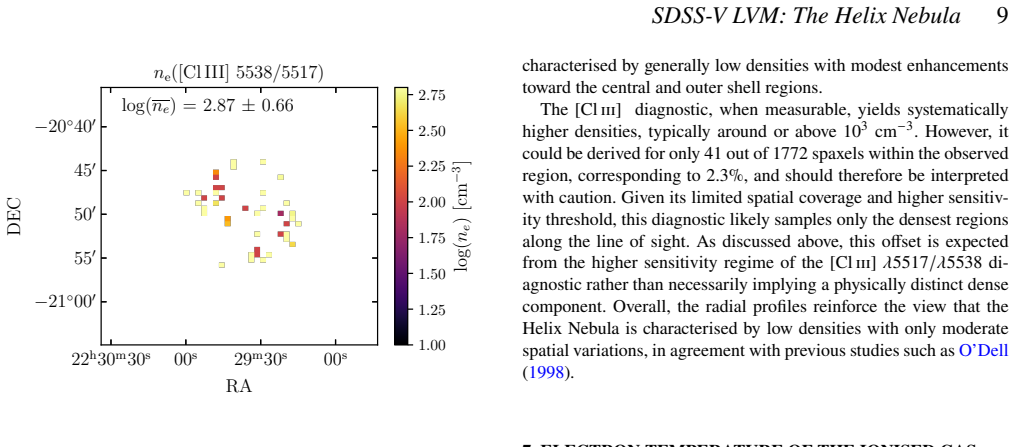

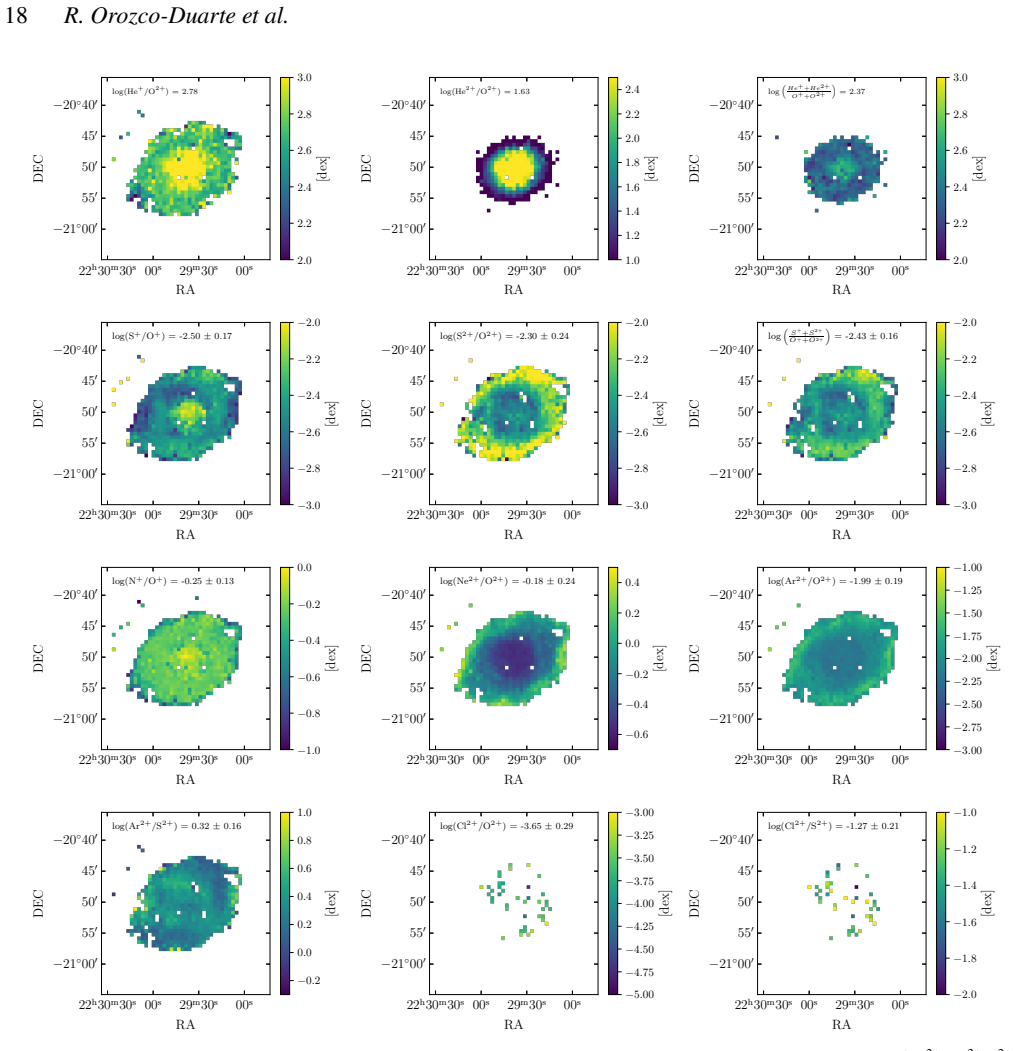

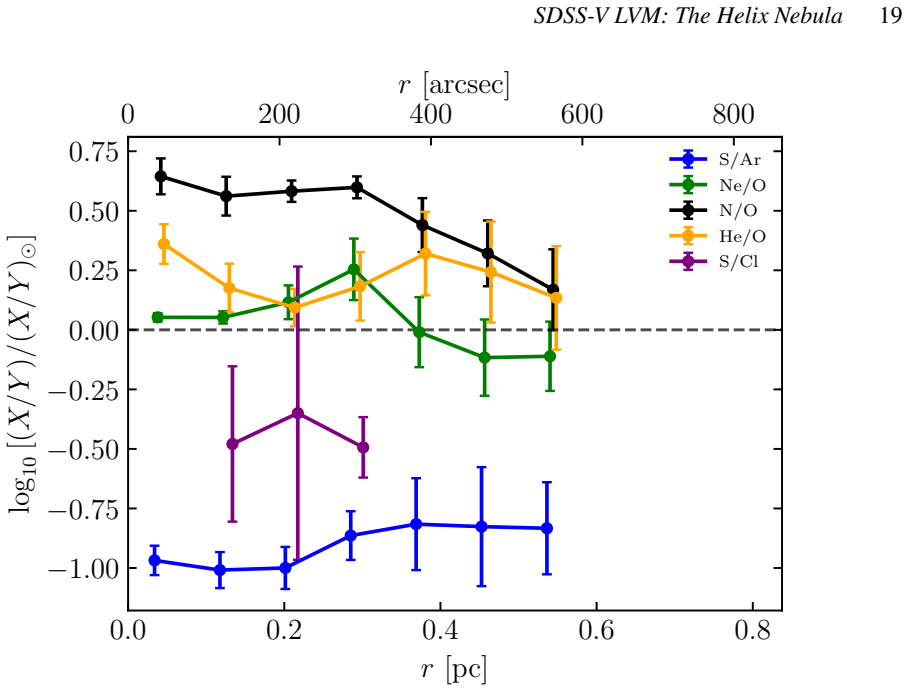

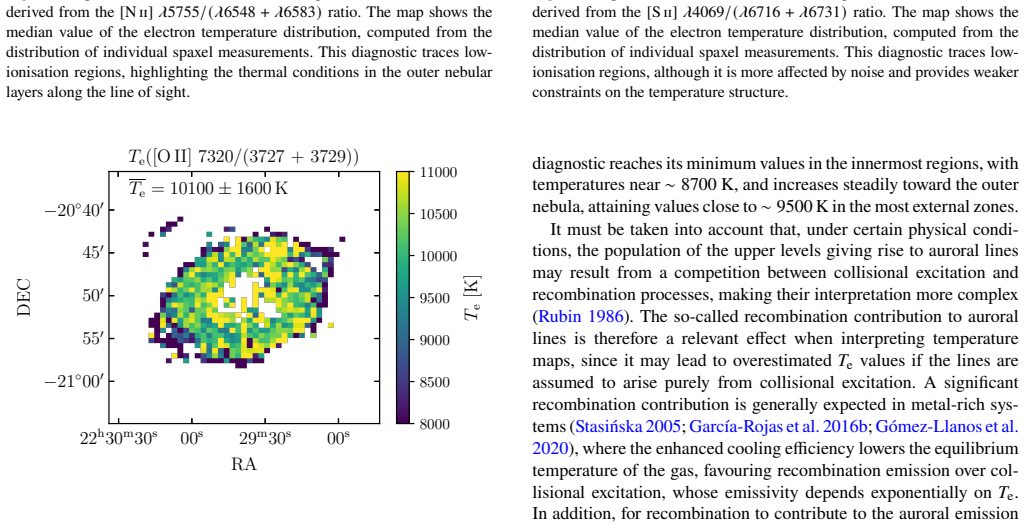

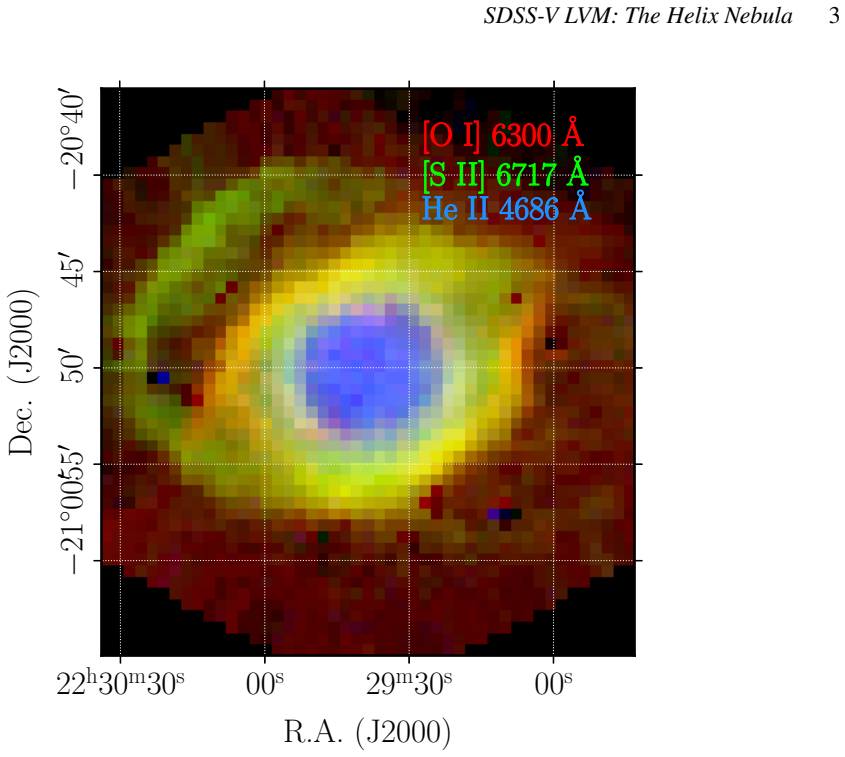

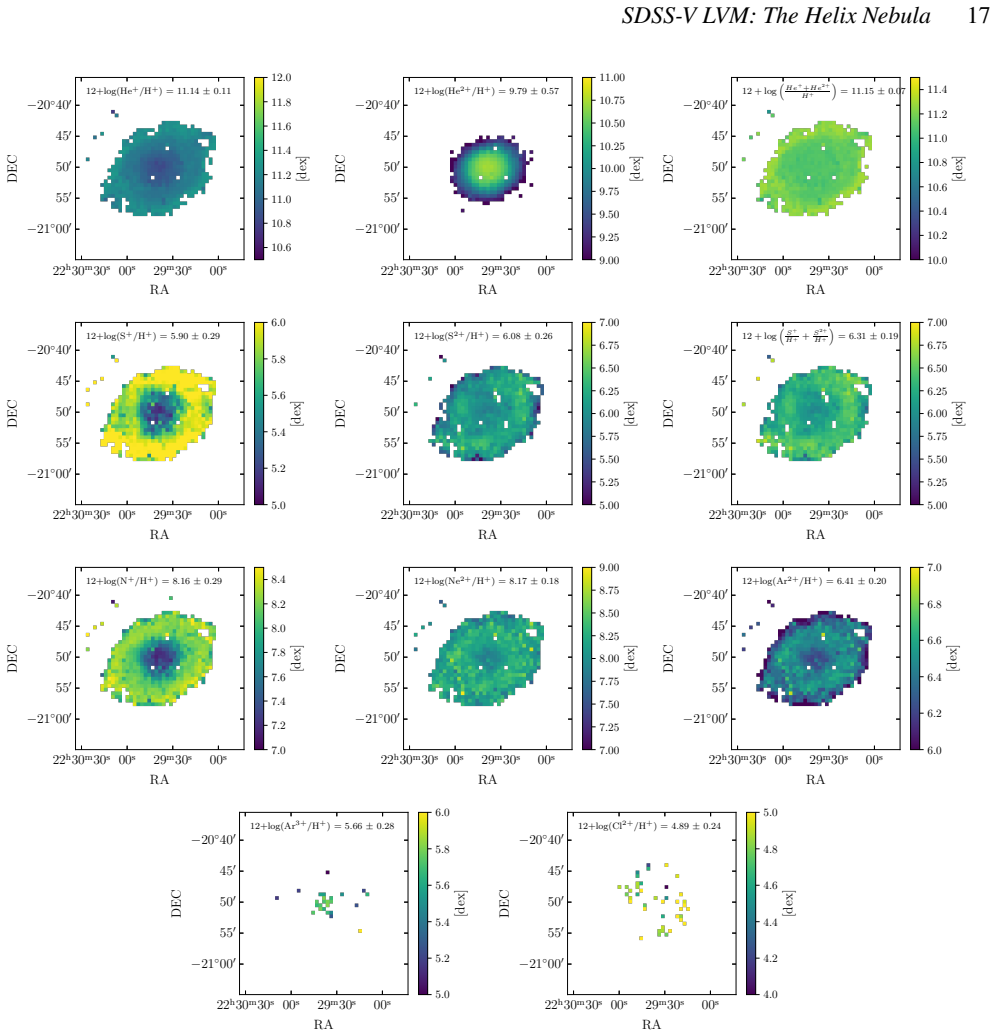

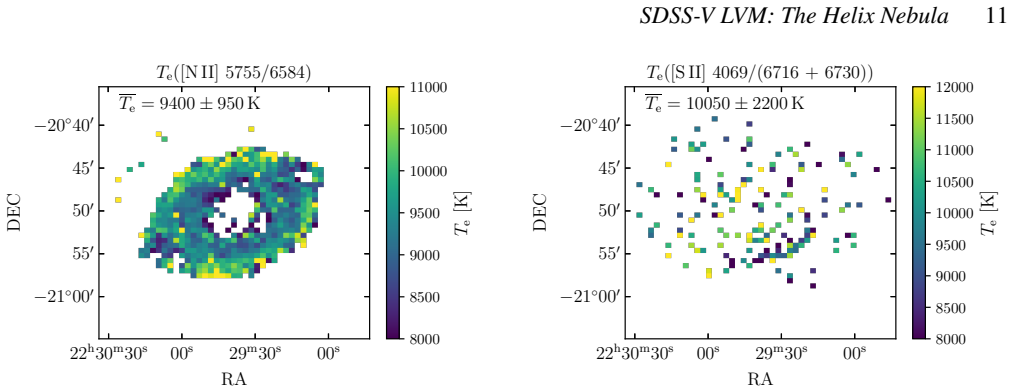

We present the first spatially contiguous study of the physical and chemical structure of the Helix Nebula (NGC~7293, PNG 036.1-57.1) based on integral-field spectroscopy from the SDSS-V Local Volume Mapper (LVM). The wide-field observations provide nearly complete spectroscopic coverage of the nebula, enabling a spaxel-by-spaxel analysis of extinction, electron density and temperature, ionisation structure, and chemical abundances. We reconstruct calibrated datacubes from the LVM row-stacked spectra and measure 41 optical emission lines, including hydrogen, helium, and collisionally excited metal lines. The resulting maps reveal a strongly stratified nebula, with highly ionised gas traced by \heii~concentrated toward the central cavity, low-ionisation material dominating the bright shell, and neutral or transition-zone gas enhanced in the outer regions. The Helix is a low-density object, with typical electron densities of $\sim10^{2}\mathrm{cm^{-3}}$, and exhibits a non-uniform temperature structure, with variations of several thousand Kelvin across different ionisation zones. We derive a near-solar oxygen abundance, $12+\log(\mathrm{O/H})\simeq8.7$, consistent with spatially complete sampling. The central abundance pattern indicates a significant contribution from unobserved O$^{3+}$, suggesting that apparent abundance variations are primarily driven by ionisation effects rather than true chemical inhomogeneities. We also find evidence for a sulfur deficit of $\sim$1 dex, consistent with the planetary-nebula sulfur anomaly. The helium and nitrogen abundances place the Helix near the classical boundary of Type~I planetary nebulae, suggesting moderate chemical enrichment by its progenitor star.
