Unsupervised learning identifies nondispersive wave packets in driven helium without prior labels.
Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →
Unsupervised CNN embedding and clustering of Floquet states recovers known nondispersive wave packet regimes in driven helium without labels.
T0 review reviewed 2026-06-29 challenge →
load-bearing objection The paper shows a CNN embedding plus clustering recovers known NDWP regimes in driven helium from Floquet states without labels, but supplies no quantitative metrics or robustness checks. the 2 major comments →
Unsupervised learning for the systematic identification of nondispersive wave packets in driven helium
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
Core claim
Using a convolutional neural network on probability distributions of Floquet states, the approach constructs a low-dimensional embedding where clustering identifies distinct classes of quantum states, including nondispersive wave packets, which are confirmed through geometric analysis, physical parameters, and time evolution.
What carries the argument
Convolutional neural network embedding of configuration and phase space probability distributions of Floquet states, followed by clustering.
Load-bearing premise
The clusters found in the embedding space represent physically distinct classes of quantum states.
What would settle it
Observing that states from a single cluster exhibit dispersive behavior in time evolution or that known nondispersive wave packet parameters do not cluster together would falsify the claim.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces an unsupervised learning pipeline to identify nondispersive wave packets (NDWPs) in driven helium. Floquet states are represented as probability distributions in configuration and phase space and embedded via a convolutional neural network; clustering in the embedding space is followed by post-hoc geometric, parameter, and time-evolution analysis to label clusters as frozen-planet states or NDWPs. The central claim is that this recovers known NDWP regimes without prior labeling, showing that the learned representation captures physically meaningful structures systematically.
Significance. If the embedding and clustering prove robust, the work could automate exploration of complex driven quantum systems and reduce reliance on manual phase-space analysis. The combination of standard representation learning with explicit physical validation is a constructive approach for quantum datasets.
major comments (2)
- [Results] Results section: the claim that the method 'successfully recovers known NDWP regimes' is asserted without quantitative metrics (e.g., cluster purity, adjusted Rand index against known labels, silhouette scores, or sensitivity to embedding dimension). This absence directly weakens the assertion that the approach is systematic and automated.
- [Methods] Methods and Results: the manuscript provides no error analysis, data-processing details (normalization of probability distributions, handling of grid resolution), or ablation on CNN hyperparameters and clustering choices. These are load-bearing for reproducibility and for confirming that identified clusters are not artifacts of post-hoc selection.
minor comments (1)
- [Figures] Figure captions should explicitly state the embedding dimension and clustering algorithm used for each panel.
Simulated Author's Rebuttal
We thank the referee for the constructive comments. We address each major point below and will revise the manuscript accordingly to strengthen the quantitative support and reproducibility.
read point-by-point responses
-
Referee: [Results] Results section: the claim that the method 'successfully recovers known NDWP regimes' is asserted without quantitative metrics (e.g., cluster purity, adjusted Rand index against known labels, silhouette scores, or sensitivity to embedding dimension). This absence directly weakens the assertion that the approach is systematic and automated.
Authors: We agree that the current presentation would benefit from explicit quantitative metrics. Because the pipeline is unsupervised, adjusted Rand index against full ground-truth labels is not applicable; the validation relies on post-hoc physical identification of known regimes. We will add silhouette scores to assess cluster separation and a sensitivity analysis with respect to embedding dimension in a revised Results section. These additions will provide quantitative backing for the systematic character of the recovery. revision: yes
-
Referee: [Methods] Methods and Results: the manuscript provides no error analysis, data-processing details (normalization of probability distributions, handling of grid resolution), or ablation on CNN hyperparameters and clustering choices. These are load-bearing for reproducibility and for confirming that identified clusters are not artifacts of post-hoc selection.
Authors: We concur that these details are required for reproducibility. The revised Methods section will specify the normalization applied to the probability distributions, the treatment of grid resolution, any convergence/error analysis performed on the Floquet states, and ablations on CNN hyperparameters (layer count, kernel sizes) together with clustering parameters (algorithm choice, number of clusters). These expansions will allow readers to assess whether the clusters arise from the data structure rather than post-hoc choices. revision: yes
Circularity Check
No significant circularity detected
full rationale
The paper computes Floquet states from first principles, feeds probability distributions into a standard CNN embedding, performs unsupervised clustering, and validates clusters post-hoc against independently known NDWP regimes via geometric and time-evolution analysis. No equation or claim reduces by construction to a fitted parameter, self-definition, or self-citation chain; the recovery of known regimes is an external benchmark rather than an internal tautology.
Axiom & Free-Parameter Ledger
free parameters (1)
- CNN embedding dimension and clustering hyperparameters
axioms (2)
- domain assumption Floquet theory provides an accurate time-periodic description of the driven helium states
- domain assumption Probability distributions in configuration and phase space are sufficient input features for physically meaningful clustering
Cite this review
Pith. "Pith review of Unsupervised learning for the systematic identification of nondispersive wave packets in driven helium." pith.science (2026). https://pith.science/paper/CZS2XUCG
@misc{pith2026260525324,
author = {Pith},
title = {Pith review of: Unsupervised learning for the systematic identification of nondispersive wave packets in driven helium},
year = {2026},
howpublished = {\url{https://pith.science/paper/CZS2XUCG}},
note = {Machine review of arXiv:2605.25324}
}
read the original abstract
Nondispersive wave packets in driven helium are long-lived quantum states that follow classical resonant orbits without spreading. Their identification typically requires detailed analysis of phase-space structures and extensive exploration of parameter regimes. In this work, we introduce an unsupervised learning approach to automate the identification of physically relevant states in the driven helium atom. Using a Floquet-based description, quantum states are computed and represented as probability distributions in configuration and phase space, which serve as input to a convolutional neural network that constructs a low-dimensional embedding of the data. Clustering in the embedding space reveals distinct classes of quantum states. By combining geometric analysis, physical parameter inspection, and time-evolution studies, we identify clusters corresponding to frozen planet states and nondispersive wave packets. The method successfully recovers known NDWP regimes without prior labeling, demonstrating that the learned representation captures physically meaningful structures in a systematic and automated manner. These results establish unsupervised representation learning as an effective tool for the systematic analysis of complex quantum datasets.

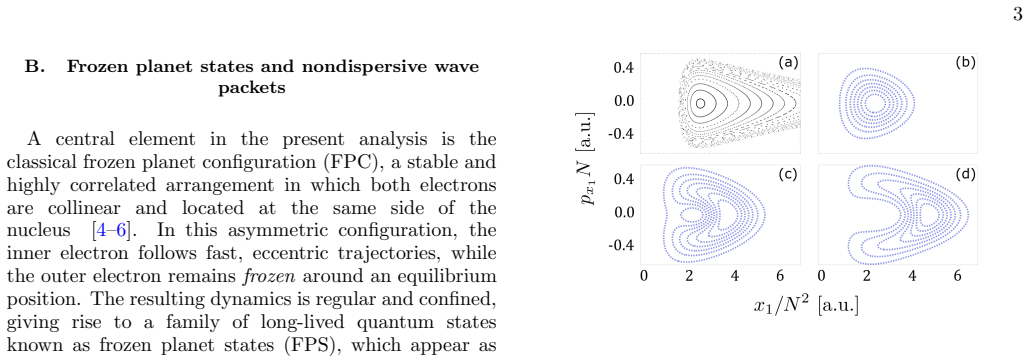

Figures
