TactileReflex: Noise-Statistics-Driven Vision-Tactile Reflex Control for Force-Sensitive Manipulation

Ziyan Feng , Yulong Fu , Zheng Li , Yuxin He , Jieji Ren , Lujia Wang , Jinni Zhou , Yudong Zhong
show 1 more author
Qiang Nie
This is my paper

Pith reviewed 2026-05-25 04:14 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords vision-tactile sensingreflex controlforce-sensitive manipulationdeformable containersnoise statisticsgrip force adaptationslip suppressiontactile thresholds
0
0 comments X

The pith

Noise statistics from a brief static hold set all thresholds for a three-channel tactile reflex controller that protects fragile liquid containers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that analyzing a sensor's intrinsic noise through one static-hold-and-unload sequence produces thresholds sufficient to run a closed-loop controller without external calibration or material models. The controller extracts three image proxies from dual visuo-tactile sensors and runs prioritized reflex channels for slip suppression, weight-adaptive release, and force protection at roughly 12 Hz. If the thresholds remain effective under motion and load change, the method delivers reliable grip adaptation on thin-walled cups where fixed-effort approaches either slip or cause permanent deformation. A reader would care because the approach turns a simple calibration step into a plug-in safety layer that works across different liquid volumes and poses.

Core claim

TactileReflex is a three-channel closed-loop controller that extracts shear intensity Sy, contact intensity Fn, and center of pressure C from dual visuo-tactile sensors and drives prioritized reflex channels using noise-derived thresholds. Only the full three-channel system prevents irreversible container deformation in all five trials while partial configurations succeed in at most one. In dynamic pouring tasks the controller reaches nine of ten successes across two water volumes, whereas fixed-effort baselines fail in all ten attempts due to pose drift.

What carries the argument

The noise-statistics-based calibration-driven reflex control paradigm that derives every controller threshold directly from the sensor's intrinsic noise characteristics measured in a static-hold-and-unload protocol.

If this is right

  • Only the complete three channels achieve five-out-of-five success in preventing irreversible deformation.
  • Dynamic pouring reaches nine-out-of-ten success while fixed-effort baselines fail in every attempt.
  • The controller runs at approximately 12 Hz without trial-and-error tuning or external force sensors.
  • The same noise-derived structure can serve as a plug-and-play safety layer under teleoperation or vision-language-action policies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the static noise statistics prove stable across sensor types, the same calibration step could be reused on different hardware without new modeling.
  • The approach might lower damage rates when high-level policies command contact with unknown or varying objects.
  • Testing the thresholds on containers with different wall thicknesses would show how far the static protocol generalizes before re-calibration is needed.

Load-bearing premise

Noise statistics measured during a brief static hold-and-unload remain valid for setting thresholds when the container moves, changes load, and deforms during real manipulation.

What would settle it

Apply the static-protocol thresholds to repeated dynamic pouring trials and check whether slips or irreversible wall deformations occur at the same rate as in the reported experiments.

Figures

Figures reproduced from arXiv: 2605.23568 by Jieji Ren, Jinni Zhou, Lujia Wang, Qiang Nie, Yudong Zhong, Yulong Fu, Yuxin He, Zheng Li, Ziyan Feng.

Figure 1
Figure 1. Figure 1: System overview. (a) The TactileReflex layer sits beneath a high-level policy (VLA/teleop/trajectory), which provides the arm joint trajectory [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Exp. 2 liftoff trial (soft cup). Upon liftoff, [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

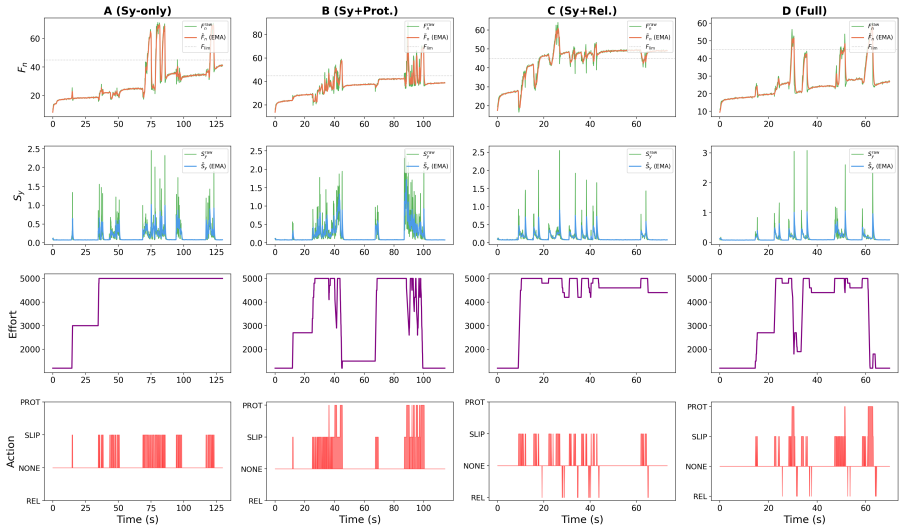

Figure 3. Figure 3: Ablation time-series (soft cup). A (Sy-only): effort saturates at [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Pouring task comparison (45 ml, slow). Left: without reflex, the cup continuously slid within the gripper during arm motion, drifting to an orientation where the cup mouth no longer faces the target container; water cannot be poured despite the arm reaching the correct tilt angle. Right: with reflex, anti-slip maintains the cup’s orientation throughout the tilting motion; water is successfully poured into … view at source ↗
read the original abstract

Manipulating fragile deformable containers, such as disposable plastic cups filled with liquid, demands real-time grip-force adaptation within an extremely narrow force margin: insufficient force causes slip, while excessive force irreversibly deforms the thin wall. Existing approaches struggle to achieve such force-sensitive manipulation tasks. We propose a noise-statistics-based calibration-driven reflex control paradigm with vision-based tactile sensing: by analyzing the sensor's intrinsic noise characteristics (via a brief static-hold-and-unload protocol), we directly derive all controller thresholds, eliminating external force calibration, trial-and-error manual tuning, or material-specific physical models. Instantiating this paradigm, we present TactileReflex, a three-channel closed-loop controller that extracts three image-level proxies, shear intensity ($S_y$), contact intensity ($F_n$), and center of pressure ($C$), from dual visuo-tactile sensors and drives prioritized reflex channels at ~12 Hz for slip suppression, weight-adaptive release, and force protection. Each channel closes the loop directly on its proxy via noise-derived thresholds. Ablation demonstrates that only the full three-channel system is able to prevent irreversible container deformation (5/5 success vs. at most 1/5 for partial configurations). In a dynamic pouring task, fixed-effort baselines fail in all 10 attempts due to pose drift, while TactileReflex achieves 9/10 success across two water volumes. As a self-contained and interpretable controller, TactileReflex can serve as a plug-and-play safety layer beneath high-level manipulation pipelines, including haptic-free VR teleoperation and vision-language-action (VLA) policies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes TactileReflex, a three-channel closed-loop reflex controller for vision-tactile sensors that derives all thresholds directly from intrinsic sensor noise statistics measured in a brief static-hold-and-unload protocol. The controller extracts proxies Sy (shear intensity), Fn (contact intensity), and C (center of pressure) and runs prioritized reflexes at ~12 Hz for slip suppression, weight-adaptive release, and force protection. Ablation experiments claim that only the full three-channel system prevents irreversible container deformation (5/5 success vs. at most 1/5 for partial configurations). In dynamic pouring tasks, it achieves 9/10 success while fixed-effort baselines fail in all 10 attempts.

Significance. If the invariance assumption holds, the work offers a calibration-free, interpretable, plug-and-play safety layer that avoids material models or trial-and-error tuning. The ablation result that all three channels are required is a clear strength, and the pouring-task comparison to fixed-effort baselines illustrates practical utility for fragile-object handling under pose drift.

major comments (2)
  1. [noise-statistics calibration description and experimental protocol] The central claim that static-hold-and-unload noise statistics suffice to set thresholds for dynamic tasks is load-bearing for both the ablation (5/5 only with all channels) and pouring (9/10) results, yet no section compares the noise statistics or threshold behavior observed during the reported manipulation trials to those from the static protocol.
  2. [Ablation and dynamic pouring experiments] Reported success rates (5/5, 9/10, at most 1/5) are given without error bars, statistical significance tests, or details on the number of distinct objects, sensor instances, or total trials, weakening the quantitative support for the cross-configuration and cross-task claims.
minor comments (1)
  1. [Abstract] The abstract states results 'across two water volumes' but does not report the specific volumes or any quantitative force or deformation measurements.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We respond to each major comment below, indicating planned revisions where appropriate.

read point-by-point responses

  1. Referee: [noise-statistics calibration description and experimental protocol] The central claim that static-hold-and-unload noise statistics suffice to set thresholds for dynamic tasks is load-bearing for both the ablation (5/5 only with all channels) and pouring (9/10) results, yet no section compares the noise statistics or threshold behavior observed during the reported manipulation trials to those from the static protocol.

    Authors: The manuscript derives all thresholds exclusively from the static-hold-and-unload protocol described in Section III-B under the assumption that sensor noise statistics are sufficiently invariant for reflex control. No direct comparison of noise statistics or threshold behavior between the static protocol and dynamic trials appears in the current text. We will add a new analysis subsection that extracts and compares noise statistics from the dynamic trial data to the calibration values, confirming consistency within expected variation. This will be included in the revised manuscript. revision: yes

  2. Referee: [Ablation and dynamic pouring experiments] Reported success rates (5/5, 9/10, at most 1/5) are given without error bars, statistical significance tests, or details on the number of distinct objects, sensor instances, or total trials, weakening the quantitative support for the cross-configuration and cross-task claims.

    Authors: The success rates reflect repeated trials performed with multiple containers and sensors, as noted in Section IV. The ablation used 5 trials per configuration across 3 distinct containers and 2 sensor instances. The pouring task used 10 trials across 2 liquid volumes. We agree that the presentation would be strengthened by explicit details and statistical context. In revision we will report the full trial counts, object and sensor numbers, and add binomial confidence intervals for the success rates. Formal significance testing was not performed given the absolute differences observed, but this limitation will be noted. revision: yes

Circularity Check

0 steps flagged

Derivation of thresholds from measured noise statistics is direct and self-contained

full rationale

The paper derives all controller thresholds directly from intrinsic sensor noise statistics collected in a static-hold-and-unload protocol, without fitting to task outcomes, self-defining quantities in terms of results, or relying on self-citations for uniqueness. The three proxies close the loop on these fixed, noise-derived thresholds; ablation and pouring success are reported as separate empirical evaluations rather than inputs to the derivation. No step reduces by construction to its own outputs or renames a fitted quantity as a prediction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on the domain assumption that static noise statistics transfer to dynamic contact; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Sensor noise measured during a static-hold-and-unload protocol is representative of noise under dynamic manipulation loads and motions
    All controller thresholds are derived solely from this static measurement and applied directly to the task.

pith-pipeline@v0.9.0 · 5860 in / 1247 out tokens · 44664 ms · 2026-05-25T04:14:09.641261+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

25 extracted references · 25 canonical work pages · 2 internal anchors

  1. [1]

    Six-axis force torque sensor model-based in situ calibration method and its impact in floating-based robot dynamic performance,

    F. J. Andrade Chavez, S. Traversaro, and D. Pucci, “Six-axis force torque sensor model-based in situ calibration method and its impact in floating-based robot dynamic performance,”Sensors, vol. 19, no. 24, p. 5521, 2019. [2]FAQ – Force/Torque Sensors, ATI Industrial Automation, 2020

    work page 2019

  2. [2]

    GelSight: High-resolution robot tactile sensors for estimating geometry and force,

    W. Yuan, S. Dong, and E. H. Adelson, “GelSight: High-resolution robot tactile sensors for estimating geometry and force,”Sensors, vol. 17, no. 12, p. 2762, 2017

    work page 2017

  3. [3]

    DIGIT: A novel design for a low-cost compact high-resolution tactile sensor with application to in-hand manipulation,

    M. Lambeta, P.-W. Chou, S. Tian, B. Yang, B. Maloon, V. R. Most, D. Stroud, R. Santos, A. Byagowi, G. Kammerer,et al., “DIGIT: A novel design for a low-cost compact high-resolution tactile sensor with application to in-hand manipulation,”IEEE Robotics and Automation Letters, vol. 5, no. 3, pp. 3838–3845, 2020

    work page 2020

  4. [4]

    Maintaining grasps within slipping bounds by monitoring incipient slip,

    S. Dong, D. Ma, E. Donlon, and A. Rodriguez, “Maintaining grasps within slipping bounds by monitoring incipient slip,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), 2019, pp. 3818–3824

    work page 2019

  5. [5]

    Tactile- VLA: Unlocking vision-language-action model’s physical knowledge for tactile generalization,

    J. Huang, S. Wang, F. Lin, Y. Hu, C. Wen, and Y. Gao, “Tactile- VLA: Unlocking vision-language-action model’s physical knowledge for tactile generalization,” 2025, arXiv:2507.09160

    work page arXiv 2025

  6. [6]

    Roles of glabrous skin receptors and sensorimotor memory in automatic control of precision grip when lifting rougher or more slippery objects,

    R. S. Johansson and G. Westling, “Roles of glabrous skin receptors and sensorimotor memory in automatic control of precision grip when lifting rougher or more slippery objects,”Exp Brain Res, vol. 56, no. 3, pp. 550–564, 1984

    work page 1984

  7. [7]

    GelSlim: A high-resolution, compact, robust, and calibrated tactile- sensing finger,

    E. Donlon, S. Dong, M. Liu, J. Li, E. Adelson, and A. Rodriguez, “GelSlim: A high-resolution, compact, robust, and calibrated tactile- sensing finger,” inProc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), 2018, pp. 1927–1934

    work page 2018

  8. [8]

    MC-Tac: Modular camera-based tactile sensor for robot gripper,

    J. Ren, J. Zou, and G. Gu, “MC-Tac: Modular camera-based tactile sensor for robot gripper,” inInt. Conf. Intell. Robot. Appl. (ICIRA), 2023, pp. 169–179

    work page 2023

  9. [9]

    Localization and manipulation of small parts using GelSight tactile sensing,

    R. Li, R. Platt, W. Yuan, A. ten Pas, N. Roscup, M. A. Srinivasan, and E. Adelson, “Localization and manipulation of small parts using GelSight tactile sensing,” inProc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), 2014, pp. 3988–3993

    work page 2014

  10. [10]

    Tac2pose: Tactile object pose estimation from the first touch,

    M. Bauza, A. Bronars, and A. Rodriguez, “Tac2pose: Tactile object pose estimation from the first touch,”The International Journal of Robotics Research, vol. 42, no. 13, pp. 1185–1209, 2023

    work page 2023

  11. [11]

    More than a feeling: Learning to grasp and regrasp using vision and touch,

    R. Calandra, A. Owens, D. Jayaraman, J. Lin, W. Yuan, J. Malik, E. H. Adelson, and S. Levine, “More than a feeling: Learning to grasp and regrasp using vision and touch,”IEEE Robotics and Automation Letters, vol. 3, no. 4, pp. 3300–3307, 2018

    work page 2018

  12. [12]

    Slip detection with a biomimetic tactile sensor,

    J. W. James, N. Pestell, and N. F. Lepora, “Slip detection with a biomimetic tactile sensor,”IEEE Robotics and Automation Letters, vol. 3, no. 4, pp. 3340–3346, 2018

    work page 2018

  13. [13]

    Force estimation and slip detec- tion/classification for grip control using a biomimetic tactile sensor,

    Z. Su, K. Hausman, Y. Chebotar, A. Molchanov, G. E. Loeb, G. S. Sukhatme, and S. Schaal, “Force estimation and slip detec- tion/classification for grip control using a biomimetic tactile sensor,” inProc. IEEE-RAS Int. Conf. Humanoid Robots, 2015, pp. 297–303

    work page 2015

  14. [14]

    Slip detection with combined tactile and visual information,

    J. Li, S. Dong, and E. Adelson, “Slip detection with combined tactile and visual information,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), 2018, pp. 7772–7777

    work page 2018

  15. [15]

    The feeling of success: Does touch sensing help predict grasp outcomes?

    R. Calandra, A. Owens, M. Upadhyaya, W. Yuan, J. Lin, E. H. Adelson, and S. Levine, “The feeling of success: Does touch sensing help predict grasp outcomes?” 2017, arXiv:1710.05512

    work page arXiv 2017

  16. [16]

    Stabilizing novel objects by learning to predict tactile slip,

    F. Veiga, H. van Hoof, J. Peters, and T. Hermans, “Stabilizing novel objects by learning to predict tactile slip,” inProc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), 2015, pp. 5065–5072

    work page 2015

  17. [17]

    Tac- tile regrasp: Grasp adjustments via simulated tactile transformations,

    F. R. Hogan, M. Bauza, O. Canal, E. Donlon, and A. Rodriguez, “Tac- tile regrasp: Grasp adjustments via simulated tactile transformations,” inProc. IEEE/RSJ Int. Conf. Intell. Robots Syst. (IROS), 2018, pp. 2963–2970

    work page 2018

  18. [18]

    Human-inspired robotic grasp control with tactile sensing,

    J. M. Romano, K. Hsiao, G. Niemeyer, S. Chitta, and K. J. Kuchen- becker, “Human-inspired robotic grasp control with tactile sensing,” IEEE Transactions on Robotics, vol. 27, no. 6, pp. 1067–1079, 2011

    work page 2011

  19. [19]

    Extrinsic dexterity: In-hand manipulation with external forces,

    N. C. Dafle, A. Rodriguez, R. Paolini, B. Tang, S. S. Srinivasa, M. Erdmann, M. T. Mason, I. Lundberg, H. Staab, and T. Fuhlbrigge, “Extrinsic dexterity: In-hand manipulation with external forces,” in Proc. IEEE Int. Conf. Robot. Autom. (ICRA), 2014, pp. 1578–1585

    work page 2014

  20. [20]

    Learning to rearrange deformable cables, fabrics, and bags with goal-conditioned transporter networks,

    D. Seita, P. Florence, J. Tompson, E. Coumans, V. Sindhwani, K. Gold- berg, and A. Zeng, “Learning to rearrange deformable cables, fabrics, and bags with goal-conditioned transporter networks,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), 2021, pp. 4568–4575

    work page 2021

  21. [21]

    SoftGym: Benchmarking deep reinforcement learning for deformable object manipulation,

    X. Lin, Y. Wang, J. Olkin, and D. Held, “SoftGym: Benchmarking deep reinforcement learning for deformable object manipulation,” in Proc. Conf. Robot Learn. (CoRL), 2021, pp. 432–448

    work page 2021

  22. [22]

    RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control

    A. Brohan, N. Brown, J. Carbajal, Y. Chebotar, X. Chen, K. Choro- manski,et al., “RT-2: Vision-language-action models transfer web knowledge to robotic control,” 2023, arXiv:2307.15818

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  23. [23]

    $\pi_0$: A Vision-Language-Action Flow Model for General Robot Control

    K. Black, N. Brown, D. Driess, A. Esmail, M. Equi, C. Finn,et al., “π0: A vision-language-action flow model for general robot control,” 2024, arXiv:2410.24164

    work page internal anchor Pith review Pith/arXiv arXiv 2024

  24. [24]

    Safe reinforcement learning on the constraint manifold: Theory and applications,

    P. Liu, H. Bou-Ammar, J. Peters, and D. Tateo, “Safe reinforcement learning on the constraint manifold: Theory and applications,”IEEE Transactions on Robotics, vol. 41, pp. 3442–3461, 2025

    work page 2025

  25. [25]

    Two-frame motion estimation based on polynomial expansion,

    G. Farneb ¨ack, “Two-frame motion estimation based on polynomial expansion,” inImage Analysis, 2003, pp. 363–370

    work page 2003
