Same Signal, Different Semantics: A Cross-Framework Behavioral Analysis of Software Engineering Agents

Wei Ma , Zhi Chen , Jingxu Gu , Tianling Li , Shangqing Liu , Lingxiao Jiang This is my paper

Pith reviewed 2026-05-20 09:05 UTC · model grok-4.3

classification 💻 cs.SE cs.AI
keywords software engineering agentsLLM behavioral analysiscross-framework comparisonSWE-benchagent frameworkserror rate signalsbehavior-outcome correlations
0
0 comments X

The pith

Swapping the framework while holding the LLM fixed reverses the direction of most behavioral signals tied to task success in software engineering agents.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether behavioral rules observed in LLM-based software agents transfer across structurally different frameworks. It analyzes 64,380 SWE-bench runs across 126 configurations from 43 frameworks by holding either the framework or the LLM fixed in turn and comparing behavior-outcome relationships. Results show that framework choice drives larger differences than LLM family, with many signals such as error rate exhibiting opposite correlations with resolution rates across setups. This indicates that the same observable signal can carry opposite predictive meaning depending on the agent configuration.

Core claim

The paper establishes that framework identity accounts for more variation in behavior-outcome effects than LLM family, with 47 configurations resolving more issues at lower error rates and 48 resolving more at higher error rates, plus similar directional disagreements on five other continuous features and three binary patterns from prior work.

What carries the argument

The per-configuration measurement of behavior-outcome effects with framework or LLM held fixed in turn, applied to action features such as error rate, mean turns, and trajectory patterns.

If this is right

  • Error rate shows positive correlation with success in roughly half of configurations and negative correlation in the other half.
  • Framework explains 64 percent of between-configuration variance in mean turns while LLM family explains only 10 percent.
  • Five additional continuous behavioral features exhibit similar magnitude and directional disagreements across frameworks.
  • Three of seven binary patterns from earlier single-framework studies reverse direction when tested in other frameworks.
  • Any behavioral rule derived from one framework requires explicit cross-configuration checks before being treated as general.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers of new agents may need to validate assumed behavioral heuristics inside the specific framework they intend to deploy.
  • Standardization of tool interfaces and prompt templates could reduce but not eliminate the observed framework-specific semantics.
  • Benchmarks that report only aggregate performance may mask these configuration-dependent signal meanings.

Load-bearing premise

That holding the LLM fixed while swapping only the framework isolates framework effects without confounding from differing prompts, tool definitions, or implementation details.

What would settle it

Re-running the analysis after standardizing prompts, tool sets, and workflows across frameworks to check whether directional disagreements on signals such as error rate disappear.

Figures

Figures reproduced from arXiv: 2605.18332 by Jingxu Gu, Lingxiao Jiang, Shangqing Liu, Tianling Li, Wei Ma, Zhi Chen.

Figure 1

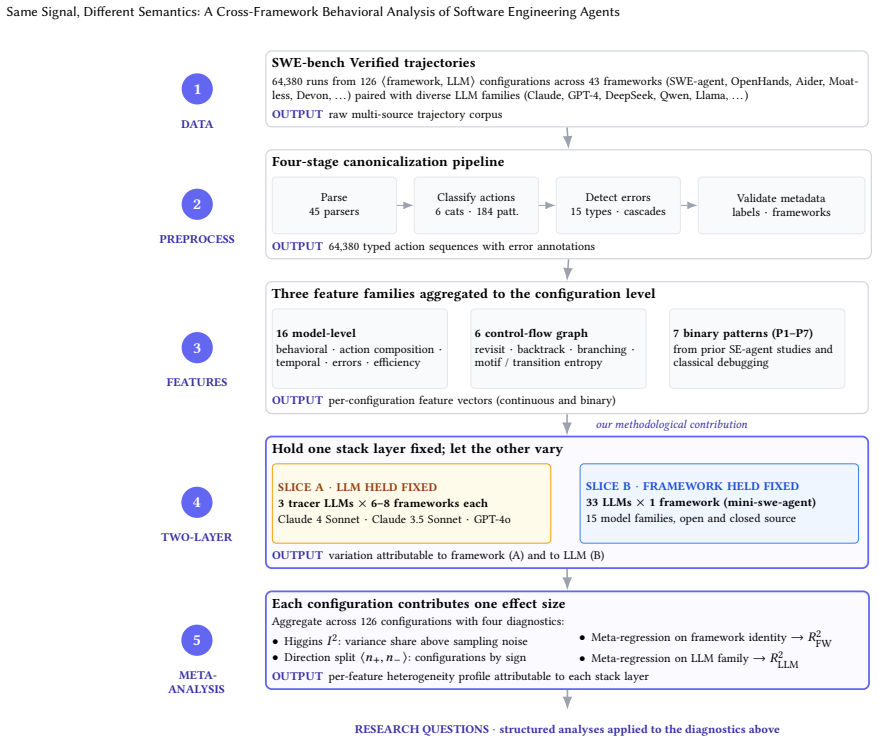

Figure 1. Figure 1: Research pipeline. Five sequential stages convert raw SWE-bench trajectories into per-configuration meta-analytic [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The 126 agent configurations projected onto PC1 and PC2 of the 16 behavioral features (cumulative variance [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: CFG construction on a 6-turn example (stage [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

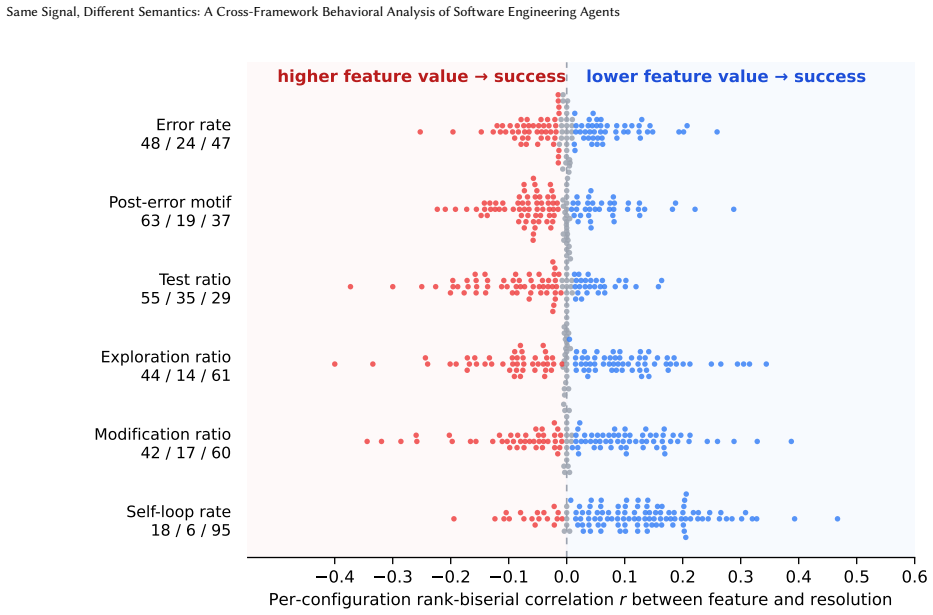

Figure 4. Figure 4: Per-configuration effects of six direction-unstable continuous features on resolution. Each row plots 119 configura [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
read the original abstract

Behavioral studies of LLM-based software engineering agents extract operational rules about which trajectory shapes correlate with higher resolution rates: that a test step follows a code modification, that error cascades are short, or that trajectories are compact. Each rule is typically derived from a single framework, and whether it transfers, in sign as well as magnitude, to structurally different agent designs has not been directly tested. We address this at ecosystem scale: 64,380 SWE-bench runs from 126 agent configurations spanning 43 frameworks, where each configuration pairs an LLM with a framework (e.g., SWE-Agent, OpenHands) that supplies its tools and workflow. We separate framework effects from LLM effects by holding each layer fixed in turn, then measure one behavior-outcome effect per configuration and examine how those effects agree or disagree. Swapping the framework while the LLM is held fixed produces large behavioral differences in every action feature. On most signals, configurations disagree not merely in magnitude but in direction. Error rate is the cleanest case: 47 configurations resolve more issues when their error rate is lower, while 48 resolve more when it is higher. Five other continuous features and three of seven binary patterns from prior SE literature show similar directional disagreement. Framework identity accounts for more of this variation than LLM family: for mean turns, framework explains 64% of the between-configuration variance against the LLM's 10%. The implication is that the same observable behavioral signal can carry opposite meaning for different agent configurations. Behavioral findings from any single framework therefore warrant cross-configuration validation before being claimed as general.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports a large-scale empirical study of 64,380 SWE-bench runs across 126 configurations spanning 43 frameworks. By holding the LLM fixed while varying the framework (and vice versa), it measures per-configuration behavioral effects on resolution rates and finds that swapping frameworks produces large differences in every action feature, with directional disagreements on most signals (e.g., 47 configurations resolve more issues at lower error rates while 48 resolve more at higher error rates). Framework identity is reported to explain substantially more between-configuration variance than LLM family (64% vs. 10% for mean turns). The central claim is that the same observable behavioral signal can carry opposite semantic meaning across frameworks, so single-framework findings require cross-configuration validation.

Significance. If the results are robust to the noted design issues, the work is significant because it supplies quantitative evidence at ecosystem scale that behavioral rules extracted from one agent framework often fail to transfer in sign or magnitude to others. The scale of the experiment (64k runs, 43 frameworks) and the variance-partitioning analysis are strengths that directly address the generalizability problem in LLM-based SE agent research.

major comments (2)
  1. [Abstract / experimental design] Abstract, experimental design paragraph: the claim that 'holding each layer fixed in turn' isolates framework effects from LLM effects is load-bearing for the variance-partitioning result and the directional-disagreement counts. However, frameworks differ by construction in tool definitions, default system prompts, error-recovery loops, and message formatting; these are not controlled and directly shape the next-token distribution, so the 64% vs. 10% attribution may reflect prompt-engineering and schema differences rather than the workflow abstraction itself.
  2. [Results on directional disagreement] Results on error-rate and binary patterns: the split of 47 vs. 48 configurations for error rate (and similar counts for five continuous features and three binary patterns) is presented as evidence of directional disagreement, but the manuscript does not report whether these counts reflect all configurations or result from post-hoc selection or filtering; this directly affects the strength of the 'opposite meaning' claim.
minor comments (2)
  1. Clarify the exact statistical procedure used to compute the 64% / 10% variance percentages and whether any normalization or random-effect modeling was applied.
  2. Add a table or appendix listing the 43 frameworks and the precise tool schemas / prompt templates used for each to allow readers to assess the degree of standardization.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments. We address each major comment below and indicate planned revisions. The responses focus on clarifying scope and reporting details while preserving the empirical results.

read point-by-point responses

  1. Referee: [Abstract / experimental design] Abstract, experimental design paragraph: the claim that 'holding each layer fixed in turn' isolates framework effects from LLM effects is load-bearing for the variance-partitioning result and the directional-disagreement counts. However, frameworks differ by construction in tool definitions, default system prompts, error-recovery loops, and message formatting; these are not controlled and directly shape the next-token distribution, so the 64% vs. 10% attribution may reflect prompt-engineering and schema differences rather than the workflow abstraction itself.

    Authors: We agree that the observed framework effects encompass differences in tool definitions, system prompts, error-recovery loops, and message formatting, as these are intrinsic to each framework's implementation. Our design compares complete, production-style agent configurations rather than abstract workflow layers stripped of implementation details. The variance attribution therefore reflects the framework layer as deployed in practice. We will revise the abstract and experimental-design paragraph to state explicitly that framework effects include prompt-engineering and schema differences and that the study does not isolate a pure workflow abstraction independent of these elements. This clarification does not change the central finding that the same behavioral signal can carry opposite outcome associations across frameworks. revision: partial

  2. Referee: [Results on directional disagreement] Results on error-rate and binary patterns: the split of 47 vs. 48 configurations for error rate (and similar counts for five continuous features and three binary patterns) is presented as evidence of directional disagreement, but the manuscript does not report whether these counts reflect all configurations or result from post-hoc selection or filtering; this directly affects the strength of the 'opposite meaning' claim.

    Authors: The 47-versus-48 split for error rate, and the corresponding counts for the other features, are computed over all configurations that supplied sufficient variation in the given behavioral feature to permit a correlation with resolution rate. Inclusion was determined solely by data-availability and variance thresholds; no post-hoc filtering on sign or magnitude was performed. We will add a methods/results paragraph that reports the exact number of configurations retained for each feature and states that selection criteria were independent of the direction of the observed associations. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical variance partitioning from controlled runs

full rationale

The manuscript reports an observational study of 64,380 SWE-bench runs across 126 configurations. Framework and LLM effects are isolated by the experimental protocol of holding one factor fixed while varying the other, then computing per-configuration behavior-outcome correlations and variance components. No equations, fitted parameters, or self-referential definitions appear; the reported directional disagreements and 64 % vs. 10 % variance split are direct empirical aggregates, not reductions of the input data by construction. The analysis therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The analysis rests on the assumption that SWE-bench runs provide comparable outcome measures across frameworks and that the chosen behavioral features are meaningful proxies for agent operation. No free parameters or invented entities are introduced.

axioms (1)
  • domain assumption SWE-bench task outcomes are a valid and comparable measure of agent success across different frameworks.
    The entire comparison of resolution rates depends on this benchmark being treated as a stable ground truth.
