Motion-Uncertainty-Aware Next-Best-View Planning for Moving Object Reconstruction
Pith reviewed 2026-05-20 12:16 UTC · model grok-4.3
The pith
Evaluating next-best viewpoints by their expected reconstruction quality over uncertain future object positions, rather than a single prediction, improves 3D model completeness for moving objects.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that for an unknown rigid object moving in a plane, a motion-uncertainty-aware NBV framework that evaluates each candidate viewpoint by its expected observation quality over plausible future object states yields higher reconstruction completeness than methods using only a single predicted pose or ignoring motion.
What carries the argument
Expected observation quality over a distribution of plausible future object states, obtained via a fixed-lag Gaussian Process smoother from noisy planar position measurements, which generates, filters, and scores candidate viewpoints around the predicted location.
If this is right
- Reconstruction completeness improves over non-predictive NBV planners and prediction-only tracking methods in both simulation and real-world tests.
- The framework generates candidate viewpoints around the predicted object location, filters them by reachability, and estimates coverage-driven scores using the predictive belief.
- It handles the decision-to-execution delay by incorporating motion and measurement uncertainty into viewpoint evaluation.
Where Pith is reading between the lines
- This method might extend naturally to objects with more complex 3D motions if the smoother is adapted accordingly.
- Similar expected-value scoring could apply to other active perception tasks like inspection or search where targets move unpredictably.
- Testing the approach with varying levels of measurement noise would reveal how robust the Gaussian process prediction needs to be for practical gains.
Load-bearing premise
The fixed-lag Gaussian Process smoother reliably estimates and predicts the object state from noisy planar position measurements in a way that allows generating and scoring viewpoints to actually improve reconstruction coverage.
What would settle it
An experiment in which the real object motion deviates significantly from the Gaussian process model, such as sudden direction changes not captured by the smoother, resulting in no improvement or degradation in final reconstruction completeness.

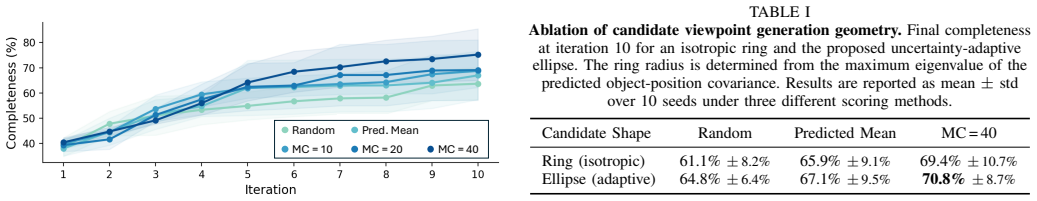

Figures
read the original abstract
Active 3D reconstruction of moving objects requires selecting informative viewpoints while accounting for object motion uncertainty during the decision-to-execution delay. Existing methods address only parts of this problem: next-best-view (NBV) planners for object reconstruction typically optimize surface coverage but assume static objects, while motion-aware active perception for moving targets accounts for target motion but prioritizes tracking or visibility over reconstruction coverage. This work presents a motion-uncertainty-aware NBV framework for reconstructing an unknown rigid object undergoing planar motion, using noisy planar position measurements of the object and depth observations from a mobile robot. The key idea is to evaluate each candidate viewpoint by its expected observation quality over plausible future object states induced by motion and measurement uncertainty, rather than at a single predicted object pose. To obtain this predictive belief, a fixed-lag Gaussian Process smoother estimates and predicts the object state from noisy position measurements. The resulting belief is used to generate candidate viewpoints around the predicted object location, filter them by reachability, and estimate their expected coverage-driven scores. Simulation and real-world experiments demonstrate improved reconstruction completeness over non-predictive NBV and prediction-only tracking methods, bridging coverage-driven active reconstruction and prediction-driven tracking.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces a next-best-view (NBV) planning framework for active 3D reconstruction of unknown rigid objects undergoing planar motion. It accounts for motion and measurement uncertainty during the planning horizon by using a fixed-lag Gaussian Process smoother on noisy planar position measurements to obtain a predictive belief over future object states. Candidate viewpoints are then scored by their expected coverage quality marginalized over samples from this belief, rather than evaluated at a single predicted pose. The method filters viewpoints for reachability and is evaluated in simulation and real-world robot experiments against non-predictive NBV and prediction-only baselines, claiming improved reconstruction completeness.
Significance. If the experimental gains are robust and the predictive belief meaningfully alters viewpoint selection, the work would usefully connect coverage-driven active reconstruction with uncertainty-aware tracking. The explicit marginalization over plausible future states is a conceptually clean extension of standard NBV, and the use of a standard GP smoother keeps the approach implementable. Reproducible code or parameter-free derivations are not mentioned, but the falsifiable claim of improved completeness under motion uncertainty is testable.
major comments (2)
- [§4] §4 (Method), around the fixed-lag GP smoother and expected-coverage scoring: The central claim requires that marginalizing over the predictive belief produces viewpoint selections and coverage gains that differ from a point-prediction baseline. The manuscript should add a dedicated validation subsection showing (i) prediction error of the GP on held-out trajectories, (ii) sensitivity of selected viewpoints to kernel/lag hyperparameters, and (iii) a direct comparison of expected scores versus mean-pose scores on the same candidate set. Without this, it remains possible that the smoother is misspecified and the expectation collapses to the point estimate, nullifying the claimed advantage.
- [§5] §5 (Experiments): The abstract states improved reconstruction completeness, yet the provided text contains no quantitative tables, coverage percentages, error bars, or statistical tests. The manuscript must include explicit metrics (e.g., surface coverage ratio, Chamfer distance) for all methods across multiple trials, together with the number of object trajectories and motion speeds tested. If the GP prediction error is high for faster motions, the reported gains may be confined to low-uncertainty regimes and should be stratified accordingly.
minor comments (2)
- [§3] Notation for the predictive belief and expected observation quality should be introduced with a single equation block early in §3 or §4 rather than scattered across paragraphs.
- [§4] The reachability filter for candidate viewpoints is mentioned but not formalized; a short paragraph or pseudocode would clarify how robot kinematics and timing constraints are incorporated.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed report. We address each major comment below and will revise the manuscript to strengthen the validation and experimental presentation as suggested.
read point-by-point responses
-
Referee: [§4] §4 (Method), around the fixed-lag GP smoother and expected-coverage scoring: The central claim requires that marginalizing over the predictive belief produces viewpoint selections and coverage gains that differ from a point-prediction baseline. The manuscript should add a dedicated validation subsection showing (i) prediction error of the GP on held-out trajectories, (ii) sensitivity of selected viewpoints to kernel/lag hyperparameters, and (iii) a direct comparison of expected scores versus mean-pose scores on the same candidate set. Without this, it remains possible that the smoother is misspecified and the expectation collapses to the point estimate, nullifying the claimed advantage.
Authors: We agree that explicit validation of the marginalization step is necessary to support the central claim. In the revised manuscript we will insert a dedicated validation subsection (new §4.4) that reports: (i) GP prediction error (RMSE and coverage of uncertainty bounds) on held-out planar trajectories drawn from the same distribution used in the main experiments, (ii) sensitivity results obtained by sweeping kernel length-scale, variance, and fixed-lag window size while recording changes in selected viewpoint indices and final coverage scores, and (iii) a direct numerical comparison, on identical candidate sets, of the expected-coverage score (averaged over 50 posterior samples) versus the score evaluated at the GP mean pose. These additions will quantify when and by how much the uncertainty-aware planner deviates from the point-prediction baseline. revision: yes
-
Referee: [§5] §5 (Experiments): The abstract states improved reconstruction completeness, yet the provided text contains no quantitative tables, coverage percentages, error bars, or statistical tests. The manuscript must include explicit metrics (e.g., surface coverage ratio, Chamfer distance) for all methods across multiple trials, together with the number of object trajectories and motion speeds tested. If the GP prediction error is high for faster motions, the reported gains may be confined to low-uncertainty regimes and should be stratified accordingly.
Authors: We acknowledge that the excerpt supplied to the referee omitted the full experimental tables. The complete manuscript already contains quantitative results, but we will expand §5 with comprehensive tables that report, for every method and every trial: surface coverage ratio (percentage of object surface observed), Chamfer distance to ground-truth mesh, and reconstruction completeness. All entries will include mean ± standard deviation across trials together with paired t-test p-values. We will explicitly state the total number of object trajectories (20 distinct trajectories) and the three motion-speed regimes tested (slow, medium, fast). In addition, we will add a stratified breakdown that separates results by speed category and reports the corresponding GP prediction error for each regime, thereby clarifying the operating range in which the uncertainty-aware planner yields measurable gains. revision: yes
Circularity Check
No significant circularity; derivation uses independent GP smoother and external validation
full rationale
The paper applies a standard fixed-lag Gaussian Process smoother to noisy planar position measurements to generate a predictive belief over future object states, then computes expected coverage scores for candidate viewpoints by marginalizing over samples from that belief. This step is not self-definitional or a fitted input renamed as prediction; the smoother is an off-the-shelf method whose kernel and lag are chosen independently of the final reconstruction metric. The claimed improvement is demonstrated through simulation and real-world experiments comparing against non-predictive NBV and point-prediction baselines, providing an external falsifiable check rather than a reduction to the paper's own inputs. No load-bearing self-citation or uniqueness theorem is invoked in the provided text to force the result.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption The object is rigid and undergoes planar motion
- domain assumption Noisy planar position measurements of the object are available
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
evaluate each candidate viewpoint by its expected observation quality over plausible future object states induced by motion and measurement uncertainty... fixed-lag Gaussian Process smoother... Monte Carlo samples from the predictive belief
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Jcost-style reciprocal cost or φ-ladder spacing never appears; scoring uses projection-based PB-NBV pixel-area surrogate
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
S. Pan and H. Wei, “A global max-flow-based multi- resolution next-best-view method for reconstruction of 3d unknown objects,”IEEE Robotics and Automation Letters, vol. 7, no. 2, pp. 714–721, 2022
work page 2022
-
[2]
Active implicit object reconstruction using uncertainty-guided next-best-view optimization,
D. Yan, J. Liu, F. Quan, H. Chen, and M. Fu, “Active implicit object reconstruction using uncertainty-guided next-best-view optimization,”IEEE Robotics and Au- tomation Letters, vol. 8, no. 10, pp. 6395–6402, 2023
work page 2023
-
[3]
The surface edge explorer (see): A measurement-direct approach to next best view planning,
R. Border and J. D. Gammell, “The surface edge explorer (see): A measurement-direct approach to next best view planning,”Int. J. Rob. Res., vol. 43, no. 10, p. 1506–1532, Sep. 2024. [Online]. Available: https://doi.org/10.1177/02783649241230098
-
[4]
View planning for 3d object reconstruction with a mo- bile manipulator robot,
J. I. Vasquez-Gomez, L. E. Sucar, and R. Murrieta-Cid, “View planning for 3d object reconstruction with a mo- bile manipulator robot,” in2014 IEEE/RSJ International Conference on Intelligent Robots and Systems, 2014, pp. 4227–4233
work page 2014
-
[5]
Surfel-based next best view planning,
R. Monica and J. Aleotti, “Surfel-based next best view planning,”IEEE Robotics and Automation Letters, vol. 3, no. 4, pp. 3324–3331, 2018
work page 2018
-
[6]
Z. Jia, Y . Li, Q. Hao, and S. Zhang, “Pb-nbv: Efficient projection-based next-best-view planning framework for reconstruction of unknown objects,”IEEE Robotics and Automation Letters, vol. 10, no. 7, pp. 7444–7451, 2025
work page 2025
-
[7]
B. Koger, A. Deshpande, J. T. Kerby, J. M. Graving, B. R. Costelloe, and I. Couzin, “Quantifying the movement, behaviour and environmental context of group-living animals using drones and computer vision.”The Journal of animal ecology, 2023
work page 2023
-
[8]
Behavior and social structure of the sperm whales of dominica, west indies,
S. Gero, M. Milligan, C. Rinaldi, P. Francis, J. Gor- don, C. Carlson, A. Steffen, P. Tyack, P. Evans, and H. Whitehead, “Behavior and social structure of the sperm whales of dominica, west indies,”Marine Mammal Science, vol. 30, no. 3, pp. 905–922, 2014
work page 2014
-
[9]
N. O. Hirtle, J. E. Stepanuk, E. I. Heywood, F. Chris- tiansen, and L. H. Thorne, “Integrating 3d models with morphometric measurements to improve volumetric es- timates in marine mammals,”Methods in Ecology and Evolution, vol. 13, no. 11, pp. 2478–2490, 2022
work page 2022
-
[10]
Estimating body mass of free-living whales using aerial photogrammetry and 3d volumetrics,
F. Christiansen, M. Sironi, M. J. Moore, M. Di Martino, M. Ricciardi, H. A. Warick, D. J. Irschick, R. Gutierrez, and M. M. Uhart, “Estimating body mass of free-living whales using aerial photogrammetry and 3d volumetrics,” Methods in Ecology and Evolution, vol. 10, no. 12, pp. 2034–2044, 2019
work page 2034
-
[11]
K. C. Bierlich, S. Karki, C. N. Bird, A. Fern, and L. G. Torres, “Automated body length and body con- dition measurements of whales from drone videos for rapid assessment of population health,”Marine Mammal Science, vol. 40, no. 4, p. e13137, 2024
work page 2024
-
[12]
C. Napoli, N. Hirtle, J. Stepanuk, F. Christiansen, E. I. Heywood, T. J. Grove, A. Stoller, F. Dodds, M. Glarou, M. H. Rasmussenet al., “Drone-based photogrammetry reveals differences in humpback whale body condition and mass across north atlantic foraging grounds,”Fron- tiers in Marine Science, vol. 11, p. 1336455, 2024
work page 2024
-
[13]
Real-time remote tracking and au- tonomous planning for whale rendezvous using robots,
S. Bhattacharya, N. Jadhav, H. Izhar, K. Li, K. George, R. Wood, and S. Gil, “Real-time remote tracking and au- tonomous planning for whale rendezvous using robots,” arXiv preprint arXiv:2512.05808, 2025
-
[14]
Activemocap: Optimized viewpoint selection for active human motion capture,
S. Kiciroglu, H. Rhodin, S. N. Sinha, M. Salzmann, and P. Fua, “Activemocap: Optimized viewpoint selection for active human motion capture,” in2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2020, pp. 100–109
work page 2020
-
[15]
Visibility- aware trajectory optimization with application to aerial tracking,
Q. Wang, Y . Gao, J. Ji, C. Xu, and F. Gao, “Visibility- aware trajectory optimization with application to aerial tracking,” in2021 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2021, pp. 5249– 5256
work page 2021
-
[16]
B. Penin, P. Giordano, and F. Chaumette, “Vision-based reactive planning for aggressive target tracking while avoiding collisions and occlusions,”IEEE Robotics and Automation Letters, vol. 3, pp. 3725–3732, 2018
work page 2018
-
[17]
Active percep- tion based formation control for multiple aerial vehicles,
R. Tallamraju, E. Price, R. Ludwig, K. Karlapalem, H. B¨ulthoff, M. J. Black, and A. Ahmad, “Active percep- tion based formation control for multiple aerial vehicles,” IEEE Robotics and Automation Letters, vol. 4, pp. 4491– 4498, 2019
work page 2019
-
[18]
A comparison of volumetric information gain metrics for active 3d object reconstruction,
J. Delmerico, S. Isler, R. Sabzevari, and D. Scaramuzza, “A comparison of volumetric information gain metrics for active 3d object reconstruction,”Autonomous Robots, vol. 42, no. 2, pp. 197–208, 2018
work page 2018
-
[19]
Scone: Surface coverage optimization in unknown environments by vol- umetric integration,
A. Gu’edon, P. Monasse, and V . Lepetit, “Scone: Surface coverage optimization in unknown environments by vol- umetric integration,”ArXiv, vol. abs/2208.10449, 2022
-
[20]
Batch continuous-time trajectory estimation as exactly sparse gaussian process regression
T. D. Barfoot, C. H. Tong, and S. S ¨arkk¨a, “Batch continuous-time trajectory estimation as exactly sparse gaussian process regression.” inRobotics: Science and Systems, vol. 10. Citeseer, 2014, pp. 1–10
work page 2014
-
[21]
Gaussian Process Gauss-Newton: Non-Parametric State Estima- tion,
T. D. Barfoot, P. Furgale, and C. H. Tong, “Gaussian Process Gauss-Newton: Non-Parametric State Estima- tion,” in2013 International Conference on Computer and Robot Vision. IEEE Computer Society, 2012, pp. 206– 213
work page 2012
-
[22]
Gaussian process gauss-newton for non-parametric simultaneous localiza- tion and mapping,
C. H. Tong, P. Furgale, and T. Barfoot, “Gaussian process gauss-newton for non-parametric simultaneous localiza- tion and mapping,”The International Journal of Robotics Research, vol. 32, pp. 507–525, 05 2013
work page 2013
-
[23]
J. Santos, M. Oliveira, R. Arrais, and G. Veiga, “Au- tonomous scene exploration for robotics: A conditional random view-sampling and evaluation using a voxel- sorting mechanism for efficient ray casting,”Sensors (Basel, Switzerland), vol. 20, 2020
work page 2020
-
[24]
A multi-resolution frontier-based planner for autonomous 3d exploration,
A. Batinovic, T. Petrovic, A. Ivanovic, F. Petric, and S. Bogdan, “A multi-resolution frontier-based planner for autonomous 3d exploration,”IEEE Robotics and Automation Letters, vol. 6, no. 3, pp. 4528–4535, 2021
work page 2021
-
[25]
Distributed coverage control for time-varying spatial processes,
F. Pratissoli, M. Mantovani, A. Prorok, and L. Sabattini, “Distributed coverage control for time-varying spatial processes,”IEEE Transactions on Robotics, vol. 41, pp. 1602–1617, 2025
work page 2025
-
[26]
Robust cubature kalman filter for moving-target tracking with missing measure- ments,
S. Sahl, E. Song, and D. Niu, “Robust cubature kalman filter for moving-target tracking with missing measure- ments,”Sensors (Basel, Switzerland), vol. 24, 2024
work page 2024
-
[27]
Distributed coverage control for spatial processes estimation with noisy observations,
M. Mantovani, F. Pratissoli, and L. Sabattini, “Distributed coverage control for spatial processes estimation with noisy observations,”IEEE Robotics and Automation Let- ters, vol. 9, no. 5, pp. 4431–4438, 2024
work page 2024
-
[28]
Study of a fixed-lag kalman smoother for input and state estimation in vibrating structures,
U. Lagerblad, H. Wentzel, and A. Kulachenko, “Study of a fixed-lag kalman smoother for input and state estimation in vibrating structures,”Inverse Problems in Science and Engineering, vol. 29, pp. 1260 – 1281, 2020
work page 2020
-
[29]
Range-visual- inertial sensor fusion for micro aerial vehicle localization and navigation,
A. Goudar, W. Zhao, and A. P. Schoellig, “Range-visual- inertial sensor fusion for micro aerial vehicle localization and navigation,”IEEE Robotics and Automation Letters, vol. 9, pp. 683–690, 2023
work page 2023
-
[30]
Incremental sparse gp regression for continuous-time trajectory estimation and mapping,
X. Yan, V . Indelman, and B. Boots, “Incremental sparse gp regression for continuous-time trajectory estimation and mapping,”Robotics and Autonomous Systems, vol. 87, pp. 120–132, 2017. [Online]. Available: https://www.sciencedirect.com/science/article/ pii/S0921889016300434
work page 2017
-
[31]
Joint smoothing and tracking based on continuous-time target trajectory function fitting,
T. Li, H. Chen, S. Sun, and J. Corchado, “Joint smoothing and tracking based on continuous-time target trajectory function fitting,”IEEE Transactions on Automation Sci- ence and Engineering, vol. 16, pp. 1476–1483, 2019
work page 2019
-
[32]
Airpose: Multi-view fusion network for aerial 3d human pose and shape estimation,
N. Saini, E. Bonetto, E. Price, A. Ahmad, and M. J. Black, “Airpose: Multi-view fusion network for aerial 3d human pose and shape estimation,”IEEE Robotics and Automation Letters, vol. 7, no. 2, pp. 4805–4812, 2022
work page 2022
-
[33]
3d human reconstruction in the wild with collaborative aerial cameras,
C. Ho, A. Jong, H. Freeman, R. Rao, R. Bonatti, and S. Scherer, “3d human reconstruction in the wild with collaborative aerial cameras,” in2021 IEEE/RSJ Inter- national Conference on Intelligent Robots and Systems (IROS), 2021, pp. 5263–5269
work page 2021
-
[34]
Probabilistic visibility-aware trajectory planning for tar- get tracking in cluttered environments,
H. Gao, P. Wu, Y . Su, K. Zhou, J. Ma, H. Liu, and C. Liu, “Probabilistic visibility-aware trajectory planning for tar- get tracking in cluttered environments,”2024 American Control Conference (ACC), pp. 594–600, 2023
work page 2024
-
[35]
3d reconstruction of the moving object with double-shooting based on phase shifting profilometry,
Z. Qinghui, L. Hao, L. Lei, L. Shenglin, and P. Wei, “3d reconstruction of the moving object with double-shooting based on phase shifting profilometry,” vol. 52, no. 12, pp. 20 220 891–1, 2023
work page 2023
-
[36]
G. Liu, W. Jiang, B. Lei, V . Pandey, K. Daniilidis, and N. Motee, “Beyond uncertainty: Risk-aware active view acquisition for safe robot navigation and 3d scene understanding with fisherrf,” 2025. [Online]. Available: https://arxiv.org/abs/2403.11396
-
[37]
Multi- sensor next-best-view planning as matroid-constrained submodular maximization,
M. Lauri, J. Pajarinen, J. Peters, and S. Frintrop, “Multi- sensor next-best-view planning as matroid-constrained submodular maximization,”IEEE Robotics and Automa- tion Letters, vol. 5, pp. 5323–5330, 2020
work page 2020
-
[38]
B. Hepp, M. Nießner, and O. Hilliges, “Plan3d,”ACM Transactions on Graphics (TOG), vol. 38, pp. 1 – 17, 2017
work page 2017
-
[39]
Ufomap: An efficient prob- abilistic 3d mapping framework that embraces the un- known,
D. Duberg and P. Jensfelt, “Ufomap: An efficient prob- abilistic 3d mapping framework that embraces the un- known,”IEEE Robotics and Automation Letters, vol. 5, pp. 6411–6418, 2020
work page 2020
-
[40]
Fast frontier-based information- driven autonomous exploration with an mav,
A. Dai, S. Papatheodorou, N. Funk, D. Tzoumanikas, and S. Leutenegger, “Fast frontier-based information- driven autonomous exploration with an mav,”2020 IEEE International Conference on Robotics and Automation (ICRA), pp. 9570–9576, 2020
work page 2020
-
[41]
Method for registration of 3-d shapes,
P. J. Besl and N. D. McKay, “Method for registration of 3-d shapes,” inSensor fusion IV: control paradigms and data structures, vol. 1611. Spie, 1992, pp. 586–606
work page 1992
-
[42]
I. Petrovska and B. Jutzi, “Vision through obstacles - 3d geometric reconstruction and evaluation of neural radiance fields (nerfs),”Remote. Sens., vol. 16, p. 1188, 2024
work page 2024
