Intelligent Assistants for the Semiconductor Failure Analysis with LLM-Based Planning Agents

T0 review · 4 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read LLM planning agent answers chip-failure queries, scoring 3.6/5.

desk verdict Solid industrial proof-of-concept; the engineering is real, but the evaluation doesn't carry the 'operational effectiveness' claim. read the letter →

arxiv 2506.15567 v3 pith:G7V5LY6J submitted 2025-06-18 cs.AI cs.LG

Aline Dobrovsky , Konstantin Schekotihin , Christian Burmer This is my paper
classification cs.AIcs.LG
keywords LLMagentssemiconductorfailureanalysisReActplanningretrieval-augmentedgenerationtooluseindustrialAIautomation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Semiconductor failure analysis is so knowledge-intensive that engineers must manually dig through decades of test results, images, and case histories. The paper argues that an LLM-based planning agent could automate much of that retrieval and synthesis. The agent decomposes a natural-language question, chooses and calls the right lab tools, reads the results, and loops until it can answer. Tested on 15 realistic failure-analysis questions in a production-like environment, the best configuration achieved an average answer-quality score of 3.6 out of 5, with all configurations executing without unrecoverable failures. The paper concludes that the approach is technically feasible and ready for user-facing evaluation, while noting that answer quality is sensitive to prompt wording and information availability.

What carries the argument

The load-bearing mechanism is the ReAct loop, in which the LLM repeatedly emits a thought about what to do next, an action naming a tool, and an action input, then observes the tool's result, appends it to a scratchpad, and repeats until it decides it has enough information to write a final answer. Around this loop the paper builds a modular system with intent classification to tailor prompts, a short-term memory that stores tool observations, scratchpad trimming to half the context window, and a tool set including structured search over a failure-analysis job database, keyword search over an internal wiki, a retrieval-augmented generation service, an image-analysis tool for mold voids, and prompt-based abductive and practical reasoning tools. A second architecture, online replanning, generates and revises a full step-by-step plan; in the evaluation the ReAct variant was faster and produced higher-quality answers.

What would settle it

Have several failure-analysis engineers independently rate the same 15 agent outputs on the same 1 to 5 scale and compare their scores with the LLM judge's scores; if the two disagree substantially, the reported 3.6/5 result does not establish practical usefulness.

Watch

Extended reading notes

Core claim

The paper's central claim is that an LLM-based planning agent can carry out a substantial part of semiconductor failure analysis autonomously. The agent is built as a ReAct loop: the LLM alternates between reasoning about the next step and invoking one of several external services, such as free-text search over historical failure-analysis job records, keyword search over an internal engineering wiki, a retrieval-augmented generation service, an image-analysis tool that detects mold voids in acoustic microscopy scans, and prompted reasoning modules for abductive and practical reasoning. In the best configuration, ReAct with intent classification, simple practical reasoning, and retrieval-augmented generation applied as a preprocessing step, the agent reached a quality score of 3.6 out of 5 on the 15 representative questions, while overall averages were moderate, in the 2 to 3 range. All tested configurations completed runs without unrecoverable failures in the production-like deployment. The paper therefore asserts that the planning-agent concept is operationally feasible and reliable enough for industrial failure-analysis support.

Load-bearing premise

The evaluation assumes that the LLM used as an automatic judge rates answer quality the way a human failure-analysis expert would, so the reported 3.6/5 score is meaningful only if that assumption holds.

Editorial extensions

If this is right

  • ReAct-style iterative tool use is the more practical architecture: it finished in about 3.5 minutes per query versus 14 minutes for online replanning, and it scored higher on answer quality.
  • Applying retrieval-augmented generation before the agent runs, rather than exposing it as a tool, raised the best score from 3.25 to 3.6 at the cost of roughly three extra minutes.
  • Intent classification appeared in every top configuration and improved performance, so it is worth keeping in production deployments.
  • Separate abductive-reasoning and short-term-memory modules showed no consistent benefit; the best configuration used only a simple practical-reasoning prompt and no distinct memory module.
  • All tested configurations executed reliably in the production-like deployment, producing either an answer or a controlled stop message, which supports the claim of technical robustness.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An immediate next step the paper leaves implicit is to run the same 15 queries past human failure-analysis experts and compare their ratings with the LLM judge's scores; the paper itself calls the automatic evaluation brittle and subjective, so this would settle whether the 3.6/5 result reflects real usefulness.
  • The same ReAct-plus-tools orchestration could transfer to other knowledge-intensive industrial domains, such as printed-circuit-board diagnostics or materials testing, wherever internal search and logging services already exist; that transfer is an editorial inference, not a claim in the paper.
  • The strong sensitivity of answer quality to prompt wording suggests that prompt engineering, rather than agent architecture alone, accounts for much of the performance gap; a standardized benchmark with varied real failure-analysis questions would allow this to be measured.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper describes the design, implementation, and deployment of an LLM-based Planning Agent (LPA) for semiconductor failure analysis. The system combines ReAct-style and online-replanning agents with tools for ElasticSearch retrieval, Confluence wiki search, a RAG pipeline, an ML-based image analysis tool, and explicit abductive/practical reasoning prompts. The authors report ablation studies across 15 FA-related questions and over 2000 logged runs, with answer quality evaluated automatically by a Mixtral 8x7B judge on a 1–5 Likert scale. The best configuration (ReAct, Mixtral 8x7B, intent classification, short-term memory, simple practical reasoning, RAG preprocessing) achieves an average score of 3.6/5. The paper claims operational effectiveness and technical robustness, while also acknowledging moderate answer quality and the need for future user studies and benchmark datasets.

Significance. If the evaluation were externally validated, this would be a useful industrial proof-of-concept: it demonstrates that a planning agent can orchestrate multiple enterprise tools and run reliably in a production-like environment, with transparent reporting of moderate scores and clear engineering lessons. The paper is honest about its limitations, and the architectural details (tool wrappers, prompt templates, context-window trimming, stop-sequence fixes for different LLMs) are valuable for practitioners. However, the central effectiveness claim currently rests on an unvalidated LLM-as-judge that belongs to the same model family as the primary generator, and on a small self-chosen question set without human-expert correlation, baseline comparisons, or significance tests. The contribution is therefore a feasibility demonstration rather than a validated demonstration of effectiveness.

major comments (4)
  1. [Evaluation, Experiment Setup and Execution] The headline answer-quality scores (e.g., 3.6/5 for the best configuration) are produced by a Mixtral 8x7B model prompted to score outputs against gold-standard answers, and no validation of this judge against human expert ratings is reported. Because the same Mixtral 8x7B model is also the agent's main reasoning model in the best configuration, the judge may systematically favor its own generation style, inflating scores independent of actual FA correctness. The paper itself concedes in the Experiment Discussion that the LLM-based evaluation method 'remains inherently brittle and subjective' and calls for user studies and expert-validated ground truth. This concession is directly at odds with the abstract's claim of 'operational effectiveness and reliability' in supporting FA tasks. The authors should either provide a human–judge correlation study on a subset of outputs or substantially soften the effectiveness claim to feasibility and technical reliability.
  2. [Evaluation, Experiment Results and Discussion] No baseline comparison to simpler pipelines is included. The ablation studies compare LPA configurations against each other, but there is no comparison to a plain LLM with a single RAG call, to the RAG service alone, or to direct querying of ElasticSearch/Confluence without agent planning. Without such baselines, the claim that the agent's planning and tool orchestration contribute to answer quality is not established; the observed 3.6/5 might be achievable by a simpler retrieval-plus-prompt pipeline. The authors should add at least one non-agent baseline that receives the same gold-standard evaluation.
  3. [Evaluation, Experiment Setup and Execution] The evaluation uses only 15 self-chosen FA questions, and the reported averages are presented without per-question variance, error bars, or significance tests. Statements such as 'intent classification improved performance and was present in all top configurations' and 'RAG improved answer quality' are therefore not statistically supported. With 15 questions, a 0.2–0.3 difference in average score can easily arise from question difficulty or noise. The authors should report score distributions, per-question results, and appropriate significance tests (e.g., paired bootstrap or Wilcoxon) for the key comparisons, or explicitly label these findings as anecdotal.
  4. [Evaluation, Experiment Setup and Execution] The description of the run count is unclear and potentially misleading: the paper states that the full combinatorial space would be 1,296 configurations (19,440 runs) but only 'scientifically interesting combinations' were selected, and then reports 'Over 2000 valid runs were performed in total.' It is not stated how many runs per configuration were executed, whether each configuration was run once per question or multiple times, or how invalid runs were handled beyond being rerun. Since all scores are averages over 15 questions, the value of 'over 2000 runs' for supporting the claims is unclear. The authors should clarify the exact number of configurations evaluated, the replication policy, and how many valid runs contributed to each reported average.
minor comments (5)
  1. [Evaluation, Experiment Setup and Execution] The prompt used for the automatic judge is not shown in the appendix, and the criterion for 'gold standard answers' (who wrote them, how they were checked) is not described. Providing the judge prompt and the gold-answer construction process would increase reproducibility.
  2. [Technical Design and Implementation, Agent Initialization] The intent classifier is tested on only 20 labeled queries, and no accuracy metric is reported beyond 'performed well overall but showed some ambiguity-related errors.' This is very small for a component that the paper later credits with improving performance; please report exact counts or a confusion matrix.
  3. [Technical Design and Implementation, Online Replanning Agent Implementation] The paper states that regular-expression parsing of planner outputs 'remains brittle and should be replaced with structured output parsing,' which is an appropriate caveat, but it also means that the online replanning results may understate the potential of that architecture; this should be acknowledged in the conclusion as well.
  4. [Throughout] There are several typos and heading errors, including 'were were performed in total' in the Evaluation setup, 'Cloud Deplyoment' in the section heading, 'backgoround' in the Future Extensions paragraph, and inconsistent use of 'abdutive' vs. 'abductive' in listing captions. These should be corrected.
  5. [Conclusion and Future Work] The paper alternates between claiming 'technical feasibility' and implying operational effectiveness (e.g., 'robust enough for deployment, practical use and user-facing evaluation'). The conclusion should explicitly separate the two claims and state that answer-quality effectiveness is not yet validated.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the paper is an engineering integration whose evaluation, while subject to a same-family LLM-judge validity caveat, does not reduce to its own inputs by construction.

full rationale

The paper makes no formal derivation or first-principles prediction; it presents an engineering integration of ReAct planning, retrieval tools, and an LLM agent, evaluated by logged runs and a Likert-scale judge. No equation is introduced, so there is no equation-level equivalence of output to input. The only overlapping-author citation is [4], a parallel-thesis RAG service that is integrated as a tool and then independently ablated; the paper's central architectural claims do not rest solely on that citation. The abstract's 'operational effectiveness' claim is supported by execution robustness and by answer-quality scores, but the scores come from a Mixtral 8x7B judge while Mixtral is also the agent LLM in the best configuration. This is a genuine validity threat: the judge may favor its own generation style, and the paper itself concedes in the Experiment Discussion that the evaluation method 'remains inherently brittle and subjective' and calls for user studies and expert-validated ground truth. However, a biased or unvalidated measurement is not the same as circularity under the criteria used here: the judge scores are not identical to the agent outputs by construction, and no parameter was fitted to the target claim. Accordingly, no circular step is exhibited, and the appropriate finding is no significant circularity, with the evaluation caveat recorded as a correctness risk rather than a circularity score.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The paper's contribution is an integration of existing components; it does not postulate new entities. The evaluation depends on unvalidated assumptions: the LLM-as-judge approximates expert opinion, the hand-picked 15 questions are representative, and the internal Infineon data suffices. These are domain assumptions, not mathematical axioms.

free parameters (5)
  • Number of test questions = 15
    Hand-selected by the authors; the evaluation's conclusions are based on this small, self-chosen set.
  • Evaluation judge model = Mixtral 8x7B
    Chosen by the authors; same family as the agent's main model, not validated against human judgment.
  • Scoring scale = 1-5 Likert
    Chosen by the authors; no evidence that the scale is calibrated to expert opinion.
  • Context window trim = half of context window
    Ad hoc choice to prevent overflow; may affect answer quality and is not systematically tuned.
  • Replanning step limit = 15
    Ad hoc cap on iterations; results may differ with a different limit.
assumptions (4)
  • domain assumption ReAct planning improves tool use over standalone LLMs.
    The paper relies on ReAct [5] as the core planning loop without re-validating its effectiveness in this domain.
  • domain assumption Mixtral 8x7B as automatic judge produces scores approximating FA engineer judgments.
    This is the central evaluation assumption; the paper itself notes the method is 'brittle and subjective'.
  • domain assumption The 15 selected questions are representative of real FA queries.
    The conclusions about answer quality rest on this small, self-chosen set.
  • domain assumption The internal ElasticSearch and Confluence data contain information sufficient to answer the test questions.
    If the data are sparse or irrelevant, the agent's failures reflect data quality rather than the architecture.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Intelligent Assistants for the Semiconductor Failure Analysis with LLM-Based Planning Agents." pith.science (2026). https://pith.science/paper/G7V5LY6J

@misc{pith2026250615567,
  author       = {Pith},
  title        = {Pith review of: Intelligent Assistants for the Semiconductor Failure Analysis with LLM-Based Planning Agents},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/G7V5LY6J}},
  note         = {Machine review of arXiv:2506.15567}
}
read the original abstract

Failure Analysis (FA) is a highly intricate and knowledge-intensive process. The integration of AI components within the computational infrastructure of FA labs has the potential to automate a variety of tasks, including the detection of non-conformities in images, the retrieval of analogous cases from diverse data sources, and the generation of reports from annotated images. However, as the number of deployed AI models increases, the challenge lies in orchestrating these components into cohesive and efficient workflows that seamlessly integrate with the FA process. This paper investigates the design and implementation of an agentic AI system for semiconductor FA using a Large Language Model (LLM)-based Planning Agent (LPA). The LPA integrates LLMs with advanced planning capabilities and external tool utilization, allowing autonomous processing of complex queries, retrieval of relevant data from external systems, and generation of human-readable responses. The evaluation results demonstrate the agent's operational effectiveness and reliability in supporting FA tasks.

Figures

Figures reproduced from arXiv: 2506.15567 by the authors.

Figure 1

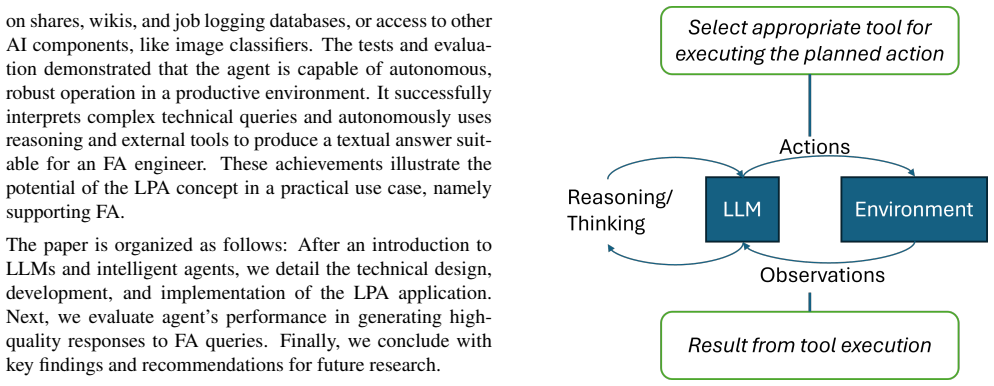

Figure 1. General schema of the ReAct approach [ [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. ReAct-based LPA architecture for FA applications [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Screenshot of the Failure Analysis Agent applica [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: Example of task solving trajectories for different prompting methods on a HotpotQA [ [PITH_FULL_IMAGE:figures/full_fig_p015_4.png]
Figure 5
Figure 5. Figure 5: ReAct agent program flow sequence diagram (simplified) [PITH_FULL_IMAGE:figures/full_fig_p016_5.png]
Figure 6
Figure 6. Figure 6: Online replanning agent program flow sequence diagram (simplified) [PITH_FULL_IMAGE:figures/full_fig_p017_6.png]
Figure 7
Figure 7. Figure 7: Extract from the technical log for events and errors (agent_log [PITH_FULL_IMAGE:figures/full_fig_p018_7.png]
Figure 8
Figure 8. Figure 8: Extract from the information log for generating user information ( ui_info_log [PITH_FULL_IMAGE:figures/full_fig_p018_8.png]
Figure 9
Figure 9. Figure 9: Cleaned extract from observation information stored in the agent’s short-term memory [PITH_FULL_IMAGE:figures/full_fig_p019_9.png]
Figure 10
Figure 10. Figure 10: Exemplary excerpt from the evaluation log [PITH_FULL_IMAGE:figures/full_fig_p019_10.png]
Figure 11

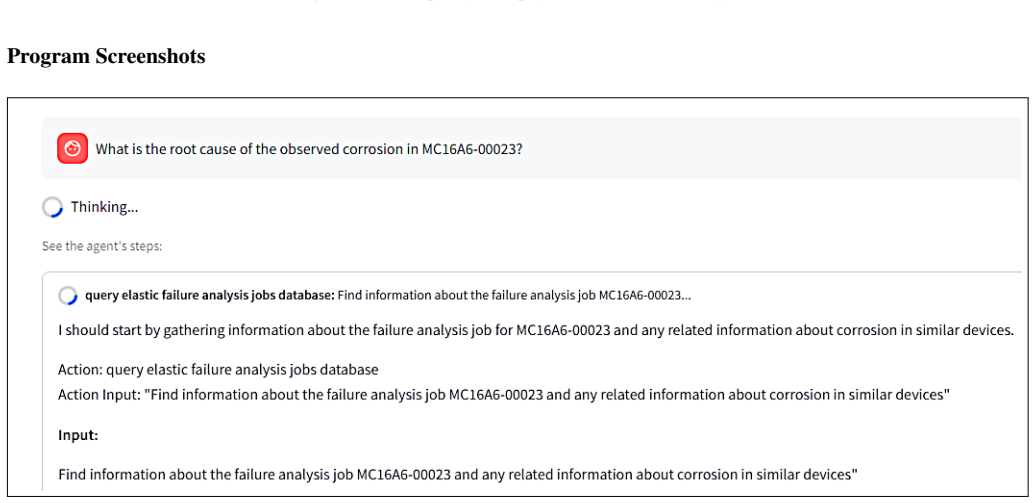

Figure 11. Figure 11: Failure Analysis Agent application: Display of details of intermediate steps [PITH_FULL_IMAGE:figures/full_fig_p019_11.png]
Figure 12

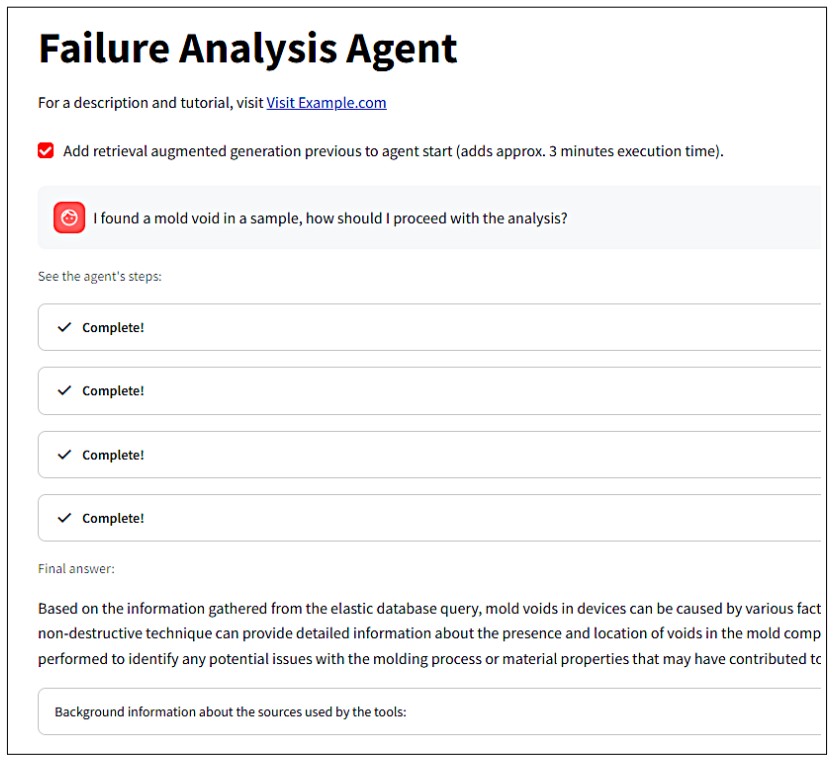

Figure 12. Figure 12: Screenshot of the Failure Analysis Agent application: UI after finishing the processing, displaying the whole [PITH_FULL_IMAGE:figures/full_fig_p020_12.png]
Figure 13
Figure 13. Figure 13: Screenshot of the Failure Analysis Agent application: Additional background information. [PITH_FULL_IMAGE:figures/full_fig_p020_13.png]
Figure 14
Figure 14. Figure 14: Screenshot of the Failure Analysis Agent application: User evaluation functionality. [PITH_FULL_IMAGE:figures/full_fig_p021_14.png]
