Phase Transition Pathway Sampling via Swarm Intelligence and Graph Theory

Li Zhu , R. E. Cohen , Timothy A. Strobel This is my paper

Pith reviewed 2026-05-25 16:34 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.chem-phphysics.comp-ph
keywords phase transition pathwaysswarm intelligencegraph theorysolid-solid transformationsCdSesiliconPALLASmaterials design
0
0 comments X

The pith

PALLAS uses swarm intelligence and graph theory to locate low-energy phase transition pathways in solids without any prior mechanism details.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the PALLAS method to sample reaction pathways for solid-solid transformations. It combines swarm intelligence with graph theory to search configuration space between two structural minima and identify the lowest-energy routes. The method was tested on the wurtzite-to-rock-salt change in CdSe, where it recovered known paths and found a new lower-energy one, and on silicon decompression, where it clarified the observed sequence. A reader would care because solid-state phase changes are hard to predict and control, yet they determine many material properties and synthesis outcomes.

Core claim

The PALLAS method is an effective tool to help understand phase transformations in solid-state systems and is capable of finding low-energy transition pathways between two minima without having to specify any details of transition mechanism a priori, as shown by recovering reported paths in CdSe, identifying a novel lower-energy route there, and explaining the complex sequence in high-pressure silicon decompression.

What carries the argument

PALLAS, a pathway sampling algorithm that applies swarm intelligence and graph theory to explore configuration space and locate global minimum-energy pathways between crystal structures.

If this is right

  • PALLAS can recover both established and previously unknown low-energy pathways in benchmark systems such as CdSe.
  • The method supplies mechanistic detail that accounts for observed sequences such as the decompression behavior of silicon.
  • Because no transition mechanism needs to be supplied in advance, the approach applies to arbitrary pairs of crystal structures.
  • The efficiency in locating low-barrier routes supports its use as a tool for guiding materials synthesis and design.
  • PALLAS benchmarks demonstrate concrete utility on two different classes of solid-solid transformations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same swarm-plus-graph framework could be applied to pressure- or temperature-driven transitions in other binary or elemental solids to test generality.
  • Integration with existing structure-prediction codes might allow automated discovery of synthesis routes that avoid high barriers.
  • If the graph representation of pathways proves robust, it could extend to tracking collective variables in larger supercells where direct simulation is costly.

Load-bearing premise

The swarm intelligence and graph theory approach can efficiently explore the configuration space to locate the global minimum energy pathways without getting stuck in local minima or missing lower energy routes.

What would settle it

Running PALLAS on the known wurtzite-to-rock-salt transition in CdSe and finding that it misses the lowest reported barrier or fails to rank the novel path as lower would falsify the central performance claim.

Figures

Figures reproduced from arXiv: 1906.10587 by Li Zhu, R. E. Cohen, Timothy A. Strobel.

Figure 1

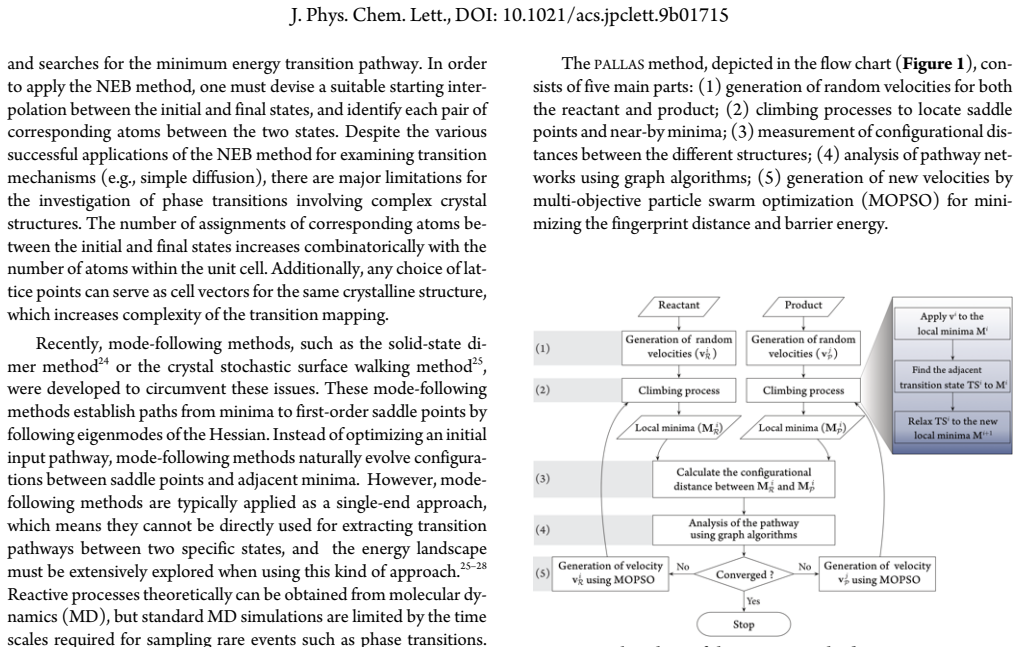

Figure 1. Figure 1: Flowchart of the PALLAS method. The first step (1) of our approach is to generate random veloci￾ties for the reactant and product. In this work, the reactant and prod￾uct are crystal structures, which are represented using two compo￾nents: the basis vectors of the unit cell and the atomic coordinates within the cell. The velocities are used to change the cell vectors and atomic positions. Since the atomic … view at source ↗
Figure 2

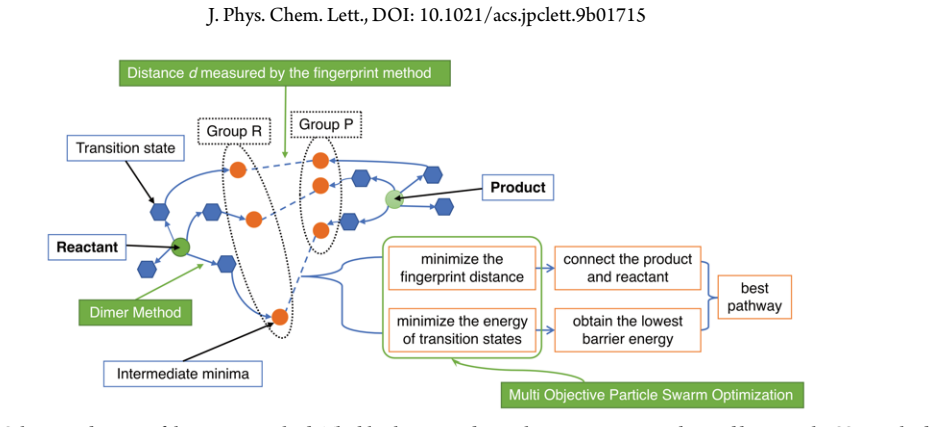

Figure 2. Figure 2: Schematic diagram of the PALLAS method. The blue hexagons depict the transition states obtained by using the SSD method. The orange circles indicate the intermediate minima from the geometry optimization of transition states. The MOPSO method opti￾mizes the fingerprint distance d and the energies of the transition states. Once the fingerprint distance is minimized to “zero” (less than a threshold value, in… view at source ↗
Figure 3

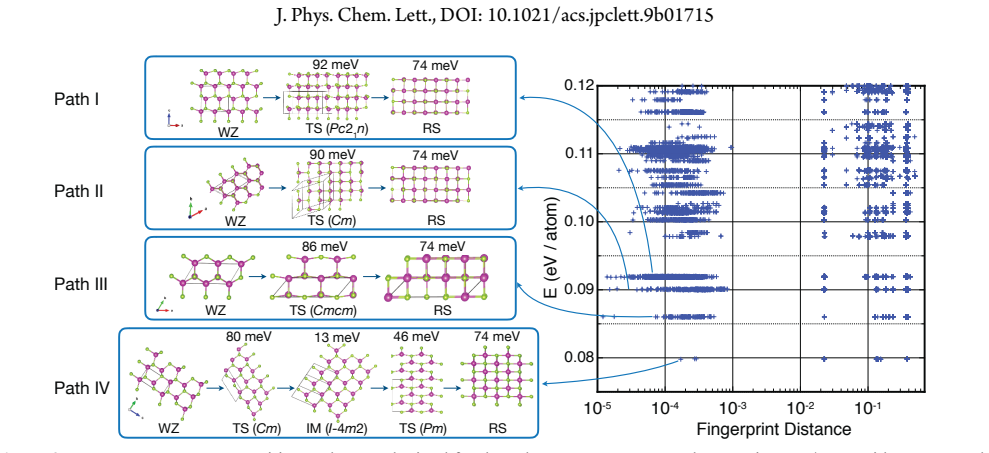

Figure 3. Figure 3: Low-energy WZ-RS transition pathways obtained for the CdSe system. Energy values are in meV/atom with respect to the WZ structure. The left panel shows four transition pathways discovered using the PALLAS method. In the right panel, the horizontal axis shows the fingerprint distance (d) between two closest intermediate minima from the reactant and the product side respectively, and the vertical axis indica… view at source ↗
Figure 4

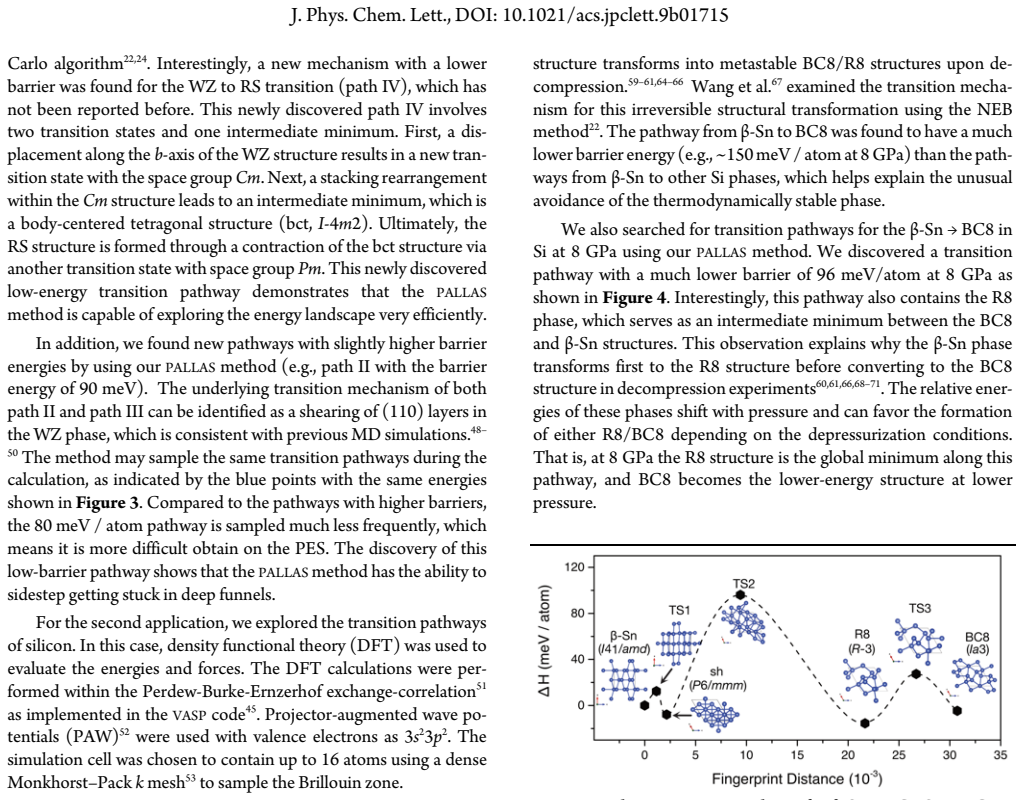

Figure 4. Figure 4: Phase transition pathway for β-Sn → BC8 Si at 8 GPa. On heating the BC8 structure at ambient pressure, it transforms to yet another metastable phase, hexagonal diamond silicon (hd-Si), rather than converting back to the most stable d-Si structure59. To our best knowledge, no theoretical study has been performed to in￾vestigate this phase transformation process. By using our PALLAS method in combination of … view at source ↗
Figure 5

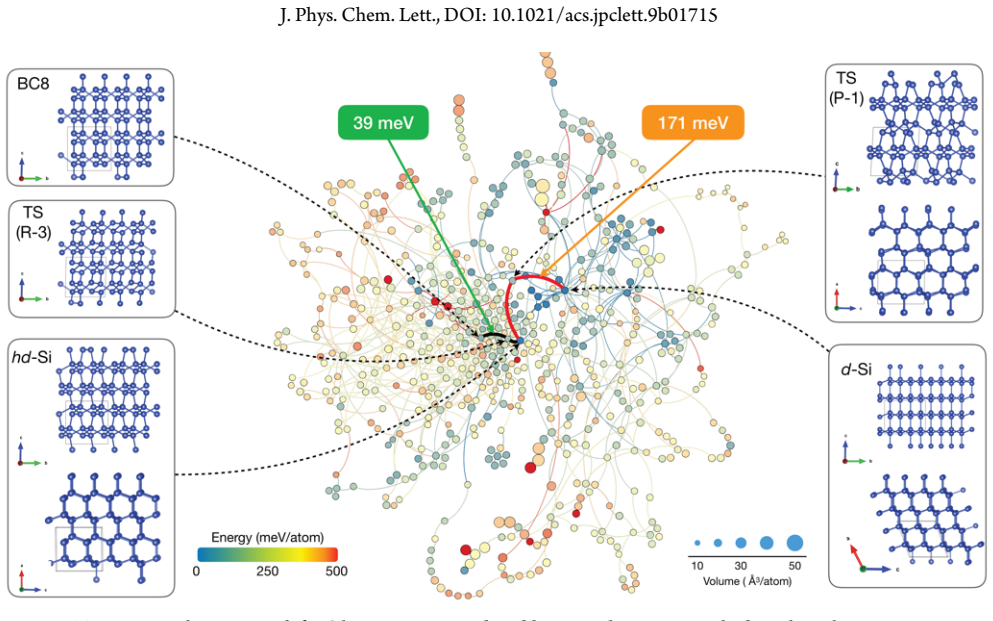

Figure 5. Figure 5: Transition pathway network for Silicon at 1 atm predicted by using the PALLAS method. Each circle represents a unique structure (including local minima and saddle points). The size and color represent volume and energy, respectively. The thin lines show all the different pathways between the different structures. The thick lines shows the “best” (lowest energy) pathway from BC8 → d-Si, and hd-Si is an inte… view at source ↗
read the original abstract

The prediction of reaction pathways for solid-solid transformations remains a key challenge. Here, we develop a pathway sampling method via swarm intelligence and graph theory, and demonstrate that our PALLAS method is an effective tool to help understand phase transformations in solid-state systems. The method is capable of finding low-energy transition pathways between two minima without having to specify any details of transition mechanism a priori. We benchmarked our PALLAS method against known phase transitions in cadmium selenide (CdSe) and silicon (Si). PALLAS readily identifies previously-reported, low-energy phase transition pathways for the wurtzite to rock-salt transition in CdSe and reveals a novel lower-energy pathway that has not yet been observed. In addition, PALLAS provides detailed information that explains the complex phase transition sequence observed during the decompression of Si from high pressure. Given the efficiency to identify low-barrier-energy reaction pathways, the PALLAS methodology represents a promising tool for materials by design with valuable insights for novel synthesis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces the PALLAS method, which integrates swarm intelligence with graph theory to sample low-energy solid-solid phase transition pathways between two minima without requiring a priori specification of the transition mechanism. It benchmarks the approach on the wurtzite-to-rock-salt transition in CdSe (recovering known paths and proposing one novel lower-energy route) and on the high-pressure decompression sequence in Si (providing mechanistic details for the observed phases).

Significance. If the central claim holds, PALLAS would offer a useful addition to the toolkit for mechanism-independent exploration of phase transformation landscapes in materials. The recovery of known low-energy paths on CdSe and the explanatory power for the Si sequence constitute concrete strengths. However, the absence of formal convergence analysis, toy-model enumeration, or quantitative head-to-head comparisons against established methods (basin-hopping, string methods) limits the assessed significance, as these are needed to substantiate that global minima are reliably located.

major comments (2)
  1. [Methods and Results (CdSe and Si benchmarks)] Methods and Results sections: No formal convergence analysis, exhaustive enumeration on a toy potential-energy surface, or quantitative metrics (e.g., success rate over repeated runs, comparison of barrier heights to reference methods) are supplied to demonstrate that the swarm-graph construction locates global-minimum pathways without missing lower-energy routes. This directly bears on the central claim that the method works without a priori mechanism details.
  2. [Results (CdSe benchmark)] CdSe benchmark (wurtzite–rock-salt): While known pathways are recovered and a novel route is proposed, the manuscript provides no head-to-head comparison against basin-hopping or string methods that would quantify whether lower-energy routes were missed, undermining the assertion that the identified novel pathway is demonstrably the lowest.
minor comments (2)
  1. [Abstract and Results (Si)] The abstract states that 'detailed information' is provided for the Si sequence, but the corresponding Results subsection would benefit from explicit listing of the sequence of intermediate structures and their relative energies.
  2. [Methods] Notation for the graph-theoretic representation of configurations and the swarm update rules should be defined more explicitly (e.g., what constitutes an edge in the graph) to aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below, agreeing that additional discussion of validation would strengthen the manuscript while defending the benchmarks as presented.

read point-by-point responses

  1. Referee: [Methods and Results (CdSe and Si benchmarks)] Methods and Results sections: No formal convergence analysis, exhaustive enumeration on a toy potential-energy surface, or quantitative metrics (e.g., success rate over repeated runs, comparison of barrier heights to reference methods) are supplied to demonstrate that the swarm-graph construction locates global-minimum pathways without missing lower-energy routes. This directly bears on the central claim that the method works without a priori mechanism details.

    Authors: We agree that formal convergence analysis and quantitative metrics such as success rates would strengthen the presentation. The manuscript demonstrates effectiveness via recovery of all known low-energy CdSe pathways and mechanistic insight into the Si sequence using the swarm-graph approach. We will revise the Methods section to report the number of independent runs performed and the consistency of identified pathways across runs. Exhaustive toy-model enumeration lies outside the original scope focused on real materials but can be noted as future work; the graph construction inherently aids broad sampling by connecting swarm-generated configurations. revision: partial

  2. Referee: [Results (CdSe benchmark)] CdSe benchmark (wurtzite–rock-salt): While known pathways are recovered and a novel route is proposed, the manuscript provides no head-to-head comparison against basin-hopping or string methods that would quantify whether lower-energy routes were missed, undermining the assertion that the identified novel pathway is demonstrably the lowest.

    Authors: The manuscript recovers every previously reported low-energy pathway for the CdSe transition and identifies a novel route with a lower barrier than those in the literature; it does not claim this route is provably the global minimum. Head-to-head comparisons with basin-hopping or string methods were not included because those approaches often presuppose aspects of the mechanism, contrary to PALLAS's design. We will add a brief discussion in Results acknowledging the value of such comparisons as future work while noting that successful recovery of known paths supports the method's ability to locate low-energy routes without a priori details. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The PALLAS method is constructed from swarm intelligence and graph theory components that operate on the potential energy surface without embedding the target pathways or mechanisms as inputs. Benchmarks recover known transitions in CdSe and Si but do so via independent exploration rather than by fitting parameters to those outcomes and relabeling them as predictions. No equations, self-citations, or ansatzes reduce the central claim to its own inputs by construction; the derivation chain remains self-contained and externally falsifiable through comparison with independent calculations or experiments.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on abstract only, no specific free parameters, axioms, or invented entities are identifiable.
