Towards knowledge-based workflows: a semantic approach to atomistic simulations for mechanical and thermodynamic properties
Pith reviewed 2026-05-21 14:23 UTC · model grok-4.3
The pith
Reusable atomistic workflows annotated with application ontologies automatically capture provenance and produce FAIR-compliant outputs for mechanical and thermodynamic properties.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We present reusable atomistic workflows that incorporate metadata annotation aligned with application ontologies, enabling automatic provenance capture and FAIR-compliant data outputs. The workflows cover key mechanical and thermodynamic quantities, including equation of state, elastic tensors, mechanical loading, thermal properties, defect formation energies, and nanoindentation. We demonstrate validation of structure-property relations such as the Hall-Petch effect and show that the workflows can be reused across different interatomic potentials and materials within a coherent semantic framework.
What carries the argument
Metadata annotation aligned with application ontologies embedded inside reusable workflow templates, which automatically records provenance and produces FAIR-compliant outputs.
If this is right

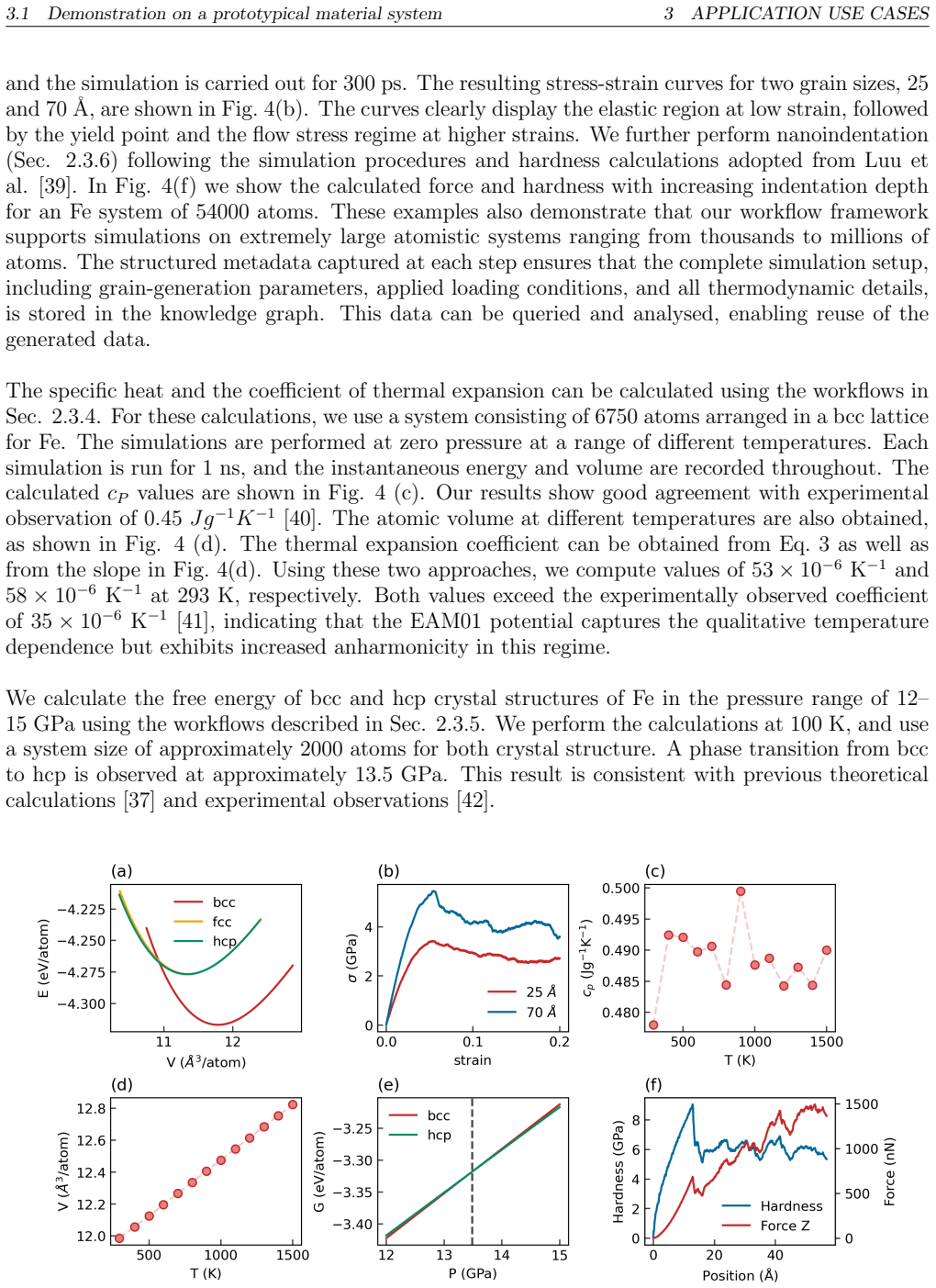

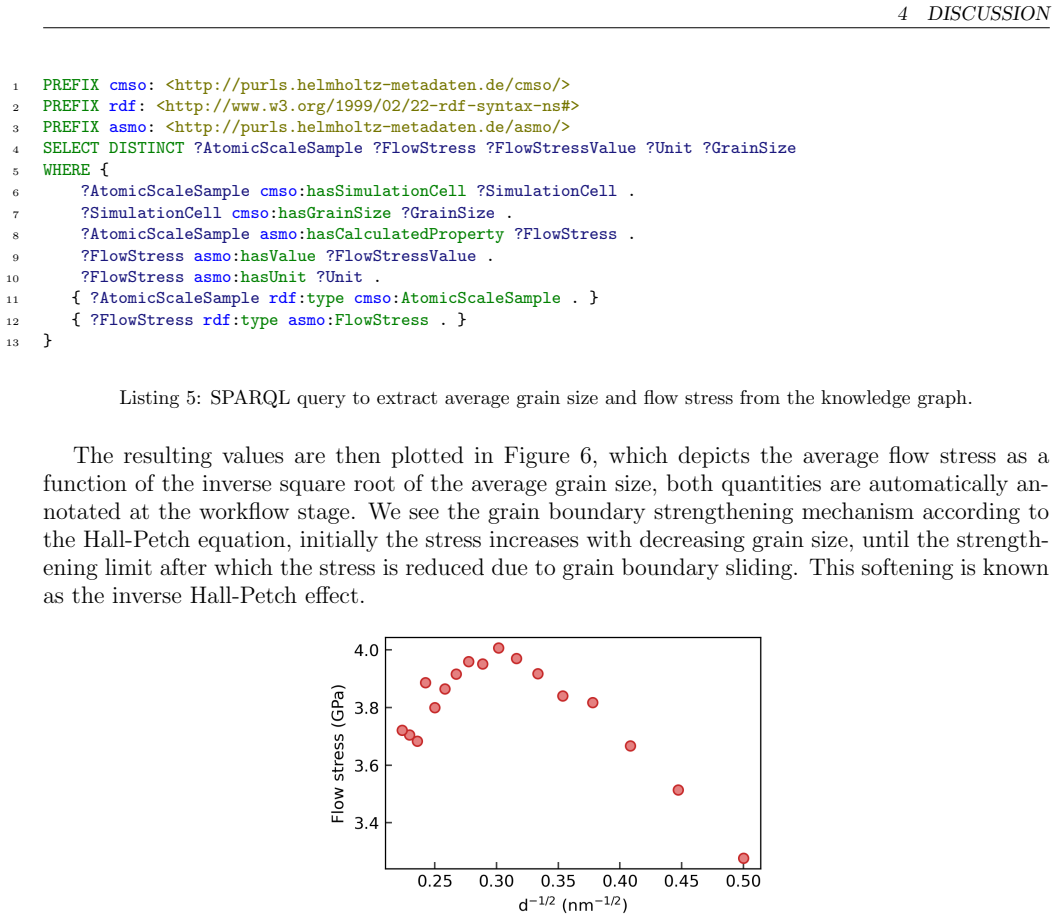

- The workflows validate structure-property relations such as the Hall-Petch effect.
- The same templates can be reused across different interatomic potentials and materials while preserving semantic consistency.
- The generated data sets are AI-ready and can support emerging agentic AI workflows.
- The approach supplies a generalizable blueprint for knowledge-based mechanical and thermodynamic simulations.
Where Pith is reading between the lines
- The semantic layer could be ported to other simulation domains such as electronic structure or multiscale modeling to achieve similar provenance gains.
- Adoption would lower the effort required for large-scale data aggregation across research groups working on the same class of materials.
- The ontology-annotated outputs could serve as training data for machine-learning models that predict simulation parameters rather than results alone.
Load-bearing premise
The chosen application ontologies supply enough coverage and precision to represent all relevant simulation metadata without needing major custom extensions or losing critical provenance details for the listed properties.
What would settle it
Executing one of the published workflows on a new material and interatomic potential and checking whether the output metadata file still contains every parameter and step required to reproduce a defect formation energy or nanoindentation result.
Figures

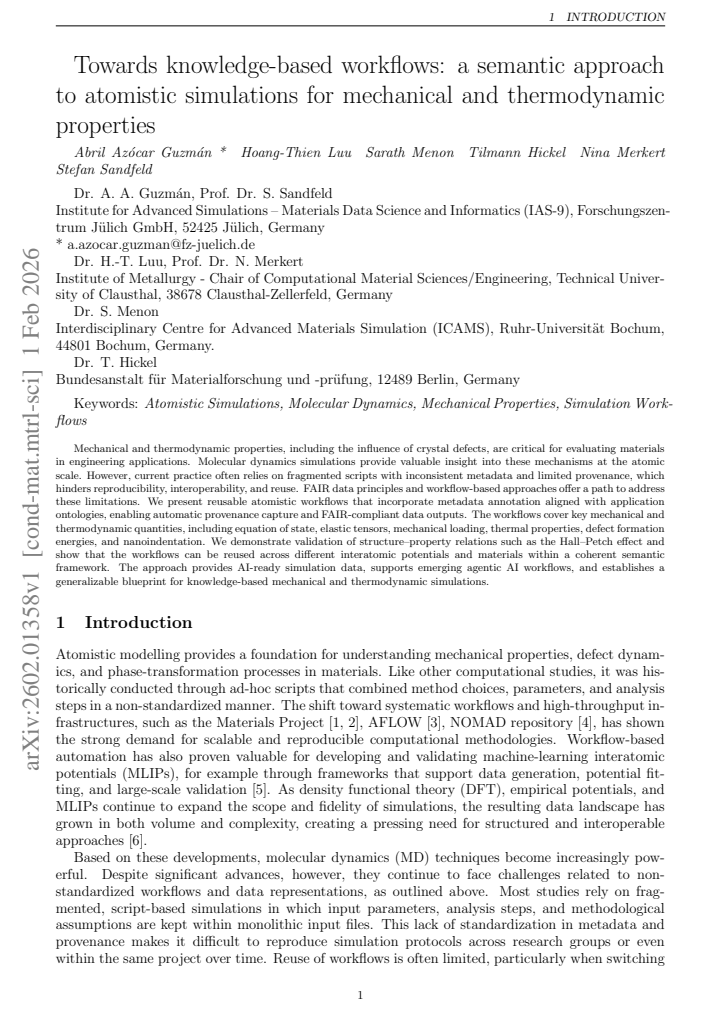

read the original abstract
Mechanical and thermodynamic properties, including the influence of crystal defects, are critical for evaluating materials in engineering applications. Molecular dynamics simulations provide valuable insight into these mechanisms at the atomic scale. However, current practice often relies on fragmented scripts with inconsistent metadata and limited provenance, which hinders reproducibility, interoperability, and reuse. FAIR data principles and workflow-based approaches offer a path to address these limitations. We present reusable atomistic workflows that incorporate metadata annotation aligned with application ontologies, enabling automatic provenance capture and FAIR-compliant data outputs. The workflows cover key mechanical and thermodynamic quantities, including equation of state, elastic tensors, mechanical loading, thermal properties, defect formation energies, and nanoindentation. We demonstrate validation of structure-property relations such as the Hall-Petch effect and show that the workflows can be reused across different interatomic potentials and materials within a coherent semantic framework. The approach provides AI-ready simulation data, supports emerging agentic AI workflows, and establishes a generalizable blueprint for knowledge-based mechanical and thermodynamic simulations.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents reusable atomistic workflows for molecular dynamics simulations that incorporate metadata annotation aligned with application ontologies. This setup enables automatic provenance capture and generates FAIR-compliant data outputs. The workflows address key mechanical and thermodynamic quantities including the equation of state, elastic tensors, mechanical loading, thermal properties, defect formation energies, and nanoindentation. Validation of structure-property relations such as the Hall-Petch effect is claimed, along with demonstration of reuse across different interatomic potentials and materials in a coherent semantic framework. The approach is positioned to provide AI-ready simulation data and support agentic AI workflows.
Significance. Should the ontology-based annotations prove comprehensive for all listed simulation types, the work offers a meaningful step toward knowledge-based workflows in materials modeling. It builds on standard MD techniques by adding semantic layers for better reproducibility and interoperability, which aligns with growing emphasis on FAIR principles in computational science. Explicit credit is due for attempting to create a generalizable blueprint that could facilitate data reuse and integration with AI systems.
major comments (2)
- Abstract: the claim that validation of structure-property relations such as the Hall-Petch effect was performed provides no quantitative metrics, error analysis, or details on post-processing or data exclusion. This is load-bearing for the central demonstration that the workflows are effective and reusable.
- Sections describing nanoindentation and defect workflows: the manuscript does not document how simulation-specific parameters (indenter tip geometry, loading protocol, thermostat settings, supercell boundary conditions) are represented in the chosen application ontologies or whether custom extensions were required. This directly affects the claim of sufficient coverage and precision for automatic provenance capture without loss of critical details.
minor comments (1)
- Abstract: a brief parenthetical mention of the specific application ontologies employed would help readers assess the claimed alignment without needing to consult external references.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed feedback, which has helped us identify areas where the manuscript can be strengthened for clarity and completeness. We address each major comment below and have revised the manuscript accordingly to improve the presentation of our results and methods.
read point-by-point responses
-
Referee: Abstract: the claim that validation of structure-property relations such as the Hall-Petch effect was performed provides no quantitative metrics, error analysis, or details on post-processing or data exclusion. This is load-bearing for the central demonstration that the workflows are effective and reusable.
Authors: We agree that the abstract, due to its brevity, does not include quantitative details on the Hall-Petch validation. The main text demonstrates this relation through comparative plots and tabulated results across grain sizes (Section 4), but we acknowledge that explicit metrics, error bars, and post-processing descriptions would better support the claim. In the revised manuscript we have updated the abstract to reference the key quantitative findings from the results section and added a new paragraph in the methods describing the post-processing steps, ensemble averaging, and data exclusion criteria used for the validation. revision: yes
-
Referee: Sections describing nanoindentation and defect workflows: the manuscript does not document how simulation-specific parameters (indenter tip geometry, loading protocol, thermostat settings, supercell boundary conditions) are represented in the chosen application ontologies or whether custom extensions were required. This directly affects the claim of sufficient coverage and precision for automatic provenance capture without loss of critical details.
Authors: We concur that explicit documentation of parameter-to-ontology mappings is necessary to substantiate the claim of comprehensive provenance capture. The original manuscript describes the general alignment with application ontologies but does not provide itemized mappings for the listed simulation-specific parameters. In the revised version we have added a new table and accompanying text that details the ontology terms used for each parameter (including indenter geometry and loading protocols), indicates where standard terms were sufficient, and notes the custom extensions introduced to preserve critical details such as thermostat settings and boundary conditions. revision: yes
Circularity Check
No circularity: workflows built on external ontologies and standard MD methods
full rationale
The paper describes the construction and reuse of atomistic workflows that annotate simulation outputs with metadata drawn from existing application ontologies. It demonstrates these workflows on standard quantities (equation of state, elastic tensors, defect energies, nanoindentation) and validates known relations such as the Hall-Petch effect. No physical predictions, fitted parameters, or first-principles derivations are claimed; the contribution is the semantic framework itself. Because the central claims rest on external ontologies and conventional molecular-dynamics techniques rather than on quantities defined or fitted by the authors' own prior results, the derivation chain contains no self-definitional, fitted-input, or self-citation-load-bearing steps. The manuscript is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Existing application ontologies can accurately annotate simulation metadata for mechanical and thermodynamic properties without loss of critical information.
- standard math Standard molecular-dynamics techniques for equation of state, elastic tensors, defect energies, and nanoindentation are already reliable and well-defined.
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
We present reusable atomistic workflows that incorporate metadata annotation aligned with application ontologies... equation of state, elastic tensors, mechanical loading, thermal properties, defect formation energies, and nanoindentation.
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.

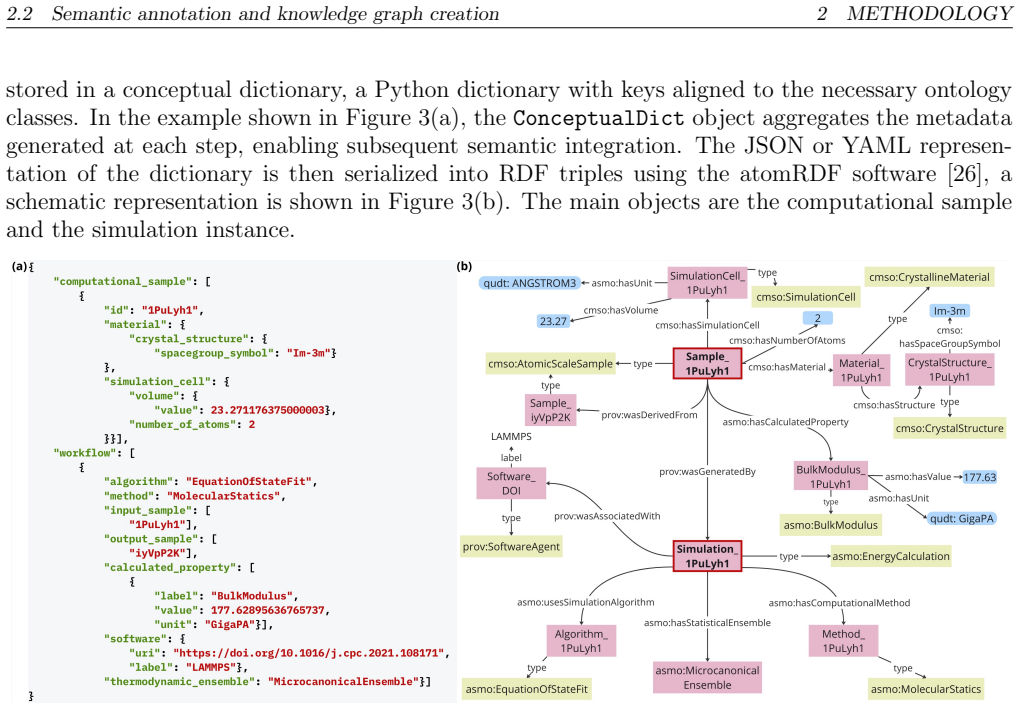

To describe the metadata... we use the Computational Materials Sample Ontology (CMSO) and the Atomistic Simulation Methods Ontology (ASMO)... PROV-O
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
A. Jain, S. P. Ong, G. Hautier, W. Chen, W. D. Richards, S. Dacek, S. Cholia, D. Gunter, D. Skinner, G. Ceder, K. a. Persson,APL Materials2013,1, 1 011002
-
[2]
M. K. Horton, P. Huck, R. X. Yang, J. M. Munro, S. Dwaraknath, A. M. Ganose, R. S. Kingsbury, M. Wen, J. X. Shen, T. S. Mathis, A. D. Kaplan, K. Berket, J. Riebesell, J. George, A. S. Rosen, E. W. C. Spotte-Smith, M. J. McDermott, O. A. Cohen, A. Dunn, M. C. Kuner, G.-M. Rignanese, G. Petretto, D. Waroquiers, S. M. Griffin, J. B. Neaton, D. C. Chrzan, M. ...
work page 2025
-
[3]
S. Curtarolo, W. Setyawan, G. L. Hart, M. Jahnatek, R. V. Chepulskii, R. H. Taylor, S. Wang, J. Xue, K. Yang, O. Levy, M. J. Mehl, H. T. Stokes, D. O. Demchenko, D. Morgan,Compu- tational Materials Science2012,58218
-
[4]
M. Scheidgen, L. Himanen, A. N. Ladines, D. Sikter, M. Nakhaee, A. Fekete, T. Chang, A. Gol- parvar, J. A. M´ arquez, S. Brockhauser, S. Br¨ uckner, L. M. Ghiringhelli, F. Dietrich, D. Lehm- berg, T. Denell, A. Albino, H. N¨ asstr¨ om, S. Shabih, F. Dobener, M. K¨ uhbach, R. Mozumder, J. F. Rudzinski, N. Daelman, J. M. Pizarro, M. Kuban, C. Salazar, P. On...
- [5]
-
[6]
L. Himanen, A. Geurts, A. S. Foster, P. Rinke,Advanced Science2019,6, 21 1900808
-
[7]
M. L. Evans, J. Bergsma, A. Merkys, C. W. Andersen, O. B. Andersson, D. Beltr´ an, E. Blokhin, T. M. Boland, R. Casta˜ neda Balderas, K. Choudhary, A. D´ ıaz D´ ıaz, R. Dom´ ınguez Garc´ ıa, H. Eckert, K. Eimre, M. E. Fuentes Montero, A. M. Krajewski, J. J. Mortensen, J. M. N´ apoles Duarte, J. Pietryga, J. Qi, F. d. J. Trejo Carrillo, A. Vaitkus, J. Yu, ...
-
[8]
M. Bonomi, G. Bussi, C. Camilloni, G. A. Tribello, P. Ban´ aˇ s, A. Barducci, M. Bernetti, P. G. Bolhuis, S. Bottaro, D. Branduardi, R. Capelli, P. Carloni, M. Ceriotti, A. Cesari, H. Chen, W. Chen, F. Colizzi, S. De, M. De La Pierre, D. Donadio, V. Drobot, B. Ensing, A. L. Fer- guson, M. Filizola, J. S. Fraser, H. Fu, P. Gasparotto, F. L. Gervasio, F. Gi...
-
[9]
M. D. Wilkinson, M. Dumontier, I. J. Aalbersberg, G. Appleton, M. Axton, A. Baak, N. Blomberg, J.-W. Boiten, L. B. da Silva Santos, P. E. Bourne, J. Bouwman, A. J. Brookes, T. Clark, M. Crosas, I. Dillo, O. Dumon, S. Edmunds, C. T. Evelo, R. Finkers, A. Gonzalez- Beltran, A. J. Gray, P. Groth, C. Goble, J. S. Grethe, J. Heringa, P. A. ’t Hoen, R. Hooft, T...
-
[10]
M. Scheffler, M. Aeschlimann, M. Albrecht, T. Bereau, H.-J. Bungartz, C. Felser, M. Greiner, A. Groß, C. T. Koch, K. Kremer, W. E. Nagel, M. Scheidgen, C. W¨ oll, C. Draxl,Nature2022, 604, 7907 635
-
[11]
L. M. Ghiringhelli, C. Baldauf, T. Bereau, S. Brockhauser, C. Carbogno, J. Chamanara, S. Cozzini, S. Curtarolo, C. Draxl, S. Dwaraknath, ´A. Fekete, J. Kermode, C. T. Koch, M. K¨ uhbach, A. N. Ladines, P. Lambrix, M.-O. Himmer, S. V. Levchenko, M. Oliveira, A. Michalchuk, R. E. Miller, B. Onat, P. Pavone, G. Pizzi, B. Regler, G.-M. Rignanese, J. Schaarsch...
-
[12]
B. Bayerlein, T. Hanke, T. Muth, J. Riedel, M. Schilling, C. Schweizer, B. Skrotzki, A. Todor, B. Moreno Torres, J. F. Unger, C. V¨ olker, J. Olbricht,Advanced Engineering Materials2022, 24, 6 2101176
-
[13]
B. Bayerlein, M. Schilling, P. von Hartrott, J. Waitelonis,Scientific Data2024,11, 1 434
- [14]
-
[15]
J. Janssen, S. Surendralal, Y. Lysogorskiy, M. Todorova, T. Hickel, R. Drautz, J. Neugebauer, Computational Materials Science2019,16324
-
[16]
A. S. Rosen, M. Gallant, J. George, J. Riebesell, H. Sahasrabuddhe, J.-X. Shen, M. Wen, M. L. Evans, G. Petretto, D. Waroquiers, G.-M. Rignanese, K. A. Persson, A. Jain, A. M. Ganose, Journal of Open Source Software2024,9, 93 5995
-
[17]
S. P. Huber, S. Zoupanos, M. Uhrin, L. Talirz, L. Kahle, R. H¨ auselmann, D. Gresch, T. M¨ uller, A. V. Yakutovich, C. W. Andersen, F. F. Ramirez, C. S. Adorf, F. Gargiulo, S. Kumbhar, E. Passaro, C. Johnston, A. Merkys, A. Cepellotti, N. Mounet, N. Marzari, B. Kozinsky, G. Pizzi,Scientific Data2020,7, 1 300
-
[18]
M. R. Crusoe, S. Abeln, A. Iosup, P. Amstutz, J. Chilton, N. Tijani´ c, H. M´ enager, S. Soiland- Reyes, B. Gavrilovi´ c, C. Goble, The CWL Community,Commun. ACM2022,65, 6 54
- [19]
-
[20]
w3.org/TR/rdf11-concepts/, W3C Recommendation
W3C RDF Working Group, Rdf 1.1 concepts and abstract syntax,2014, URLhttps://www. w3.org/TR/rdf11-concepts/, W3C Recommendation
work page 2014
-
[21]
W3C OWL Working Group, Owl 2 web ontology language document overview,2012, URL https://www.w3.org/TR/owl2-overview/, W3C Recommendation
work page 2012
-
[22]
C. Eberl, M. Niebel, E. Bitzek, T. Dahmen, F. Fritzen, P. Gumbsch, T. Hickel, S. Klein, F. M¨ ucklich, M. S. M¨ uller, J. Neugebauer, C. Pauly, M. Politze, H. Sack, S. Sandfeld, R. Schwaiger, P. Slusallek, R. Stotzka, A. Streit, M. Zimmermann, Consortium proposal nfdi-matwerk,2021, URLhttps://doi.org/10.5281/zenodo.5082837
-
[23]
A. A. Guzm´ an, S. Sandfeld, Computational Material Sample Ontology (CMSO),2024, URL https://doi.org/10.5281/zenodo.10805536
-
[24]
A. A. Guzm´ an, S. Sandfeld, Atomistic Simulation Methods Ontology (ASMO),2024, URL https://doi.org/10.5281/zenodo.10805591
-
[25]
org/TR/prov-o/, W3C Recommendation
W3C Provenance Working Group, Prov-o: The prov ontology,2013, URLhttps://www.w3. org/TR/prov-o/, W3C Recommendation
work page 2013
- [26]
-
[27]
Semantic workflows repository, URLhttps://github.com/pyscal/semantic-workflows
-
[28]
A. P. Thompson, H. M. Aktulga, R. Berger, D. S. Bolintineanu, W. M. Brown, P. S. Crozier, P. J. in ’t Veld, A. Kohlmeyer, S. G. Moore, T. D. Nguyen, R. Shan, M. J. Stevens, J. Tranchida, C. Trott, S. J. Plimpton,Comp. Phys. Comm.2022,271108171
work page 2022
-
[29]
Lammps unit systems,https://docs.lammps.org/units.html, LAMMPS Documentation, accessed 2025-02-15
work page 2025
- [30]
-
[31]
LAMMPS Developers, LAMMPS example: Elastic constant calculation, GitHub repository, 2025, URLhttps://github.com/lammps/lammps/tree/develop/examples/ELASTIC, Ac- cessed: 2025-02-17
work page 2025
-
[32]
Hirel,Computer Physics Communications2015,197212
P. Hirel,Computer Physics Communications2015,197212
-
[33]
M. P. Allen, D. J. Tildesley,Computer simulation of liquids, Oxford university press, Oxford, 2nd ed edition,2017
work page 2017
- [34]
- [35]
-
[36]
M. S. Daw, M. I. Baskes,Phys. Rev. B1984,296443
-
[37]
N. Gunkelmann, E. M. Bringa, K. Kang, G. J. Ackland, C. J. Ruestes, H. M. Urbassek,Phys. Rev. B2012,86, 14 144111
-
[38]
J. J. Adams, D. S. Agosta, R. G. Leisure, H. Ledbetter,Journal of Applied Physics2006,100, 11 113530
- [39]
-
[40]
M. W. Chase, C. A. Davies, J. R. Downey, D. J. Frurip, R. A. McDonald, A. N. Syverud,NIST- JANAF Thermochemical Tables, NIST Standard Reference Database 13. National Institute of Standards and Technology, version 1.0 edition,1985. 18 REFERENCES REFERENCES
work page 1985
-
[41]
Y. M. Kozlovskii, S. V. Stankus,J. Phys.: Conf. Ser.2019,1382, 1 012181
work page 2019
-
[42]
B. J. Jensen, I. Gray, G. T., R. S. Hixson,Journal of Applied Physics2009,105, 10 103502
-
[43]
Y. Lysogorskiy, A. Bochkarev, R. Drautz, Graph atomic cluster expansion for foundational machine learning interatomic potentials,2025, URLhttps://arxiv.org/abs/2508.17936
-
[44]
E. Hristova, R. Janisch, R. Drautz, A. Hartmaier,Computational Materials Science2011,50, 3 1088
-
[45]
Y. Sun, F. Zhang, M. I. Mendelev, R. M. Wentzcovitch, K.-M. Ho,Proceedings of the National Academy of Sciences2022,119, 2 e2113059119
-
[46]
S. Starikov, D. Smirnova, T. Pradhan, Y. Lysogorskiy, H. Chapman, M. Mrovec, R. Drautz, Phys. Rev. Mater.2021,5063607
work page 2021
- [47]
- [48]
-
[49]
L. Malerba, M. Marinica, N. Anento, C. Bj¨ orkas, H. Nguyen, C. Domain, F. Djurabekova, P. Olsson, K. Nordlund, A. Serra, D. Terentyev, F. Willaime, C. Becquart,Journal of Nuclear Materials2010,406, 1 19, fP6 IP PERFECT Project: Prediction of Irradiation Damage Effects in Reactor Components
-
[50]
P. A. Olsson,Computational Materials Science2009,47, 1 135
-
[51]
H. Chamati, N. Papanicolaou, Y. Mishin, D. Papaconstantopoulos,Surface Science2006,600, 9 1793
-
[52]
X. W. Zhou, R. A. Johnson, H. N. G. Wadley,Phys. Rev. B2004,69144113
-
[53]
M. I. Mendelev, S. Han, D. J. Srolovitz, G. J. Ackland, D. Y. Sun, M. Asta,Philosophical Magazine2003,83, 35 3977
-
[54]
Y. Lysogorskiy, C. v. d. Oord, A. Bochkarev, S. Menon, M. Rinaldi, T. Hammerschmidt, M. Mrovec, A. Thompson, G. Cs´ anyi, C. Ortner, R. Drautz,npj Computational Materials 2021,7, 1 97
work page 2021
-
[55]
B. Bienvenu, M. Todorova, J. Neugebauer, D. Raabe, M. Mrovec, Y. Lysogorskiy, R. Drautz, npj Computational Materials2025,11, 1 81
-
[56]
A.-C. N. Ngomo, L. B¨ uhmann, C. Unger, J. Lehmann, D. Gerber,Proceedings of the 22nd international conference on World Wide Web2013
- [57]
-
[58]
B. Jelinek, S. Groh, M. F. Horstemeyer, J. Houze, S. G. Kim, G. J. Wagner, A. Moitra, M. I. Baskes,Phys. Rev. B2012,85245102
- [59]
-
[60]
J. Janssen, J. George, J. Geiger, M. Bercx, X. Wang, C. Ertural, J. Schaarschmidt, A. M. Ganose, G. Pizzi, T. Hickel, J. Neugebauer,Digital Discovery2025,43149
-
[61]
Osamu Waseda, Semantikon, URLhttps://github.com/pyiron/semantikon, Accessed: 2025-02-14
work page 2025
-
[62]
J. N. Otte, J. Beverley, A. Ruttenberg,Applied Ontology2022,17, 1 17
-
[63]
T. Prudhomme, G. De Colle, A. Liebers, A. Sculley, P. K. Xie, S. Cohen, J. Beverley,Scientific Data2025,12, 1 282. 19 REFERENCES REFERENCES
-
[64]
Y. Zimmermann, A. Bazgir, A. Al-Feghali, M. Ansari, J. Bocarsly, L. C. Brinson, Y. Chiang, D. Circi, M.-H. Chiu, N. Daelman, M. L. Evans, A. S. Gangan, J. George, H. Harb, G. Khaligh- inejad, S. T. Khan, S. Klawohn, M. Lederbauer, S. Mahjoubi, B. Mohr, S. M. Moosavi, A. Naik, A. B. Ozhan, D. Plessers, A. Roy, F. Sch¨ oppach, P. Schwaller, C. Terboven, K. ...
-
[65]
J¨ ulich Supercomputing Centre,Journal of large-scale research facilities2021,7, A182. 20
