Unsupervised Chemo-Dynamical Dissection of the Inner Galactic Halo: Discovery of Five Accreted Substructures with SDSS-V and Gaia

Furkan Akbaba , Olcay Plevne This is my paper

Pith reviewed 2026-05-25 03:15 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords Galactic haloaccreted substructureschemo-dynamical analysisunsupervised clusteringMilky Way assemblyex-situ starsSDSS-VGaia
0
0 comments X

The pith

Unsupervised clustering on 12-dimensional chemo-dynamical data from SDSS-V and Gaia identifies five new tightly bound accreted substructures in the inner Galactic halo.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors apply UMAP dimensionality reduction and HDBSCAN clustering to a chemically selected sample of 2185 ex-situ stars without any kinematic pre-selection. Their blind search recovers nine groupings that match seven previously known substructures while also isolating five new candidates labeled FO1 through FO5. Four of the new groups appear as robust overdensities in both chemistry and dynamics, and one shows extreme nitrogen enhancement consistent with debris from a massive globular cluster. The work demonstrates that chemical dimensions break dynamical degeneracies that pure orbit-based methods cannot resolve in the crowded inner halo.

Core claim

A purely data-driven 12-dimensional chemo-dynamical analysis with UMAP and HDBSCAN on SDSS-V Milky Way Mapper DR19 and Gaia DR3 data recovers known substructures including Gaia-Enceladus/Sausage, the Helmi Streams, and Sequoia, and reports five new tightly bound candidate substructures FO1–FO5 with total energy ≤ −1.8 × 10^5 km² s^{-2}. Four candidates are confirmed as robust chemo-dynamical overdensities; FO2 exhibits [N/Fe] = +0.83 ± 0.16 suggestive of tidal debris from a disrupted massive globular cluster. High-dimensional chemical information differentiates structures that share similar orbits but distinct chemistry.

What carries the argument

UMAP+HDBSCAN unsupervised clustering pipeline applied to a chemically selected ex-situ sample in 12-dimensional chemo-dynamical feature space.

If this is right

  • High-dimensional chemical information resolves dynamical degeneracies between structures that share similar orbits.
  • The method recovers known substructures without kinematic pre-selection, confirming that the feature space preserves assembly history signals.
  • FO2's nitrogen enhancement points to tidal debris from a disrupted massive globular cluster.
  • The inner halo retains a record of multiple early accretion events in tightly bound orbits.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending the same blind clustering to larger spectroscopic samples could map additional low-energy substructures below current detection thresholds.
  • The separation of FO5 from Shiva and FO3 from the Helmi Streams illustrates that chemistry can split populations previously treated as single dynamical entities.
  • Nitrogen-rich candidates like FO2 may trace a distinct channel of globular-cluster formation inside accreted dwarf galaxies.

Load-bearing premise

The clusters found by the algorithm correspond to physically distinct accreted stellar populations rather than artifacts of the chosen hyperparameters or leftover contamination in the chemical selection.

What would settle it

Follow-up high-resolution spectroscopy that measures consistent chemical abundance patterns and orbital parameters for the FO1–FO5 candidate members distinct from the surrounding halo field stars.

Figures

Figures reproduced from arXiv: 2605.23801 by Furkan Akbaba, Olcay Plevne.

Figure 1
Figure 1. Figure 1: Distribution of the four PCA+KMeans populations in the [Al/Fe]–[Mg/Mn] chemical diagnostic plane. Each panel corresponds to one of the four recovered PCA+KMeans clusters. The dashed curve indicates the em￾pirical accreted/in-situ chemical boundary proposed by S. Alinder et al. (2025). Cluster 2 (purple) lies predominantly within the chemically accreted region above the boundary, confirming its ex-situ natu… view at source ↗
Figure 3
Figure 3. Figure 3: Distribution of the four PCA+KMeans popula￾tions in the [Mg/Fe]–[Fe/H] plane. The colour coding corre￾sponds to the four chemically distinct populations identified through the PCA+KMeans analysis. Solid line is taken from J. T. Mackereth et al. (2019) and dashed line is taken from F. Akbaba et al. (2026). sis, all chemical dimensions were standardised to zero mean and unit variance using a StandardScaler. … view at source ↗
Figure 4

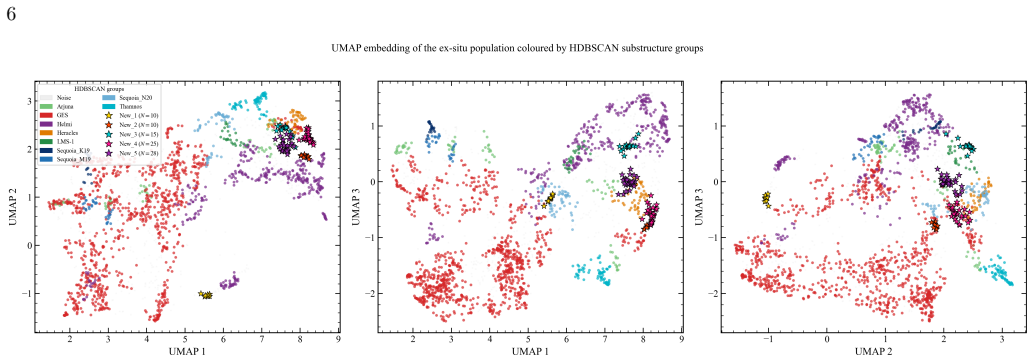

Figure 4. Figure 4: Three pair-wise projections of the three-dimensional UMAP embedding constructed from the 12-dimensional chemo-dynamical feature space of the ex-situ sample (N = 2185). The adopted feature space consists of six chemical dimensions ([Fe/H], [Mg/Fe], [Al/Fe], [Mn/Fe], [Ni/Fe], [Si/Fe]) and six dynamical dimensions (Etot, Lz, e, Zmax, JR, and Jz). Points are colour-coded according to their HDBSCAN cluster assi… view at source ↗
Figure 5

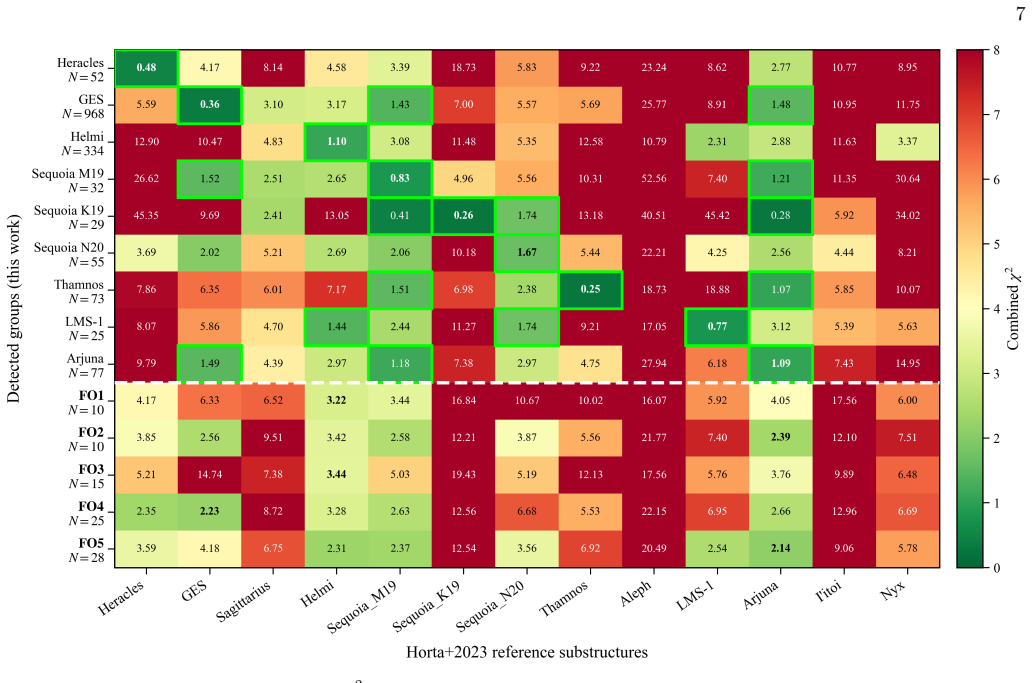

Figure 5. Figure 5: Combined chemo-dynamical χ 2 similarity matrix between the HDBSCAN groups identified in this work and the literature substructures compiled by D. Horta et al. (2023). Rows correspond to the recovered groups and columns to the reference structures. The combined metric represents the average of the chemical and dynamical χ 2 distances. Lower values indicate stronger similarity. Groups below the dashed line c… view at source ↗
Figure 6
Figure 6. Figure 6: Multi-dimensional overview of the recovered literature substructures. From left to right: [Mg/Mn]–[Al/Fe] plane, Etot–Lz plane, eccentricity–Rapo plane, √ JR–Lz action space, action diamond (Lz/Jtot versus (Jz − JR)/Jtot), and the VR–VZ velocity plane. Grey points indicate the full ex-situ sample, while coloured symbols represent the recovered literature structures. eccentricities (e = 0.48 ± 0.15) and rel… view at source ↗
Figure 7

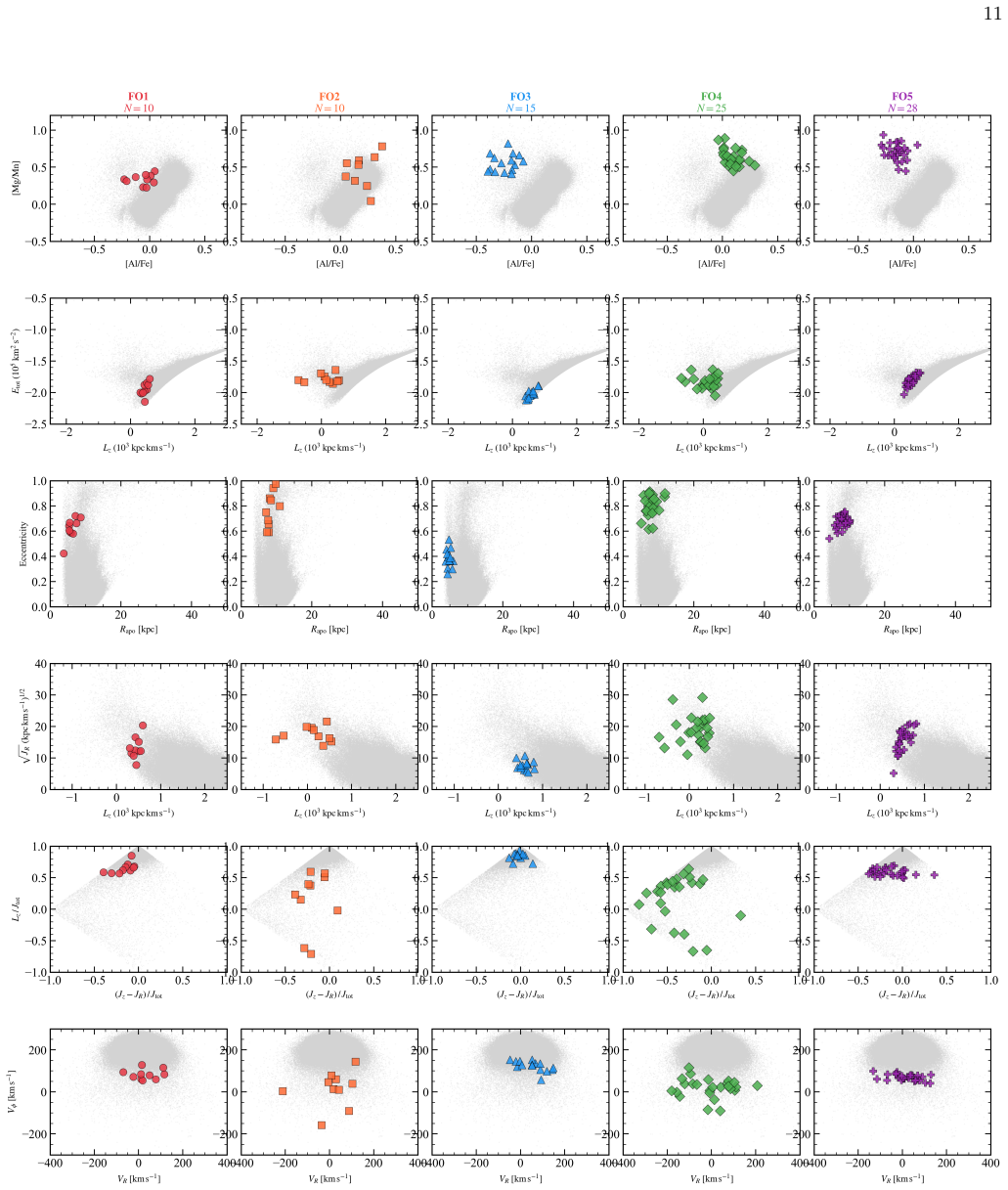

Figure 7. Figure 7: Multi-dimensional overview of the five newly identified candidate structures FO1–FO5. Columns correspond to indi￾vidual FO groups, while rows show different chemo-dynamical diagnostic spaces: [Mg/Mn]–[Al/Fe], Etot–Lz, eccentricity–Rapo, √ JR–Lz, action diamond, and VR–VZ . Grey points indicate the full ex-situ population for reference [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

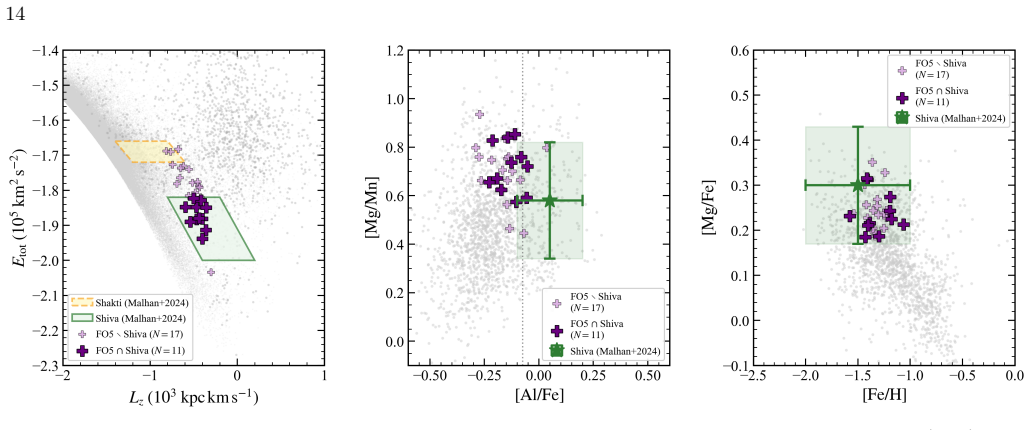

Figure 8. Figure 8: Comparison between FO5 and the Shiva and Shakti structures proposed by K. Malhan & H.-W. Rix (2024). Left: distribution in the Etot–Lz plane showing the Shiva (green polygon) and Shakti (orange polygon) selection regions. Dark purple symbols indicate FO5 members located inside the Shiva region (N = 11), while light purple symbols correspond to FO5 stars outside the Shiva selection (N = 17). Centre: [Mg/Mn]… view at source ↗
read the original abstract

The inner Galactic halo is a complex graveyard of the Milky Way's earliest accretion events, where severe orbital phase-mixing challenges traditional dynamical stream-finding techniques. We present a purely data-driven, 12-dimensional chemo-dynamical analysis of the inner halo using \textsl{SDSS-V Milky Way Mapper} (DR19) and \textsl{Gaia} DR3. Utilizing an unsupervised machine learning framework based on UMAP and HDBSCAN, we perform a blind search for clustered populations within a chemically selected \textit{ex-situ} sample of 2,185 stars without kinematic pre-selection. Our pipeline recovers nine kinematic groupings corresponding to seven known substructures (including \textsl{Gaia}-Enceladus/Sausage, the Helmi Streams, and Sequoia), validating the robustness of the high-dimensional feature space. We also report five new tightly bound candidate substructures, designated FO1--FO5 ($E_{\rm tot} \leq -1.8 \times 10^5~\mathrm{km^2~s^{-2}}$). Four candidates (FO1, FO3, FO4, FO5) are confirmed as robust chemo-dynamical overdensities, while FO2 exhibits a striking nitrogen enhancement ($[\mathrm{N/Fe}] = +0.83 \pm 0.16$) suggestive of tidal debris from a disrupted massive globular cluster. Finally, we demonstrate that high-dimensional chemical information is critical for resolving dynamical degeneracies in the crowded inner halo, differentiating structures sharing similar orbits but distinct chemistry (e.g., FO5 and Shiva), and the reverse (e.g., FO3 and the Helmi Streams). These findings confirm that the deepest regions of the Galactic potential preserve a rich record of the Galaxy's assembly history.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper applies an unsupervised UMAP+HDBSCAN pipeline in a 12D chemo-dynamical space to a chemically selected ex-situ sample of 2185 stars from SDSS-V DR19 and Gaia DR3. It recovers nine groupings corresponding to seven known inner-halo substructures (Gaia-Enceladus/Sausage, Helmi Streams, Sequoia, etc.) and reports five new tightly bound candidates (FO1–FO5 with E_tot ≤ −1.8 × 10^5 km² s^{-2}), claiming four are robust chemo-dynamical overdensities and that FO2 shows extreme nitrogen enhancement ([N/Fe] = +0.83 ± 0.16). The work emphasizes that high-dimensional chemistry resolves orbital degeneracies.

Significance. If the new candidates survive rigorous stability tests, the result would add concrete building blocks to the inner-halo accretion inventory and strengthen the case that chemical dimensions are required to break dynamical degeneracies in phase-mixed regions. The recovery of multiple known structures already provides a useful internal validation of the 12D feature space.

major comments (3)
  1. [Methods] Methods section: No quantitative stability analysis (hyperparameter grid search, bootstrap resampling, or mock-data injection) is reported for the UMAP (n_neighbors, min_dist) and HDBSCAN (min_cluster_size, min_samples) choices that produced FO1–FO5. Because the central claim rests on these five new overdensities being physically distinct rather than clustering artifacts, the absence of such tests is load-bearing.
  2. [Results] Results (FO1–FO5 subsection): The statement that FO1, FO3, FO4, FO5 are “confirmed as robust” is given without the explicit robustness metrics, survival fractions across hyperparameter variations, or contamination-injection tests that would substantiate the claim.
  3. [Sample selection] Chemical-selection paragraph: The ex-situ cut and its estimated residual in-situ contamination fraction (especially for metal-poor stars) are not quantified with error budgets or selection-function modeling, leaving open the possibility that contamination contributes to the reported overdensities.
minor comments (2)
  1. [Figure 3] Figure captions and text should explicitly state the adopted UMAP random seed and the precise HDBSCAN parameters used for the final clustering run.
  2. [Abstract] The energy unit in the abstract and §4 is written km² s^{-2}; consistency with standard Galactic-dynamics notation (km² s^{-2}) should be checked throughout.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive and detailed comments, which have helped us improve the methodological transparency and quantitative support for our claims. We address each major comment point by point below.

read point-by-point responses

  1. Referee: [Methods] Methods section: No quantitative stability analysis (hyperparameter grid search, bootstrap resampling, or mock-data injection) is reported for the UMAP (n_neighbors, min_dist) and HDBSCAN (min_cluster_size, min_samples) choices that produced FO1–FO5. Because the central claim rests on these five new overdensities being physically distinct rather than clustering artifacts, the absence of such tests is load-bearing.

    Authors: We agree that the absence of reported quantitative stability tests represents a genuine gap, as the identification of FO1–FO5 is central to the paper. In the revised manuscript we have added a new Methods subsection that presents a hyperparameter grid search over UMAP and HDBSCAN parameters, bootstrap resampling of the stellar catalog, and mock-data injection tests. These analyses are used to evaluate cluster stability and will be shown in new figures and tables. revision: yes

  2. Referee: [Results] Results (FO1–FO5 subsection): The statement that FO1, FO3, FO4, FO5 are “confirmed as robust” is given without the explicit robustness metrics, survival fractions across hyperparameter variations, or contamination-injection tests that would substantiate the claim.

    Authors: We accept that the original wording lacked supporting quantitative metrics. The revised Results section now explicitly references the survival fractions, hyperparameter stability ranges, and mock-injection outcomes from the new Methods analyses, replacing the unqualified statement of confirmation with data-driven language. revision: yes

  3. Referee: [Sample selection] Chemical-selection paragraph: The ex-situ cut and its estimated residual in-situ contamination fraction (especially for metal-poor stars) are not quantified with error budgets or selection-function modeling, leaving open the possibility that contamination contributes to the reported overdensities.

    Authors: We agree that a quantified contamination estimate with error budget and selection-function modeling was missing. The revised sample-selection section now includes these elements, derived from a control-sample comparison and modeled selection function, together with a brief discussion of how residual contamination could affect the reported overdensities. revision: yes

Circularity Check

0 steps flagged

No significant circularity; analysis is data-driven clustering on public observations.

full rationale

The paper applies UMAP+HDBSCAN to a 12D chemo-dynamical feature space drawn from SDSS-V and Gaia observations of 2185 stars pre-selected by chemistry as ex-situ. It recovers known substructures and reports new candidates based on observed overdensities in the data. No equations, fitted parameters, or derivations are present that reduce the reported clusters to inputs by construction. No self-citation chains or uniqueness theorems are invoked as load-bearing for the central claim. The pipeline is self-contained against external benchmarks (recovery of Gaia-Enceladus, Helmi Streams, etc.) and does not rely on any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim depends on the chemical pre-selection successfully isolating ex-situ stars and on the clustering algorithm returning physically meaningful groups; both steps introduce modeling choices whose impact is not quantified in the abstract.

free parameters (1)
  • UMAP and HDBSCAN hyperparameters
    Embedding dimension, n_neighbors, min_cluster_size and related tuning parameters control which overdensities are reported as substructures.
axioms (1)
  • domain assumption Chemically selected sample consists of ex-situ stars with negligible in-situ contamination
    The pipeline begins with a chemically selected ex-situ sample of 2185 stars without kinematic pre-selection.

pith-pipeline@v0.9.0 · 5874 in / 1371 out tokens · 34032 ms · 2026-05-25T03:15:59.325745+00:00 · methodology
